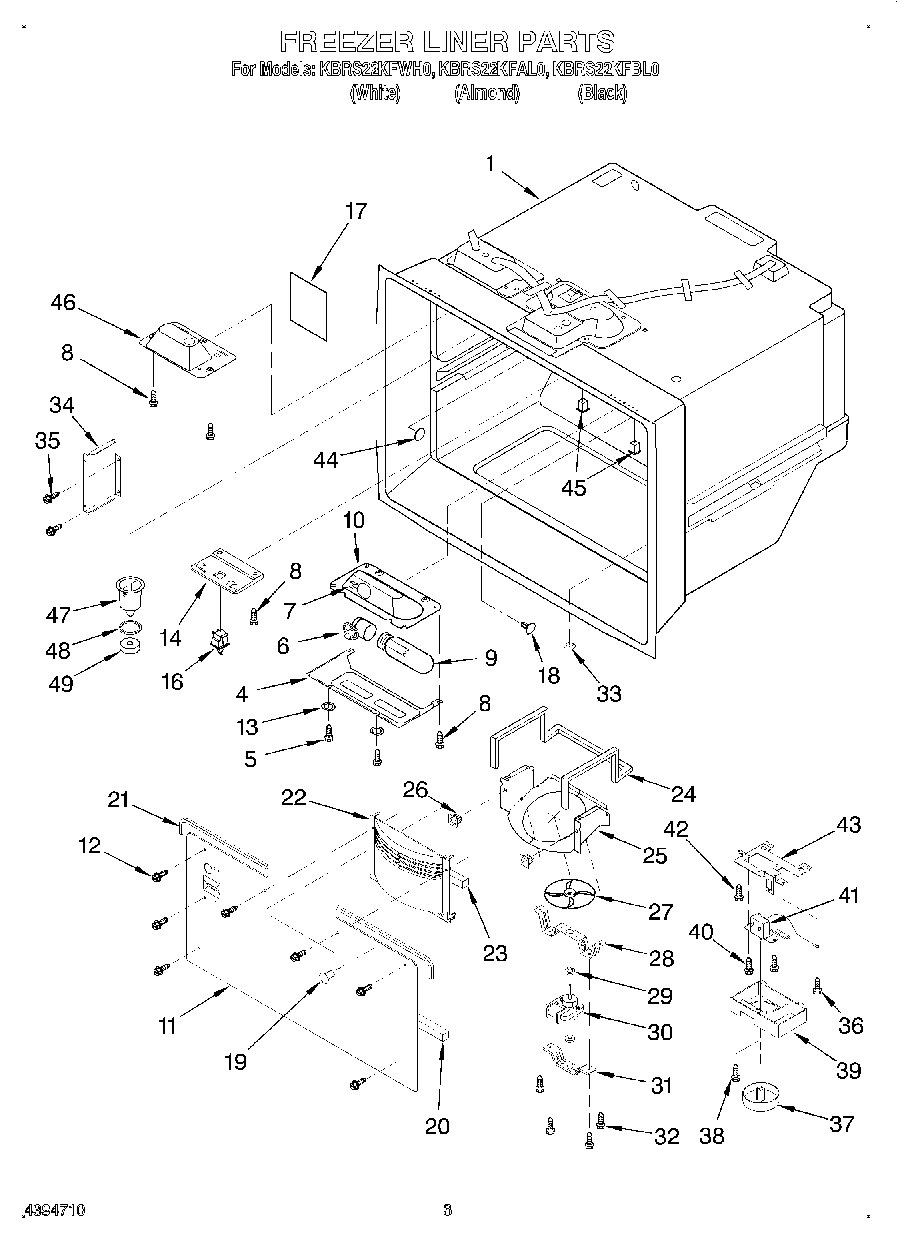

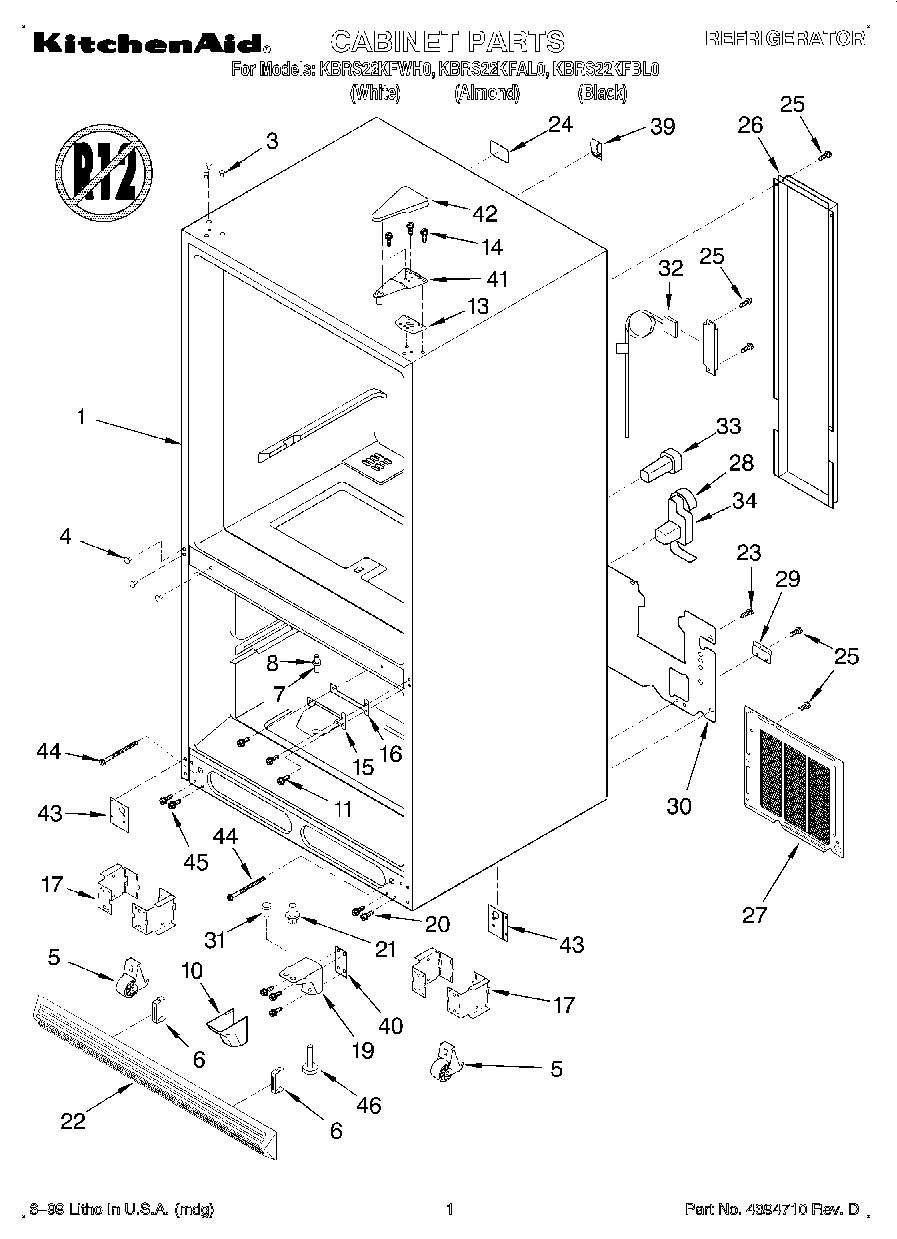

Model Whirlpool KBRS22KFBL0 BOTTOM MOUNT REFRIGERATOR – Common Parts &amp; Diagrams

350930 Whirlpool White Spray Paint In Stock WPL 350930 $12.50

350942 Whirlpool Spray Paint Backorder WPL 350942 $32.57

350956 Whirlpool Spray Assembly In Stock WPL 350956 $19.22

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $3.35

72032 Whirlpool Touch Up Paint Black In Stock WPL 72032 $5.60

799344 Whirlpool Refrigerator Paint Backorder WPL 799344 $93.22

WP72107 Whirlpool Touchup In Stock WPL WP72107 $5.80

Torx Key WPL 1117510 Contact Us For Availability

WPL 799340 WPL 799340 Contact Us For Availability

WPL 978883 WPL 978883 Contact Us For Availability

WPL LIT4344137 WPL LIT4344137 Contact Us For Availability

WPL LIT4344141 WPL LIT4344141 Contact Us For Availability

1

12992301 Whirlpool Refrigerator Screw Backorder WPL 12992301 $13.89

1

Liner (Not A Serviceable Part) WPL ARI80028A8 Contact Us For Availability

1

Freezer Door Panel (Includes Insulation) (Bla WPL 4344347 Contact Us For Availability

1

Freezer Door Panel (Includes Insulation) (Alm WPL 4344348 Contact Us For Availability

1

Freezer Door Panel (Includes Insulation) (Whi WPL 4344349 Contact Us For Availability

1

Refrigerator Door Panel (Includes Insulation) WPL 4344330 Contact Us For Availability

1

Refrigerator Door Panel (Includes Insulation) WPL 4344331 Contact Us For Availability

1

Refrigerator Door Panel (Includes Insulation) WPL 4344332 Contact Us For Availability

1

Support, Crisper WPL 4344249 Contact Us For Availability

1

Liner (Not A Serviceable Part) WPL ARI80029A1 Contact Us For Availability

2

Handle WPL 4344359 Contact Us For Availability

2

Fan, Blade WPL 4344271 Contact Us For Availability

2

Interior Panel WPL 4344371 Contact Us For Availability

2

Support, Crisper WPL 4344248 Contact Us For Availability

2

Housing, Frz. Light WPL 4343927 Contact Us For Availability

3

Cover, Light Switch WPL 4343928 Contact Us For Availability

3

Plug, Button (Black) WPL 4344157 Contact Us For Availability

3

Plug, Button (Almond) WPL 4344158 Contact Us For Availability

3

Plug, Button (White) WPL 4344159 Contact Us For Availability

3

Condenser & Pan Assembly WPL 4344270 Contact Us For Availability

3

Door, Compartment WPL 4344369 Contact Us For Availability

3

Ice Bucket WPL 4344317 Contact Us For Availability

4

W11384469 Whirlpool Door Switch In Stock WPL W11384469 $12.68

4

Light Lens WPL 4344205 Contact Us For Availability

4

Trim, Comp. Door WPL 4344370 Contact Us For Availability

4

Shelf, Frz. Wire WPL 4344247 Contact Us For Availability

5

WP489399 Whirlpool Refrigerator Screw In Stock WPL WP489399 $2.51

5

Clip, Ground WPL 4343682 Contact Us For Availability

5

Interior Panel WPL 4344355 Contact Us For Availability

5

Screw WPL 4333151 Contact Us For Availability

5

Basket, Freezer WPL 4344237 Contact Us For Availability

6

Light Socket WPL 4344318 Contact Us For Availability

6

Screw WPL 4344167 Contact Us For Availability

6

Screw WPL 4343860 Contact Us For Availability

6

Trim, Shelf WPL 4344357 Contact Us For Availability

6

Shelf Bin (1) WPL 4344372 Contact Us For Availability

6

Washer WPL 4344242 Contact Us For Availability

7

4386917 Whirlpool Endcap Kit In Stock WPL 4386917 $6.84

7

Heat Shield WPL 4344217 Contact Us For Availability

7

End Cap (White) WPL 4344589 Contact Us For Availability

7

End Cap (Almond) WPL 4344590 Contact Us For Availability

7

End Cap (Black) WPL 4344591 Contact Us For Availability

7

Track, Shelf WPL 4344244 Contact Us For Availability

8

WP12550101Q Whirlpool Refrigerator Gasket Backorder WPL WP12550101Q $101.29

8

WP12550115Q Whirlpool Door Gasket In Stock WPL WP12550115Q $89.67

8

WP12550116Q Whirlpool Refrigerator Gasket In Stock WPL WP12550116Q $80.09

8

Drain Pan WPL 4344276 Contact Us For Availability

8

Door Gasket, Magnetic (Black) WPL 4344338 Contact Us For Availability

8

Shelf Assy, R/O WPL 4344245 Contact Us For Availability

9

Divider, Door Shelf WPL 4344300 Contact Us For Availability

9

Door Handle WPL 4344329 Contact Us For Availability

9

Meat Pan WPL 4344307 Contact Us For Availability

876370 Whirlpool Refrigerator Insulation Backorder WPL 876370 $96.00

WP10428409 Whirlpool Refrigerator Evaporator Backorder WPL WP10428409 $70.08

Housing, Frz. Light WPL 4344319 Contact Us For Availability

Washer (4) WPL 4344211 Contact Us For Availability

Shelf, Meat Pan WPL 4344381 Contact Us For Availability

Screw (8) WPL 4344206 Contact Us For Availability

Cover, Evaporator WPL 4344213 Contact Us For Availability

Cover WPL 4343852 Contact Us For Availability

Insert, Handle (White) WPL 4344343 Contact Us For Availability

Insert, Handle (Almond) WPL 4344344 Contact Us For Availability

Insert, Handle (Black) WPL 4344345 Contact Us For Availability

W10136387A Whirlpool Refrigerator Egg Contain In Stock WPL W10136387A $5.98

WP4344040 Whirlpool Refrigerator Overload Backorder WPL WP4344040 $47.47

Screw WPL 4344215 Contact Us For Availability

Shelf Bin (3) WPL 4344365 Contact Us For Availability

Shelf, S/G WPL 4344313 Contact Us For Availability

Grommet WPL 4344321 Contact Us For Availability

Gasket WPL 4344275 Contact Us For Availability

Insert, Handle WPL 4344356 Contact Us For Availability

Rack, Wine WPL 4344294 Contact Us For Availability

WP10442411 Whirlpool Bimetal Defrost Thermost In Stock WPL WP10442411 $13.16

Eyelet, Roller WPL 2174478 Contact Us For Availability

Trivet, Door WPL 4344373 Contact Us For Availability

Screw WPL 4344309 Contact Us For Availability

WP10972101 Whirlpool Refrigerator Spacer Backorder WPL WP10972101 $4.65

WPW10189190 Whirlpool Start Device In Stock WPL WPW10189190 $64.45

Screw WPL 4343653 Contact Us For Availability

Control, Damper WPL 4344182 Contact Us For Availability

16

WP67006908 Whirlpool Refrigerator Screw In Stock WPL WP67006908 $2.51

16

Bracket, Timer WPL 4344278 Contact Us For Availability

16

Insulation, Damper WPL 4344184 Contact Us For Availability

WP67004977 Whirlpool Refrigerator Door Hinge Backorder WPL WP67004977 $3.70

Cover, Plug WPL 4344166 Contact Us For Availability

Stop, Door WPL 4344334 Contact Us For Availability

Bushing (Black) WPL 4343944 Contact Us For Availability

Capacitor WPL 4343851 Contact Us For Availability

Pan, Crisper WPL 4344366 Contact Us For Availability

Shield, Light WPL 4344181 Contact Us For Availability

WP2172748 Whirlpool Drawer Support Backorder WPL WP2172748 $50.82

WP2189000 Whirlpool Refrigerator Handle Plug Backorder WPL WP2189000 $3.70

WP2189009 Whirlpool Refrigerator Handle Plug Backorder WPL WP2189009 $3.51

Plug, Button (Almond) WPL 4344207 Contact Us For Availability

Shield, Capacitor WPL 4344277 Contact Us For Availability

Socket, Dual WPL 4344325 Contact Us For Availability

Plug, Button WPL 4344228 Contact Us For Availability

Screw WPL 4343811 Contact Us For Availability

Clip, Wire WPL 4343969 Contact Us For Availability

Gasket WPL 4344256 Contact Us For Availability

Gasket WPL 4344185 Contact Us For Availability

W11679940 Whirlpool Refrigerator Light Bulb A In Stock WPL W11679940 $2.75

WP67006715 Whirlpool Refrigerator Screw Backorder WPL WP67006715 $3.70

Gasket, Bottom WPL 4344216 Contact Us For Availability

Support Pin WPL 4344199 Contact Us For Availability

Drain Pan WPL 4344221 Contact Us For Availability

Shim WPL ARI80030A5 Contact Us For Availability

Cover, Pan WPL 4344368 Contact Us For Availability

67007018 Whirlpool Refrigerator Bottom Hinge Backorder WPL 67007018 $3.70

WPW10348409 Whirlpool Screw In Stock WPL WPW10348409 $2.51

Gasket, Top (2) WPL 4343886 Contact Us For Availability

Glass, Crisper Cover WPL 4344367 Contact Us For Availability

Light Lens, Top WPL 4343726 Contact Us For Availability

WP98165 Whirlpool Screw Backorder WPL WP98165 $2.51

Grille (Black) WPL 4344152 Contact Us For Availability

Grille (Almond) WPL 4344153 Contact Us For Availability

Grille (White) WPL 4344154 Contact Us For Availability

Cover, Fan Shroud WPL 4344220 Contact Us For Availability

Evaporator WPL 4344233 Contact Us For Availability

Ladder, Center WPL 4344322 Contact Us For Availability

Screw WPL 4344267 Contact Us For Availability

Gasket WPL 4344212 Contact Us For Availability

Bushing (Black) WPL 4344361 Contact Us For Availability

Bushing (White) WPL 4344362 Contact Us For Availability

Ladder, Side WPL 4344323 Contact Us For Availability

Gasket, Damper WPL 4343681 Contact Us For Availability

67006425 Whirlpool Refrigerator Screw In Stock WPL 67006425 $2.51

833697 Whirlpool Condenser Fan Motor In Stock WPL 833697 $41.18

Plug, I/M WPL 4344264 Contact Us For Availability

Gasket WPL 4344230 Contact Us For Availability

Plug, Button (White) WPL 4344227 Contact Us For Availability

Plug, Button (Almond) WPL 4344363 Contact Us For Availability

Plug, Button (Black) WPL 4344364 Contact Us For Availability

Insert WPL 4343650 Contact Us For Availability

W11673433 Whirlpool Clip Backorder WPL W11673433 $59.77

Screw WPL 4343759 Contact Us For Availability

Evap. Fan Shroud WPL 4344229 Contact Us For Availability

Nameplate (White) WPL 4344326 Contact Us For Availability

Nameplate (Almond) WPL 4344327 Contact Us For Availability

Nameplate (Black) WPL 4344328 Contact Us For Availability

Screw WPL 4344324 Contact Us For Availability

Cover, Control WPL 4344183 Contact Us For Availability

Wire Cover WPL 4344257 Contact Us For Availability

Grommet, Screw WPL 4343657 Contact Us For Availability

Roller WPL 2174388 Contact Us For Availability

Knob, Control WPL 4344180 Contact Us For Availability

R0000199 Whirlpool Refrigerator Evaporator Fa Backorder WPL R0000199 $67.59

W10843121 Whirlpool Refrigerator Tube In Stock WPL W10843121 $23.50

WP489261 Whirlpool Refrigerator Screw Backorder WPL WP489261 $2.51

Back Cover WPL 4344261 Contact Us For Availability

W10309990 Whirlpool Refrigerator Compressor In Stock WPL W10309990 $341.23

WPW10272364 Whirlpool Refrigerator Screw In Stock WPL WPW10272364 $4.56

Harness, Control WPL 4344258 Contact Us For Availability

Bracket, Motor WPL 4343935 Contact Us For Availability

Butter Dish WPL 4344296 Contact Us For Availability

Insulation, Plug WPL 4343240 Contact Us For Availability

W10833899 Whirlpool Refrigerator Water Inlet In Stock WPL W10833899 $140.35

WP2264462 Whirlpool Refrigerator Grommet In Stock WPL WP2264462 $16.25

Holder, Beverage WPL 4344374 Contact Us For Availability

Rack, Ice Tray WPL 4344168 Contact Us For Availability

Plug, Button WPL 4344241 Contact Us For Availability

212643 Whirlpool Refrigerator Permagum Sealer In Stock WPL 212643 $27.18

511873 Whirlpool Refrigerator Paint Backorder WPL 511873 $19.22

606755 Whirlpool Refrigerator Bag Backorder WPL 606755 $26.21

833938 Whirlpool Refrigerator Terminal Backorder WPL 833938 $3.70

WP10513803 Whirlpool Refrigerator Evaporator In Stock WPL WP10513803 $88.65

WP503695 Whirlpool Refrigerator Sealer Backorder WPL WP503695 $39.18

WP505587 Whirlpool Refrigerator Sealer Backorder WPL WP505587 $57.83

WP542638 Whirlpool Refrigerator Grease In Stock WPL WP542638 $22.07

WP841180A Whirlpool Microwave Glass Turntable In Stock WPL WP841180A $3.92

KIT, FOAM SLAB (30`` X 32 1/2`` X 1 1/2``) WPL 876029 Contact Us For Availability

TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability

Cover, Unit WPL 4344262 Contact Us For Availability

Washer WPL 4344282 Contact Us For Availability

Ice Container Assembly WPL 4343700 Contact Us For Availability

CEMENT, ALUMILASTIC (1 1/4 OZ.) WPL 542639 Contact Us For Availability

KIT, EVAPORATOR REPAIR (ALUMINUM EPOXY) WPL 799833 Contact Us For Availability

31

Plug, Button WPL 4344210 Contact Us For Availability

31

Bracket WPL 4343937 Contact Us For Availability

31

Shroud WPL 4344269 Contact Us For Availability

32

Power Cord WPL 4344263 Contact Us For Availability

32

Bracket, Fan Motor WPL 4344272 Contact Us For Availability

33

Grommet WPL 4344259 Contact Us For Availability

33

Screw WPL 4344281 Contact Us For Availability

34

PLug WPL 4344260 Contact Us For Availability

34

Duct, Return Air WPL 4344222 Contact Us For Availability

34

Clip, Drier WPL 4343763 Contact Us For Availability

35

Cover, Timer WPL 4344279 Contact Us For Availability

36

Block, Evaporator WPL 4344234 Contact Us For Availability

37

Knob, Control WPL 4344214 Contact Us For Availability

37

Screw WPL 4344151 Contact Us For Availability

38

R0131577 Whirlpool Defrost Timer In Stock WPL R0131577 $34.59

38

Screw WPL 4344224 Contact Us For Availability

39

WPM0104106 Whirlpool Refrigerator Clip Backorder WPL WPM0104106 $2.51

39

Cover, Frz. Control WPL 4344226 Contact Us For Availability

39

Grommet (4) WPL 4343845 Contact Us For Availability

40

Shim, Hinge WPL 4344286 Contact Us For Availability

40

Screw WPL 4343861 Contact Us For Availability

40

Screw WPL 4343859 Contact Us For Availability

41

W10752646 Whirlpool Control Thermostat In Stock WPL W10752646 $96.04

41

Hinge Top WPL 4344172 Contact Us For Availability

41

Harness WPL 4344274 Contact Us For Availability

Hinge Cover (Black) WPL 4344195 Contact Us For Availability

Hinge Cover (Almond) WPL 4344196 Contact Us For Availability

Hinge Cover (White) WPL 4344197 Contact Us For Availability

Screw WPL 4343215 Contact Us For Availability

Clip, Evaporator WPL 4344219 Contact Us For Availability

WP489069 Whirlpool Compactor Screw In Stock WPL WP489069 $2.51

Plate, Hinge Tap (Right Side) WPL 4344299 Contact Us For Availability

Plate, Hinge Tap (Left Side) WPL 4344301 Contact Us For Availability

Bracket, Control WPL 4344223 Contact Us For Availability

44

Screw WPL 4344290 Contact Us For Availability

44

Plug, Button WPL 4344316 Contact Us For Availability

44

Screw WPL 4343847 Contact Us For Availability

45

W11573574 Whirlpool Screw In Stock WPL W11573574 $9.59

45

Screw WPL 4343765 Contact Us For Availability

46

W11177593 Whirlpool Leveling Feet Backorder WPL W11177593 $7.08

46

Housing, Frz. Control WPL 4344312 Contact Us For Availability

46

Clamp WPL 4343661 Contact Us For Availability

47

W10815413 Whirlpool Refrigerator Funnel Backorder WPL W10815413 $27.69

48

WPM0500703 Whirlpool Refrigerator O-Ring Seal Backorder WPL WPM0500703 $4.72

48

Screw WPL 4343749 Contact Us For Availability

49

WPB8381501 Whirlpool Refrigerator Door Gasket In Stock WPL WPB8381501 $3.70

49

Cabinet, Brace WPL 4344297 Contact Us For Availability

51

Axle-Roller WPL 4344289 Contact Us For Availability

52

Roller-Rear WPL 4344288 Contact Us For Availability

53

Screw WPL 4344292 Contact Us For Availability

54

A3076901 Whirlpool Refrigerator Plug Backorder WPL A3076901 $5.53

55

Drain Tube WPL 4344283 Contact Us For Availability

56

Insulation WPL 4344303 Contact Us For Availability

57

Insulation, Slope WPL 4344302 Contact Us For Availability

876764 Whirlpool Refrigerator Primary Valve In Stock WPL 876764 $27.18

978026 Whirlpool Refrigerator Primary Valve Backorder WPL 978026 $32.32

978027 Whirlpool Refrigerator Primary Valve Backorder WPL 978027 $33.95

978030 Whirlpool Refrigerator Valve Backorder WPL 978030 $35.52

WP978025 Whirlpool Refrigerator Valve In Stock WPL WP978025 $25.89

VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability

Clamp, Tube WPL 4343777 Contact Us For Availability

VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability
