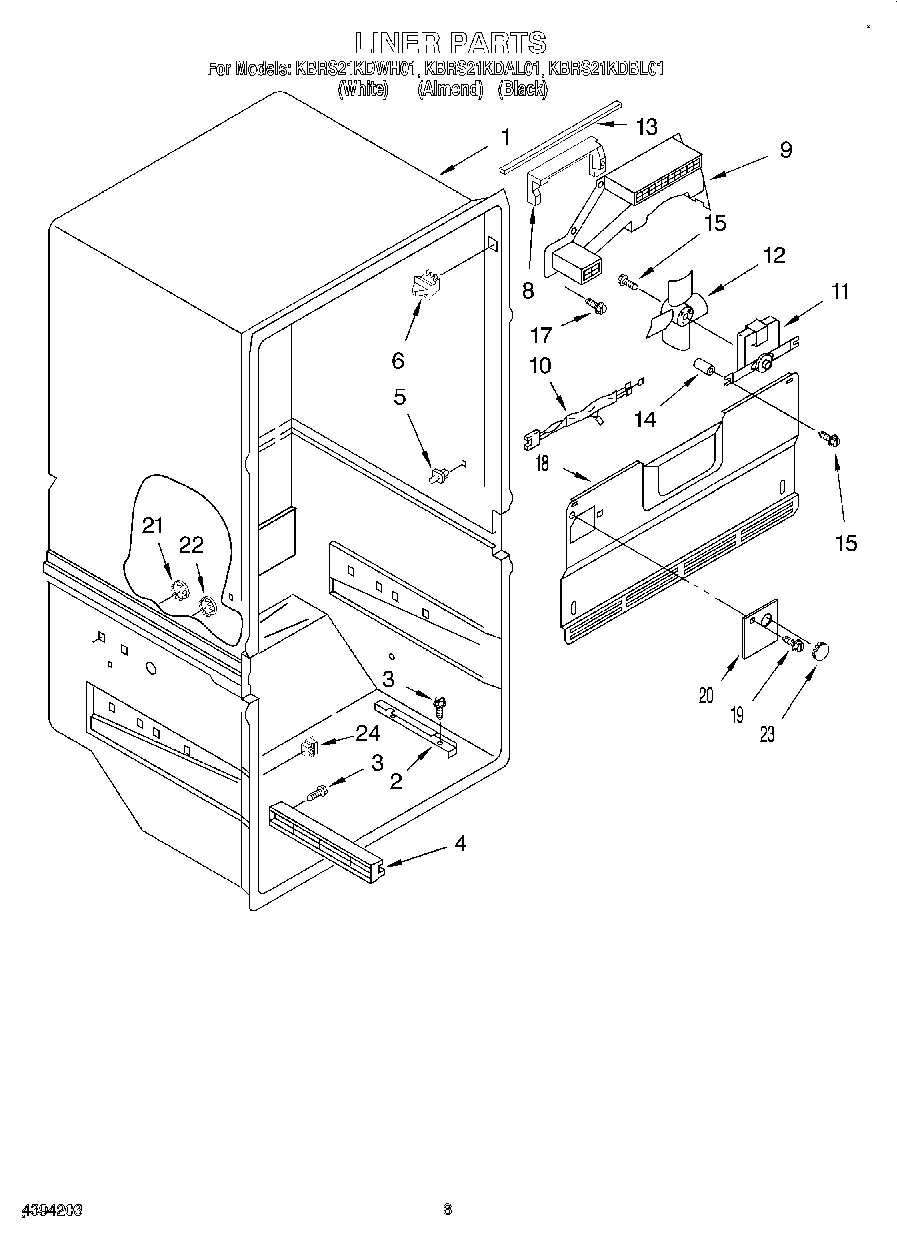

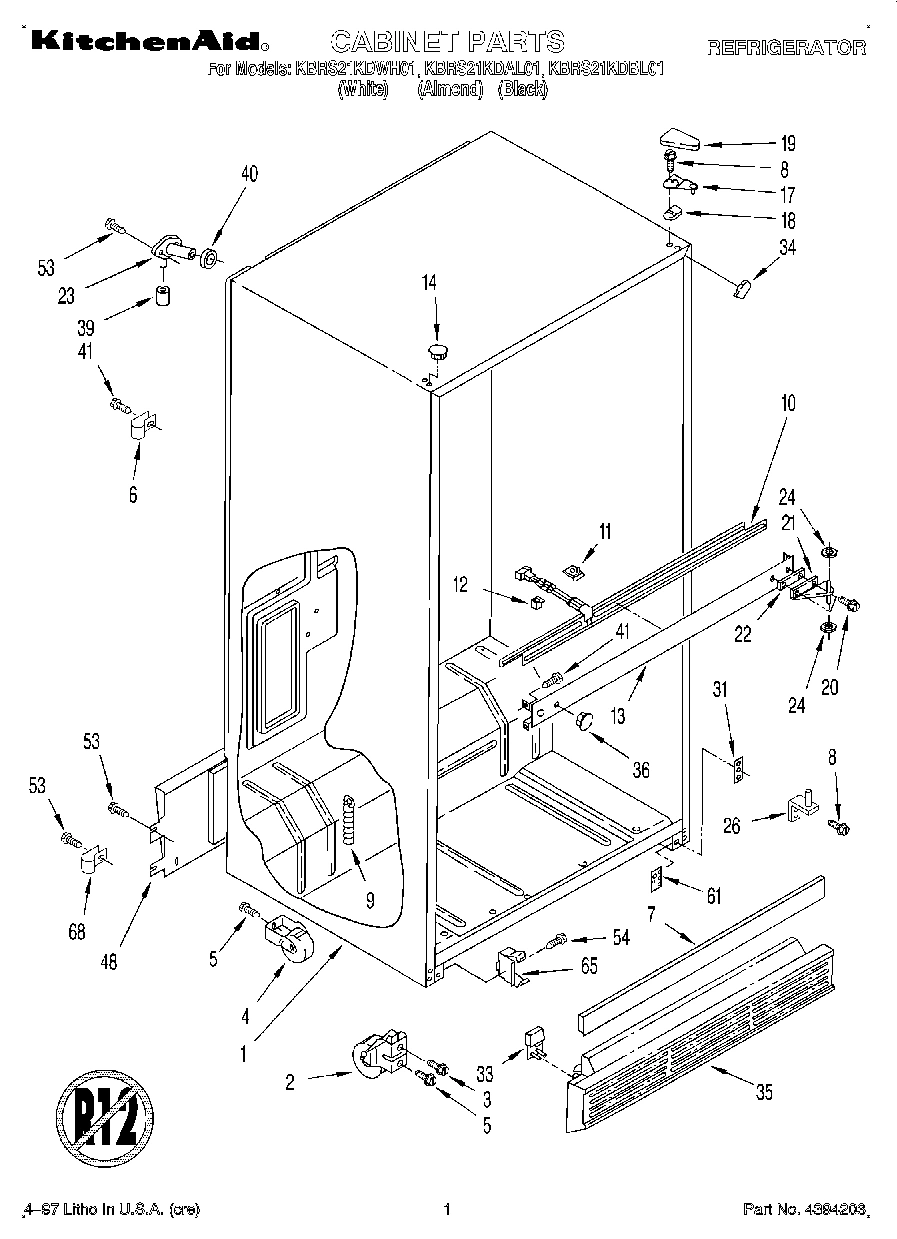

Model Whirlpool KBRS21KDWH01 BOTTOM MOUNT REFRIGERATOR – Common Parts &amp; Diagrams

350930 Whirlpool White Spray Paint In Stock WPL 350930 $12.50

350942 Whirlpool Spray Paint Backorder WPL 350942 $32.57

350956 Whirlpool Spray Assembly In Stock WPL 350956 $19.22

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $3.35

72032 Whirlpool Touch Up Paint Black In Stock WPL 72032 $5.60

799344 Whirlpool Refrigerator Paint Backorder WPL 799344 $93.22

833938 Whirlpool Refrigerator Terminal Backorder WPL 833938 $3.70

W11729596 Whirlpool Ice Maker Field Install K In Stock WPL W11729596 $92.31

WP72107 Whirlpool Touchup In Stock WPL WP72107 $5.80

WPL 1117510 WPL 1117510 Contact Us For Availability

WPL 978883 WPL 978883 Contact Us For Availability

WPL LIT2173940 WPL LIT2173940 Contact Us For Availability

WPL LIT2176897 WPL LIT2176897 Contact Us For Availability

WPL LIT2180117 WPL LIT2180117 Contact Us For Availability

1

WP486692 Whirlpool Refrigerator Nut Backorder WPL WP486692 $3.70

1

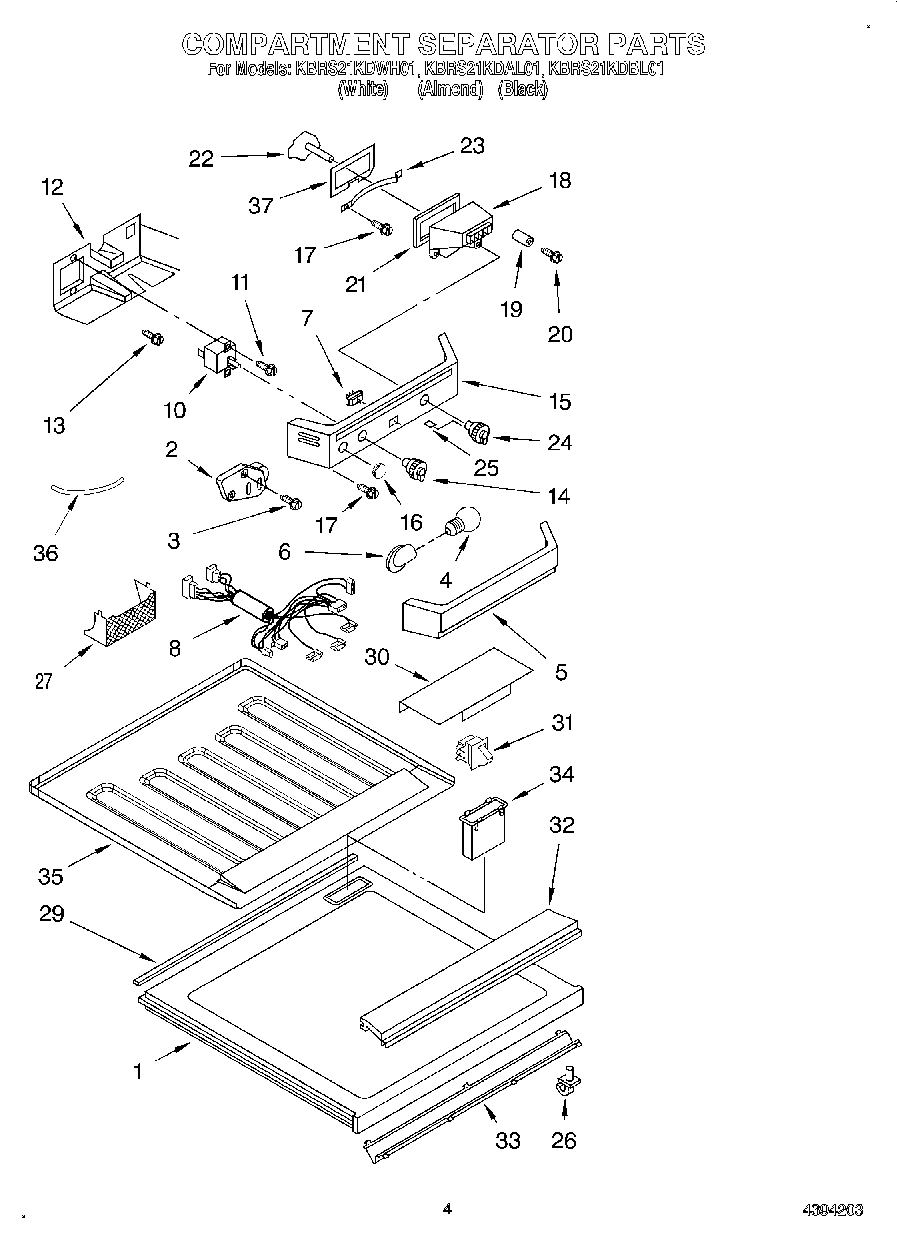

Compartment (White Separator Assembly (Includ WPL 2152764 Contact Us For Availability

1

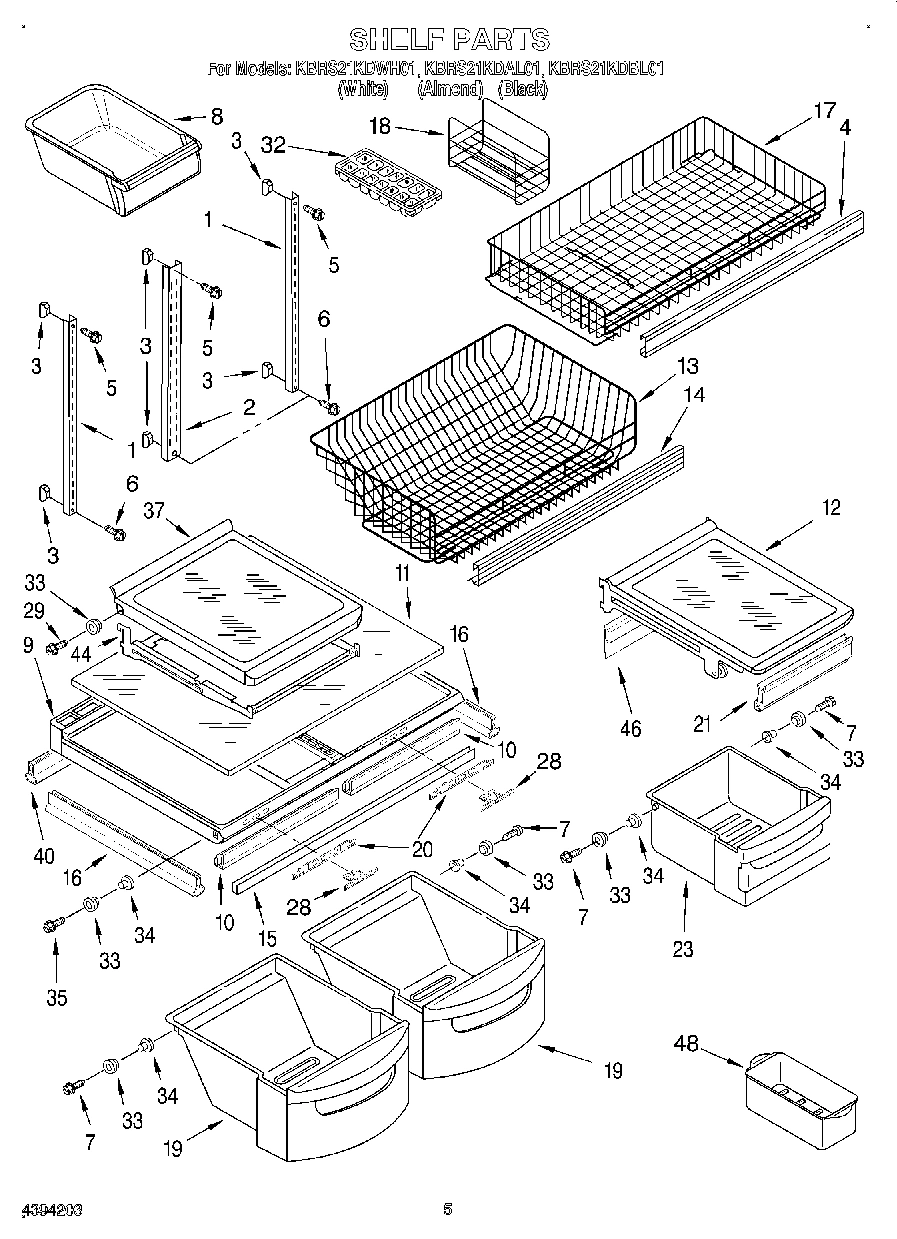

Shelf, Ladder (2) WPL 1127413 Contact Us For Availability

1

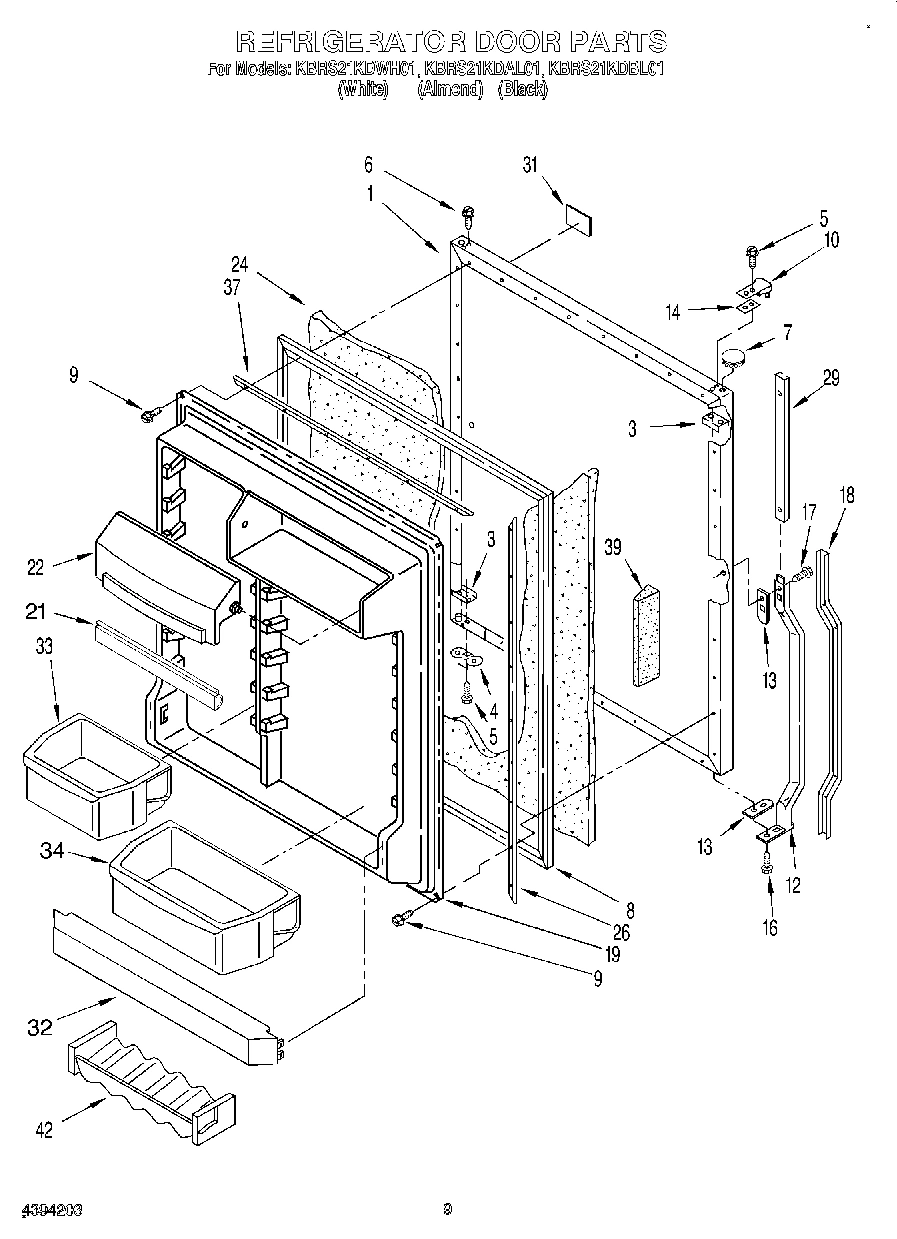

Panel, Refrigerator Door (Also Order Item 24) WPL 2174866 Contact Us For Availability

1

Panel, Refrigerator Door (Also Order Item 24) WPL 2174868 Contact Us For Availability

1

Panel, Refrigerator Door (Also Order Item 24) WPL 2174869 Contact Us For Availability

1

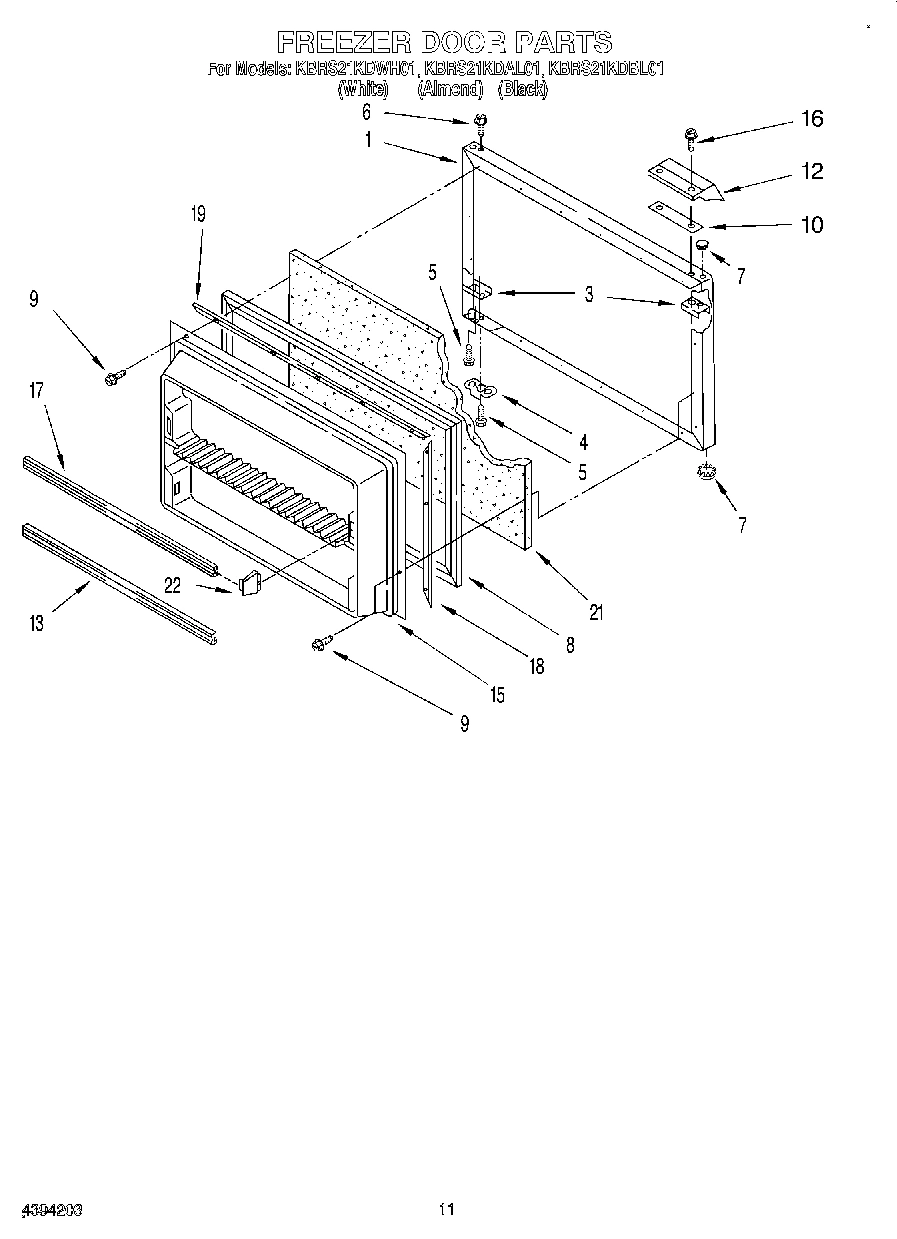

Panel, Freezer Door (Also Order Item 21) (Whi WPL 2174870 Contact Us For Availability

1

Panel, Freezer Door (Also Order Item 21) (Alm WPL 2174872 Contact Us For Availability

1

Panel, Freezer Door (Also Order Item 21) (Bla WPL 2174873 Contact Us For Availability

2

WP2183400 Whirlpool Defrost Timer In Stock WPL WP2183400 $46.85

2

Fan, Blade WPL 851732 Contact Us For Availability

2

Shelf, Ladder Center WPL 1127414 Contact Us For Availability

3

520965 Whirlpool Refrigerator Support Backorder WPL 520965 $10.14

3

W10833053 Whirlpool Refrigerator Plate Backorder WPL W10833053 $6.31

3

Screw WPL 489386 Contact Us For Availability

3

Condenser Assembly WPL 2164513 Contact Us For Availability

4

W11679940 Whirlpool Refrigerator Light Bulb A In Stock WPL W11679940 $2.75

4

WP489464 Whirlpool Refrigerator Screw Backorder WPL WP489464 $3.70

4

Trim, Basket WPL 2179513 Contact Us For Availability

4

Bracket, Door Stop WPL 944035 Contact Us For Availability

4

Bracket, Door Stop WPL 944036 Contact Us For Availability

5

W10854959 Whirlpool Refrigerator Shelf Stud Backorder WPL W10854959 $4.23

5

Light Lens WPL 983910 Contact Us For Availability

5

Clip, Wire (2) WPL 2155658 Contact Us For Availability

5

Screw, 8-32 x 1-1/4 WPL 489345 Contact Us For Availability

6

4387478 Whirlpool Refrigerator Light Socket In Stock WPL 4387478 $30.80

6

W11384469 Whirlpool Door Switch In Stock WPL W11384469 $12.68

6

WP8281206 Whirlpool Refrigerator Screw In Stock WPL WP8281206 $2.51

6

Screw, 8-15 x 1/2 WPL 2157332 Contact Us For Availability

7

WP2212648 Whirlpool Refrigerator Hinge Sleeve Backorder WPL WP2212648 $3.70

7

WP2212651 Whirlpool Refrigerator Button Plug Backorder WPL WP2212651 $10.27

7

WP489261 Whirlpool Refrigerator Screw Backorder WPL WP489261 $2.51

7

WP938213 Whirlpool Refrigerator Power Switch Backorder WPL WP938213 $13.76

7

Heat Shield & Drain Pan WPL 2152771 Contact Us For Availability

7

Hole Plug (Almond) WPL 989196 Contact Us For Availability

8

Wiring Assembly, Control Box WPL 2152849 Contact Us For Availability

8

Insert, Air Baffle WPL 2176796 Contact Us For Availability

8

Ice Cube Pan WPL 2173688 Contact Us For Availability

8

Door Gasket, Magnetic (Beige) WPL 2160435 Contact Us For Availability

8

Door Gasket, Magnetic (Black) WPL 2160439 Contact Us For Availability

8

Door Gasket (Gray) WPL 2160436 Contact Us For Availability

8

Door Gasket (Black) WPL 2160440 Contact Us For Availability

9

WP489442 Whirlpool Refrigerator Screw Backorder WPL WP489442 $4.56

9

WP681414 Whirlpool Screw In Stock WPL WP681414 $2.51

9

Pan Cover & Roller Assembly WPL 2174130 Contact Us For Availability

WP1125528 Whirlpool Refrigerator Gasket Backorder WPL WP1125528 $49.76

WP4317800 Whirlpool Refrigerator Thermostat Backorder WPL WP4317800 $113.21

Handle End WPL 1107236 Contact Us For Availability

Shim WPL 2183023 Contact Us For Availability

11

Fan Motor WPL 2160412 Contact Us For Availability

11

Glass, Crisper Cover WPL 2174142 Contact Us For Availability

WP2162358 Whirlpool Refrigerator Terminal Cov Backorder WPL WP2162358 $30.03

Fan Blade WPL 2169141 Contact Us For Availability

Bracket, Thermostat WPL 2152896 Contact Us For Availability

Pan Shelf & Roller Assembly WPL 2173902 Contact Us For Availability

Handle Assembly WPL 2183060 Contact Us For Availability

Handle WPL 2183007 Contact Us For Availability

4387535 Whirlpool Refrigerator Compressor Rel In Stock WPL 4387535 $68.76

Gasket WPL 2160533 Contact Us For Availability

Screw, 8-32 x 3/8 WPL 488974 Contact Us For Availability

Freezer Basket, (Lower) WPL 2152799 Contact Us For Availability

Spacer, Handle WPL 2161521 Contact Us For Availability

Trim, Door Shelf WPL 2171395 Contact Us For Availability

WP2151652 Whirlpool Refrigerator Button Plug Backorder WPL WP2151652 $8.20

Grommet WPL 531933 Contact Us For Availability

Knob, Temperature WPL 2148656 Contact Us For Availability

Trim, Basket WPL 2179512 Contact Us For Availability

Shim, Handle Door WPL 2151813 Contact Us For Availability

WP2172748 Whirlpool Drawer Support Backorder WPL WP2172748 $50.82

Screw WPL 489168 Contact Us For Availability

Control Panel WPL 2179547 Contact Us For Availability

Relay (See Overload) WPL ARI79866A7 Contact Us For Availability

Interior Door Panel WPL 2152814 Contact Us For Availability

940014 Whirlpool Refrigerator Primary Button Backorder WPL 940014 $10.25

9791833 Whirlpool Refrigerator Clip Backorder WPL 9791833 $4.37

WP488920 Whirlpool Refrigerator Screw Backorder WPL WP488920 $2.51

Gasket, Pan Cover (Side) WPL 2179252 Contact Us For Availability

WP488921 Whirlpool Refrigerator Screw Backorder WPL WP488921 $2.51

Capacitor WPL 2169137 Contact Us For Availability

Freezer Basket, (Upper) WPL 2179448 Contact Us For Availability

Trim, Door WPL 2171394 Contact Us For Availability

Cover, Evaporator WPL 2152796 Contact Us For Availability

Air Diffuser Assembly WPL 2160470 Contact Us For Availability

Drain Ferrule WPL 2155556 Contact Us For Availability

Rack, Ice Tray WPL 2152823 Contact Us For Availability

Insert, Handle (White) WPL 2161523 Contact Us For Availability

Insert, Handle (Almond) WPL 2161524 Contact Us For Availability

Insert, Handle (Black Model) WPL 2161796 Contact Us For Availability

Gasket Retainer, Side (2) WPL 986015 Contact Us For Availability

836667 Whirlpool Refrigerator Spacer Backorder WPL 836667 $4.59

WP488729 Whirlpool Refrigerator Door Screw In Stock WPL WP488729 $2.51

Screw Grommet WPL 509812 Contact Us For Availability

Pan, Crisper (Includes Rollers) WPL 2179229 Contact Us For Availability

Interior Door Panel WPL 2177349 Contact Us For Availability

Gasket Retainer, Top & Bottom WPL 1122552 Contact Us For Availability

20

WP489474 Whirlpool Refrigerator Screw Backorder WPL WP489474 $2.75

20

Hole Cover, Evaporator WPL 2152852 Contact Us For Availability

20

Slide, Humidity WPL 2174257 Contact Us For Availability

WP489478 Whirlpool Refrigerator Screw In Stock WPL WP489478 $2.51

Gasket, Door Compartment WPL 2183037 Contact Us For Availability

Gasket WPL 2160428 Contact Us For Availability

Gasket-Front WPL 2174398 Contact Us For Availability

4386917 Whirlpool Endcap Kit In Stock WPL 4386917 $6.84

WP941839 Whirlpool Refrigerator Button Plug In Stock WPL WP941839 $3.70

Damper, Air WPL 984658 Contact Us For Availability

Evaporator WPL 2152776 Contact Us For Availability

Compartment Door WPL 2183043 Contact Us For Availability

23

Hole Plug WPL 1103725 Contact Us For Availability

23

Retainer, Air Damper WPL 836493 Contact Us For Availability

23

Meat Pan Assy. WPL 2179232 Contact Us For Availability

24

833697 Whirlpool Condenser Fan Motor In Stock WPL 833697 $41.18

24

Knob, Control WPL 2148657 Contact Us For Availability

25

Knob, Retainer WPL 837444 Contact Us For Availability

25

Tray, Evaporator WPL 2154114 Contact Us For Availability

26

Stud WPL 2155555 Contact Us For Availability

26

Tube, Discharge WPL 2162475 Contact Us For Availability

26

Gasket Retainer, Side (2) WPL 986008 Contact Us For Availability

27

W10843121 Whirlpool Refrigerator Tube In Stock WPL W10843121 $23.50

27

Light Lens WPL 983359 Contact Us For Availability

28

876765 Whirlpool Primary Mounting Kit Refrige In Stock WPL 876765 $24.72

28

W10309990 Whirlpool Refrigerator Compressor In Stock WPL W10309990 $341.23

28

Button, Humidity Control WPL 2174253 Contact Us For Availability

2154109 Whirlpool Refrigerator Tube Backorder WPL 2154109 $33.89

Gasket, Comp. Sep. WPL 1116698 Contact Us For Availability

Screw WPL 489439 Contact Us For Availability

Retainer Insert WPL 2161522 Contact Us For Availability

30

2304903 Whirlpool Refrigerator Frame Backorder WPL 2304903 $95.80

30

Lens-Light WPL 2149068 Contact Us For Availability

W11457217 Whirlpool Refrigerator Rocker Switc In Stock WPL W11457217 $14.15

Tube, Condenser To Heat Loop WPL 2154032 Contact Us For Availability

Nameplate (White Model) WPL 2168800 Contact Us For Availability

Nameplate (Almond Model) WPL 2168801 Contact Us For Availability

Nameplate (Black) WPL 2168992 Contact Us For Availability

WP841180A Whirlpool Microwave Glass Turntable In Stock WPL WP841180A $3.92

Seperator Top-Front WPL 1121213 Contact Us For Availability

Fan, Motor Bracket WPL 548695 Contact Us For Availability

Trivet, Door WPL 2171358 Contact Us For Availability

Air Deflector WPL 2160531 Contact Us For Availability

Heater, Defrost WPL 2162083 Contact Us For Availability

Roller WPL 2174388 Contact Us For Availability

Bin, Door Shelf Narrow (3) WPL 2171066 Contact Us For Availability

Eyelet, Roller WPL 2174478 Contact Us For Availability

Insert, Air Return WPL 987019 Contact Us For Availability

Unit Cover, Bottom WPL 2160505 Contact Us For Availability

Bin, Door Shelf WPL 2171063 Contact Us For Availability

35

WP4387503 Whirlpool Refrigerator Bimetal Defr In Stock WPL WP4387503 $16.40

35

WPW10272364 Whirlpool Refrigerator Screw In Stock WPL WPW10272364 $4.56

35

Separator, Top-Rear WPL 2152789 Contact Us For Availability

36

WP2196003 Whirlpool Refrigerator Bar Riser Backorder WPL WP2196003 $3.70

36

Tube, Suction WPL 2162472 Contact Us For Availability

37

W11751592 Whirlpool Sleeve In Stock WPL W11751592 $12.17

37

Gasket, Damper WPL 2160454 Contact Us For Availability

37

Shelf, Spillguard WPL 2174015 Contact Us For Availability

38

WP2172890 Whirlpool Refrigerator Wire Backorder WPL WP2172890 $2.51

39

876811 Whirlpool Grommet Backorder WPL 876811 $3.70

39

Reinforcement WPL 1126161 Contact Us For Availability

40

WP1106508 Whirlpool Refrigerator Gasket Backorder WPL WP1106508 $4.14

40

Gasket, Pan Cover-Rear WPL 2179216 Contact Us For Availability

41

Air Baffle WPL 2162457 Contact Us For Availability

42

W11693756 Whirlpool Screw Assembly Backorder WPL W11693756 $8.11

42

Holder, Beverage WPL 1125981 Contact Us For Availability

43

489396 Whirlpool Refrigerator Clip Backorder WPL 489396 $4.72

44

Wire Assy WPL 2176857 Contact Us For Availability

44

Frame & Roller Assembly WPL 2174017 Contact Us For Availability

46

Gasket-Rear WPL 2179564 Contact Us For Availability

212643 Whirlpool Refrigerator Permagum Sealer In Stock WPL 212643 $27.18

511873 Whirlpool Refrigerator Paint Backorder WPL 511873 $19.22

606755 Whirlpool Refrigerator Bag Backorder WPL 606755 $26.21

876370 Whirlpool Refrigerator Insulation Backorder WPL 876370 $96.00

W10136387A Whirlpool Refrigerator Egg Contain In Stock WPL W10136387A $5.98

WP503695 Whirlpool Refrigerator Sealer Backorder WPL WP503695 $39.18

WP505587 Whirlpool Refrigerator Sealer Backorder WPL WP505587 $57.83

WP542638 Whirlpool Refrigerator Grease In Stock WPL WP542638 $22.07

KIT, FOAM SLAB (30`` X 32 1/2`` X 1 1/2``) WPL 876029 Contact Us For Availability

TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability

Unit Mounting Rail WPL 2149717 Contact Us For Availability

Door Reversal Instructions WPL 2180010 Contact Us For Availability

CEMENT, ALUMILASTIC (1 1/4 OZ.) WPL 542639 Contact Us For Availability

KIT, EVAPORATOR REPAIR (ALUMINUM EPOXY) WPL 799833 Contact Us For Availability

50

1105612 Whirlpool Fan Guard Backorder WPL 1105612 $24.10

51

Extension, Drain Tube WPL 2152822 Contact Us For Availability

52

WPW10339879 Whirlpool Wire Tie In Stock WPL WPW10339879 $2.51

53

WP489427 Whirlpool Refrigerator Screw Backorder WPL WP489427 $3.70

876764 Whirlpool Refrigerator Primary Valve In Stock WPL 876764 $27.18

978026 Whirlpool Refrigerator Primary Valve Backorder WPL 978026 $32.32

978027 Whirlpool Refrigerator Primary Valve Backorder WPL 978027 $33.95

978030 Whirlpool Refrigerator Valve Backorder WPL 978030 $35.52

WP978025 Whirlpool Refrigerator Valve In Stock WPL WP978025 $25.89

VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability

Support (2) WPL 1115128 Contact Us For Availability

VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability

65

WP2155013 Whirlpool Refrigerator Clip In Stock WPL WP2155013 $3.70
