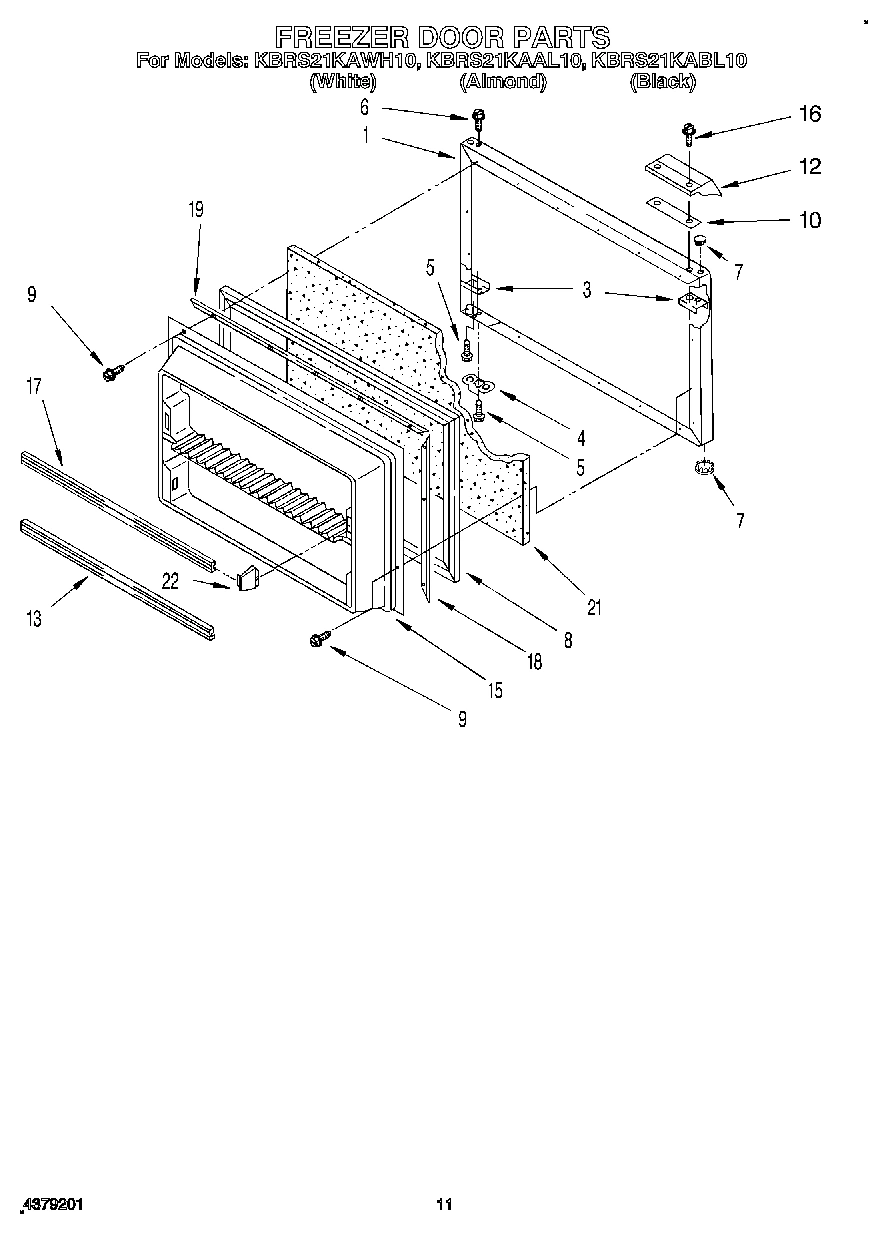

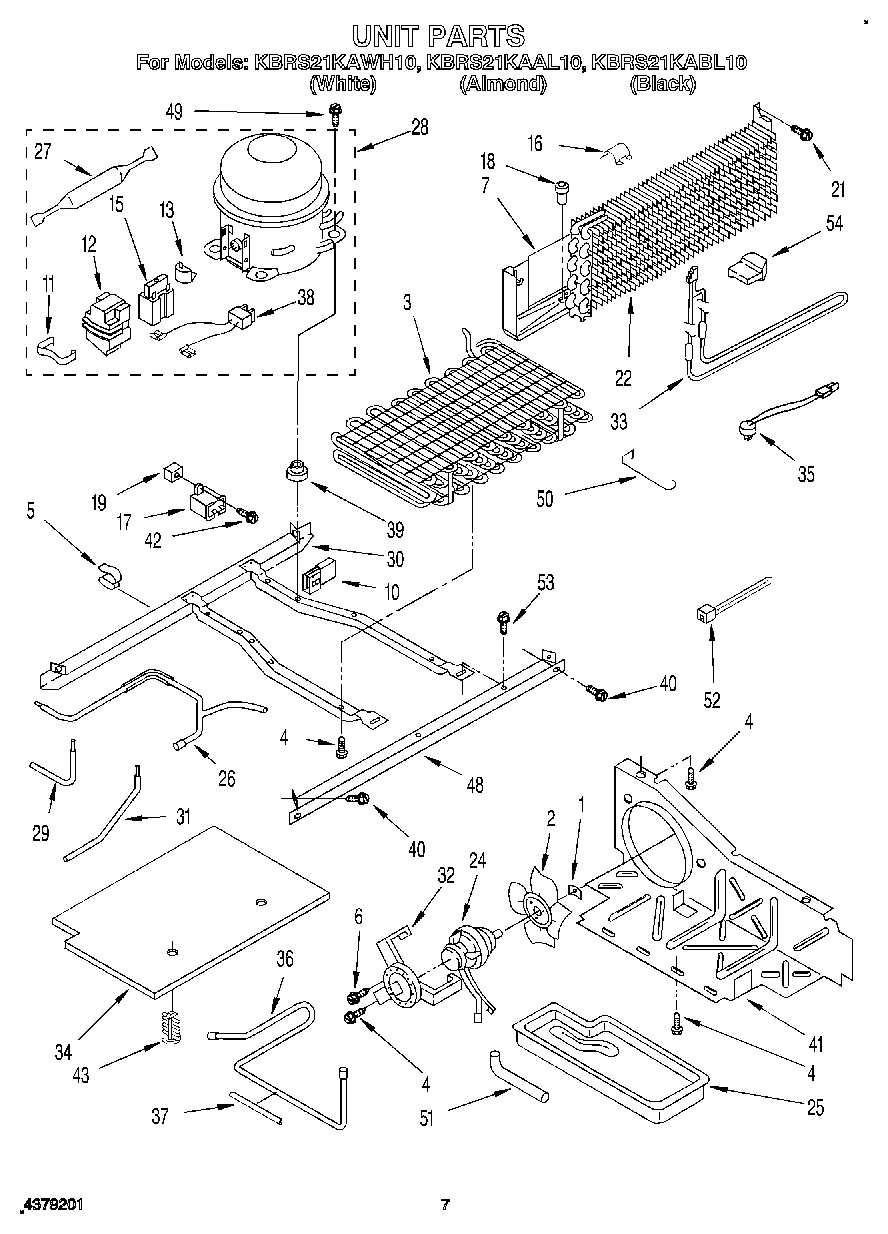

Model Whirlpool KBRS21KABL10 BOTTOM MOUNT REFRIGERATOR – Common Parts &amp; Diagrams

350930 Whirlpool White Spray Paint In Stock WPL 350930 $12.50

350942 Whirlpool Spray Paint Backorder WPL 350942 $32.57

350956 Whirlpool Spray Assembly In Stock WPL 350956 $19.22

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $3.35

72032 Whirlpool Touch Up Paint Black In Stock WPL 72032 $5.60

799344 Whirlpool Refrigerator Paint Backorder WPL 799344 $93.22

833938 Whirlpool Refrigerator Terminal Backorder WPL 833938 $3.70

WP72107 Whirlpool Touchup In Stock WPL WP72107 $5.80

WPL 1117510 WPL 1117510 Contact Us For Availability

WPL 350941 WPL 350941 Contact Us For Availability

WPL 978883 WPL 978883 Contact Us For Availability

WPL LIT2152819 WPL LIT2152819 Contact Us For Availability

WPL LIT2168829 WPL LIT2168829 Contact Us For Availability

WPL LIT2169204 WPL LIT2169204 Contact Us For Availability

1

WP486692 Whirlpool Refrigerator Nut Backorder WPL WP486692 $3.70

1

Panel, Refrigerator Door (Also Order Item 24) WPL 2152806 Contact Us For Availability

1

Panel, Refrigerator Door (Also Order Item 24) WPL 2160485 Contact Us For Availability

1

Panel, Refrigerator Door (Also Order Item 24) WPL 2160486 Contact Us For Availability

1

Shelf, Ladder (2) WPL 1127413 Contact Us For Availability

1

Liner (Not A Serviceable Part) WPL ARI79841A1 Contact Us For Availability

1

Cabinet (Not A Serviceable Part) WPL ARI79840A6 Contact Us For Availability

1

Compartment (White Separator Assembly (Includ WPL 2152764 Contact Us For Availability

2

WP2183400 Whirlpool Defrost Timer In Stock WPL WP2183400 $46.85

2

Shelf, Ladder Center WPL 1127414 Contact Us For Availability

2

Slide, Basket (Right Side) WPL 986382 Contact Us For Availability

2

Slide, Basket (Left Side) WPL 986383 Contact Us For Availability

2

Roller, Front WPL 2152011 Contact Us For Availability

3

520965 Whirlpool Refrigerator Support Backorder WPL 520965 $10.14

3

W11693756 Whirlpool Screw Assembly Backorder WPL W11693756 $8.11

3

Plate, Tap (4) WPL 1123568 Contact Us For Availability

3

Screw, 5/16-24 x 1-1/4 WPL 489393 Contact Us For Availability

3

Screw WPL 489386 Contact Us For Availability

4

W11679940 Whirlpool Refrigerator Light Bulb A In Stock WPL W11679940 $2.75

4

WPW10250570 Whirlpool Refrigerator Cabinet Ro Backorder WPL WPW10250570 $14.49

4

Bracket, Door Stop WPL 2157749 Contact Us For Availability

4

Trim, Basket WPL 2152859 Contact Us For Availability

4

Shelf, Track (L.S.) WPL 2149174 Contact Us For Availability

4

Shelf, Track (R.S.) WPL 2149175 Contact Us For Availability

5

W10854959 Whirlpool Refrigerator Shelf Stud Backorder WPL W10854959 $4.23

5

WP488921 Whirlpool Refrigerator Screw Backorder WPL WP488921 $2.51

5

Screw, 8-32 x 1-1/4 WPL 489345 Contact Us For Availability

5

Screw, 1/4-28 x 1/2 WPL 488454 Contact Us For Availability

5

Light Lens WPL 983910 Contact Us For Availability

6

4387478 Whirlpool Refrigerator Light Socket In Stock WPL 4387478 $30.80

6

W11384469 Whirlpool Door Switch In Stock WPL W11384469 $12.68

6

WP488163 Whirlpool Refrigerator Screw In Stock WPL WP488163 $3.70

6

WP488366 Whirlpool Refrigerator Clamp Backorder WPL WP488366 $4.81

6

WP8281206 Whirlpool Refrigerator Screw In Stock WPL WP8281206 $2.51

7

WP2212648 Whirlpool Refrigerator Hinge Sleeve Backorder WPL WP2212648 $3.70

7

WP2212651 Whirlpool Refrigerator Button Plug Backorder WPL WP2212651 $10.27

7

WP489464 Whirlpool Refrigerator Screw Backorder WPL WP489464 $3.70

7

WP938213 Whirlpool Refrigerator Power Switch Backorder WPL WP938213 $13.76

7

Hole Plug (Almond) WPL 989196 Contact Us For Availability

8

Door Gasket, Magnetic WPL 2160437 Contact Us For Availability

8

Ice Cube Pan WPL 1126135 Contact Us For Availability

8

Insert, Scroll WPL 2160525 Contact Us For Availability

8

Wiring Assembly, Control Box WPL 2152849 Contact Us For Availability

9

W11566763 Whirlpool Fitting In Stock WPL W11566763 $18.87

9

WP489069 Whirlpool Compactor Screw In Stock WPL WP489069 $2.51

9

WP681414 Whirlpool Screw In Stock WPL WP681414 $2.51

9

Pan Cover & Roller Assembly WPL 2161767 Contact Us For Availability

9

Scroll, Fan WPL 2152779 Contact Us For Availability

WP1125528 Whirlpool Refrigerator Gasket Backorder WPL WP1125528 $49.76

WP4317800 Whirlpool Refrigerator Thermostat Backorder WPL WP4317800 $113.21

Handle End WPL 1107236 Contact Us For Availability

Wiring Assembly, Fan Motor WPL 1127434 Contact Us For Availability

Heater, Mullion WPL 2157307 Contact Us For Availability

11

Glass, Crisper Cover WPL 1125531 Contact Us For Availability

11

Fan Motor WPL 2160412 Contact Us For Availability

11

Clip, Center Rail WPL 2149060 Contact Us For Availability

Handle Assembly WPL 2161519 Contact Us For Availability

Pan Shelf & Roller Assembly WPL 2161758 Contact Us For Availability

Fan Blade WPL 2169141 Contact Us For Availability

Spacer (3) WPL 1115105 Contact Us For Availability

Bracket, Thermostat WPL 2152896 Contact Us For Availability

Spacer, Handle WPL 2161521 Contact Us For Availability

Freezer Basket, (Lower) WPL 2152799 Contact Us For Availability

Gasket WPL 2160533 Contact Us For Availability

Center Rail WPL 2172707 Contact Us For Availability

Screw, 8-32 x 3/8 WPL 488974 Contact Us For Availability

WP2151652 Whirlpool Refrigerator Button Plug Backorder WPL WP2151652 $8.20

WP2183998 Whirlpool Refrigerator Button Plug Backorder WPL WP2183998 $6.68

Shim, Handle Door WPL 2151813 Contact Us For Availability

Trim, Basket WPL 2152855 Contact Us For Availability

Grommet WPL 531933 Contact Us For Availability

Hole Plug (Almond) WPL 2151653 Contact Us For Availability

Control Knob WPL 1126092 Contact Us For Availability

WP2172748 Whirlpool Drawer Support Backorder WPL WP2172748 $50.82

WP939101 Whirlpool Refrigerator Plate Backorder WPL WP939101 $3.70

Screw WPL 489168 Contact Us For Availability

Control Panel WPL 1125965 Contact Us For Availability

16

940014 Whirlpool Refrigerator Primary Button Backorder WPL 940014 $10.25

16

WP488920 Whirlpool Refrigerator Screw Backorder WPL WP488920 $2.51

17

WP2189412 Whirlpool Refrigerator Door Hinge Backorder WPL WP2189412 $37.95

17

WP489478 Whirlpool Refrigerator Screw In Stock WPL WP489478 $2.51

17

Freezer Basket (Upper) WPL 2152802 Contact Us For Availability

Insert, Handle (White) WPL 2161523 Contact Us For Availability

Insert, Handle (Almond) WPL 2161524 Contact Us For Availability

Insert, Handle (Black Model) WPL 2161796 Contact Us For Availability

Rack, Ice Tray WPL 2152823 Contact Us For Availability

Cover, Evaporator WPL 2152796 Contact Us For Availability

Air Diffuser Assembly WPL 2160470 Contact Us For Availability

836667 Whirlpool Refrigerator Spacer Backorder WPL 836667 $4.59

WP2213360 Whirlpool Refrigerator Cover Backorder WPL WP2213360 $11.95

WP2213363 Whirlpool Refrigerator Cover Backorder WPL WP2213363 $11.29

WP488729 Whirlpool Refrigerator Door Screw In Stock WPL WP488729 $2.51

Interior Door Panel WPL 2160429 Contact Us For Availability

Pan, Crisper WPL 2161891 Contact Us For Availability

Hinge Cover (Almond) WPL 2160404 Contact Us For Availability

20

WP999367 Whirlpool Refrigerator Screw Backorder WPL WP999367 $2.51

20

Hole Cover, Evaporator WPL 2152852 Contact Us For Availability

20

Screw, 8 x 1-1/4 WPL 488357 Contact Us For Availability

Gasket, Utility Door WPL 1125695 Contact Us For Availability

Gasket, Front WPL 1125576 Contact Us For Availability

Hinge, Center WPL 2147335 Contact Us For Availability

Gasket WPL 2160428 Contact Us For Availability

WP941839 Whirlpool Refrigerator Button Plug In Stock WPL WP941839 $3.70

WP982704 Whirlpool Refrigerator Container Backorder WPL WP982704 $13.05

Compartment Door, WPL 1125733 Contact Us For Availability

Shim, Hinge Center WPL 836155 Contact Us For Availability

Damper, Air WPL 984658 Contact Us For Availability

WP2196157 Whirlpool Fill Tube In Stock WPL WP2196157 $4.59

Meat Pan Assy. WPL 2161890 Contact Us For Availability

Hole Plug WPL 1103725 Contact Us For Availability

Retainer, Air Damper WPL 836493 Contact Us For Availability

WP487802 Whirlpool Refrigerator Washer In Stock WPL WP487802 $2.51

Foam Insulation (Required When Replacing Exte WPL 876029 Contact Us For Availability

Shelf, Full WPL 1125523 Contact Us For Availability

Knob, Air Diffuser (Includes Item 25) WPL 1125967 Contact Us For Availability

25

Gasket, Front Cantilever WPL 1125783 Contact Us For Availability

25

Knob, Retainer WPL 837444 Contact Us For Availability

WP2254473 Whirlpool Refrigerator Door Hinge In Stock WPL WP2254473 $3.70

Stud WPL 2155555 Contact Us For Availability

Tube, Discharge WPL 2162475 Contact Us For Availability

Gasket Retainer, Side (2) WPL 986008 Contact Us For Availability

Glass, Full Shelf WPL 1125524 Contact Us For Availability

27

W10843121 Whirlpool Refrigerator Tube In Stock WPL W10843121 $23.50

27

Retainer, Shelf WPL 1125525 Contact Us For Availability

27

Light Lens WPL 983359 Contact Us For Availability

28

876765 Whirlpool Primary Mounting Kit Refrige In Stock WPL 876765 $24.72

28

W10309990 Whirlpool Refrigerator Compressor In Stock WPL W10309990 $341.23

2154109 Whirlpool Refrigerator Tube Backorder WPL 2154109 $33.89

Retainer Insert WPL 2161522 Contact Us For Availability

Shim, Bottom WPL 990521 Contact Us For Availability

Gasket, Comp. Sep. WPL 1116698 Contact Us For Availability

30

2304903 Whirlpool Refrigerator Frame Backorder WPL 2304903 $95.80

30

Butter, Tray WPL 1125936 Contact Us For Availability

30

Lens-Light WPL 2149068 Contact Us For Availability

W11457217 Whirlpool Refrigerator Rocker Switc In Stock WPL W11457217 $14.15

Tube, Condenser To Heat Loop WPL 2154032 Contact Us For Availability

Nameplate (White Model) WPL 2168800 Contact Us For Availability

Nameplate (Almond Model) WPL 2168801 Contact Us For Availability

Nameplate (Black Model) WPL 2168804 Contact Us For Availability

Retainer WPL 1110744 Contact Us For Availability

Spacer WPL 2172744 Contact Us For Availability

WP841180A Whirlpool Microwave Glass Turntable In Stock WPL WP841180A $3.92

Fan, Motor Bracket WPL 2162062 Contact Us For Availability

Shelf Bin, Fixed WPL 1125557 Contact Us For Availability

Seperator Top-Front WPL 1121213 Contact Us For Availability

Heater, Defrost WPL 2162083 Contact Us For Availability

Bin, Door Shelf Narrow WPL 1125556 Contact Us For Availability

Roller WPL 2161749 Contact Us For Availability

Corner Filler, Grille (Black) WPL 1118078 Contact Us For Availability

Corner Filler, Grille (White) WPL 1125665 Contact Us For Availability

Corner Filler, Grille (Almond) WPL 1125670 Contact Us For Availability

Air Deflector WPL 2160531 Contact Us For Availability

Unit Cover, Bottom WPL 2160505 Contact Us For Availability

Bin, Door Shelf Deep. Wide WPL 1125555 Contact Us For Availability

Eyelet, Roller WPL 1112308 Contact Us For Availability

Filler, Wrap Corner (White) WPL 1118058 Contact Us For Availability

Filler, Wrap Corner (Almond) WPL 1118059 Contact Us For Availability

Filler, Wrap Corner (Black) WPL 2162679 Contact Us For Availability

Insert, Air Return WPL 987019 Contact Us For Availability

WP4387503 Whirlpool Refrigerator Bimetal Defr In Stock WPL WP4387503 $16.40

WP489261 Whirlpool Refrigerator Screw Backorder WPL WP489261 $2.51

Grille (White) WPL 1125663 Contact Us For Availability

Grille (Almond) WPL 1125667 Contact Us For Availability

Grille (Black) WPL 1129001 Contact Us For Availability

Separator, Top-Rear WPL 2152789 Contact Us For Availability

36

WP2196003 Whirlpool Refrigerator Bar Riser Backorder WPL WP2196003 $3.70

36

Tube, Suction WPL 2162472 Contact Us For Availability

36

Hole Plug WPL 1129062 Contact Us For Availability

W11751592 Whirlpool Sleeve In Stock WPL W11751592 $12.17

Gasket Retainer, Top & Bottom WPL 1122552 Contact Us For Availability

Frame & Roller Assembly WPL 2161704 Contact Us For Availability

Wiring Assembly, Intermediate WPL 2153994 Contact Us For Availability

Gasket, Damper WPL 2160454 Contact Us For Availability

WP2172890 Whirlpool Refrigerator Wire Backorder WPL WP2172890 $2.51

WP2189000 Whirlpool Refrigerator Handle Plug Backorder WPL WP2189000 $3.70

WP2189009 Whirlpool Refrigerator Handle Plug Backorder WPL WP2189009 $3.51

Hole Plug, Handle (Almond) WPL 1122654 Contact Us For Availability

39

876811 Whirlpool Grommet Backorder WPL 876811 $3.70

39

WP487996 Whirlpool Refrigerator Cap Tube Backorder WPL WP487996 $4.48

39

Reinforcement WPL 1126161 Contact Us For Availability

489340 Whirlpool Refrigerator Screw Backorder WPL 489340 $4.56

WP1106508 Whirlpool Refrigerator Gasket Backorder WPL WP1106508 $4.14

Load Lock WPL 1117999 Contact Us For Availability

Gasket, Pan Cover-Rear WPL 1125529 Contact Us For Availability

41

Air Baffle WPL 2162457 Contact Us For Availability

41

Glass WPL 2161681 Contact Us For Availability

42

Holder, Beverage WPL 1125981 Contact Us For Availability

42

Reflector, Shelf WPL 2161807 Contact Us For Availability

43

489396 Whirlpool Refrigerator Clip Backorder WPL 489396 $4.72

43

Gasket (Front) WPL 2161684 Contact Us For Availability

44

Frame & Roller Assembly WPL 2161804 Contact Us For Availability

44

Cord, Service WPL 937360 Contact Us For Availability

45

Glass, Shelf WPL 1125539 Contact Us For Availability

46

Gasket, Rear WPL 1125815 Contact Us For Availability

212643 Whirlpool Refrigerator Permagum Sealer In Stock WPL 212643 $27.18

511873 Whirlpool Refrigerator Paint Backorder WPL 511873 $19.22

606755 Whirlpool Refrigerator Bag Backorder WPL 606755 $26.21

876370 Whirlpool Refrigerator Insulation Backorder WPL 876370 $96.00

WP503695 Whirlpool Refrigerator Sealer Backorder WPL WP503695 $39.18

WP505587 Whirlpool Refrigerator Sealer Backorder WPL WP505587 $57.83

WP542638 Whirlpool Refrigerator Grease In Stock WPL WP542638 $22.07

TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability

Wine & Egg Rack WPL 1125913 Contact Us For Availability

Door Reversal Instructions WPL 2172759 Contact Us For Availability

CEMENT, ALUMILASTIC (1 1/4 OZ.) WPL 542639 Contact Us For Availability

KIT, EVAPORATOR REPAIR (ALUMINUM EPOXY) WPL 799833 Contact Us For Availability

48

Unit Mounting Rail WPL 2149717 Contact Us For Availability

48

Cover, Unit WPL 2160534 Contact Us For Availability

50

1105612 Whirlpool Fan Guard Backorder WPL 1105612 $24.10

51

Extension, Drain Tube WPL 2152822 Contact Us For Availability

52

WPW10339879 Whirlpool Wire Tie In Stock WPL WPW10339879 $2.51

53

WP489427 Whirlpool Refrigerator Screw Backorder WPL WP489427 $3.70

876764 Whirlpool Refrigerator Primary Valve In Stock WPL 876764 $27.18

978026 Whirlpool Refrigerator Primary Valve Backorder WPL 978026 $32.32

978027 Whirlpool Refrigerator Primary Valve Backorder WPL 978027 $33.95

978030 Whirlpool Refrigerator Valve Backorder WPL 978030 $35.52

WP978025 Whirlpool Refrigerator Valve In Stock WPL WP978025 $25.89

VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability

Support (2) WPL 1115128 Contact Us For Availability

VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability

61

Tap-Plate, Bottom Hinge WPL 2157315 Contact Us For Availability

65

WP2155013 Whirlpool Refrigerator Clip In Stock WPL WP2155013 $3.70

68

549193 Whirlpool Refrigerator Power Clamp Backorder WPL 549193 $6.94
