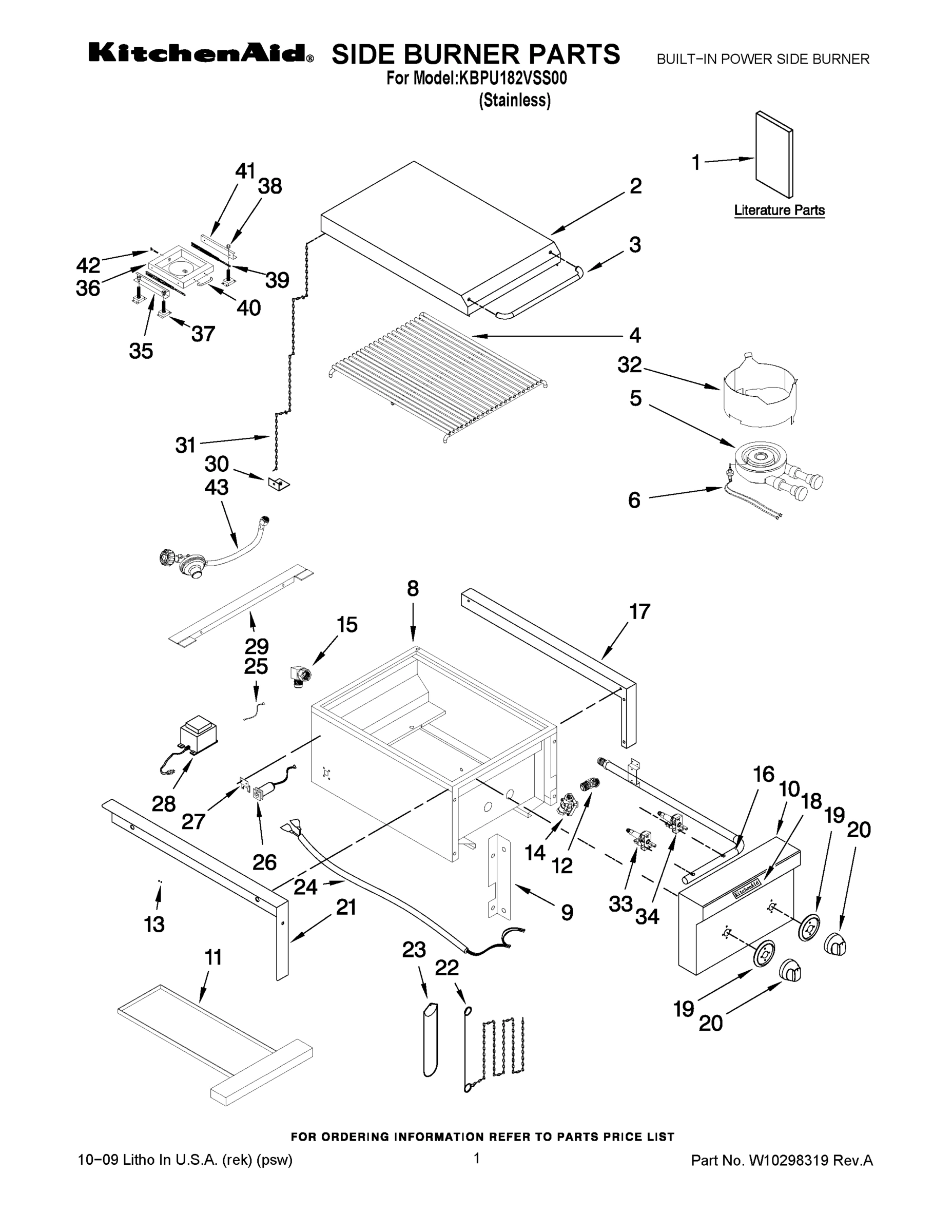

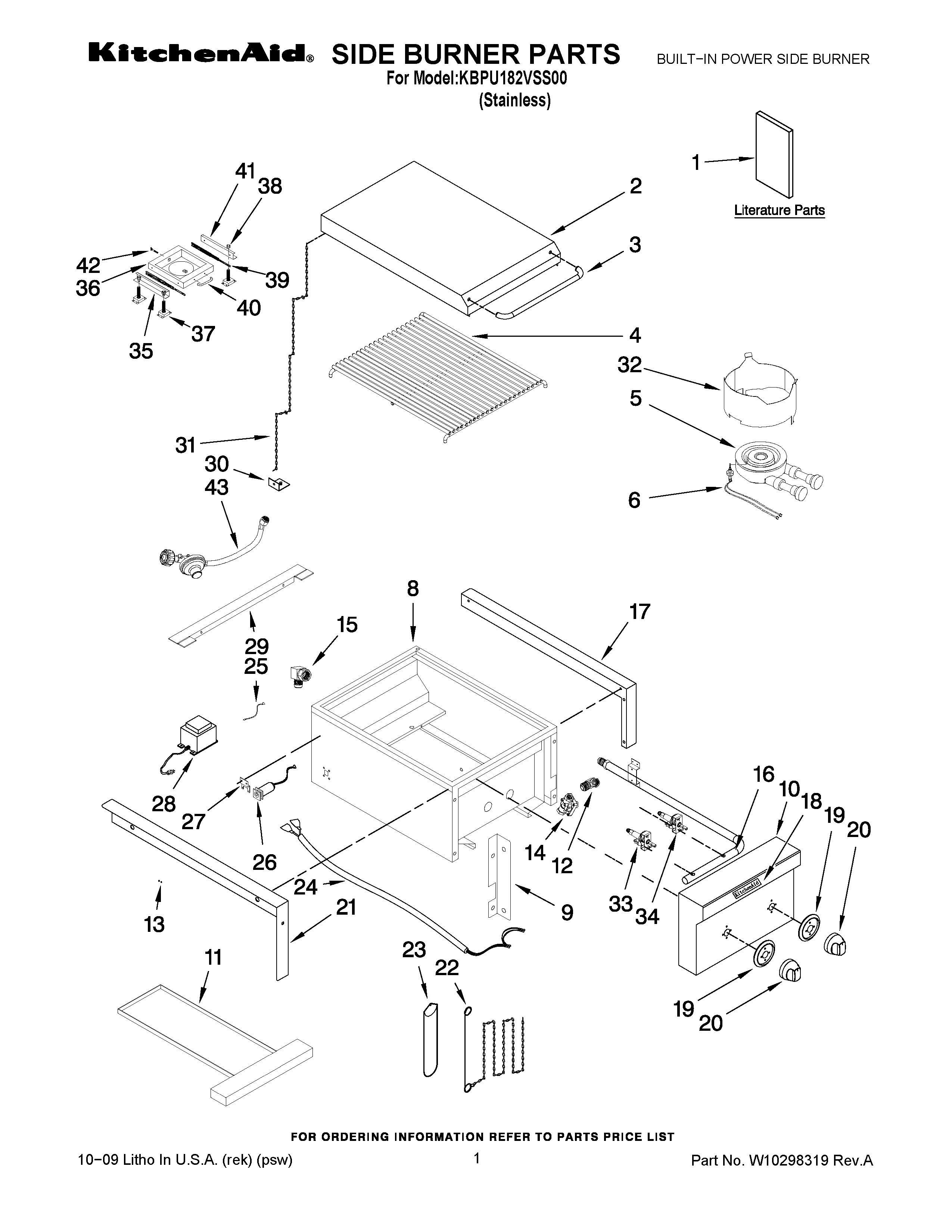

Model Whirlpool KBPU182VSS00 BUILT-IN POWER SIDE BURNER – Common Parts & Diagrams

1
U & C GUIDE / INSTRUCTIONS, INSTALLATION
U & C GUIDE / INSTRUCTIONS, INSTALLATION WPL W10243318 Contact Us For Availability
View on Model
2
COVER, BURNER
COVER, BURNER WPL W10285646 Contact Us For Availability
View on Model
3
BAR, TOOL
BAR, TOOL WPL W10285647 Contact Us For Availability
View on Model
4
GRATE, BURNER
GRATE, BURNER WPL W10285648 Contact Us For Availability
View on Model
5
BURNER
BURNER WPL W10285650 Contact Us For Availability
View on Model
6
IGNITOR, SURFACE
IGNITOR, SURFACE WPL W10285651 Contact Us For Availability
View on Model
8
BOX, BURNER
BOX, BURNER WPL W10285653 Contact Us For Availability
View on Model
9
BRACKET, PANEL
BRACKET, PANEL WPL W10285654 Contact Us For Availability
View on Model
10
PANEL, CONTROL
PANEL, CONTROL WPL W10285656 Contact Us For Availability
View on Model
11
TRAY, GREASE
TRAY, GREASE WPL W10285665 Contact Us For Availability
View on Model
12
CONN, BRASS NG
CONN, BRASS NG WPL W10285878 Contact Us For Availability
View on Model
13
KIT, ORIFICE
KIT, ORIFICE WPL W10285877 Contact Us For Availability
View on Model
15
CONN, BRASS LP
CONN, BRASS LP WPL W10285670 Contact Us For Availability
View on Model
16
MANIFOLD
MANIFOLD WPL W10285661 Contact Us For Availability
View on Model
17
FLANGE, RIGHT
FLANGE, RIGHT WPL W10285669 Contact Us For Availability
View on Model
18
NAMEPLATE
NAMEPLATE WPL W10285657 Contact Us For Availability
View on Model
20
KNOB
KNOB WPL W10285660 Contact Us For Availability
View on Model
21
FLANGE, LEFT
FLANGE, LEFT WPL W10285876 Contact Us For Availability
View on Model
22
ROD, LIGHTING
ROD, LIGHTING WPL W10285882 Contact Us For Availability
View on Model
23
BAG, LTG ROD
BAG, LTG ROD WPL W10285881 Contact Us For Availability
View on Model
24
HARNESS, WIRE
HARNESS, WIRE WPL W10285875 Contact Us For Availability
View on Model
25
HARNS, WIRE
HARNS, WIRE WPL W10285874 Contact Us For Availability
View on Model
27
BRACKET, TRANSFRMR
BRACKET, TRANSFRMR WPL W10285873 Contact Us For Availability
View on Model
28
TRANSFORMER
TRANSFORMER WPL W10285872 Contact Us For Availability
View on Model
29
FLANGE, BACK
FLANGE, BACK WPL W10285671 Contact Us For Availability
View on Model
30
STATOR, CHAIN
STATOR, CHAIN WPL W10244944 Contact Us For Availability
View on Model
31
CHAIN
CHAIN WPL W10285667 Contact Us For Availability
View on Model
32
SHIELD
SHIELD WPL W10285649 Contact Us For Availability
View on Model
33
VALVE, BURNER
VALVE, BURNER WPL W10285662 Contact Us For Availability
View on Model
34
VALVE, BURNER
VALVE, BURNER WPL W10285663 Contact Us For Availability
View on Model
35
BRACKET, LEFT
BRACKET, LEFT WPL W10247137 Contact Us For Availability
View on Model
36
TRAY, TANK
TRAY, TANK WPL W10285883 Contact Us For Availability
View on Model
37
BRACKET, BOLT
BRACKET, BOLT WPL W10247138 Contact Us For Availability
View on Model
38
NUT
NUT WPL W10247139 Contact Us For Availability
View on Model
39
SLIDE, TANK TRAY
SLIDE, TANK TRAY WPL W10247141 Contact Us For Availability
View on Model
40
HANDLE, TRAY
HANDLE, TRAY WPL W10247140 Contact Us For Availability
View on Model
41
BRACKET, RIGHT
BRACKET, RIGHT WPL W10247142 Contact Us For Availability
View on Model
42
BOLT, TANK
BOLT, TANK WPL W10247135 Contact Us For Availability
View on Model
43
REGULATOR
REGULATOR WPL W10247100 Contact Us For Availability
View on Model
