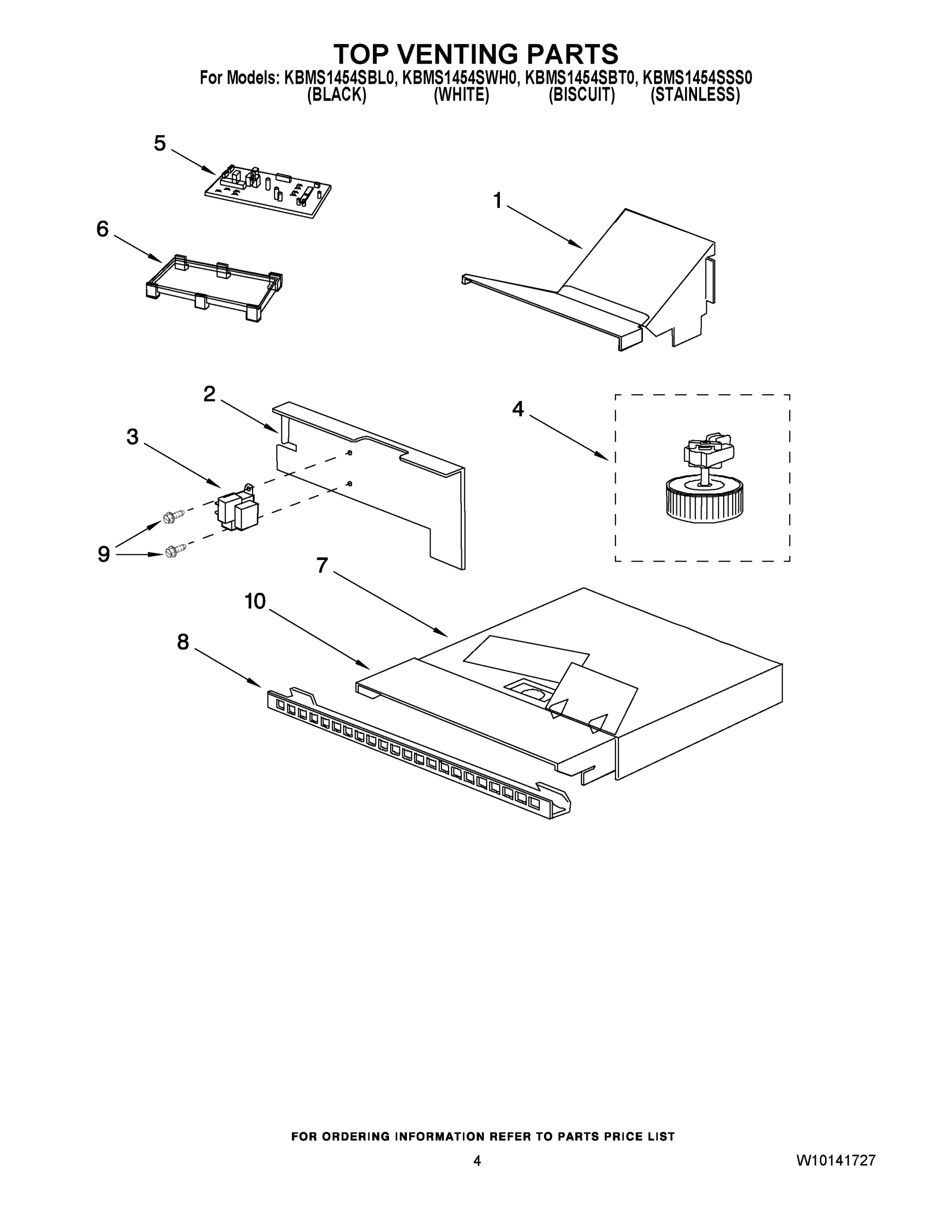

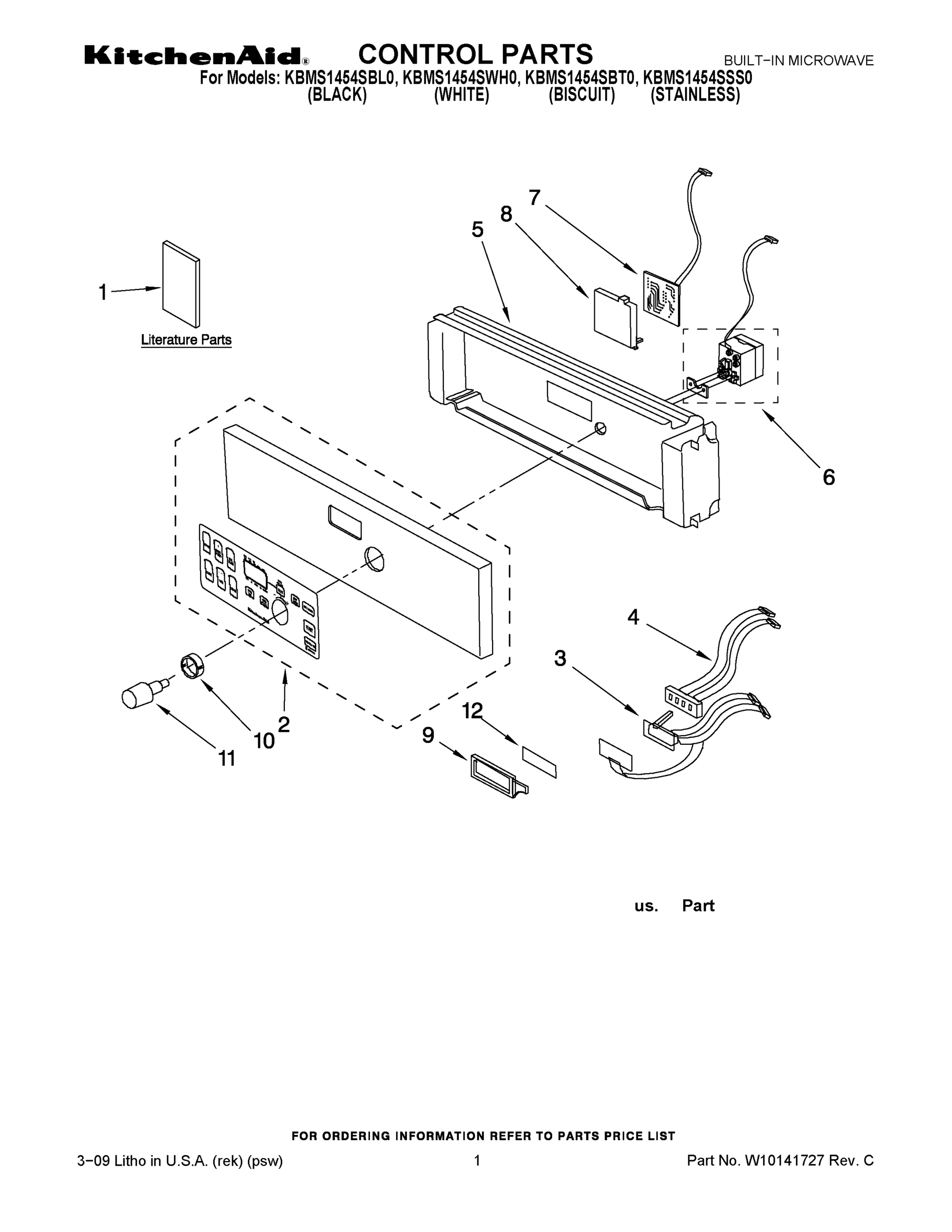

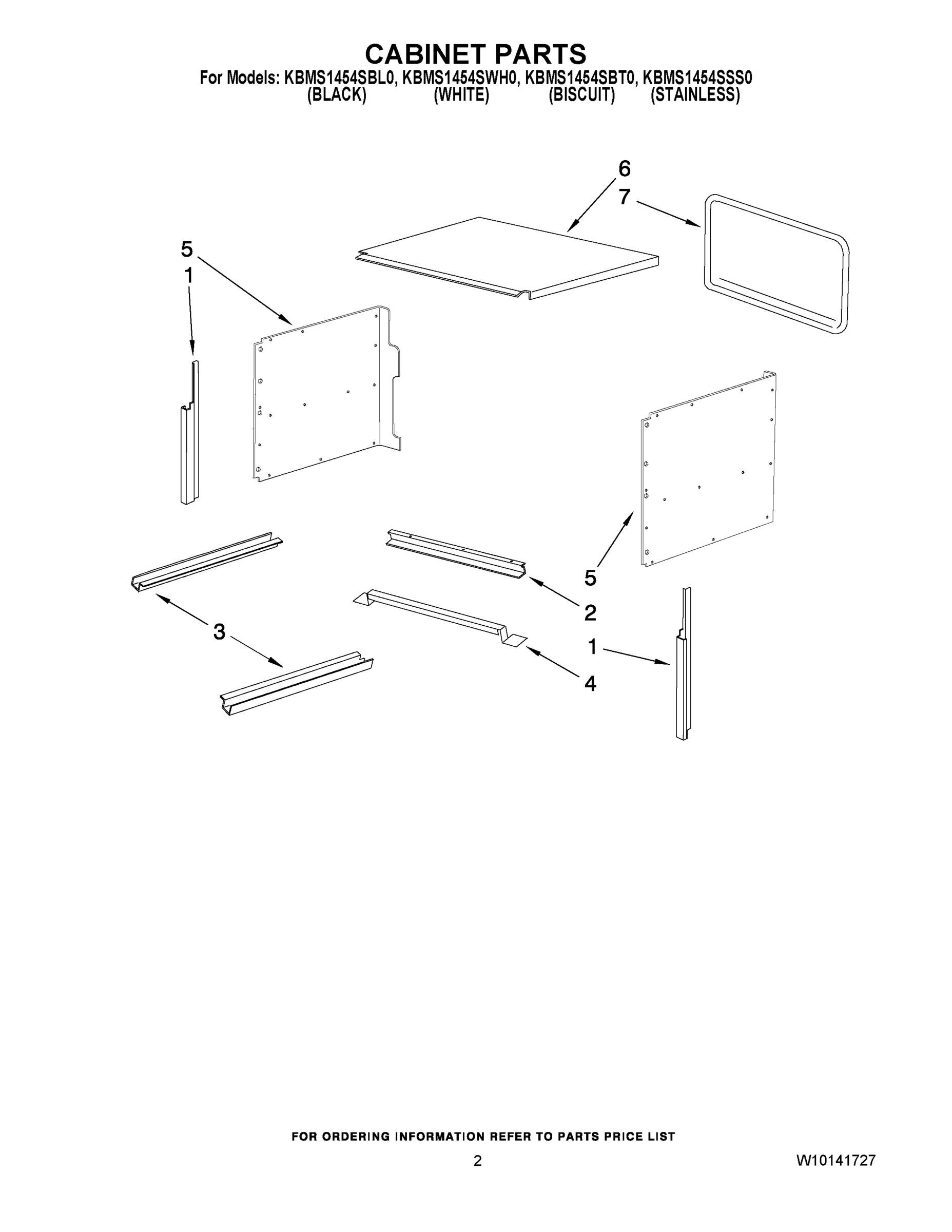

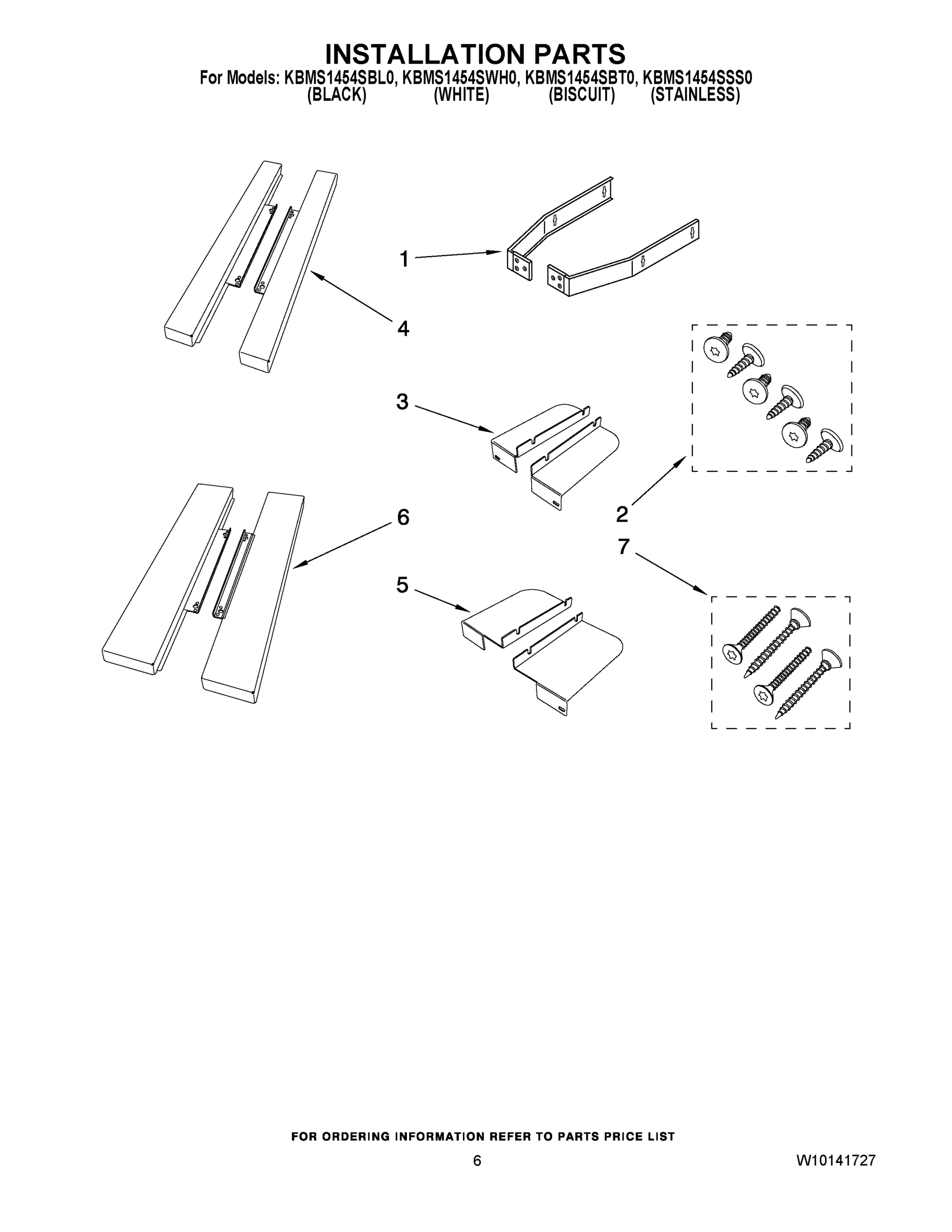

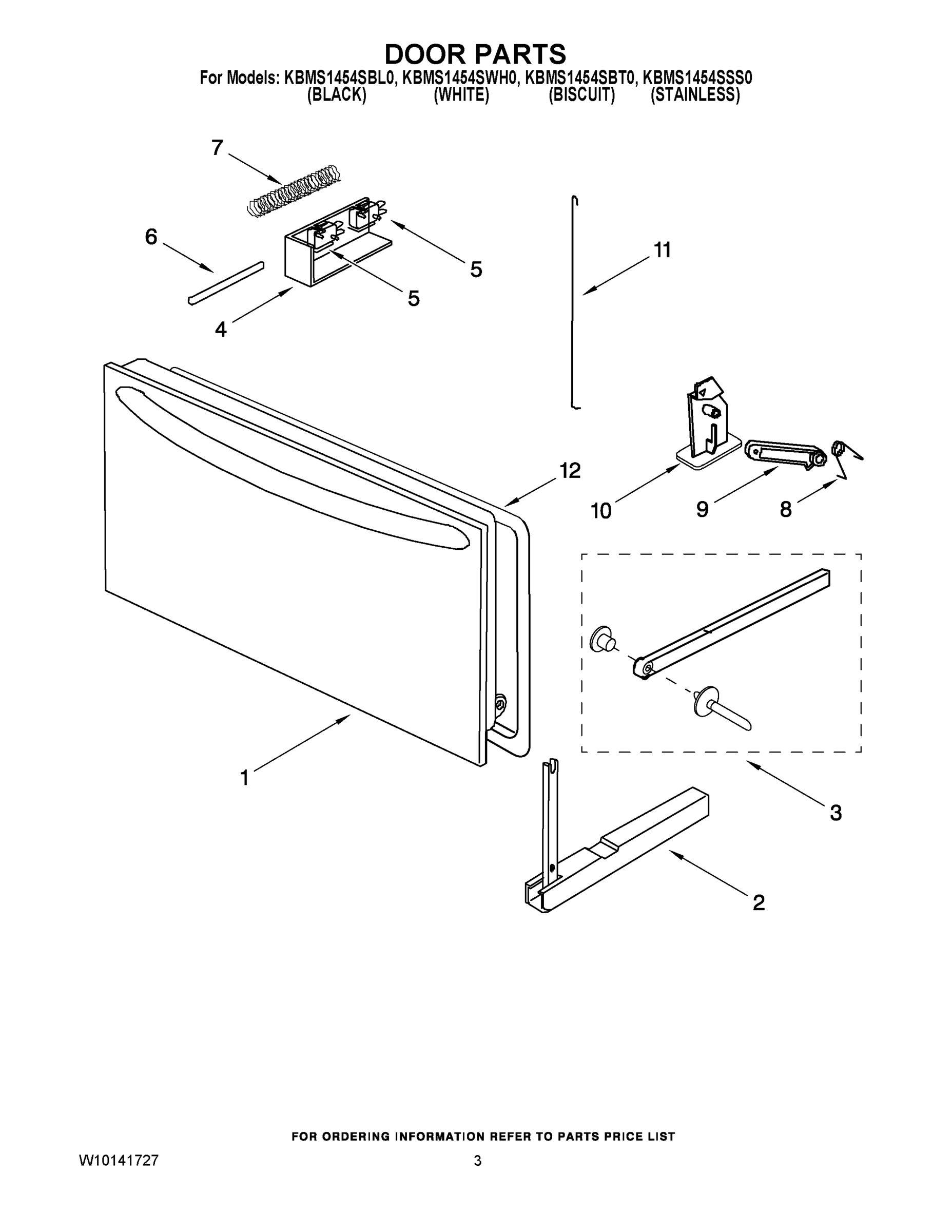

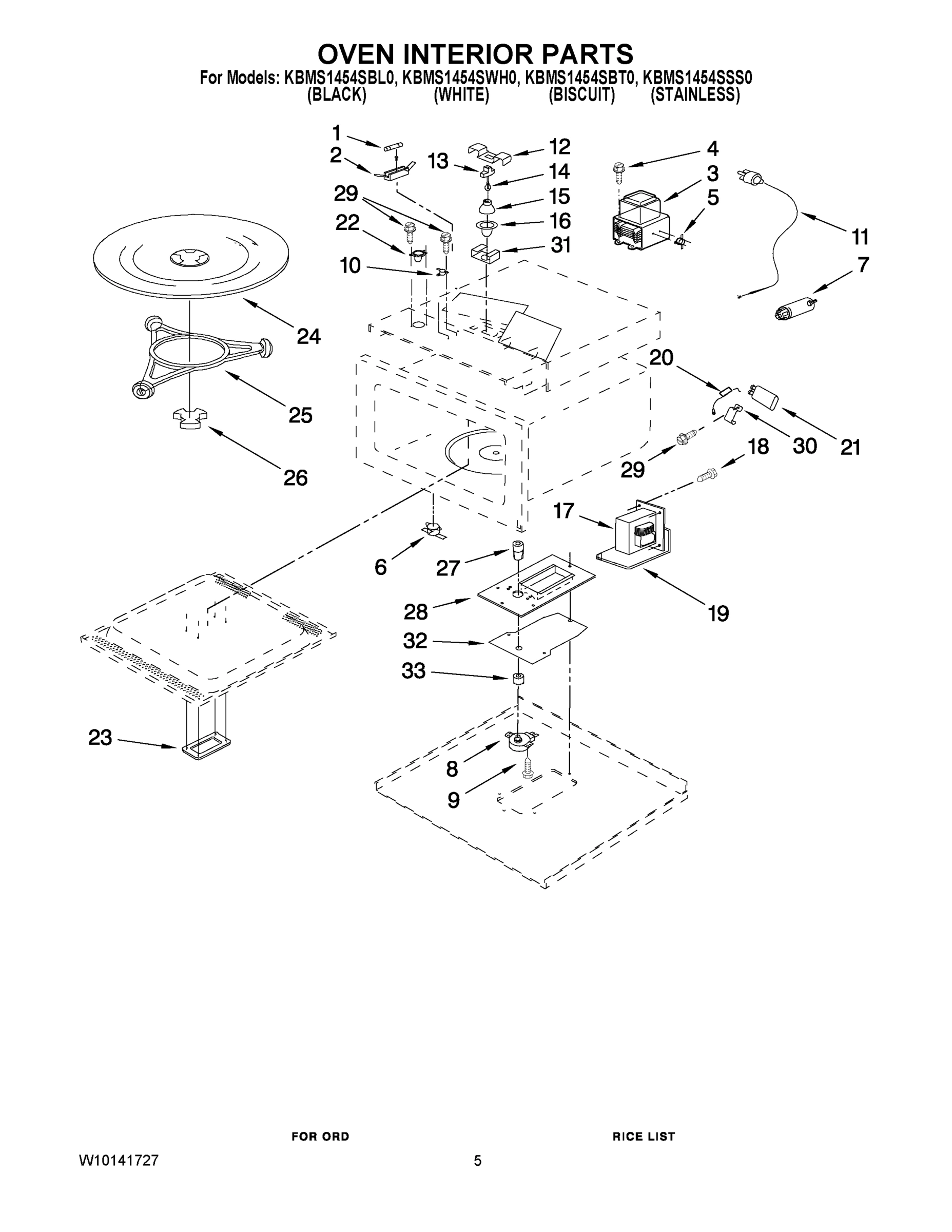

Model Whirlpool KBMS1454SBL0 BUILT-IN MICROWAVE – Common Parts &amp; Diagrams

1

WP4375321 Whirlpool Microwave Fuse In Stock WPL WP4375321 $10.36

1

Air Duct WPL W10141633 Contact Us For Availability

1

Bracket, Mounting WPL W10170866 Contact Us For Availability

1

Use & Care Guide WPL 8205301 Contact Us For Availability

1

Guide-Quick Reference WPL 8205302 Contact Us For Availability

1

Tech Sheet WPL 8205304 Contact Us For Availability

1

Installation Instructions WPL W10111676 Contact Us For Availability

1

Cook Guide Label WPL W10141643 Contact Us For Availability

2

W10245194 Whirlpool Microwave Fuse Block Backorder WPL W10245194 $29.77

2

WP487353 Whirlpool Refrigerator Screw Backorder WPL WP487353 $2.51

2

Panel, Control (Black) WPL W10141639 Contact Us For Availability

2

Air Guide WPL 8205740 Contact Us For Availability

2

Panel, Control (Stainless) WPL W10141637 Contact Us For Availability

2

Panel, Control (White) WPL W10141638 Contact Us For Availability

2

Panel, Control (Biscuit) WPL W10141640 Contact Us For Availability

3

8205707 Whirlpool Microwave Support Backorder WPL 8205707 $29.43

3

W10775910 Whirlpool Microwave Mount Bracket Backorder WPL W10775910 $44.45

3

W11238401 Whirlpool Microwave Transformer In Stock WPL W11238401 $130.31

3

Sliding Arm Assy WPL 8205687 Contact Us For Availability

4

WP8205683 Whirlpool Microwave Interlock In Stock WPL WP8205683 $34.57

4

WPW10124269 Whirlpool Microwave Electronic Co Backorder WPL WPW10124269 $111.04

4

Motor, Fan Assy WPL 8205721 Contact Us For Availability

4

Narrow Trim (27`` Black) WPL W10170869 Contact Us For Availability

4

Narrow Trim (27`` White) WPL W10170867 Contact Us For Availability

4

Narrow Trim (27`` Biscuit) WPL W10170871 Contact Us For Availability

4

Narrow Trim (27`` Stainless) WPL W10170873 Contact Us For Availability

5

8205674 Whirlpool Microwave Side Cover Backorder WPL 8205674 $50.95

5

W10211972 Whirlpool Microwave Switch In Stock WPL W10211972 $28.44

5

Thermostat WPL 8205652 Contact Us For Availability

5

Control, Electronic WPL 8206312 Contact Us For Availability

5

Support, Control Panel WPL 8205722 Contact Us For Availability

6

461967750752 Whirlpool Support Bracket Backorder WPL 461967750752 $24.91

6

W10141630 Whirlpool Microwave Thermostat Fixe Backorder WPL W10141630 $96.02

6

Board, Selector WPL 8205662 Contact Us For Availability

6

Wide Trim (30`` White) WPL W10170868 Contact Us For Availability

6

Wide Trim (30`` Black) WPL W10170870 Contact Us For Availability

6

Wide Trim (30`` Biscuit) WPL W10170872 Contact Us For Availability

6

Wide Trim (30`` Stainless) WPL W10170874 Contact Us For Availability

7

W11715912 Whirlpool Spring Assembly Backorder WPL W11715912 $2.29

7

Top Chassis WPL 8205705 Contact Us For Availability

7

4 pk. screws (White) WPL 8205768 Contact Us For Availability

7

4 pk. screws (Black) WPL 8205769 Contact Us For Availability

7

4 pk. screws (Biscuit) WPL 8205770 Contact Us For Availability

7

Board, Interface WPL 8206313 Contact Us For Availability

8

461967749811 Whirlpool Microwave Vent Panel Backorder WPL 461967749811 $58.63

8

W10884489 Whirlpool Microwave Support Backorder WPL W10884489 $28.64

9

461967750153 Whirlpool Microwave Support Backorder WPL 461967750153 $31.46

9

Screw WPL 4357202 Contact Us For Availability

461960204731 Whirlpool Microwave Ring Backorder WPL 461960204731 $27.45

W10141634 Whirlpool Microwave Cover Plate Backorder WPL W10141634 $29.43

W11676348 Whirlpool Thermostat Fix Backorder WPL W11676348 $16.05

W11684510 Whirlpool Support Backorder WPL W11684510 $5.38

11

W11700292 Whirlpool Spring Backorder WPL W11700292 $26.77

11

Knob WPL W10170865 Contact Us For Availability

12

Gasket WPL 8205789 Contact Us For Availability

12

Window (Display Filter) WPL W10141641 Contact Us For Availability

15

423107022541 Whirlpool Microwave Reflector Backorder WPL 423107022541 $32.79

16

W11193483 Whirlpool Microwave Lamp Lens In Stock WPL W11193483 $38.25

23

W11087199 Whirlpool Waveguide Cover In Stock WPL W11087199 $8.73

24

W11373838 Whirlpool Glass Tray In Stock WPL W11373838 $43.52

26

W11223840 Whirlpool Microwave Turn Shaft Backorder WPL W11223840 $11.47

27

W11126044 Whirlpool Drive Shaft Backorder WPL W11126044 $10.63

29

461967825321 Whirlpool Microwave Screw Backorder WPL 461967825321 $7.47

31

W11440819 Whirlpool Clip Backorder WPL W11440819 $10.76

32

Cover, Motor WPL W10120234 Contact Us For Availability

33

Gasket, Shaft WPL 4375252 Contact Us For Availability

461968955994 Whirlpool Wire Harness Backorder WPL 461968955994 $122.78

8205749 Whirlpool Wire Harness Backorder WPL 8205749 $80.13

8205750 Whirlpool Microwave Wire Harness Backorder WPL 8205750 $88.17

8205771 Whirlpool Microwave Screw Backorder WPL 8205771 $5.44

W10811146 Whirlpool Microwave Wire Harness Backorder WPL W10811146 $13.80

Harness, Fan & Turntable Motor WPL 8205751 Contact Us For Availability

Cable, UI Board Selector Board WPL 8205752 Contact Us For Availability
