Model Whirlpool KBMC147HWH0 BUILT-IN MICROWAVE – Common Parts & Diagrams
01 - OVEN, LITERATURE
02 - CONTROL PANEL

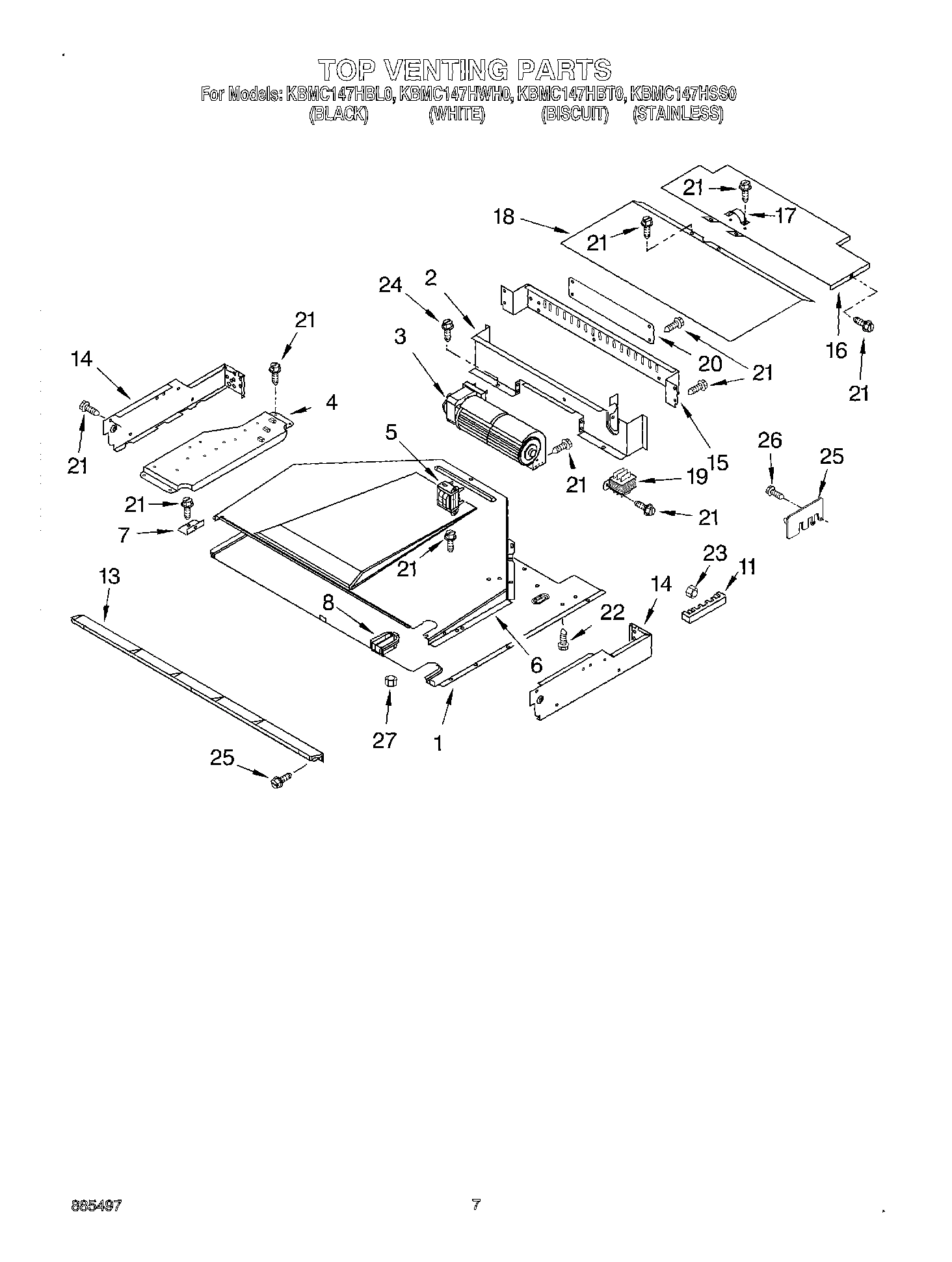

05 - TOP VENTING

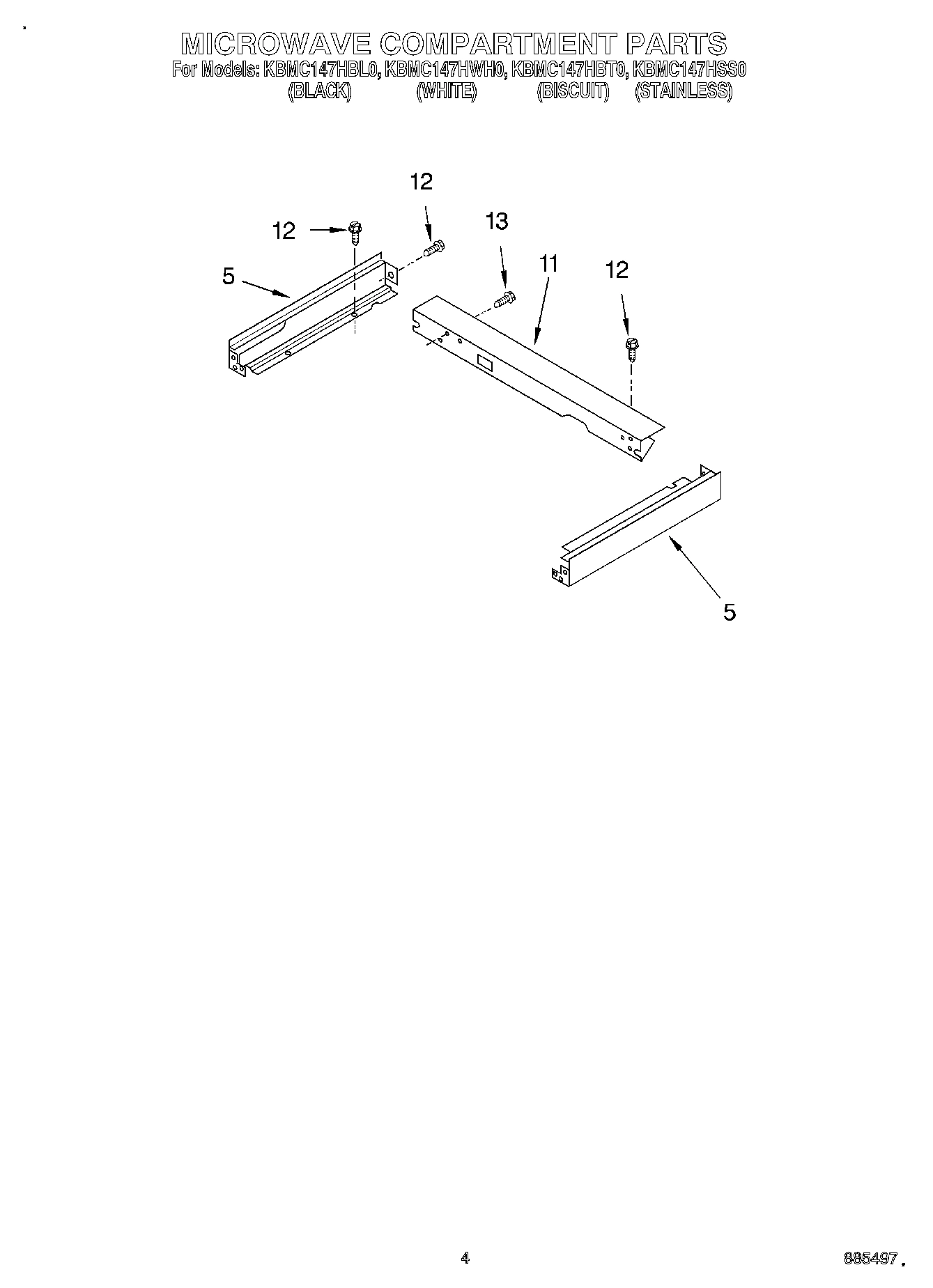

03 - MICROWAVE COMPARTMENT

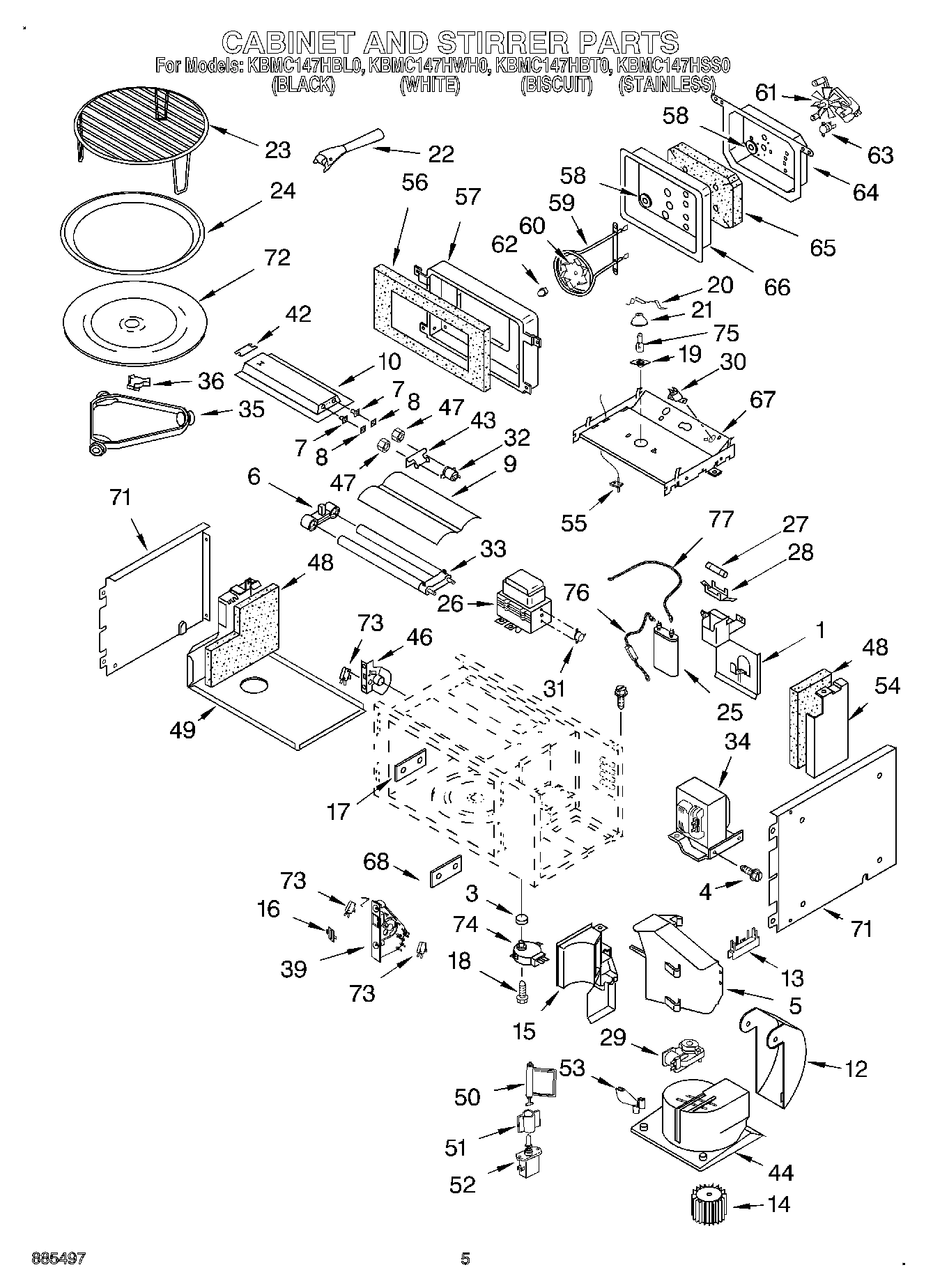

04 - CABINET AND STIRRER

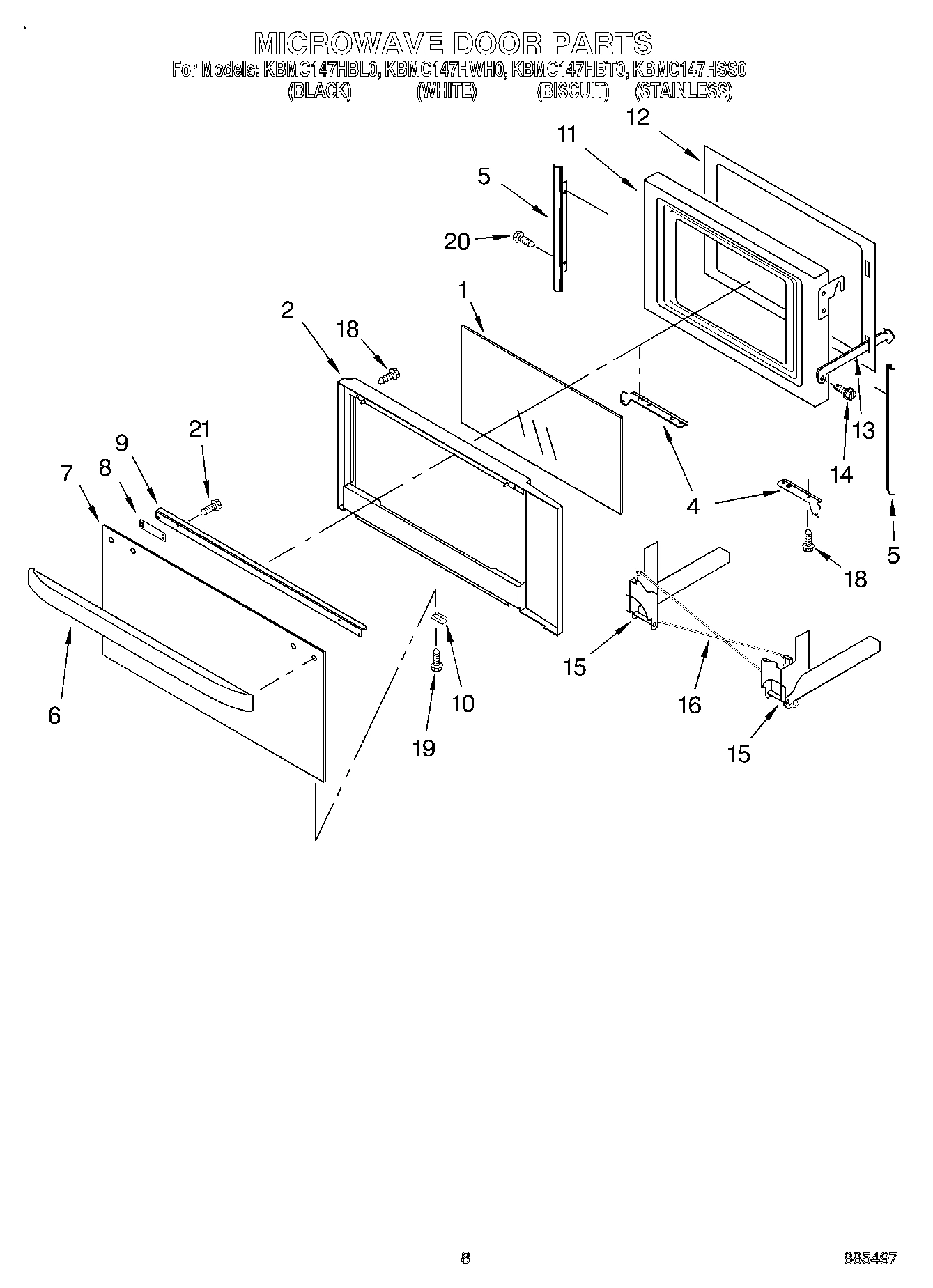

06 - MICROWAVE DOOR, OPTIONAL
Common parts from model Whirlpool KBMC147HWH0 BUILT-IN MICROWAVE
1
Glass, Middle WPL 4448937 Contact Us For Availability
2
Frame, Door WPL 4450945 Contact Us For Availability
3
Ring, Rubber WPL 4375252 Contact Us For Availability
4
Bracket, Mounting (Right Side) WPL 4449141 Contact Us For Availability
4
Bracket, Mounting (Left Side) WPL 4449142 Contact Us For Availability
4
Screw WPL 4375038 Contact Us For Availability
5
Filler, Side (Right Side) WPL 4449083 Contact Us For Availability
5
Filler, Side (Left) WPL 4449086 Contact Us For Availability
5
Support Rails (Right Side) WPL 4452551 Contact Us For Availability
5
Support Rails (Left Side) WPL 4452552 Contact Us For Availability
5
Air Duct, Magnetron WPL 4375314 Contact Us For Availability
6
Support, Tube WPL 4375253 Contact Us For Availability
6
Handle, Door (Stainless) WPL 4452087 Contact Us For Availability
6
Handle, Door (Black) WPL 4452500 Contact Us For Availability
6
Handle, Door (White) WPL 4452501 Contact Us For Availability
6
Handle, Door (Biscuit) WPL 4452870 Contact Us For Availability
7
Glass, Outer (Black) WPL 4452210 Contact Us For Availability
7
Plug, Ceramic WPL 4375421 Contact Us For Availability
7
Glass, Outer (Stainless) WPL 4452258 Contact Us For Availability
7
Glass, Outer (White) WPL 4452788 Contact Us For Availability
7
Glass, Outer (Biscuit) WPL 4452994 Contact Us For Availability
8
Grommet WPL 4449964 Contact Us For Availability
8
Bushing WPL 4375255 Contact Us For Availability
8
Spacer (Stainless) WPL 4451055 Contact Us For Availability
9
Bracket, Handle WPL 4452330 Contact Us For Availability
9
Reflector WPL 4375256 Contact Us For Availability
10
Chamber, Reflector WPL 4375257 Contact Us For Availability
10
RETAINER, GLASS CLIP (BLACK) WPL 4450863 Contact Us For Availability
10
RETAINER,GLASS CLIP (WHITE) WPL 4450864 Contact Us For Availability
10
Retainer, Glass-Clip (Stainless) WPL 4451432 Contact Us For Availability
10
RETAINER,GLASS CLIP (BISCUIT) WPL 4452119 Contact Us For Availability
11
Rear Channel WPL 4452547 Contact Us For Availability
11
Plate, Door WPL 4375339 Contact Us For Availability
12
Duct, Inlet WPL 4375450 Contact Us For Availability
12
Frame, Inner WPL 4375414 Contact Us For Availability
13
Vent-Cntrl Panel WPL 4450787 Contact Us For Availability
13
Insulation, Switch WPL 4375316 Contact Us For Availability
13
Strap, Door WPL 4375330 Contact Us For Availability
14
Fan Wheel WPL 4375322 Contact Us For Availability
14
Screw WPL 4375313 Contact Us For Availability
15
Back, Control WPL 4452244 Contact Us For Availability
15
Duct, Air WPL 4375317 Contact Us For Availability
16
Cover, Top Rear WPL 4450550 Contact Us For Availability
16
Block, Slide WPL 4375415 Contact Us For Availability
17
Cover Plate, Upper WPL 4375248 Contact Us For Availability
18
Cover, Top Front WPL 4450553 Contact Us For Availability
19
Screw WPL 4449040 Contact Us For Availability
19
Transformer-Cntrl Control WPL 4455038 Contact Us For Availability
20
Plate, Cover WPL 4452247 Contact Us For Availability
21
Wire, Ground WPL 4450831 Contact Us For Availability
21
Screw (Bl/Wh/Bt Model) WPL 4451040 Contact Us For Availability
21
Harness, Main WPL 4452612 Contact Us For Availability
22
Screw WPL 3400080 Contact Us For Availability
22
Handle, Pan WPL 4393900 Contact Us For Availability
25
Suppressor WPL 4451934 Contact Us For Availability
30
Thermostat WPL 4375279 Contact Us For Availability
32
Thermostat WPL 4375281 Contact Us For Availability
33
Q Tube Assembly WPL 4375408 Contact Us For Availability
35
Ring, Turntable WPL 4375406 Contact Us For Availability
42
Plate, Grill WPL 4375331 Contact Us For Availability
43
Bracket WPL 4375332 Contact Us For Availability
44
Cap, Fan WPL 4375441 Contact Us For Availability
47
Nut WPL 4375258 Contact Us For Availability
48
Insulation (Left Side) WPL 4375409 Contact Us For Availability
48
Insulation (Right Side) WPL 4375410 Contact Us For Availability
49
Plate, Side - Bottom WPL 4375411 Contact Us For Availability
50
Valve WPL 4375425 Contact Us For Availability
51
Screw To Valve WPL 4375428 Contact Us For Availability
53
Air Bleed WPL 4375426 Contact Us For Availability
54
Shield, Heat Right WPL 4375439 Contact Us For Availability
55
Sensor, Temp. WPL 4375422 Contact Us For Availability
56
Insulation WPL 4375420 Contact Us For Availability
57
Duct, Heater WPL 4375419 Contact Us For Availability
58
Washer WPL 4375416 Contact Us For Availability
59
Element, Heater WPL 4375417 Contact Us For Availability
61
Motor, Fan WPL 4375429 Contact Us For Availability
62
Left-Threaded Nut (Serviced With Motor Item 6 WPL ARI79192A4 Contact Us For Availability
64
Shield, Heat WPL 4375431 Contact Us For Availability
65
Insulation WPL 4375432 Contact Us For Availability
66
Chamber, Heat WPL 4375433 Contact Us For Availability
67
Isolation Plate WPL 4375437 Contact Us For Availability
68
Cover Plate WPL 4375338 Contact Us For Availability
71
Side Plate (Left) WPL 4375341 Contact Us For Availability
71
Side Plate (Right) WPL 4375342 Contact Us For Availability
77
Cable WPL 4375435 Contact Us For Availability
× ![]()
