Model Whirlpool KBMC140HWH02 30`` BUILT-IN MICROWAVE – Common Parts & Diagrams
06 - MICROWAVE DOOR PARTS, OPTIONAL PARTS
02 - CONTROL PANEL PARTS

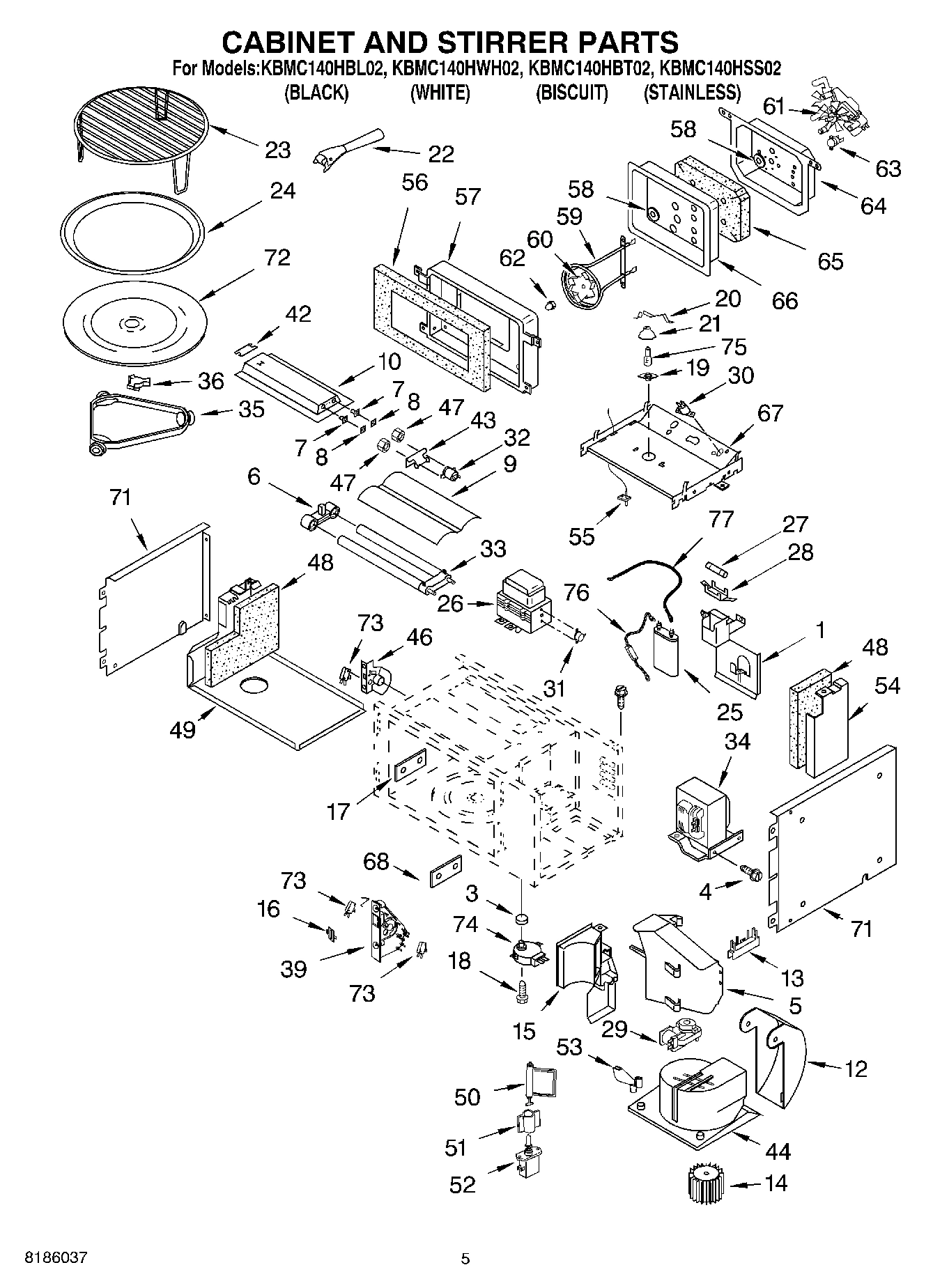

04 - CABINET AND STIRRER PARTS

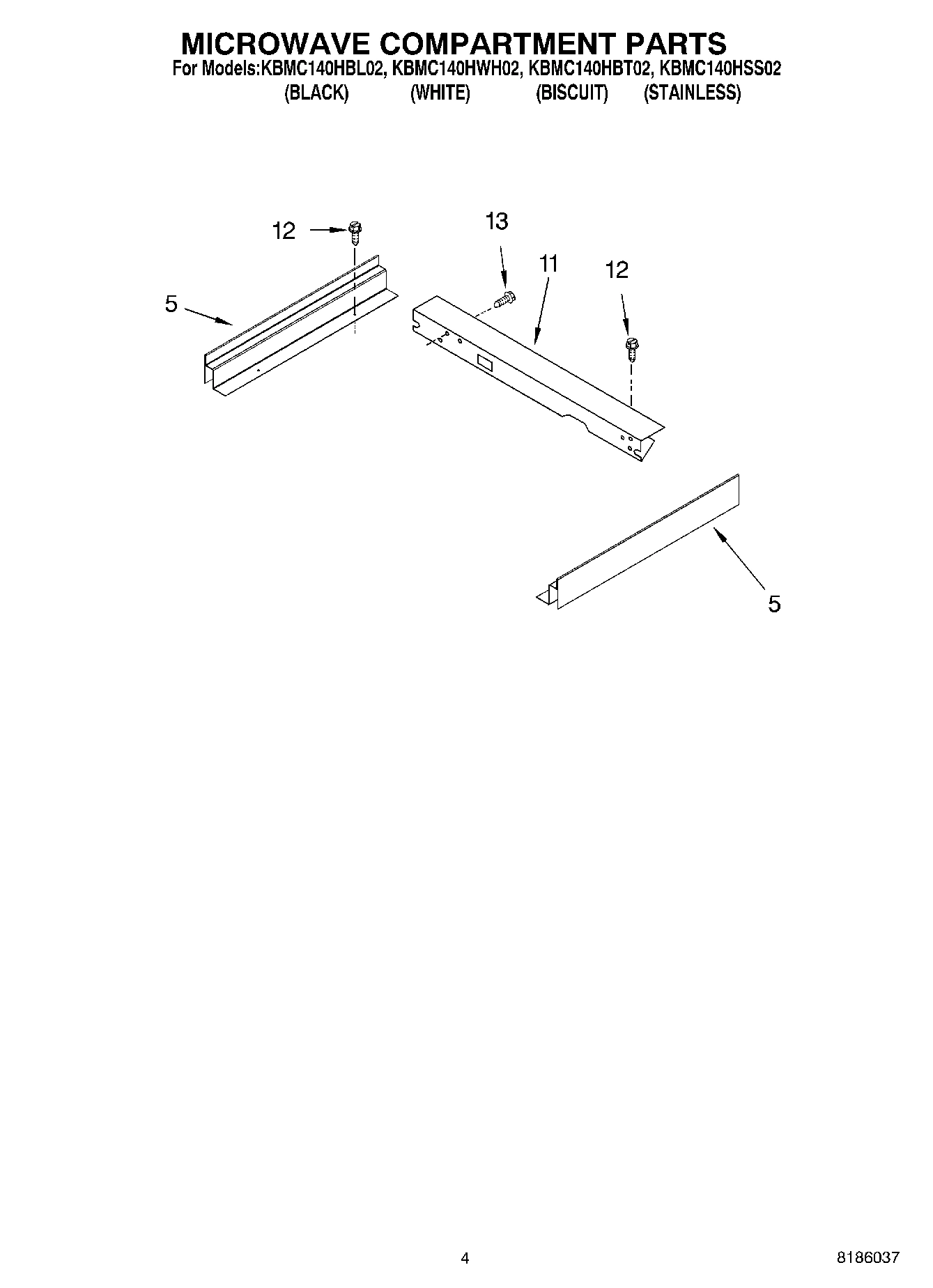

03 - MICROWAVE COMPARTMENT PARTS

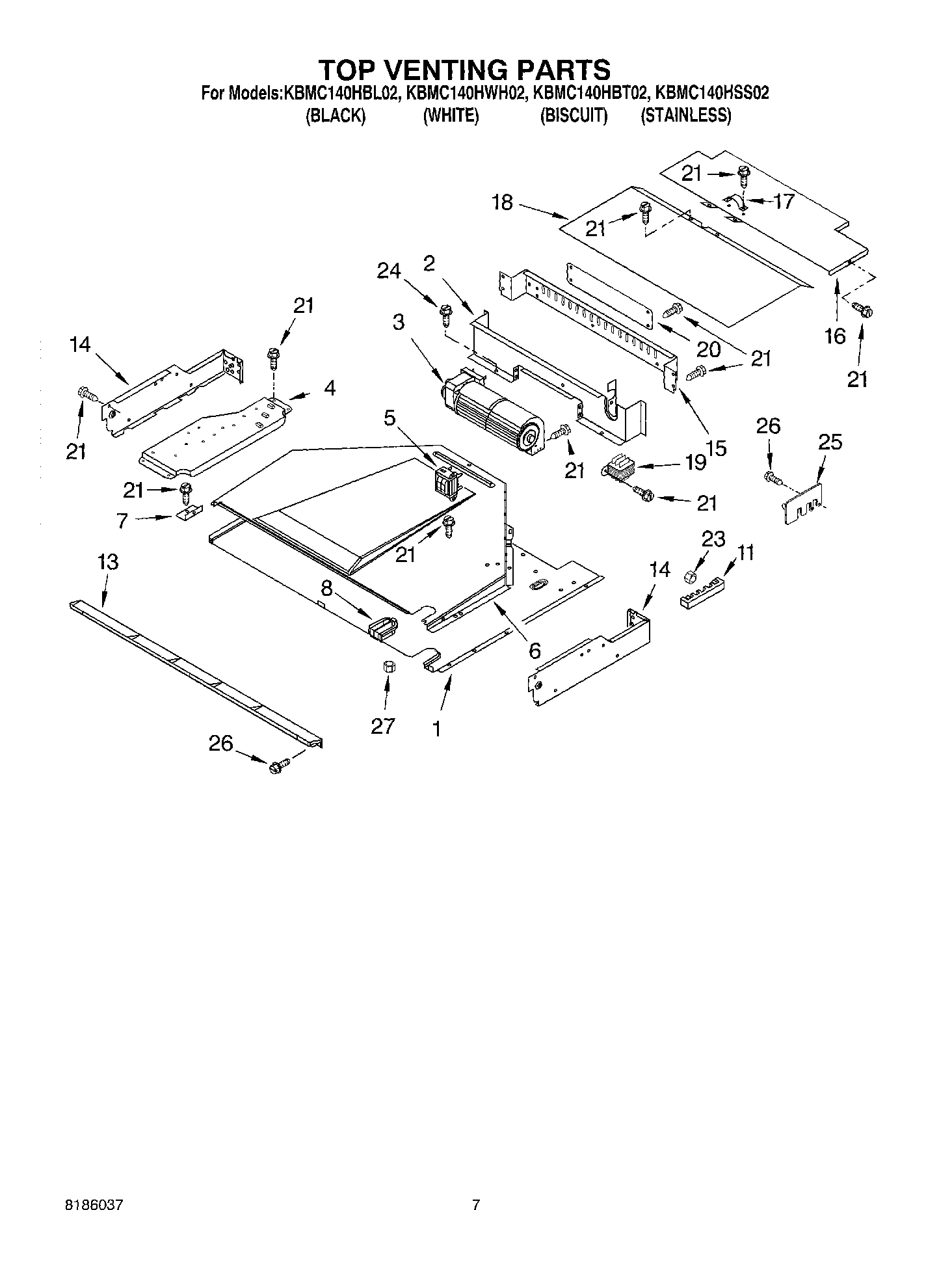

05 - TOP VENTING PARTS

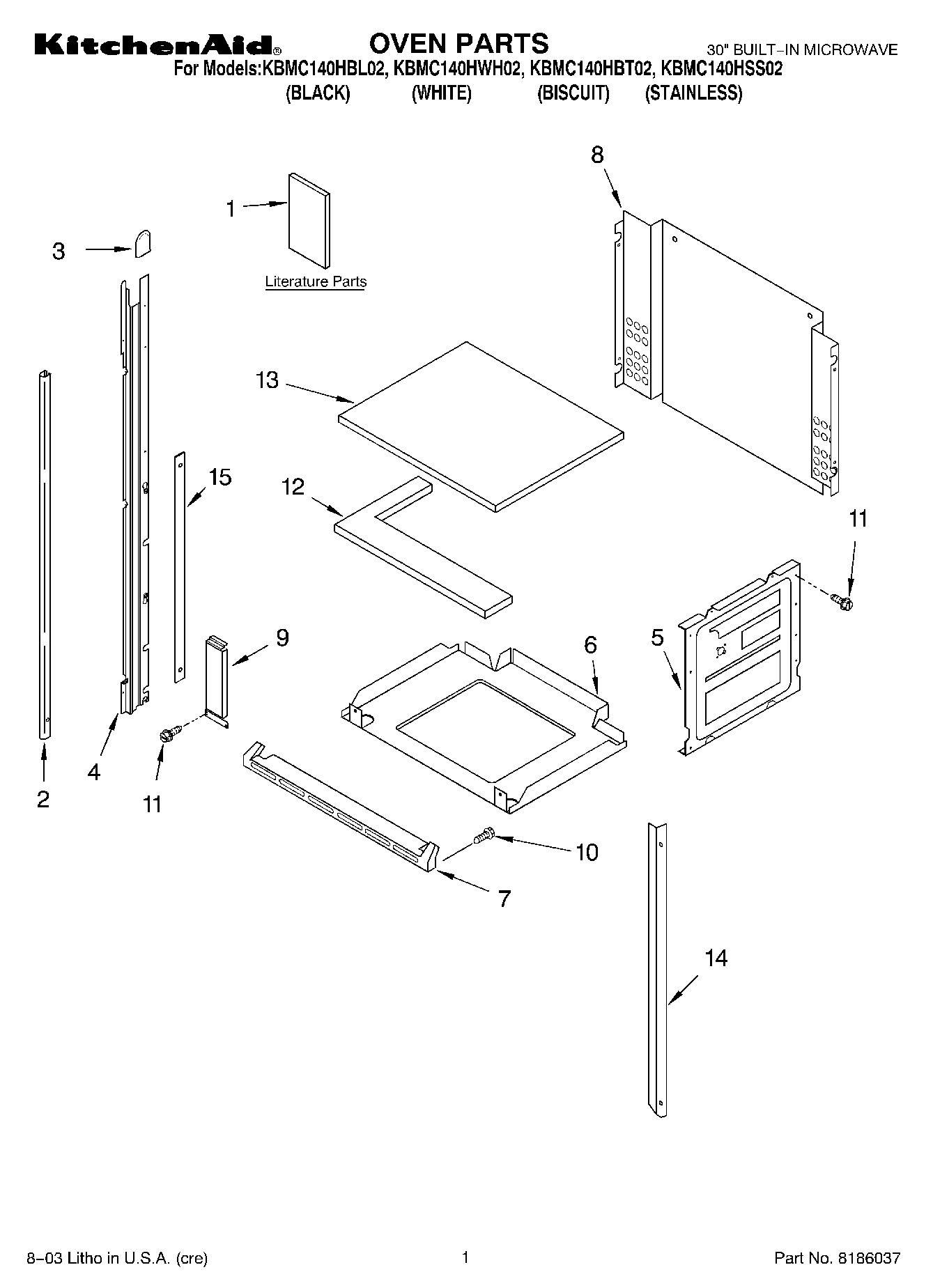

01 - OVEN PARTS
Common parts from model Whirlpool KBMC140HWH02 30`` BUILT-IN MICROWAVE
1
Glass, Middle WPL 4448937 Contact Us For Availability
1
Panel, Control (Stainless) WPL 4451791 Contact Us For Availability
1
Cover, Top WPL 4450378 Contact Us For Availability
1
Safer Cooking Tips WPL LIT3191638 Contact Us For Availability
1
Literature Parts (Easy Set Guide) WPL LIT4449264 Contact Us For Availability
1
Literature Parts (Cook Guide Label) WPL LIT4450786 Contact Us For Availability
1
Literature Parts (Guide-Easy Use M/W) WPL LIT4451052 Contact Us For Availability
1
Literature Parts (Tech Sheet) WPL LIT4453162 Contact Us For Availability
1
Literature Parts (Installation Instructions) WPL LIT4455988 Contact Us For Availability
1
Literature Parts (Use & Care Guide) WPL LIT8300890 Contact Us For Availability
2
Baffle, Blower WPL 4448935 Contact Us For Availability
2
Trim, Side (RH Stainless) WPL 4452556 Contact Us For Availability
2
Trim, Side (LH Stainless) WPL 4452557 Contact Us For Availability
2
Trim, Side (RH Black) WPL 4452624 Contact Us For Availability
2
Trim, Side (LH Black) WPL 4452625 Contact Us For Availability
2
Trim, Side (RH White) WPL 4452626 Contact Us For Availability
2
Trim, Side (LH White) WPL 4452627 Contact Us For Availability
2
Trim, Side (RH Biscuit) WPL 4452971 Contact Us For Availability
2
Trim, Side (LH Biscuit) WPL 4452972 Contact Us For Availability
3
Rubber Ring WPL 4375252 Contact Us For Availability
3
Blower WPL 4450920 Contact Us For Availability
3
Cap, Spacer WPL 4451605 Contact Us For Availability
4
Bracket, Mounting (Right Side) WPL 4449141 Contact Us For Availability
4
Bracket, Mounting (Left Side) WPL 4449142 Contact Us For Availability
4
Plate, Mounting WPL 4451789 Contact Us For Availability
4
Rail, Side (Right Side) WPL 4456545 Contact Us For Availability
4
Rail, Side (Left Side) WPL 4456546 Contact Us For Availability
5
Filler, Side (Right Side) WPL 4449083 Contact Us For Availability
5
Filler, Side (Left Side) WPL 4449086 Contact Us For Availability
5
Support Rails WPL 4456399 Contact Us For Availability
5
Side, Chassis (R.H. & L.H.) WPL 4452559 Contact Us For Availability
6
Exhaust Duct WPL 4451634 Contact Us For Availability
6
Base, Chassis WPL 4456487 Contact Us For Availability
7
Glass, Outer (Black) WPL 4452211 Contact Us For Availability
7
Glass, Outer (White) WPL 4452789 Contact Us For Availability
7
Bracket, Duct WPL 4450027 Contact Us For Availability
7
Trim, Bottom (Stainless) WPL 4456538 Contact Us For Availability
7
Trim, Bottom (Black) WPL 4456540 Contact Us For Availability
7
Trim, Bottom (White) WPL 4456542 Contact Us For Availability
7
Trim, Bottom (Biscuit) WPL 4456544 Contact Us For Availability
8
Grommet WPL 4449964 Contact Us For Availability
8
Chassis, Back WPL 4452554 Contact Us For Availability
9
Bracket, Handle WPL 4452331 Contact Us For Availability
9
Extension Filler WPL 4449906 Contact Us For Availability
11
Rear Channel WPL 4452548 Contact Us For Availability
12
Insulation-Grill WPL 4452492 Contact Us For Availability
13
Vent-Cntrl Panel WPL 4456145 Contact Us For Availability
13
Insulation-Top WPL 4452491 Contact Us For Availability
14
Bracket WPL 4455475 Contact Us For Availability
15
Back, Control WPL 4452244 Contact Us For Availability
15
Spacer WPL 4455471 Contact Us For Availability
19
Screw WPL 4449040 Contact Us For Availability
19
Transformer-Cntrl Control WPL 4455038 Contact Us For Availability
20
Cover, Plate WPL 4452247 Contact Us For Availability
22
Pan Handle WPL 4393900 Contact Us For Availability
25
Suppressor WPL 4451934 Contact Us For Availability
26
Screw WPL 3400080 Contact Us For Availability
30
Thermostat WPL 4375279 Contact Us For Availability
32
Thermostat WPL 4375281 Contact Us For Availability
33
Q Tube Assembly WPL 4375408 Contact Us For Availability
35
Ring, Turntable WPL 4375406 Contact Us For Availability
42
Plate, Grill WPL 4375331 Contact Us For Availability
43
Bracket WPL 4375332 Contact Us For Availability
44
Fan Cap WPL 4375441 Contact Us For Availability
47
Nut WPL 4375258 Contact Us For Availability
48
Insulation (Left Side) WPL 4375409 Contact Us For Availability
48
Insulation (Right Side) WPL 4375410 Contact Us For Availability
49
Plate, Side - Bottom WPL 4375411 Contact Us For Availability
50
Valve WPL 4375425 Contact Us For Availability
51
Screw To Valve WPL 4375428 Contact Us For Availability
53
Air Bleed WPL 4375426 Contact Us For Availability
54
Shield, Heat Right WPL 4375439 Contact Us For Availability
55
Sensor, Temp. WPL 4375422 Contact Us For Availability
56
Insulation WPL 4375420 Contact Us For Availability
57
Duct, Heater WPL 4375419 Contact Us For Availability
58
Washer WPL 4375416 Contact Us For Availability
59
Element, Heater WPL 4375417 Contact Us For Availability
61
Motor, Fan WPL 4375429 Contact Us For Availability
62
Left-Threaded Nut (Serviced With Motor Item 6 WPL ARI79141A1 Contact Us For Availability
64
Shield, Heat WPL 4375431 Contact Us For Availability
65
Insulation WPL 4375432 Contact Us For Availability
66
Chamber, Heat WPL 4375433 Contact Us For Availability
67
Isolation Plate WPL 4375437 Contact Us For Availability
68
Cover Plate WPL 4375338 Contact Us For Availability
71
Side Plate (Left) WPL 4375341 Contact Us For Availability
71
Side Plate (Right) WPL 4375342 Contact Us For Availability
77
Cable WPL 4375435 Contact Us For Availability
× ![]()
