Model Whirlpool KBHV109PSS01 30`` BUILT-IN MICROWAVE – Common Parts & Diagrams

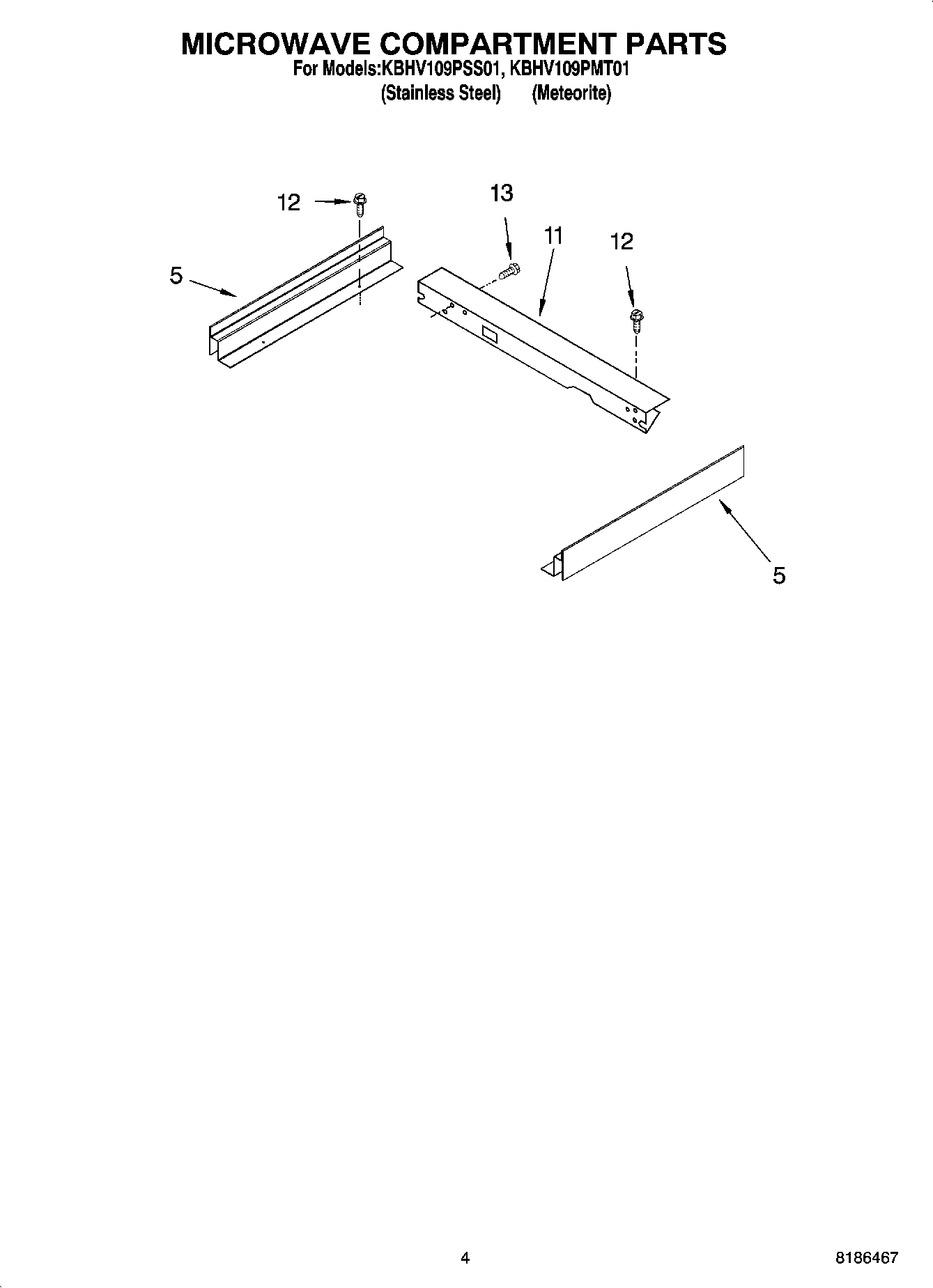

03 - MICROWAVE COMPARTMENT PARTS

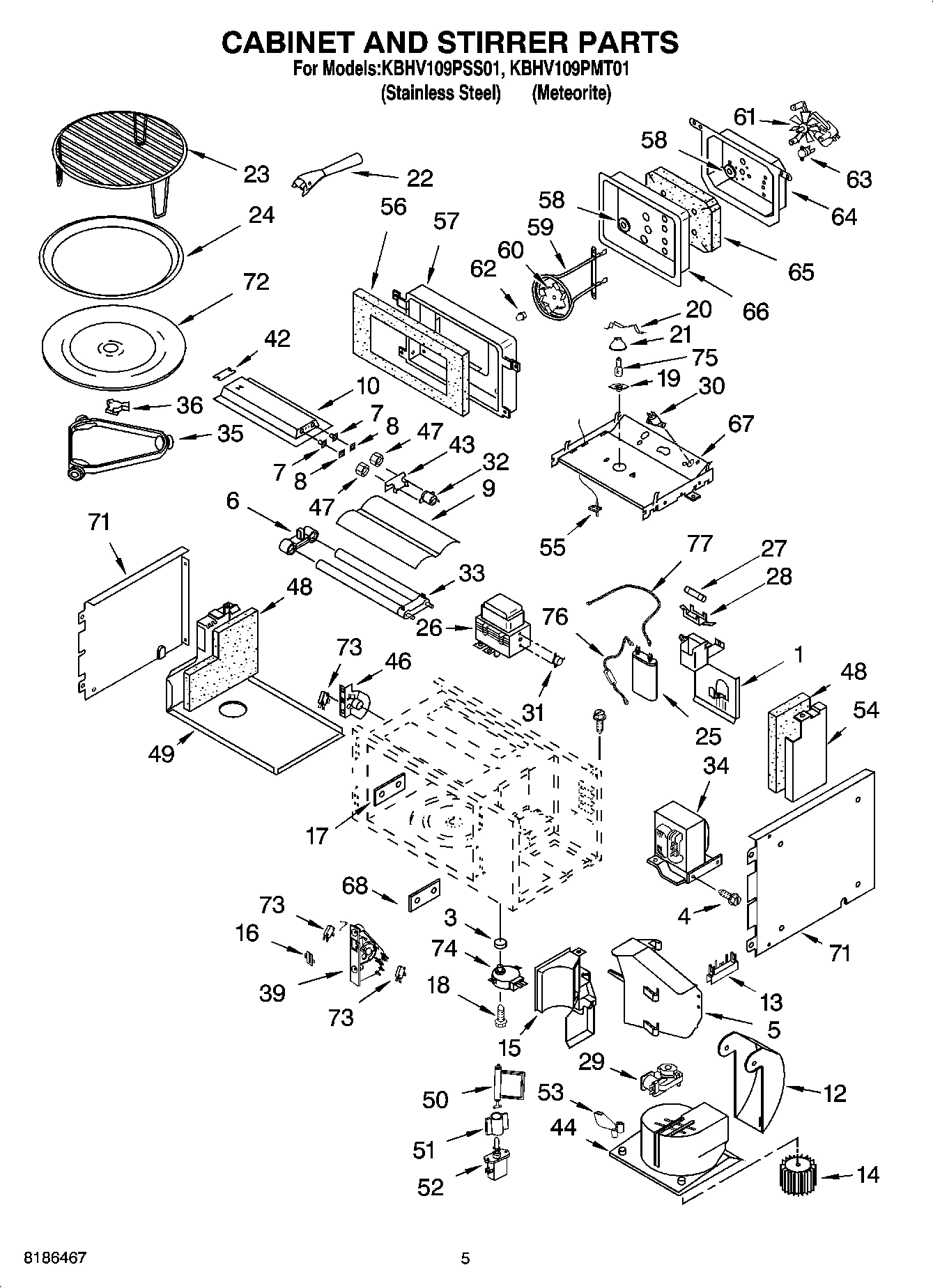

04 - CABINET AND STIRRER PARTS

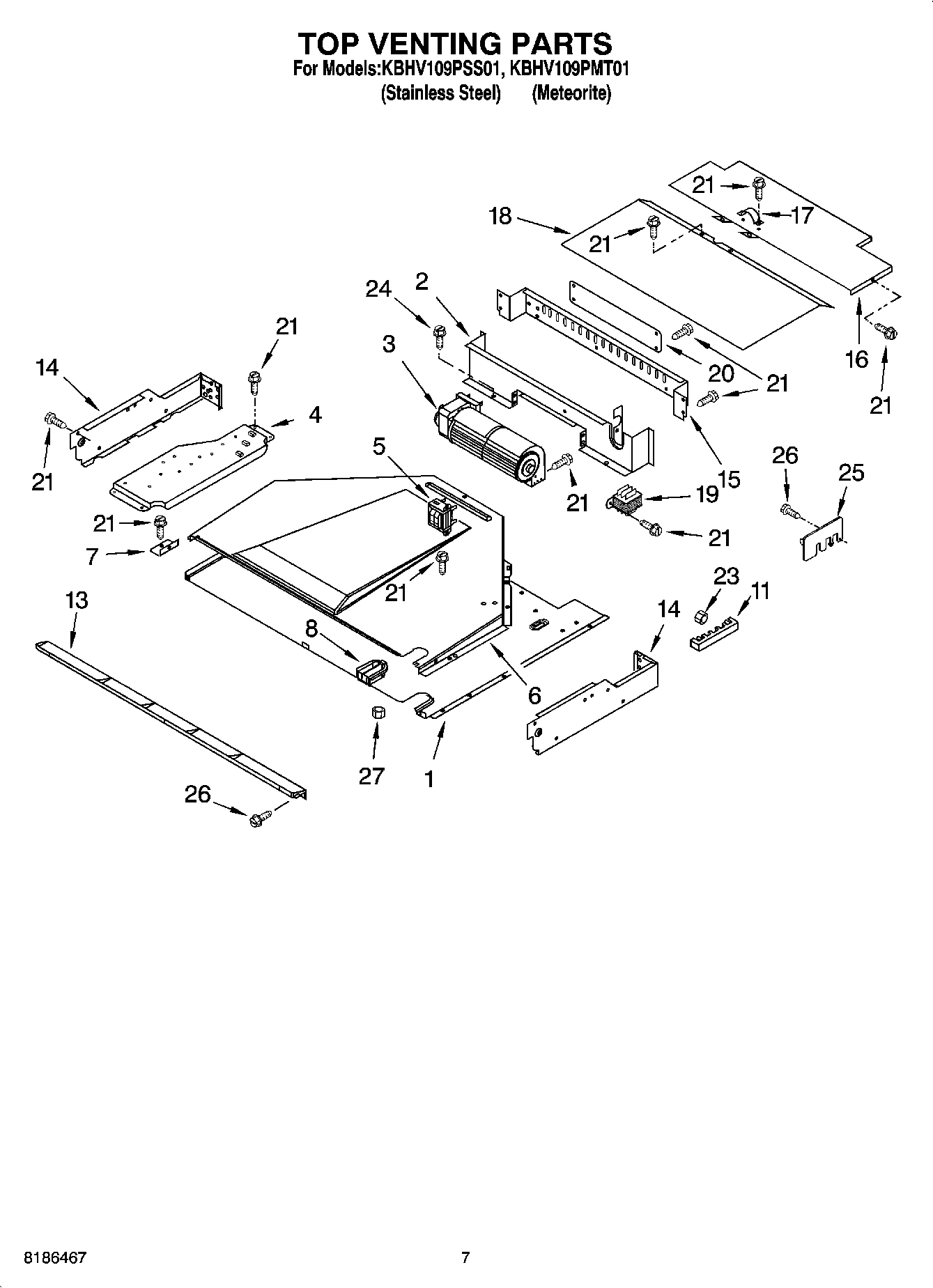

05 - TOP VENTING PARTS

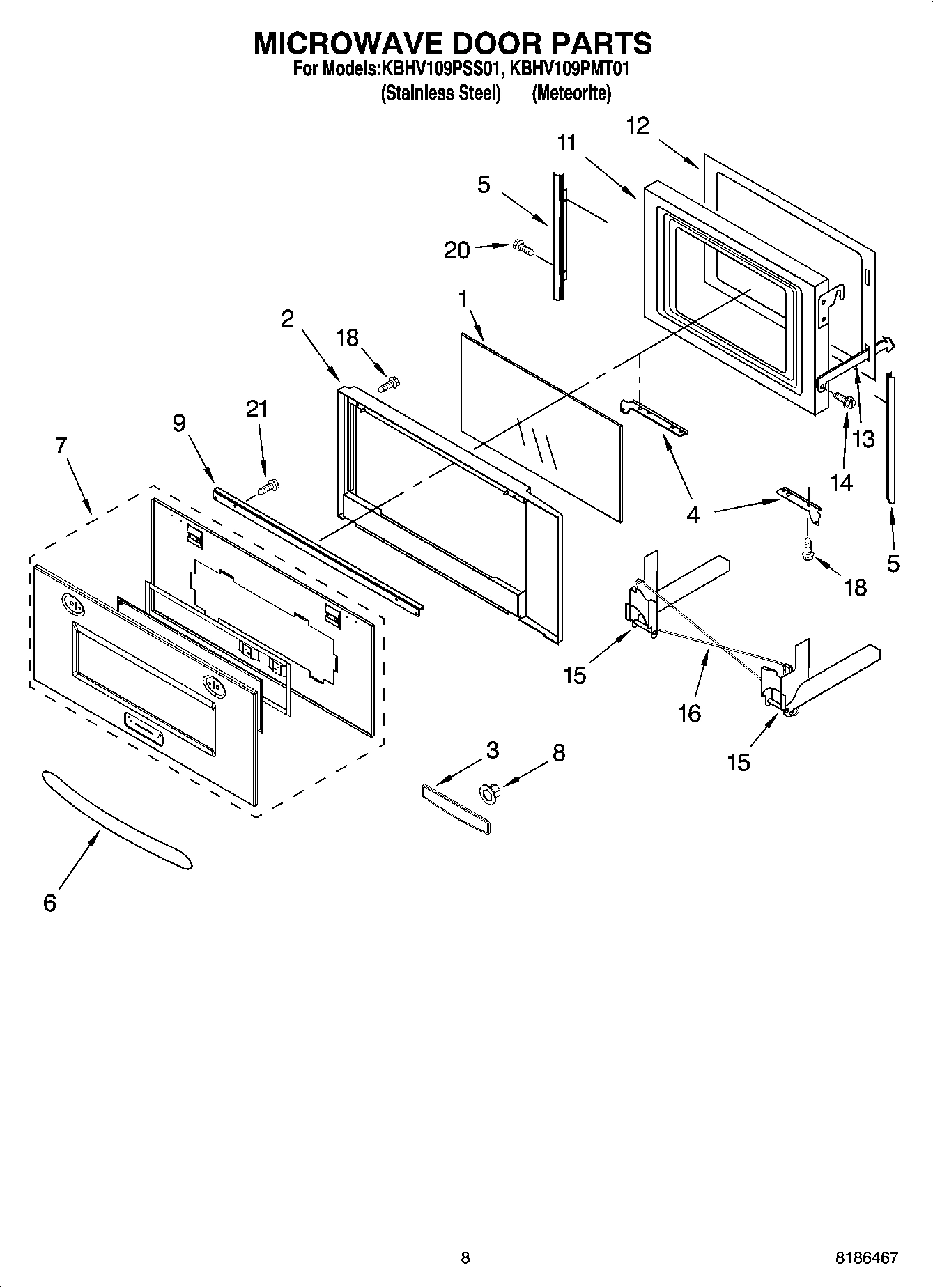

06 - MICROWAVE DOOR PARTS

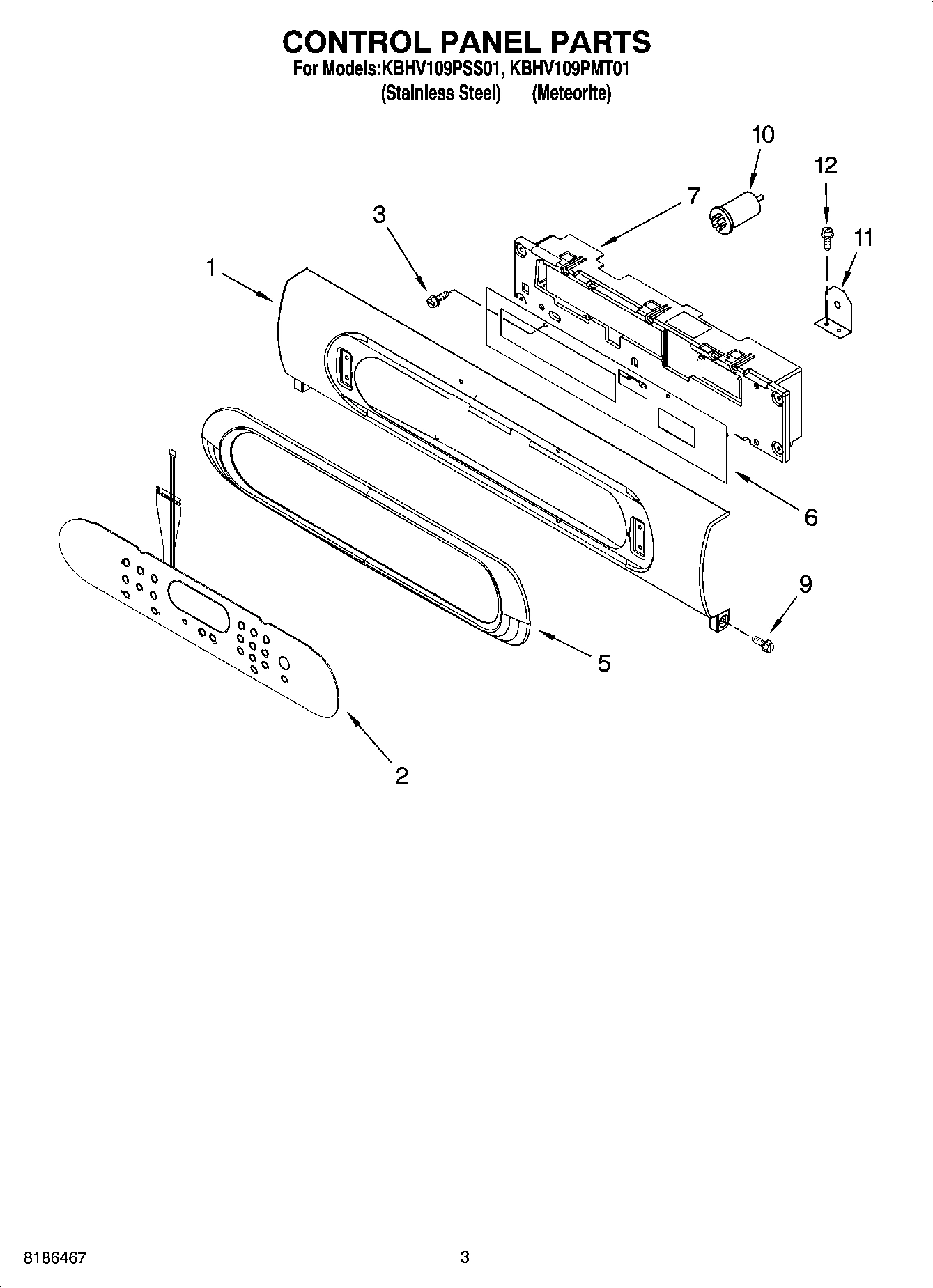

02 - CONTROL PANEL PARTS

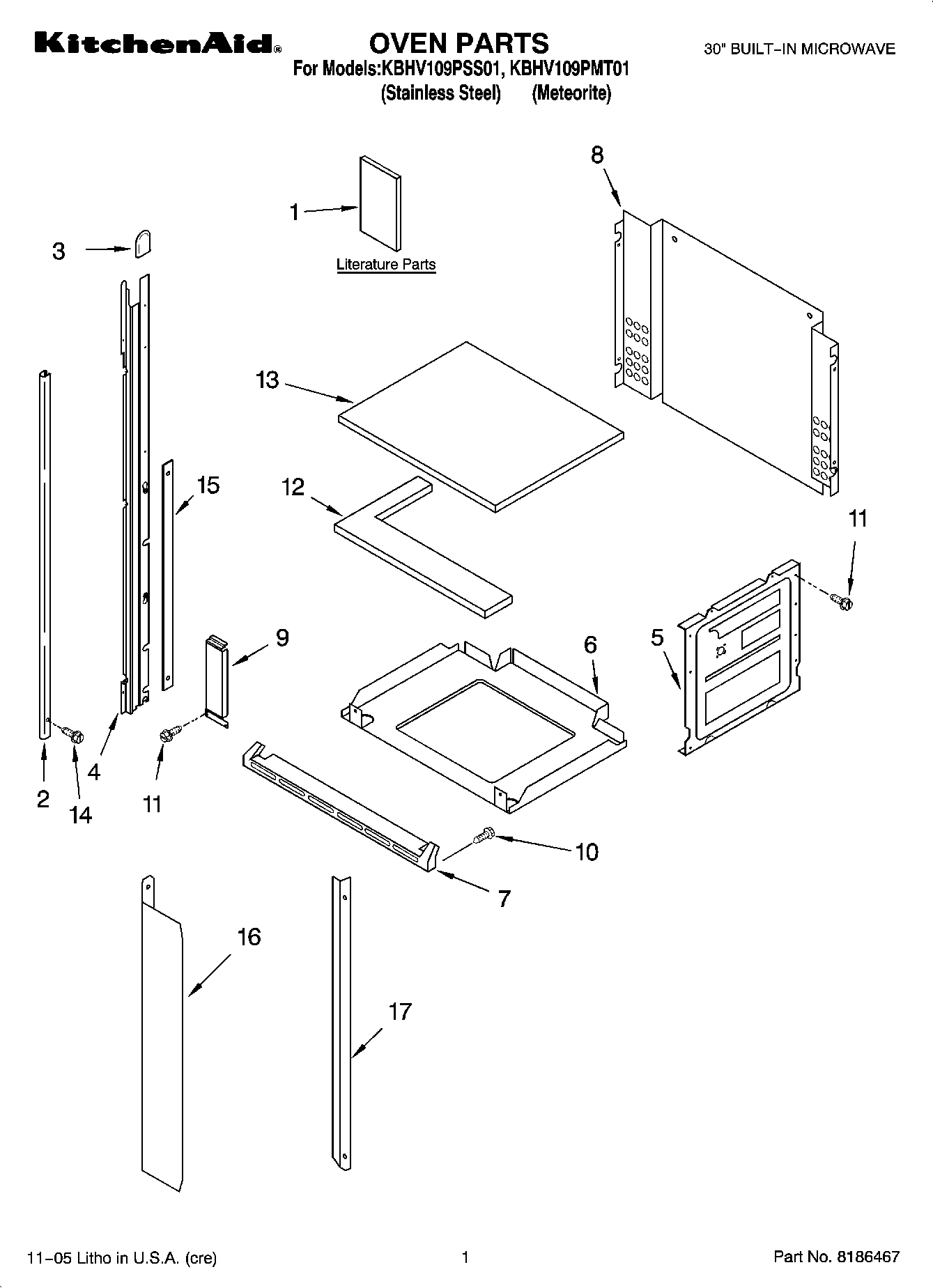

01 - OVEN PARTS
Common parts from model Whirlpool KBHV109PSS01 30`` BUILT-IN MICROWAVE
1
Glass, Middle WPL 4448937 Contact Us For Availability
1
Cover, Top WPL 4450378 Contact Us For Availability
1
Panel, Control (S.Steel) WPL 8303660 Contact Us For Availability
1
Panel, Control (Meteorite) WPL 8303661 Contact Us For Availability
1
Safer Cooking Tips WPL 3191638 Contact Us For Availability
1
Easy Set Guide (Canada) WPL 4448687 Contact Us For Availability
1
Easy Set Guide WPL 4449264 Contact Us For Availability
1
Installation Instructions WPL 4452615 Contact Us For Availability
1
Chart, HS Cook WPL 4452967 Contact Us For Availability
1
Cook Guide Label Tech Sheet WPL 4453330 Contact Us For Availability
1
Chart, HS Cook (Canada) WPL 8300525 Contact Us For Availability
1
English WPL 8302336 Contact Us For Availability
1
French WPL 8302337 Contact Us For Availability
1
Use & Care Guide WPL 8302974 Contact Us For Availability
1
Use & Care Guide (Canada) WPL 8303007 Contact Us For Availability
1
Safer Cooking Tips WPL 9759133 Contact Us For Availability
2
Baffle, Blower WPL 4448935 Contact Us For Availability
2
Switch, Membrane (S.Steel) WPL 8303474 Contact Us For Availability
2
Switch, Membrane (Meteorite) WPL 8303475 Contact Us For Availability
2
Trim, Side (RH Stainless) WPL 8302505 Contact Us For Availability
2
Trim, Side (LH Stainless) WPL 8302506 Contact Us For Availability
2
Trim, Side (RH Meteorite) WPL 8302507 Contact Us For Availability
2
Trim, Side (LH Meteorite) WPL 8302508 Contact Us For Availability
3
Rubber Ring WPL 4375252 Contact Us For Availability
3
Blower WPL 4450920 Contact Us For Availability
3
Nameplate WPL 8531788 Contact Us For Availability
3
Cap, Spacer WPL 4451605 Contact Us For Availability
4
Bracket, Mounting (Right Side) WPL 4449141 Contact Us For Availability
4
Bracket, Mounting (Left Side) WPL 4449142 Contact Us For Availability
4
Plate, Mounting WPL 4451789 Contact Us For Availability
4
Rail, Side (Right Side) WPL 4456545 Contact Us For Availability
4
Rail, Side (Left Side) WPL 4456546 Contact Us For Availability
5
Filler, Side (Right Side) WPL 4449083 Contact Us For Availability
5
Filler, Side (Left Side) WPL 4449086 Contact Us For Availability
5
Panel, Control (Ellipse) WPL 8303011 Contact Us For Availability
5
Side, Chassis (R.H. & L.H.) WPL 4452559 Contact Us For Availability
6
Exhaust Duct WPL 4451634 Contact Us For Availability
6
Handle, Door (Stainless) WPL 8301679 Contact Us For Availability
6
Control, Backer WPL 8303496 Contact Us For Availability
6
Base, Chassis WPL 4456487 Contact Us For Availability
7
Bracket, Duct WPL 4450027 Contact Us For Availability
7
Glass, Outer (Stainless) WPL 8302491 Contact Us For Availability
7
Glass, Outer (Meteorite) WPL 8302492 Contact Us For Availability
7
Microcomputer WPL 8303019 Contact Us For Availability
7
GRILLE, VENT (Stainless) WPL 8302509 Contact Us For Availability
7
GRILLE, VENT (Meteorite) WPL 8302510 Contact Us For Availability
8
Grommet WPL 4449964 Contact Us For Availability
8
Palnut WPL 4453107 Contact Us For Availability
8
Chassis, Back WPL 4452554 Contact Us For Availability
9
Bracket, Handle WPL 4452331 Contact Us For Availability
9
Extension Filler WPL 4449906 Contact Us For Availability
10
Filter WPL 4451592 Contact Us For Availability
11
Door, Plate WPL 4375339 Contact Us For Availability
11
Bracket, Filter WPL 4451632 Contact Us For Availability
12
Frame, Inner WPL 4375414 Contact Us For Availability
12
Insulation-Grill WPL 4452492 Contact Us For Availability
13
Vent-Cntrl Panel WPL 4456145 Contact Us For Availability
13
Strap, Door WPL 4375330 Contact Us For Availability
13
Insulation-Top WPL 4452491 Contact Us For Availability
14
Screw WPL 4375313 Contact Us For Availability
15
Back, Control WPL 4452244 Contact Us For Availability
15
Spacer, Rail (2) WPL 4455471 Contact Us For Availability
16
Bracket WPL 4455476 Contact Us For Availability
17
Bracket WPL 4455475 Contact Us For Availability
19
Transformer-Cntrl Control WPL 4455038 Contact Us For Availability
20
Cover, Plate WPL 4452247 Contact Us For Availability
21
screw WPL 312713 Contact Us For Availability
25
Suppressor WPL 4451934 Contact Us For Availability
26
Screw WPL 3400080 Contact Us For Availability
30
Thermostat WPL 4375279 Contact Us For Availability
32
Thermostat WPL 4375281 Contact Us For Availability
55
Sensor, Temp. WPL 4375422 Contact Us For Availability
61
Motor, Fan WPL 4375429 Contact Us For Availability
62
Left-Threaded Nut (Serviced With Motor Item 6 WPL ARI78543A1 Contact Us For Availability
64
Shield, Heat WPL 4375431 Contact Us For Availability
65
Insulation WPL 4375432 Contact Us For Availability
66
Chamber, Heat WPL 4375433 Contact Us For Availability
67
Isolation Plate WPL 4375437 Contact Us For Availability
68
Cover Plate WPL 4375338 Contact Us For Availability
71
Side Plate (Left) WPL 4375341 Contact Us For Availability
71
Side Plate (Right) WPL 4375342 Contact Us For Availability
77
Cable WPL 4375435 Contact Us For Availability
× ![]()
