Model Whirlpool KBHV109PMT00 30`` BUILT-IN MICROWAVE – Common Parts & Diagrams
01 - OVEN PARTS
04 - CABINET AND STIRRER PARTS

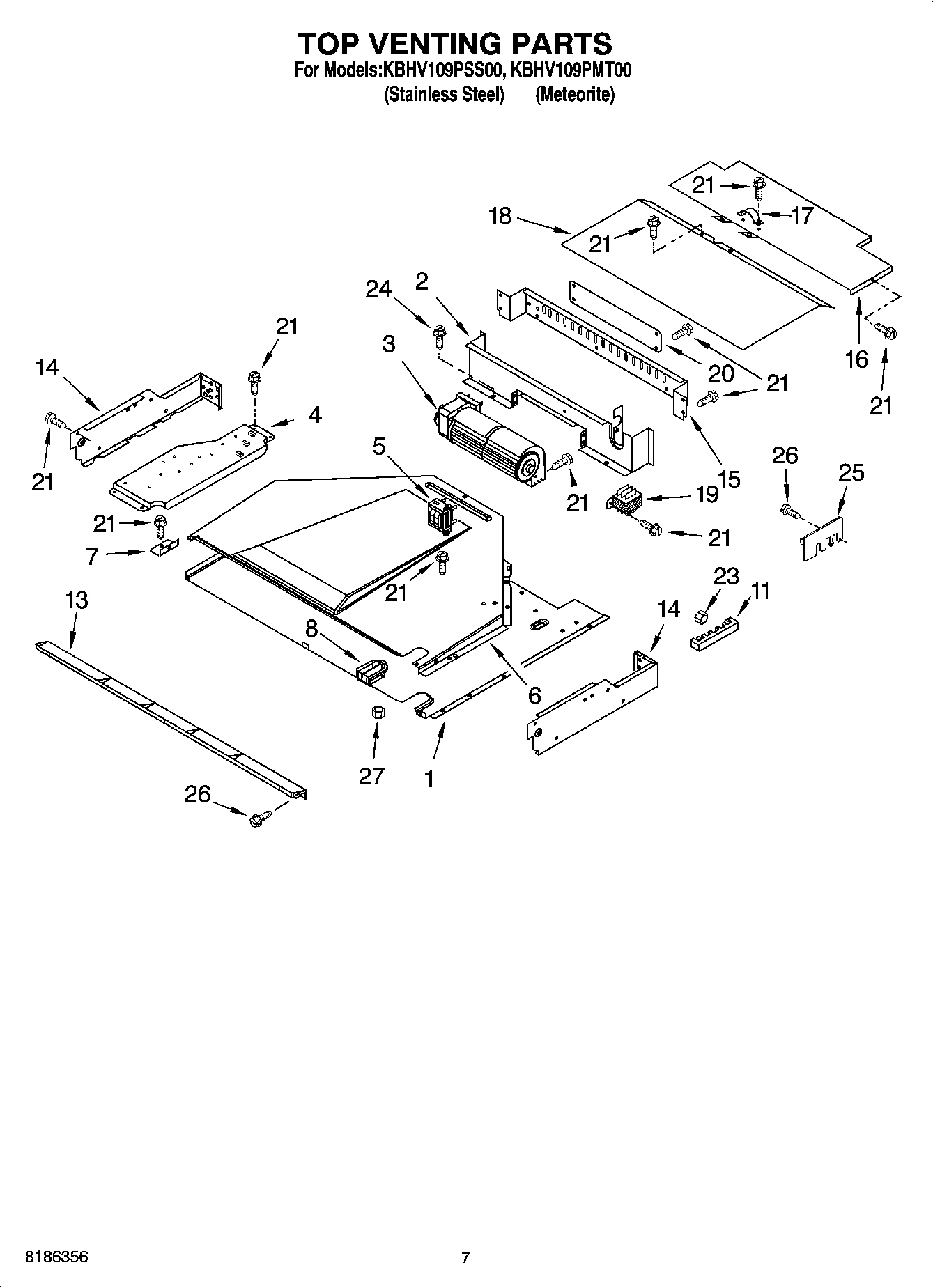

05 - TOP VENTING PARTS

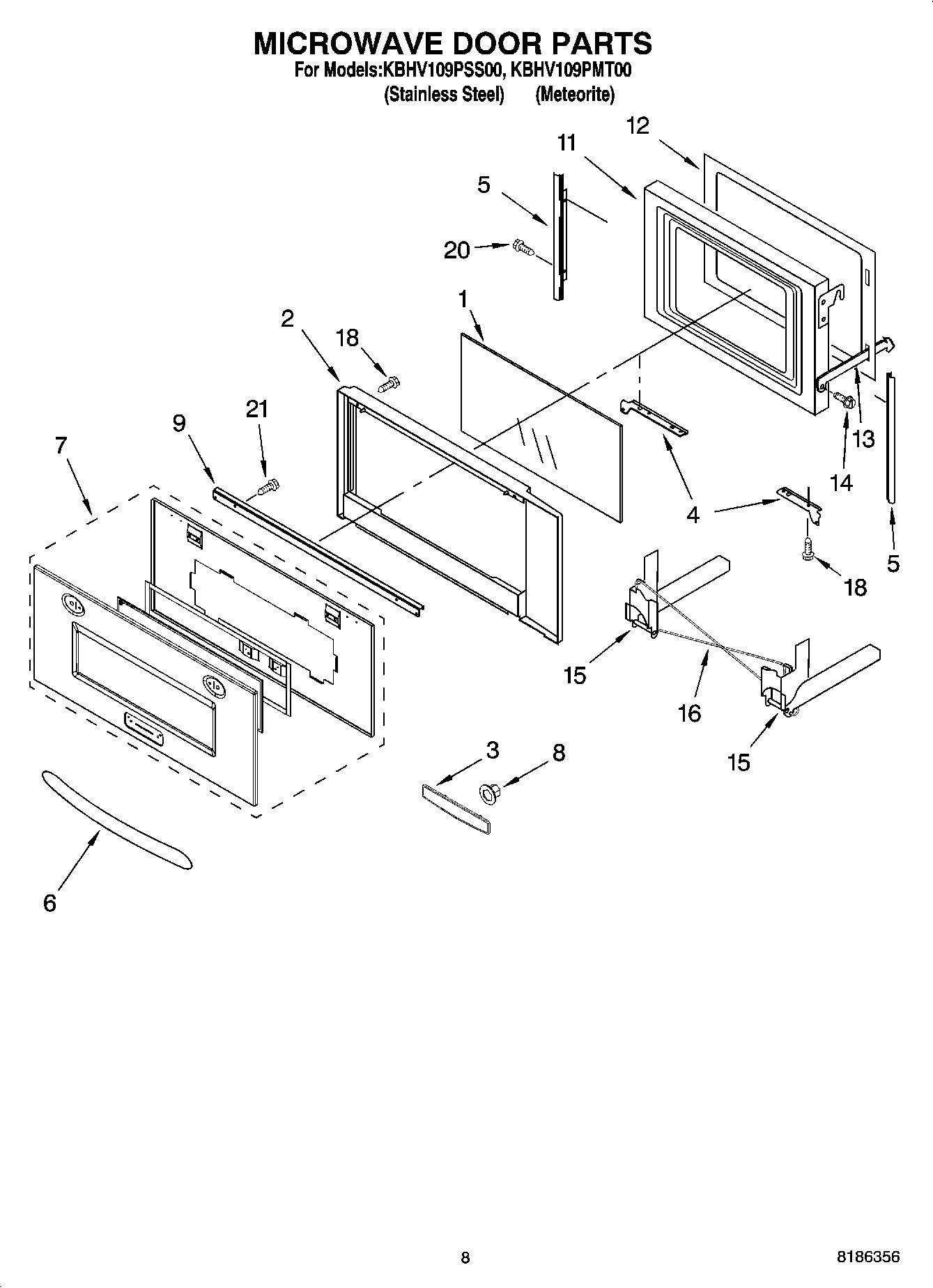

06 - MICROWAVE DOOR PARTS

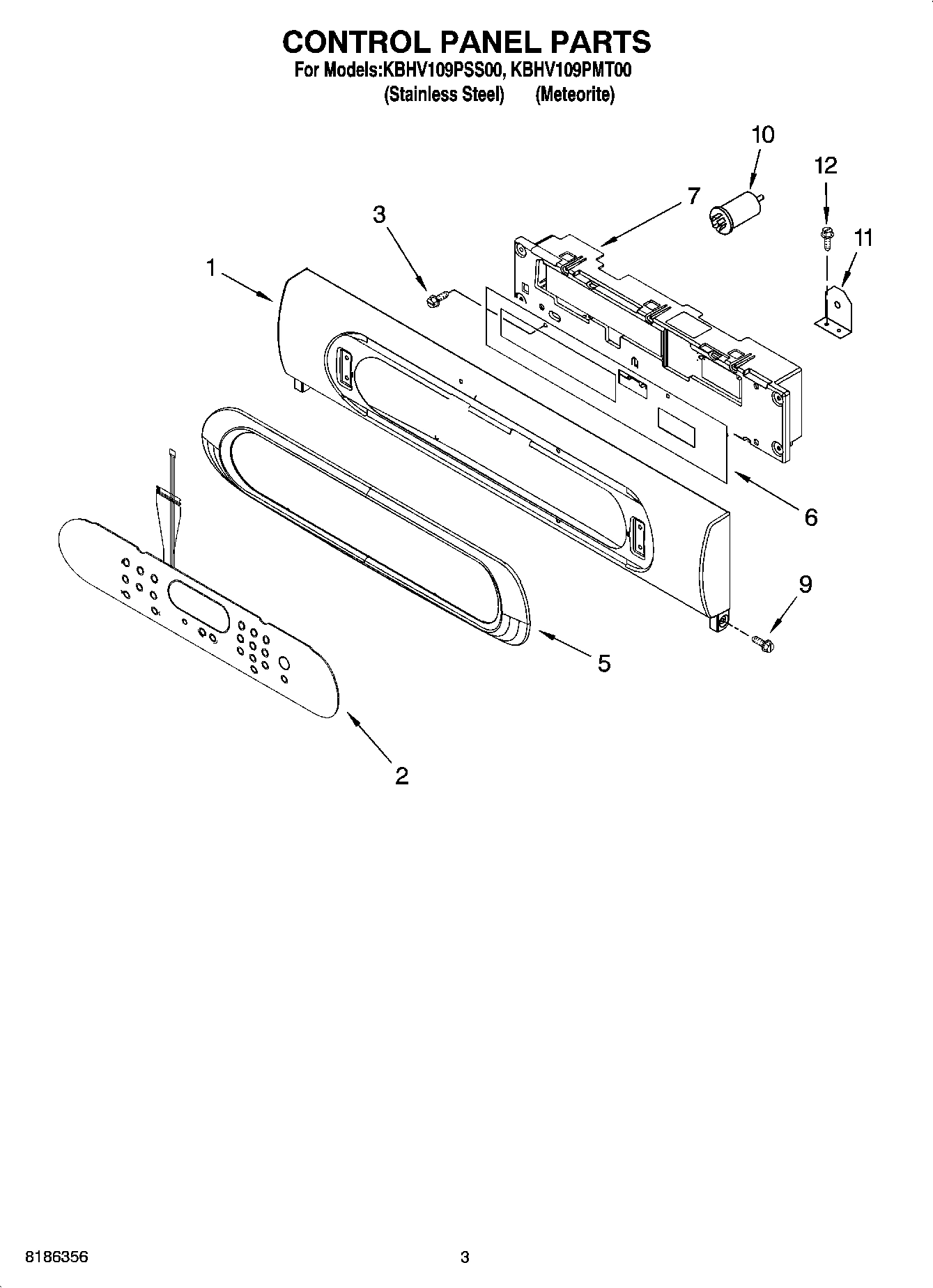

02 - CONTROL PANEL PARTS

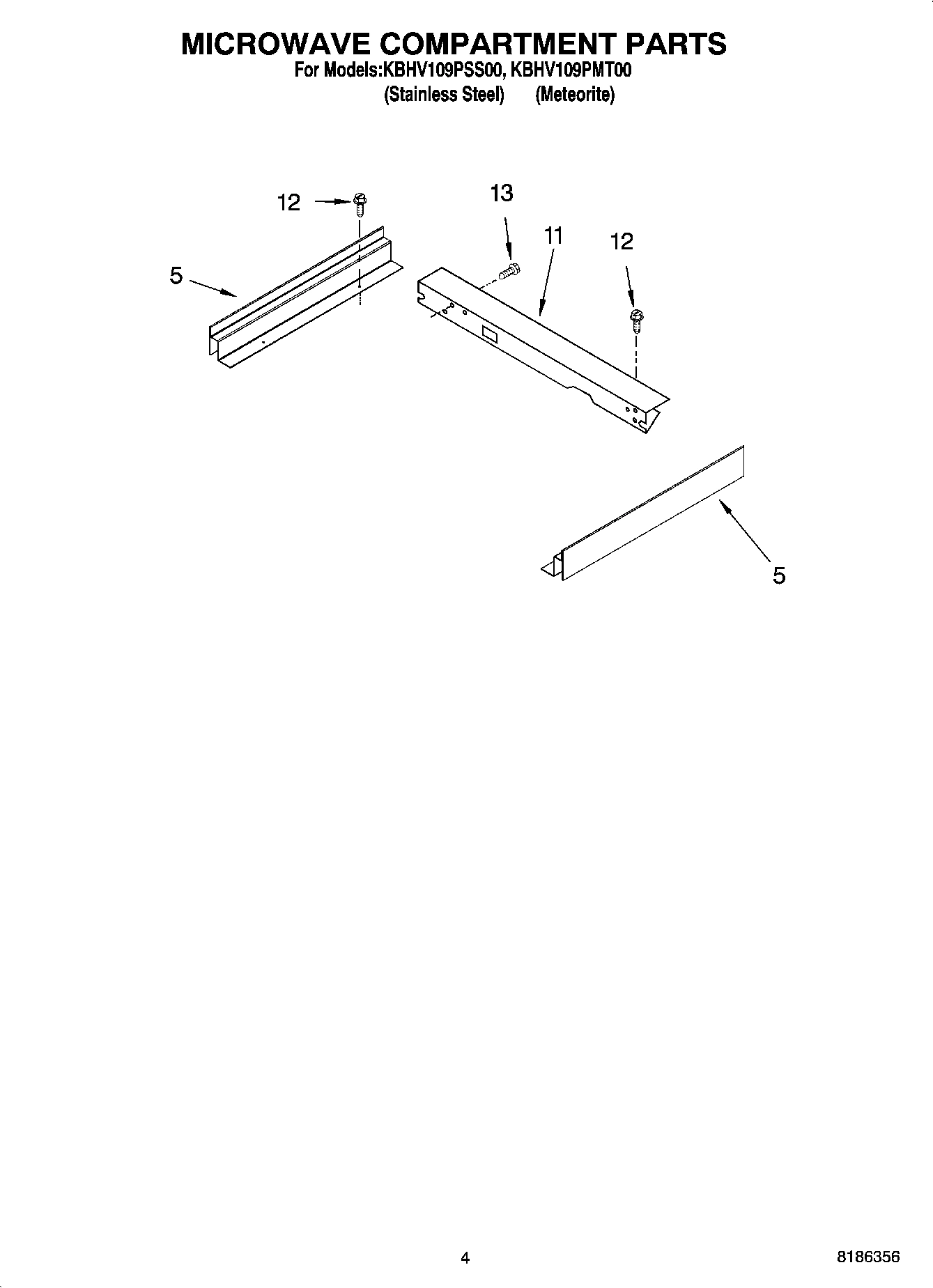

03 - MICROWAVE COMPARTMENT PARTS
Common parts from model Whirlpool KBHV109PMT00 30`` BUILT-IN MICROWAVE
1
Glass, Middle WPL 4448937 Contact Us For Availability
1
Cover, Top WPL 4450378 Contact Us For Availability
1
Panel, Control (S.Steel) WPL 8303660 Contact Us For Availability
1
Panel, Control (Meteorite) WPL 8303661 Contact Us For Availability
2
Baffle, Blower WPL 4448935 Contact Us For Availability
2
Switch, Membrane (S.Steel) WPL 8303474 Contact Us For Availability
2
Switch, Membrane (Meteorite) WPL 8303475 Contact Us For Availability
3
Rubber Ring WPL 4375252 Contact Us For Availability
3
Blower WPL 4450920 Contact Us For Availability
3
Nameplate WPL 8531788 Contact Us For Availability
4
Bracket, Mounting (Right Side) WPL 4449141 Contact Us For Availability
4
Bracket, Mounting (Left Side) WPL 4449142 Contact Us For Availability
4
Plate, Mounting WPL 4451789 Contact Us For Availability
5
Filler, Side (Right Side) WPL 4449083 Contact Us For Availability
5
Filler, Side (Left Side) WPL 4449086 Contact Us For Availability
5
Panel, Control (Ellipse) WPL 8303011 Contact Us For Availability
5
Support Rails WPL 4456399 Contact Us For Availability
6
Exhaust Duct WPL 4451634 Contact Us For Availability
6
Handle, Door (Stainless) WPL 8301679 Contact Us For Availability
6
Control, Backer WPL 8303496 Contact Us For Availability
7
Bracket, Duct WPL 4450027 Contact Us For Availability
7
Glass, Outer (Stainless) WPL 8302491 Contact Us For Availability
7
Glass, Outer (Meteorite) WPL 8302492 Contact Us For Availability
7
Microcomputer WPL 8303019 Contact Us For Availability
8
Grommet WPL 4449964 Contact Us For Availability
8
Palnut WPL 4453107 Contact Us For Availability
9
Bracket, Handle WPL 4452331 Contact Us For Availability
10
Filter WPL 4451592 Contact Us For Availability
11
Door, Plate WPL 4375339 Contact Us For Availability
11
Bracket, Filter WPL 4451632 Contact Us For Availability
11
Rear Channel WPL 4452548 Contact Us For Availability
12
Frame, Inner WPL 4375414 Contact Us For Availability
13
Vent-Cntrl Panel WPL 4456145 Contact Us For Availability
13
Strap, Door WPL 4375330 Contact Us For Availability
14
Screw WPL 4375313 Contact Us For Availability
15
Duct, Air WPL 4375317 Contact Us For Availability
15
Back, Control WPL 4452244 Contact Us For Availability
16
Block, Slide WPL 4375415 Contact Us For Availability
16
Cover, Top Rear WPL 4450551 Contact Us For Availability
17
Cover Plate, Upper WPL 4375248 Contact Us For Availability
19
Transformer-Cntrl Control WPL 4455038 Contact Us For Availability
20
Cover, Plate WPL 4452247 Contact Us For Availability
21
screw WPL 312713 Contact Us For Availability
22
Pan Handle WPL 4393900 Contact Us For Availability
25
Suppressor WPL 4451934 Contact Us For Availability
26
Screw WPL 3400080 Contact Us For Availability
30
Thermostat WPL 4375279 Contact Us For Availability
32
Thermostat WPL 4375281 Contact Us For Availability
33
Q Tube Assembly WPL 4375408 Contact Us For Availability
35
Ring, Turntable WPL 4375406 Contact Us For Availability
42
Plate, Grill WPL 4375331 Contact Us For Availability
43
Bracket WPL 4375332 Contact Us For Availability
44
Fan Cap WPL 4375441 Contact Us For Availability
47
Nut WPL 4375258 Contact Us For Availability
48
Insulation (Left Side) WPL 4375409 Contact Us For Availability
48
Insulation (Right Side) WPL 4375410 Contact Us For Availability
49
Plate, Side - Bottom WPL 4375411 Contact Us For Availability
50
Valve WPL 4375425 Contact Us For Availability
51
Screw To Valve WPL 4375428 Contact Us For Availability
53
Air Bleed WPL 4375426 Contact Us For Availability
54
Shield, Heat Right WPL 4375439 Contact Us For Availability
55
Sensor, Temp. WPL 4375422 Contact Us For Availability
56
Insulation WPL 4375420 Contact Us For Availability
57
Duct, Heater WPL 4375419 Contact Us For Availability
58
Washer WPL 4375416 Contact Us For Availability
59
Element, Heater WPL 4375417 Contact Us For Availability
61
Motor, Fan WPL 4375429 Contact Us For Availability
62
Left-Threaded Nut (Serviced With Motor Item 6 WPL ARI78540A9 Contact Us For Availability
64
Shield, Heat WPL 4375431 Contact Us For Availability
65
Insulation WPL 4375432 Contact Us For Availability
66
Chamber, Heat WPL 4375433 Contact Us For Availability
67
Isolation Plate WPL 4375437 Contact Us For Availability
68
Cover Plate WPL 4375338 Contact Us For Availability
71
Side Plate (Left) WPL 4375341 Contact Us For Availability
71
Side Plate (Right) WPL 4375342 Contact Us For Availability
77
Cable WPL 4375435 Contact Us For Availability
× ![]()
