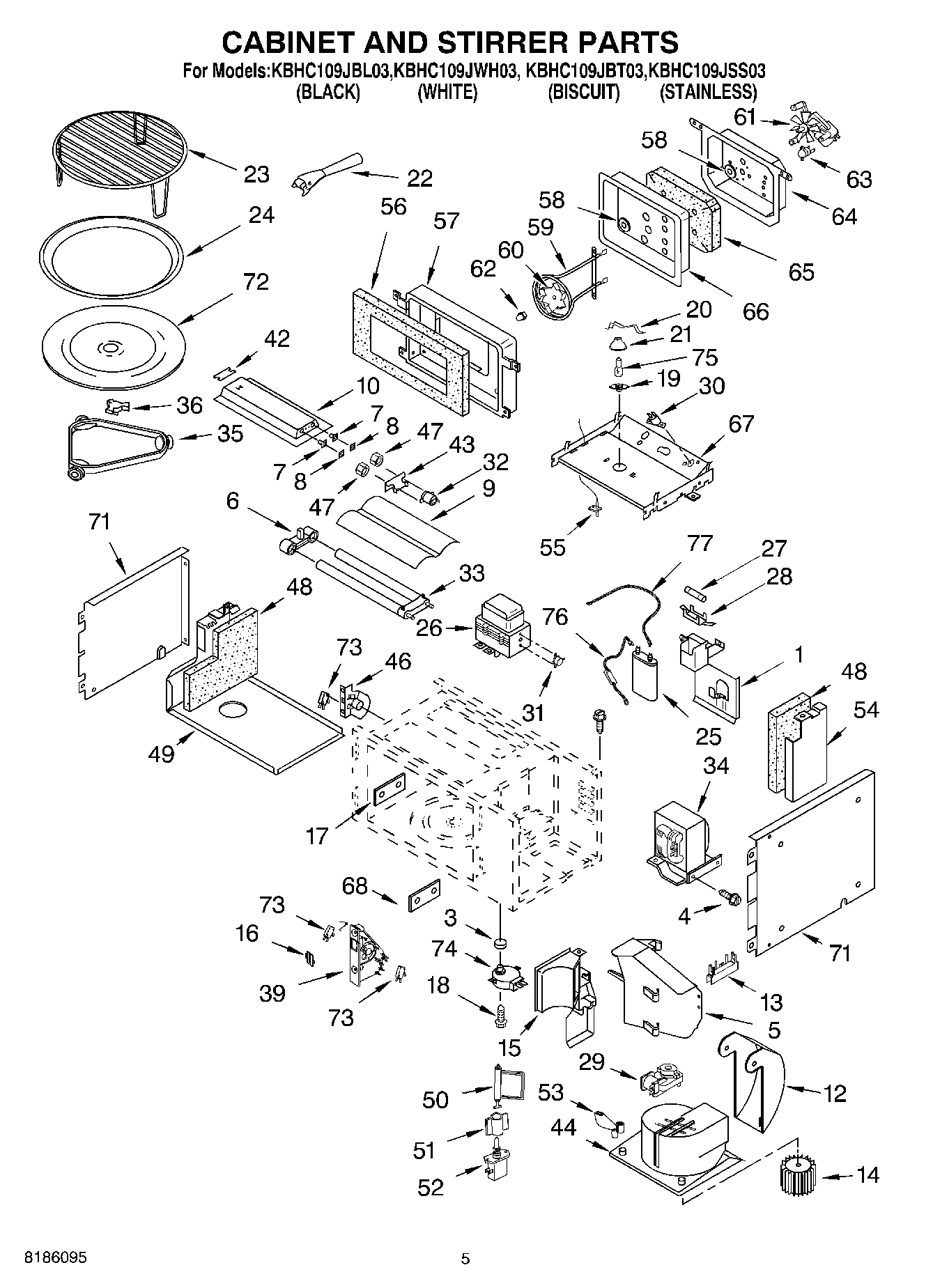

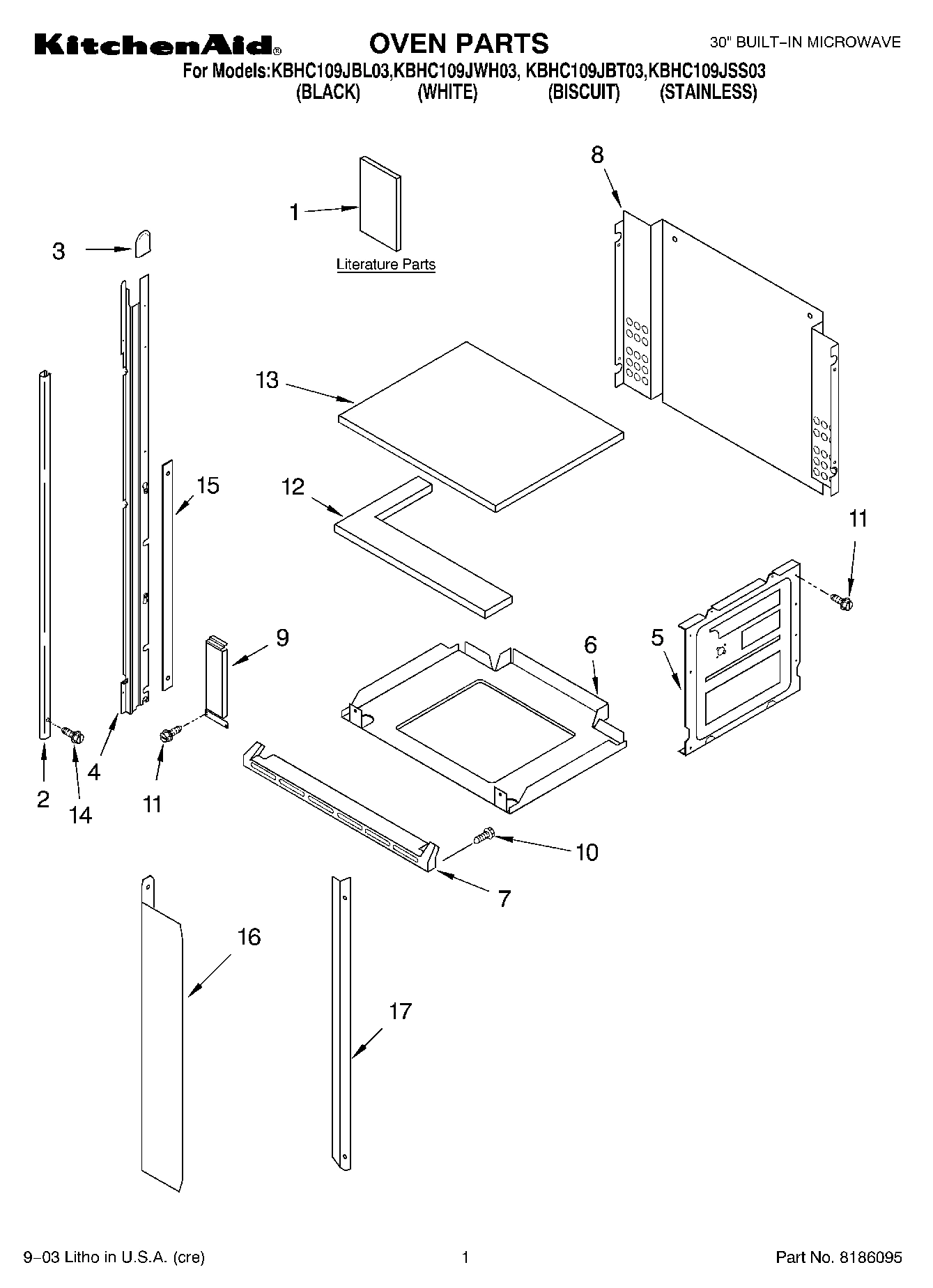

Model Whirlpool KBHC109JWH03 30`` BUILT-IN MICROWAVE – Common Parts &amp; Diagrams

285006 Whirlpool Spray In Stock WPL 285006 $27.45

350930 Whirlpool White Spray Paint In Stock WPL 350930 $12.50

4450800 Whirlpool Oven Screw Backorder WPL 4450800 $9.59

4450950 Whirlpool Oven Conduit Backorder WPL 4450950 $109.51

4452400 Whirlpool Microwave Wire Harness Backorder WPL 4452400 $27.03

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $3.35

72032 Whirlpool Touch Up Paint Black In Stock WPL 72032 $5.60

WP261869 Whirlpool Microwave Paint In Stock WPL WP261869 $9.88

WP4448950 Whirlpool Screw Backorder WPL WP4448950 $2.51

WP482338 Whirlpool Refrigerator Adhesive In Stock WPL WP482338 $24.89

Wire, Ground WPL 4450831 Contact Us For Availability

Harness, Main WPL 4453215 Contact Us For Availability

FOLLOWING PARTS N WPL ARI78498A3 Contact Us For Availability

WPL ARI78499A9 WPL ARI78499A9 Contact Us For Availability

1

Glass, Middle WPL 4448937 Contact Us For Availability

1

Panel, Control (Stainless) WPL 4451791 Contact Us For Availability

1

Cover, Top WPL 4450378 Contact Us For Availability

1

Panel, Control (Black) WPL 4452604 Contact Us For Availability

1

Panel, Control (White) WPL 4452605 Contact Us For Availability

1

Panel, Control (Biscuit) WPL 4452974 Contact Us For Availability

2

WP8303556 Whirlpool Microwave Door Frame In Stock WPL WP8303556 $114.92

2

Baffle, Blower WPL 4448935 Contact Us For Availability

2

Switch, Membrane (Black) WPL 4453428 Contact Us For Availability

2

Switch, Membrane (White) WPL 4453430 Contact Us For Availability

2

Switch, Membrane (Stainless) WPL 4453432 Contact Us For Availability

2

Switch, Membrane (Biscuit) WPL 4453434 Contact Us For Availability

3

Rubber Ring WPL 4375252 Contact Us For Availability

3

Blower WPL 4450920 Contact Us For Availability

3

Insulator, Board WPL 4452248 Contact Us For Availability

4

Bracket, Mounting (Right Side) WPL 4449141 Contact Us For Availability

4

Bracket, Mounting (Left Side) WPL 4449142 Contact Us For Availability

4

Plate, Mounting WPL 4451789 Contact Us For Availability

4

Insulator, Board Support WPL 4452249 Contact Us For Availability

5

WP9760588 Whirlpool Transformer In Stock WPL WP9760588 $116.84

5

Filler, Side (Right Side) WPL 4449083 Contact Us For Availability

5

Filler, Side (Left Side) WPL 4449086 Contact Us For Availability

5

Support Rails WPL 4456399 Contact Us For Availability

6

Handle, Door (Stainless) WPL 4452088 Contact Us For Availability

6

Handle, Door (Black) WPL 4452502 Contact Us For Availability

6

Handle, Door (White) WPL 4452503 Contact Us For Availability

6

Handle, Door (Biscuit) WPL 4452871 Contact Us For Availability

6

Exhaust Duct WPL 4451634 Contact Us For Availability

6

Insulator, Dialectric WPL 4452345 Contact Us For Availability

7

WP4452259 Whirlpool Door Glass In Stock WPL WP4452259 $201.52

7

Glass, Outer (Black) WPL 4452211 Contact Us For Availability

7

Microcomputer WPL 8302287 Contact Us For Availability

7

Glass, Outer (White) WPL 4452789 Contact Us For Availability

7

Glass, Outer (Biscuit) WPL 4452995 Contact Us For Availability

7

Bracket, Duct WPL 4450027 Contact Us For Availability

8

Grommet WPL 4449964 Contact Us For Availability

8

Screw WPL 3400406 Contact Us For Availability

9

Bracket, Handle WPL 4452331 Contact Us For Availability

WP3400832 Whirlpool Screw In Stock WPL WP3400832 $2.51

RETAINER, GLASS CLIP (BLACK) WPL 4450863 Contact Us For Availability

RETAINER,GLASS CLIP (WHITE) WPL 4450864 Contact Us For Availability

Retainer, Glass-Clip (Stainless) WPL 4451432 Contact Us For Availability

RETAINER,GLASS CLIP (BISCUIT) WPL 4452119 Contact Us For Availability

11

WP8203546 Whirlpool Terminal Block In Stock WPL WP8203546 $10.45

11

Door, Plate WPL 4375339 Contact Us For Availability

11

Rear Channel WPL 4452548 Contact Us For Availability

12

Frame, Inner WPL 4375414 Contact Us For Availability

13

WP4449154 Whirlpool Screw Backorder WPL WP4449154 $2.51

13

Strap, Door WPL 4375330 Contact Us For Availability

13

Vent-Cntrl Panel WPL 4456145 Contact Us For Availability

14

W10755214 Whirlpool Side Complete Backorder WPL W10755214 $33.93

14

W10790240 Whirlpool Side Assembly Complete Backorder WPL W10790240 $28.79

14

Screw WPL 4375313 Contact Us For Availability

15

WP4375323 Whirlpool Microwave Door Hinge Backorder WPL WP4375323 $52.87

15

WP4375324 Whirlpool Microwave Door Hinge Backorder WPL WP4375324 $52.70

15

Back, Control WPL 4452244 Contact Us For Availability

16

WP4450551 Whirlpool Top Cabinet Backorder WPL WP4450551 $52.43

16

WP4451009 Whirlpool Microwave Spring In Stock WPL WP4451009 $47.54

16

WP4452396 Whirlpool Microwave Spring In Stock WPL WP4452396 $46.92

17

4448664 Whirlpool Oven Mounting Bracket Backorder WPL 4448664 $10.25

18

WP4452367 Whirlpool Top Cover Backorder WPL WP4452367 $45.99

19

W11193483 Whirlpool Microwave Lamp Lens In Stock WPL W11193483 $38.25

19

Screw WPL 4449040 Contact Us For Availability

19

Transformer-Cntrl Control WPL 4455038 Contact Us For Availability

20

WP4450038 Whirlpool Screw Backorder WPL WP4450038 $2.51

20

Cover, Plate WPL 4452247 Contact Us For Availability

423107022541 Whirlpool Microwave Reflector Backorder WPL 423107022541 $32.79

WP4449809 Whirlpool Screw In Stock WPL WP4449809 $2.51

WPW10132940 Whirlpool Dishwasher Screw In Stock WPL WPW10132940 $3.13

Screw (Bl/Wh/Bt Model) WPL 4451040 Contact Us For Availability

23

4452220 Whirlpool Microwave Rack In Stock WPL 4452220 $60.64

23

WP112432 Whirlpool Nut Assembly Backorder WPL WP112432 $2.51

24

489392 Whirlpool Refrigerator Screw Backorder WPL 489392 $9.59

25

Suppressor WPL 4451934 Contact Us For Availability

26

WP4375424 Whirlpool Microwave Magnetron In Stock WPL WP4375424 $273.49

26

Screw WPL 3400080 Contact Us For Availability

27

WP4375321 Whirlpool Microwave Fuse In Stock WPL WP4375321 $10.36

27

WP4450118 Whirlpool Nut Backorder WPL WP4450118 $2.51

28

W10245194 Whirlpool Microwave Fuse Block Backorder WPL W10245194 $29.77

29

4375278 Whirlpool Microwave Primary Fan Motor Backorder WPL 4375278 $143.25

30

Thermostat WPL 4375279 Contact Us For Availability

32

Thermostat WPL 4375281 Contact Us For Availability

33

Q Tube Assembly WPL 4375408 Contact Us For Availability

34

WP4375286 Whirlpool Microwave Transformer In Stock WPL WP4375286 $200.87

35

Ring, Turntable WPL 4375406 Contact Us For Availability

36

WP8183788 Whirlpool Microwave Turn Shaft Backorder WPL WP8183788 $17.33

42

Plate, Grill WPL 4375331 Contact Us For Availability

43

Bracket WPL 4375332 Contact Us For Availability

44

Fan Cap WPL 4375441 Contact Us For Availability

46

W10727408 Whirlpool Microwave Switch In Stock WPL W10727408 $87.50

47

Nut WPL 4375258 Contact Us For Availability

48

Insulation (Left Side) WPL 4375409 Contact Us For Availability

48

Insulation (Right Side) WPL 4375410 Contact Us For Availability

49

Plate, Side - Bottom WPL 4375411 Contact Us For Availability

50

Valve WPL 4375425 Contact Us For Availability

51

Screw To Valve WPL 4375428 Contact Us For Availability

52

461967842541 Whirlpool Microwave Actuator Backorder WPL 461967842541 $27.87

53

Air Bleed WPL 4375426 Contact Us For Availability

54

Shield, Heat Right WPL 4375439 Contact Us For Availability

55

Sensor, Temp. WPL 4375422 Contact Us For Availability

56

Insulation WPL 4375420 Contact Us For Availability

57

Duct, Heater WPL 4375419 Contact Us For Availability

58

Washer WPL 4375416 Contact Us For Availability

59

Element, Heater WPL 4375417 Contact Us For Availability

60

W11512064 Whirlpool Microwave Fan Backorder WPL W11512064 $60.85

61

Motor, Fan WPL 4375429 Contact Us For Availability

62

Left-Threaded Nut (Serviced With Motor Item 6 WPL ARI78497A1 Contact Us For Availability

63

W11607085 Whirlpool Microwave Thermostat Fix In Stock WPL W11607085 $16.05

64

Shield, Heat WPL 4375431 Contact Us For Availability

65

Insulation WPL 4375432 Contact Us For Availability

66

Chamber, Heat WPL 4375433 Contact Us For Availability

67

Isolation Plate WPL 4375437 Contact Us For Availability

68

Cover Plate WPL 4375338 Contact Us For Availability

71

Side Plate (Left) WPL 4375341 Contact Us For Availability

71

Side Plate (Right) WPL 4375342 Contact Us For Availability

72

W11373838 Whirlpool Glass Tray In Stock WPL W11373838 $43.52

73

W10211972 Whirlpool Microwave Switch In Stock WPL W10211972 $28.44

74

W10642989 Whirlpool Microwave Oven Turntable In Stock WPL W10642989 $72.24

75

WPW10440740 Whirlpool Microwave Light Bulb In Stock WPL WPW10440740 $12.94

76

WPW10687786 Whirlpool Microwave Diode In Stock WPL WPW10687786 $11.69

77

Cable WPL 4375435 Contact Us For Availability
