Model Whirlpool KBGN274LSS0 BUILT-IN GRILLE 27`` – Common Parts & Diagrams

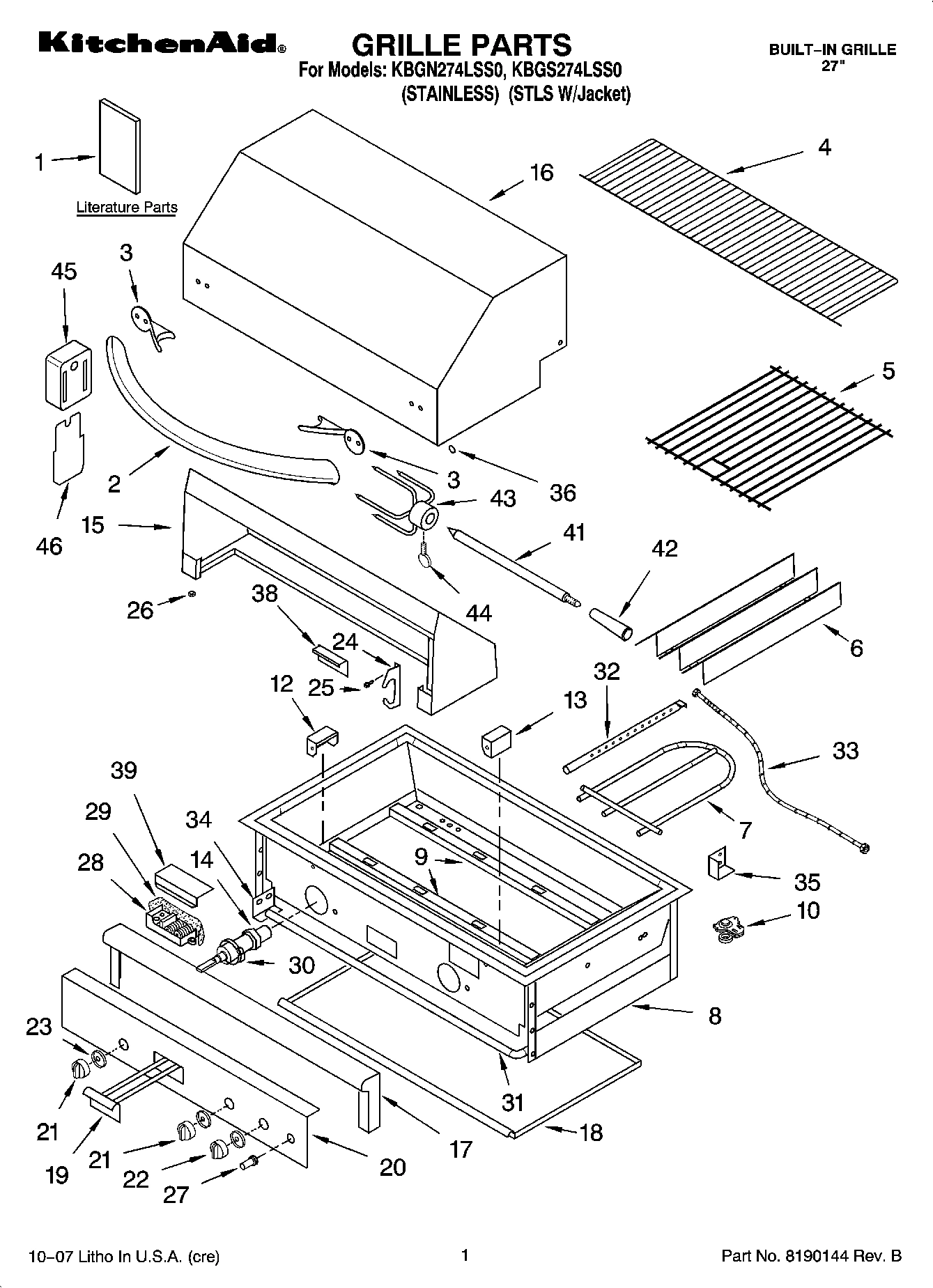

01 - GRILLE PARTS
Common parts from model Whirlpool KBGN274LSS0 BUILT-IN GRILLE 27``
Thermocouple, IR WPL 8190021 Contact Us For Availability
Clip, J Type 8-32 WPL 8190033 Contact Us For Availability
Elbow 3/8 to 1/2 WPL 8190035 Contact Us For Availability
Electrode Kit WPL 8190036 Contact Us For Availability
Logo, Kitchenaid WPL 8190090 Contact Us For Availability
Cover, Bullnose WPL 8190105 Contact Us For Availability
Wire, Battery WPL 8190106 Contact Us For Availability
Screw 1/4-20X3/8SS WPL 8190117 Contact Us For Availability
Screw 18X1/2 Pan WPL 8190121 Contact Us For Availability
Nut, Combination WPL 8190122 Contact Us For Availability
Lockwasher 1/4SS WPL 8190123 Contact Us For Availability
Screw 1/4-20X1/2SS (Hex WPL 8190124 Contact Us For Availability
WPL 8190125 WPL 8190125 Contact Us For Availability
WPL 8190140 WPL 8190140 Contact Us For Availability
WPL 8190156 WPL 8190156 Contact Us For Availability
WPL 8190158 WPL 8190158 Contact Us For Availability
WPL 8190161 WPL 8190161 Contact Us For Availability
WPL 8190162 WPL 8190162 Contact Us For Availability
WPL 8190165 WPL 8190165 Contact Us For Availability
WPL 8190166 WPL 8190166 Contact Us For Availability
WPL 8190167 WPL 8190167 Contact Us For Availability
WPL 8190169 WPL 8190169 Contact Us For Availability
WPL 8190173 WPL 8190173 Contact Us For Availability
WPL 8190174 WPL 8190174 Contact Us For Availability
WPL 8190178 WPL 8190178 Contact Us For Availability
WPL 8190737 WPL 8190737 Contact Us For Availability
WPL ARI78431A4 WPL ARI78431A4 Contact Us For Availability
1
Literature Parts (U & C Guide / Instructions, WPL LIT8285450 Contact Us For Availability
2
Handle, Hood WPL 8190085 Contact Us For Availability
3
Insulator, Handle WPL 8190084 Contact Us For Availability
4
Shelf, Warmer WPL 8190112 Contact Us For Availability
5
Grate (2) WPL 8190126 Contact Us For Availability
6
Plate, Sear (2) WPL 8190088 Contact Us For Availability
7
Burner, Main (2) WPL 8190103 Contact Us For Availability
8
Fire Box Asy (Not Serviced) WPL ARI78430A2 Contact Us For Availability
9
Hanger, Burner (2) WPL 8190131 Contact Us For Availability
10
REGULATOR WPL 8190426 Contact Us For Availability
12
Left Collector Box WPL 8190100 Contact Us For Availability
13
Right Collectr Box WPL 8190099 Contact Us For Availability
14
Orifices-Nat Gas WPL 4396312 Contact Us For Availability
15
Hood Asy, Rear WPL 8190160 Contact Us For Availability
16
Hood Asy, Front WPL 8190108 Contact Us For Availability
17
Bullnose Asy WPL 8190109 Contact Us For Availability
18
Tray, Drip WPL 8190082 Contact Us For Availability
19
Tray Asy, Smoker WPL 8190110 Contact Us For Availability
20
Panel, Front WPL 8190157 Contact Us For Availability
21
Knob, Burner (2) WPL 8190028 Contact Us For Availability
22
Knob, Smoker WPL 8190030 Contact Us For Availability
23
Bezel (3) WPL 8190027 Contact Us For Availability
24
Saddle, Spit (2) WPL 8190111 Contact Us For Availability
26
Spacer, Hood (2) WPL 8190031 Contact Us For Availability
27
Switch, Igniter WPL 8190029 Contact Us For Availability
28
Module, Spark WPL 8190459 Contact Us For Availability
29
Insulation, Module WPL 8190130 Contact Us For Availability
30
Valve, Burner (Main (2)) WPL 8190024 Contact Us For Availability
30
Valve, Burner (Smoker / IR) WPL 8190141 Contact Us For Availability
31
Manifold WPL 8190137 Contact Us For Availability
32
Burner, Smoker WPL 8190127 Contact Us For Availability
33
Flex Tube, Smoker WPL 8190128 Contact Us For Availability
34
Bracket, Manifold WPL 8190139 Contact Us For Availability
35
Stop, Hood (Left) WPL 8190091 Contact Us For Availability
35
Stop, Hood (Right) WPL 8190092 Contact Us For Availability
36
Plug, Hole (4) WPL 8190104 Contact Us For Availability
38
Cover, Rear WPL 8190094 Contact Us For Availability
39
Shield, Igniter WPL 8190081 Contact Us For Availability
41
Rod, Spit WPL 8190172 Contact Us For Availability
42
Handle, Rotisserie WPL 8190171 Contact Us For Availability
43
Skewer (2) WPL 8190170 Contact Us For Availability
44
Screw, Thumb (2) WPL 8190119 Contact Us For Availability
45
Motor, Rotisserie WPL 8190015 Contact Us For Availability
46
Bracket, Motor WPL 8190159 Contact Us For Availability
× ![]()
