Model Whirlpool KBDS250V1 DISPOSER – Common Parts & Diagrams

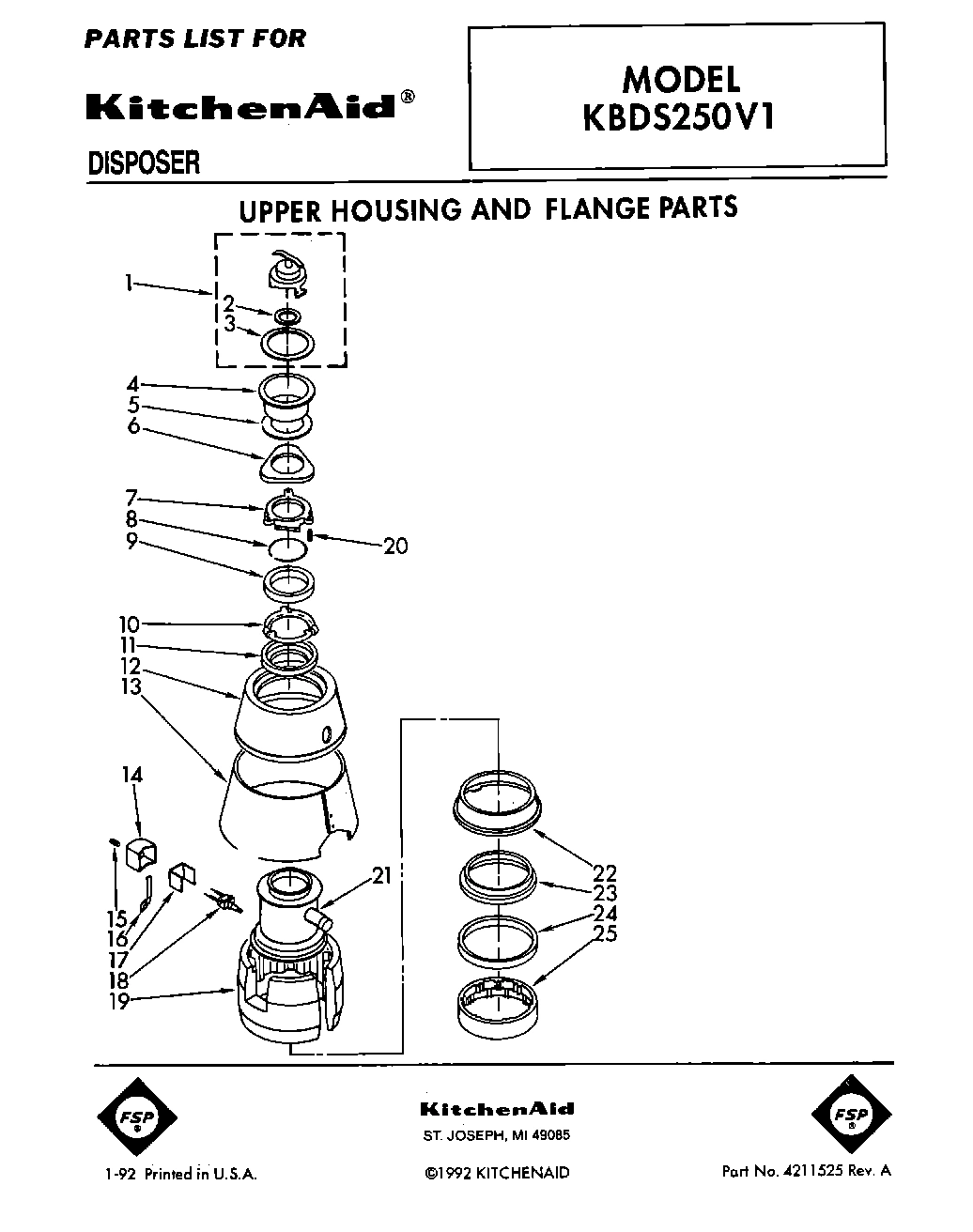

01 - SECTION

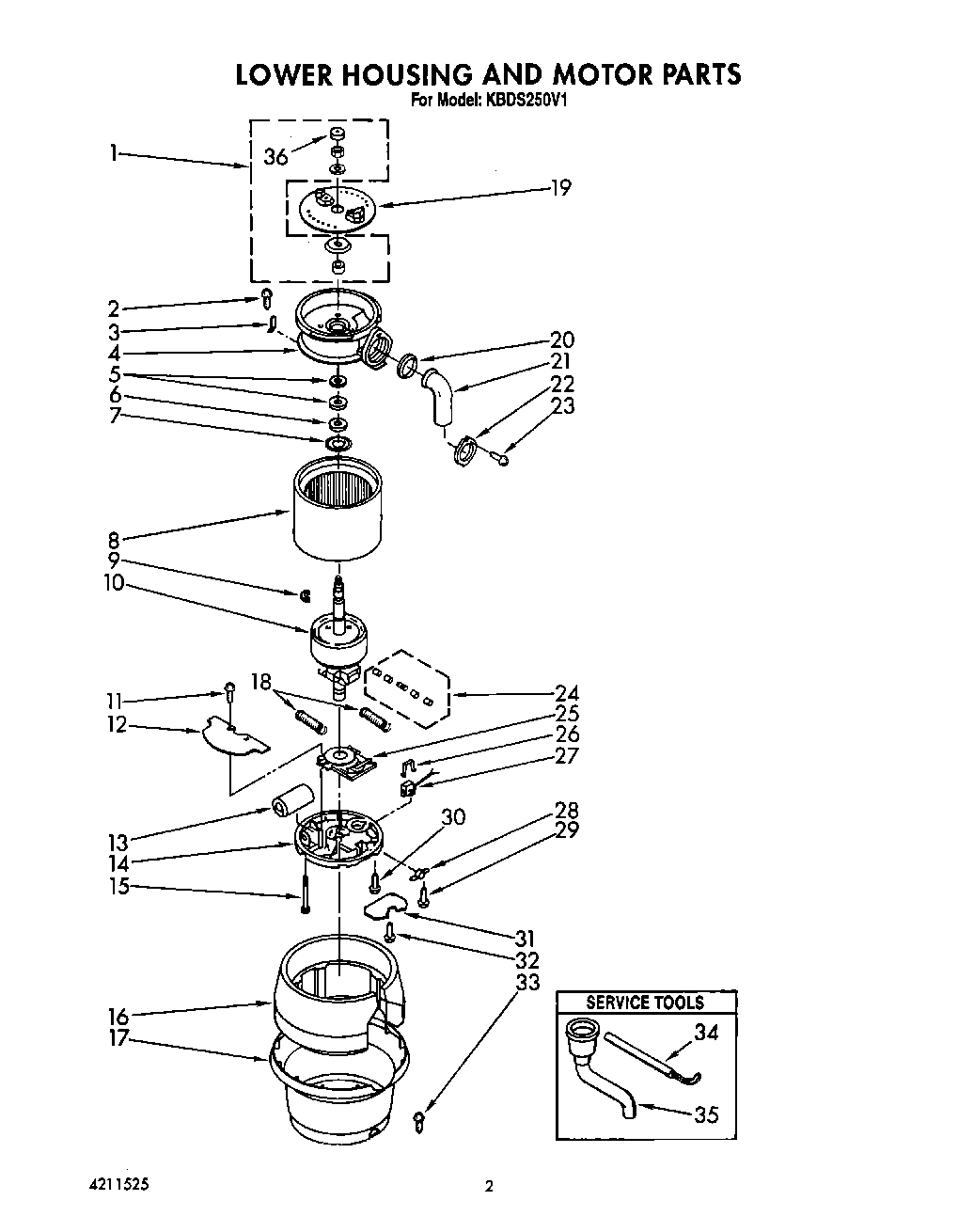

02 - SECTION
Common parts from model Whirlpool KBDS250V1 DISPOSER
1
Lock Stopper Assembly WPL 4211409 Contact Us For Availability
3
Gasket, Stopper (Outer) WPL 4211410 Contact Us For Availability
3
Shield, Wire Cover WPL 4211422 Contact Us For Availability
4
End Bell Assembly (Upper) WPL 4211535 Contact Us For Availability
5
Washer, Phenolic (2) WPL 4211405 Contact Us For Availability
6
Washer, Rubber WPL 4211406 Contact Us For Availability
7
Washer, Thrust WPL 4211493 Contact Us For Availability
8
Stator Assembly WPL 4211375 Contact Us For Availability
9
Gasket, Mounting WPL 4211411 Contact Us For Availability
9
Ring, C WPL 4211376 Contact Us For Availability
10
Flange, Body WPL 4211308 Contact Us For Availability
10
Rotor And Shaft Assembly WPL 4211494 Contact Us For Availability
11
Gasket, Body WPL 4211359 Contact Us For Availability
12
Shell Assembly, Trim (Top) WPL 4211443 Contact Us For Availability
12
Shield, Insulation WPL 4211381 Contact Us For Availability
13
Band Assembly, Trim WPL 4211413 Contact Us For Availability
13
Capacitor WPL 4211385 Contact Us For Availability
14
Cover, Switch WPL 4211417 Contact Us For Availability
14
End Frame Assembly (Lower) WPL 4211470 Contact Us For Availability
15
Screw, Tapping (Switch Cover) WPL 4211418 Contact Us For Availability
15
Bolt, Thru (4) WPL 4211389 Contact Us For Availability
16
Bracket, Wire Cover WPL 4211419 Contact Us For Availability
16
Insulation, Bottom WPL 4211393 Contact Us For Availability
17
Insulation, Switch Cover WPL 4211416 Contact Us For Availability
17
Shell Assembly, WPL 4211486 Contact Us For Availability
18
Switch, Pushbutton WPL 4211415 Contact Us For Availability
18
Spring (2) (Centrifugal Actuator) WPL 4211378 Contact Us For Availability
19
Insulation, Top WPL 4211420 Contact Us For Availability
19
Shredder Assembly, Rotating WPL 4211368 Contact Us For Availability
20
Gasket, Tailpipe WPL 4211344 Contact Us For Availability
21
Container, Body Assembly (Includes Sound Insu WPL 4211414 Contact Us For Availability
22
Flange, Tailpipe WPL 4211345 Contact Us For Availability
22
Body, Lower WPL 4211421 Contact Us For Availability
23
Gasket, Shredder WPL 4211365 Contact Us For Availability
24
Insulation, Sound WPL 4211366 Contact Us For Availability
24
Transfer Assembly WPL 4211468 Contact Us For Availability
25
Shredder, Stationary WPL 4211367 Contact Us For Availability
25
Switch Assembly, Start WPL 4211469 Contact Us For Availability
26
Clip, Overload WPL 4211383 Contact Us For Availability
27
Overload, Protector WPL 4211384 Contact Us For Availability
28
Clamp, BX WPL 4211387 Contact Us For Availability
29
Screw, Clamp (2) WPL 4211388 Contact Us For Availability
30
Screw, Ground WPL 4211390 Contact Us For Availability
31
Cover, Terminal WPL 4211391 Contact Us For Availability
32
Screw WPL 4211380 Contact Us For Availability
33
Screw, Tapping WPL 4211395 Contact Us For Availability
× ![]()
