Model Whirlpool KBCS24RSSS02 BEVERAGE CENTER – Common Parts & Diagrams

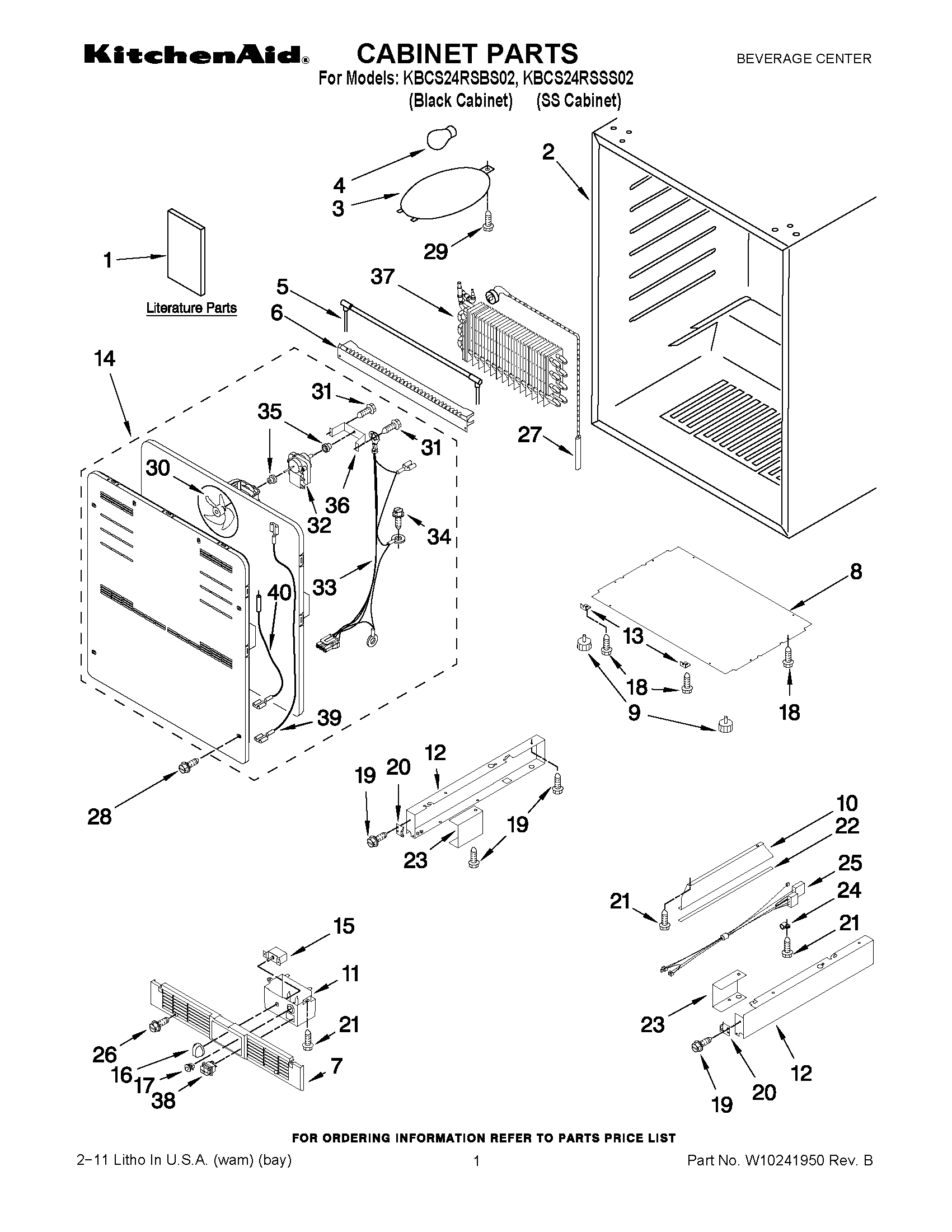

01 - CABINET PARTS

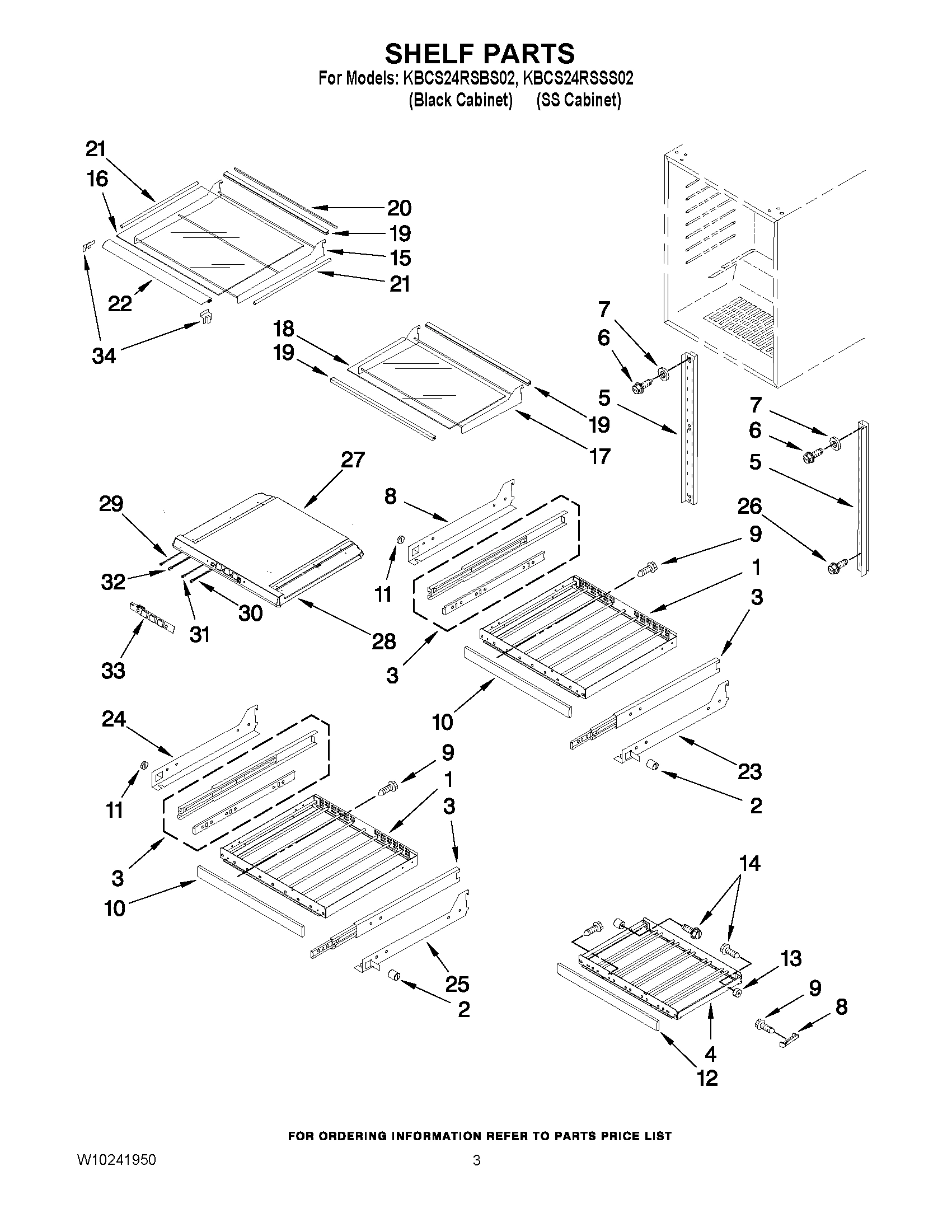

02 - SHELF PARTS

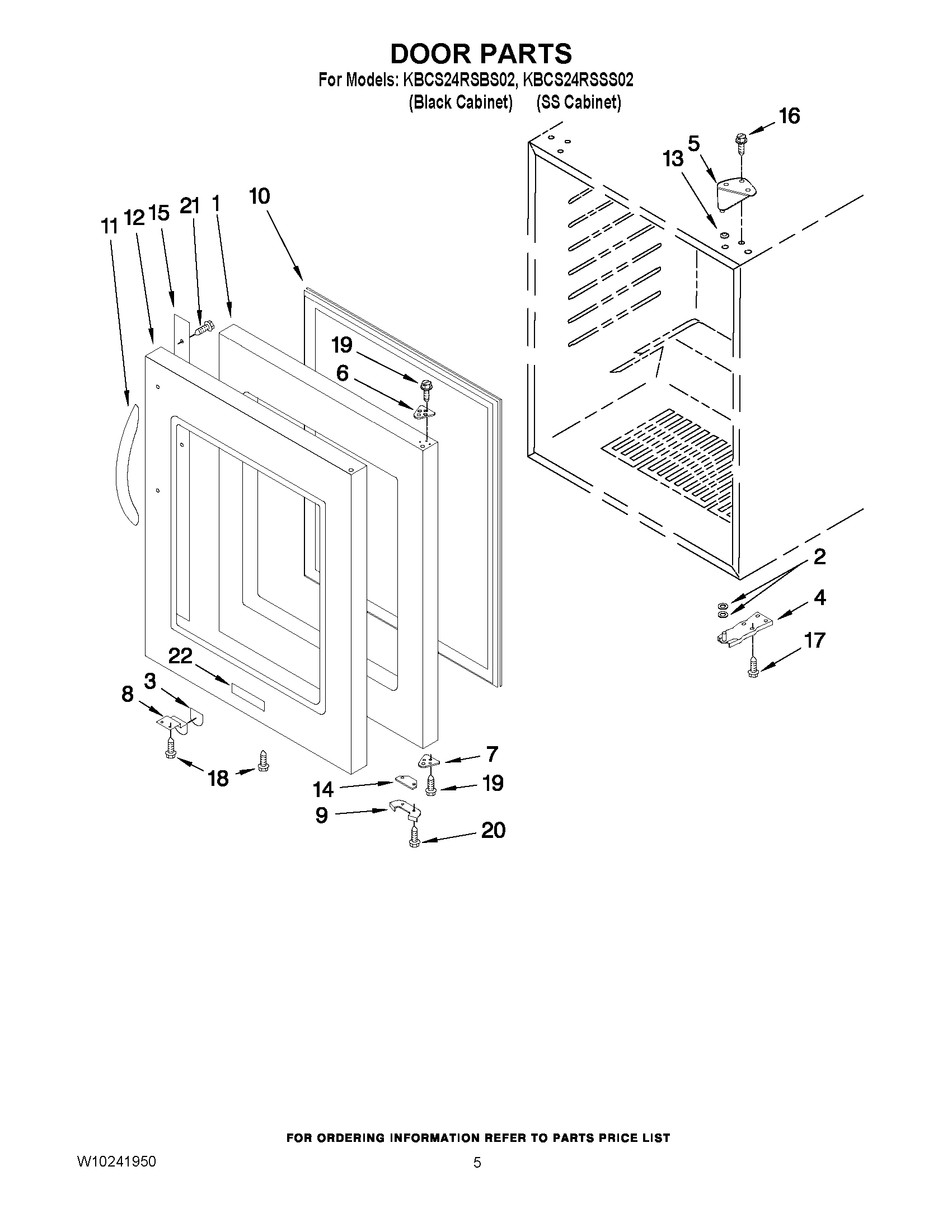

03 - DOOR PARTS

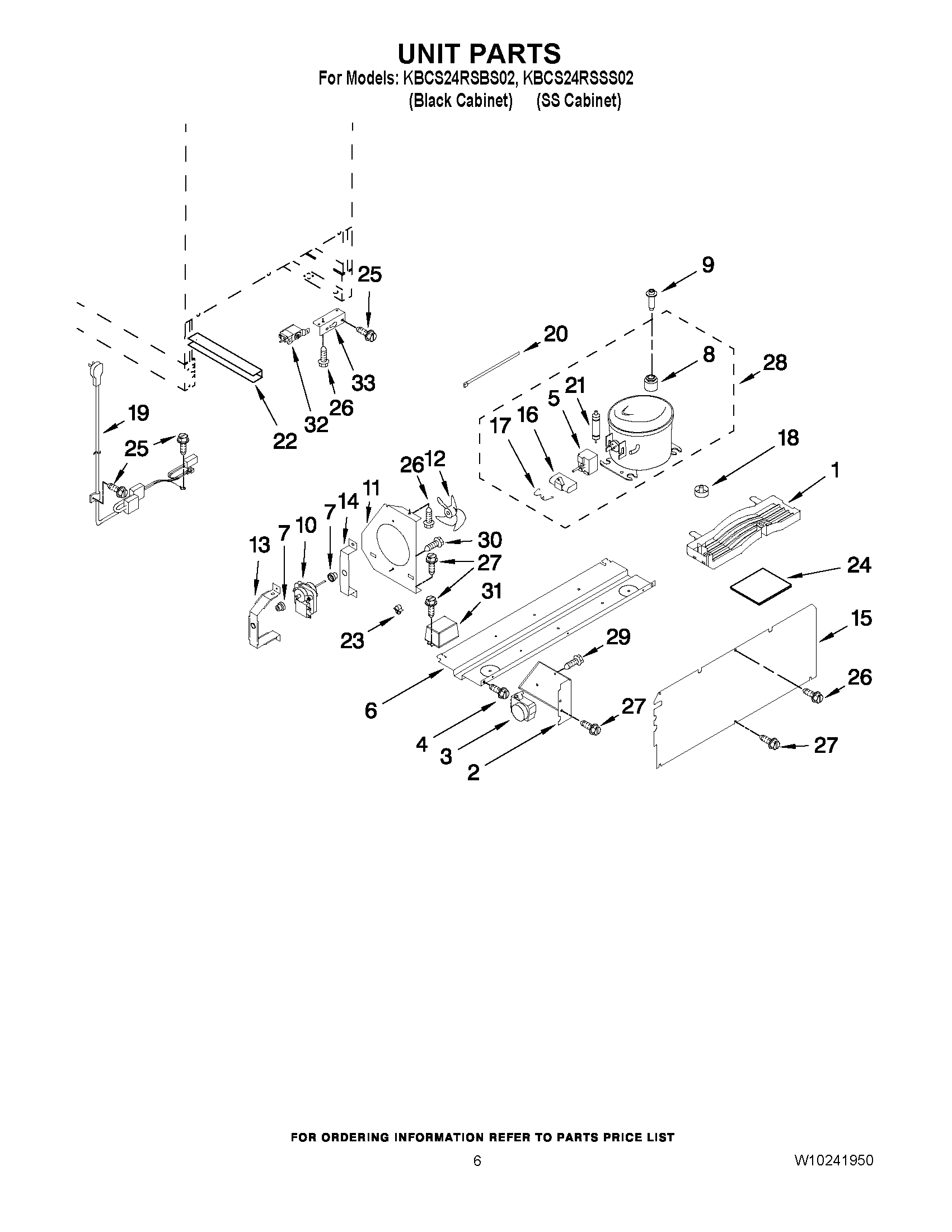

04 - UNIT PARTS
Common parts from model Whirlpool KBCS24RSSS02 BEVERAGE CENTER
1
Drain Pan WPL W10163193 Contact Us For Availability
1
Door Assembly (Includes Gasket) WPL 4344853 Contact Us For Availability
1
Wine Rack Top & Middle WPL W10238032 Contact Us For Availability
2
Rubber Support WPL 4344867 Contact Us For Availability
2
Bracket, Defrost Timer WPL 4344773 Contact Us For Availability
3
Rail Assembly WPL W10238029 Contact Us For Availability
3
GASKET-PUSH PLATE WPL W10163191 Contact Us For Availability
4
Wine Rack, Lower WPL W10187313 Contact Us For Availability
5
Ladder, Shelf (Left Side) WPL 4344842 Contact Us For Availability
5
Ladder, Shelf (Right Side) WPL 4344843 Contact Us For Availability
6
Screw WPL 4344794 Contact Us For Availability
6
MOUNTING PLATE, COMPRESSOR WPL W10238066 Contact Us For Availability
7
Washer WPL 4344795 Contact Us For Availability
7
Grommet, Fan Motor WPL 4344778 Contact Us For Availability
8
Shelf Support WPL W10239365 Contact Us For Availability
9
Screw WPL 4344851 Contact Us For Availability
10
Trim, Top And Middle Racks WPL 4344882 Contact Us For Availability
11
Control Box WPL 4344898 Contact Us For Availability
11
Rubber Support WPL 4344866 Contact Us For Availability
11
Baffle, Air WPL 4344782 Contact Us For Availability
12
Trim, Lower Rack WPL W10163279 Contact Us For Availability
12
Door Skin, Stainless Steel WPL 4344855 Contact Us For Availability
12
Fan Blade WPL 4344783 Contact Us For Availability
13
Support, Bumper (Left) WPL 4344885 Contact Us For Availability
14
Screw (Right) WPL 4344914 Contact Us For Availability
14
Screw (Left) WPL 4344915 Contact Us For Availability
15
Shelf, Large WPL W10238033 Contact Us For Availability
15
Plate WPL W10238056 Contact Us For Availability
16
Glass, Shelf WPL 4344871 Contact Us For Availability
17
Shelf, Small WPL 4344868 Contact Us For Availability
17
Screw, Lower Hinge (Quantity 1) WPL 4344906 Contact Us For Availability
17
SCREW, LOWER HINGE (QUANTITY 3) WPL W10243104 Contact Us For Availability
18
Glass, Shelf WPL 4344869 Contact Us For Availability
19
Trim, Shelf WPL 4344872 Contact Us For Availability
19
Power Cord WPL 4344861 Contact Us For Availability
20
Seal, Rear WPL 4344873 Contact Us For Availability
21
Screw WPL 4344825 Contact Us For Availability
21
Seal, Side (2) WPL 4344874 Contact Us For Availability
21
Screw WPL 4344808 Contact Us For Availability
22
Seal, Front WPL 4344875 Contact Us For Availability
22
NAME PLATE WPL W10239386 Contact Us For Availability
22
TRIM EDGE WPL 4344907 Contact Us For Availability
23
Shelf Support WPL W10239366 Contact Us For Availability
24
Shelf Support WPL W10239369 Contact Us For Availability
25
Shelf Support WPL W10239370 Contact Us For Availability
26
SCREW W/WASHER WPL W10162986 Contact Us For Availability
27
Top Cover WPL W10238187 Contact Us For Availability
28
Bottom Cover WPL W10238184 Contact Us For Availability
29
Screw WPL 4344834 Contact Us For Availability
32
Extension Cable WPL W10238028 Contact Us For Availability
33
Harness, Wire WPL 4344877 Contact Us For Availability
33
Bracket, Thermostat WPL 4344864 Contact Us For Availability
34
Support, Shelf (Large) WPL 4344905 Contact Us For Availability
39
Transformer Cable WPL 4344917 Contact Us For Availability
NI
Screw, Cover WPL W10204809 Contact Us For Availability
NI
LED Spacer WPL W10238031 Contact Us For Availability
NI
Support WPL W10238189 Contact Us For Availability
NI
Seal WPL W10238384 Contact Us For Availability
NI
Support Spacer WPL W10239385 Contact Us For Availability
NI
Screw, Support WPL W10243273 Contact Us For Availability
NI
SCREW, SUPPORT WPL W10243310 Contact Us For Availability
NI
Screw, LED WPL W10243312 Contact Us For Availability
NI
CLEANER, STAINLESS STEEL (12 OZ) WPL 8171420 Contact Us For Availability
NI
REFRIGERANT CHARGE (3.5 OUNCES (R-134A)) WPL NP Contact Us For Availability
× ![]()
