Model Whirlpool KBCS24LSBS04 BEVERAGE CENTER – Common Parts & Diagrams
01 - CABINET PARTS

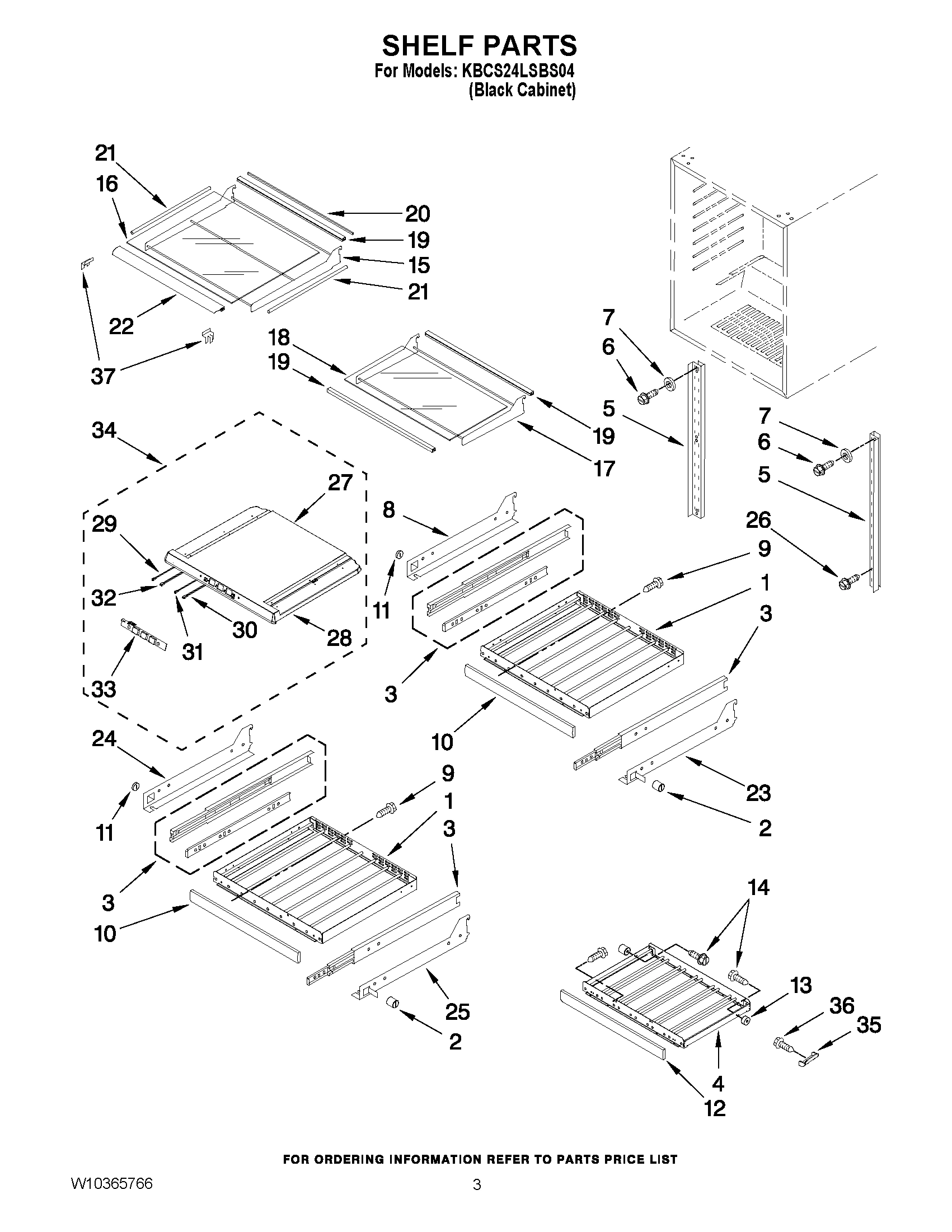

02 - SHELF PARTS
03 - DOOR PARTS
04 - UNIT PARTS
Common parts from model Whirlpool KBCS24LSBS04 BEVERAGE CENTER
1
Drain Pan WPL W10163193 Contact Us For Availability
1
Wine Rack Top & Middle WPL W10238032 Contact Us For Availability
1
Door Assembly (Includes Gasket) WPL 4344854 Contact Us For Availability
2
Rubber Support WPL 4344866 Contact Us For Availability
2
BRACKET, (DEFROST TIMER) WPL W10239387 Contact Us For Availability
3
Rail Assembly WPL W10238029 Contact Us For Availability
3
GASKET-PUSH PLATE WPL W10163191 Contact Us For Availability
4
HINGE BOTTOM WPL 4344787 Contact Us For Availability
4
Wine Rack, Lower WPL W10187313 Contact Us For Availability
4
Screw WPL 4344797 Contact Us For Availability
5
Hinge, Top WPL 4344754 Contact Us For Availability
5
LADDER, SHELF (RIGHT SIDE) WPL W10299079 Contact Us For Availability
5
LADDER, SHELF (LEFT SIDE) WPL W10299080 Contact Us For Availability
6
Screw WPL 4344794 Contact Us For Availability
6
Spacer, Top Hinge WPL 4344755 Contact Us For Availability
6
MOUNTING PLATE, COMPRESSOR WPL W10238066 Contact Us For Availability
7
Grommet, Fan Motor WPL 4344778 Contact Us For Availability
7
Washer WPL 4344795 Contact Us For Availability
7
Spacer, Bottom Hinge WPL 4344756 Contact Us For Availability
8
Shelf Support WPL W10239367 Contact Us For Availability
8
Actuator, Switch WPL 4344757 Contact Us For Availability
9
Screw WPL 4344851 Contact Us For Availability
9
DOOR STOP WPL W10238067 Contact Us For Availability
10
TRIM, TOP AND MIDDLE RACKS WPL W10239372 Contact Us For Availability
11
Control Box WPL 4344898 Contact Us For Availability
11
Rubber Support WPL 4344867 Contact Us For Availability
11
Baffle, Air WPL 4344782 Contact Us For Availability
12
TRIM, LOWER RACK WPL W10239373 Contact Us For Availability
12
DOOR SKIN, (STAINLESS STEEL) WPL W10238023 Contact Us For Availability
13
Support, Bumper (Right) WPL 4344885 Contact Us For Availability
13
Support, Bumper (Left) WPL 4344886 Contact Us For Availability
13
Washer WPL 4344760 Contact Us For Availability
13
Bracket, Motor WPL 4344784 Contact Us For Availability
14
Screw (Right) WPL 4344914 Contact Us For Availability
14
Screw (Left) WPL 4344915 Contact Us For Availability
14
Spacer, Door WPL 4344803 Contact Us For Availability
14
Bracket, Motor WPL 4344785 Contact Us For Availability
15
Shelf, Large WPL W10238033 Contact Us For Availability
15
Plate WPL W10238056 Contact Us For Availability
15
Cover, Rear WPL 4344786 Contact Us For Availability
16
Screw WPL 4344796 Contact Us For Availability
16
Glass, Shelf WPL 4344871 Contact Us For Availability
17
Shelf, Small WPL 4344868 Contact Us For Availability
17
Screw, Lower Hinge (Quantity 1) WPL 4344906 Contact Us For Availability
17
SCREW, LOWER HINGE (QUANTITY 3) WPL W10243104 Contact Us For Availability
18
Trap, Drain WPL W10163276 Contact Us For Availability
18
Glass, Shelf WPL 4344869 Contact Us For Availability
19
Trim, Shelf WPL 4344872 Contact Us For Availability
19
Screw WPL W10243123 Contact Us For Availability
20
Seal, Rear WPL 4344873 Contact Us For Availability
20
Screw WPL 4344801 Contact Us For Availability
20
Cable Tie WPL 4344829 Contact Us For Availability
21
Drier WPL W10163273 Contact Us For Availability
21
Seal, Side (2) WPL 4344874 Contact Us For Availability
21
Screw WPL 4344808 Contact Us For Availability
22
Seal, Front WPL 4344875 Contact Us For Availability
22
NAME PLATE WPL W10239386 Contact Us For Availability
22
TRIM EDGE WPL 4344907 Contact Us For Availability
23
Frame, Support (Left) WPL 4344820 Contact Us For Availability
23
Frame, Support (Right) WPL 4344821 Contact Us For Availability
23
Shelf Support WPL W10239364 Contact Us For Availability
23
Clip WPL W10238022 Contact Us For Availability
24
Shelf Support WPL W10239371 Contact Us For Availability
24
PAD-RUBBER WPL W10163274 Contact Us For Availability
25
Screw WPL 4344826 Contact Us For Availability
25
Shelf Support WPL W10239368 Contact Us For Availability
26
Screw WPL 4344825 Contact Us For Availability
26
SCREW W/WASHER WPL W10162986 Contact Us For Availability
27
Top Cover WPL W10238187 Contact Us For Availability
28
Bottom Cover WPL W10238184 Contact Us For Availability
29
Transformer Cable WPL W10238024 Contact Us For Availability
29
Screw WPL 4344834 Contact Us For Availability
30
Sensor Assy WPL W10238026 Contact Us For Availability
31
Sensor Assy, Top WPL W10238025 Contact Us For Availability
31
Transformer WPL W10238070 Contact Us For Availability
32
THERMOSTAT WPL W10163278 Contact Us For Availability
32
Extension Cable WPL W10238028 Contact Us For Availability
33
Harness, Wire WPL 4344877 Contact Us For Availability
33
Bracket, Thermostat WPL 4344864 Contact Us For Availability
34
HARNESS, WIRE WPL W10358906 Contact Us For Availability
35
STOPPER, RACK WPL 4344850 Contact Us For Availability
36
Bracket, Motor WPL 4344899 Contact Us For Availability
36
SCREW WPL W10281318 Contact Us For Availability
37
Support, Shelf (Large) WPL 4344905 Contact Us For Availability
38
Switch, Light WPL 4344858 Contact Us For Availability
39
TRANSFORMER CABLE WPL W10238071 Contact Us For Availability
NI
REFRIGERANT CHARGE (3.5 OUNCES (R-134A)) WPL NP Contact Us For Availability
NI
Screw, Cover WPL W10204809 Contact Us For Availability
NI
LED Spacer WPL W10238031 Contact Us For Availability
NI
Support WPL W10238189 Contact Us For Availability
NI
SEAL WPL W10239384 Contact Us For Availability
NI
Support Spacer WPL W10239385 Contact Us For Availability
NI
SCREW, SUPPORT WPL W10243310 Contact Us For Availability
NI
Screw, LED WPL W10243312 Contact Us For Availability
NI
CLEANER, STAINLESS STEEL (12 OZ) WPL 8171420 Contact Us For Availability
× ![]()
