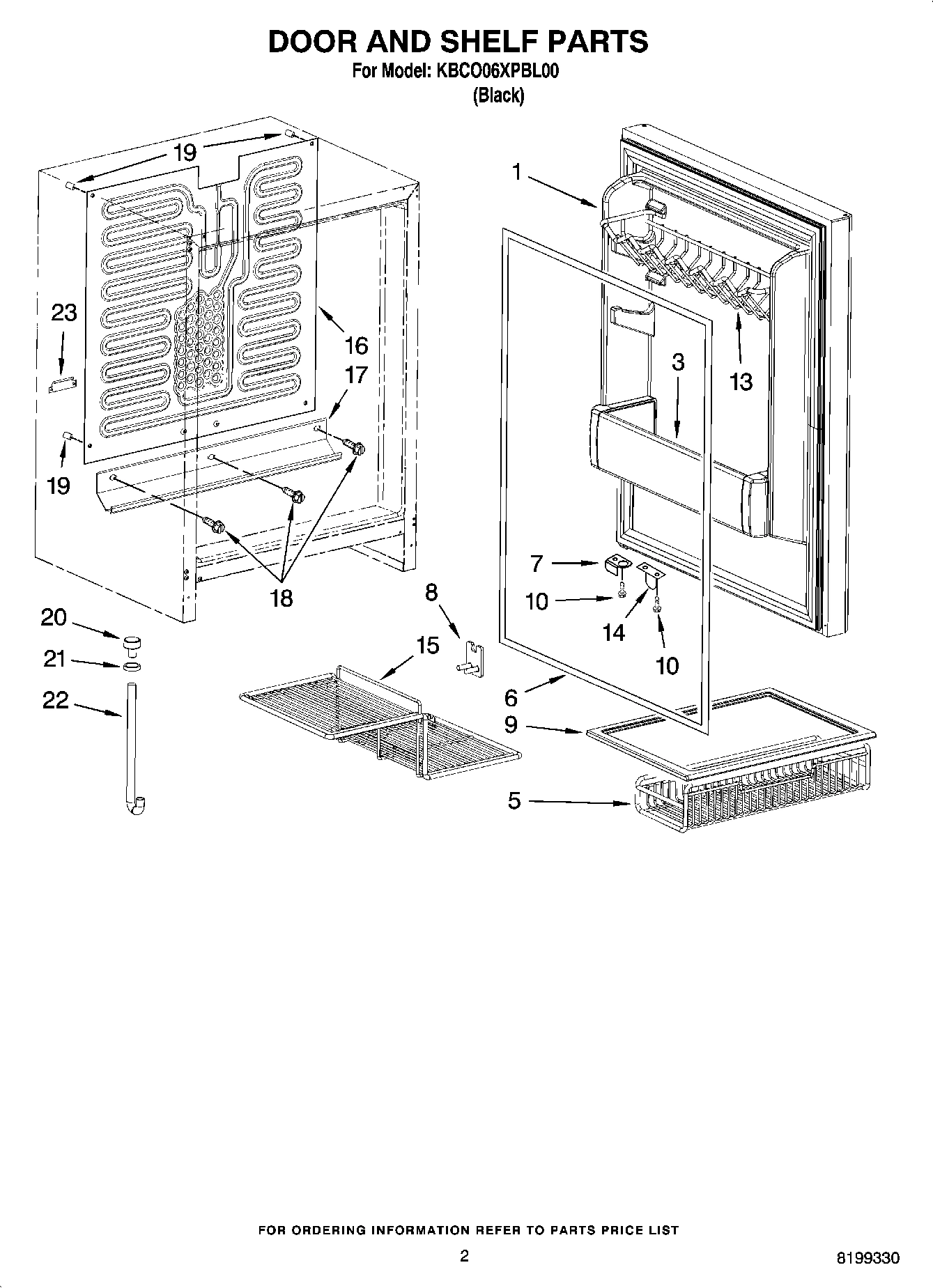

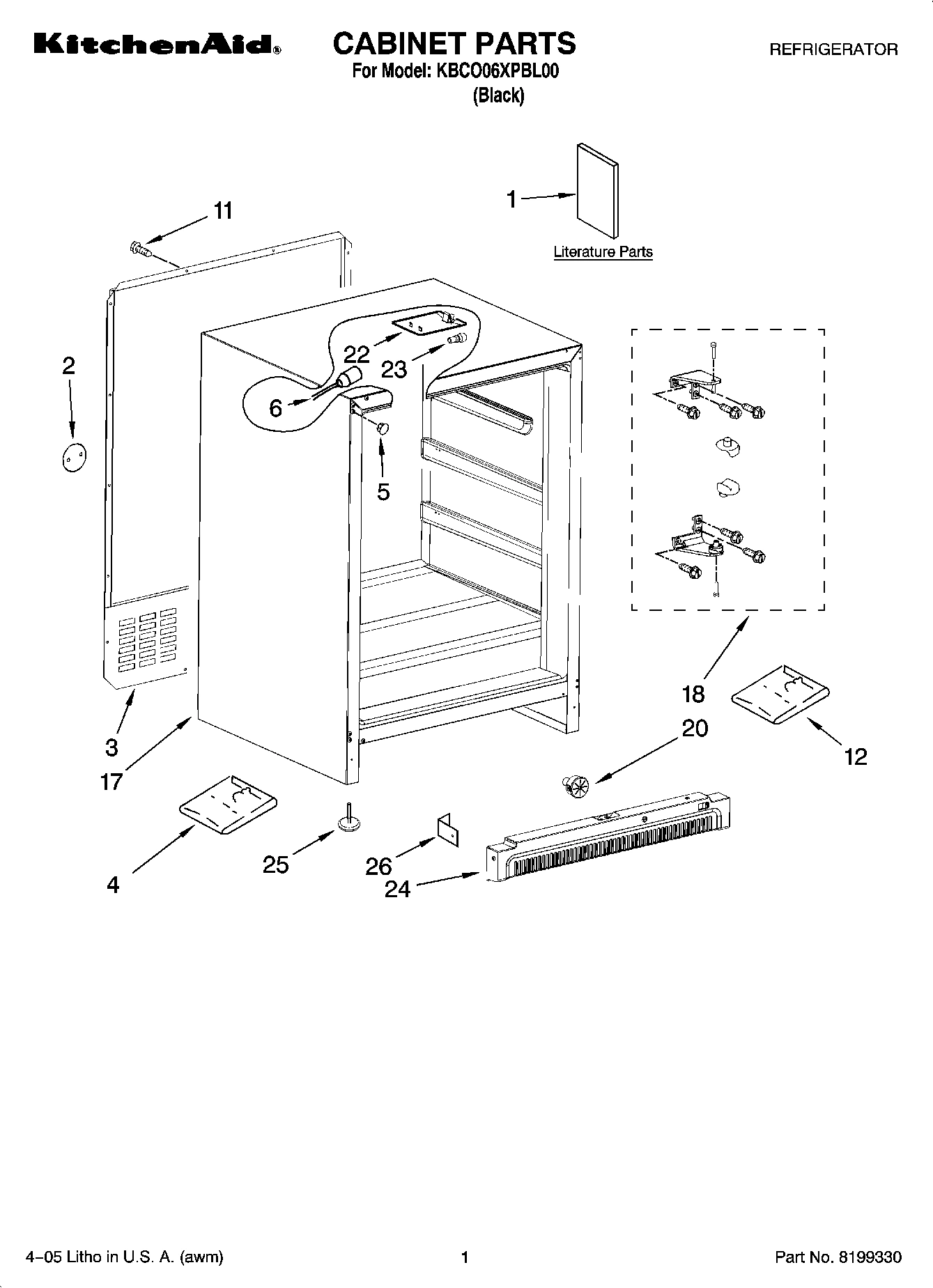

Model Whirlpool KBCO06XPBL00 REFRIGERATOR – Common Parts & Diagrams

1
Use & Care Guide
Use & Care Guide WPL 2300248 Contact Us For Availability
View on Model
1
Energy Guide
Energy Guide WPL 4344666 Contact Us For Availability
View on Model
1
Wiring Diagram
Wiring Diagram WPL 4344738 Contact Us For Availability
View on Model
1
Condenser
Condenser WPL 4344688 Contact Us For Availability
View on Model
2
Blade, Fan
Blade, Fan WPL 4344632 Contact Us For Availability
View on Model
2
Cover, Back Panel
Cover, Back Panel WPL 4344664 Contact Us For Availability
View on Model
3
Panel, Back
Panel, Back WPL 4344662 Contact Us For Availability
View on Model
3
Switch, Door
Switch, Door WPL 4344607 Contact Us For Availability
View on Model
4
Motor, Cond. Fan
Motor, Cond. Fan WPL 4344631 Contact Us For Availability
View on Model
4
Kit, Hinges (Custom Wood Door)
Kit, Hinges (Custom Wood Door) WPL 4344736 Contact Us For Availability
View on Model
5
Plug, Hole (6)
Plug, Hole (6) WPL 4344702 Contact Us For Availability
View on Model
5
Cord, Power
Cord, Power WPL 4344721 Contact Us For Availability
View on Model
6
Gasket, Door
Gasket, Door WPL 4344696 Contact Us For Availability
View on Model
6
Socket, Light
Socket, Light WPL 4344678 Contact Us For Availability
View on Model
6
Bracket, Switch
Bracket, Switch WPL 4344675 Contact Us For Availability
View on Model
7
Pan, Drain
Pan, Drain WPL 4344655 Contact Us For Availability
View on Model
9
Relay, Starting
Relay, Starting WPL 4344638 Contact Us For Availability
View on Model
10
Overload
Overload WPL 4344687 Contact Us For Availability
View on Model
12
Kit, Spacers (Custom Wood Door)
Kit, Spacers (Custom Wood Door) WPL 4344737 Contact Us For Availability
View on Model
13
Rack, Can
Rack, Can WPL 4344708 Contact Us For Availability
View on Model
13
Compressor (Includes Items 9, 10, 11 & 28)
Compressor (Includes Items 9, 10, 11 & 28) WPL 4344621 Contact Us For Availability
View on Model
14
Thermostat Assembly
Thermostat Assembly WPL 4344725 Contact Us For Availability
View on Model
14
Bracket, Door Switch
Bracket, Door Switch WPL 4344709 Contact Us For Availability
View on Model
15
Shelf, Wire
Shelf, Wire WPL 4344716 Contact Us For Availability
View on Model
16
Evaporator
Evaporator WPL 4344717 Contact Us For Availability
View on Model
17
Channel
Channel WPL 4344718 Contact Us For Availability
View on Model
17
Cabinet (Not A Serviceable Part)
Cabinet (Not A Serviceable Part) WPL ARI77998A9 Contact Us For Availability
View on Model
18
Rivet, Push-In
Rivet, Push-In WPL 4344719 Contact Us For Availability
View on Model
18
Hinge Assembly (Top & Bottom)
Hinge Assembly (Top & Bottom) WPL 4344727 Contact Us For Availability
View on Model
19
Spacer
Spacer WPL 4344720 Contact Us For Availability
View on Model
20
Knob, Control
Knob, Control WPL 4344672 Contact Us For Availability
View on Model
20
Funnel, Drain
Funnel, Drain WPL 4344611 Contact Us For Availability
View on Model
21
Washer, Foam
Washer, Foam WPL 4344722 Contact Us For Availability
View on Model
22
Tube, Drain
Tube, Drain WPL 4344723 Contact Us For Availability
View on Model
22
Lens, Light
Lens, Light WPL 4344667 Contact Us For Availability
View on Model
23
Clamp
Clamp WPL 4344724 Contact Us For Availability
View on Model
24
Grille
Grille WPL 4344670 Contact Us For Availability
View on Model
25
Foot, Leveling (4)
Foot, Leveling (4) WPL 4344635 Contact Us For Availability
View on Model
26
Clip, Grille
Clip, Grille WPL 4344673 Contact Us For Availability
View on Model
29
Drier Assembly
Drier Assembly WPL 4344630 Contact Us For Availability
View on Model
29
REFRIGERANT CHARGE 4.0 oz. (R-134)
REFRIGERANT CHARGE 4.0 oz. (R-134) WPL ARI77999A8 Contact Us For Availability
View on Model
