Model Whirlpool KBCA06XPBL00 REFRIGERATOR – Common Parts & Diagrams

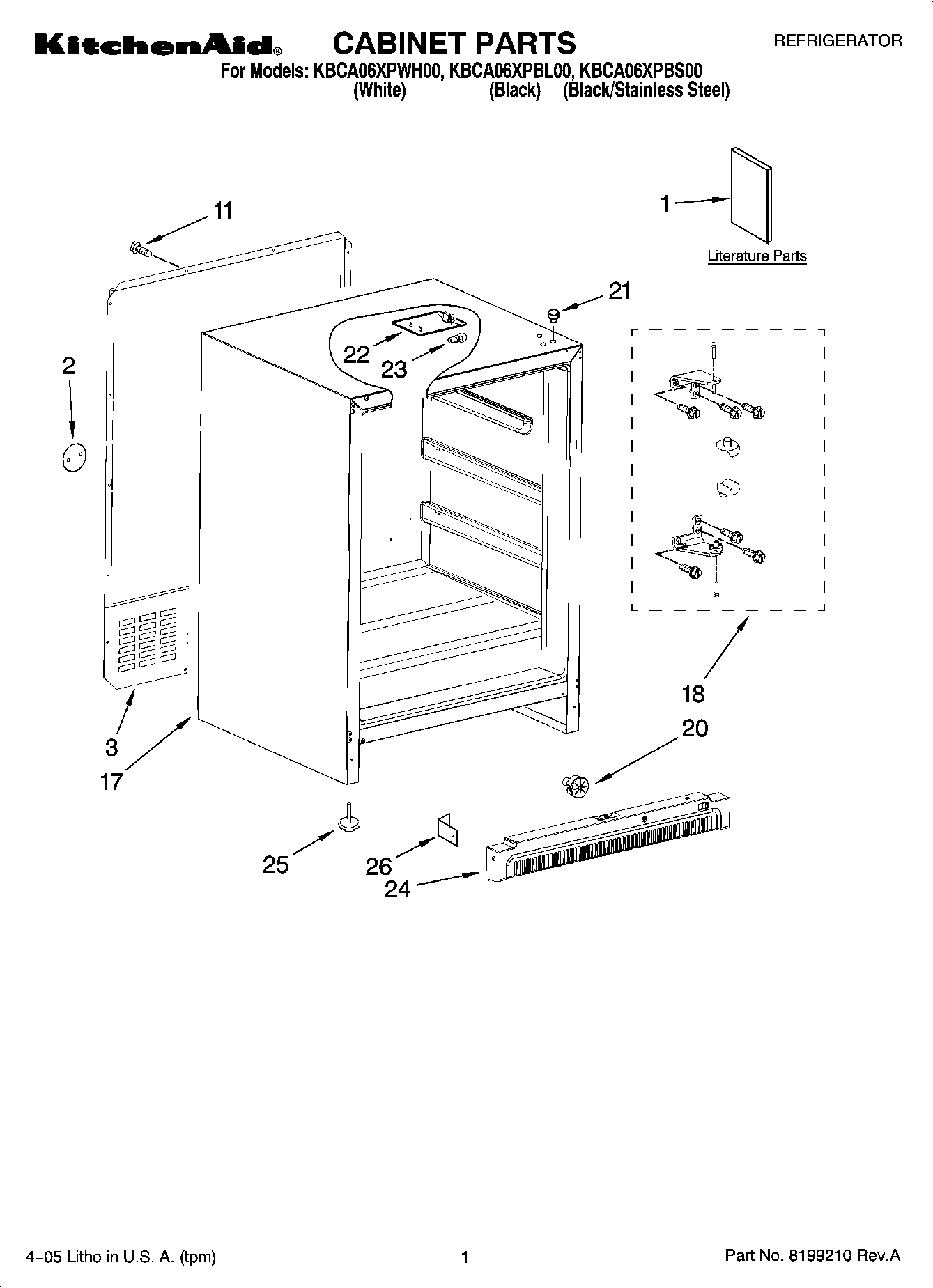

01 - CABINET PARTS

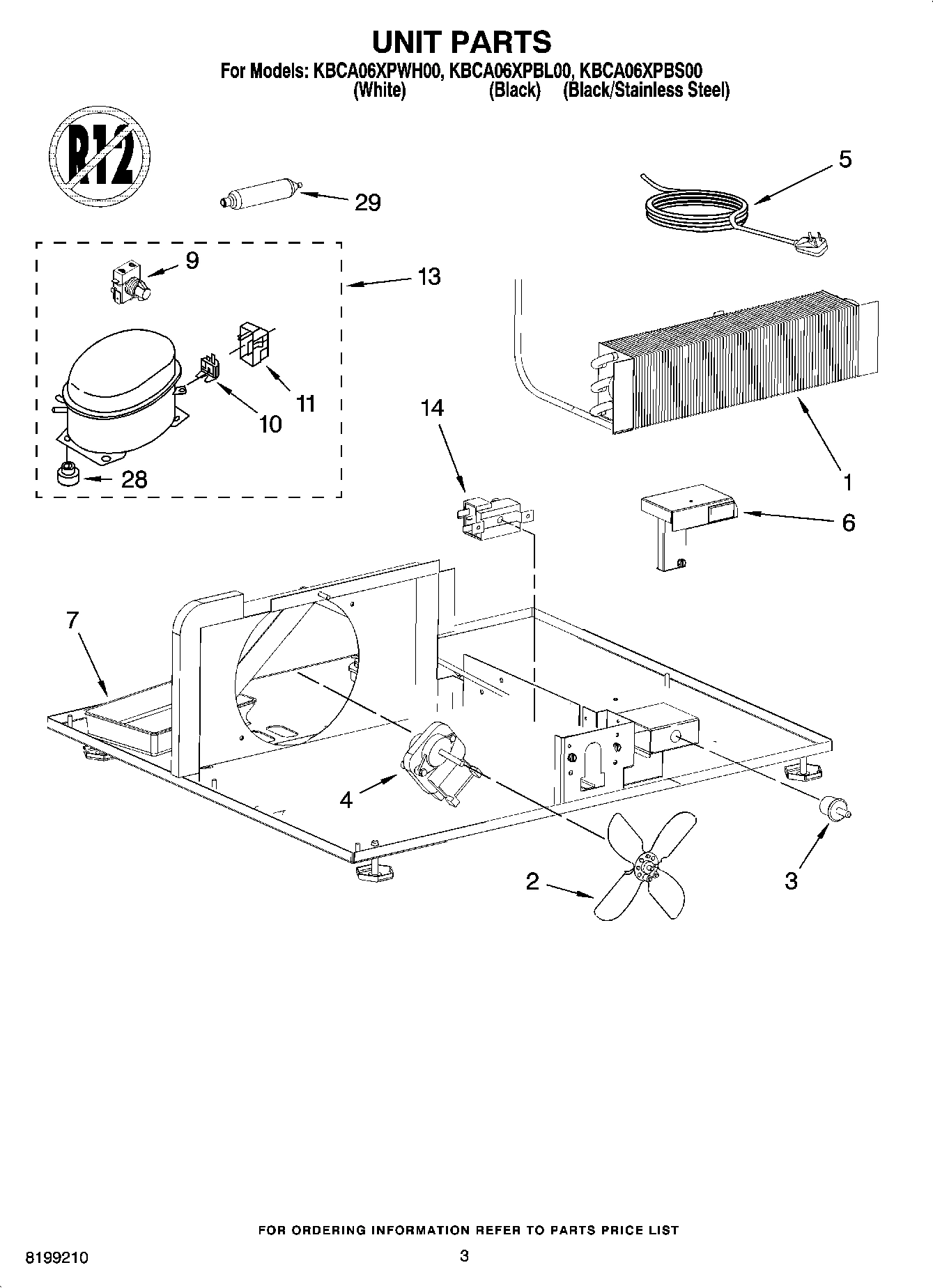

03 - UNIT PARTS
02 - DOOR AND SHELF PARTS
Common parts from model Whirlpool KBCA06XPBL00 REFRIGERATOR
1
Condenser WPL 4344688 Contact Us For Availability
1
Door Assembly (Includes Gasket And Handle) (W WPL 4344704 Contact Us For Availability
1
Door Assembly (Includes Gasket And Handle) (B WPL 4344706 Contact Us For Availability
1
Door Assembly (Includes Gasket And Handle) (S WPL 4344707 Contact Us For Availability
2
Blade, Fan WPL 4344632 Contact Us For Availability
2
Nameplate (Black) WPL 2217214B Contact Us For Availability
2
Nameplate (White) WPL 2217214W Contact Us For Availability
3
Switch, Door WPL 4344677 Contact Us For Availability
4
Motor, Cond. Fan WPL 4344631 Contact Us For Availability
4
Handle, Door (Stainless Steel) WPL 8524415 Contact Us For Availability
4
Handle, Door (White) WPL 8524416 Contact Us For Availability
4
Handle, Door (Black) WPL 8524418 Contact Us For Availability
5
Cord, Power WPL 4344721 Contact Us For Availability
5
Basket, Crisper WPL 4344713 Contact Us For Availability
6
Gasket, Door (White) WPL 4344685 Contact Us For Availability
6
Gasket, Door (Black) WPL 4344696 Contact Us For Availability
6
Bracket, Switch (White) WPL 4344674 Contact Us For Availability
6
Bracket, Switch (Black) WPL 4344675 Contact Us For Availability
6
Bracket, Switch (B/S Model) WPL 4344676 Contact Us For Availability
6
Gasket, Door (Grey) WPL 4344705 Contact Us For Availability
7
Pan, Drip WPL 4344655 Contact Us For Availability
7
Plate, Pivot (White) WPL 4344711 Contact Us For Availability
7
Plate, Pivot (Black) WPL 4344712 Contact Us For Availability
8
Retainer, Shelf WPL 4344714 Contact Us For Availability
9
Relay, Starting WPL 4344638 Contact Us For Availability
9
Shelf, Crisper WPL 4344715 Contact Us For Availability
10
Overload WPL 4344687 Contact Us For Availability
13
Compressor (Includes 9, 10 & 11) WPL 4344621 Contact Us For Availability
13
Rack, Can WPL 4344708 Contact Us For Availability
14
Thermostat Assembly WPL 4344725 Contact Us For Availability
14
Bracket, Door Switch WPL 4344709 Contact Us For Availability
15
Shelf, Wire WPL 4344716 Contact Us For Availability
16
Evaporator WPL 4344717 Contact Us For Availability
17
Channel WPL 4344718 Contact Us For Availability
18
Hinge Assembly (Top & Bottom) (White) WPL 4344726 Contact Us For Availability
18
Hinge Assembly (Top & Bottom) (Black) WPL 4344727 Contact Us For Availability
18
Hinge Assembly (Top & Bottom) (Stainless Stee WPL 4344728 Contact Us For Availability
18
Rivet, Plastic WPL 4344719 Contact Us For Availability
19
Spacer WPL 4344720 Contact Us For Availability
20
Knob, Control (Black) WPL 4344672 Contact Us For Availability
20
Knob, Control (White) WPL 4344671 Contact Us For Availability
20
Funnel, Drain WPL 4344611 Contact Us For Availability
21
Plug, Hole (White) WPL 4344701 Contact Us For Availability
21
Plug, Hole (Black) WPL 4344702 Contact Us For Availability
21
Washer, Foam WPL 4344722 Contact Us For Availability
22
Lens, Light WPL 4344667 Contact Us For Availability
22
Tube, Drain WPL 4344723 Contact Us For Availability
23
Clamp WPL 4344724 Contact Us For Availability
23
CLEANER, STAINLESS STEEL (12 OZ) WPL 8171420 Contact Us For Availability
23
OPTIONAL PARTS NOT ILLUSTRATED WPL ARI77981A9 Contact Us For Availability
24
Grille (White) WPL 4344669 Contact Us For Availability
24
Grille (Black) WPL 4344670 Contact Us For Availability
25
Leveling Feet WPL 4344635 Contact Us For Availability
26
Clip, Grille WPL 4344673 Contact Us For Availability
29
Drier Assembly WPL 4344630 Contact Us For Availability
29
REFRIGERANT CHARGE 4.0 Ounces (R-134A) WPL ARI77982A7 Contact Us For Availability
× ![]()
