Model Whirlpool KBBX104EPA00 REFRIGERATOR, ALL – Common Parts & Diagrams

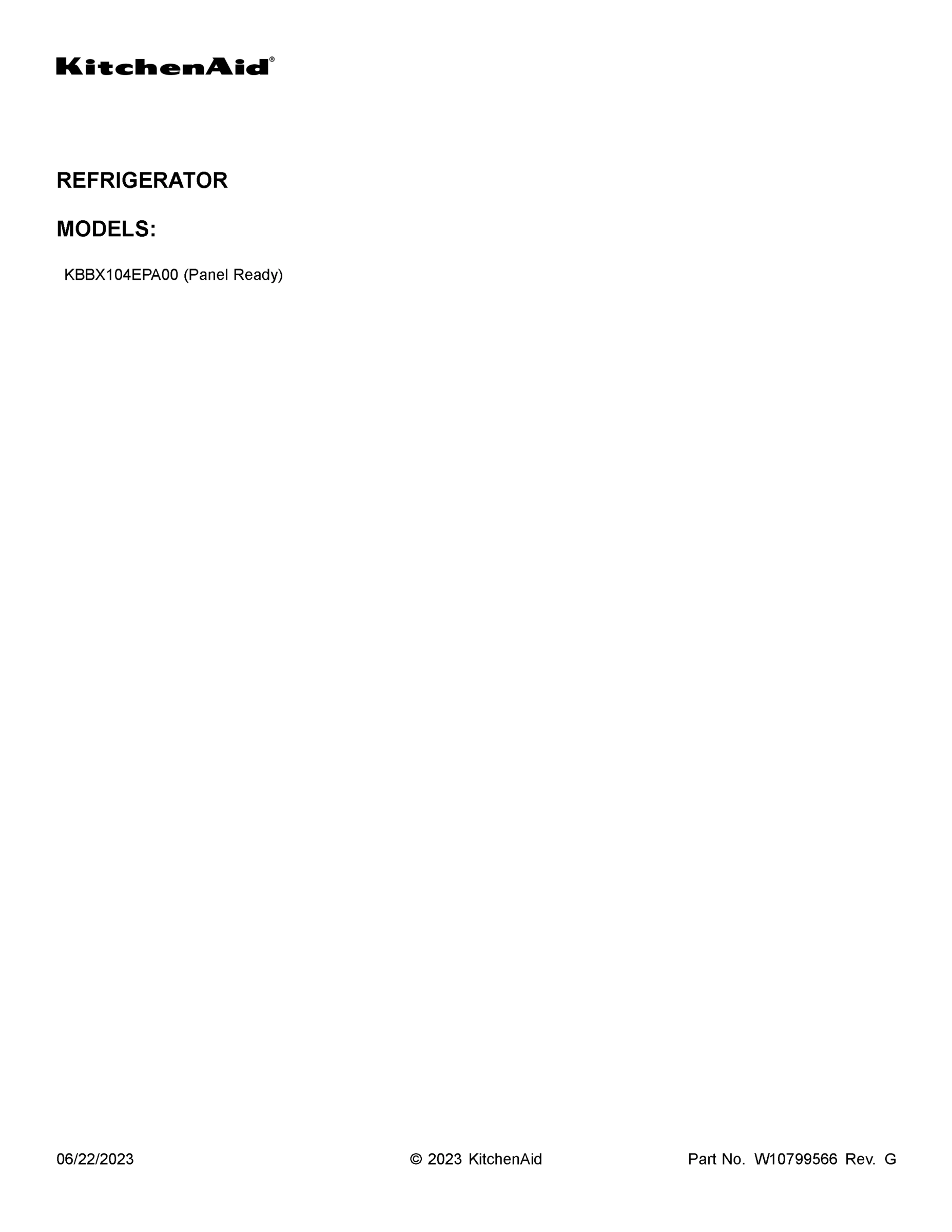

01 - COVER SHEET

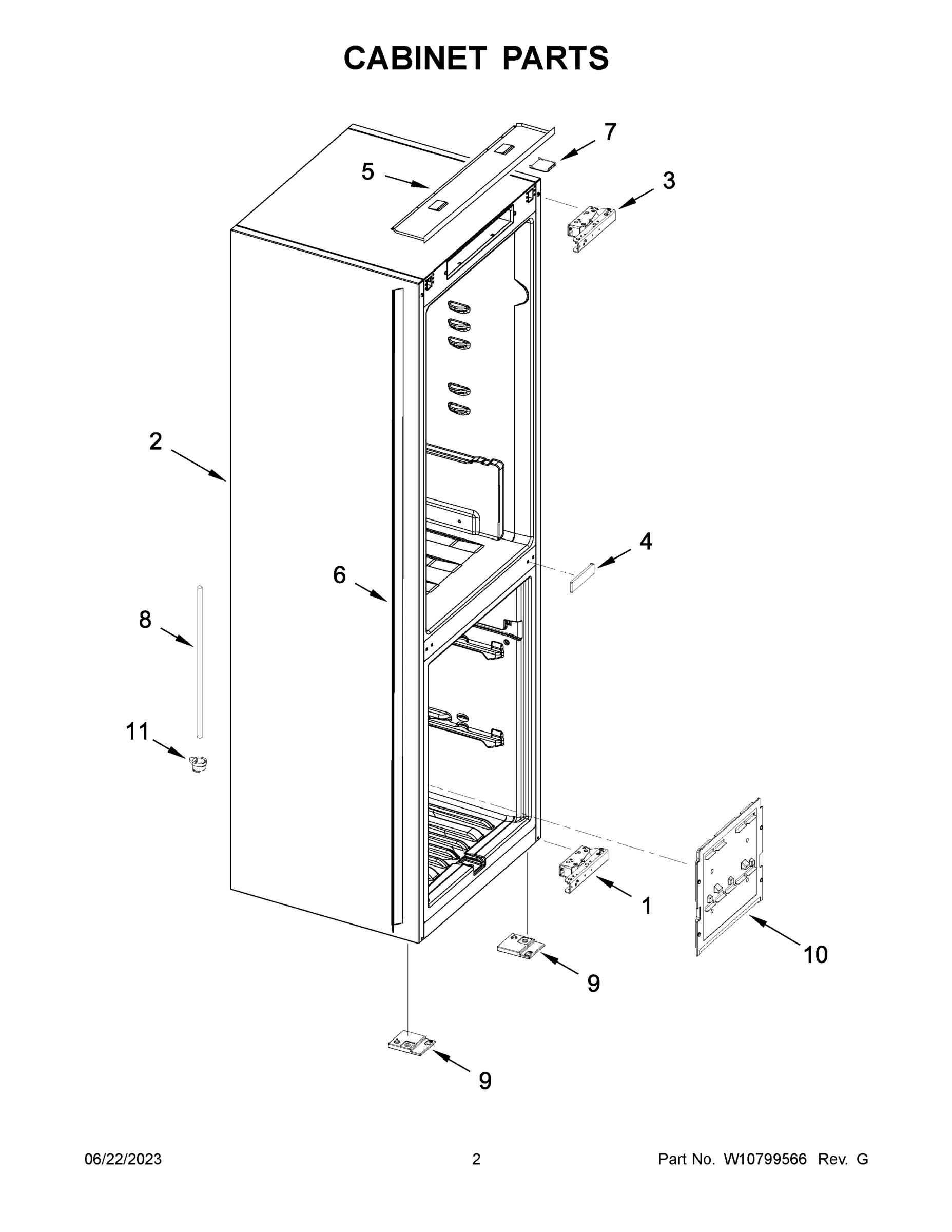

02 - CABINET PARTS

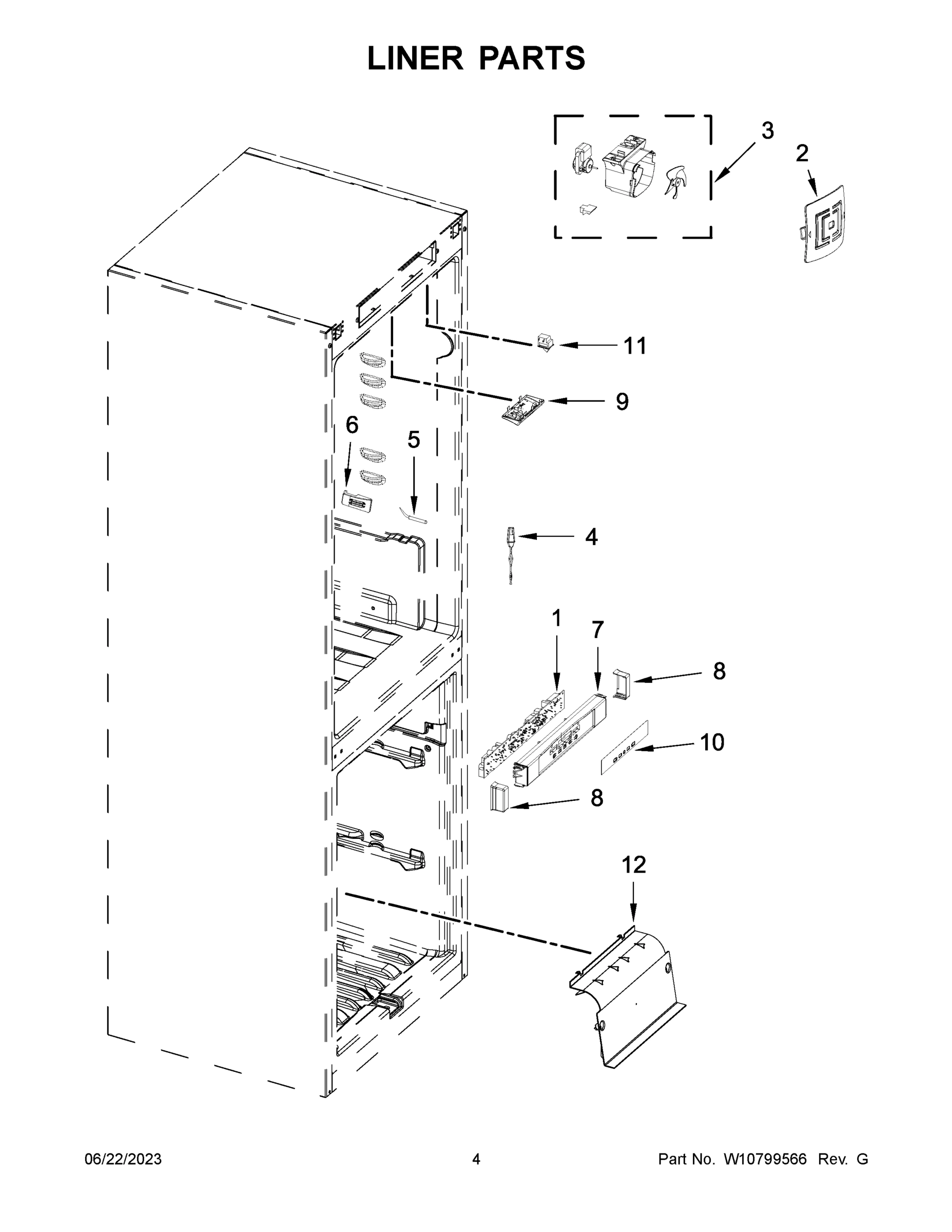

03 - LINER PARTS

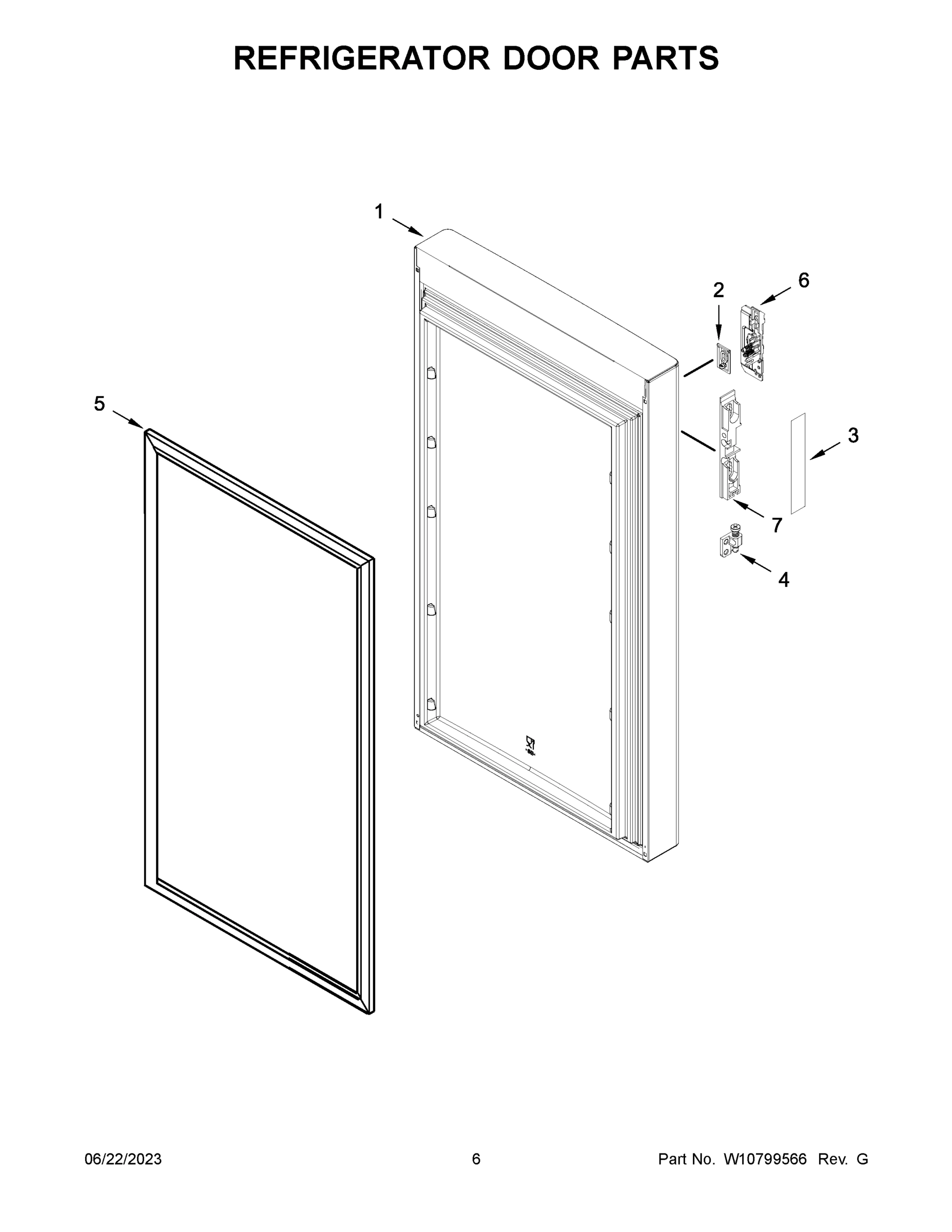

04 - REFRIGERATOR DOOR PARTS

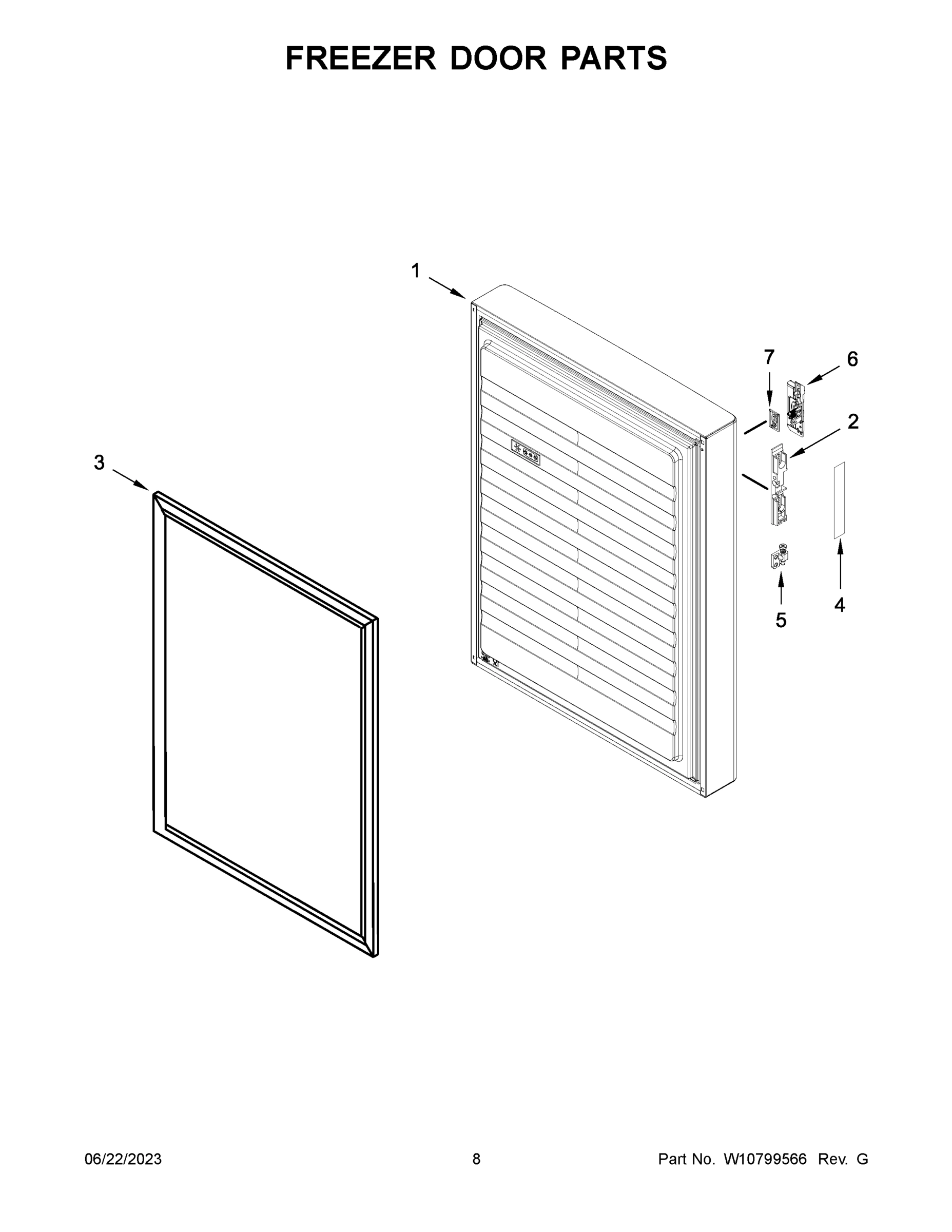

05 - FREEZER DOOR PARTS

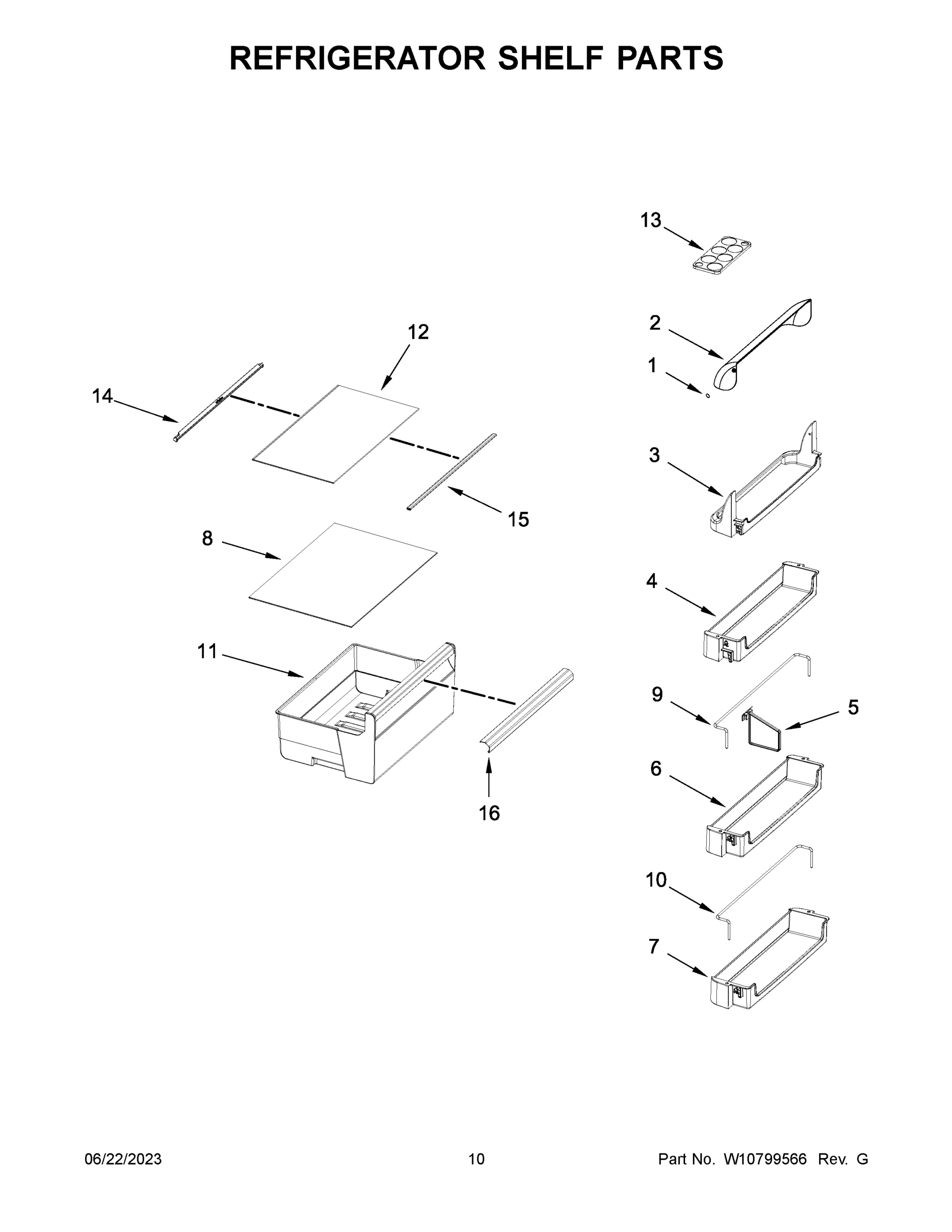

06 - REFRIGERATOR SHELF PARTS

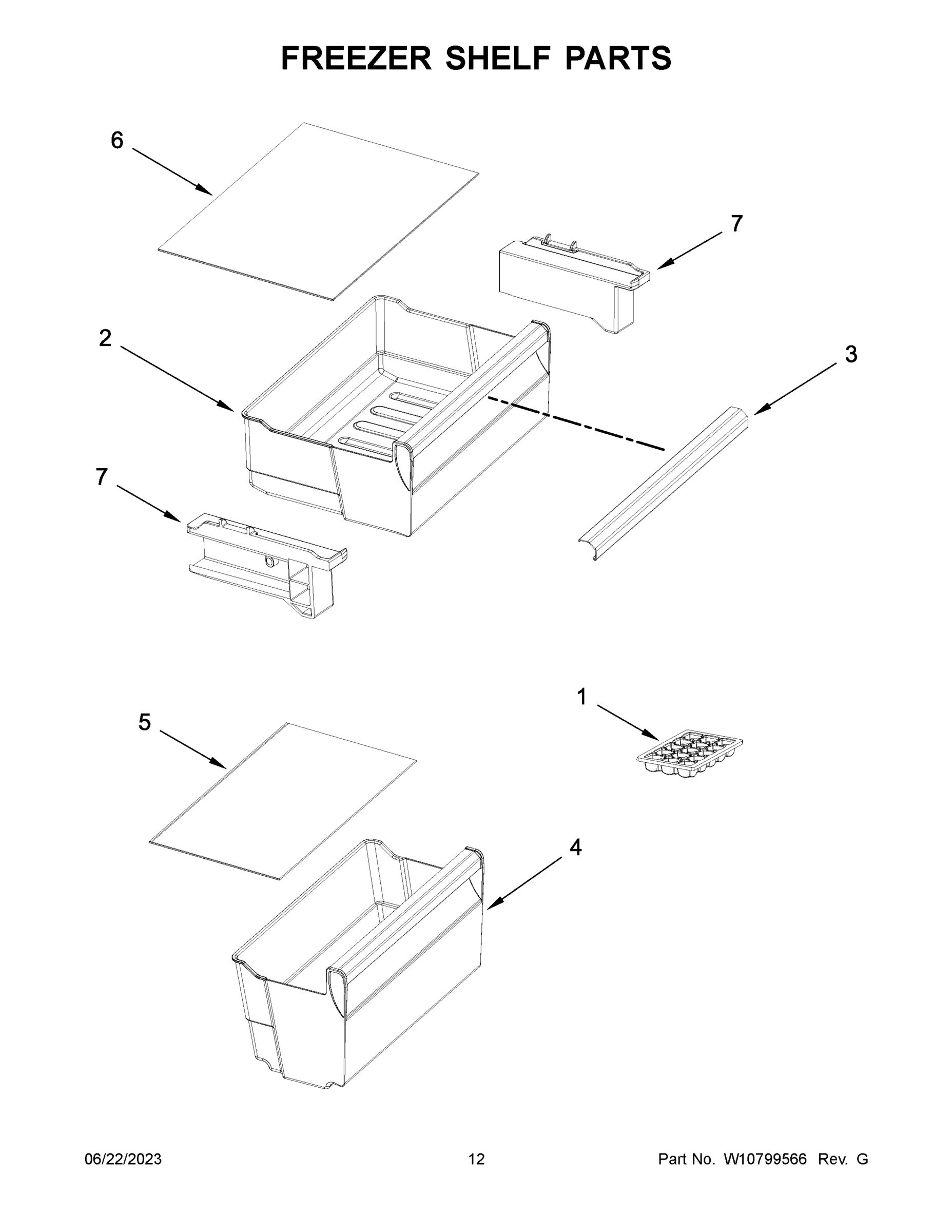

07 - FREEZER SHELF PARTS

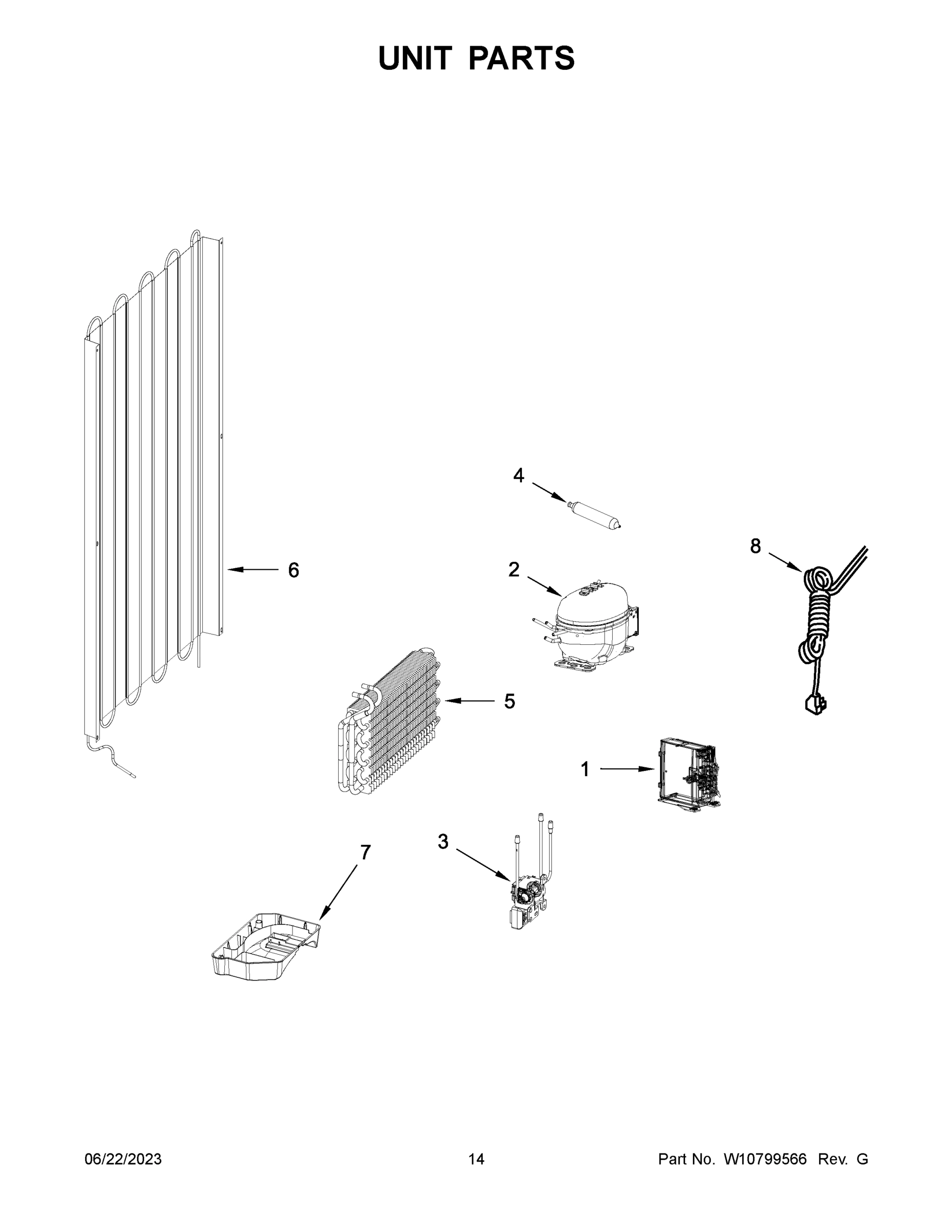

08 - UNIT PARTS
Common parts from model Whirlpool KBBX104EPA00 REFRIGERATOR, ALL
1
CONTROL, ELECTRONIC WPL W10744762 Contact Us For Availability
1
DOOR, FREEZER WPL W10753820 Contact Us For Availability
1
INVERTER WPL W10729632 Contact Us For Availability
2
COVER, FAN WPL W10506654 Contact Us For Availability
2
CRISPER, FREEZER WPL W10415644 Contact Us For Availability
2
COMPRESSOR WPL W11382792 Contact Us For Availability
3
HINGE, TOP WPL W10804396 Contact Us For Availability
3
ASSEMBLY, EVAPORATOR MOTOR WPL W10518444 Contact Us For Availability
3
GASKET, DOOR WPL W10804400 Contact Us For Availability
3
COMPARTMENT, DAIRY WPL W10770276 Contact Us For Availability
3
TRIM, CRISPER WPL W10374117 Contact Us For Availability
3
VALVE, REFRIGERANT WPL W11381660 Contact Us For Availability
4
COVER, HINGE WPL W10804387 Contact Us For Availability
4
PIN, DRAIN WPL W10804413 Contact Us For Availability
4
HOLDER, BOTTLE WPL W10778021 Contact Us For Availability
5
FASTENER, UPPER WPL W10508414 Contact Us For Availability
5
KIT, SERVICE SENSOR WPL W10804410 Contact Us For Availability
5
SUPPORT (LEFT HAND) WPL W10748034 Contact Us For Availability
5
GASKET, DOOR WPL W10804398 Contact Us For Availability
5
DIVIDER, DOOR BIN WPL W10804390 Contact Us For Availability
5
SHELF, FREEZER WPL W10804404 Contact Us For Availability
5
EVAPORATOR WPL W11381658 Contact Us For Availability
6
COVER, SENSOR WPL W10506496 Contact Us For Availability
6
HOLDER, BOTTLE WPL W10778020 Contact Us For Availability
6
SHELF, FREEZER WPL W10804405 Contact Us For Availability
6
CONDENSER WPL W11381657 Contact Us For Availability
6A
BRACKET, DOOR PANEL MOUNTING (RIGHT HAND) WPL W10748078 Contact Us For Availability
7
COVER, SCREW WPL W10804407 Contact Us For Availability
7
HOUSING, CONTROL WPL W10734478 Contact Us For Availability
7
SPACER, DOOR PANEL WPL W10556651 Contact Us For Availability
7
HOLDER, BOTTLE WPL W10470959 Contact Us For Availability
7
SLIDE, DRAWER (LEFT HAND) WPL W10745806 Contact Us For Availability
7
TRAY, EVAPORATION WPL W10756248 Contact Us For Availability
7A
SLIDE, DRAWER (RIGHT HAND) WPL W10745815 Contact Us For Availability
8
TUBE, DRAIN WPL W10804414 Contact Us For Availability
8
ENDCAP, CONTROL HOUSING WPL W10804409 Contact Us For Availability
8
COVER, CRISPER WPL W10804402 Contact Us For Availability
8
CORD, POWER WPL W10732868 Contact Us For Availability
9
FOOT, LEFT HAND WPL W10642999 Contact Us For Availability
9
LED ASSEMBLY WPL W10398001 Contact Us For Availability
9
HOLDER, SHORT WIRE WPL W10804391 Contact Us For Availability
9A
FOOD, RIGHT HAND WPL W10642997 Contact Us For Availability
10
COVER, UNIT WPL W10751012 Contact Us For Availability
10
OVERLAY WPL W10749451 Contact Us For Availability
10
HOLDER, LONG WIRE WPL W10804392 Contact Us For Availability
11
DIAPHRAM WPL W10804411 Contact Us For Availability
11
SWITCH, LIGHT WPL W10720006 Contact Us For Availability
11
PAN, CRISPER WPL W10471452 Contact Us For Availability
12
CONVEYOR, AIR WPL W10762427 Contact Us For Availability
12
SHELF, GLASS WPL W10804403 Contact Us For Availability
13
HOLDER, EGG WPL W10470963 Contact Us For Availability
14
TRIM, REAR WPL W10495387 Contact Us For Availability
15
TRIM, FRONT WPL W10804406 Contact Us For Availability
16
TRIM, CRISPER WPL W10804394 Contact Us For Availability
NI
CABINET (NOT A SERVICEABLE PART) WPL NP Contact Us For Availability
NI
THERMOFUSE AND BIMETAL WPL W10720016 Contact Us For Availability
× ![]()
