Model Whirlpool KBBR306ESS05 REFRIGERATOR, ALL – Common Parts & Diagrams
01 - COVER SHEET

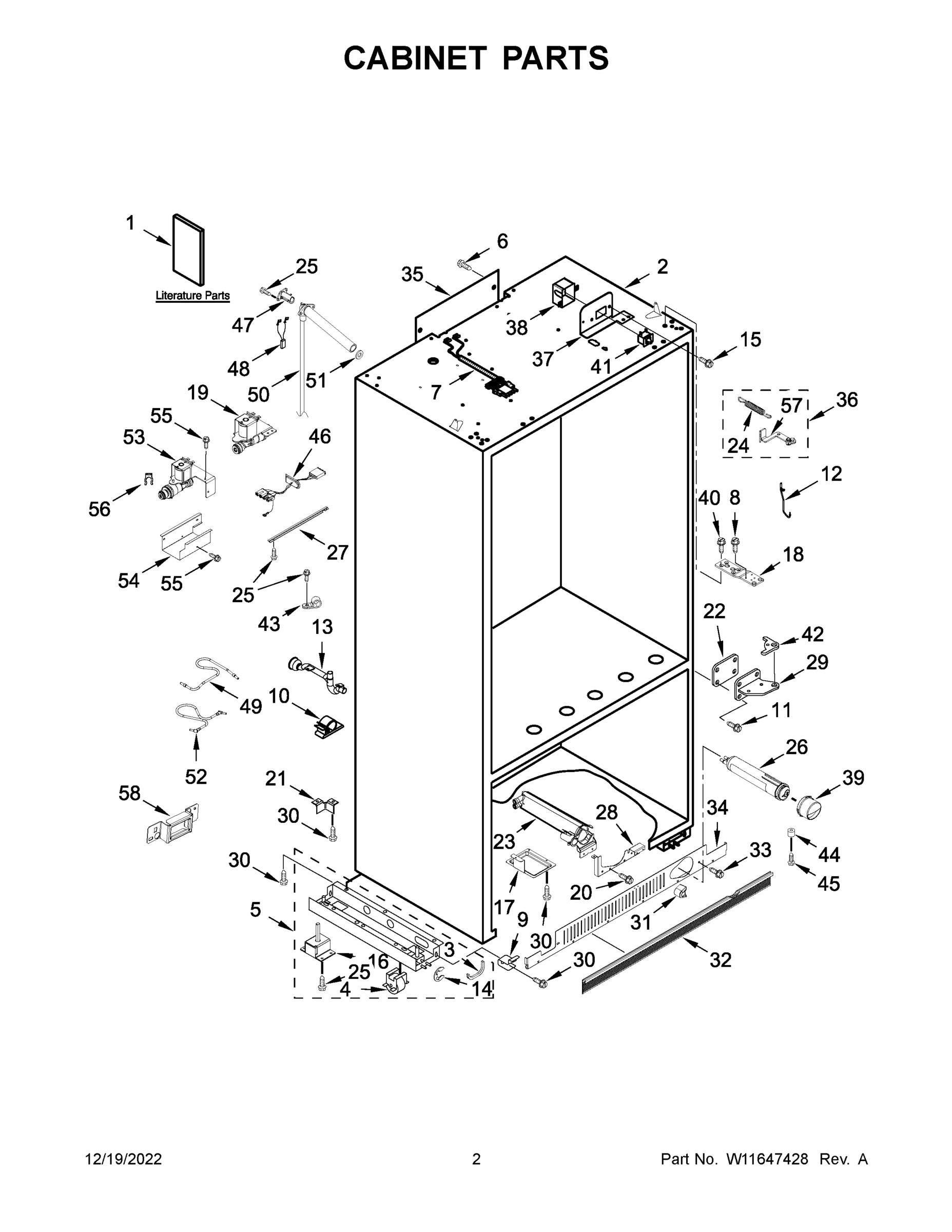

02 - CABINET PARTS

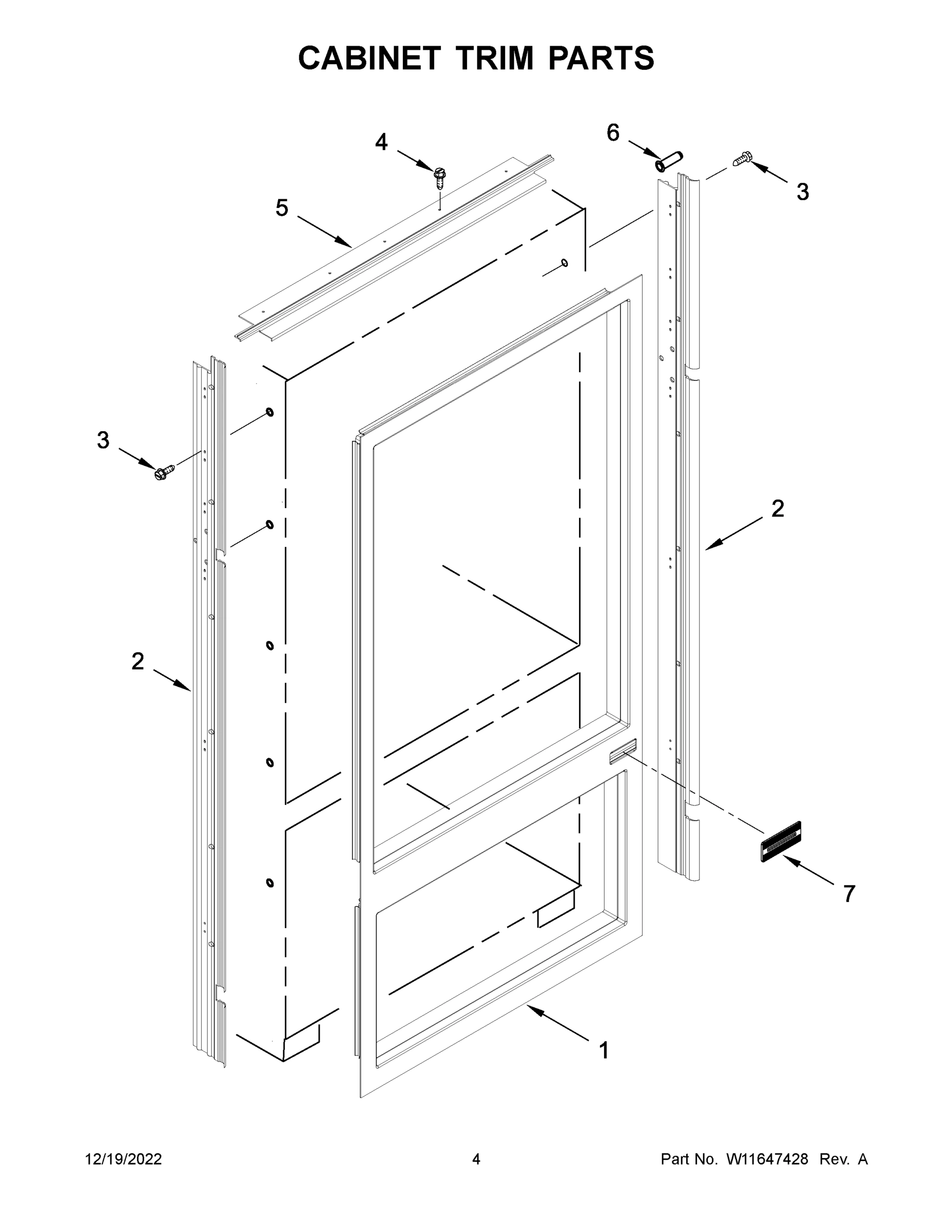

03 - CABINET TRIM PARTS

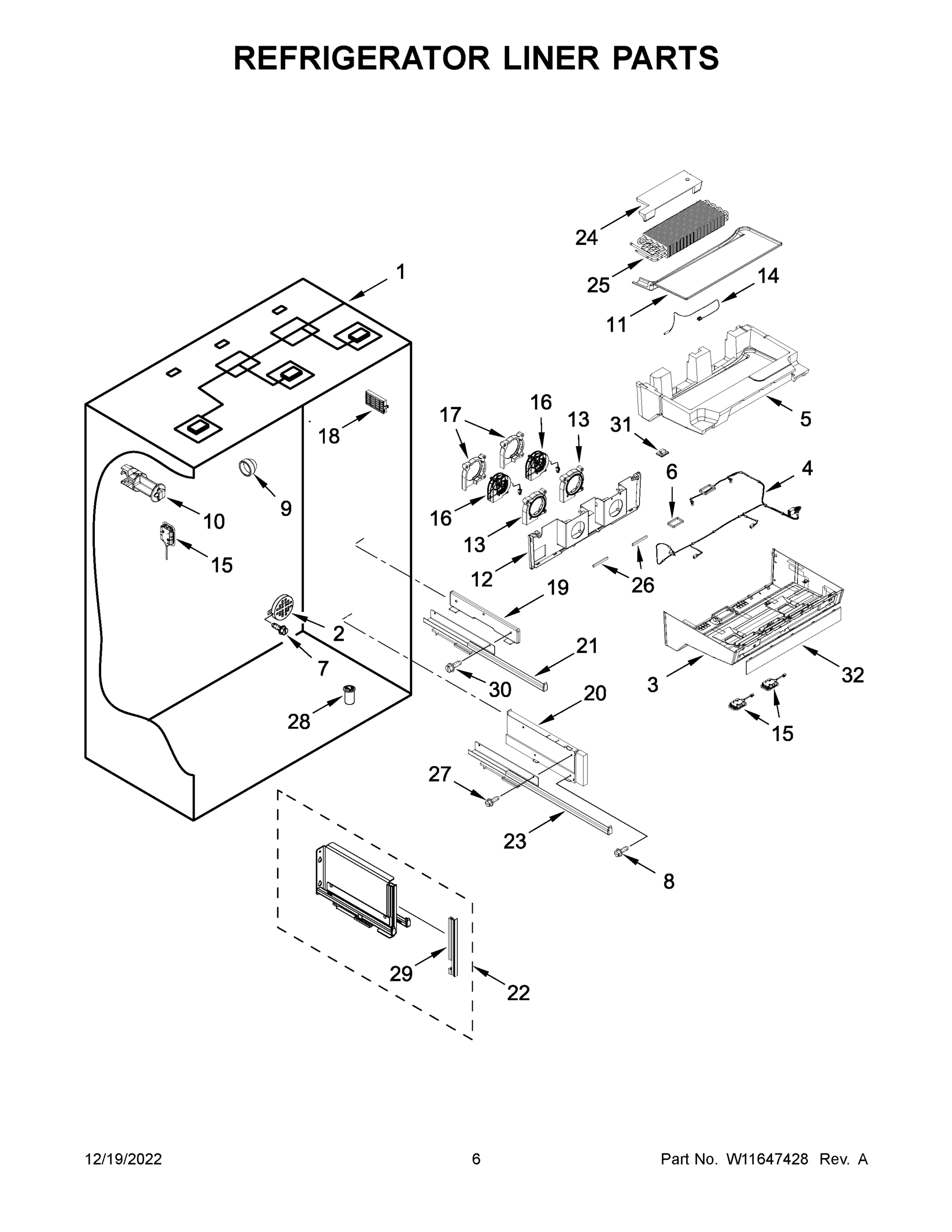

04 - REFRIGERATOR LINER PARTS

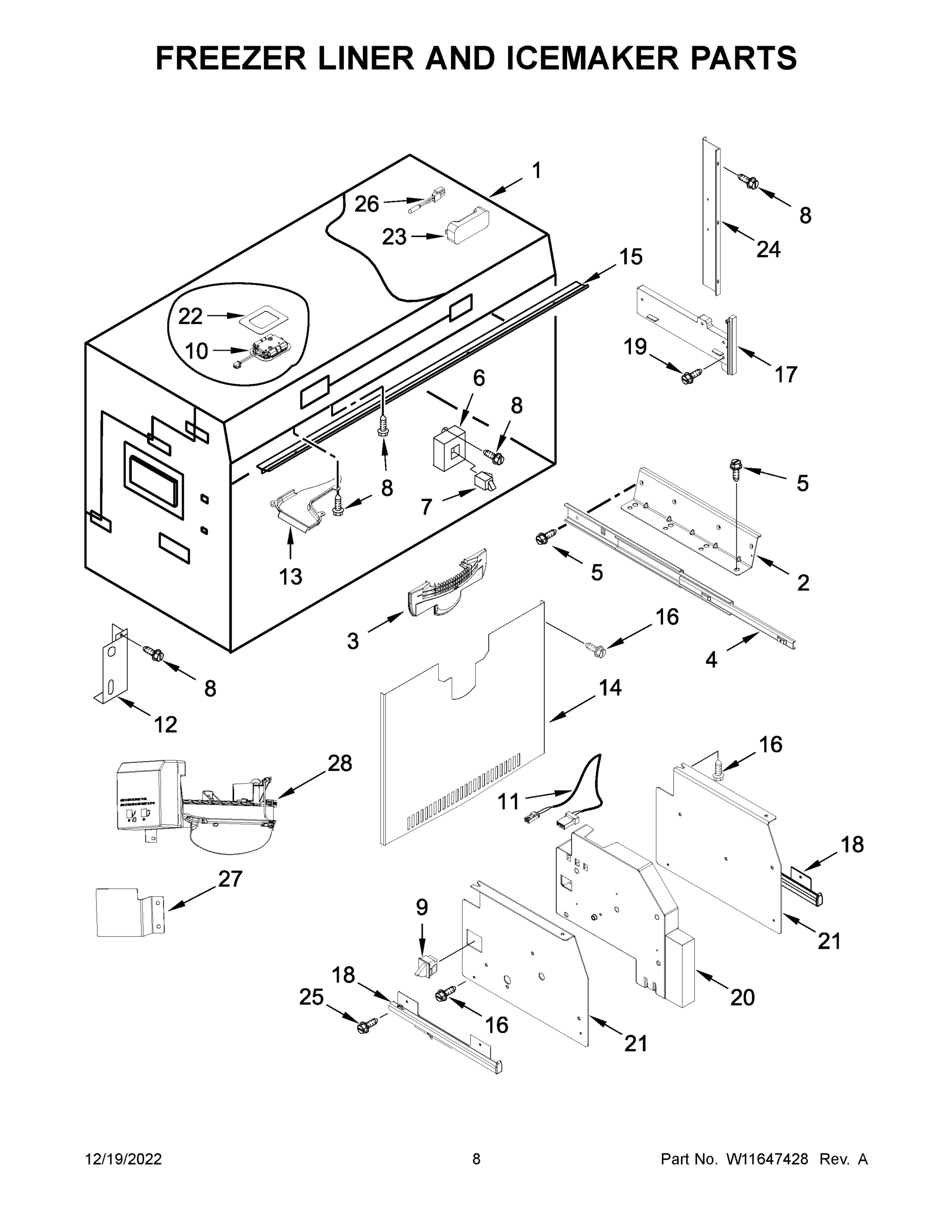

05 - FREEZER LINER AND ICEMAKER PARTS

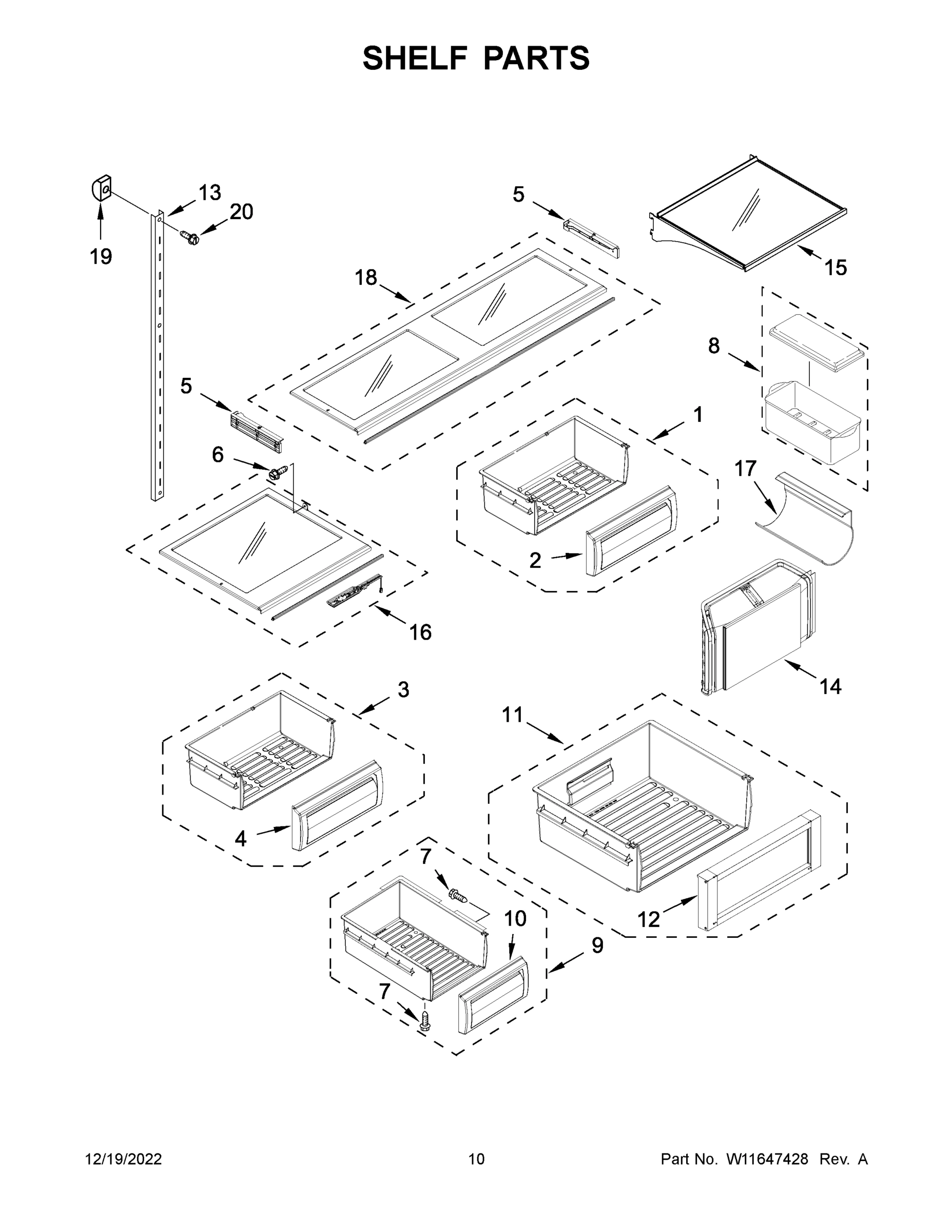

06 - SHELF PARTS

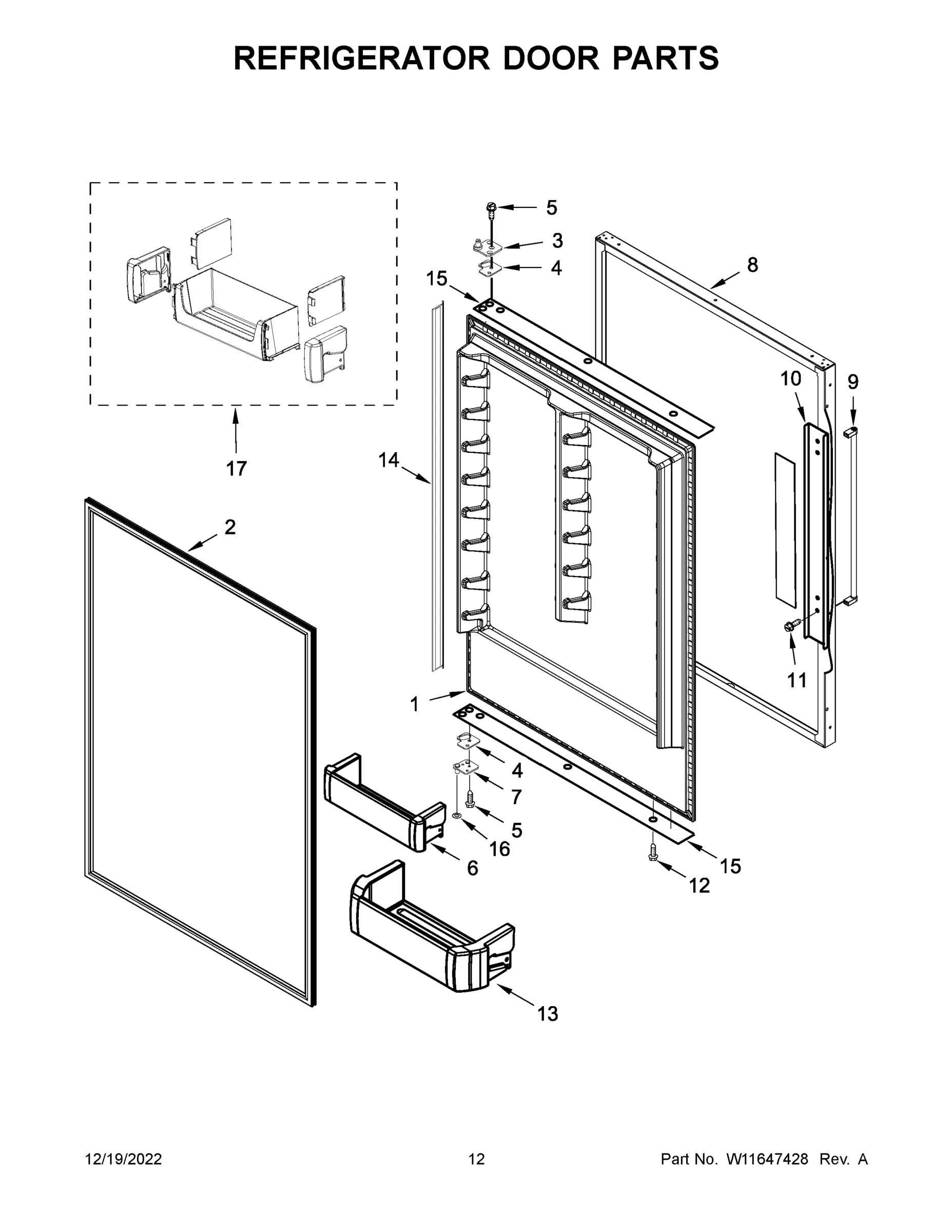

07 - REFRIGERATOR DOOR PARTS

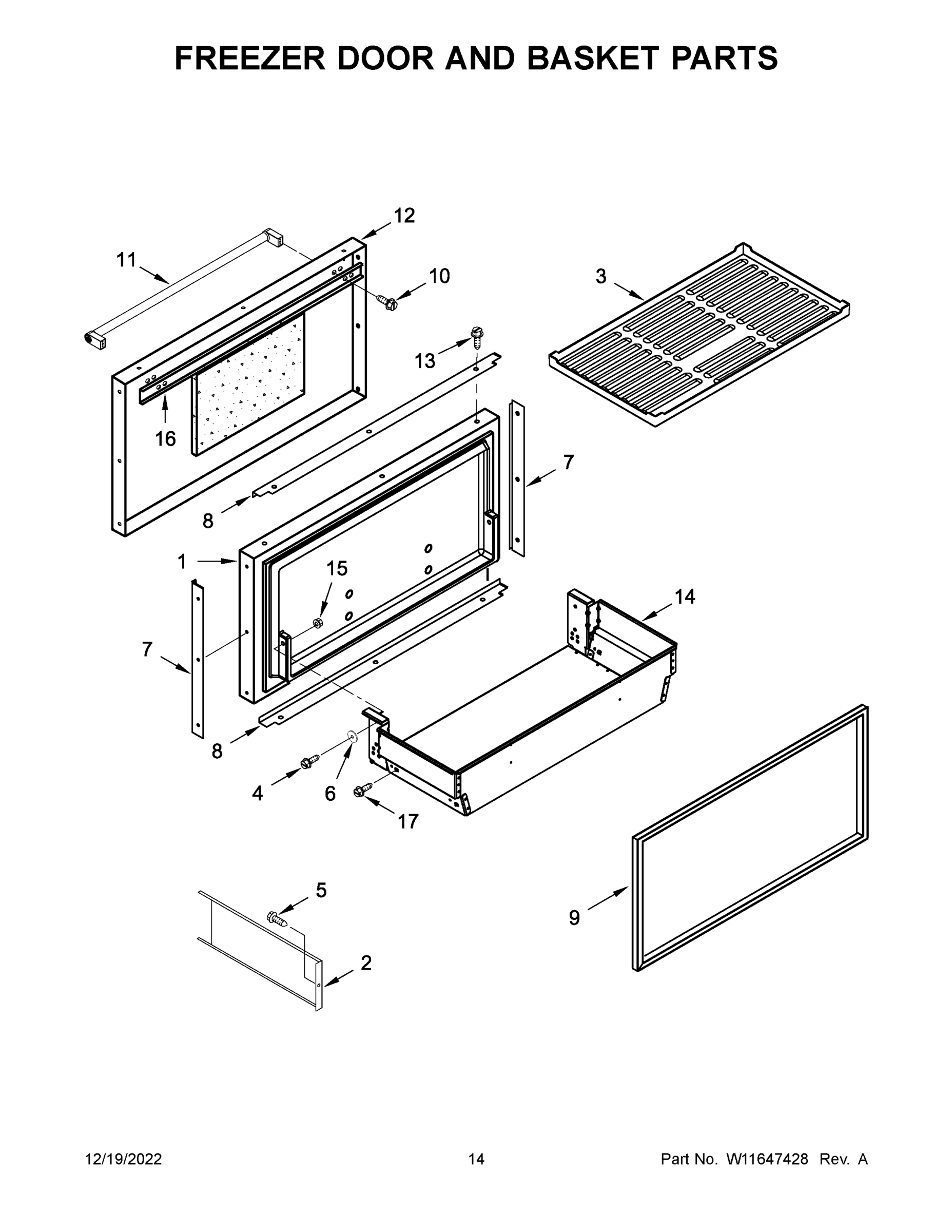

08 - FREEZER DOOR AND BASKET PARTS

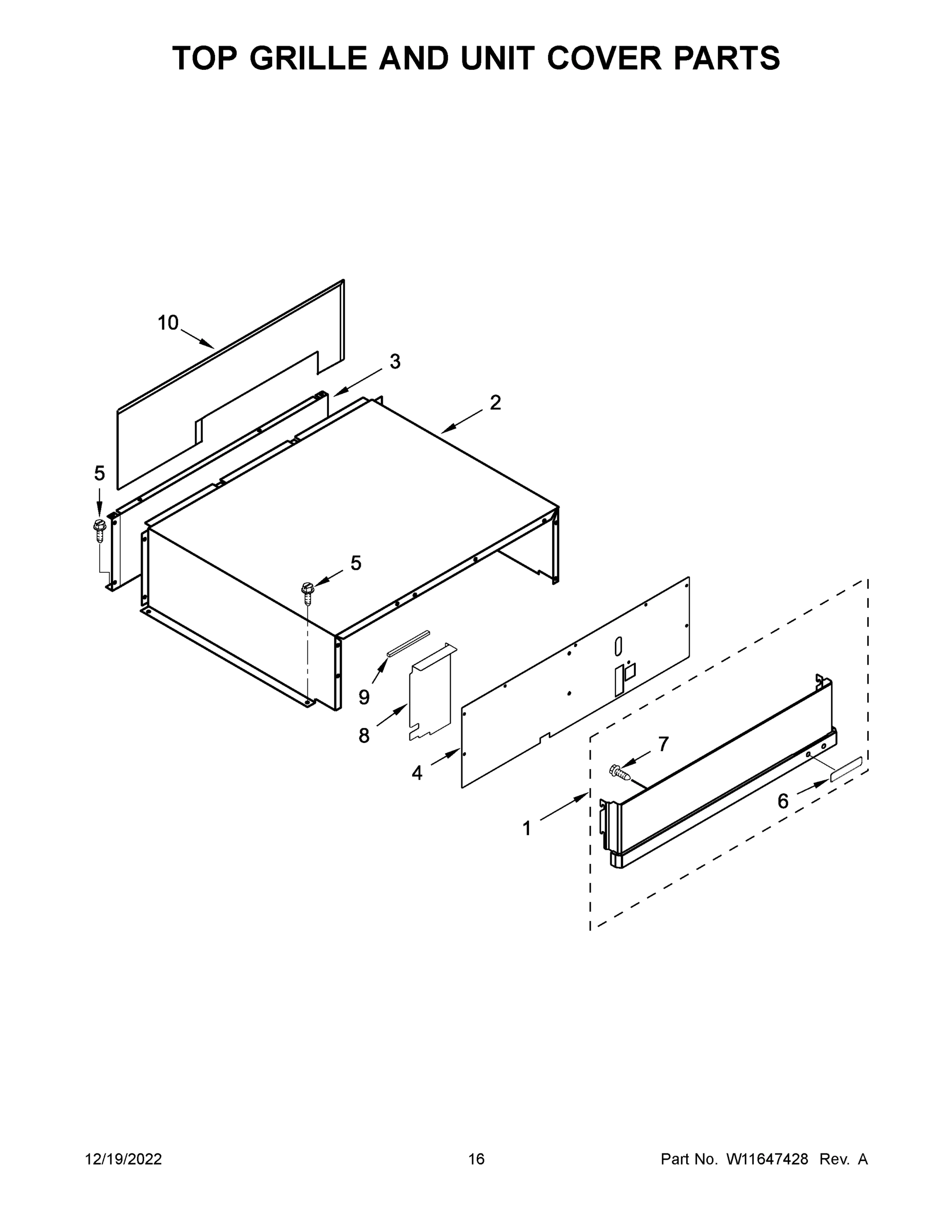

09 - TOP GRILLE AND UNIT COVER PARTS

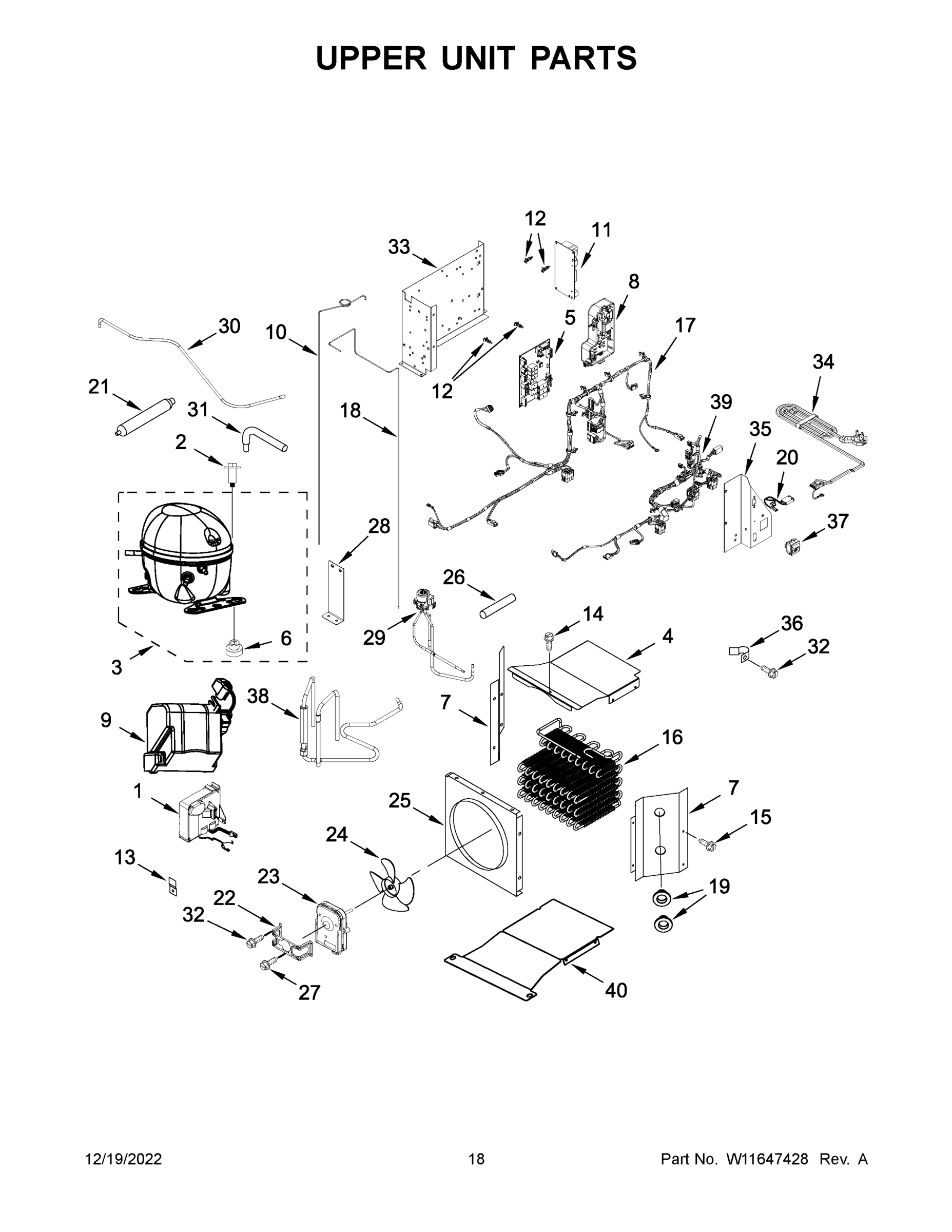

10 - UPPER UNIT PARTS

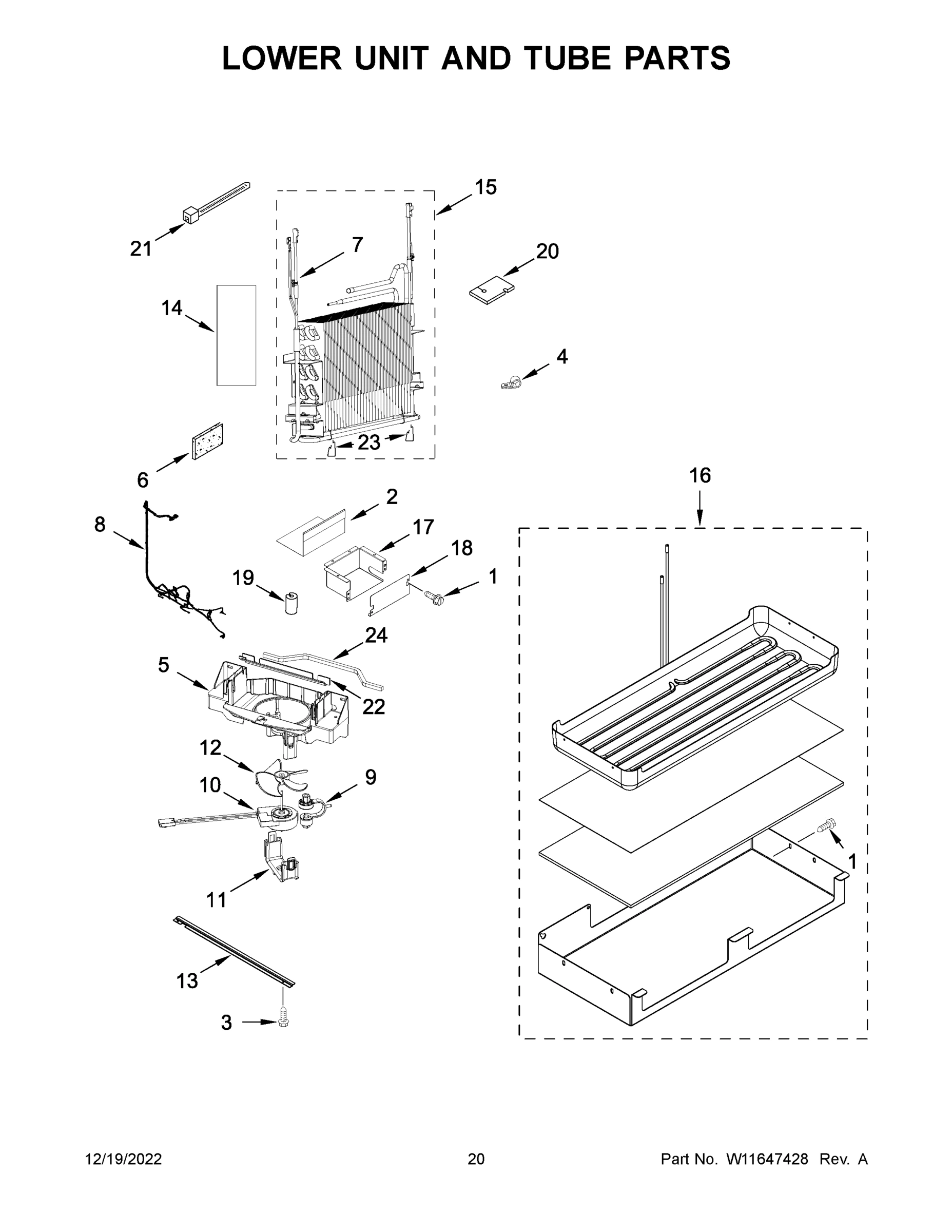

11 - LOWER UNIT AND TUBE PARTS
12 - OPTIONAL PARTS
Common parts from model Whirlpool KBBR306ESS05 REFRIGERATOR, ALL
1
ASSEMBLY, CRISPER PAN WPL W10529577 Contact Us For Availability
2
SUPPORT, DRAWER SLIDE (GREY) WPL W10744328 Contact Us For Availability
2
ASSEMBLY, CRISPER PAN FRONT WPL W10529562 Contact Us For Availability
2
DIVIDER, BASKET WPL W10600711 Contact Us For Availability
2
SCREW WPL 489473 Contact Us For Availability
2
SHELF, WIRING COVER WPL W10321050 Contact Us For Availability
3
COVER, EVAPORATOR WPL W10555476 Contact Us For Availability
3
GROMMET, CROSSOVER TUBE WPL 2307584 Contact Us For Availability
3
ASSEMBLY, DELI PAN WPL W10529581 Contact Us For Availability
3
MAT, BASKET WPL W10665412 Contact Us For Availability
4
SCREW WPL W10761334 Contact Us For Availability
4
COVER, UNIT FRONT WPL W11435372 Contact Us For Availability
4
COVER, CONDENSER SUPPORT WPL W11443120 Contact Us For Availability
5
SCREW WPL W10061370 Contact Us For Availability
5
SHROUD, EVAPORATOR FAN WPL W10803566 Contact Us For Availability
6
BIN, DOOR WPL W10529547 Contact Us For Availability
6
WASHER WPL W10001190 Contact Us For Availability
7
SPACER, DOOR EDGE (SIDE) WPL W10609690 Contact Us For Availability
7
SUPPORT, CONDENSER (LEFT HAND) WPL W11443116 Contact Us For Availability
7
HEATER, DEFROST WPL W11311043 Contact Us For Availability
7A
SUPPORT, CONDENSER (RIGHT HAND) WPL W11443117 Contact Us For Availability
8
SCREW WPL W10215666 Contact Us For Availability
8
SPACER, DOOR EDGE (TOP AND BOTTOM) WPL W10609689 Contact Us For Availability
8
DIVIDER, AIR WPL W10645084 Contact Us For Availability
8
PEDESTAL (REFER TO COLOR VARIATION PARTS PAGE WPL NP Contact Us For Availability
9
ASSEMBLY, ICE PAN WPL W10600690 Contact Us For Availability
9
GASKET, UNIT COVER WPL W10645113 Contact Us For Availability
10
INSULATION, UNIT BACK PANEL WPL W11244166 Contact Us For Availability
10
TUBE, DISCHARGE/DRAIN PAN HEATER WPL W11517121 Contact Us For Availability
11
ASSEMBLY, ICE BUCKET SWITCH WIRE WPL W10568445 Contact Us For Availability
11
SHIELD, EVAPORATOR HEAT WPL W10555480 Contact Us For Availability
12
LINE, WATER WPL W10577944 Contact Us For Availability
12
COVER, EVAPORATOR (REAR) WPL W10555484 Contact Us For Availability
13
ASSEMBLY, DRAIN TUBE WPL W11291510 Contact Us For Availability
13
HOUSING, FAN (FRONT) WPL W10538315 Contact Us For Availability
13
BRACKET, INVERTER MOUNTING WPL 2256328 Contact Us For Availability
13
SUPPORT, DRAIN PAN WPL 2320554 Contact Us For Availability
14
ASSEMBLY, PRODUCE PRESERVER WPL W10826105 Contact Us For Availability
14
SPACER, DOOR (SIDE) WPL W10672076 Contact Us For Availability
14
ASSEMBLY, FREEZER BASKET WPL W10774208 Contact Us For Availability
14
GASKET, EVAPORATOR BYPASS WPL W11556942 Contact Us For Availability
15
ASSEMBLY, SHELF WPL W10568582 Contact Us For Availability
15
ASSEMBLY, AIR DEFLECTOR WPL W10710400 Contact Us For Availability
15
SPACER, DOOR (TOP AND BOTTOM) WPL W10609682 Contact Us For Availability
15
NUT WPL W10771111 Contact Us For Availability
16
LEVELER, ADJUSTABLE WPL 2005032 Contact Us For Availability
16
PLATE, HANDLE DOOR WPL W10127710 Contact Us For Availability
16
CONDENSER (ALSO ORDER THE FOLLOWING LOKRING P WPL W11408149 Contact Us For Availability
17
TRAY, FILTER DRIP WPL 2318189 Contact Us For Availability
17
HOUSING, FAN (REAR) WPL W10538317 Contact Us For Availability
17
RACK, WINE WPL W10701859 Contact Us For Availability
17
ASSEMBLY, DOOR BIN (TOP) WPL W11610616 Contact Us For Availability
17
ASSEMBLY, HV WIRE WPL W11442534 Contact Us For Availability
17
COVER, WIRE BOX WPL W10321048 Contact Us For Availability
18
SLIDE, FREEZER BIN (LEFT HAND) WPL 2306117 Contact Us For Availability
18
TUBE, HEAT LOOP WPL W11408687 Contact Us For Availability
18A
SLIDE, FREEZER BIN (RIGHT HAND) WPL 2306116 Contact Us For Availability
19
GROMMET WPL W10587113 Contact Us For Availability
20
ASSEMBLY, JUMPER WIRE (POWER SWITCH TO POWER WPL 2310195 Contact Us For Availability
20
BLOCK, EVAPORATOR SIDE WPL W11550598 Contact Us For Availability
21
SUPPORT, SLIDE (LEFT HAND) WPL W10600630 Contact Us For Availability
21
BRACKET, BASE SUPPORT (REAR) WPL 2006617 Contact Us For Availability
21A
SLIDE, CRISPER PAN (RIGHT HAND) WPL W10569886 Contact Us For Availability
22
SHIM, LED WPL W10672548 Contact Us For Availability
22
BRACKET, FAN MOTOR WPL W10414681 Contact Us For Availability
22
DIVERTER, AIR SHROUD WPL W10567169 Contact Us For Availability
23
SLIDE, DELI PAN (LEFT HAND) WPL W10569890 Contact Us For Availability
23
CLIP, DEFROST HEATER WPL W11538317 Contact Us For Availability
23A
SLIDE, DELI PAN (RIGHT HAND) WPL W10615641 Contact Us For Availability
24
INSULATION, EVAPORATOR (UPPER) WPL W10555472 Contact Us For Availability
24
GASKET WPL W10762685 Contact Us For Availability
25
ORIFICE, FAN WPL W10415670 Contact Us For Availability
28
BRACKET, 3-WAY VALVE WPL W11233715 Contact Us For Availability
30
TUBE, CONDENSER/DRIER WPL W11415021 Contact Us For Availability
31
TUBE, PROCESS WPL W11482820 Contact Us For Availability
33
HOUSING, CONTROL BOARD MOUNTING WPL W10550831 Contact Us For Availability
34
CORD, POWER WPL 2310196 Contact Us For Availability
35
BRACKET, CONTROL ASSEMBLY WPL W11566124 Contact Us For Availability
37
SWITCH, POWER DISCONNECT WPL W11311927 Contact Us For Availability
38
ASSEMBLY, SUCTION TUBE WPL W11511844 Contact Us For Availability
39
ASSEMBLY, LV WIRE WPL W11442533 Contact Us For Availability
40
BRACKET, CONDENSER BOTTOM WPL W11443119 Contact Us For Availability
42
COVER, GAP (BOTTOM) WPL W10188434 Contact Us For Availability
48
ASSEMBLY, FILL TUBE HEATER WIRE WPL W10482373 Contact Us For Availability
49
TUBE, FILTER INLET WPL W10619899 Contact Us For Availability
50
ASSEMBLY, WATER INLET TU WPL 2317847 Contact Us For Availability
52
WPL W10635851 WPL W10635851 Contact Us For Availability
56
WPL W10782423 WPL W10782423 Contact Us For Availability
56A
WPL W10782424 WPL W10782424 Contact Us For Availability
NI
SEALER, GUM (4 FEET) WPL 212643 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ. APOLLO GREY) WPL W10134625 Contact Us For Availability
NI
TOUCH-UP PAINT (MIDNIGHT GREY) WPL W10917540 Contact Us For Availability
NI
INSULATION (2 PIECES, 3" X 24" X 48") WPL 876370 Contact Us For Availability
NI
KIT, FOAM SLAB (30" X 32 1/2" X 1 1/2") WPL 876029 Contact Us For Availability
NI
KIT, TERMINAL CONNECTOR WPL 833938 Contact Us For Availability
NI
TAPE, VINYL (3/4 X 108") WPL 479502 Contact Us For Availability
NI
TORX SCREW WRENCH, TORX KEY WPL 1117510 Contact Us For Availability
NI
CEMENT, ALUMILASTIC (1 1/4 OZ.) WPL 542639 Contact Us For Availability
× ![]()
