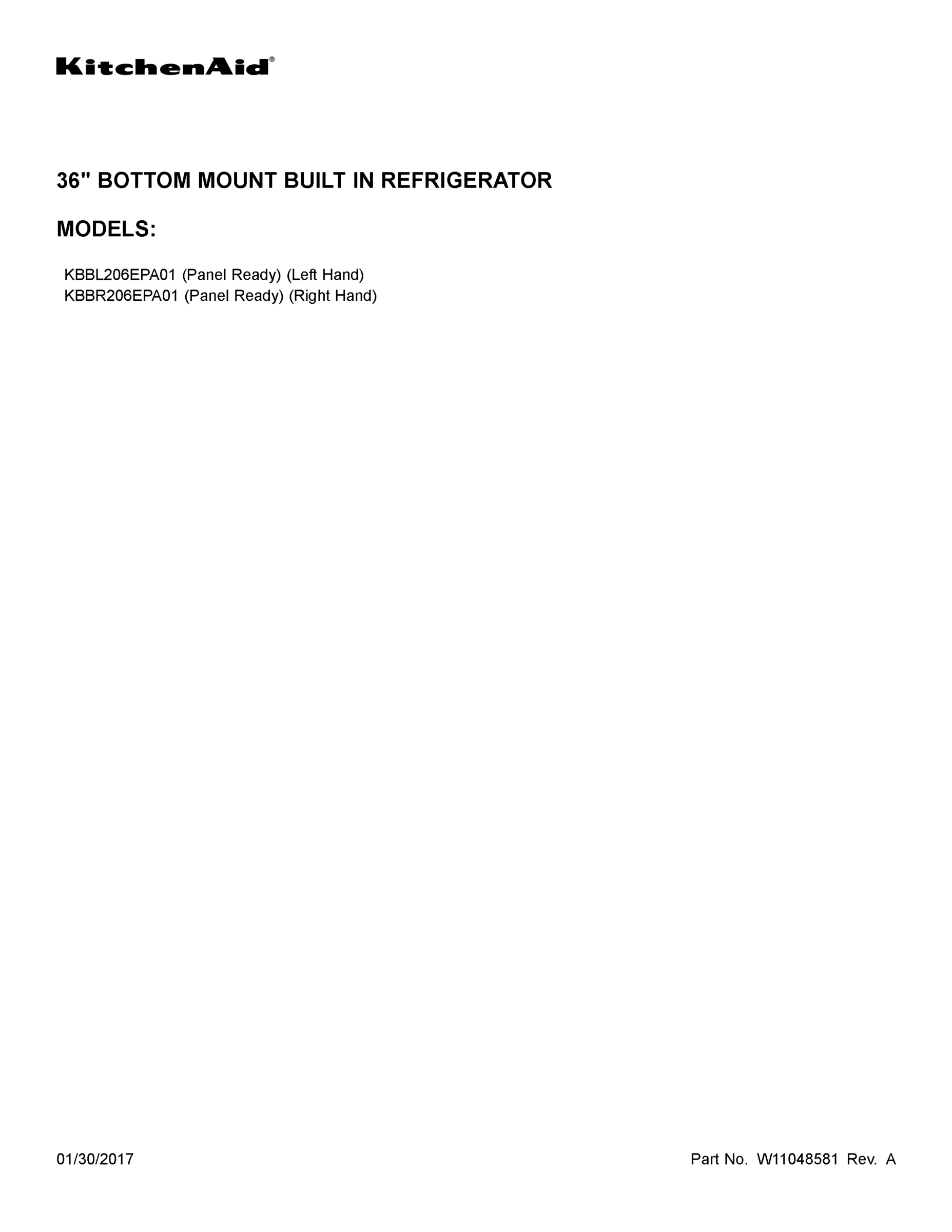

Model Whirlpool KBBR206EPA01 REFRIGERATOR, BOTTOM MOUNT, BUILT-IN – Common Parts &amp; Diagrams

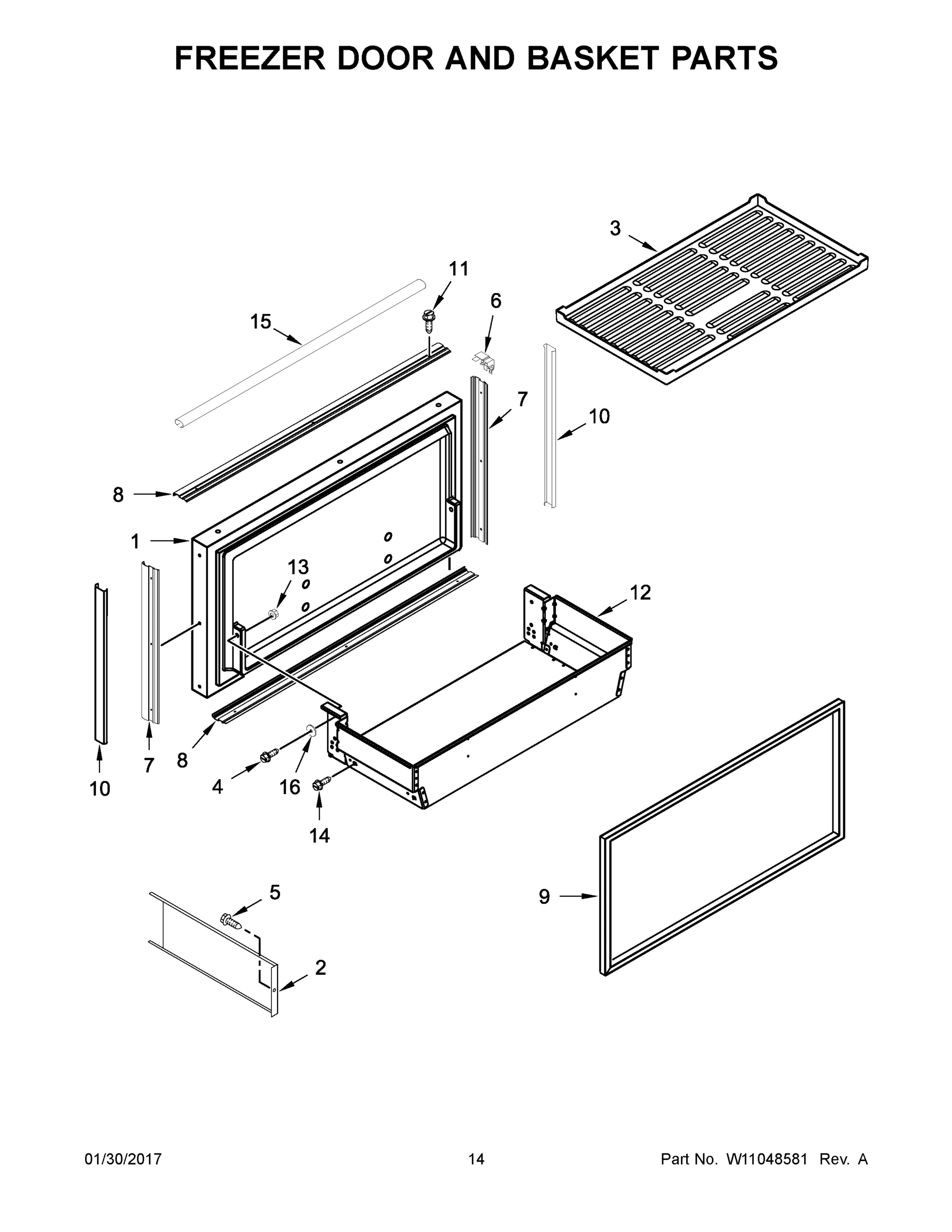

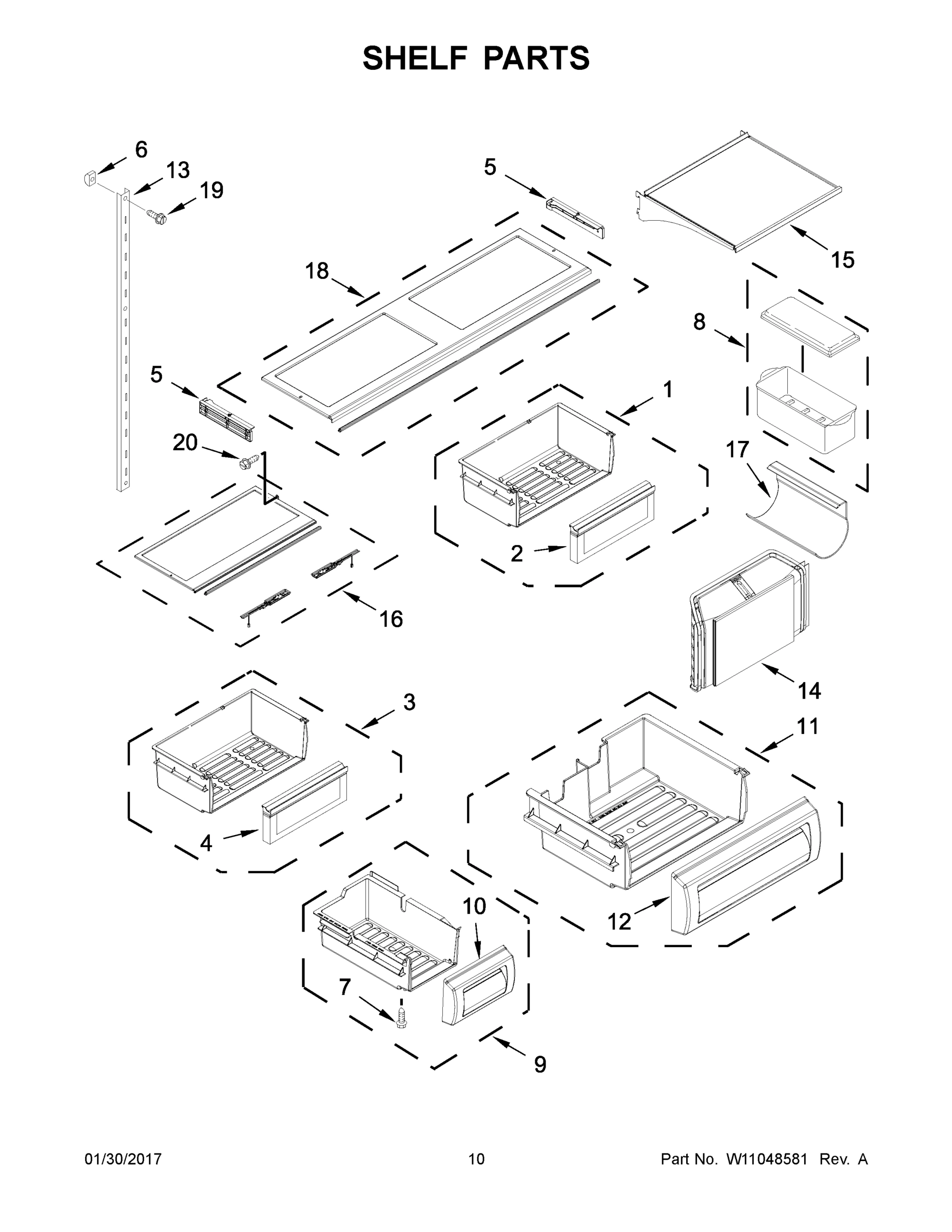

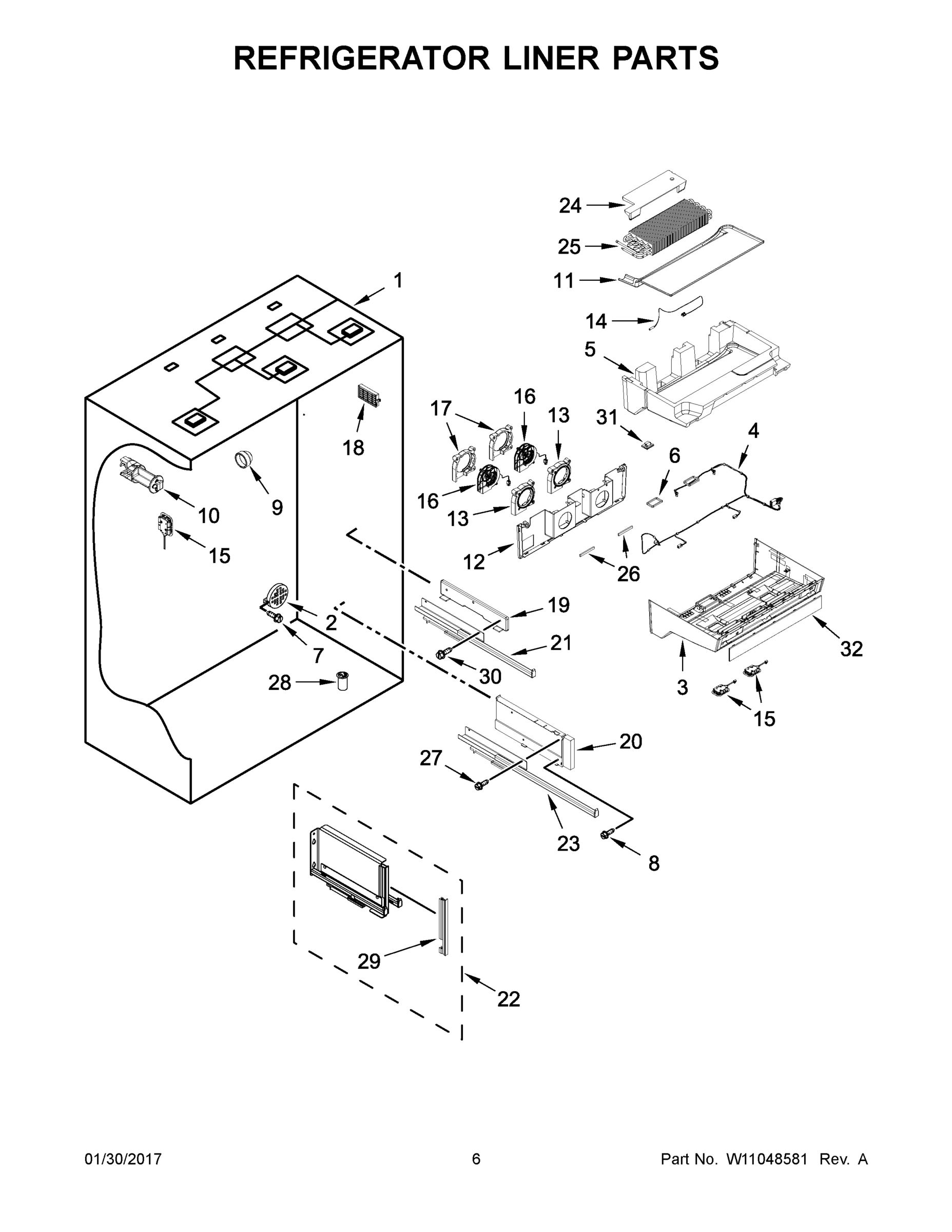

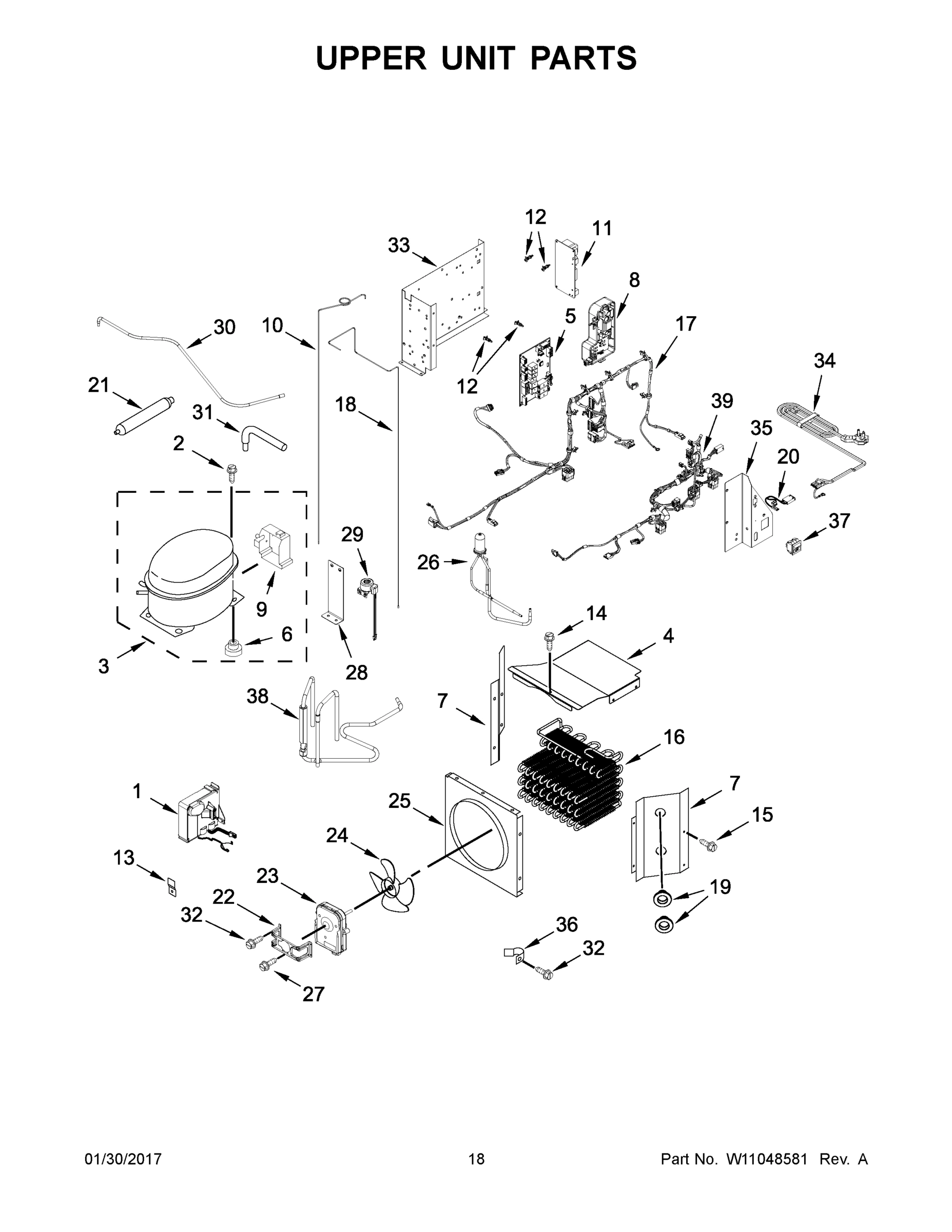

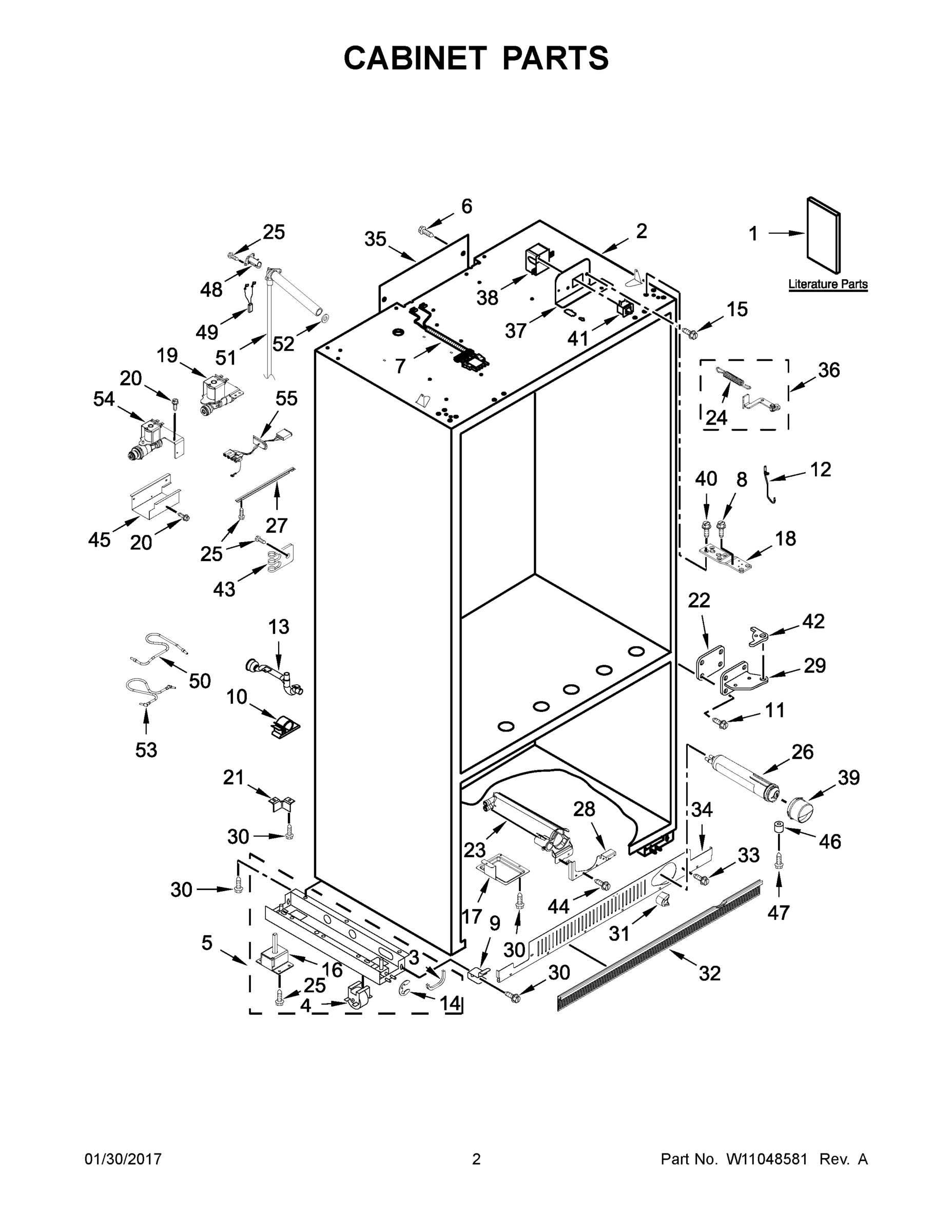

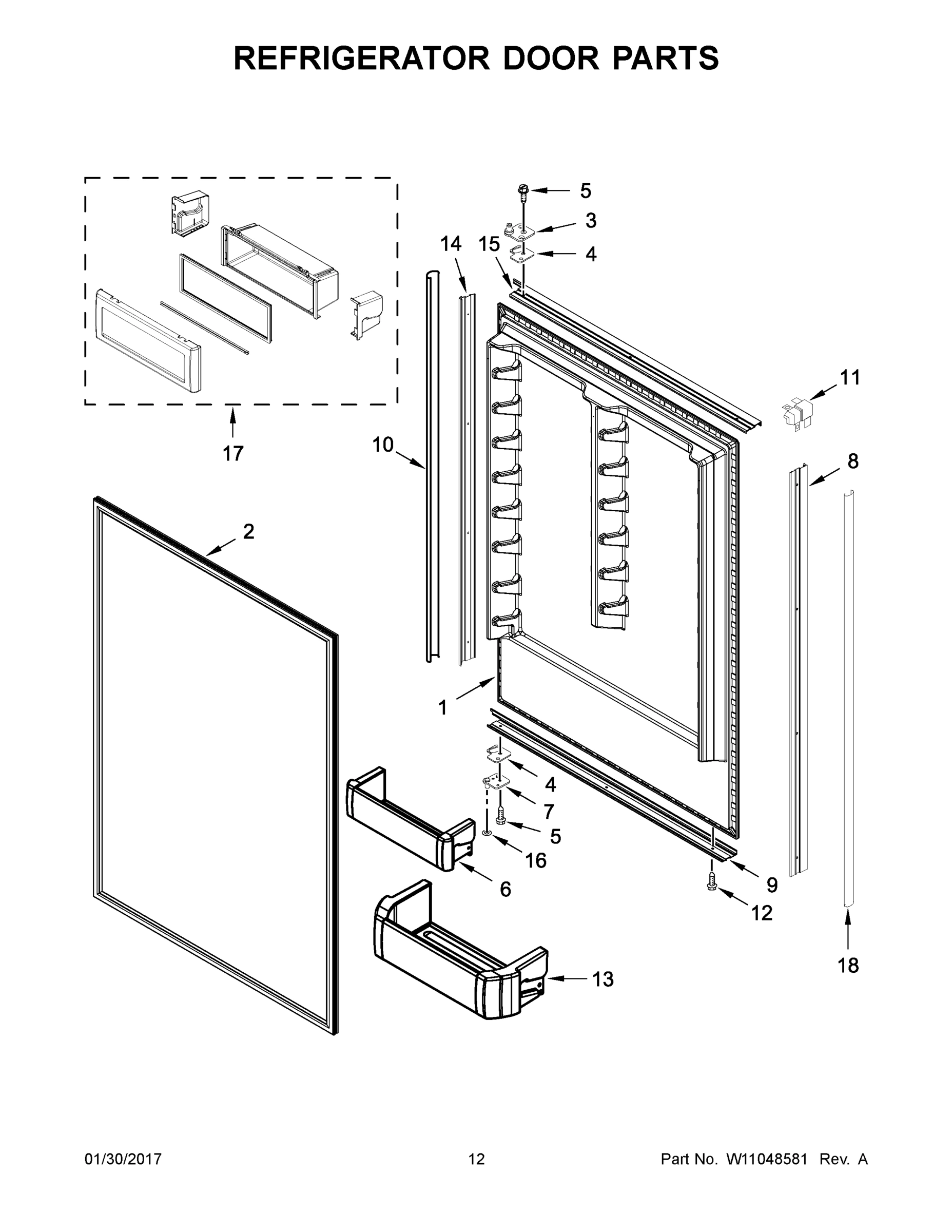

1

W11573593 Whirlpool Refrigerator Inverter Box In Stock WPL W11573593 $126.29

1

BREAKER, TRIM (NOT SERVICED) WPL NP Contact Us For Availability

1A

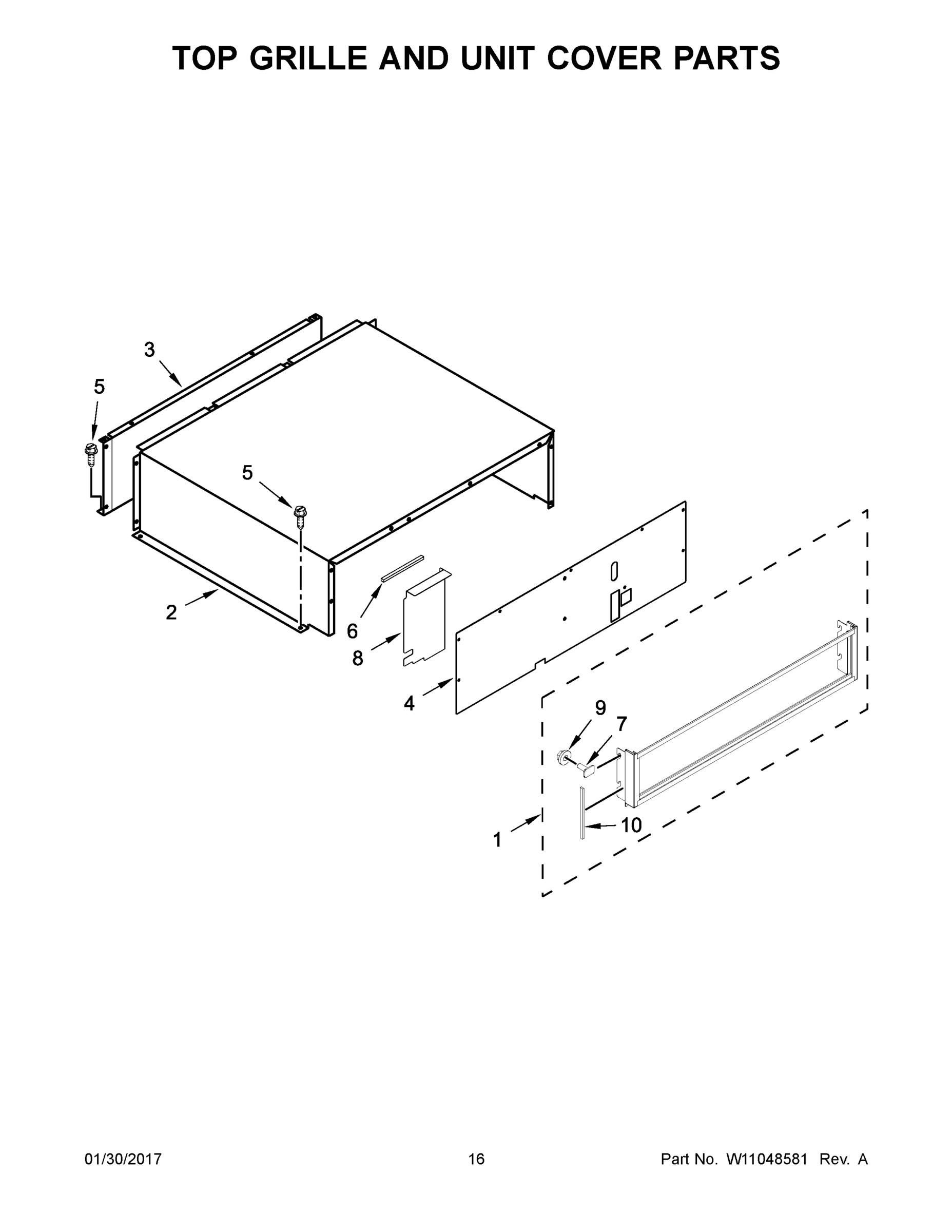

W10783517 Whirlpool Refrigerator Upper Grille Backorder WPL W10783517 $135.87

2

W10545068 Whirlpool Refrigerator Unit Cover Backorder WPL W10545068 $71.97

2

W10744329 Whirlpool Refrigerator Support Backorder WPL W10744329 $125.33

2

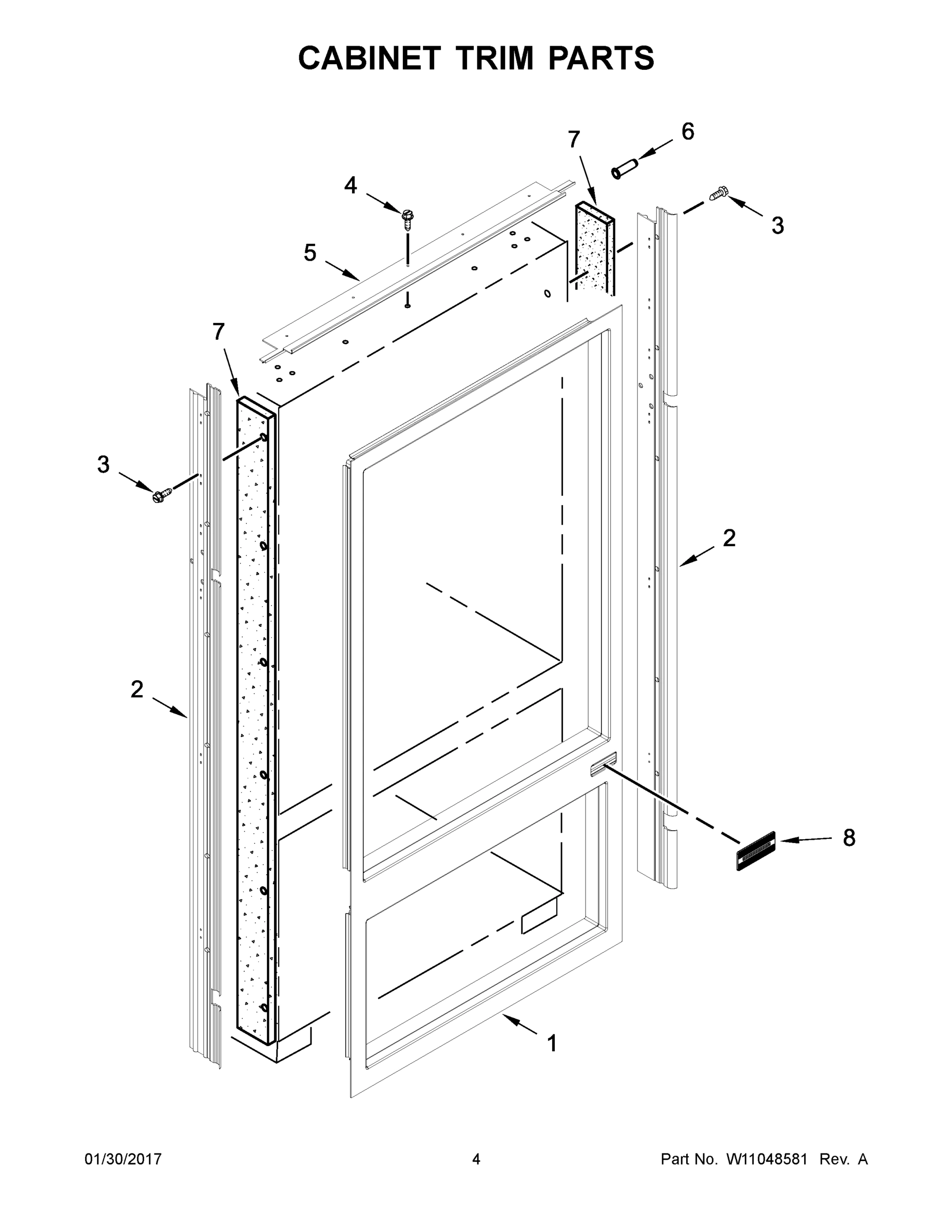

W11173662 Whirlpool Refrigerator Cabinet Trim Backorder WPL W11173662 $129.26

2A

W11173663 Whirlpool Refrigerator Cabinet Trim Backorder WPL W11173663 $129.26

3

2307584 Whirlpool Refrigerator Grommet Backorder WPL 2307584 $12.70

3

W10484480 Whirlpool Refrigerator Door Hinge Backorder WPL W10484480 $38.81

3

W10686637 Whirlpool Refrigerator Evaporator C Backorder WPL W10686637 $93.07

3

W10758319 Whirlpool Refrigerator Crisper Pan Backorder WPL W10758319 $203.09

3

SCREW WPL W10141645 Contact Us For Availability

4

W10694109 Whirlpool Refrigerator Cover Unit Backorder WPL W10694109 $77.43

4

W11624204 Whirlpool Screw Backorder WPL W11624204 $9.59

4

W11650036 Whirlpool Slide Backorder WPL W11650036 $187.00

4

W11661567 Whirlpool Wire Harness Backorder WPL W11661567 $37.50

4

W11673500 Whirlpool Door Hinge In Stock WPL W11673500 $61.63

4

WPW10138054 Whirlpool Refrigerator Cabinet Ro In Stock WPL WPW10138054 $15.79

5

W10711391 Whirlpool Refrigerator Support Backorder WPL W10711391 $120.56

5

W11712700 Whirlpool Insulation Backorder WPL W11712700 $32.67

5

WPW10739408-includeCORE Whirlpool WPW10739408 Backorder WPL WPW10739408-includeCORE $201.65

5

SCREW WPL W10061370 Contact Us For Availability

5

TRIM, CABINET (TOP) LEFT HAND (ALUMINUM) WPL W10772559 Contact Us For Availability

5A

W10711390 Whirlpool Refrigerator Support Asse Backorder WPL W10711390 $120.56

5A

TRIM, CABINET (TOP) RIGHT HAND (ALUMINUM) WPL W10772558 Contact Us For Availability

6

520965 Whirlpool Refrigerator Support Backorder WPL 520965 $10.14

6

W11590561 Whirlpool Refrigerator Cantilever B Backorder WPL W11590561 $32.28

6

WP1163283 Whirlpool Air Conditioner Screw Backorder WPL WP1163283 $2.51

6

WPW10121451 Whirlpool Refrigerator Insert Backorder WPL WPW10121451 $3.70

7

2256281 Whirlpool Refrigerator Door Hinge Backorder WPL 2256281 $29.43

7

W10524056 Whirlpool Refrigerator Heater Backorder WPL W10524056 $60.71

7

W11670534 Whirlpool Refrigerator Switch Backorder WPL W11670534 $8.20

7

SEAL, SIDE TRIM WPL 2005925 Contact Us For Availability

7A

ASSEMBLY, BOTTOM HINGE (RIGHT HAND) WPL 2256280 Contact Us For Availability

8

2309475 Whirlpool Refrigerator Door Trim Backorder WPL 2309475 $118.49

8

W10215666 Whirlpool Refrigerator Screw Backorder WPL W10215666 $5.65

8

W10645086 Whirlpool Refrigerator Divider Backorder WPL W10645086 $37.70

8

W11368839 Whirlpool Refrigerator Inverter Box In Stock WPL W11368839 $126.29

8

WP8281164 Whirlpool Refrigerator Screw In Stock WPL WP8281164 $4.56

8

COVER, DOOR HINGE (WHITE) WPL W10757498 Contact Us For Availability

9

2215676 Whirlpool Refrigerator Terminal Cover Backorder WPL 2215676 $28.80

9

W11396033 Whirlpool Refrigerator Rocker Switc In Stock WPL W11396033 $14.15

9

WP488130 Whirlpool Air Conditioner Nut Backorder WPL WP488130 $3.09

2006324 Whirlpool Refrigerator Cover Trim Backorder WPL 2006324 $19.00

W11396715 Whirlpool Refrigerator Evaporator M In Stock WPL W11396715 $63.47

COVER, TRIM (HINGE SIDE) WPL 2266942S Contact Us For Availability

GASKET, FOAM WPL W10783303 Contact Us For Availability

2207457 Whirlpool Refrigerator Door Trim Backorder WPL 2207457 $42.33

W10555480 Whirlpool Refrigerator Shield Backorder WPL W10555480 $61.00

W10568445 Whirlpool Refrigerator Jumper Wire Backorder WPL W10568445 $24.85

WPW10624574-includeCORE Whirlpool WPW10624574 Backorder WPL WPW10624574-includeCORE $196.64

12

WP8281250 Whirlpool Refrigerator Screw In Stock WPL WP8281250 $4.56

12

LINE, WATER WPL W10577944 Contact Us For Availability

13

W10538315 Whirlpool Refrigerator Housing Backorder WPL W10538315 $30.38

13

W11291510 Whirlpool Refrigerator Valve Backorder WPL W11291510 $41.41

W10109030 Whirlpool Refrigerator Screw Backorder WPL W10109030 $8.73

W10602825 Whirlpool Refrigerator Wire Jumper In Stock WPL W10602825 $15.76

W10794409 Whirlpool Refrigerator Door Trim Backorder WPL W10794409 $74.39

W11661569 Whirlpool Thermistor Backorder WPL W11661569 $49.90

15

2006329 Whirlpool Refrigerator Cover Trim Backorder WPL 2006329 $28.80

15

W10710400 Whirlpool Refrigerator Deflector Backorder WPL W10710400 $61.92

2005032 Whirlpool Refrigerator Leveler Backorder WPL 2005032 $65.09

W10591457 Whirlpool Refrigerator Condenser In Stock WPL W10591457 $90.55

W10735008 Whirlpool Refrigerator Drain Pan He Backorder WPL W10735008 $243.81

W11678257 Whirlpool Fan Backorder WPL W11678257 $110.16

WP2006346 Whirlpool Refrigerator Washer In Stock WPL WP2006346 $4.59

2318189 Whirlpool Refrigerator Drip Pan Backorder WPL 2318189 $50.98

W10323044 Whirlpool Refrigerator Cantilever B Backorder WPL W10323044 $66.95

W10538317 Whirlpool Refrigerator Housing Backorder WPL W10538317 $30.14

W10701859 Whirlpool Refrigerator Wine Rack Backorder WPL W10701859 $11.33

W10898829 Whirlpool Refrigerator Wire Harness Backorder WPL W10898829 $54.26

2209084S Whirlpool Refrigerator Trim Cover Backorder WPL 2209084S $49.03

2252291 Whirlpool Refrigerator Door Hinge Backorder WPL 2252291 $31.93

2306117 Whirlpool Refrigerator Slide Backorder WPL 2306117 $110.88

W10720080 Whirlpool Refrigerator Tube Backorder WPL W10720080 $45.24

18A

2252292 Whirlpool Refrigerator Door Hinge Backorder WPL 2252292 $28.99

18A

2306116 Whirlpool Refrigerator Slide Backorder WPL 2306116 $122.91

19

W10852725 Whirlpool Refrigerator Grommet In Stock WPL W10852725 $3.70

19

W11246413 Whirlpool Refrigerator Inlet Valve In Stock WPL W11246413 $72.49

20

2310195 Whirlpool Refrigerator Wire Jumper Backorder WPL 2310195 $46.67

21

2006617 Whirlpool Refrigerator Bracket Backorder WPL 2006617 $28.80

21

WPW10143759 Whirlpool Dryer Filter In Stock WPL WPW10143759 $13.98

21A

W10569886 Whirlpool Refrigerator Slide Backorder WPL W10569886 $97.40

22

2207470 Whirlpool Refrigerator Hinge Shim Backorder WPL 2207470 $29.41

22

W10672548 Whirlpool Refrigerator Shim Backorder WPL W10672548 $7.65

23

W10569890 Whirlpool Refrigerator Slide Backorder WPL W10569890 $109.79

23

W11127829 Whirlpool Refrigerator Condenser Mo In Stock WPL W11127829 $103.19

23

WPW10121140 Whirlpool Refrigerator Housing In Stock WPL WPW10121140 $106.14

23A

W10615641 Whirlpool Refrigerator Slide Backorder WPL W10615641 $98.93

24

W10555472 Whirlpool Refrigerator Insulation Backorder WPL W10555472 $14.62

24

WPW10139483 Whirlpool Refrigerator Condenser In Stock WPL WPW10139483 $28.58

25

W11553229 Whirlpool Refrigerator Evaporator In Stock WPL W11553229 $99.19

25

WP488163 Whirlpool Refrigerator Screw In Stock WPL WP488163 $3.70

26

W11647768 Whirlpool Refrigerator Valve Backorder WPL W11647768 $68.04

27

W11342242 Whirlpool Refrigerator Ice Level Ar In Stock WPL W11342242 $25.51

28

BRACKET Backorder WPL W11755873 $28.46

29

2252299 Whirlpool Refrigerator Bottom Hinge Backorder WPL 2252299 $62.05

29

W10508673 Whirlpool Refrigerator Wire Harness Backorder WPL W10508673 $43.39

29

W11429989 Whirlpool Refrigerator Solenoid In Stock WPL W11429989 $70.93

30

W10555310 Whirlpool Refrigerator Tube In Stock WPL W10555310 $8.38

30

WPW10289690 Whirlpool Ice Maker Cover In Stock WPL WPW10289690 $2.51

31

W10528578 Whirlpool Refrigerator Tube Backorder WPL W10528578 $14.62

31

W11215550 Whirlpool Ice Level Arm In Stock WPL W11215550 $23.64

32

WPW10188547 Whirlpool Refrigerator Front Gril Backorder WPL WPW10188547 $64.51

33

W10550831 Whirlpool Refrigerator Housing Backorder WPL W10550831 $33.58

34

2310196 Whirlpool Refrigerator Power Cord Backorder WPL 2310196 $31.55

34

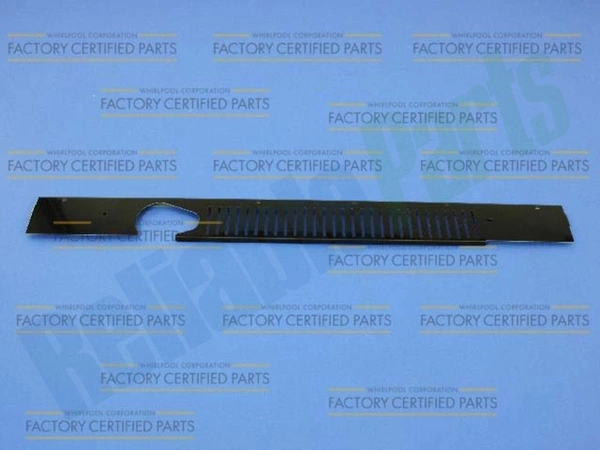

W11739145 Whirlpool Front Grille Backorder WPL W11739145 $72.71

35

W10625531 Whirlpool Refrigerator Bracket Backorder WPL W10625531 $27.34

36A

2324874 Whirlpool Refrigerator Extension Backorder WPL 2324874 $38.32

37

W10741112 Whirlpool Refrigerator Bracket Backorder WPL W10741112 $24.83

37

WP2266802 Whirlpool Refrigerator Switch In Stock WPL WP2266802 $30.80

37A

W10741111 Whirlpool Refrigerator Bracket Backorder WPL W10741111 $24.83

38

W10545389 Whirlpool Refrigerator Tube Backorder WPL W10545389 $98.83

39

W10898828 Whirlpool Refrigerator Wire Harness Backorder WPL W10898828 $57.38

39

W11238395 Whirlpool Refrigerator Filter Cap In Stock WPL W11238395 $26.88

40

W11721628 Whirlpool Screw Assembly Backorder WPL W11721628 $8.11

41

W11384469 Whirlpool Door Switch In Stock WPL W11384469 $12.68

42

W10188434 Whirlpool Refrigerator Hinge Gap Backorder WPL W10188434 $41.50

44

WP8533928 Whirlpool Refrigerator Screw In Stock WPL WP8533928 $2.51

46

2005433 Whirlpool Refrigerator Spacer Backorder WPL 2005433 $10.23

47

WP9741232 Whirlpool Dishwasher Screw In Stock WPL WP9741232 $2.51

48

WP2221240 Whirlpool Refrigerator Heater In Stock WPL WP2221240 $67.89

49

W10482373 Whirlpool Refrigerator Jumper Wire Backorder WPL W10482373 $43.21

50

W10619899 Whirlpool Refrigerator Water Tube Backorder WPL W10619899 $16.07

51

2317847 Whirlpool Refrigerator Water Tube Backorder WPL 2317847 $29.43

52

WP1106508 Whirlpool Refrigerator Gasket Backorder WPL WP1106508 $4.14

53

W10635851 Whirlpool Refrigerator Water Tube Backorder WPL W10635851 $32.87

54

W11225845 Whirlpool Refrigerator Inlet Valve In Stock WPL W11225845 $72.49

55

W10565837 Whirlpool Refrigerator Wire Harness In Stock WPL W10565837 $32.79

212643 Whirlpool Refrigerator Permagum Sealer In Stock WPL 212643 $27.18

350930 Whirlpool White Spray Paint In Stock WPL 350930 $12.50

350942 Whirlpool Spray Paint Backorder WPL 350942 $32.57

4392899 Whirlpool Biscuit Touch-Up Paint In Stock WPL 4392899 $6.86

4392901 Whirlpool Biscuit Spray Paint In Stock WPL 4392901 $26.26

511873 Whirlpool Refrigerator Paint Backorder WPL 511873 $19.22

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $4.20

72032 Whirlpool Touch Up Paint Black In Stock WPL 72032 $6.86

799344 Whirlpool Refrigerator Paint Backorder WPL 799344 $93.22

8003RP Whirlpool Refrigerator 25' 1/4" Copper In Stock WPL 8003RP $21.98

833938 Whirlpool Refrigerator Terminal Backorder WPL 833938 $3.70

876764 Whirlpool Refrigerator Primary Valve In Stock WPL 876764 $27.18

978026 Whirlpool Refrigerator Primary Valve In Stock WPL 978026 $32.32

978027 Whirlpool Refrigerator Primary Valve Backorder WPL 978027 $33.95

978030 Whirlpool Refrigerator Valve Backorder WPL 978030 $35.52

WP503695 Whirlpool Refrigerator Sealer Backorder WPL WP503695 $39.18

WP505587 Whirlpool Refrigerator Sealer Backorder WPL WP505587 $57.83

WP542638 Whirlpool Refrigerator Grease In Stock WPL WP542638 $22.07

WP978025 Whirlpool Refrigerator Valve In Stock WPL WP978025 $25.89

VALVE, ACCESS WPL 978029 Contact Us For Availability

MISCELLANEOUS, KIT, FOAM SLAB (30" X 32 1/2" WPL 876029 Contact Us For Availability

MISCELLANEOUS, TAPE, VINYL (3/4 X 108") WPL 479502 Contact Us For Availability

TORX SCREW WRENCH, TORX KEY WPL 1117510 Contact Us For Availability
