Model Electrolux KB883GDMO WALL OVEN – Common Parts & Diagrams

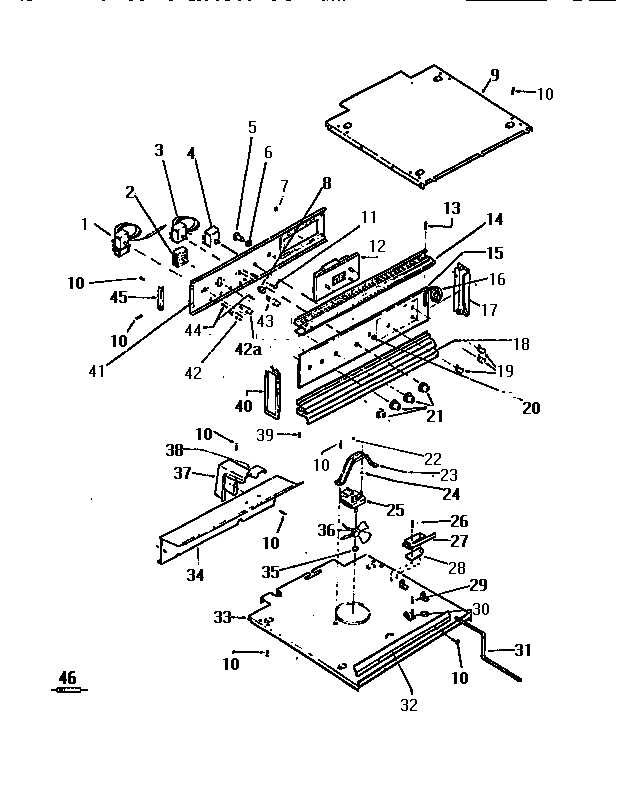

02 - BACKGUARD

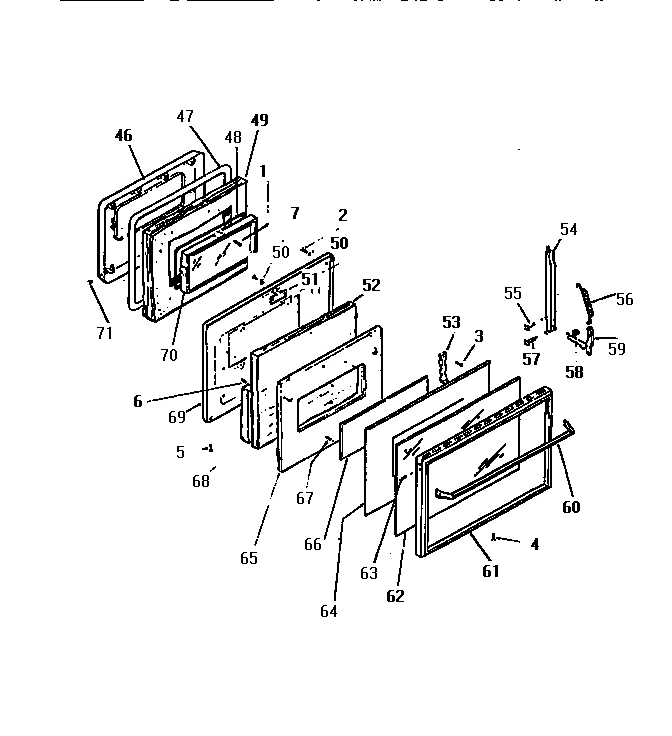

03 - UPPER OVEN DOOR
04 - LOWER OVEN DOOR
05 - DOOR LATCH ASSEMBLY
06 - OVEN CAVITY
Common parts from model Electrolux KB883GDMO WALL OVEN
1
THERMOSTAT, UPPER OVEN WCI K1324562 Contact Us For Availability
2
SELECTOR SWITCH (BAKE & CLEAN UPPER OVEN) WCI K5151901 Contact Us For Availability
2
SCREW (4) WCI K5046501 Contact Us For Availability
2
WCI K1308113 WCI K1308113 Contact Us For Availability
3
THERMOSTAT, LOWER OVEN WCI K5110201 Contact Us For Availability
3
HANDLE (COMPLETE W/STANCHION) WCI K5026603 Contact Us For Availability
3
SUPPORT WCI K1324263 Contact Us For Availability
3
WCI K1318410 WCI K1318410 Contact Us For Availability
4
SELECTOR SWITCH, LOWER WCI K1311984 Contact Us For Availability
4
WCI K5060301 WCI K5060301 Contact Us For Availability
4
SCREW WCI K5157101 Contact Us For Availability
4
WCI 1318068 WCI 1318068 Contact Us For Availability
5
SWITCH, OVEN LGT WCI K1312670 Contact Us For Availability
5
WCI K1309592 WCI K1309592 Contact Us For Availability
6
LOCKNUT (2) WCI Q501442 Contact Us For Availability
6
WCI K5060501 WCI K5060501 Contact Us For Availability
6
WCI K1318066 WCI K1318066 Contact Us For Availability
6
SCREW WCI K1164309 Contact Us For Availability
7
WCI K1164423 WCI K1164423 Contact Us For Availability
7
HEATER, BROIL (TOP AND BOTTOM) WCI K1310050 Contact Us For Availability
8
BUMPER (2) WCI K1307466 Contact Us For Availability
8
ROLLER KIT (2) WCI K1167752 Contact Us For Availability
8
LATCH WCI K5260201 Contact Us For Availability
8
VENT TUBE WCI K5055002 Contact Us For Availability
9
WCI K1315161 WCI K1315161 Contact Us For Availability
9
WCI K5267201 WCI K5267201 Contact Us For Availability
9
HANGER WCI K1314456 Contact Us For Availability
10
WASHER WCI K1313226 Contact Us For Availability
10
RIVET WCI K1100773 Contact Us For Availability
11
SCREW (2) WCI K5022101 Contact Us For Availability
11
WCI K1164550 WCI K1164550 Contact Us For Availability
11
HINGE CHANNEL (W/ROLLER) WCI K1311514 Contact Us For Availability
11
WCI 1325544 WCI 1325544 Contact Us For Availability
12
WCI K5087201 WCI K5087201 Contact Us For Availability
12
AXLE, LATCH WCI K5038501 Contact Us For Availability
12
SPRING (2) WCI K1302505 Contact Us For Availability
13
WCI K1164547 WCI K1164547 Contact Us For Availability
13
WCI K1324830 WCI K1324830 Contact Us For Availability
14
WCI K5150404 WCI K5150404 Contact Us For Availability
15
WCI K5109501 WCI K5109501 Contact Us For Availability
15
PUSH NUT WCI K1164424 Contact Us For Availability
16
FOAM TAPE (1/4`` X 96``) WCI K1018420 Contact Us For Availability
16
PIN WCI KGM455105 Contact Us For Availability
17
NUT WCI Q401002 Contact Us For Availability
17
WCI K1324654 WCI K1324654 Contact Us For Availability
17
WCI K1325591 WCI K1325591 Contact Us For Availability
17
SCREW (2) WCI K1164502 Contact Us For Availability
18
WCI K5152002 WCI K5152002 Contact Us For Availability
18
SPACER, BOTTOM (2) WCI K1324812 Contact Us For Availability
18
SCREWSWITCH, LOWER LIMIT WCI K1167190 Contact Us For Availability
18A
SPACER, TOP (2) WCI K1324236 Contact Us For Availability
19
KNOB (3) WCI K1167676 Contact Us For Availability
19
BUMPER (4) WCI K1312009 Contact Us For Availability
20
BEZEL, LIGHT SWITCH WCI K1312072 Contact Us For Availability
20
INSULATION WCI K1325629 Contact Us For Availability
20
SWITCH, UPPER LIMIT WCI K1315370 Contact Us For Availability
21
KNOB (4) WCI K5087301 Contact Us For Availability
21
WCI K1325686 WCI K1325686 Contact Us For Availability
21
INSULATOR WCI K1308690 Contact Us For Availability
22
NUT WCI KGM271482 Contact Us For Availability
22
WCI K1325698 WCI K1325698 Contact Us For Availability
23
WCI K1313835 WCI K1313835 Contact Us For Availability
23
WCI K1325511 WCI K1325511 Contact Us For Availability
23
WCI K1310916 WCI K1310916 Contact Us For Availability
24
WCI Q410505 WCI Q410505 Contact Us For Availability
24
WCI K5102901 WCI K5102901 Contact Us For Availability
25
WCI K1324697 WCI K1324697 Contact Us For Availability
25
WCI K1325510 WCI K1325510 Contact Us For Availability
26
WCI K1164497 WCI K1164497 Contact Us For Availability
27
WCI K1318277 WCI K1318277 Contact Us For Availability
28
WCI K1314253 WCI K1314253 Contact Us For Availability
30
WCI K1324273 WCI K1324273 Contact Us For Availability
31
WCI K1318070 WCI K1318070 Contact Us For Availability
31
INSULATION WCI Q134234 Contact Us For Availability
32
WCI K1324270 WCI K1324270 Contact Us For Availability
33
WCI K1324259 WCI K1324259 Contact Us For Availability
34
WCI K1313828 WCI K1313828 Contact Us For Availability
35
WCI K1314315 WCI K1314315 Contact Us For Availability
36
WCI K1324274 WCI K1324274 Contact Us For Availability
37
WCI K1313829 WCI K1313829 Contact Us For Availability
38
WCI K1316025 WCI K1316025 Contact Us For Availability
40
WCI K1324655 WCI K1324655 Contact Us For Availability
41
WCI K50586802 WCI K50586802 Contact Us For Availability
42A
SIGNAL LIGHT, LOCK WCI K50598801 Contact Us For Availability
43
WCI K1314510 WCI K1314510 Contact Us For Availability
44
SCREW (2) WCI K5104301 Contact Us For Availability
45
WCI K1313820 WCI K1313820 Contact Us For Availability
46
120K RESISTOR (BROWN, RED, YELLOW, GOLD BANDS WCI K5044001 Contact Us For Availability
46
WCI K1323755 WCI K1323755 Contact Us For Availability
46A
51K RESISTOR (GREEN, BROWN, ORANGE,GOLD BANKS WCI K5044101 Contact Us For Availability
46B
39K RESISTOR (ORANGE, WHITE, ORANGE, GOLD BAN WCI K5044102 Contact Us For Availability
47
SEAL, DOOR WCI K1323812 Contact Us For Availability
48
J MOULDING WCI K1322069 Contact Us For Availability
49
INSULATION, BAFFLE WCI K1322623 Contact Us For Availability
51
STRIKE ASSEMBLY WCI K1323556 Contact Us For Availability
52
WCI K1322624 WCI K1322624 Contact Us For Availability
53
RETAINER (2) WCI K1317628 Contact Us For Availability
54
WCI K1321514 WCI K1321514 Contact Us For Availability
56
WCI K1302501 WCI K1302501 Contact Us For Availability
59
HING ARM (2) WCI K1310065 Contact Us For Availability
65
AIR WASH PANEL WCI K1323377 Contact Us For Availability
66
WCI K1317924 WCI K1317924 Contact Us For Availability
67
SCREW WCI K1164557 Contact Us For Availability
68
INSULATED LINER WCI K1322625 Contact Us For Availability
69
LINER, DOOR WCI K1323743 Contact Us For Availability
70
WINDOW WCI K1322068 Contact Us For Availability
71
PLUG BUTTON (2) WCI KGM142001 Contact Us For Availability
107
WCI K1325530 WCI K1325530 Contact Us For Availability
109
RETAINER , R/H WCI K1313802 Contact Us For Availability
110
WCI Q63749 WCI Q63749 Contact Us For Availability
112
RETAINING WIRE WCI K1325529 Contact Us For Availability
113
SPACER (6) WCI K1314181 Contact Us For Availability
115
WCI K1313803 WCI K1313803 Contact Us For Availability
116
WCI K1315153 WCI K1315153 Contact Us For Availability
117
WCI K1301497 WCI K1301497 Contact Us For Availability
118
WCI K1314782 WCI K1314782 Contact Us For Availability
119
WCI K1309666 WCI K1309666 Contact Us For Availability
120
WCI K1324257 WCI K1324257 Contact Us For Availability
121
WCI 1313811 WCI 1313811 Contact Us For Availability
122
WCI K1324272 WCI K1324272 Contact Us For Availability
123
WCI K1325547 WCI K1325547 Contact Us For Availability
124
WCI K1311369 WCI K1311369 Contact Us For Availability
125
WCI K1314789 WCI K1314789 Contact Us For Availability
126
WCI K1323157 WCI K1323157 Contact Us For Availability
127
WCI K1315098 WCI K1315098 Contact Us For Availability
128
WCI K1325069 WCI K1325069 Contact Us For Availability
130
WCI KGM0142017 WCI KGM0142017 Contact Us For Availability
131
WCI K1324255 WCI K1324255 Contact Us For Availability
132
WCI K1324271 WCI K1324271 Contact Us For Availability
133
WCI K1322104 WCI K1322104 Contact Us For Availability
134
WCI K1314783 WCI K1314783 Contact Us For Availability
135
WCI Q402503 WCI Q402503 Contact Us For Availability
136
WCI K1322515 WCI K1322515 Contact Us For Availability
137
TERMINAL BLOCK, COMPLETE WCI Q134264 Contact Us For Availability
138
SCREW WCI K1164479 Contact Us For Availability
140
GRILLE, PLATED WCI K1313049 Contact Us For Availability
142
RACK (2) WCI K1307706 Contact Us For Availability
143
RACK, OFFSET (1) WCI K1307707 Contact Us For Availability
× ![]()
