Model Whirlpool KB26G1XER5 6 QT. STAND MIXER – Common Parts & Diagrams

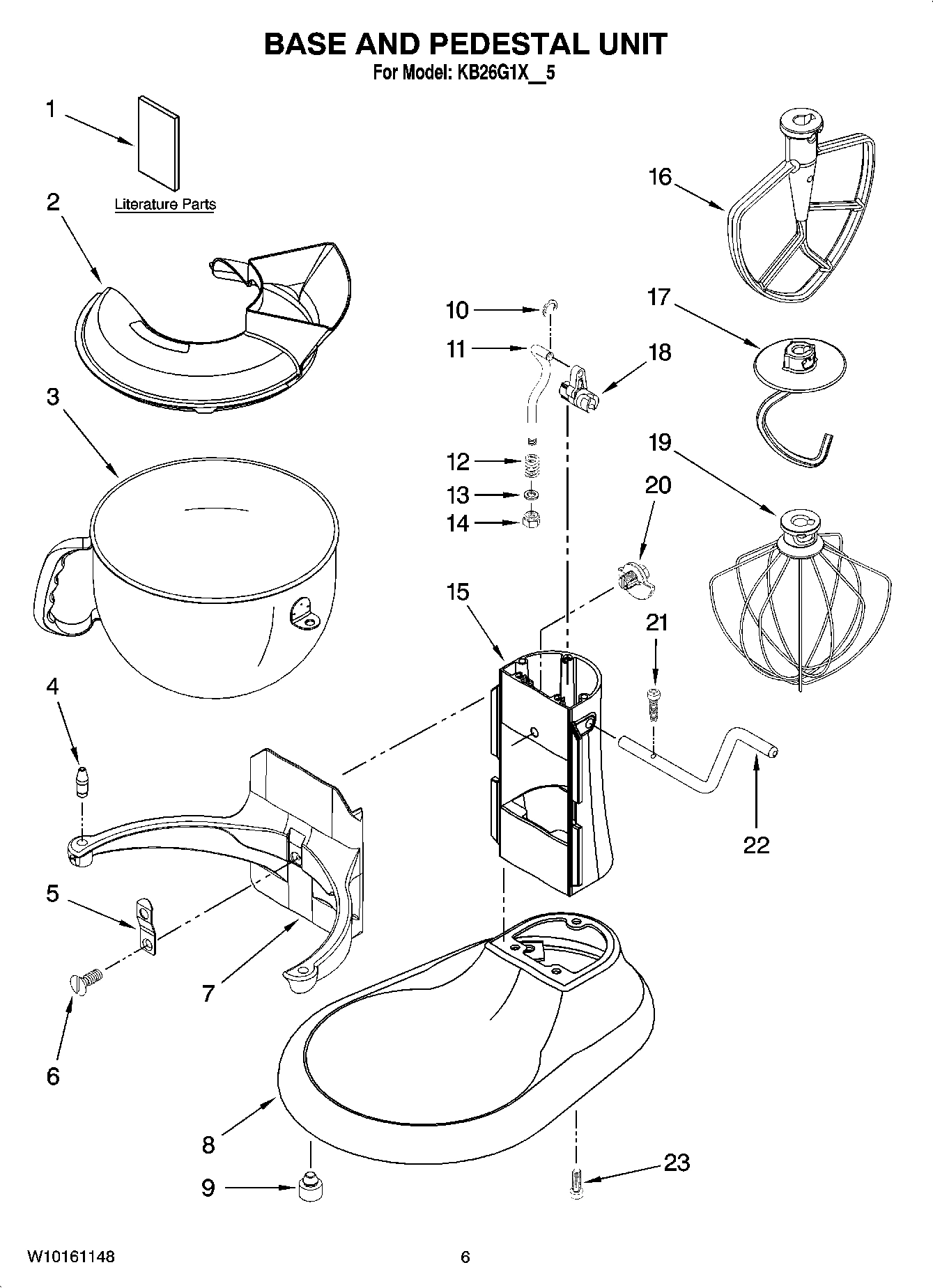

03 - BASE AND PEDESTAL UNIT, OPTIONAL PARTS

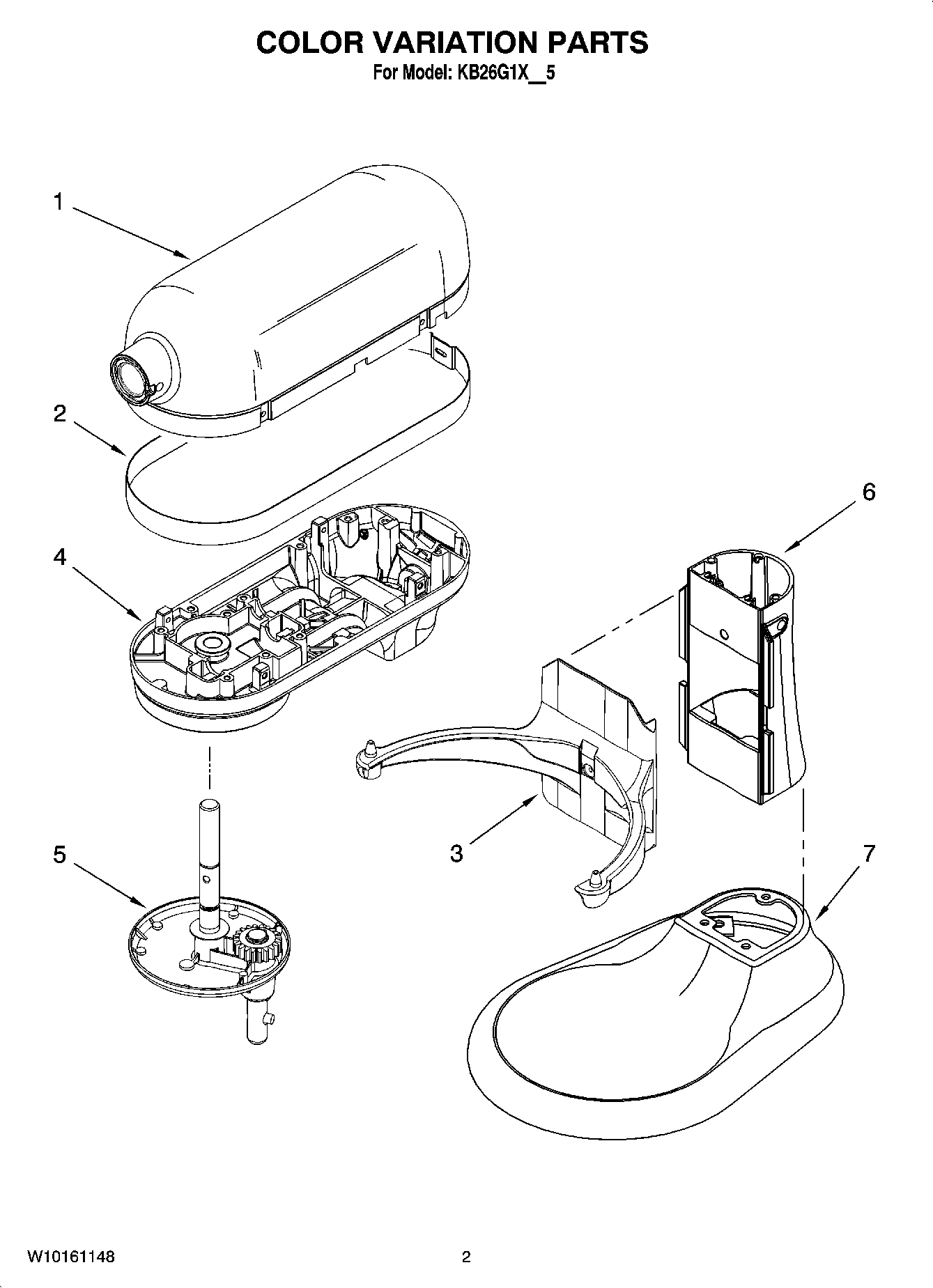

01 - COLOR VARIATION PARTS

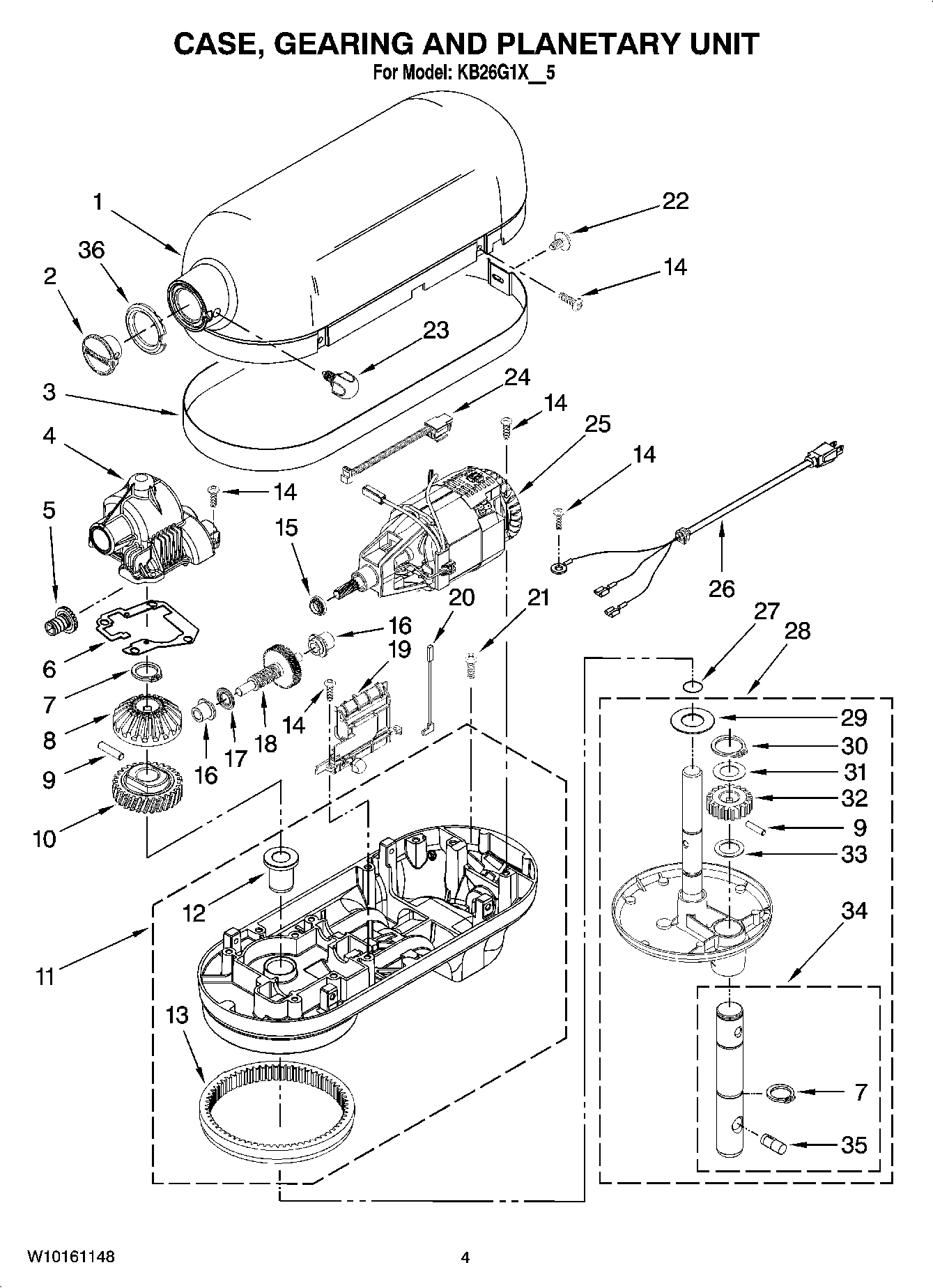

02 - CASE, GEARING AND PLANETARY UNIT
Common parts from model Whirlpool KB26G1XER5 6 QT. STAND MIXER
ICE CREAM MAKER (KICAOWH0)) WPL 8212519 Contact Us For Availability
1
Motor Housing (White) WPL 9703311 Contact Us For Availability
1
Motor Housing (Onyx Black) WPL 9705296 Contact Us For Availability
1
Motor Housing (Empire Red) WPL 9705300 Contact Us For Availability
1
Use & Care Guide WPL 9707946 Contact Us For Availability
1
Repair Parts List WPL W10161148 Contact Us For Availability
1
Motor Housing (Metallic Chrome) WPL 9703433 Contact Us For Availability
1
Motor Housing (Imperial Gray) WPL 9703531 Contact Us For Availability
1
Motor Housing (Almond Cream) WPL 9705298 Contact Us For Availability
1
Motor Housing (Majestic Yellow) WPL 9705301 Contact Us For Availability
1
Motor Housing (Cobalt Blue) WPL 9705380 Contact Us For Availability
1
Motor Housing (Tangerine) WPL 9708063 Contact Us For Availability
1
Motor Housing (Pistachio) WPL 9708090 Contact Us For Availability
1
Gearcase Motor Housing WPL ARI77924A2 Contact Us For Availability
2
Trim Band (Black) WPL 9708051 Contact Us For Availability
2
Trim Band (White on White) WPL 9708053 Contact Us For Availability
2
Trim Band (Almond Creme) WPL 9708055 Contact Us For Availability
2
Cap, Attachment Hub (Chrome) WPL 2427652 Contact Us For Availability
2
Cap, Attachment Hub (White) WPL 2427654 Contact Us For Availability
2
Cap, Attachment Hub (Almond Creme) WPL 2427655 Contact Us For Availability
3
Bowl Supprt w/Pins (Metallic Chrome) WPL 9703397 Contact Us For Availability
3
Bowl Supprt w/Pins (White) WPL 9703674 Contact Us For Availability
3
Bowl Supprt w/Pins (Imperial Gray) WPL 9703519 Contact Us For Availability
3
Bowl Supprt w/Pins (Onyx Black) WPL 9705356 Contact Us For Availability
3
Bowl Supprt w/Pins (Almond Cream) WPL 9705358 Contact Us For Availability
3
Bowl Supprt w/Pins (Empire Red) WPL 9705360 Contact Us For Availability
3
Bowl Supprt w/Pins (Majestic Yellow) WPL 9705361 Contact Us For Availability
3
Bowl Supprt w/Pins (Cobalt Blue) WPL 9705390 Contact Us For Availability
3
Bowl Supprt w/Pins (Tangerine) WPL 9708074 Contact Us For Availability
3
Bowl Supprt w/Pins (Pistachio) WPL 9708101 Contact Us For Availability
3
Band, Trim WPL ARI77925A3 Contact Us For Availability
4
Lower Gearcase (Onyx Black) WPL 9706311 Contact Us For Availability
4
Lower Gearcase (Empire Red) WPL 9706331 Contact Us For Availability
4
Lower Gearcase (Imperial Grey) WPL 9706296 Contact Us For Availability
4
Lower Gearcase (Metallic Chrome) WPL 9706306 Contact Us For Availability
4
Lower Gearcase (Almond Cream) WPL 9706321 Contact Us For Availability
4
Lower Gearcase (Majestic Yellow) WPL 9706336 Contact Us For Availability
4
Lower Gearcase (Cobalt Blue) WPL 9706341 Contact Us For Availability
4
Lower Gearcase (Tangerine) WPL 9708070 Contact Us For Availability
4
Lower Gearcase (Pistachio) WPL 9708097 Contact Us For Availability
5
WPL 9708182 WPL 9708182 Contact Us For Availability
5
WPL 9708178 WPL 9708178 Contact Us For Availability
5
WPL 9708181 WPL 9708181 Contact Us For Availability
5
WPL 9708189 WPL 9708189 Contact Us For Availability
5
WPL 9708190 WPL 9708190 Contact Us For Availability
6
WPL 9703349 WPL 9703349 Contact Us For Availability
6
WPL 9703525 WPL 9703525 Contact Us For Availability
6
WPL 9703673 WPL 9703673 Contact Us For Availability
6
WPL 9705320 WPL 9705320 Contact Us For Availability
6
WPL 9705322 WPL 9705322 Contact Us For Availability
6
WPL 9705324 WPL 9705324 Contact Us For Availability
6
WPL 9705325 WPL 9705325 Contact Us For Availability
6
WPL 9705384 WPL 9705384 Contact Us For Availability
6
WPL 9708077 WPL 9708077 Contact Us For Availability
6
WPL 9708104 WPL 9708104 Contact Us For Availability
7
WPL 9703690 WPL 9703690 Contact Us For Availability
7
Bowl Support WPL ARI77928A9 Contact Us For Availability
7
WPL 9703346 WPL 9703346 Contact Us For Availability
7
WPL 9703510 WPL 9703510 Contact Us For Availability
7
WPL 9705344 WPL 9705344 Contact Us For Availability
7
WPL 9705346 WPL 9705346 Contact Us For Availability
7
WPL 9705348 WPL 9705348 Contact Us For Availability
7
WPL 9705349 WPL 9705349 Contact Us For Availability
7
WPL 9705388 WPL 9705388 Contact Us For Availability
7
WPL 9708080 WPL 9708080 Contact Us For Availability
7
WPL 9708107 WPL 9708107 Contact Us For Availability
8
Base And Foot Supports WPL ARI77929A3 Contact Us For Availability
11
ROD, BOWL LIFT WPL 9706787 Contact Us For Availability
11
Lower Gear Case WPL ARI77926A6 Contact Us For Availability
13
Washer WPL 9703439 Contact Us For Availability
15
Column Assembly WPL ARI77930A9 Contact Us For Availability
20
Cam, Adjusting WPL 9703426 Contact Us For Availability
20
Lead, Motor to Control WPL 9706036 Contact Us For Availability
27
O RING WPL 6750055 Contact Us For Availability
28
Planetary Assembly WPL ARI77927A1 Contact Us For Availability
29
Washer, Fiber WPL 8533907 Contact Us For Availability
× ![]()
