Model Electrolux KAL102S1A1 ROOM AIR CONDITIONER – Common Parts & Diagrams
02 - COVER

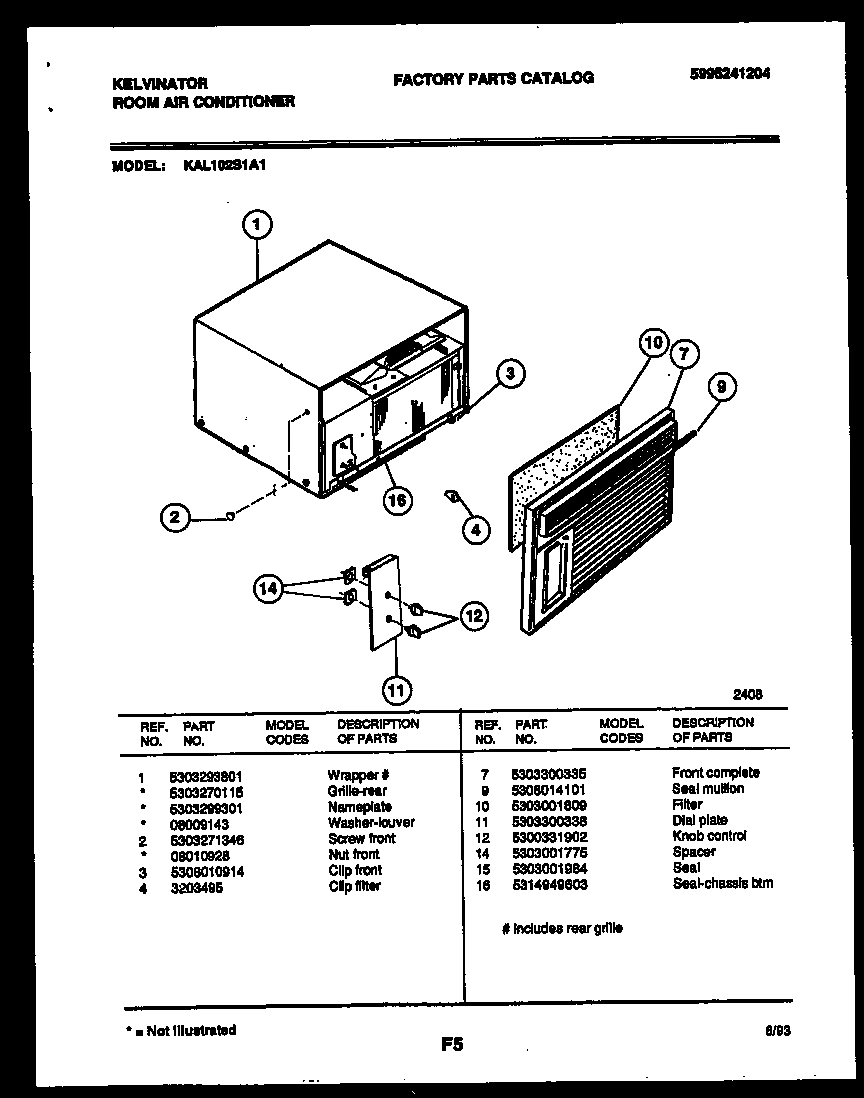

03 - CABINET PARTS

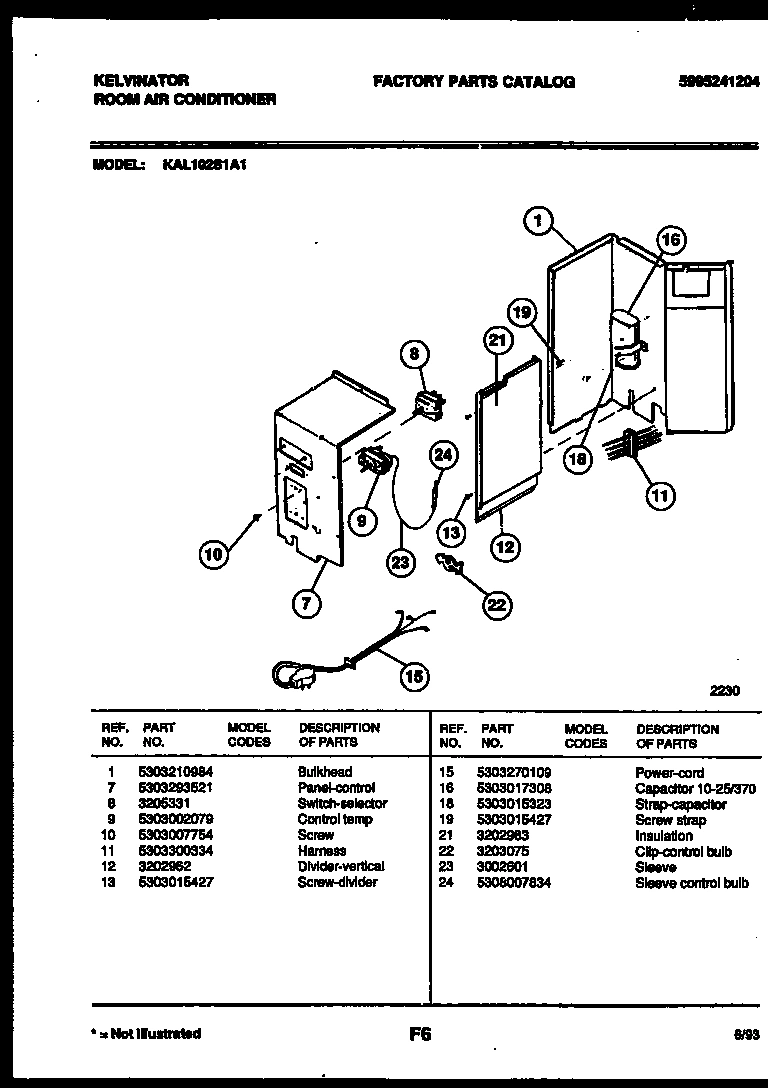

04 - ELECTRICAL PARTS

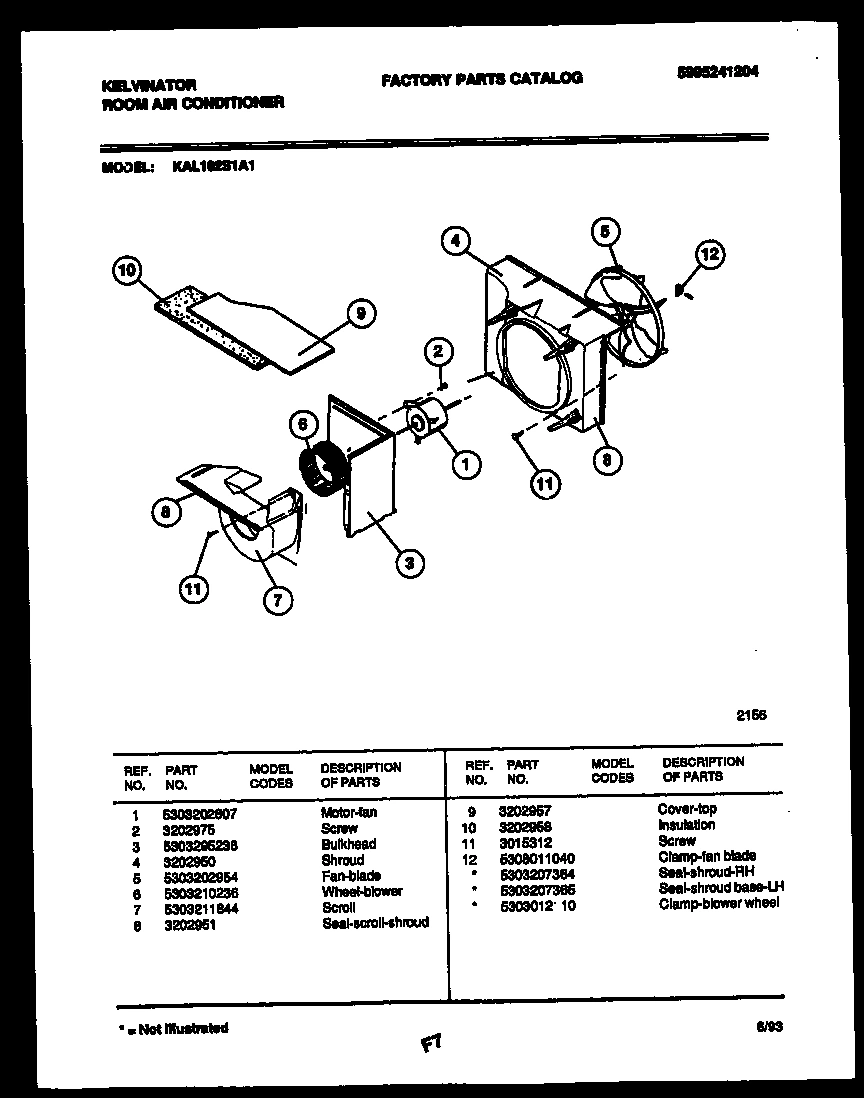

05 - AIR HANDLING PARTS

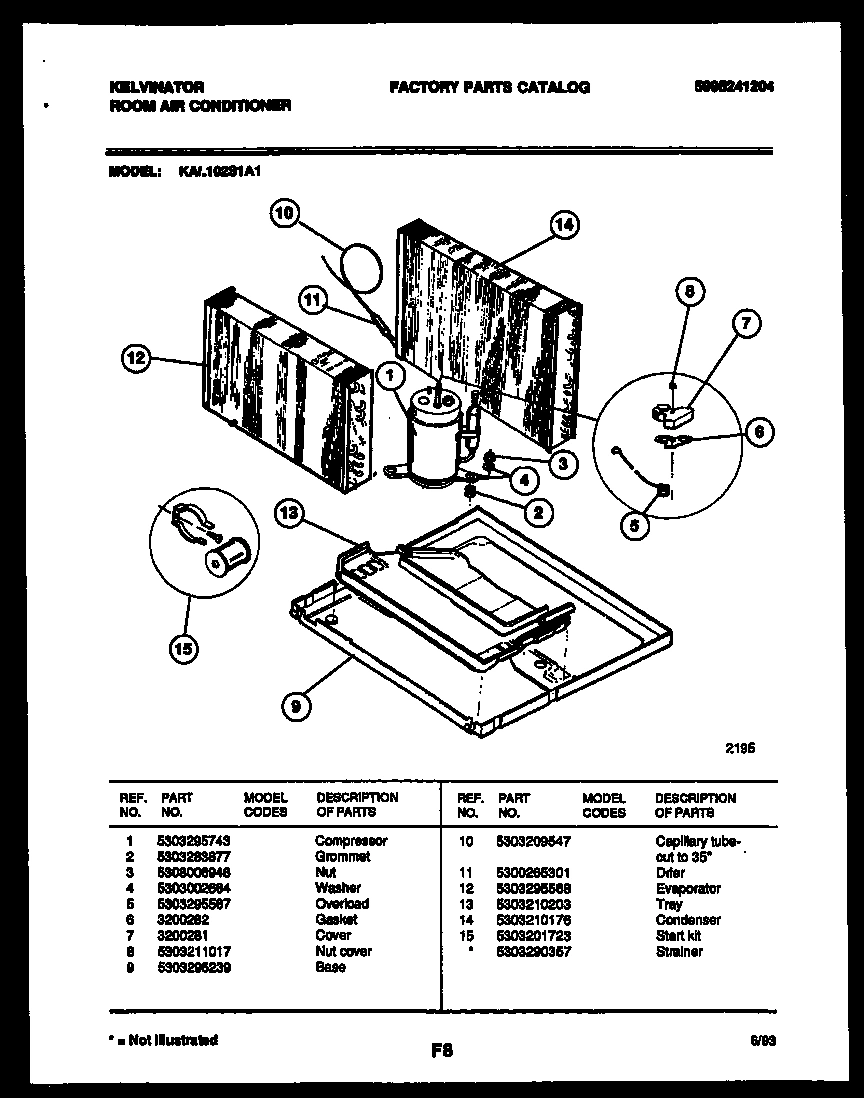

06 - UNIT PARTS
07 - WINDOW KIT
Common parts from model Electrolux KAL102S1A1 ROOM AIR CONDITIONER
*31580
WCI 5303012110 WCI 5303012110 Contact Us For Availability
*31580
SEAL-SHROUD BASE-LH WCI 5303207365 Contact Us For Availability
*31583
WCI 5303290357 WCI 5303290357 Contact Us For Availability
*31587
WCI 5303925121 WCI 5303925121 Contact Us For Availability
1
BULKHEAD WCI 5303210984 Contact Us For Availability
1
WCI 5303202807 WCI 5303202807 Contact Us For Availability
1
WCI 5303295743 WCI 5303295743 Contact Us For Availability
1C
WCI 08009143 WCI 08009143 Contact Us For Availability
2
WCI 5303211056 WCI 5303211056 Contact Us For Availability
2
WCI 5303271346 WCI 5303271346 Contact Us For Availability
2
WCI 5303283877 WCI 5303283877 Contact Us For Availability
2A
NUT FRONT (NON-ILLUSTRATED) WCI 08010928 Contact Us For Availability
3
CLIP-FRONT WCI 5308010914 Contact Us For Availability
3
BULKHEAD WCI 5303295238 Contact Us For Availability
3
WCI 5308006948 WCI 5308006948 Contact Us For Availability
4
CLIP-FILTER WCI 3203495 Contact Us For Availability
4
SHROUD WCI 3202950 Contact Us For Availability
4
WCI 5303002664 WCI 5303002664 Contact Us For Availability
4
WCI 3202964 WCI 3202964 Contact Us For Availability
5
FAN BLADE WCI 5303202954 Contact Us For Availability
5
OVERLOAD WCI 5303295567 Contact Us For Availability
5
WCI 5303207200 WCI 5303207200 Contact Us For Availability
6
WCI 5303210236 WCI 5303210236 Contact Us For Availability
6
WCI 3200282 WCI 3200282 Contact Us For Availability
6
WCI 3202966 WCI 3202966 Contact Us For Availability
6A
SEAL-RETAINER (NON-ILLUSTRATED) WCI 5303276728 Contact Us For Availability
7
WCI 5303300335 WCI 5303300335 Contact Us For Availability
7
WCI 5303293521 WCI 5303293521 Contact Us For Availability
7
SCROLL WCI 5303211844 Contact Us For Availability
7
WCI 3200281 WCI 3200281 Contact Us For Availability
7
SUPPORT-RH WCI 5303284689 Contact Us For Availability
8
WCI 3205331 WCI 3205331 Contact Us For Availability
8
SEAL-SCROLL-SHROUD WCI 3202951 Contact Us For Availability
8
WCI 5303211017 WCI 5303211017 Contact Us For Availability
8
BRACKET-WINDOW (2) WCI 3001815 Contact Us For Availability
9
WCI 5303002079 WCI 5303002079 Contact Us For Availability
9
WCI 5308014101 WCI 5308014101 Contact Us For Availability
9
WCI 3202957 WCI 3202957 Contact Us For Availability
9
WCI 5303295239 WCI 5303295239 Contact Us For Availability
9
SCREW (2) WCI 3007756 Contact Us For Availability
10
CAPILLARY TUBE-CUT TO 35`` WCI 5303209547 Contact Us For Availability
10
WCI 5303001809 WCI 5303001809 Contact Us For Availability
10
SCREW WCI 5303007754 Contact Us For Availability
10
INSULATION WCI 3202958 Contact Us For Availability
10
NUT LOCKING WCI 3007759 Contact Us For Availability
11
WCI 5303300338 WCI 5303300338 Contact Us For Availability
11
WCI 5303300334 WCI 5303300334 Contact Us For Availability
11
SUPPORT-LH WCI 5303284690 Contact Us For Availability
12
WCI 5300331902 WCI 5300331902 Contact Us For Availability
12
WCI 3202962 WCI 3202962 Contact Us For Availability
12
CLAMP - FAN BLADE WCI 5308011040 Contact Us For Availability
12
WCI 5303295568 WCI 5303295568 Contact Us For Availability
13
TRAY WCI 5303210203 Contact Us For Availability
13
SCREW (4) WCI 5303281649 Contact Us For Availability
14
WCI 5303001775 WCI 5303001775 Contact Us For Availability
14
WCI 5303210176 WCI 5303210176 Contact Us For Availability
14
WCI 3203060 WCI 3203060 Contact Us For Availability
15
WCI 5303001984 WCI 5303001984 Contact Us For Availability
15
WCI 5303270109 WCI 5303270109 Contact Us For Availability
15
WCI 5303201723 WCI 5303201723 Contact Us For Availability
15
ACCORDIAN (2) WCI 5303211382 Contact Us For Availability
16
CAPACITOR 10-25/370 WCI 5303017308 Contact Us For Availability
16
RAIL-TOP SUPPORT WCI 3001873 Contact Us For Availability
17
SCREW (2) WCI 3002803 Contact Us For Availability
18
WCI 5303015323 WCI 5303015323 Contact Us For Availability
19
SCREW (2) WCI 3002801 Contact Us For Availability
20
SEAL WCI 5314949603 Contact Us For Availability
21
INSULATION WCI 3202963 Contact Us For Availability
22
WCI 3203075 WCI 3203075 Contact Us For Availability
23
SLEEVE WCI 3002601 Contact Us For Availability
24
WCI 5308007834 WCI 5308007834 Contact Us For Availability
31580
SEAL-SHROUD-RH WCI 5303207364 Contact Us For Availability
× ![]()
