Model Whirlpool KA15E1X-0 STAND MIXER – Common Parts & Diagrams

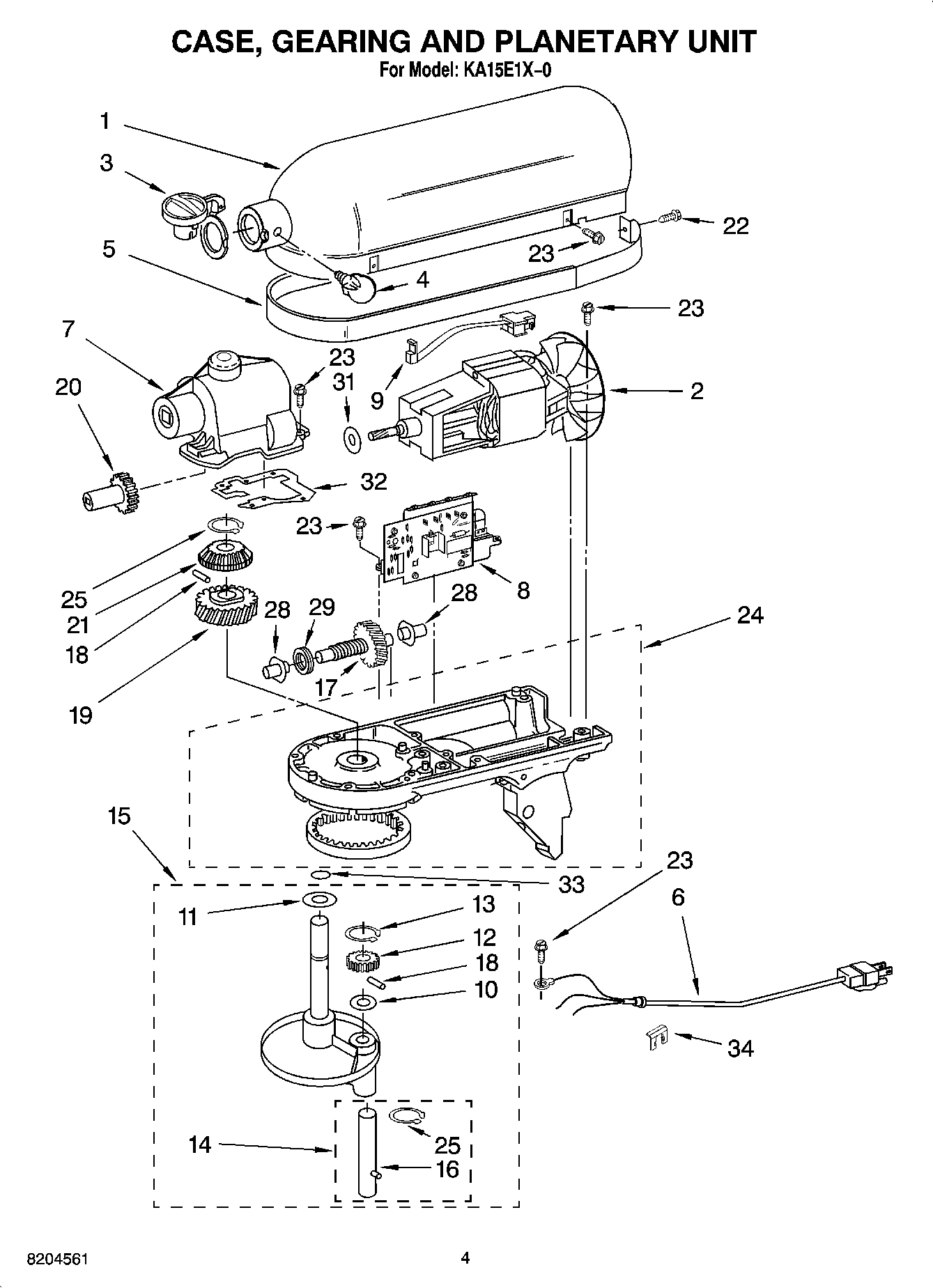

03 - CASE, GEARING, AND PLANETARY UNIT

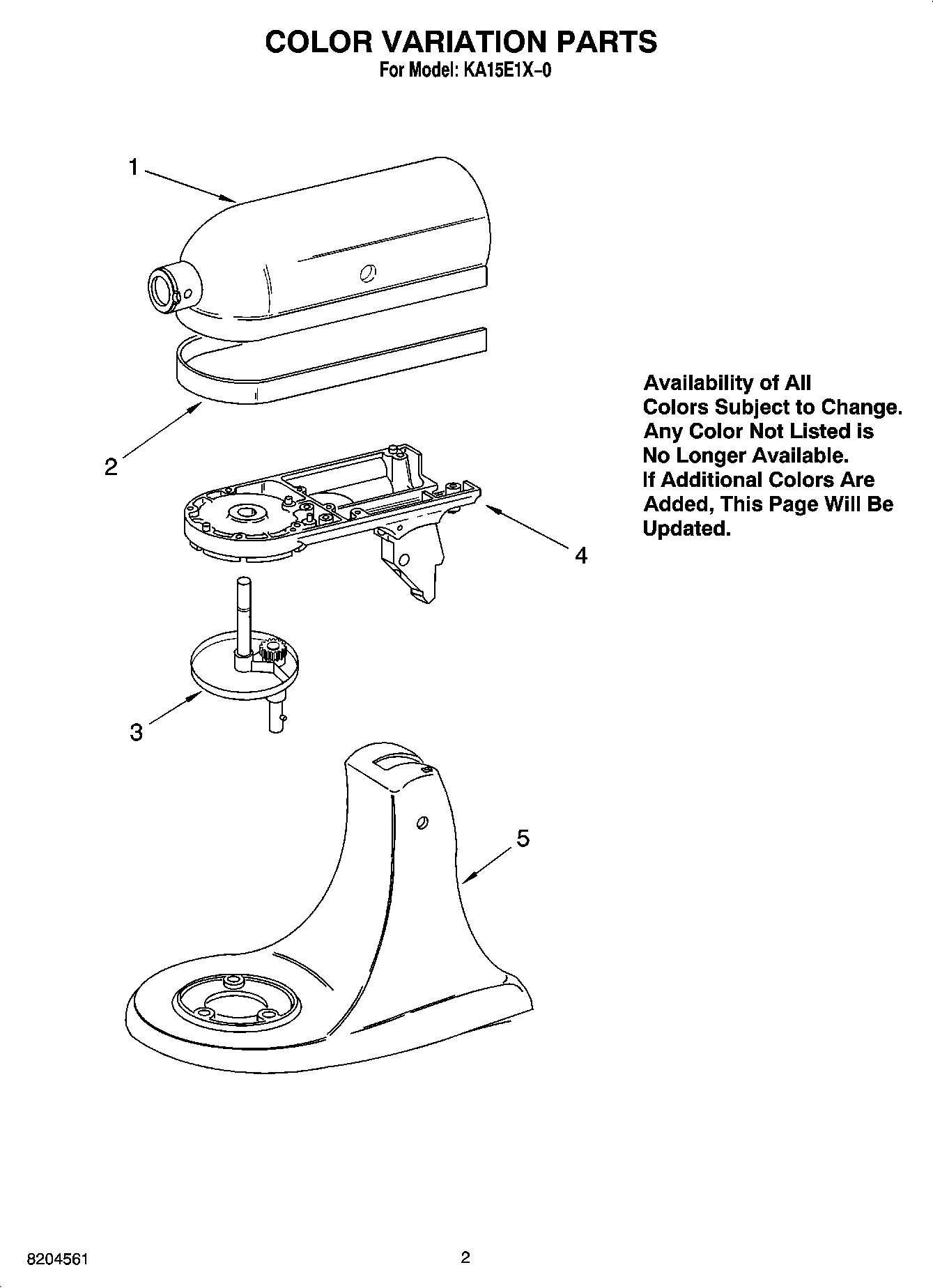

01 - COLOR VARIATION PARTS

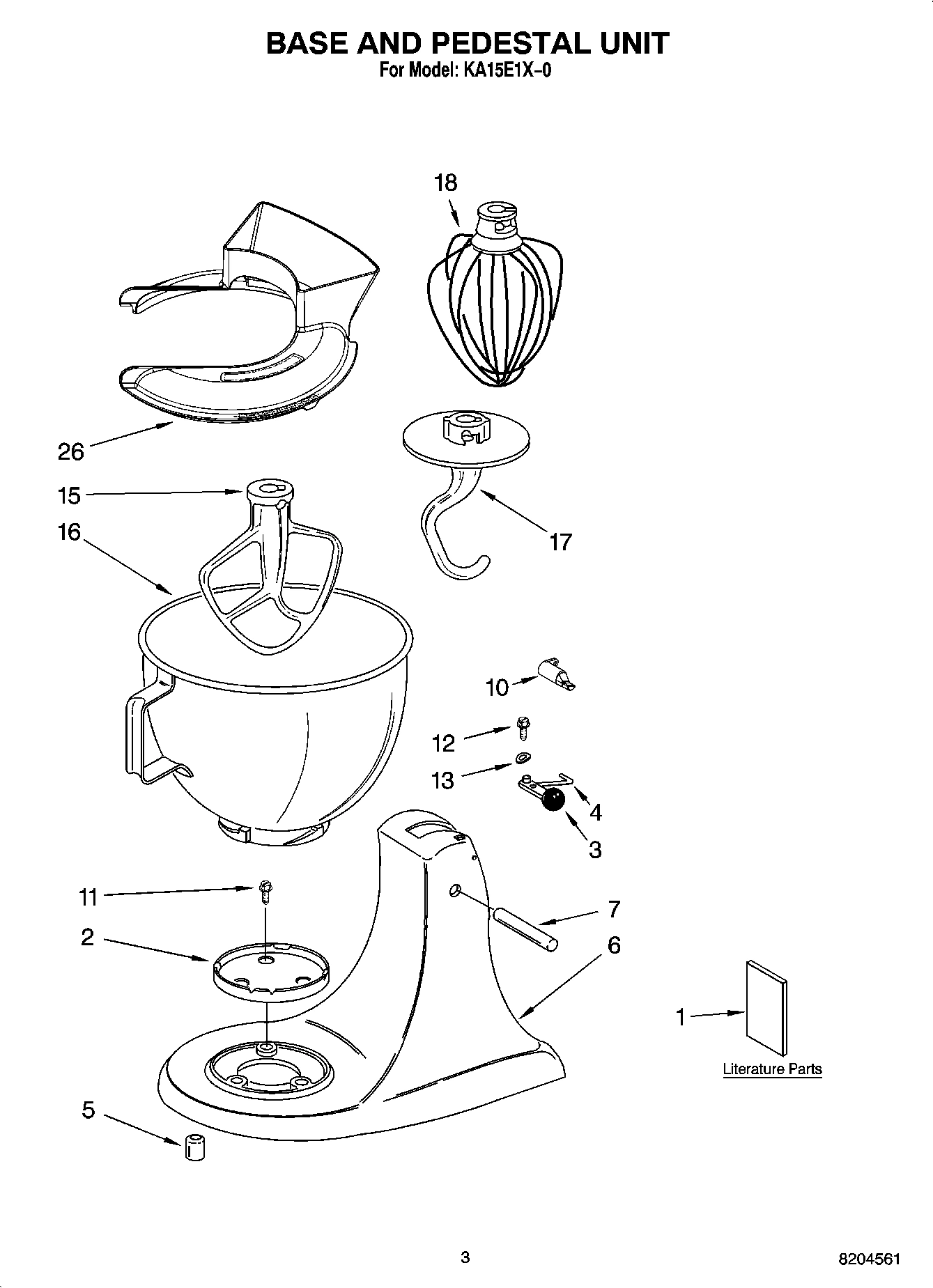

02 - BASE AND PEDESTAL UNIT
Common parts from model Whirlpool KA15E1X-0 STAND MIXER
FRUIT/VEGETABLE ST WPL 4164775 Contact Us For Availability
WPL 4164778 WPL 4164778 Contact Us For Availability
WPL 4164803 WPL 4164803 Contact Us For Availability
WPL 4164824 WPL 4164824 Contact Us For Availability
WPL 4164839 WPL 4164839 Contact Us For Availability
1
Gearcase Motor Housing WPL ARI77895A5 Contact Us For Availability
1
Repair Parts List WPL LIT8204556 Contact Us For Availability
1
Use and Care Guide WPL LIT9703467 Contact Us For Availability
2
Trim Band (White) WPL 9708401 Contact Us For Availability
2
Screw Cap WPL 9703554 Contact Us For Availability
3
Lever, Latch WPL 9706185 Contact Us For Availability
4
Thumb Screw (White (Storm Gray)) WPL 2403742 Contact Us For Availability
4
Lower Gearcase (White) WPL 9703389 Contact Us For Availability
4
Link, Latch WPL 9706803 Contact Us For Availability
5
Foot, Base WPL 115792 Contact Us For Availability
5
Band, Trim WPL ARI77896A3 Contact Us For Availability
5
Pedestal (White) WPL 9703597 Contact Us For Availability
6
Power Cord WPL 9706553 Contact Us For Availability
6
Pedestal WPL ARI77894A1 Contact Us For Availability
7
Pin, Hinge WPL 9703583 Contact Us For Availability
10
Cam, Latch WPL 9706802 Contact Us For Availability
11
SCREW WPL 3400020 Contact Us For Availability
15
Planetary Assembly WPL ARI77897A2 Contact Us For Availability
16
Bowl and Base WPL 9707956 Contact Us For Availability
24
Lower Gear Case WPL ARI77898A6 Contact Us For Availability
33
O RING WPL 6750055 Contact Us For Availability
34
Clip, Cord Retainer WPL 9703333 Contact Us For Availability
× ![]()
