Model Whirlpool JZ5062 ICE CUBE MAKER – Common Parts & Diagrams

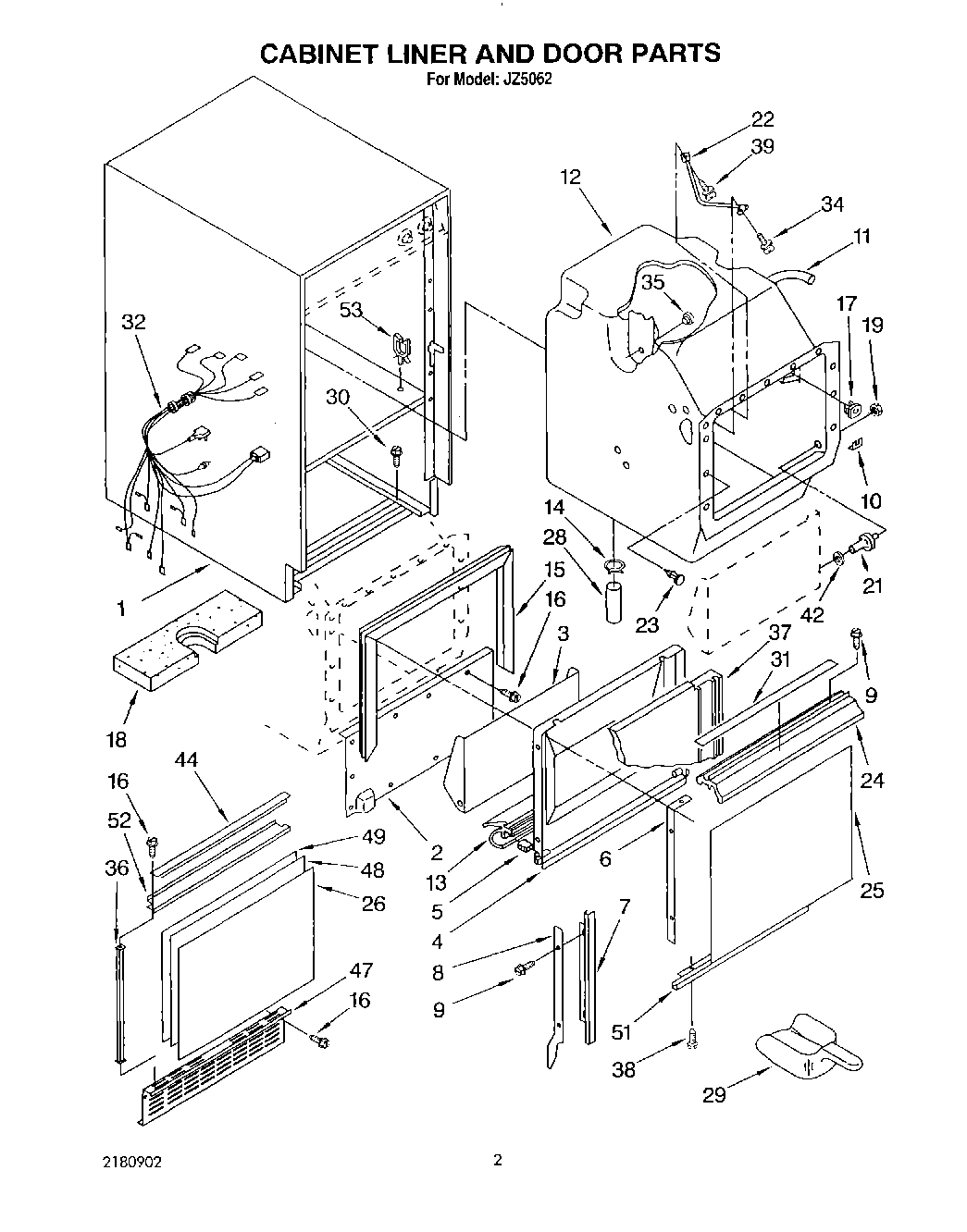

02 - CABINET LINER AND DOOR, LITERATURE

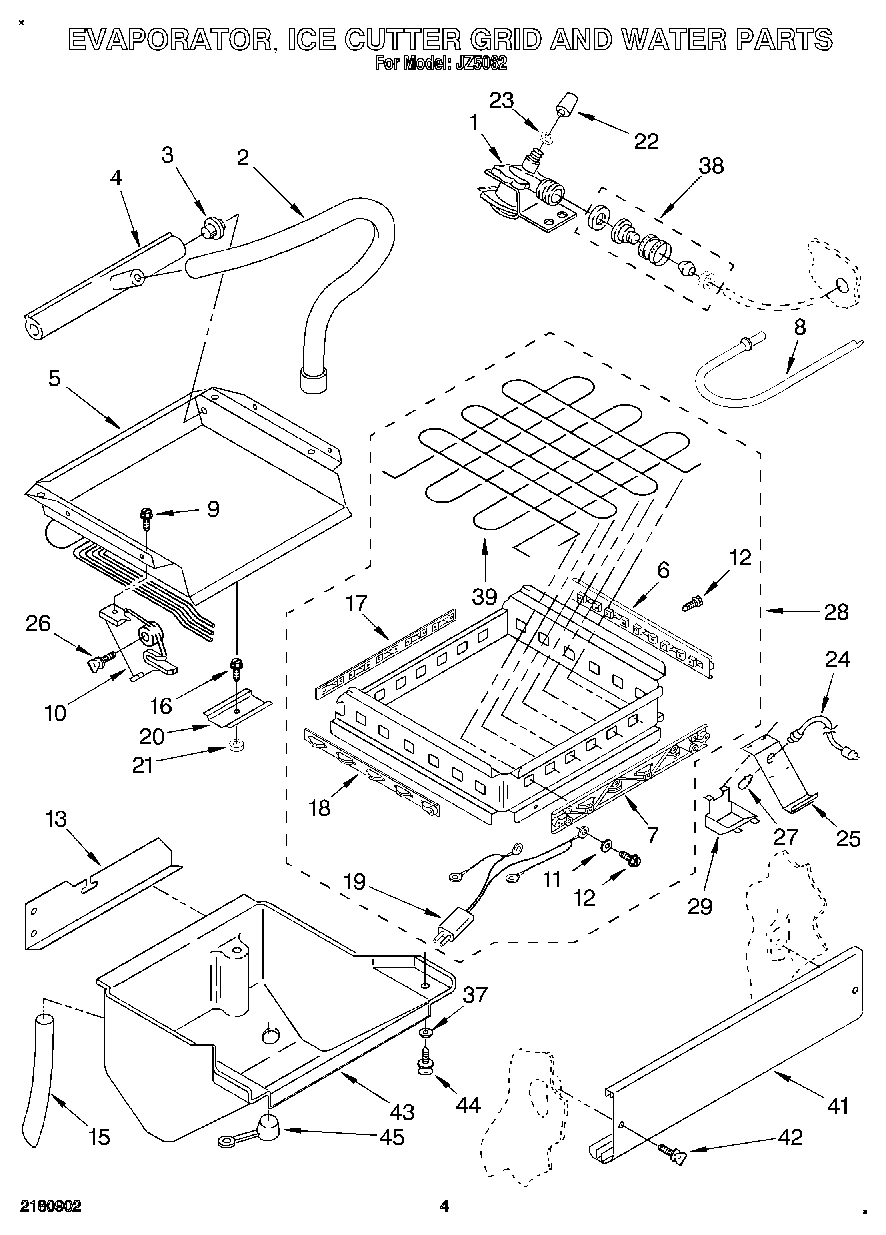

03 - EVAPORATOR, ICE CUTTER GRID AND WATER

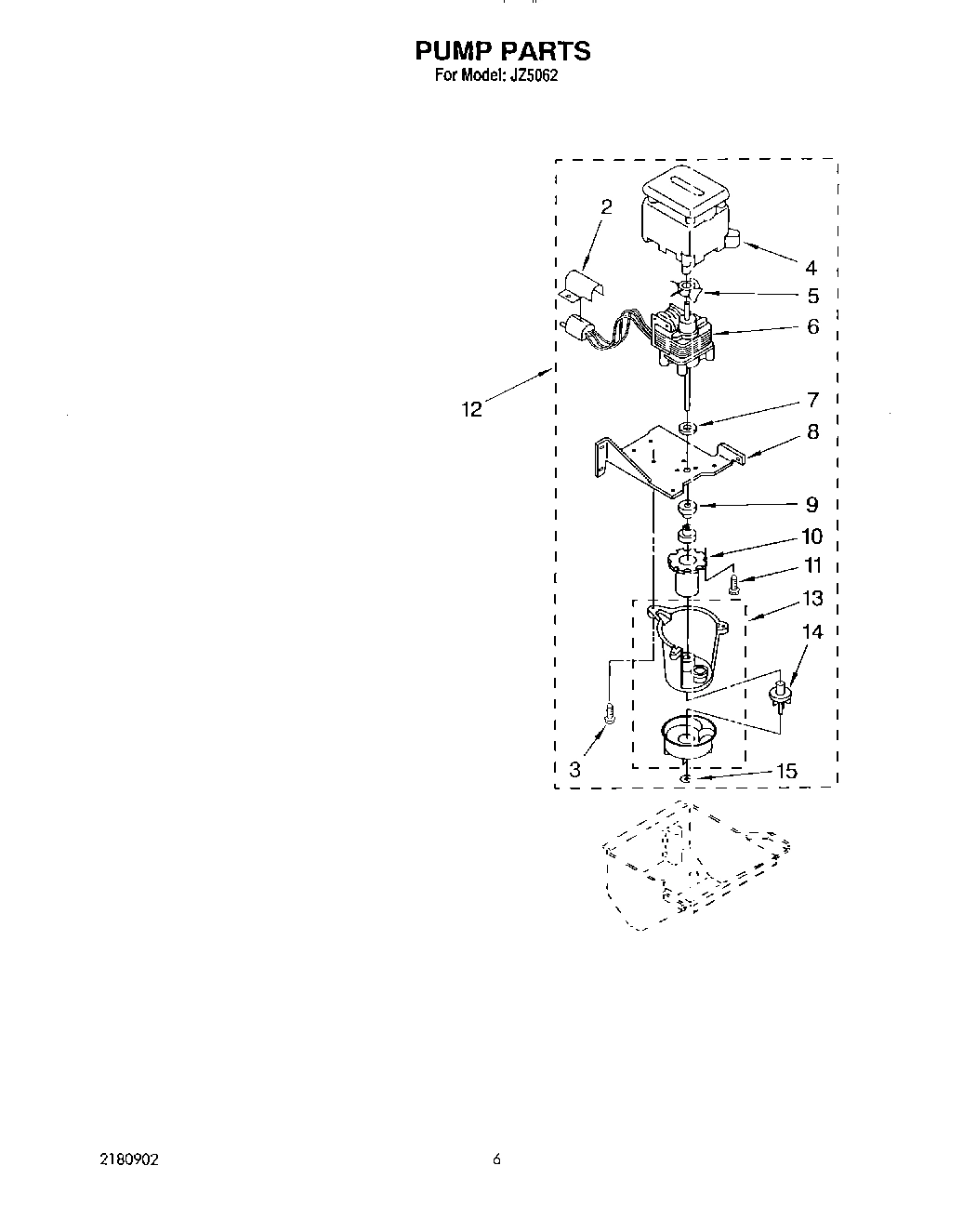

04 - PUMP

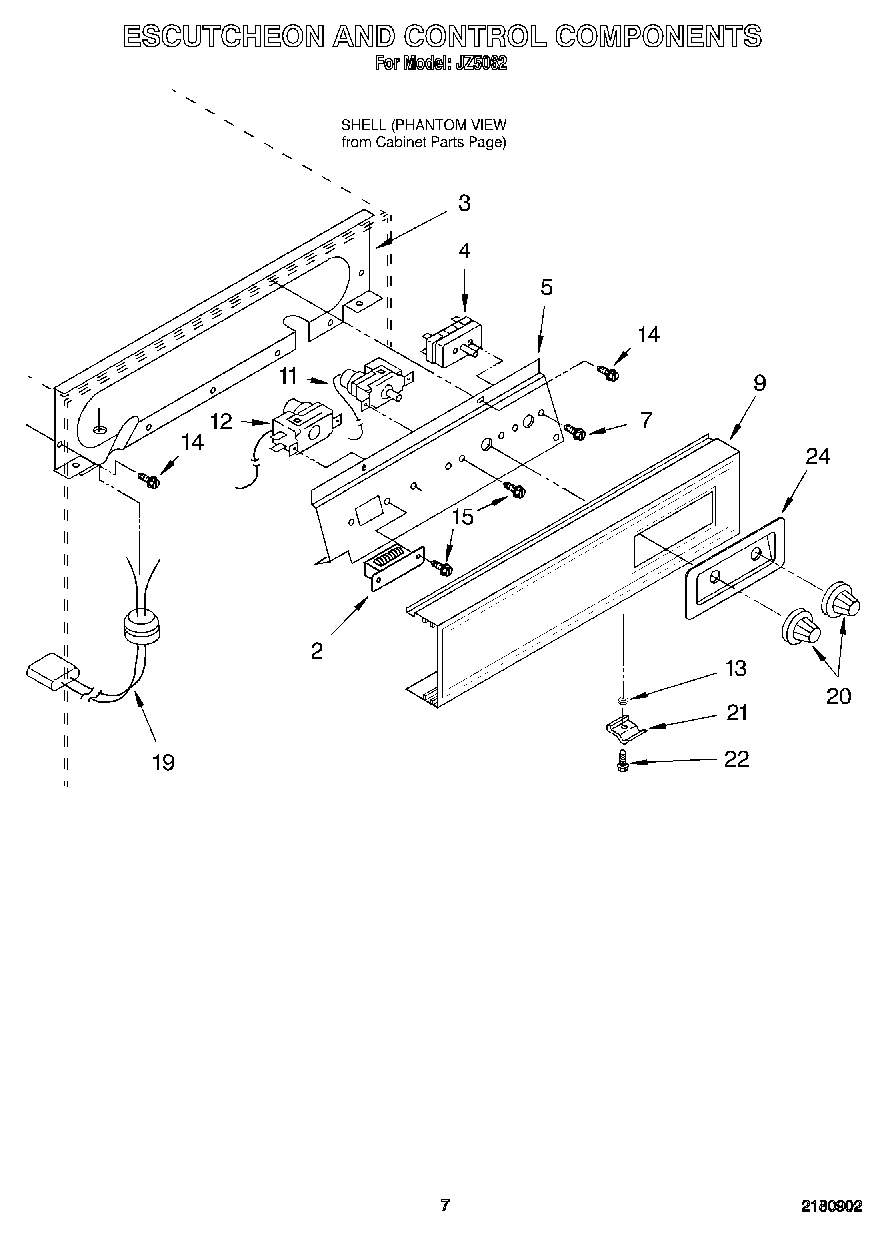

05 - ESCUTCHEON AND CONTROL COMPONENTS

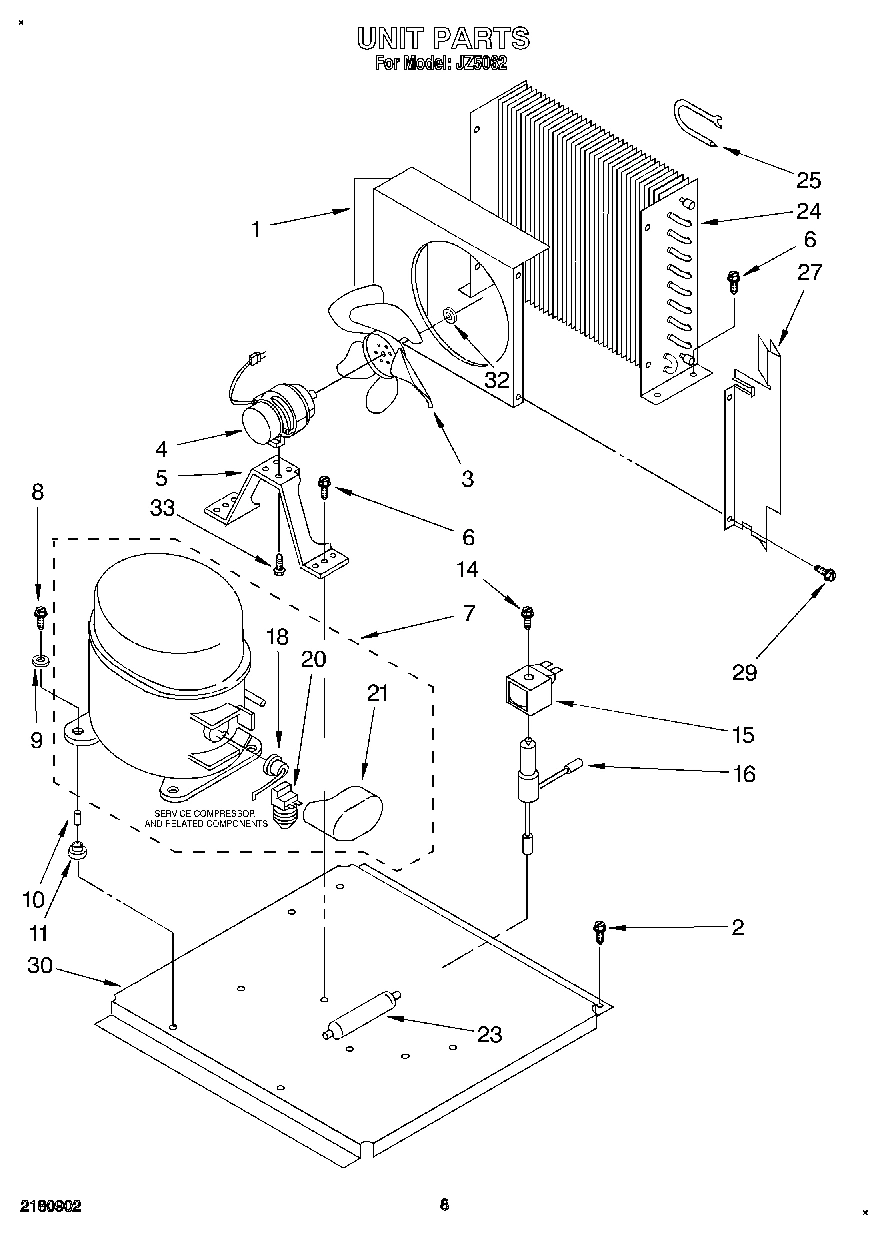

06 - UNIT
Common parts from model Whirlpool JZ5062 ICE CUBE MAKER
1
WPL 759296 WPL 759296 Contact Us For Availability
1
WPL 757955 WPL 757955 Contact Us For Availability
2
Screw, WPL 680811 Contact Us For Availability
2
WPL 585856 WPL 585856 Contact Us For Availability
2
WPL 756124 WPL 756124 Contact Us For Availability
2
WPL 2165483 WPL 2165483 Contact Us For Availability
3
WPL 758597 WPL 758597 Contact Us For Availability
3
WPL 681391 WPL 681391 Contact Us For Availability
3
Enclosure, Rear WPL 2165530 Contact Us For Availability
4
WPL 1129798 WPL 1129798 Contact Us For Availability
4
WPL 583155 WPL 583155 Contact Us For Availability
4
Switch, Service WPL 2172893 Contact Us For Availability
4
WPL 1108089 WPL 1108089 Contact Us For Availability
5
WPL 2180809 WPL 2180809 Contact Us For Availability
5
WPL 587096 WPL 587096 Contact Us For Availability
5
WPL 2172846 WPL 2172846 Contact Us For Availability
5
WPL 560817 WPL 560817 Contact Us For Availability
6
WPL 2174726 WPL 2174726 Contact Us For Availability
6
WPL 1127834 WPL 1127834 Contact Us For Availability
6
Screw, 1/4-20 x 1/2 (6) WPL 681305 Contact Us For Availability
7
WPL 2174724 WPL 2174724 Contact Us For Availability
7
WPL 583424 WPL 583424 Contact Us For Availability
8
WPL 759213 WPL 759213 Contact Us For Availability
8
WPL 756122 WPL 756122 Contact Us For Availability
8
WPL 680233 WPL 680233 Contact Us For Availability
9
WPL 596016 WPL 596016 Contact Us For Availability
9
WPL 759000 WPL 759000 Contact Us For Availability
9
WPL 595230 WPL 595230 Contact Us For Availability
10
Washer (2) WPL 758492 Contact Us For Availability
10
WPL 756564 WPL 756564 Contact Us For Availability
10
WPL 593229 WPL 593229 Contact Us For Availability
10
WPL 585564 WPL 585564 Contact Us For Availability
11
WPL 759308 WPL 759308 Contact Us For Availability
11
WPL 489013 WPL 489013 Contact Us For Availability
11
WPL 596355 WPL 596355 Contact Us For Availability
12
WPL 759309 WPL 759309 Contact Us For Availability
12
Liner (Includes Nos. 10, 11, 17, 19, 21, and WPL 756350 Contact Us For Availability
13
WPL 2172898 WPL 2172898 Contact Us For Availability
13
WPL 585853 WPL 585853 Contact Us For Availability
13
WPL 681245 WPL 681245 Contact Us For Availability
13
Pump WPL 583518 Contact Us For Availability
14
WPL 596023 WPL 596023 Contact Us For Availability
14
Impeller (Includes Retaining Ring 15) WPL 583426 Contact Us For Availability
14
WPL 489472 WPL 489472 Contact Us For Availability
15
WPL 759112 WPL 759112 Contact Us For Availability
15
Gasket WPL 758921 Contact Us For Availability
15
WPL 759109 WPL 759109 Contact Us For Availability
15
WPL 681301 WPL 681301 Contact Us For Availability
15
Screw, WPL 681036 Contact Us For Availability
16
WPL 596037 WPL 596037 Contact Us For Availability
17
WPL 596807 WPL 596807 Contact Us For Availability
17
WPL 2174725 WPL 2174725 Contact Us For Availability
18
WPL 756891 WPL 756891 Contact Us For Availability
18
WPL 2174727 WPL 2174727 Contact Us For Availability
18
WPL 2183404 WPL 2183404 Contact Us For Availability
19
Nut WPL 681542 Contact Us For Availability
19
WPL 2174750 WPL 2174750 Contact Us For Availability
19
WPL 758567 WPL 758567 Contact Us For Availability
20
WPL 587662 WPL 587662 Contact Us For Availability
20
Knob WPL 756880 Contact Us For Availability
20
WPL 2183410 WPL 2183410 Contact Us For Availability
21
WPL 758220 WPL 758220 Contact Us For Availability
21
Nut, Wing WPL 681676 Contact Us For Availability
21
WPL 759007 WPL 759007 Contact Us For Availability
22
WPL 593183 WPL 593183 Contact Us For Availability
22
Screw, 8-32 x 1/2 WPL 680964 Contact Us For Availability
23
WPL 596812 WPL 596812 Contact Us For Availability
24
WPL 758902 WPL 758902 Contact Us For Availability
24
Harness, Light WPL 758488 Contact Us For Availability
24
WPL 593736 WPL 593736 Contact Us For Availability
25
WPL 758888 WPL 758888 Contact Us For Availability
25
Bracket, Lamp WPL 758490 Contact Us For Availability
25
WPL 2180807 WPL 2180807 Contact Us For Availability
26
WPL 758889 WPL 758889 Contact Us For Availability
26
WPL 681611 WPL 681611 Contact Us For Availability
27
Bulb WPL 745362 Contact Us For Availability
27
WPL 758811 WPL 758811 Contact Us For Availability
28
WPL 593577 WPL 593577 Contact Us For Availability
28
WPL 2174752 WPL 2174752 Contact Us For Availability
29
Shield, Light WPL 758489 Contact Us For Availability
30
WPL 758810 WPL 758810 Contact Us For Availability
31
WPL 758901 WPL 758901 Contact Us For Availability
32
WPL 2174781 WPL 2174781 Contact Us For Availability
32
Conical Washer 1/4-20 Hex WPL 681650 Contact Us For Availability
33
Screw WPL 489199 Contact Us For Availability
34
Thumbscrew, 10-1/2 WPL 680930 Contact Us For Availability
35
WPL 596715 WPL 596715 Contact Us For Availability
36
WPL 758713 WPL 758713 Contact Us For Availability
37
WPL 758754 WPL 758754 Contact Us For Availability
38
WPL 681196 WPL 681196 Contact Us For Availability
38
Adapter WPL 2165477 Contact Us For Availability
41
WPL 593171 WPL 593171 Contact Us For Availability
42
Washer WPL 681613 Contact Us For Availability
42
Thumbscrew, 10-32 x 5/8 WPL 681534 Contact Us For Availability
43
WPL 756659 WPL 756659 Contact Us For Availability
44
Thumbscrew, 10 x 1/2 WPL 681419 Contact Us For Availability
44
WPL 758716 WPL 758716 Contact Us For Availability
45
Stopper, Water Pan WPL 759043 Contact Us For Availability
47
Grill, Front WPL 758769 Contact Us For Availability
48
Panel, Filler WPL 758770 Contact Us For Availability
49
WPL 758771 WPL 758771 Contact Us For Availability
51
WPL 755677 WPL 755677 Contact Us For Availability
52
WPL 2175604 WPL 2175604 Contact Us For Availability
53
VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability
53
WPL 758844 WPL 758844 Contact Us For Availability
53
VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability
× ![]()
