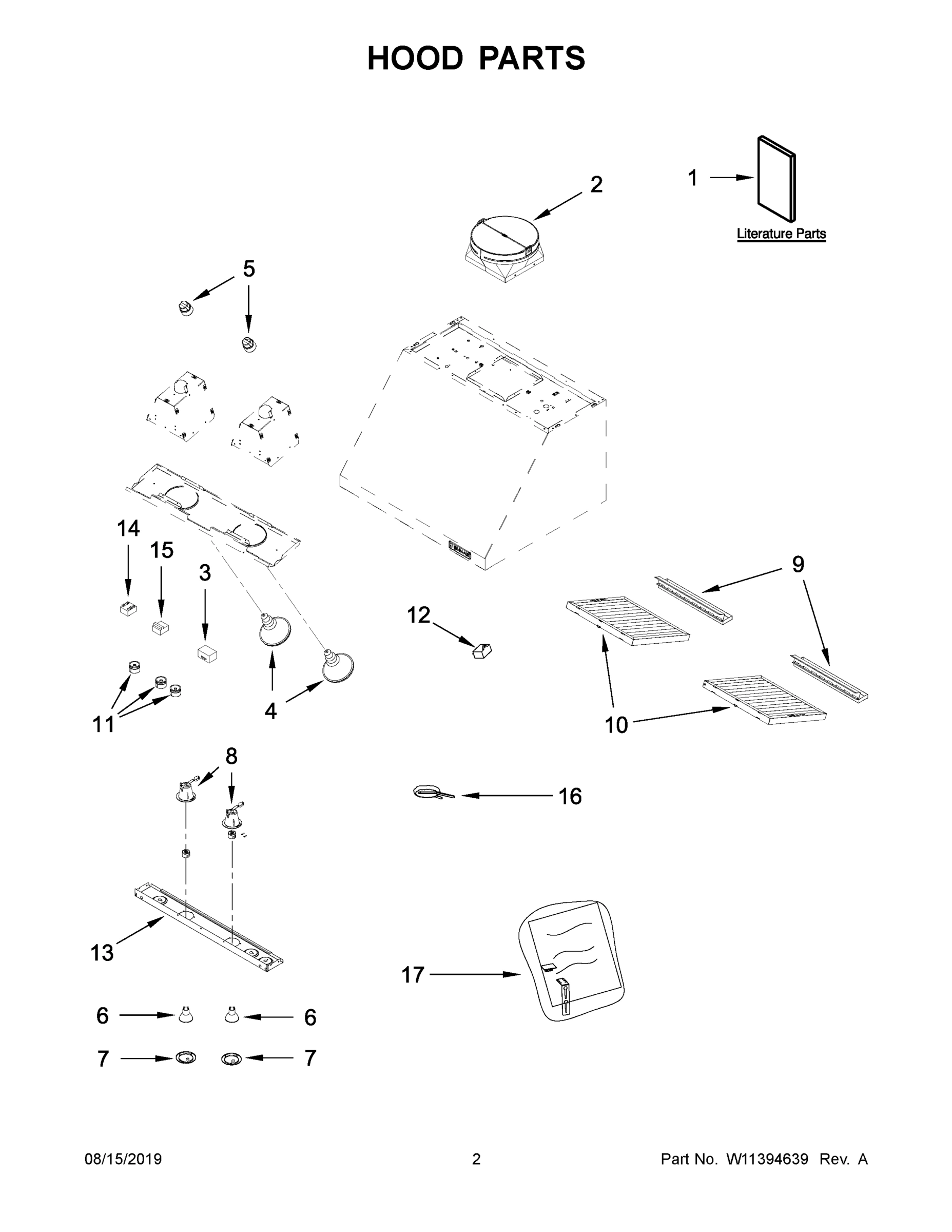

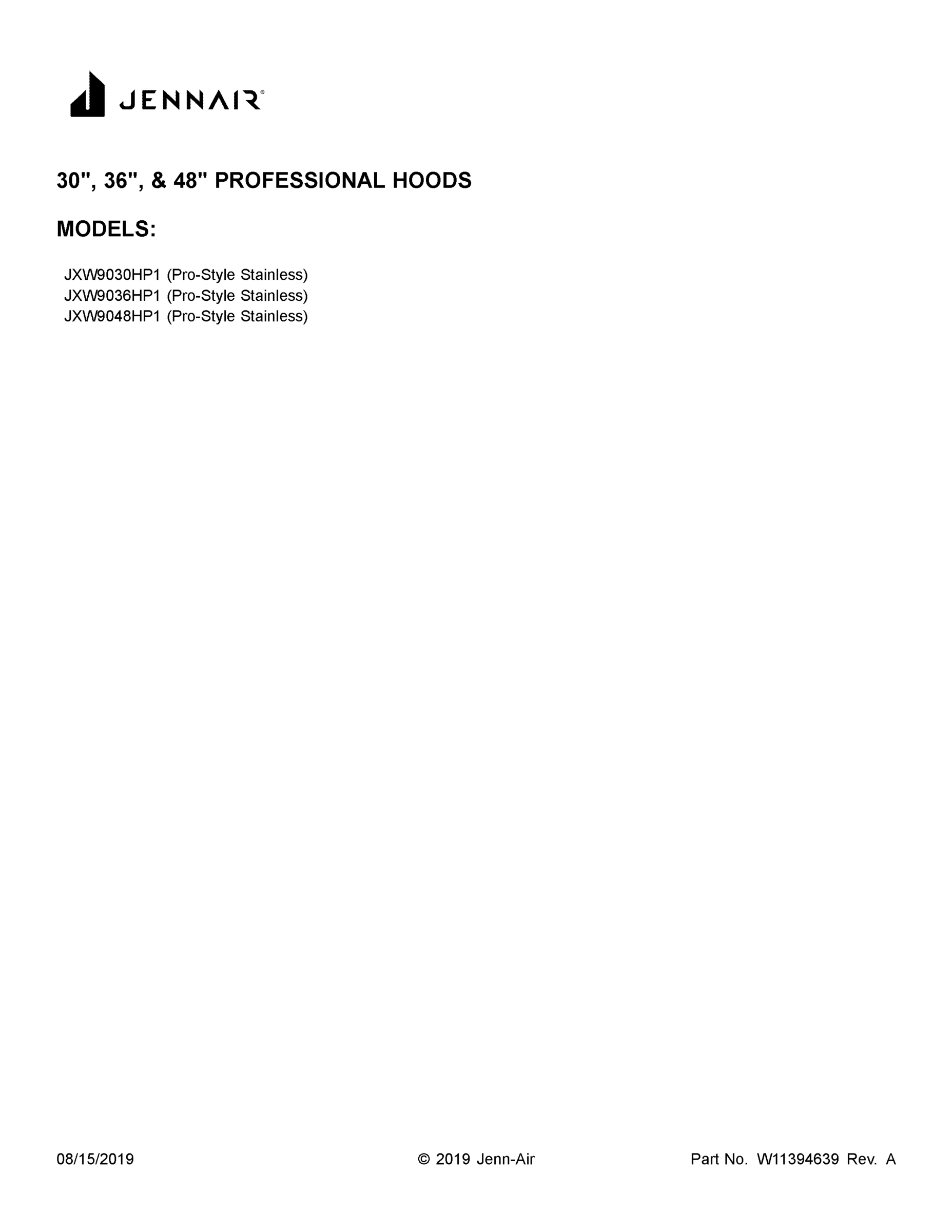

Model Maytag JXW9048HP1 HOOD/VENTILATION, PROFESSIONAL, 30, 36 & 48 INCH – Common Parts & Diagrams

1
MAY W11374531
MAY W11374531 MAY W11374531 Contact Us For Availability
View on Model
1
FAN ASSEMBLY (600 CFM INTERNAL BLOWER MOTOR)
FAN ASSEMBLY (600 CFM INTERNAL BLOWER MOTOR) MAY W11156402 Contact Us For Availability
View on Model
1A
FAN ASSEMBLY (1200 CFM INTERNAL BLOWER MOTOR)
FAN ASSEMBLY (1200 CFM INTERNAL BLOWER MOTOR) MAY W11122047 Contact Us For Availability
View on Model
2
ASSEMBLY, DAMPER
ASSEMBLY, DAMPER MAY W11156393 Contact Us For Availability
View on Model
3
SWITCH, FAN
SWITCH, FAN MAY W10293967 Contact Us For Availability
View on Model
4
LAMP, IR
LAMP, IR MAY W10294005 Contact Us For Availability
View on Model
5
SOCKET, IR LAMP
SOCKET, IR LAMP MAY W10294008 Contact Us For Availability
View on Model
6
MAY W11388445
MAY W11388445 MAY W11388445 Contact Us For Availability
View on Model
7
BEZEL, LAMP
BEZEL, LAMP MAY W10351924 Contact Us For Availability
View on Model
8
SOCKET, LIGHT
SOCKET, LIGHT MAY W10295808 Contact Us For Availability
View on Model
9
GREASE TRAY (30" MODEL ONLY)
GREASE TRAY (30" MODEL ONLY) MAY W10294003 Contact Us For Availability
View on Model
9A
GREASE TRAY (36" MODEL ONLY)
GREASE TRAY (36" MODEL ONLY) MAY W10294011 Contact Us For Availability
View on Model
9B
GREASE TRAY (48" MODEL ONLY)
GREASE TRAY (48" MODEL ONLY) MAY W10294022 Contact Us For Availability
View on Model
10
GREASE FILTER (30" MODEL ONLY)
GREASE FILTER (30" MODEL ONLY) MAY W10351890 Contact Us For Availability
View on Model
10A
GREASE FILTER (36" MODEL ONLY)
GREASE FILTER (36" MODEL ONLY) MAY W10351892 Contact Us For Availability
View on Model
10B
GREASE FILTER (48" MODEL ONLY)
GREASE FILTER (48" MODEL ONLY) MAY W10351929 Contact Us For Availability
View on Model
11
KNOB
KNOB MAY W10294009 Contact Us For Availability
View on Model
12
CAPACITOR (25 MF)
CAPACITOR (25 MF) MAY W11245979 Contact Us For Availability
View on Model
13
CONTROL PANEL (30" MODEL ONLY)
CONTROL PANEL (30" MODEL ONLY) MAY W10295804 Contact Us For Availability
View on Model
13A
CONTROL PANEL (36" MODEL ONLY)
CONTROL PANEL (36" MODEL ONLY) MAY W10295807 Contact Us For Availability
View on Model
13B
CONTROL PANEL (48" MODEL ONLY)
CONTROL PANEL (48" MODEL ONLY) MAY W10293971 Contact Us For Availability
View on Model
14
SWITCH, IR LAMP
SWITCH, IR LAMP MAY W10293976 Contact Us For Availability
View on Model
15
SWITCH, LIGHT
SWITCH, LIGHT MAY W10293968 Contact Us For Availability
View on Model
16
FILTER, NOISE
FILTER, NOISE MAY W10427011 Contact Us For Availability
View on Model
17
HARDWARE, INSTALLATION
HARDWARE, INSTALLATION MAY W10293977 Contact Us For Availability
View on Model
NI
ACCESSORIES, KIT, BACKSPLASH 30" WITH SHELVES
ACCESSORIES, KIT, BACKSPLASH 30" WITH SHELVES MAY W10285447 Contact Us For Availability
View on Model
NI
ACCESSORIES, KIT, BACKSPLASH 36" WITH SHELVES
ACCESSORIES, KIT, BACKSPLASH 36" WITH SHELVES MAY W10285448 Contact Us For Availability
View on Model
NI
ACCESSORIES, KIT, BACKSPLASH 48" WITH SHELVES
ACCESSORIES, KIT, BACKSPLASH 48" WITH SHELVES MAY W10285449 Contact Us For Availability
View on Model
