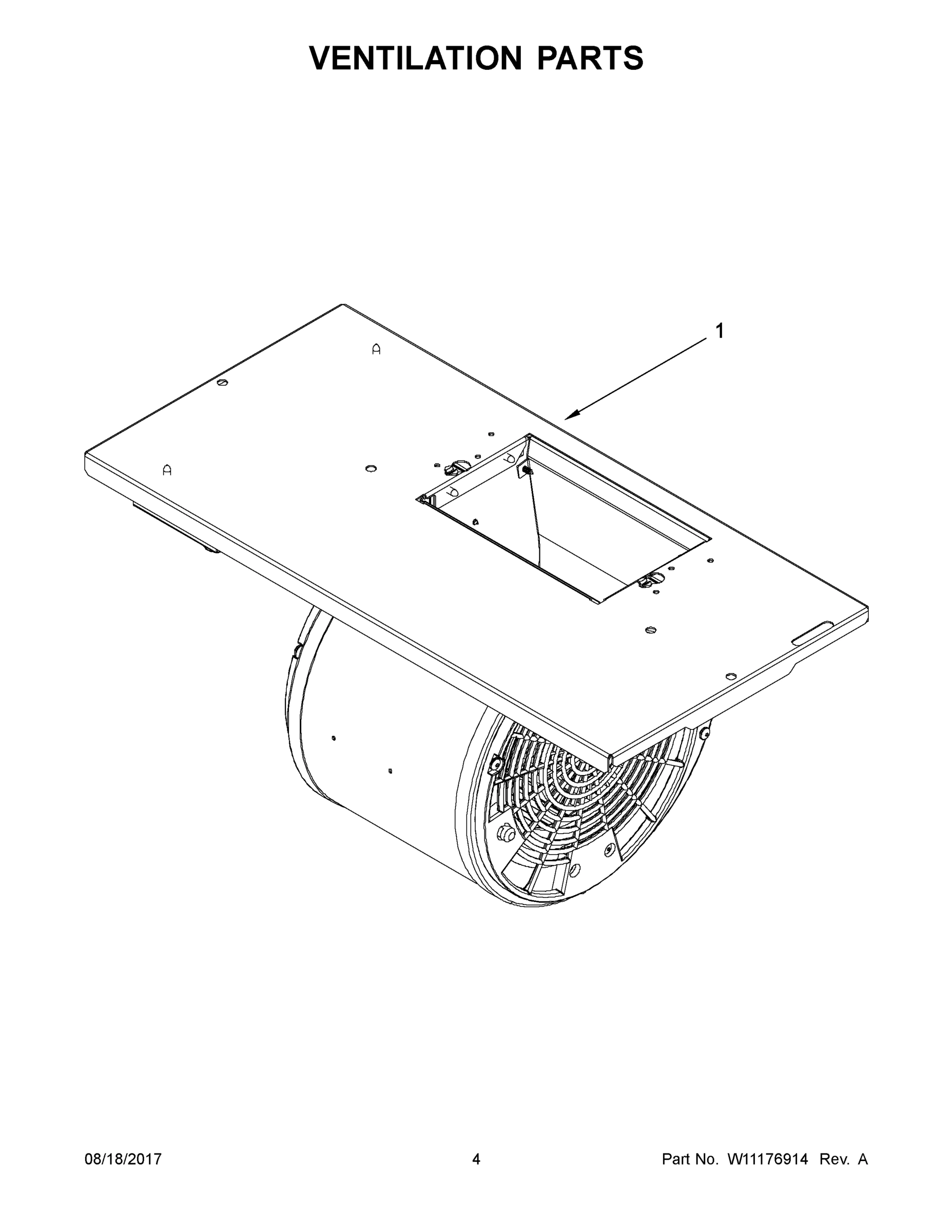

Model Maytag JXW9036WP2 HOOD/VENTILATION, WALL MOUNT, 30 & 36, & 48 INCH – Common Parts & Diagrams

1
USE AND CARE GUIDE
USE AND CARE GUIDE MAY W10274316 Contact Us For Availability
View on Model
1
MAY W11156402
MAY W11156402 MAY W11156402 Contact Us For Availability
View on Model
1A
MAY W11122047
MAY W11122047 MAY W11122047 Contact Us For Availability
View on Model
2
MAY W11156393
MAY W11156393 MAY W11156393 Contact Us For Availability
View on Model
3
SWITCH, FAN
SWITCH, FAN MAY W10293967 Contact Us For Availability
View on Model
4
LAMP, IR
LAMP, IR MAY W10294005 Contact Us For Availability
View on Model
5
SOCKET, IR LAMP
SOCKET, IR LAMP MAY W10294008 Contact Us For Availability
View on Model
6
BULB, LIGHT
BULB, LIGHT MAY W10291579 Contact Us For Availability
View on Model
7
BEZEL, LAMP
BEZEL, LAMP MAY W10351924 Contact Us For Availability
View on Model
8
SOCKET, LIGHT
SOCKET, LIGHT MAY W10295808 Contact Us For Availability
View on Model
9
GREASE TRAY (30" MODEL ONLY)
GREASE TRAY (30" MODEL ONLY) MAY W10294003 Contact Us For Availability
View on Model
9A
GREASE TRAY (36" MODEL ONLY)
GREASE TRAY (36" MODEL ONLY) MAY W10294011 Contact Us For Availability
View on Model
9B
GREASE TRAY (48" MODEL ONLY)
GREASE TRAY (48" MODEL ONLY) MAY W10294022 Contact Us For Availability
View on Model
10
GREASE FILTER (30" MODEL ONLY)
GREASE FILTER (30" MODEL ONLY) MAY W10351890 Contact Us For Availability
View on Model
10A
GREASE FILTER (36" MODEL ONLY)
GREASE FILTER (36" MODEL ONLY) MAY W10351892 Contact Us For Availability
View on Model
10B
GREASE FILTER (48" MODEL ONLY)
GREASE FILTER (48" MODEL ONLY) MAY W10351929 Contact Us For Availability
View on Model
11
KNOB
KNOB MAY W10294009 Contact Us For Availability
View on Model
12
CAPACITOR
CAPACITOR MAY W10716814 Contact Us For Availability
View on Model
13
CONTROL PANEL (30" MODEL ONLY)
CONTROL PANEL (30" MODEL ONLY) MAY W10295804 Contact Us For Availability
View on Model
13A
CONTROL PANEL (36" MODEL ONLY)
CONTROL PANEL (36" MODEL ONLY) MAY W10295807 Contact Us For Availability
View on Model
13B
CONTROL PANEL (48" MODEL ONLY)
CONTROL PANEL (48" MODEL ONLY) MAY W10293971 Contact Us For Availability
View on Model
14
SWITCH, IR LAMP
SWITCH, IR LAMP MAY W10293976 Contact Us For Availability
View on Model
15
SWITCH, LIGHT
SWITCH, LIGHT MAY W10293968 Contact Us For Availability
View on Model
16
HARDWARE, INSTALLATION
HARDWARE, INSTALLATION MAY W10293977 Contact Us For Availability
View on Model
17
FILTER, NOISE
FILTER, NOISE MAY W10427011 Contact Us For Availability
View on Model
NI
ACCESSORIES, FULL-WIDTH DUCT COVER (30" MODEL
ACCESSORIES, FULL-WIDTH DUCT COVER (30" MODEL MAY W10272079 Contact Us For Availability
View on Model
NI
ACCESSORIES, FULL-WIDTH DUCT COVER (36" MODEL
ACCESSORIES, FULL-WIDTH DUCT COVER (36" MODEL MAY W10272080 Contact Us For Availability
View on Model
NI
ACCESSORIES, FULL-WIDTH DUCT COVER (48" MODEL
ACCESSORIES, FULL-WIDTH DUCT COVER (48" MODEL MAY W10272081 Contact Us For Availability
View on Model
NI
ACCESSORIES, KIT, BACKSPLASH (30" WITH SHELVE
ACCESSORIES, KIT, BACKSPLASH (30" WITH SHELVE MAY W10285447 Contact Us For Availability
View on Model
NI
ACCESSORIES, KIT, BACKSPLASH (36" WITH SHELVE
ACCESSORIES, KIT, BACKSPLASH (36" WITH SHELVE MAY W10285448 Contact Us For Availability
View on Model
NI
ACCESSORIES, KIT, BACKSPLASH (48" WITH SHELVE
ACCESSORIES, KIT, BACKSPLASH (48" WITH SHELVE MAY W10285449 Contact Us For Availability
