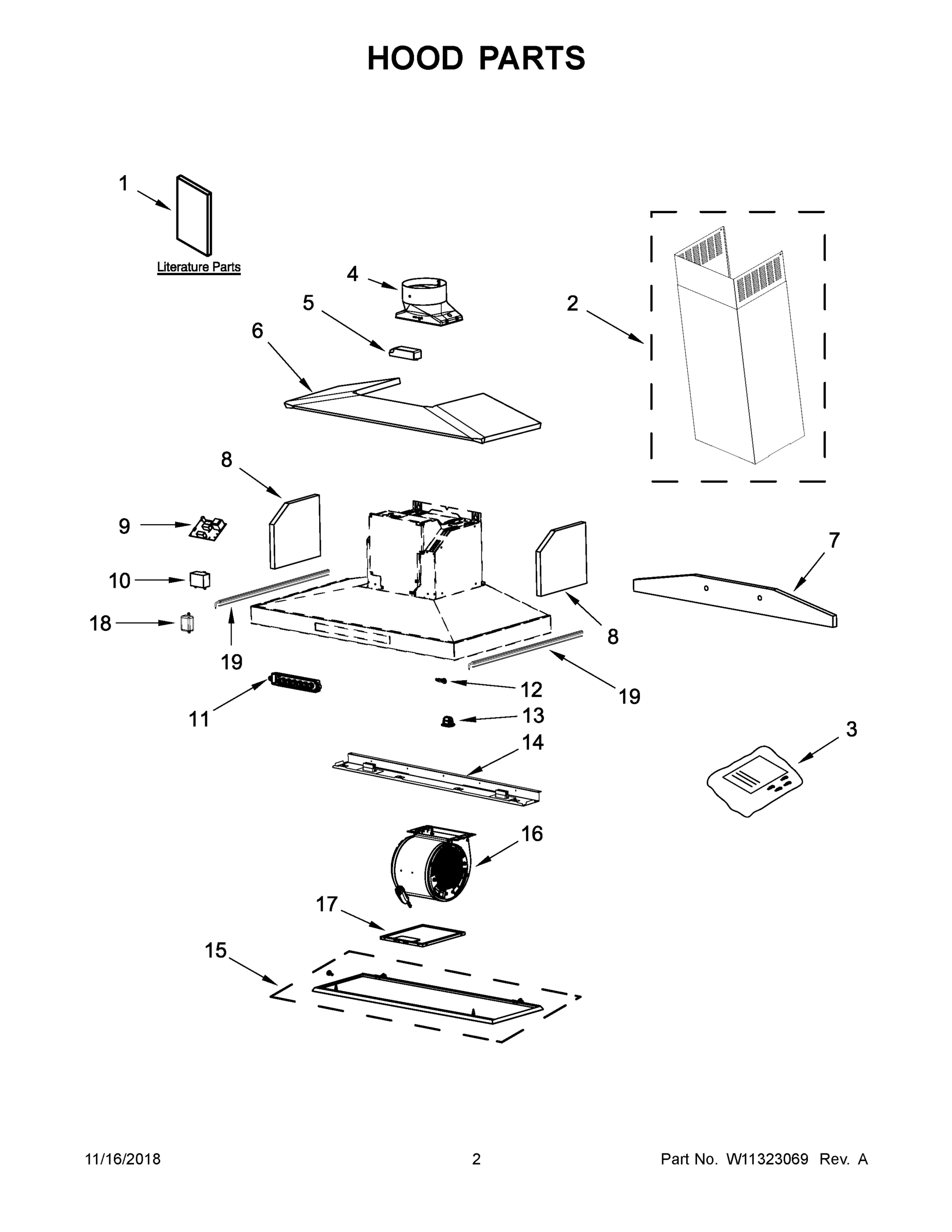

Model Maytag JXW8530DS1 HOOD/VENTILATION, WALL MOUNT, CANOPY, 30 & 36 INCH – Common Parts & Diagrams

1
USE AND CARE GUIDE
USE AND CARE GUIDE MAY W10674114 Contact Us For Availability
View on Model
2
CHIMNEY, UPPER AND LOWER
CHIMNEY, UPPER AND LOWER MAY W11321337 Contact Us For Availability
View on Model
3
HARDWARE, INSTALLATION
HARDWARE, INSTALLATION MAY W11088595 Contact Us For Availability
View on Model
4
DAMPER, HOOD
DAMPER, HOOD MAY W10592040 Contact Us For Availability
View on Model
5
DRIVER, LED
DRIVER, LED MAY W11281878 Contact Us For Availability
View on Model
6
INSULATION (30" MODEL ONLY)
INSULATION (30" MODEL ONLY) MAY W10716812 Contact Us For Availability
View on Model
6A
INSULATION (36" MODEL ONLY)
INSULATION (36" MODEL ONLY) MAY W10727039 Contact Us For Availability
View on Model
7
INSULATION, BACK (30" MODEL ONLY)
INSULATION, BACK (30" MODEL ONLY) MAY W10727038 Contact Us For Availability
View on Model
7A
INSULATION, BACK (36" MODEL ONLY)
INSULATION, BACK (36" MODEL ONLY) MAY W10727040 Contact Us For Availability
View on Model
8
INSULATION, SIDE
INSULATION, SIDE MAY W10717244 Contact Us For Availability
View on Model
9
BOARD, CONTROL
BOARD, CONTROL MAY W11291913 Contact Us For Availability
View on Model
10
CAPACITOR (25 MF)
CAPACITOR (25 MF) MAY W11245979 Contact Us For Availability
View on Model
11
CONTROL, ELECTRONIC
CONTROL, ELECTRONIC MAY W10716813 Contact Us For Availability
View on Model
12
SENSOR, SPEED
SENSOR, SPEED MAY W10716822 Contact Us For Availability
View on Model
13
CLIP, PANEL
CLIP, PANEL MAY W10735735 Contact Us For Availability
View on Model
14
PANEL, LED LIGHTS (30" MODEL ONLY)
PANEL, LED LIGHTS (30" MODEL ONLY) MAY W10748934 Contact Us For Availability
View on Model
14A
PANEL, LED LIGHTS (36" MODEL ONLY)
PANEL, LED LIGHTS (36" MODEL ONLY) MAY W10748935 Contact Us For Availability
View on Model
15
PANEL, PERIMETRIC (30" MODEL ONLY)
PANEL, PERIMETRIC (30" MODEL ONLY) MAY W10738510 Contact Us For Availability
View on Model
15A
PANEL, PERIMETRIC (36" MODEL ONLY)
PANEL, PERIMETRIC (36" MODEL ONLY) MAY W10738512 Contact Us For Availability
View on Model
16
BLOWER, FAN
BLOWER, FAN MAY W10638161 Contact Us For Availability
View on Model
17
FILTER, GREASE
FILTER, GREASE MAY W10727013 Contact Us For Availability
View on Model
18
FILTER, NOISE
FILTER, NOISE MAY W11088596 Contact Us For Availability
View on Model
19
LED STRIP, AMBIENT
LED STRIP, AMBIENT MAY W10916652 Contact Us For Availability
View on Model
NI
ACCESSORIES, KIT, CHIMNEY EXTENSION
ACCESSORIES, KIT, CHIMNEY EXTENSION MAY W10272075 Contact Us For Availability
View on Model
NI
ACCESSORIES, KIT, 6" MAKEUP AIR
ACCESSORIES, KIT, 6" MAKEUP AIR MAY W10446915 Contact Us For Availability
View on Model
NI
ACCESSORIES, KIT, POWER CORD
ACCESSORIES, KIT, POWER CORD MAY W10613691 Contact Us For Availability
View on Model
NI
ACCESSORIES, KIT, RECIRCULATION (FOR NON-VENT
ACCESSORIES, KIT, RECIRCULATION (FOR NON-VENT MAY W10692908 Contact Us For Availability
View on Model
NI
ACCESSORIES, KIT, CHARCOAL FILTER (FOR NON-VE
ACCESSORIES, KIT, CHARCOAL FILTER (FOR NON-VE MAY W10692910 Contact Us For Availability
View on Model
NI
ACCESSORIES, KIT, IN-LINE SMART
ACCESSORIES, KIT, IN-LINE SMART MAY W10692945 Contact Us For Availability
View on Model
