Model Alliance JXW165C Washer – Common Parts & Diagrams

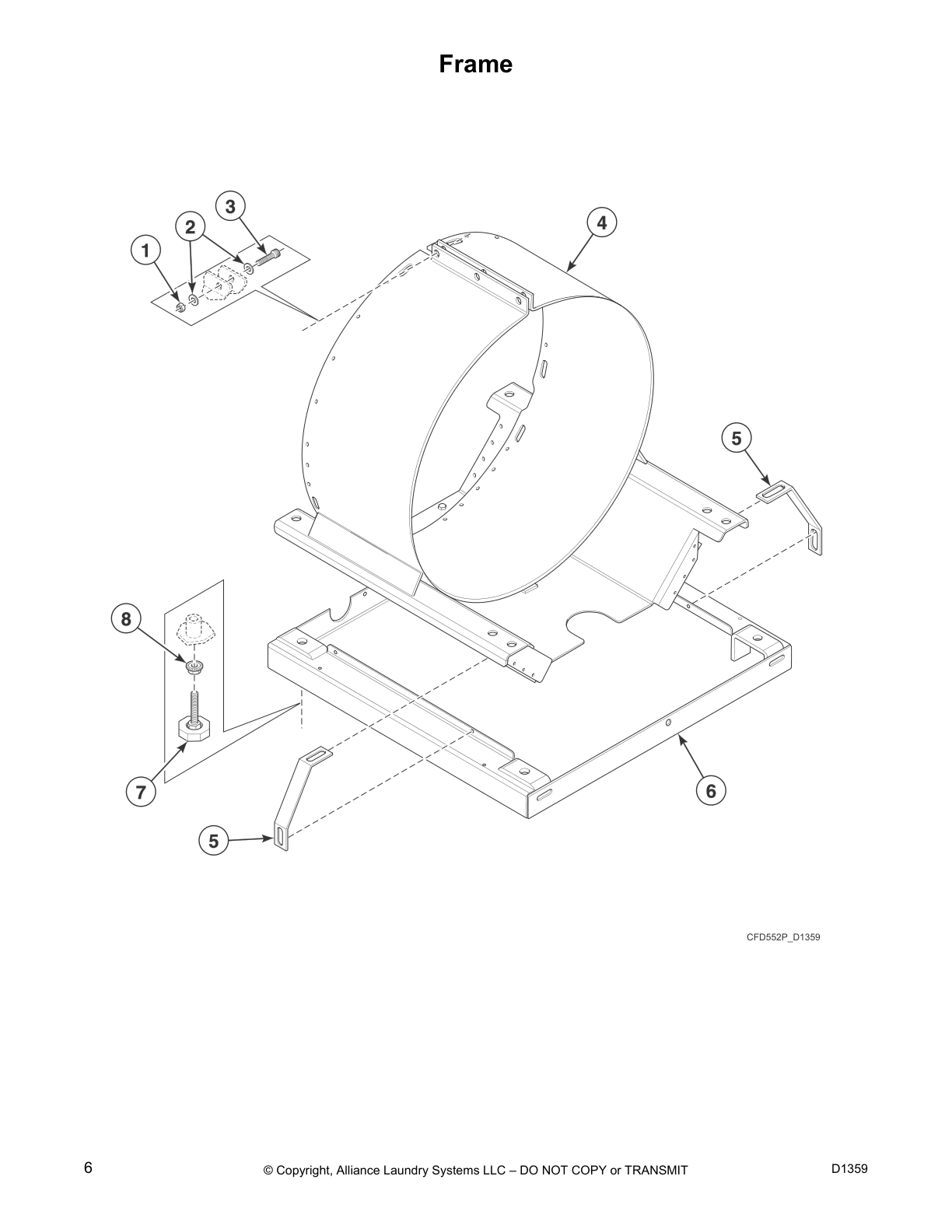

Frame

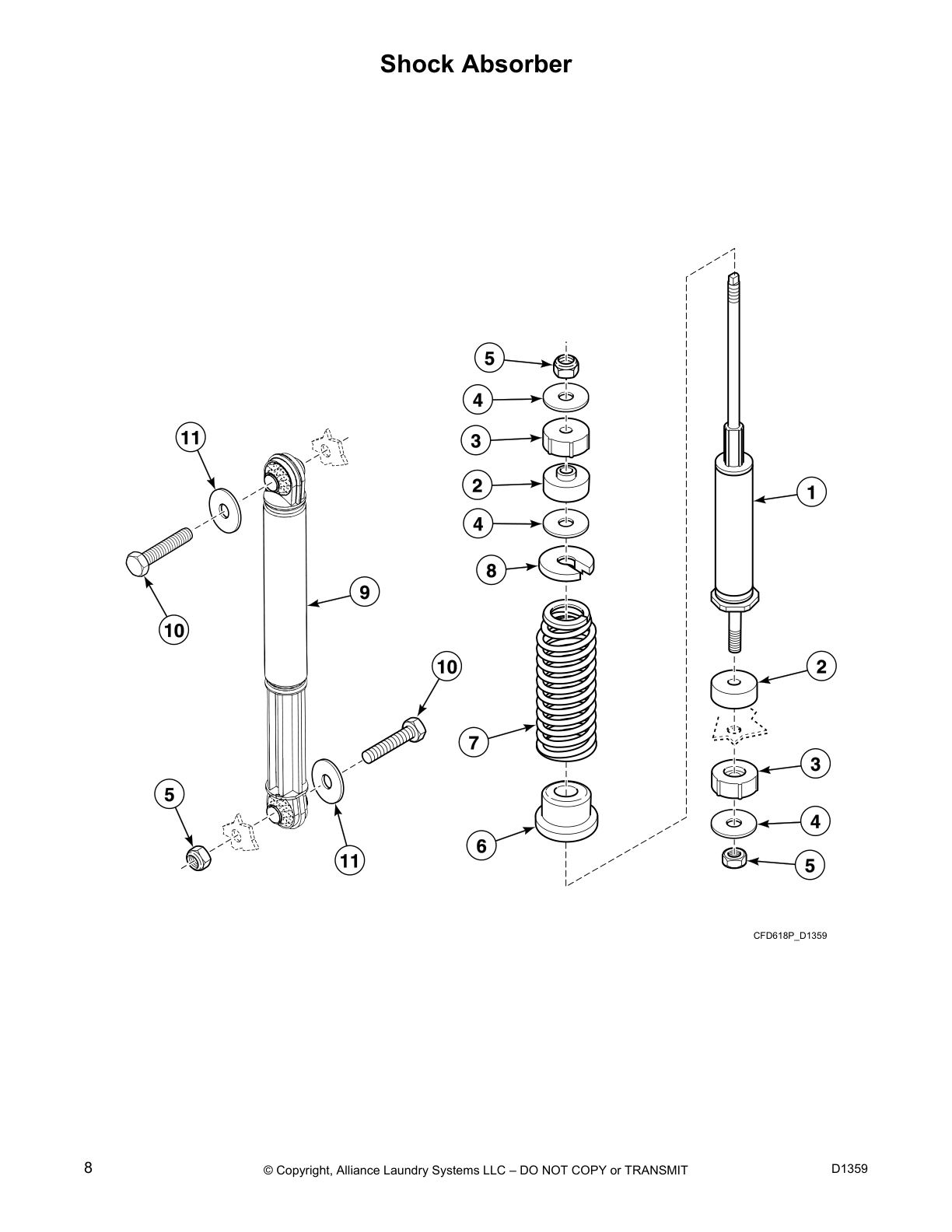

Shock Absorber

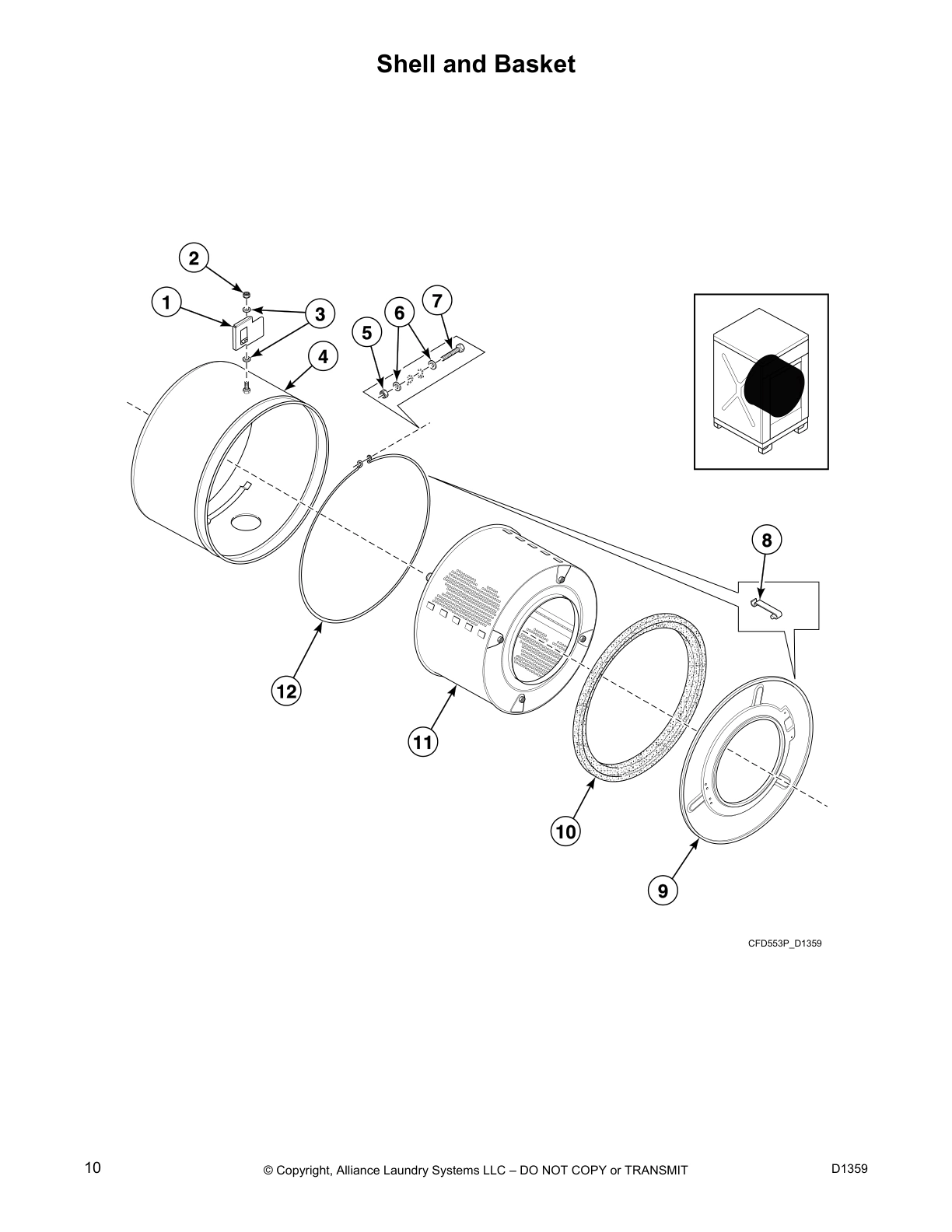

Shell and Basket

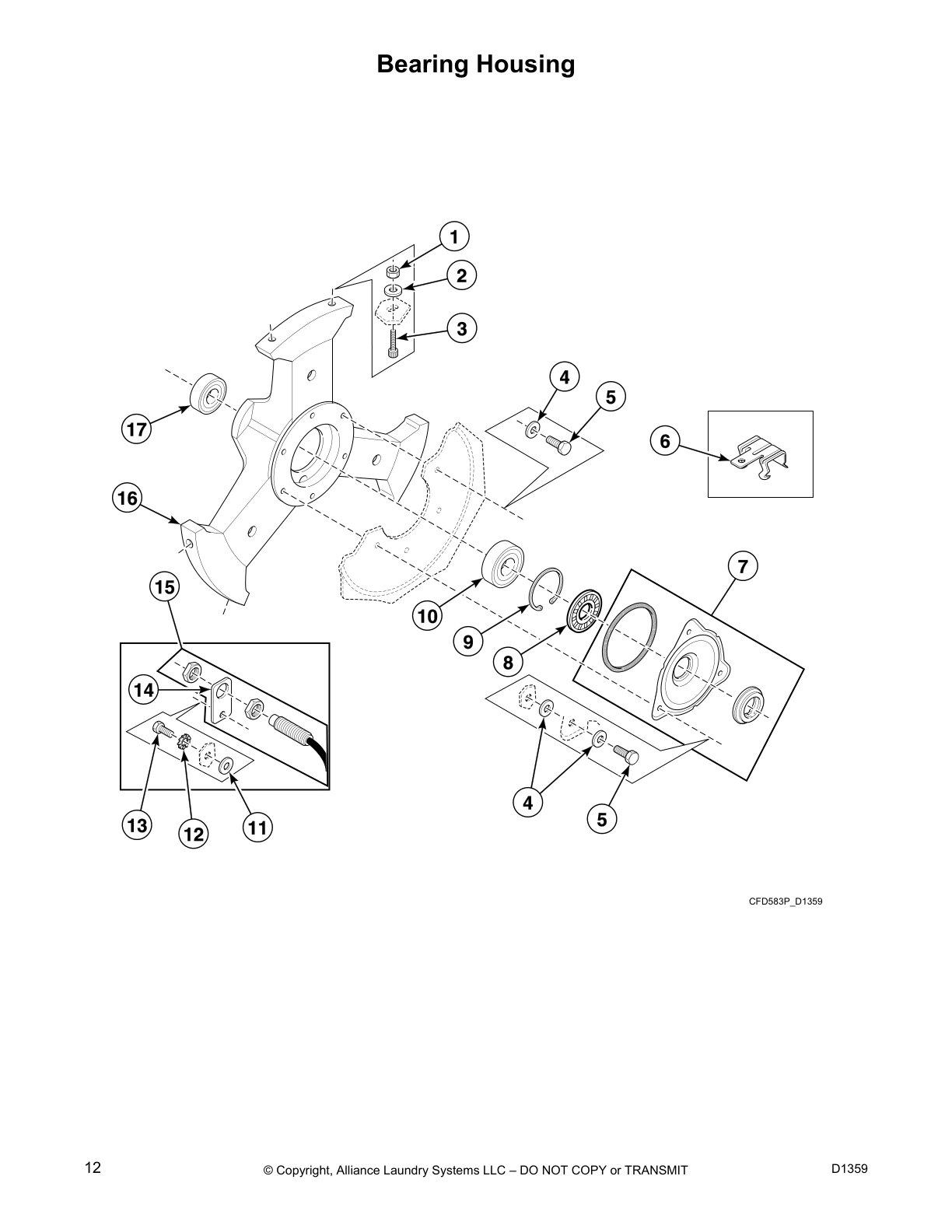

Bearing Housing

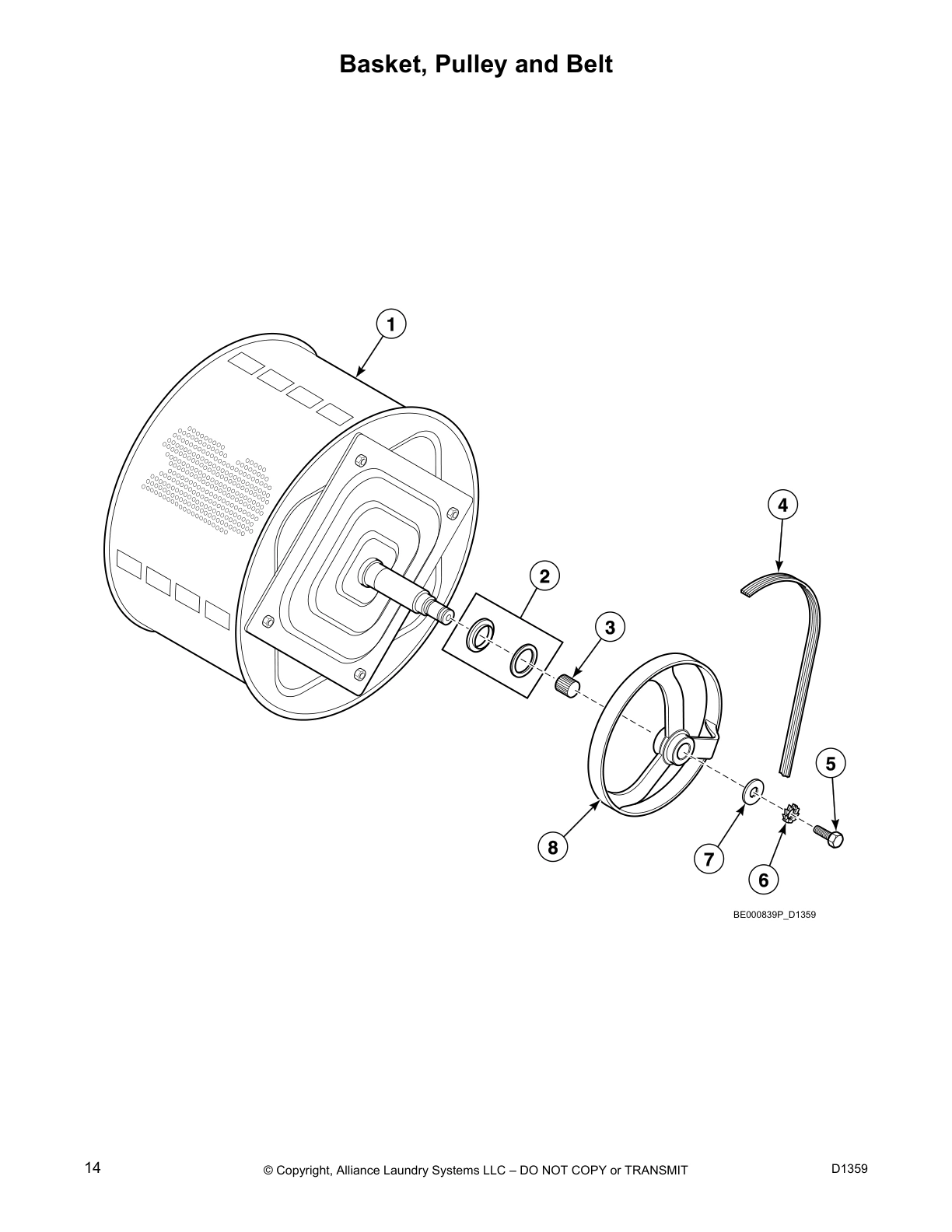

Basket, Pulley and Belt

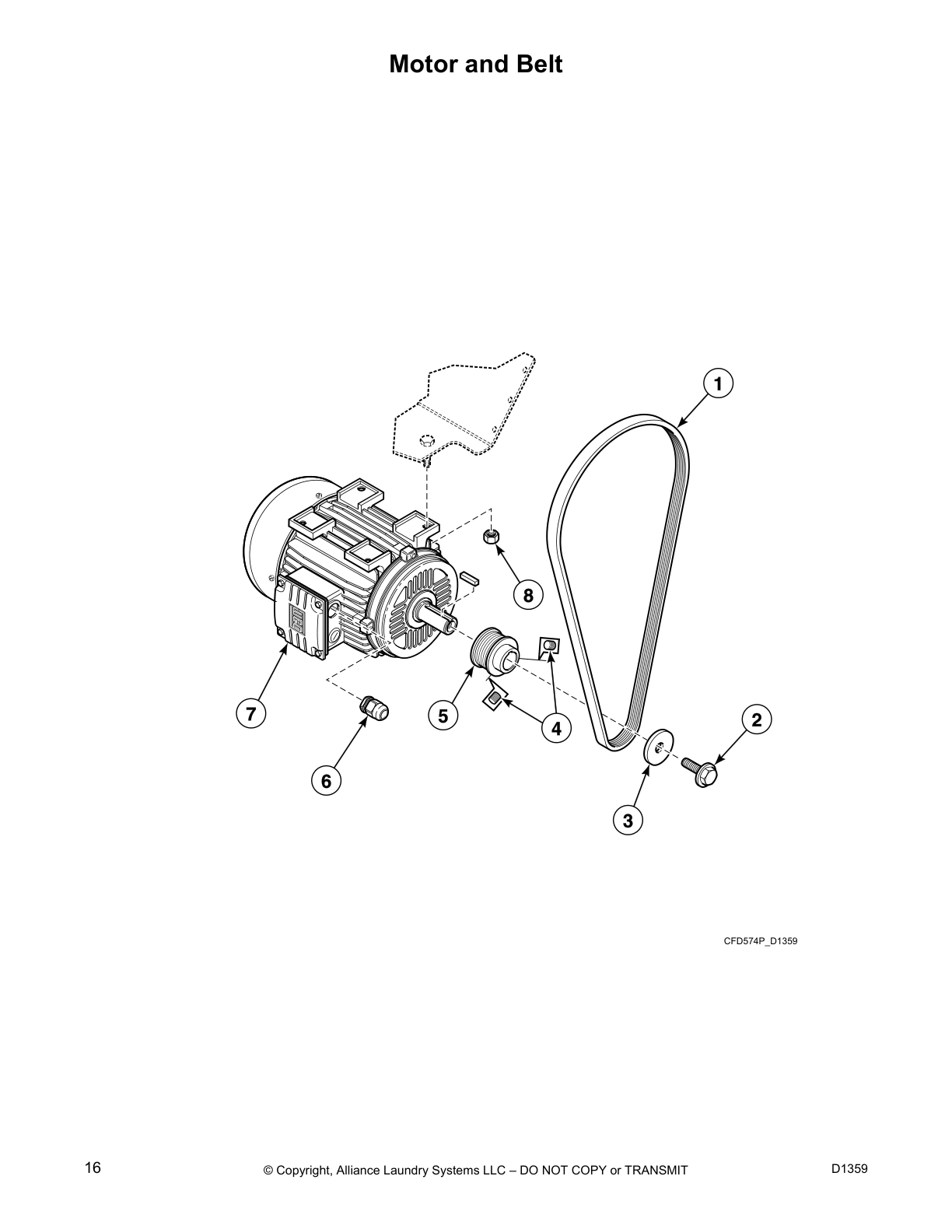

Motor and Belt

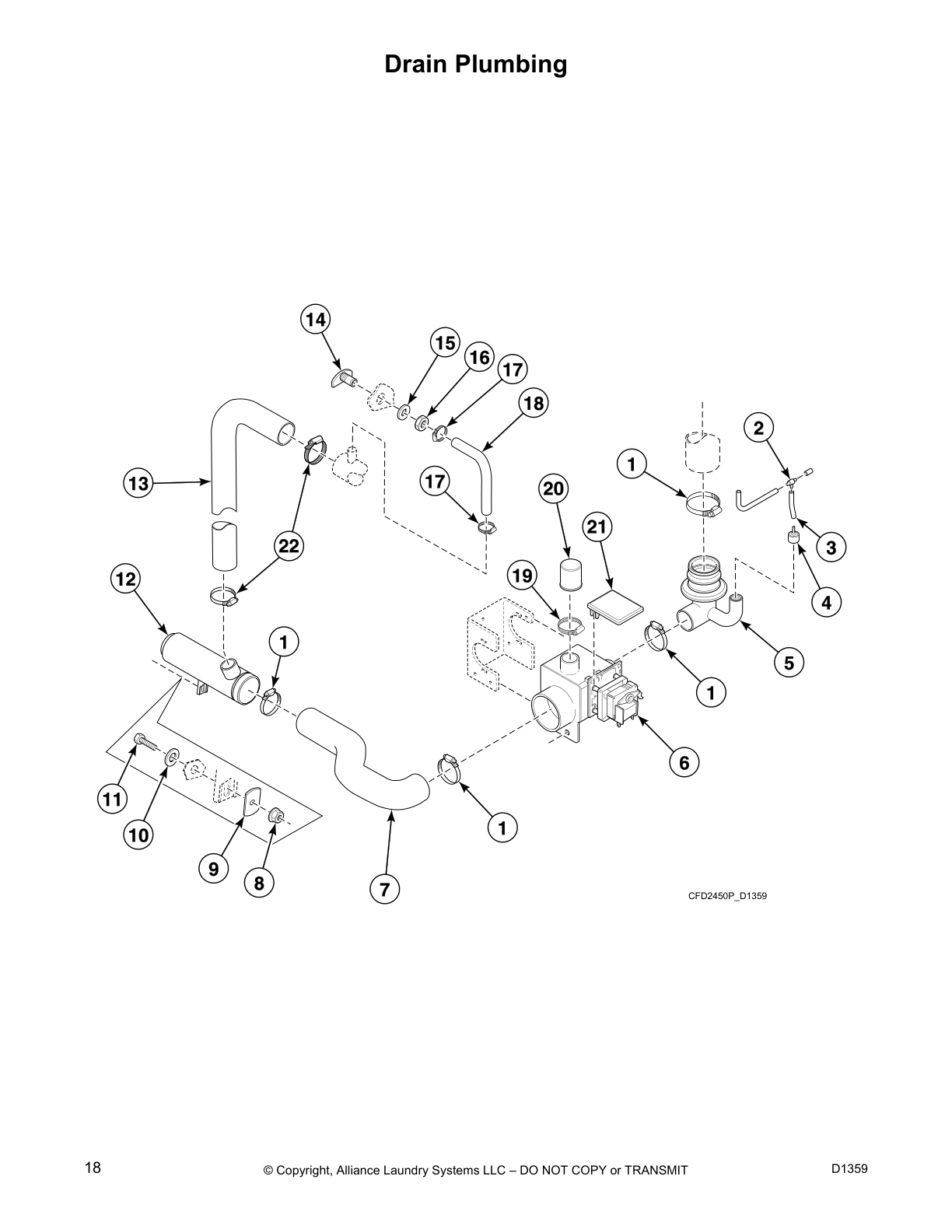

Drain Plumbing

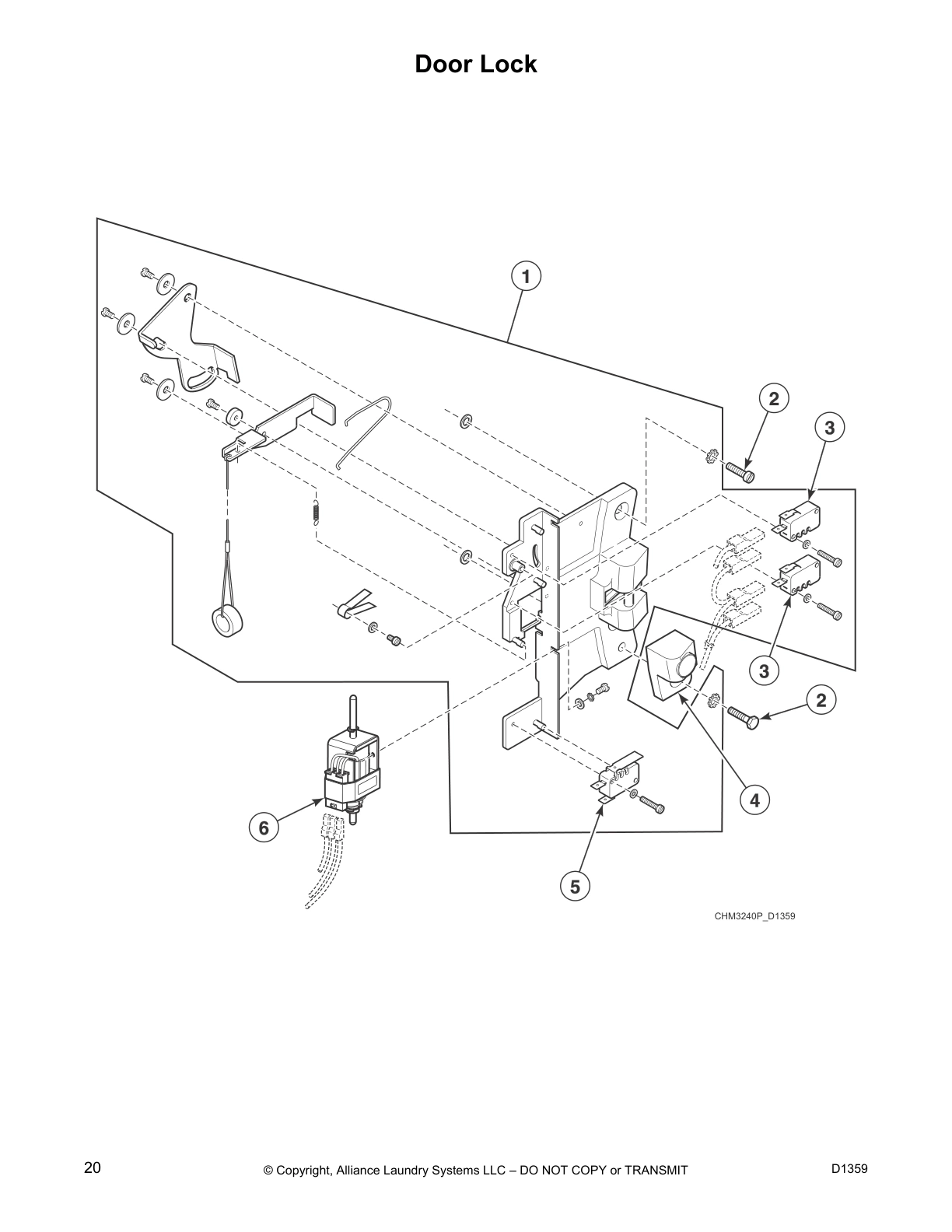

Door Lock

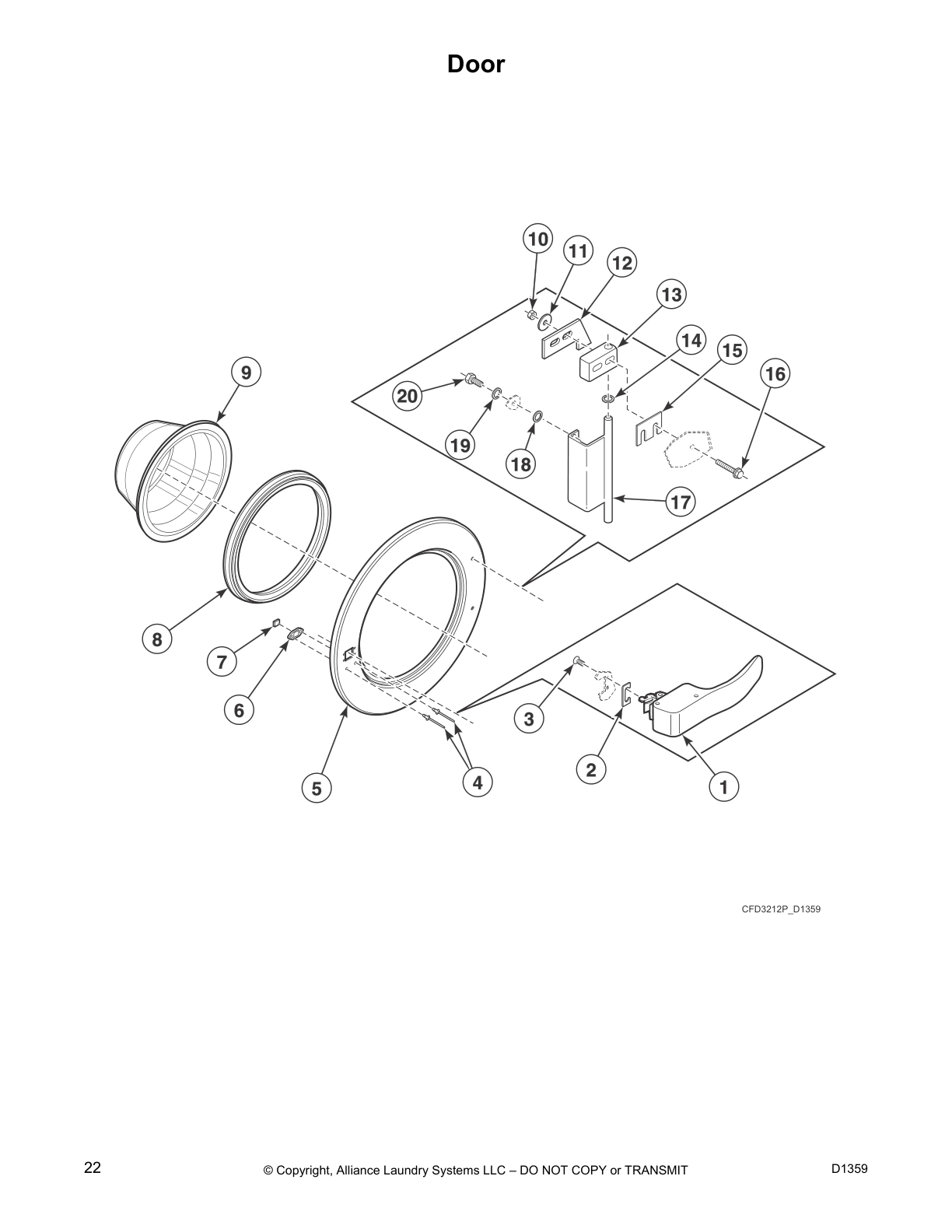

Door

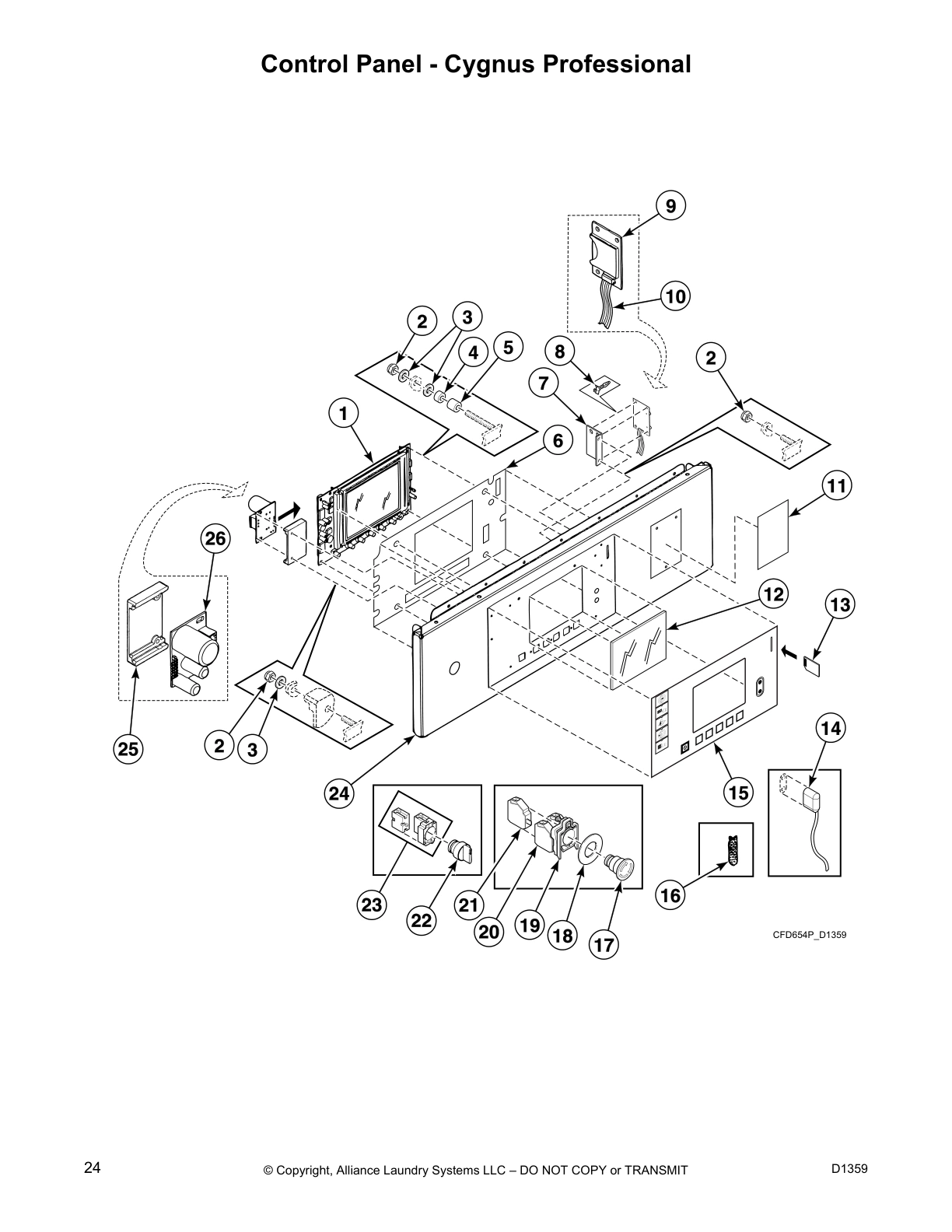

Control Panel - Cygnus Professional

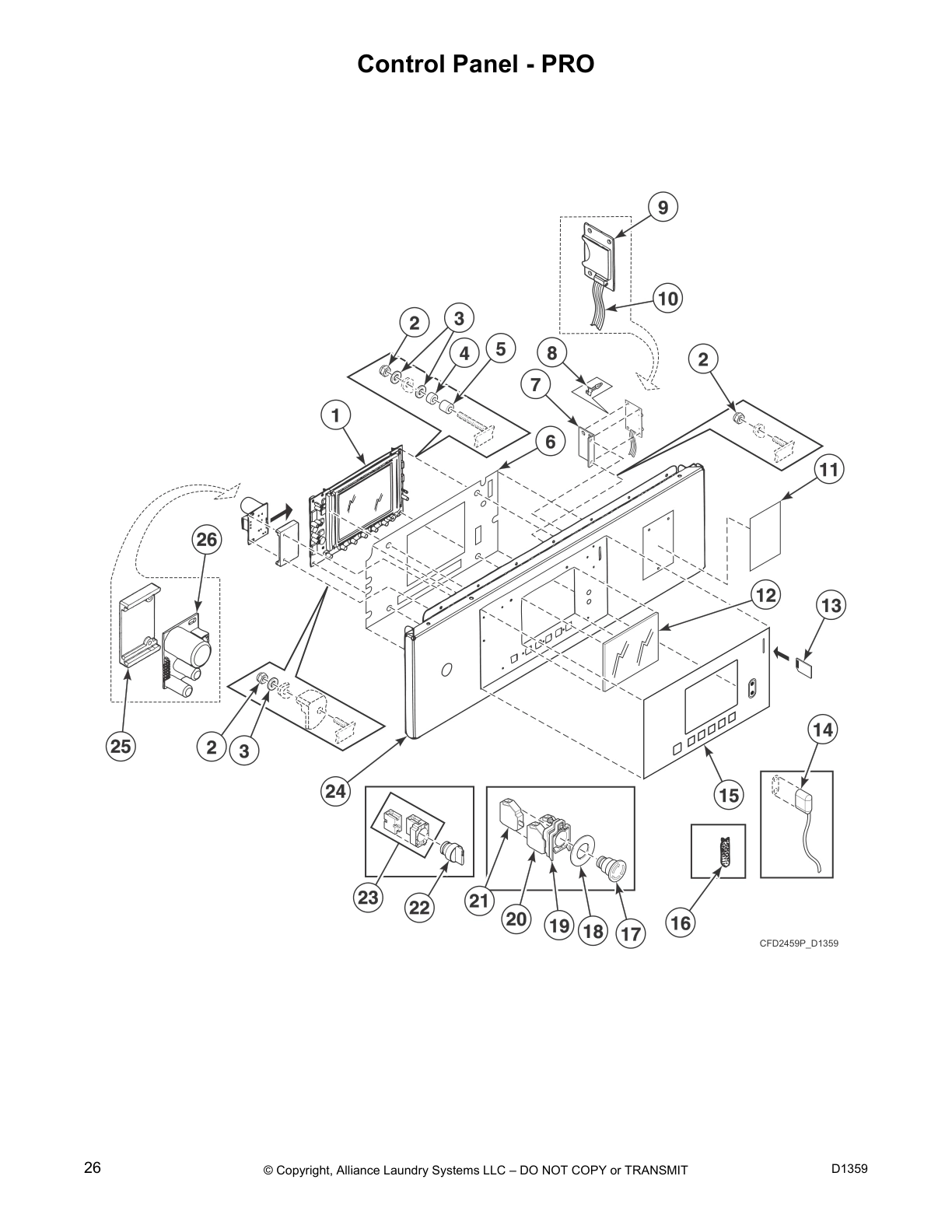

Control Panel - PRO

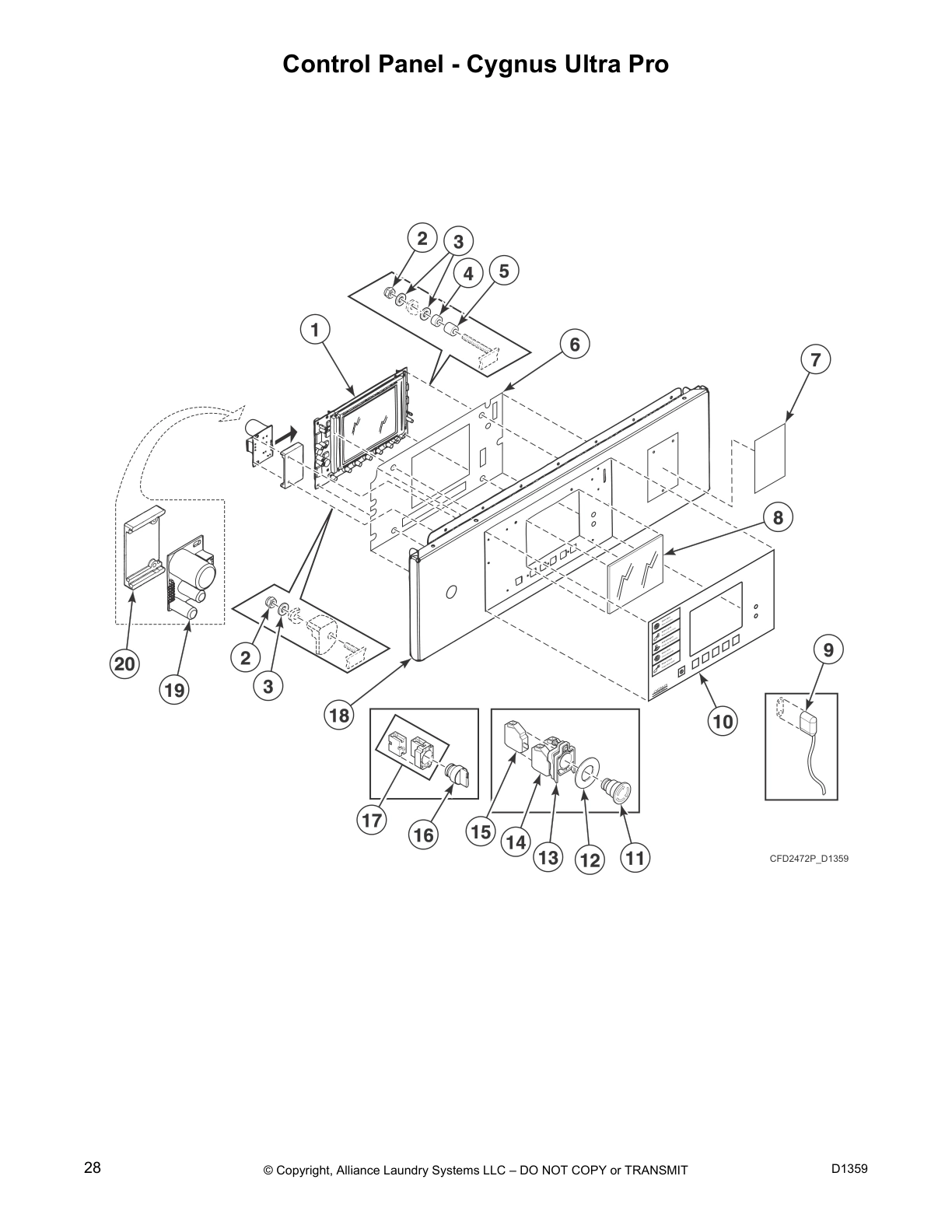

Control Panel - Cygnus Ultra Pro
Control Panel - Cygnus Premium OPL and Ultra

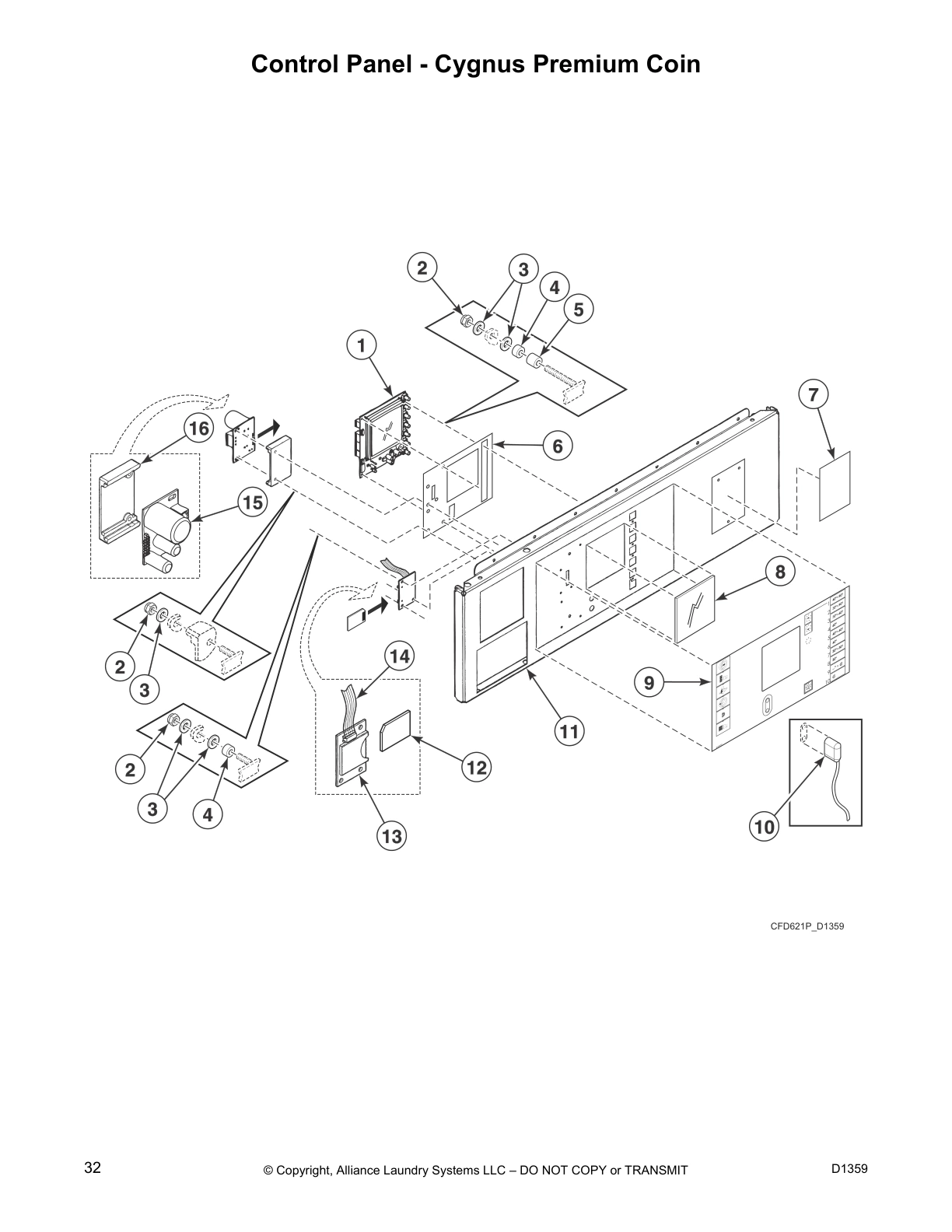

Control Panel - Cygnus Premium Coin

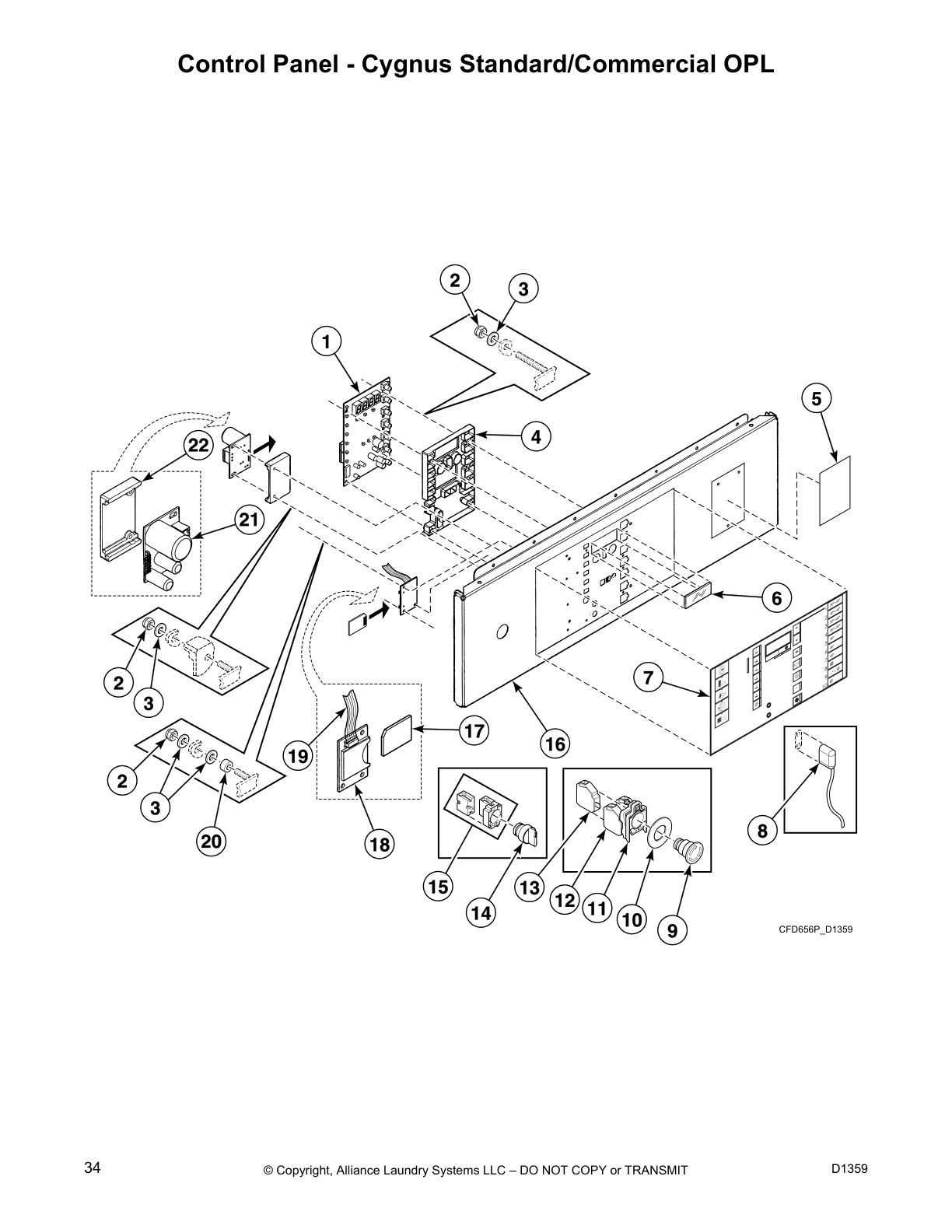

Control Panel - Cygnus Standard/Commercial OPL

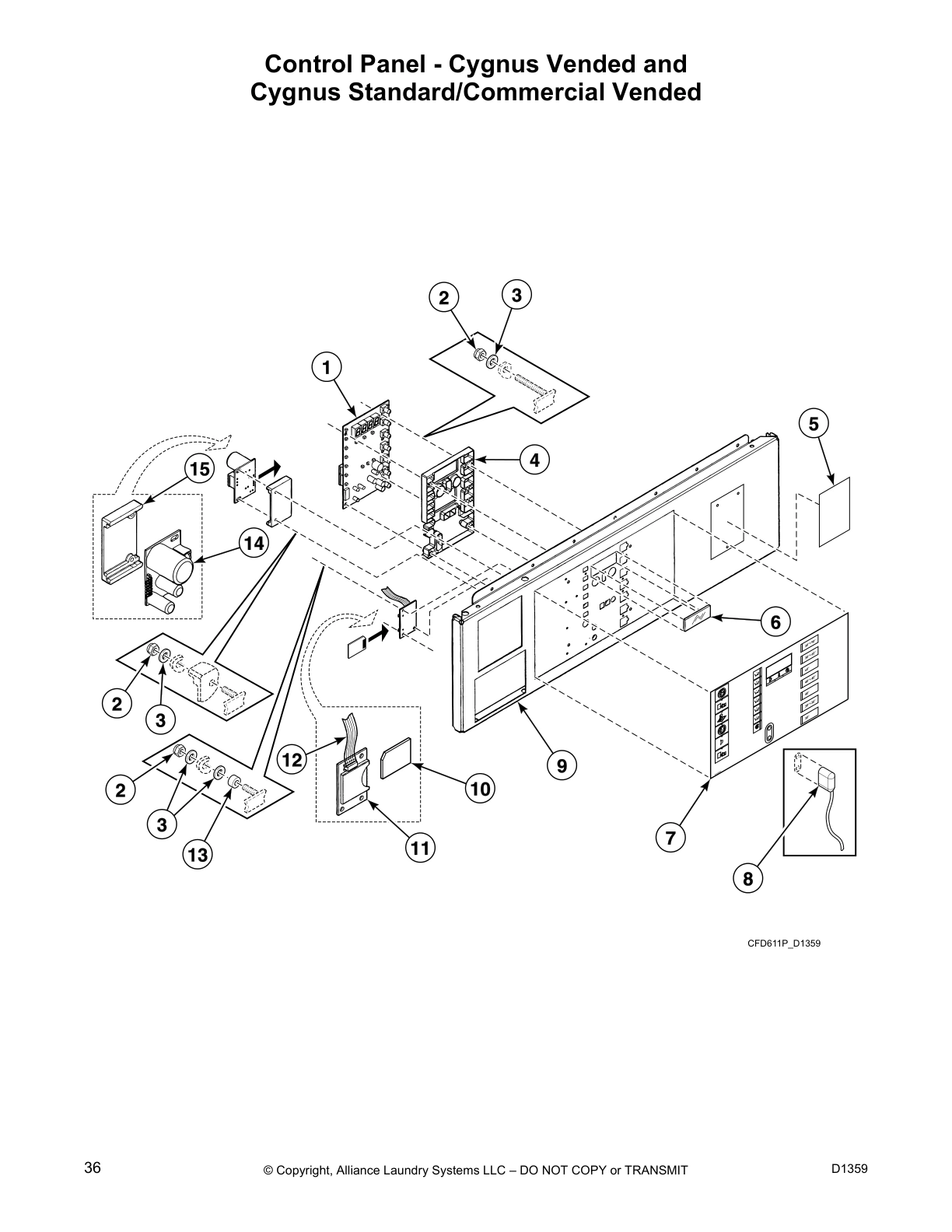

Control Panel - Cygnus Vended and
Cygnus Standard/Commercial Vended

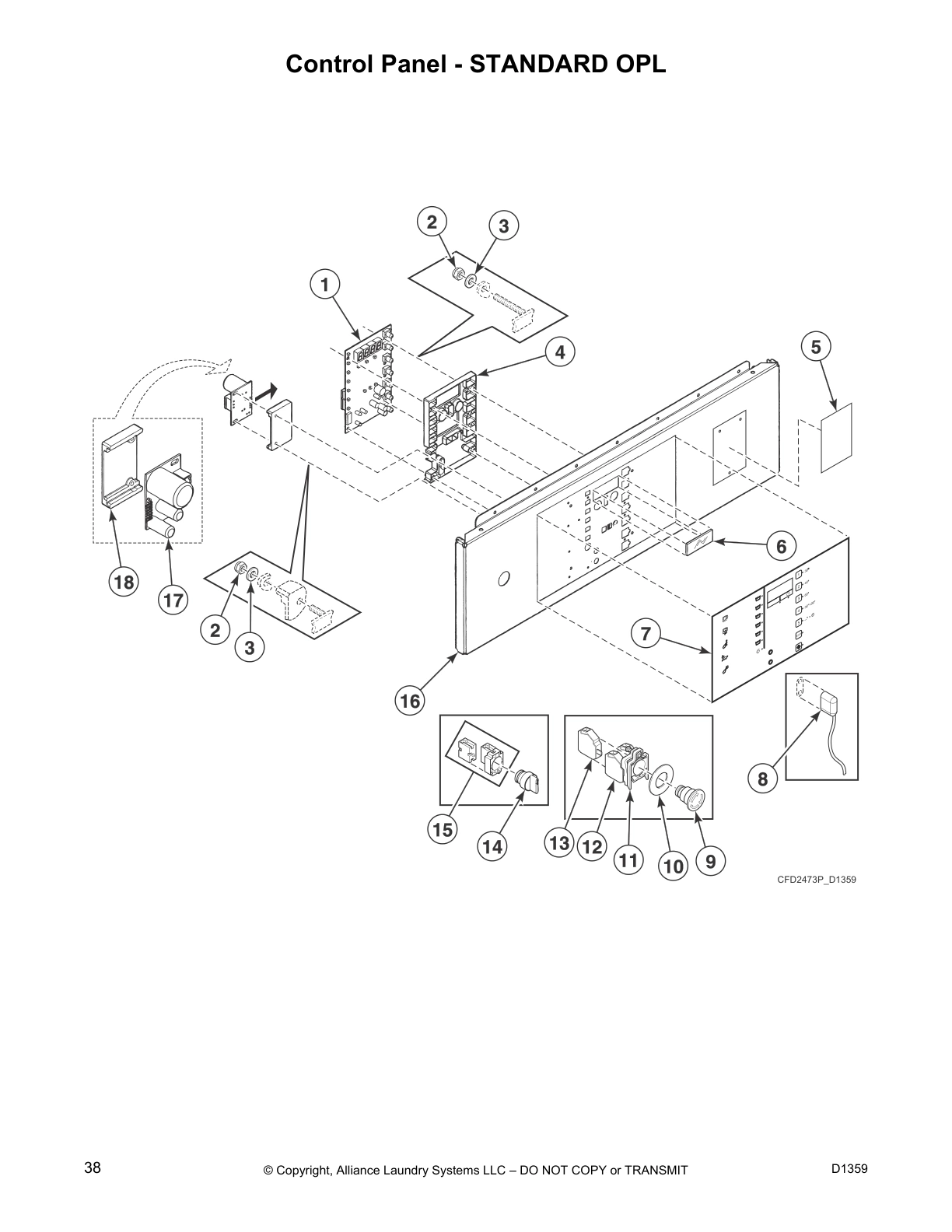

Control Panel - STANDARD OPL

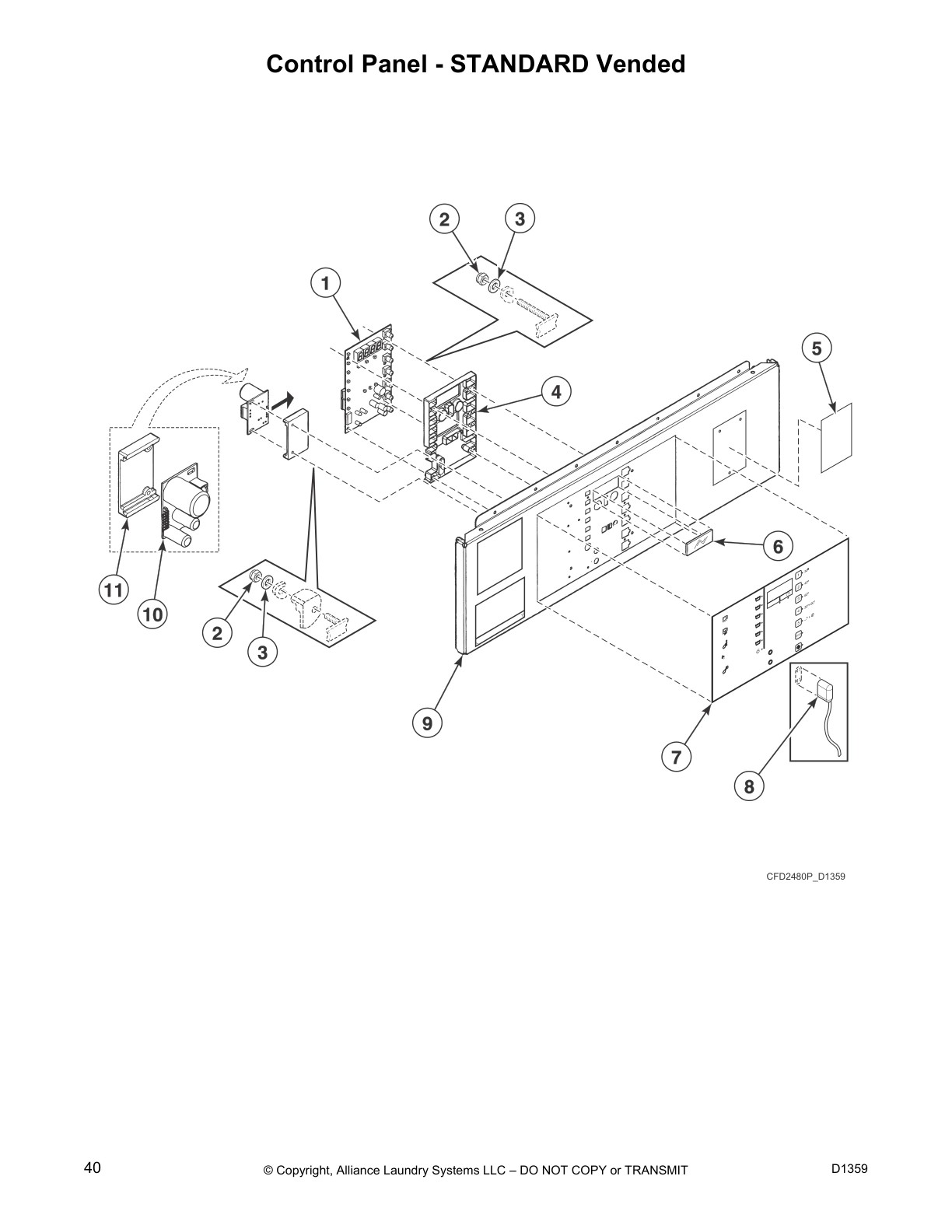

Control Panel - STANDARD Vended

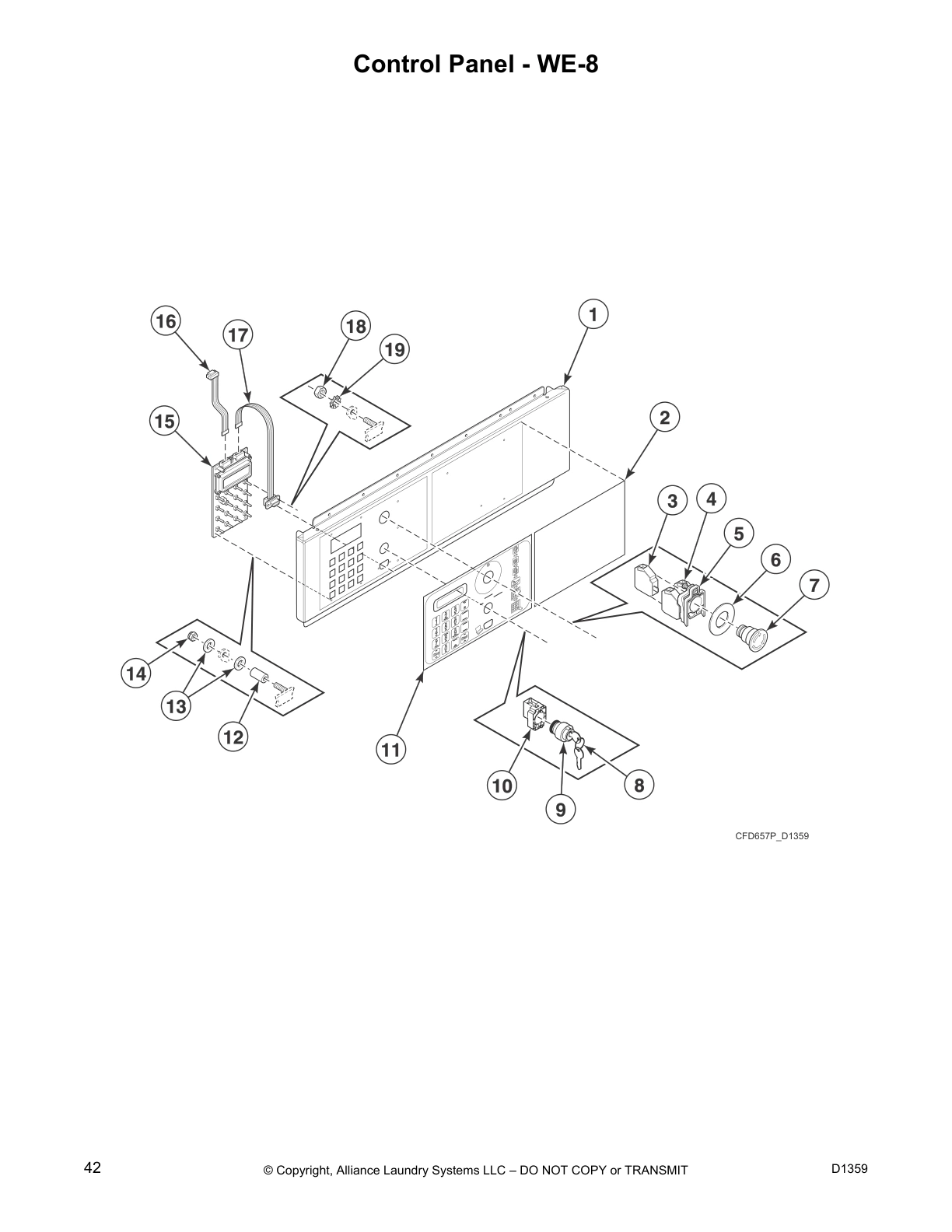

Control Panel - WE-8

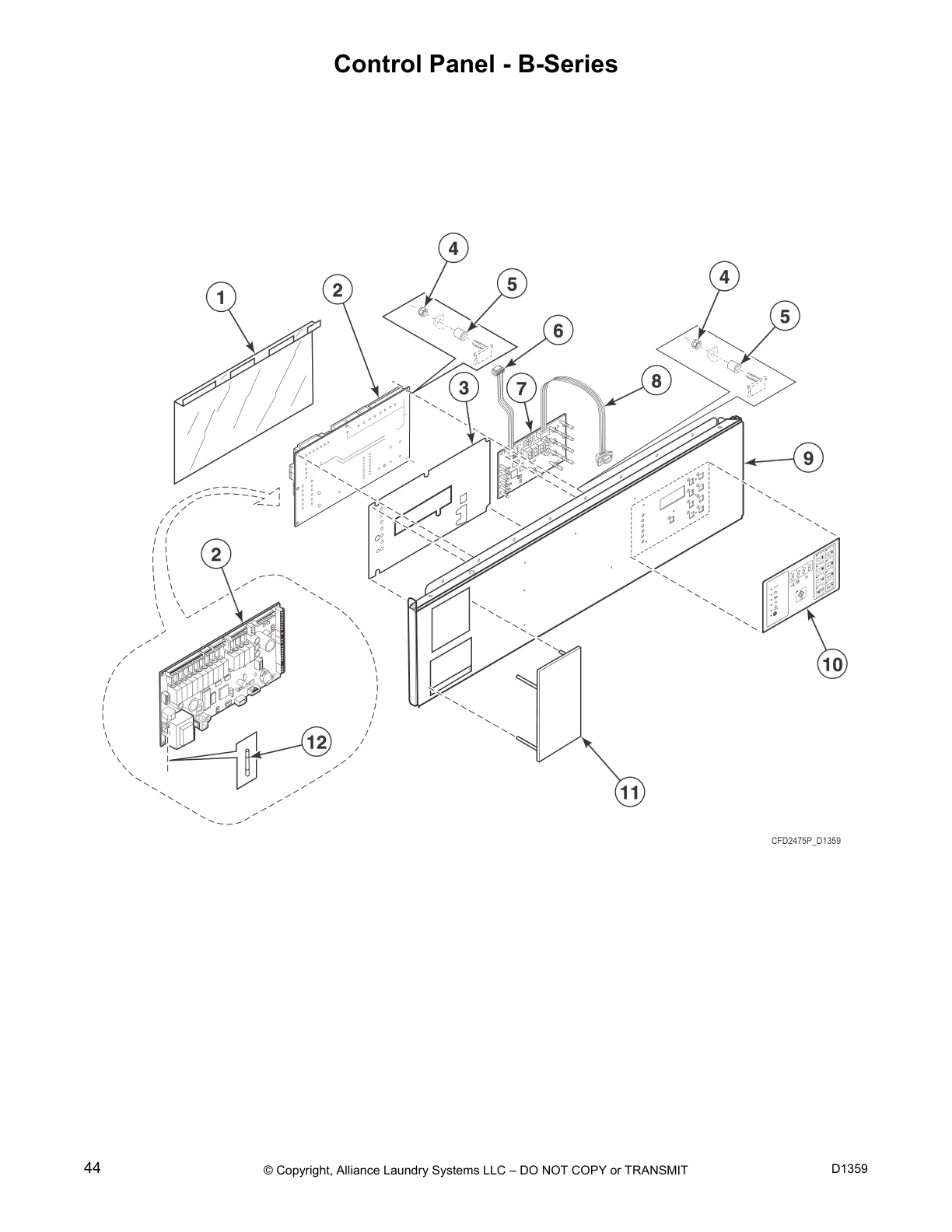

Control Panel - B-Series

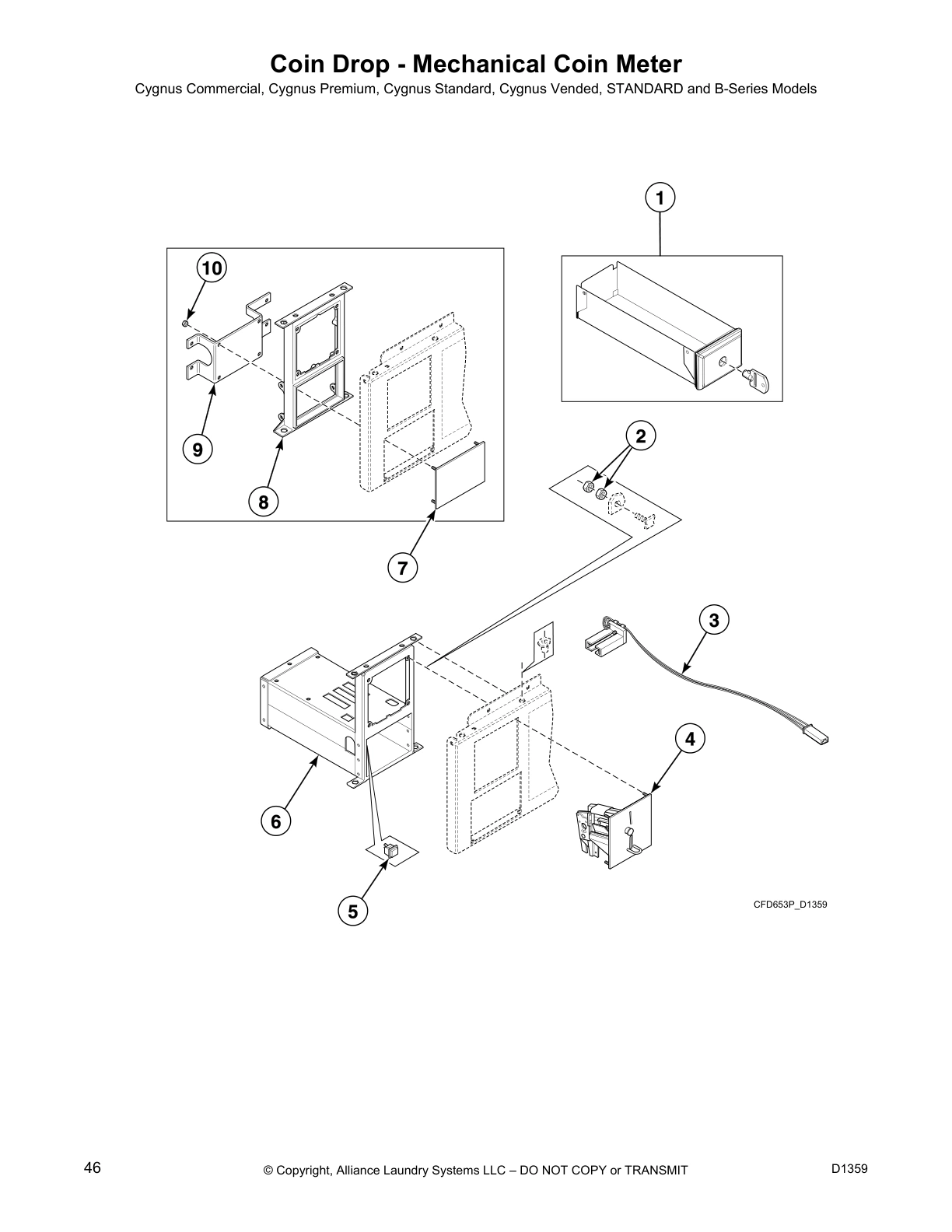

Coin Drop - Mechanical Coin Meter

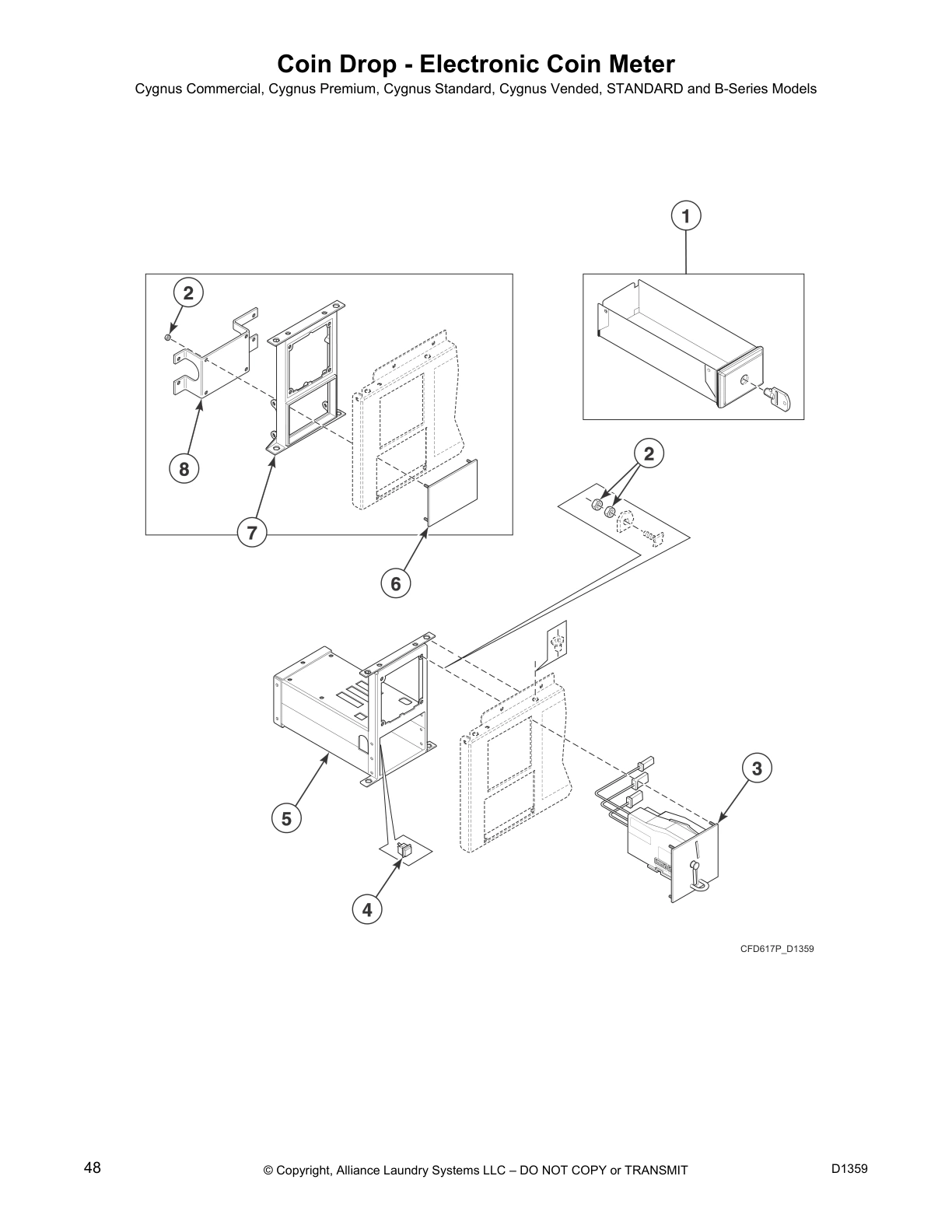

Coin Drop - Electronic Coin Meter

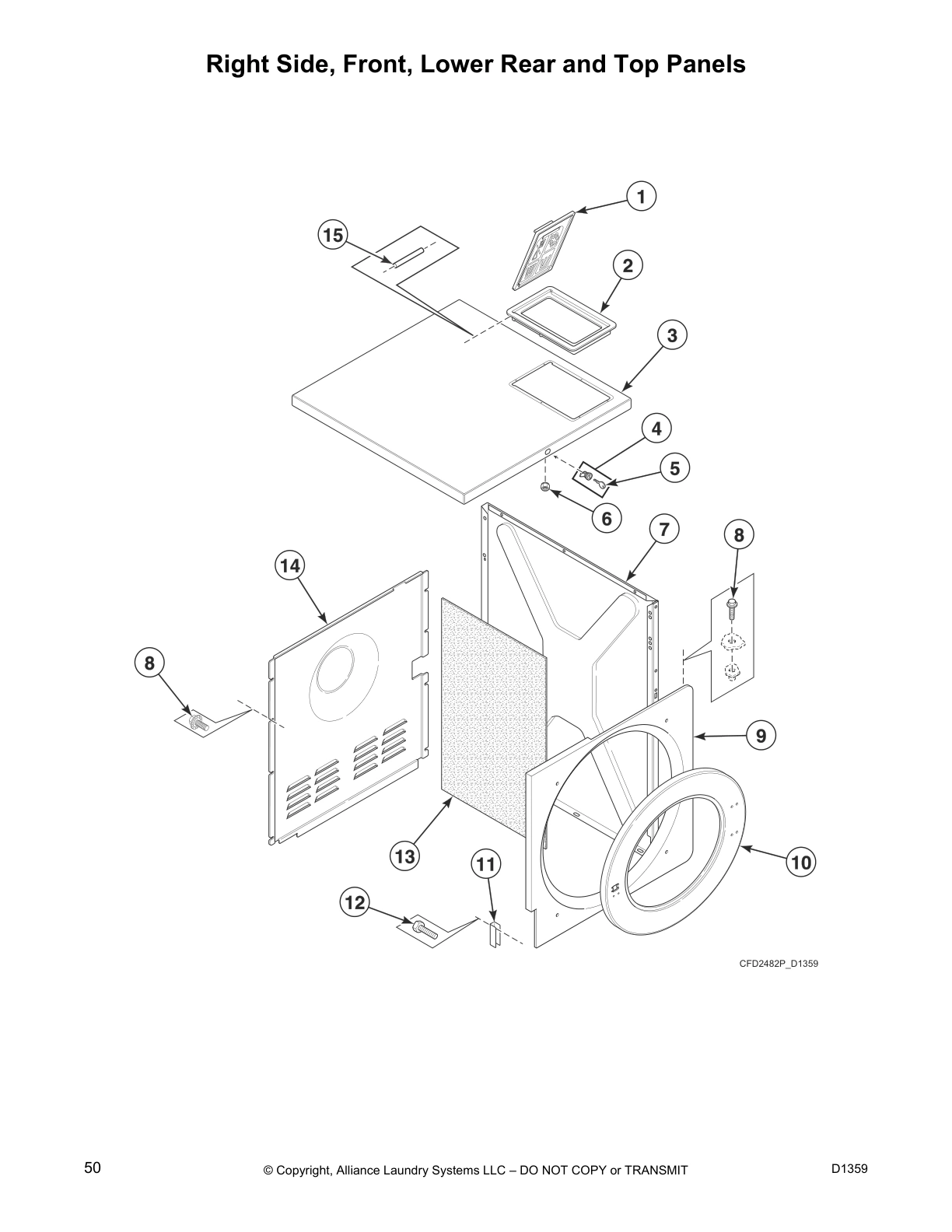

Right Side, Front, Lower Rear and Top Panels

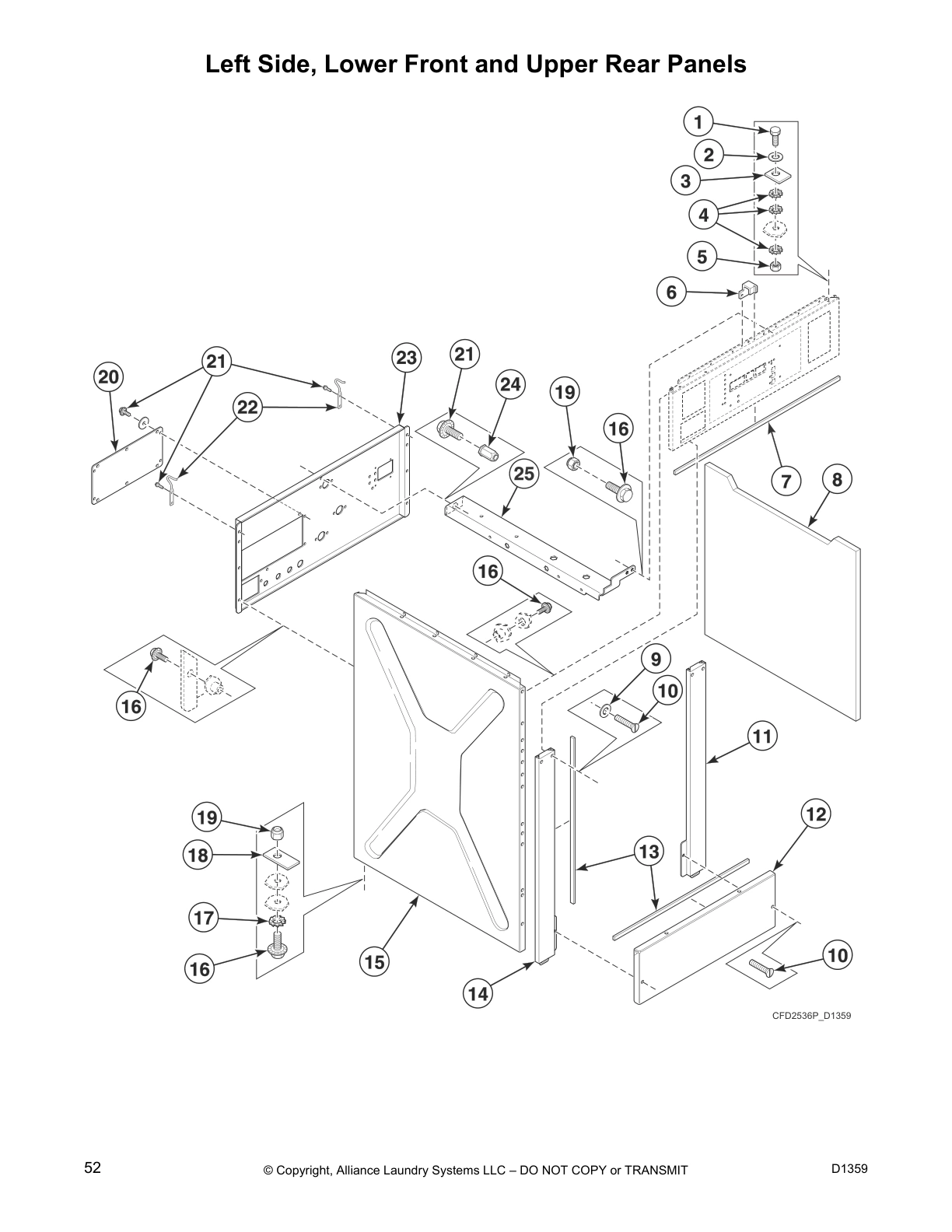

Left Side, Lower Front and Upper Rear Panels
Inverter Drive

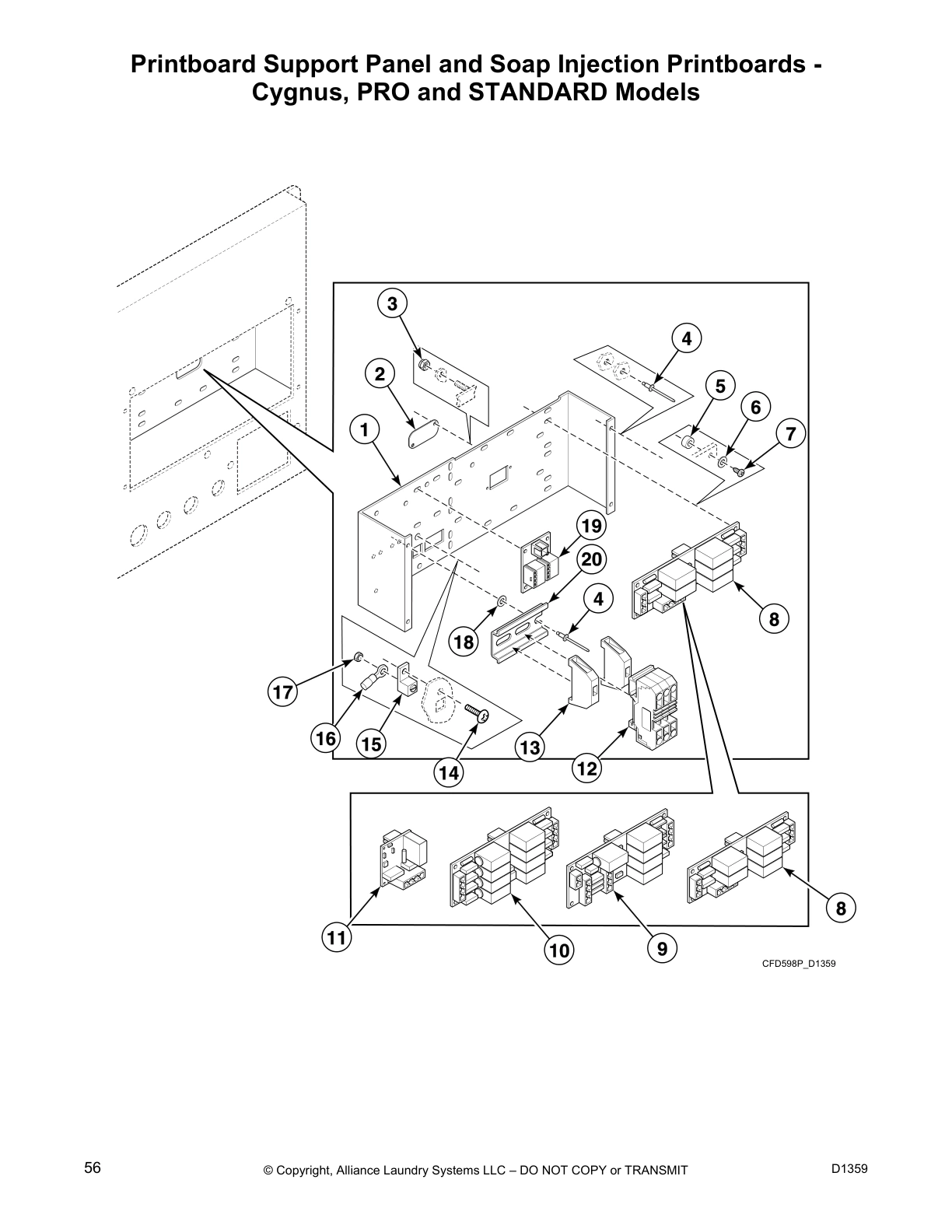

Printboard Support Panel and Soap Injection Printboards -
Cygnus, PRO and STANDARD Models
Printboard Support Panel and Soap Injection Printboards -

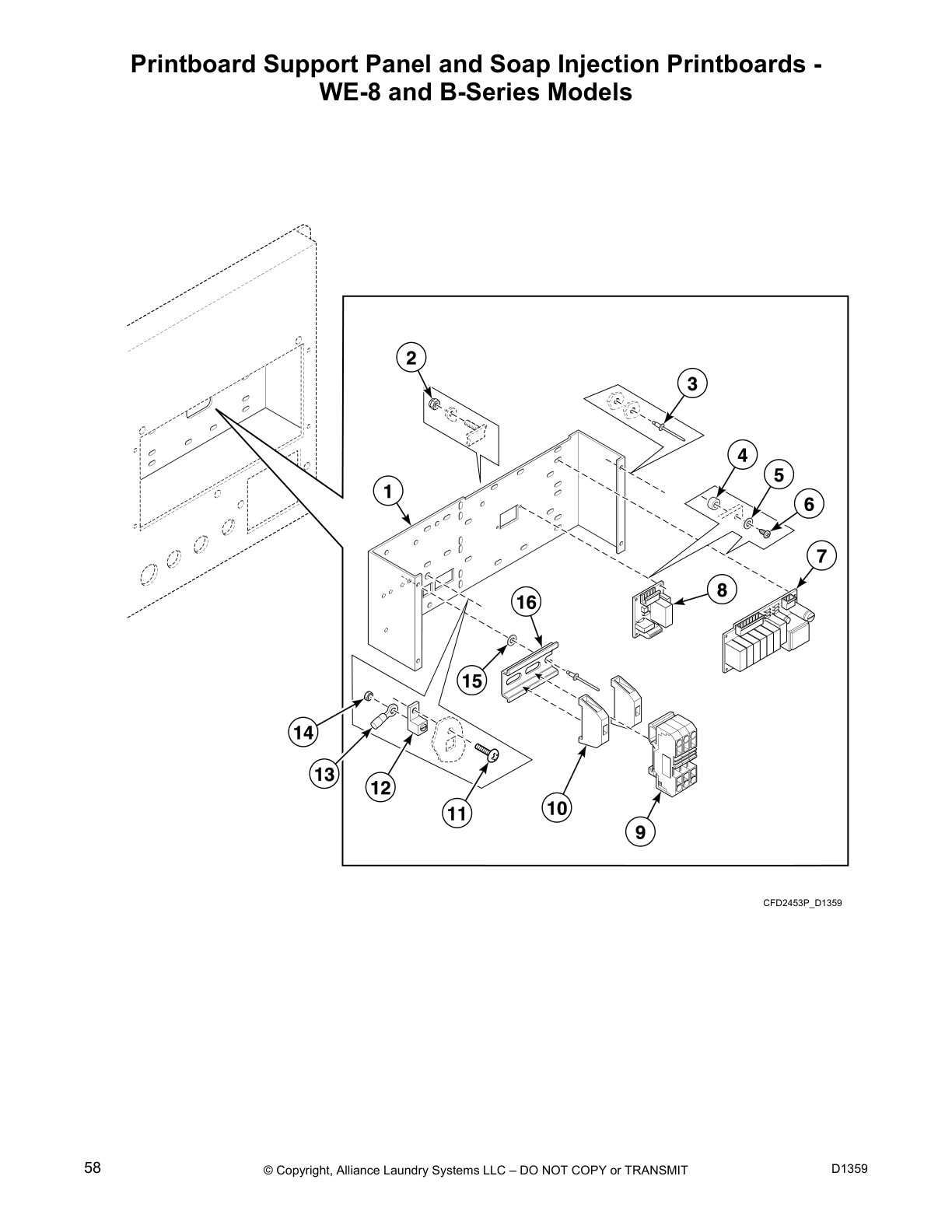

WE-8 and B-Series Models
Electrical Component Mounting Plate - Cygnus, PRO and

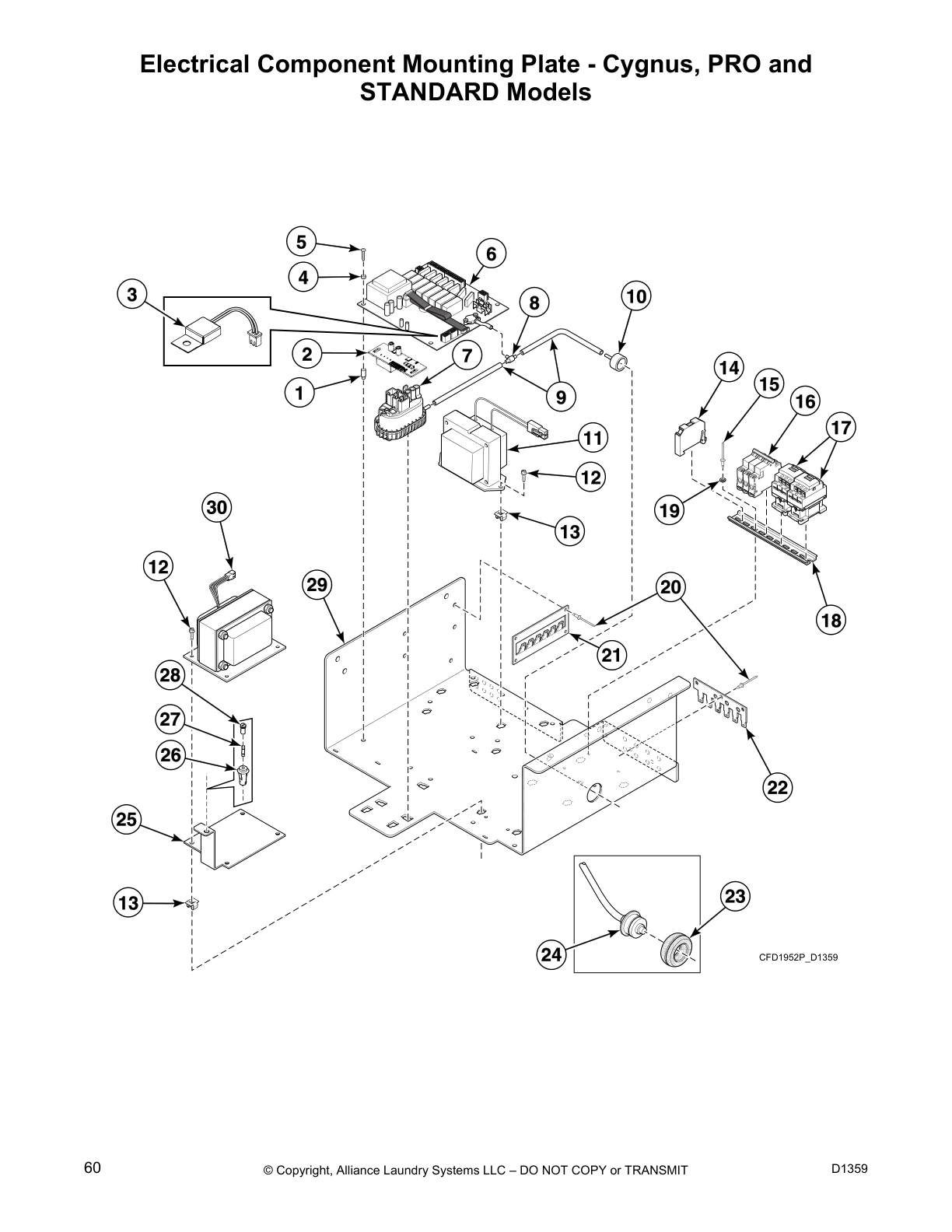

STANDARD Models

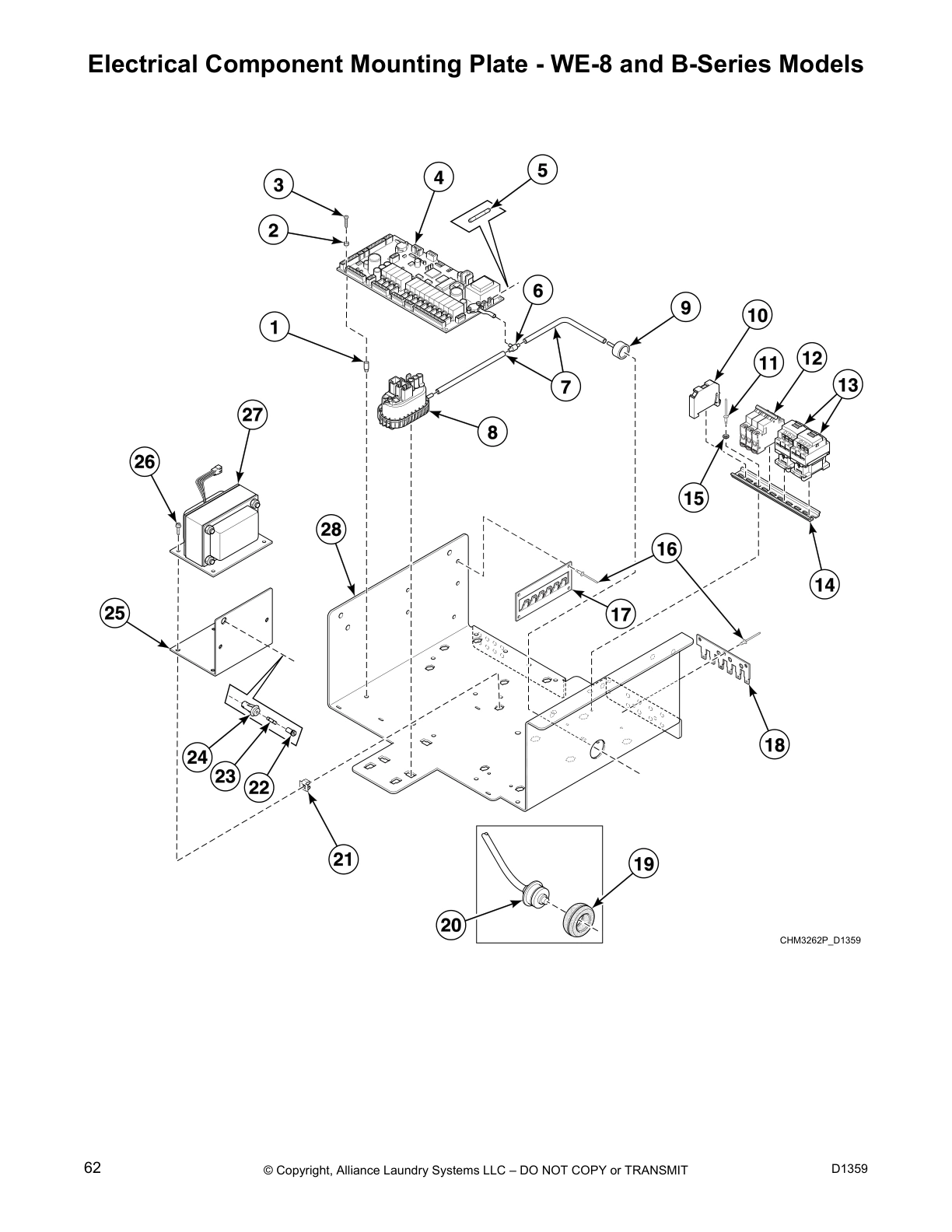

Electrical Component Mounting Plate - WE-8 and B-Series Models

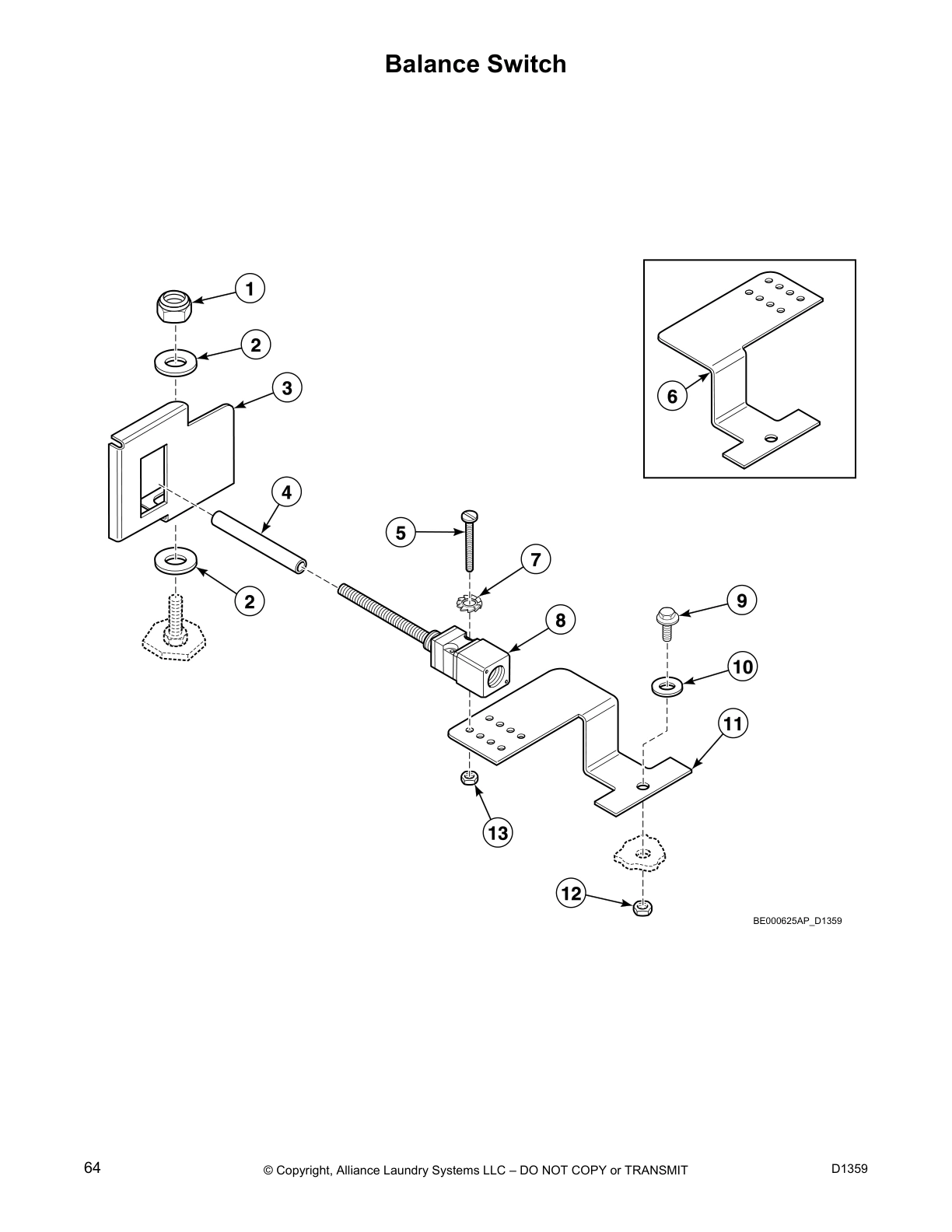

Balance Switch

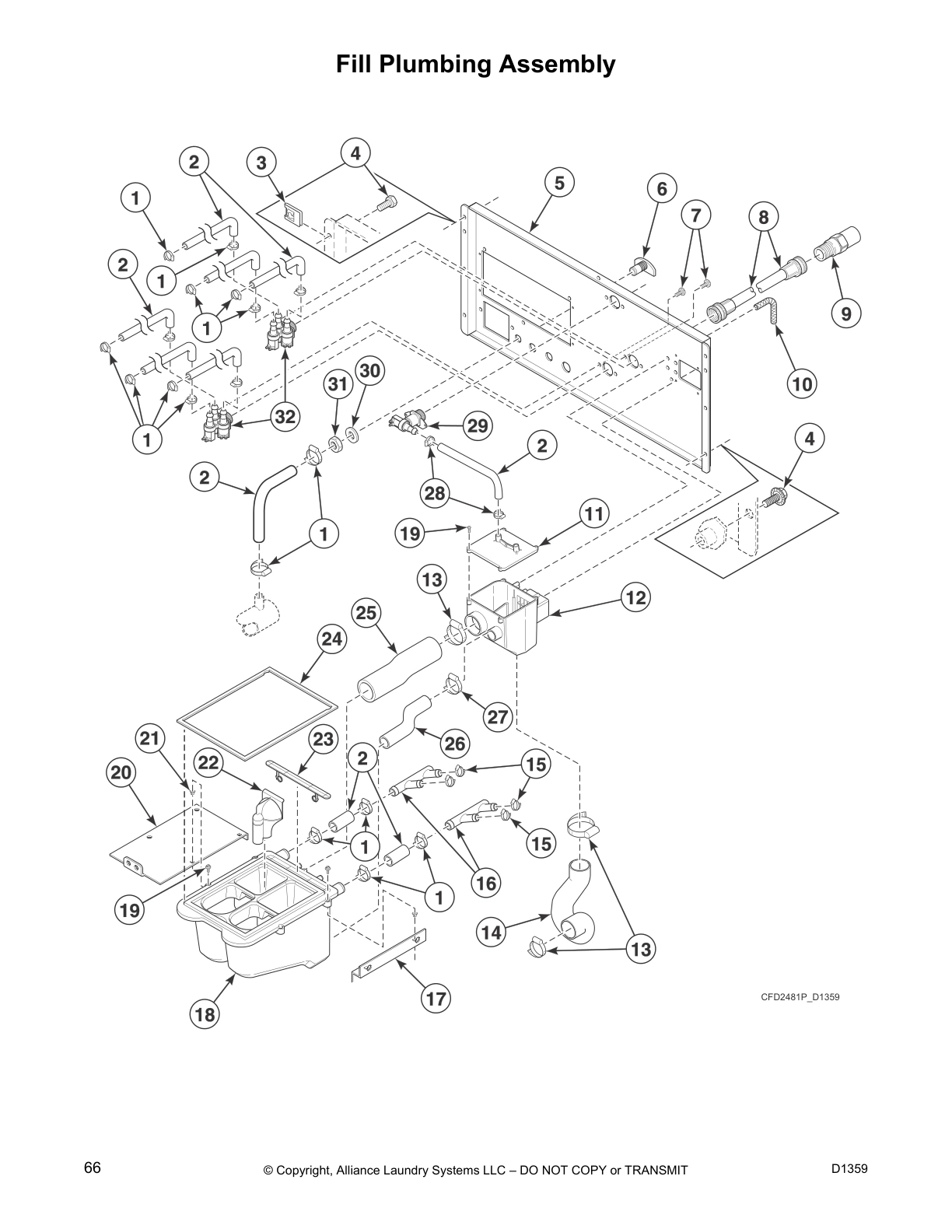

Fill Plumbing Assembly

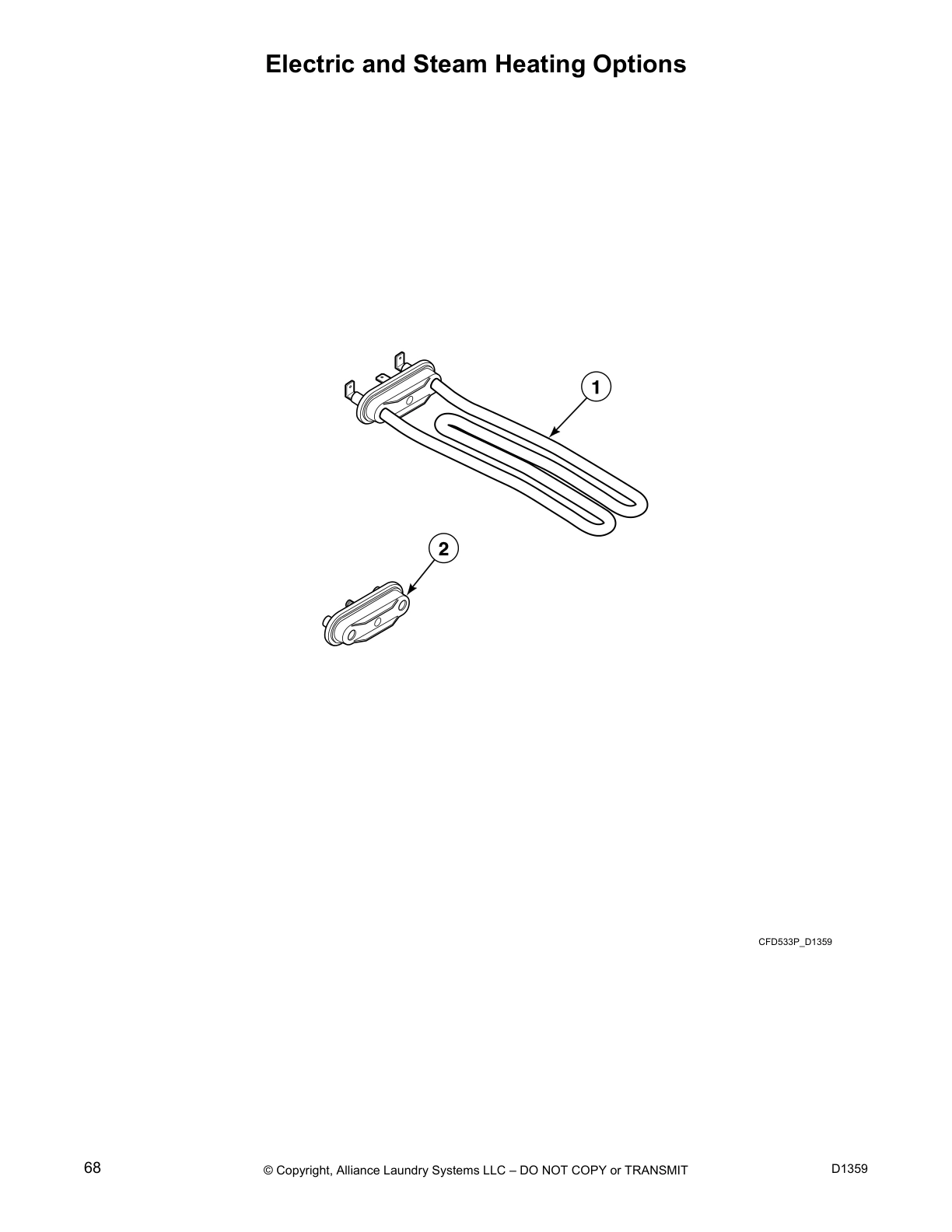

Electric and Steam Heating Options
Common parts from model Alliance JXW165C Washer
SPQ 381P3-1 SPQ 381P3-1 Contact Us For Availability
Switch Base SPQ 209/00099/29 Contact Us For Availability
SPQ B12311222 SPQ B12311222 Contact Us For Availability
SPQ B12311220 SPQ B12311220 Contact Us For Availability
SPQ B12311214 SPQ B12311214 Contact Us For Availability
SPQ B12311211 SPQ B12311211 Contact Us For Availability
SPQ B12311206 SPQ B12311206 Contact Us For Availability
SPQ B12311204 SPQ B12311204 Contact Us For Availability
SPQ B12311201 SPQ B12311201 Contact Us For Availability
SPQ B12311216 SPQ B12311216 Contact Us For Availability
SPQ B12348301 SPQ B12348301 Contact Us For Availability
Branch Harness SPQ B12308001 Contact Us For Availability
Power Jumper Harness SPQ B12381301 Contact Us For Availability
Dual Heat Harness SPQ B12348506 Contact Us For Availability
Heat Harness SPQ B12382302 Contact Us For Availability
SPQ B12349603 SPQ B12349603 Contact Us For Availability
SPQ B12455903 SPQ B12455903 Contact Us For Availability
1
Nut SPQ 204/00110/00 Contact Us For Availability
1
Nut SPQ 204/00111/00 Contact Us For Availability
1
Bolt SPQ 205/00106/00 Contact Us For Availability
1
Printboard SPQ 209/02001/02 Contact Us For Availability
1
Nut SPQ 204/00014/00 Contact Us For Availability
1
Heating Element SPQ 209/00562/20 Contact Us For Availability
2
Screw SPQ 201/00010/00 Contact Us For Availability
2
Caddy Bracket SPQ 201/00012/00 Contact Us For Availability
2
Retaining Ring SPQ 202/00003/00 Contact Us For Availability
2
Bolt SPQ 206/00006/00 Contact Us For Availability
2
Siphon Cover SPQ 223/00044/00 Contact Us For Availability
2
Screw SPQ 207/00102/00 Contact Us For Availability
2
Nut SPQ 204/00116/00 Contact Us For Availability
2
Thermostat SPQ 223/00123/00 Contact Us For Availability
2
Supply Dispenser Cover Frame SPQ B12597501 Contact Us For Availability
3
Screw SPQ 206/00053/00 Contact Us For Availability
3
Washer SPQ 201/00015/00 Contact Us For Availability
3
Seal Plate Assembly SPQ 206/00057/00 Contact Us For Availability
3
Tolerance Ring SPQ 215/00004/00 Contact Us For Availability
3
Coin Drop SPQ B12311401 Contact Us For Availability
3
SPQ 117/00042/00 SPQ 117/00042/00 Contact Us For Availability
3
ID Chip SPQ 209/02020/00 Contact Us For Availability
3
Out-of-Balance Switch SPQ 111/01854/00 Contact Us For Availability
4
Panel Lock SPQ 44089303P Contact Us For Availability
4
Tub SPQ B12329301 Contact Us For Availability
4
Lip Seal SPQ 201/00201/00 Contact Us For Availability
4
Screw SPQ 206/00058/00 Contact Us For Availability
4
Protection LED SPQ 223/00330/00 Contact Us For Availability
4
Pushbutton SPQ 209/00396/00 Contact Us For Availability
4
Pushbutton SPQ B12323401 Contact Us For Availability
4
SPQ 227/00242/00 SPQ 227/00242/00 Contact Us For Availability
4
SPQ 223/00246/00 SPQ 223/00246/00 Contact Us For Availability
5
Bolt SPQ 206/00004/00 Contact Us For Availability
5
Motor Pulley SPQ 226/00123/00 Contact Us For Availability
5
Mechanical Coin Meter Housing SPQ B12311252 Contact Us For Availability
5
Key SPQ 70155603 Contact Us For Availability
5
SPQ 204/00107/00 SPQ 204/00107/00 Contact Us For Availability
5
SPQ 207/00018/00 SPQ 207/00018/00 Contact Us For Availability
6
Hardware Kit SPQ 224/00052/00 Contact Us For Availability
6
Washer SPQ 203/00001/00 Contact Us For Availability
6
Strain Relief Connector SPQ 211/00181/00 Contact Us For Availability
6
SPQ B12389701 SPQ B12389701 Contact Us For Availability
6
Telem Sticker SPQ 209/00520/00 Contact Us For Availability
6
Plexi Frame SPQ 225/00322/00 Contact Us For Availability
6
Top Panel SPQ 111/01003/00 Contact Us For Availability
6
Top Panel SPQ B12311241 Contact Us For Availability
6
Nut SPQ B12509101 Contact Us For Availability
6
SPQ F8201001 SPQ F8201001 Contact Us For Availability
6
SPQ F8286401P SPQ F8286401P Contact Us For Availability
7
Leveling Leg SPQ 252/00006/00 Contact Us For Availability
7
Spring Holder Top SPQ 247/00002/01 Contact Us For Availability
7
SPQ 206/00032/00 SPQ 206/00032/00 Contact Us For Availability
7
Bearing Replacement Tool Kit SPQ 224/00051/00 Contact Us For Availability
7
Pulley SPQ 201/00003/00 Contact Us For Availability
7
SPQ 223/00328/00 SPQ 223/00328/00 Contact Us For Availability
7
SPQ 223/00001/04 SPQ 223/00001/04 Contact Us For Availability
7
Operating Sticker SPQ B12382901 Contact Us For Availability
7
Fastening Piece SPQ B12311239 Contact Us For Availability
7
Fastening Piece SPQ 217/00060/00 Contact Us For Availability
7
SPQ 203/00006/00 SPQ 203/00006/00 Contact Us For Availability
8
SPQ 206/00106/00 SPQ 206/00106/00 Contact Us For Availability
8
SPQ 247/00001/01 SPQ 247/00001/01 Contact Us For Availability
8
SPQ 217/00008/00 SPQ 217/00008/00 Contact Us For Availability
8
Bearing Kit SPQ B12333701 Contact Us For Availability
8
SPQ 255/00117/00 SPQ 255/00117/00 Contact Us For Availability
8
Nut SPQ 204/00109/00 Contact Us For Availability
8
SPQ B12311234 SPQ B12311234 Contact Us For Availability
8
SPQ 246/00079/00 SPQ 246/00079/00 Contact Us For Availability
8
Pressure Switch Cap SPQ B12548301 Contact Us For Availability
8
SPQ 206/00027/00 SPQ 206/00027/00 Contact Us For Availability
9
SPQ B12332301 SPQ B12332301 Contact Us For Availability
9
SPQ 223/00035/02 SPQ 223/00035/02 Contact Us For Availability
9
SPQ 208/00009/00 SPQ 208/00009/00 Contact Us For Availability
9
SPQ 209/02014/00 SPQ 209/02014/00 Contact Us For Availability
10
Bolt SPQ 206/00037/00 Contact Us For Availability
10
Washer SPQ 201/00007/00 Contact Us For Availability
10
Nut SPQ 204/00106/00 Contact Us For Availability
10
Door Lock PC-Board SPQ B12388201 Contact Us For Availability
10
Washer SPQ 201/00006/00 Contact Us For Availability
11
Bolt SPQ 206/00033/00 Contact Us For Availability
11
Washer SPQ 202/00110/00 Contact Us For Availability
11
Memory Card PC-Board SPQ B12305201 Contact Us For Availability
11
Mounting Plate SPQ 223/00374/00 Contact Us For Availability
11
Relay PC-Board SPQ 209/02016/00 Contact Us For Availability
11
Tilt Switch Support SPQ 111/01855/00 Contact Us For Availability
11
Vacuum Breaker Cover SPQ B12532304 Contact Us For Availability
12
Tub Front Ring Clamp SPQ 219/00007/00 Contact Us For Availability
12
Door Hinge Blocking Plate SPQ B12565001 Contact Us For Availability
12
Data Card Ribbon Assembly SPQ B12538301 Contact Us For Availability
12
Ground Lug Connector SPQ M411283 Contact Us For Availability
12
Circuit Breaker SPQ B12487101 Contact Us For Availability
12
Tilt Detector Plate SPQ 204/00005/00 Contact Us For Availability
12
Vacuum Breaker Housing SPQ F8439201 Contact Us For Availability
13
Speed Detector Bracket SPQ 205/00104/00 Contact Us For Availability
13
Hose Clamp SPQ 223/00014/00 Contact Us For Availability
13
Overflow Hose SPQ 223/00100/00 Contact Us For Availability
13
Door Hinge Block SPQ 253/00022/00 Contact Us For Availability
13
Printboard Separator SPQ 211/00128/00 Contact Us For Availability
13
Cellular Rubber SPQ B12611001 Contact Us For Availability
13
Out-of-Balance Switch Boot SPQ 204/00007/00 Contact Us For Availability
14
Bearing Housing Assembly SPQ 152/00055/00 Contact Us For Availability
14
Door Hinge Spacer SPQ 202/00104/00 Contact Us For Availability
15
Screw SPQ 118/00124/00 Contact Us For Availability
15
Side Panel SPQ 111/60036/00 Contact Us For Availability
15
Washer SPQ 202/00004/00 Contact Us For Availability
15
Parameter Unit Program Cable SPQ 227/00171/10 Contact Us For Availability
15
Manifold SPQ 223/00011/00 Contact Us For Availability
16
Bearing SPQ 152/10118/01 Contact Us For Availability
16
O-Ring SPQ 207/00126/00 Contact Us For Availability
16
Washer SPQ 205/00105/00 Contact Us For Availability
16
Rivet SPQ 208/00017/00 Contact Us For Availability
16
Inverter SPQ F8645401P Contact Us For Availability
16
Dispenser Assembly SPQ F8333201 Contact Us For Availability
17
Outlet Pipe Plate Assembly SPQ 203/00004/00 Contact Us For Availability
17
Screw SPQ F100134 Contact Us For Availability
17
Nut SPQ 206/00101/00 Contact Us For Availability
17
Washer SPQ 204/00114/00 Contact Us For Availability
18
Nut SPQ 101/00007/00 Contact Us For Availability
18
Door Handle Stop SPQ 217/00021/00 Contact Us For Availability
18
Water Hose SPQ F8047401 Contact Us For Availability
19
Top Cover Hinge SPQ 204/00009/00 Contact Us For Availability
19
Bolt SPQ 202/00101/00 Contact Us For Availability
19
Thermostat Grommet SPQ 225/10004/00 Contact Us For Availability
21
Rivet SPQ 211/00170/00 Contact Us For Availability
22
Top Cover Latch SPQ F8258601 Contact Us For Availability
22
Air Duct SPQ 204/00011/00 Contact Us For Availability
22
Fuse SPQ 70329501 Contact Us For Availability
22
Access Cover SPQ F8047901 Contact Us For Availability
23
Fuse Holder Body SPQ 802492 Contact Us For Availability
23
Dispenser Gasket SPQ F8047801 Contact Us For Availability
24
Transformer SPQ 70329401P Contact Us For Availability
24
Water Valve Adapter SPQ B12568601 Contact Us For Availability
25
E-Stop Drive Fan Harness SPQ 209/00468/00 Contact Us For Availability
27
Expansion Clip SPQ 223/00223/00 Contact Us For Availability
27
Pressure Switch Hose Tee SPQ F8401301 Contact Us For Availability
28
Washer SPQ 223/00013/00 Contact Us For Availability
29
Nut SPQ 223/00050/01 Contact Us For Availability
30
Prewash and Mainwash Nozzle SPQ 201/00002/00 Contact Us For Availability
31
Bolt SPQ 204/00201/00 Contact Us For Availability
32
Water Hose SPQ F8286402P Contact Us For Availability
NI
SPQ 247/00001/04 SPQ 247/00001/04 Contact Us For Availability
NI
SPQ 212/00006/00 SPQ 212/00006/00 Contact Us For Availability
NI
SPQ F407P4 SPQ F407P4 Contact Us For Availability
NI
SPQ 3882P SPQ 3882P Contact Us For Availability
NI
SPQ 381P3P SPQ 381P3P Contact Us For Availability
NI
Door Lock Harness SPQ B12495001 Contact Us For Availability
NI
E-Stop Harness SPQ B12348901 Contact Us For Availability
NI
E-Stop Bypass Harness SPQ B12349001 Contact Us For Availability
NI
Wire Harness Assembly SPQ B12310001 Contact Us For Availability
NI
SPQ B12309901 SPQ B12309901 Contact Us For Availability
NI
SPQ B12311224 SPQ B12311224 Contact Us For Availability
NI
SPQ B12311221 SPQ B12311221 Contact Us For Availability
NI
SPQ B12311219 SPQ B12311219 Contact Us For Availability
NI
SPQ B12311212 SPQ B12311212 Contact Us For Availability
NI
SPQ B12311210 SPQ B12311210 Contact Us For Availability
NI
SPQ B12311205 SPQ B12311205 Contact Us For Availability
NI
SPQ B12311202 SPQ B12311202 Contact Us For Availability
NI
SPQ B12311247 SPQ B12311247 Contact Us For Availability
NI
SPQ B12311301 SPQ B12311301 Contact Us For Availability
NI
SPQ 152/00112/00 SPQ 152/00112/00 Contact Us For Availability
NI
SPQ B12551301 SPQ B12551301 Contact Us For Availability
NI
SPQ B12501501 SPQ B12501501 Contact Us For Availability
NI
SPQ B12529201 SPQ B12529201 Contact Us For Availability
NI
SPQ B12388301 SPQ B12388301 Contact Us For Availability
NI
Control Supply Harness SPQ B12392701 Contact Us For Availability
NI
SPQ B12348801 SPQ B12348801 Contact Us For Availability
NI
SPQ B12381402 SPQ B12381402 Contact Us For Availability
NI
SPQ B12348101 SPQ B12348101 Contact Us For Availability
NI
SPQ F200166 SPQ F200166 Contact Us For Availability
NI
SPQ F200164 SPQ F200164 Contact Us For Availability
NI
Steam Heat Harness SPQ 209/00564/20 Contact Us For Availability
NI
Relay SPQ B12349701 Contact Us For Availability
NI
Switch Knob SPQ B12348501 Contact Us For Availability
NI
Heating Harness SPQ 209/00099/25 Contact Us For Availability
NI
Steam Valve Harness SPQ B12381204 Contact Us For Availability
NI
Electric Heat Harness SPQ B12348502 Contact Us For Availability
NI
SPQ B12349803 SPQ B12349803 Contact Us For Availability
NI
SPQ B12455904 SPQ B12455904 Contact Us For Availability
NI
SPQ B12455804 SPQ B12455804 Contact Us For Availability
NI
SPQ B12455803 SPQ B12455803 Contact Us For Availability
× ![]()
