Model Alliance JXW100Y Washer – Common Parts & Diagrams

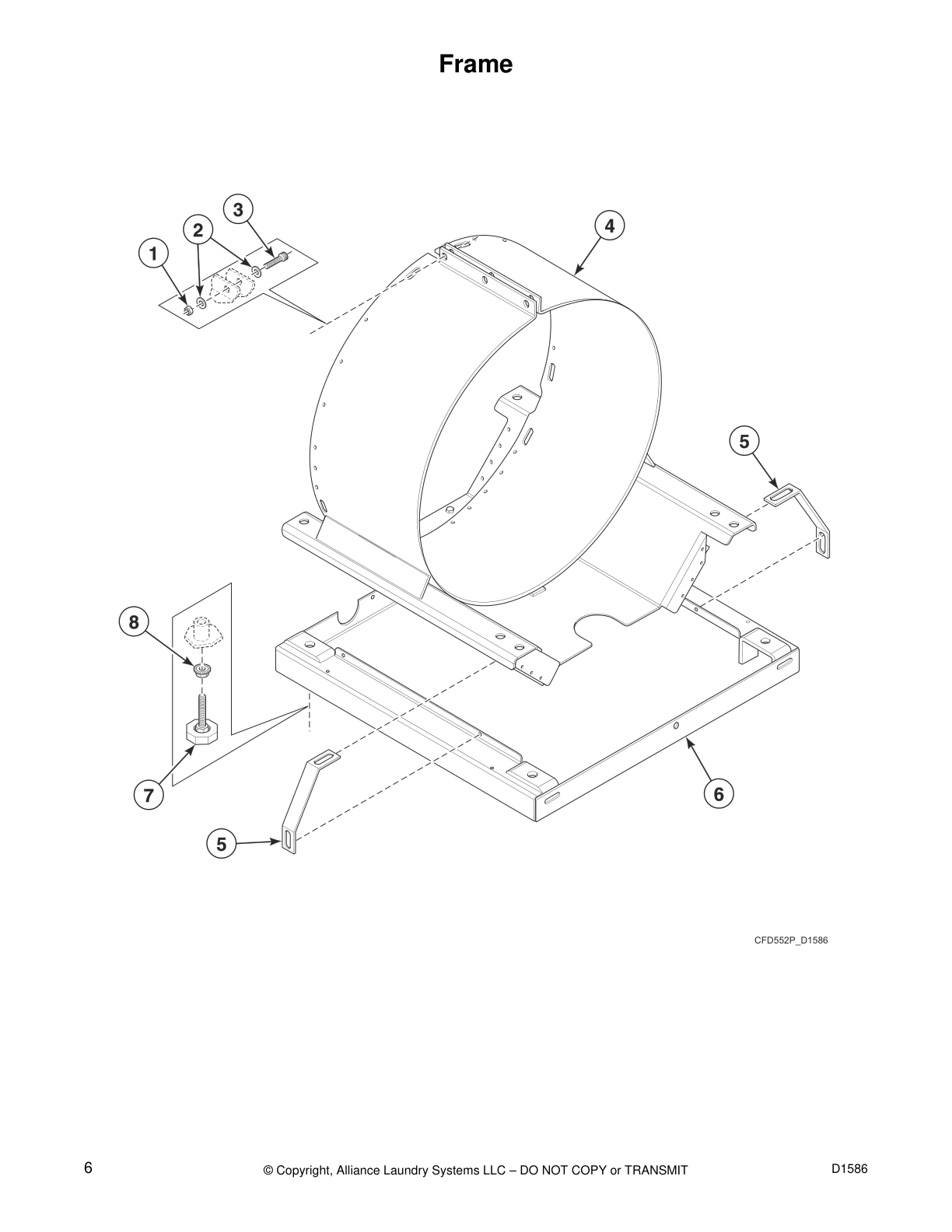

Frame

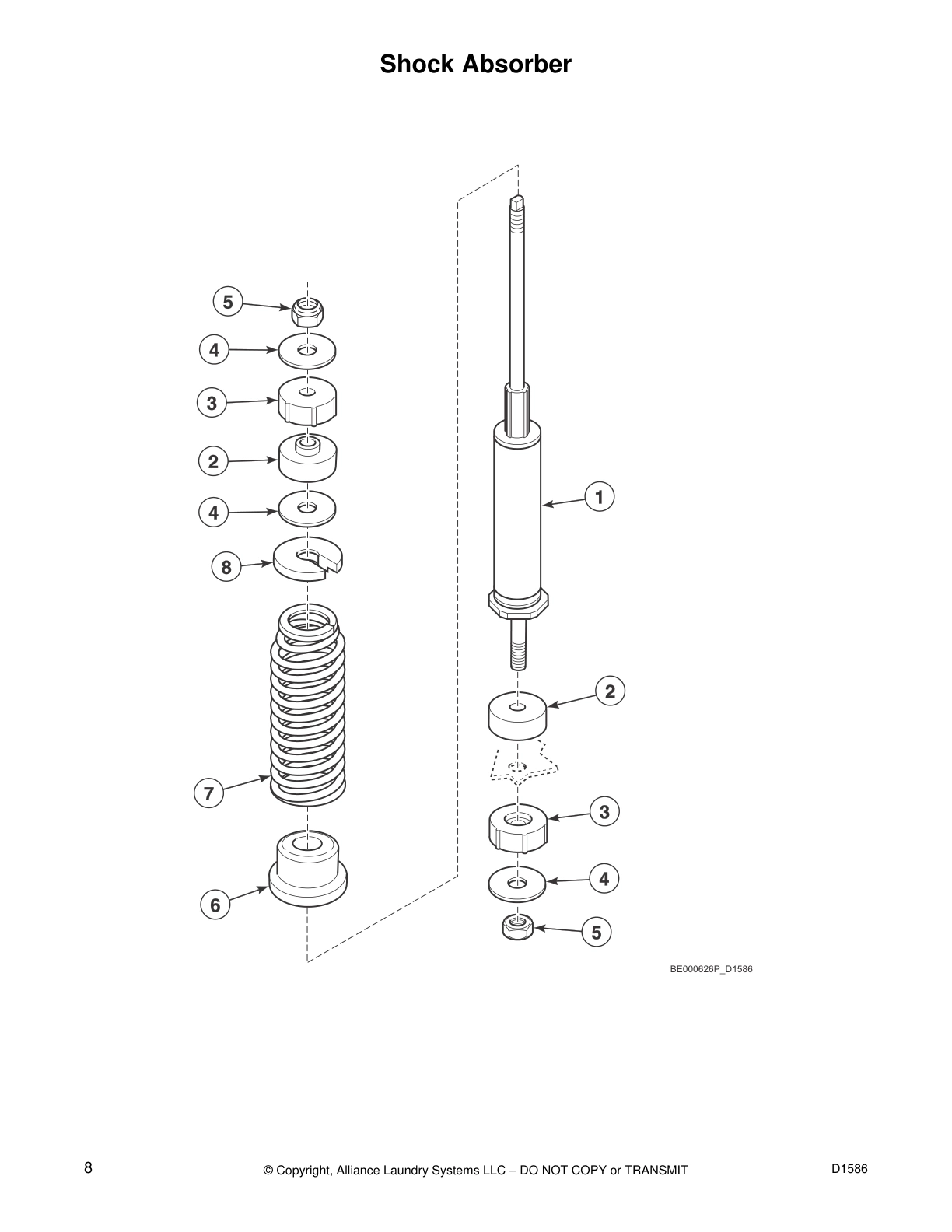

Shock Absorber
Shell and Basket
Bearing Housing
Basket, Pulley and Belt
Motor and Belt
Drain Plumbing
Drain Plumbing - Models with Pump Drain
Door Lock
Door
Control Panel - Cygnus Professional
Control Panel - PRO
Control Panel - Cygnus Ultra Pro
Control Panel - Cygnus Premium OPL and Ultra
Control Panel - Cygnus Premium Vended
Control Panel - Cygnus Standard/Commercial OPL
Control Panel - Cygnus Vended and Standard/Commercial Vended
Control Panel - STANDARD OPL
Control Panel - STANDARD Vended
Control Panel - WE-8
Coin Drop - Mechanical Coin Meter
Coin Drop - Electronic Coin Meter
Right Side, Front, Lower Rear and Top Panels - Models with
Pump Drain
Right Side, Front, Lower Rear and Top Panels - Models without
Pump Drain
Left Side, Lower Front and Upper Rear Panels
Inverter Drive
Printboard Support Panel and Soap Injection Printboards -
Cygnus, PRO and STANDARD Models
Printboard Support Panel and Soap Injection Printboards -
WE-8 Models
Electrical Component Mounting Plate -
Cygnus, PRO and STANDARD Controls
Balance Switch
Fill Plumbing Assembly
Electric and Steam Heating Options
Common parts from model Alliance JXW100Y Washer
SPQ 247/00001/01 SPQ 247/00001/01 Contact Us For Availability
SPQ 380P3-1 SPQ 380P3-1 Contact Us For Availability
SPQ B12311222 SPQ B12311222 Contact Us For Availability
SPQ B12311220 SPQ B12311220 Contact Us For Availability
SPQ B12311214 SPQ B12311214 Contact Us For Availability
SPQ B12311211 SPQ B12311211 Contact Us For Availability
SPQ B12311206 SPQ B12311206 Contact Us For Availability
SPQ B12311204 SPQ B12311204 Contact Us For Availability
SPQ B12311201 SPQ B12311201 Contact Us For Availability
SPQ B12311216 SPQ B12311216 Contact Us For Availability
SPQ B12381402 SPQ B12381402 Contact Us For Availability
Relay SPQ F140329 Contact Us For Availability
Steam Valve Harness SPQ B12348504 Contact Us For Availability
Steam Heat Harness SPQ B12382302 Contact Us For Availability
Heat Harness SPQ B12349703 Contact Us For Availability
1
Nut SPQ 204/00110/00 Contact Us For Availability
1
Nut SPQ 204/00111/00 Contact Us For Availability
1
Printboard SPQ 209/02015/02 Contact Us For Availability
1
Bolt SPQ 205/00106/00 Contact Us For Availability
1
Nut SPQ 204/00014/00 Contact Us For Availability
1
Heating Element SPQ 209/00563/20 Contact Us For Availability
2
Out-of-Balance Switch Boot SPQ 201/00010/00 Contact Us For Availability
2
Pressure Switch Hose Tee SPQ 201/00007/00 Contact Us For Availability
2
Seal Plate Assembly SPQ 201/00012/00 Contact Us For Availability
2
Retaining Ring SPQ 202/00003/00 Contact Us For Availability
2
Siphon Cover SPQ 223/00044/00 Contact Us For Availability
2
Screw SPQ 207/00102/00 Contact Us For Availability
2
Rivet SPQ 204/00116/00 Contact Us For Availability
2
Supply Dispenser Cover Frame SPQ B12597501 Contact Us For Availability
2
Heating Element Plug SPQ 209/00564/20 Contact Us For Availability
3
Screw SPQ 111/01854/00 Contact Us For Availability
3
Lip Seal SPQ 206/00053/00 Contact Us For Availability
3
Tolerance Ring SPQ 215/00004/00 Contact Us For Availability
3
Pressure Switch Cap SPQ 899P3 Contact Us For Availability
3
Coin Drop SPQ B12311401 Contact Us For Availability
3
SPQ 117/00042/00 SPQ 117/00042/00 Contact Us For Availability
3
SPQ 209/00468/00 SPQ 209/00468/00 Contact Us For Availability
3
Pressure Switch Hose Tee SPQ F8401301 Contact Us For Availability
4
Panel Lock SPQ 44089303P Contact Us For Availability
4
Washer SPQ 201/00015/00 Contact Us For Availability
4
Outer Tub SPQ B12328701 Contact Us For Availability
4
Retaining Ring SPQ 201/00201/00 Contact Us For Availability
4
Screw SPQ 206/00058/00 Contact Us For Availability
4
Pushbutton SPQ 209/00396/00 Contact Us For Availability
4
Pushbutton SPQ B12323401 Contact Us For Availability
4
SPQ 227/00242/00 SPQ 227/00242/00 Contact Us For Availability
4
Out-of-Balance Switch SPQ 223/00246/00 Contact Us For Availability
5
Bolt SPQ B12328601 Contact Us For Availability
5
Bolt SPQ 206/00004/00 Contact Us For Availability
5
Motor Pulley SPQ 255/00012/00 Contact Us For Availability
5
Standoff SPQ 211/00122/00 Contact Us For Availability
5
Mechanical Coin Meter Housing SPQ B12311252 Contact Us For Availability
5
Key SPQ 70155603 Contact Us For Availability
5
SPQ 204/00107/00 SPQ 204/00107/00 Contact Us For Availability
5
SPQ 207/00018/00 SPQ 207/00018/00 Contact Us For Availability
6
Bearing Replacement Tool Kit SPQ 224/00052/00 Contact Us For Availability
6
Washer SPQ 203/00001/00 Contact Us For Availability
6
SPQ 255/00010/00 SPQ 255/00010/00 Contact Us For Availability
6
SPQ B12389701 SPQ B12389701 Contact Us For Availability
6
Telem Sticker SPQ 209/00520/00 Contact Us For Availability
6
Insulating Sticker SPQ 229/00291/00 Contact Us For Availability
6
Top Panel SPQ 111/01003/00 Contact Us For Availability
6
Top Panel SPQ B12311241 Contact Us For Availability
6
Nut SPQ B12509101 Contact Us For Availability
6
SPQ F8201001 SPQ F8201001 Contact Us For Availability
6
SPQ 203/00006/00 SPQ 203/00006/00 Contact Us For Availability
6
SPQ F8286401P SPQ F8286401P Contact Us For Availability
7
Shock Absorber SPQ 247/00002/03 Contact Us For Availability
7
Bearing Kit SPQ 224/00051/00 Contact Us For Availability
7
Pulley SPQ 201/00003/00 Contact Us For Availability
7
Motor SPQ B12510501 Contact Us For Availability
7
SPQ 209/00463/00 SPQ 209/00463/00 Contact Us For Availability
7
SPQ 223/00001/04 SPQ 223/00001/04 Contact Us For Availability
7
SPQ 223/00012/00 SPQ 223/00012/00 Contact Us For Availability
7
Fastening Piece SPQ B12311239 Contact Us For Availability
7
Fastening Piece SPQ 217/00060/00 Contact Us For Availability
8
SPQ 206/00106/00 SPQ 206/00106/00 Contact Us For Availability
8
Suspension Spring SPQ 247/00009/00 Contact Us For Availability
8
SPQ 206/00032/00 SPQ 206/00032/00 Contact Us For Availability
8
SPQ 255/00117/00 SPQ 255/00117/00 Contact Us For Availability
8
Nut SPQ 204/00109/00 Contact Us For Availability
8
SPQ F200133600 SPQ F200133600 Contact Us For Availability
8
SPQ 155/00155/00 SPQ 155/00155/00 Contact Us For Availability
8
SPQ 217/00015/00 SPQ 217/00015/00 Contact Us For Availability
8
Infrared Cable Kit SPQ 210/00902/00P Contact Us For Availability
8
Plexi Frame SPQ 225/00323/00 Contact Us For Availability
8
SPQ B12311234 SPQ B12311234 Contact Us For Availability
8
SPQ 246/00079/00 SPQ 246/00079/00 Contact Us For Availability
8
SPQ B12339301 SPQ B12339301 Contact Us For Availability
8
SPQ 206/00027/00 SPQ 206/00027/00 Contact Us For Availability
9
SPQ 201/00006/00 SPQ 201/00006/00 Contact Us For Availability
9
SPQ 223/00303/00 SPQ 223/00303/00 Contact Us For Availability
9
E-Stop Harness SPQ 211/00145/00 Contact Us For Availability
9
Operating Sticker SPQ B12383501 Contact Us For Availability
9
Wire Harness Assembly SPQ B12310001 Contact Us For Availability
9
SPQ 208/00009/00 SPQ 208/00009/00 Contact Us For Availability
9
SPQ 209/02014/00 SPQ 209/02014/00 Contact Us For Availability
9
Control Supply Harness SPQ B12392701 Contact Us For Availability
10
Bearing SPQ F100137P Contact Us For Availability
10
Pressure Switch Cap SPQ 223/00035/02 Contact Us For Availability
10
Nut SPQ 204/00106/00 Contact Us For Availability
10
Printboard Separator SPQ 211/00128/00 Contact Us For Availability
10
Screw SPQ B12500701 Contact Us For Availability
10
Tilt Switch Support SPQ 111/01855/00 Contact Us For Availability
10
Pressure Hose SPQ 223/00179/10 Contact Us For Availability
11
Drain Hose SPQ 223/00307/00 Contact Us For Availability
11
Washer SPQ 202/00108/00 Contact Us For Availability
11
Memory Card PC-Board SPQ B12305201 Contact Us For Availability
11
Door Lock PC-Board SPQ B12388201 Contact Us For Availability
11
Grommet SPQ 223/00198/00 Contact Us For Availability
11
Relay PC-Board SPQ 209/02016/00 Contact Us For Availability
11
Washer SPQ 204/00005/00 Contact Us For Availability
11
Vacuum Breaker Assembly SPQ F8048601 Contact Us For Availability
12
Tub Front Ring Clamp SPQ 219/00007/00 Contact Us For Availability
12
Strain Relief Connector SPQ 211/00181/00 Contact Us For Availability
12
Hose Clamp SPQ 223/00014/00 Contact Us For Availability
12
Pump Support SPQ 111/00288/10 Contact Us For Availability
12
Data Card Ribbon Assembly SPQ B12538301 Contact Us For Availability
12
Mounting Plate SPQ 223/00374/00 Contact Us For Availability
12
Lower Front Panel SPQ 111/00285/00 Contact Us For Availability
12
Ground Lug Connector SPQ M411283 Contact Us For Availability
12
Tilt Detector Plate SPQ 204/00007/00 Contact Us For Availability
13
Speed Detector Bracket SPQ 205/00104/00 Contact Us For Availability
13
Pump SPQ 209/00647/00 Contact Us For Availability
13
Operating Sticker SPQ B12383401 Contact Us For Availability
14
Screw SPQ 152/00055/00 Contact Us For Availability
14
Nut SPQ 206/00101/00 Contact Us For Availability
14
Clamp SPQ 209/00646/00 Contact Us For Availability
14
Manifold SPQ 223/00011/00 Contact Us For Availability
14
Door Hinge Spacer SPQ 117/00011/00 Contact Us For Availability
14
Switch Knob SPQ 209/00099/29 Contact Us For Availability
14
Infrared Cable Kit SPQ B12383301 Contact Us For Availability
15
Overflow Hose SPQ 223/00150/00 Contact Us For Availability
15
Pipe SPQ 223/00009/00 Contact Us For Availability
15
Screw SPQ 207/00126/00 Contact Us For Availability
15
Side Panel SPQ 111/60034/00 Contact Us For Availability
15
Parameter Unit Program Cable SPQ 227/00171/10 Contact Us For Availability
15
Rivet SPQ 208/00017/00 Contact Us For Availability
15
Dispenser Assembly SPQ F8333201 Contact Us For Availability
16
Stopper SPQ 223/00159/00 Contact Us For Availability
16
Door Hinge SPQ 221/00005/00 Contact Us For Availability
16
Washer SPQ 205/00105/00 Contact Us For Availability
16
Inverter Drive SPQ F8645001P Contact Us For Availability
16
Circuit Breaker SPQ B12487101 Contact Us For Availability
17
Caddy Bracket SPQ F100136P Contact Us For Availability
17
Outlet Pipe Plate Assembly SPQ 203/00004/00 Contact Us For Availability
17
Nut SPQ 223/00162/00 Contact Us For Availability
17
Bolt SPQ 202/00101/00 Contact Us For Availability
17
Washer SPQ F8644901P Contact Us For Availability
17
Water Hose SPQ F8047401 Contact Us For Availability
18
Nut SPQ 101/00007/00 Contact Us For Availability
18
Door Handle Stop SPQ 205/00107/00 Contact Us For Availability
18
Telem Sticker SPQ 223/00348/00 Contact Us For Availability
18
Fuse SPQ 204/00114/00 Contact Us For Availability
19
Top Cover Hinge SPQ 204/00009/00 Contact Us For Availability
19
Drain Valve Motor SPQ F200205 Contact Us For Availability
19
Magnet Holder SPQ 202/00104/00 Contact Us For Availability
19
Washer SPQ 202/00004/00 Contact Us For Availability
20
Thermostat Grommet SPQ 225/10004/00 Contact Us For Availability
20
Access Cover SPQ F8047901 Contact Us For Availability
21
Drain Piece SPQ 206/00033/00 Contact Us For Availability
21
Tub to Drain Valve Hose SPQ 209/00051/11 Contact Us For Availability
21
Dispenser Gasket SPQ F8047801 Contact Us For Availability
22
Drain Pipe Kit SPQ 223/00146/00 Contact Us For Availability
22
Air Duct SPQ 211/00170/00 Contact Us For Availability
23
Top Cover Latch SPQ F8258601 Contact Us For Availability
23
Water Valve Adapter SPQ 223/00223/00 Contact Us For Availability
24
Fuse Holder Body SPQ 70329401P Contact Us For Availability
24
Washer SPQ F8308301 Contact Us For Availability
25
E-Stop Drive Fan Harness SPQ 204/00011/00 Contact Us For Availability
26
Nut SPQ 223/00013/00 Contact Us For Availability
26
Fuse SPQ 802492 Contact Us For Availability
27
Fuse Holder Cap SPQ 70329501 Contact Us For Availability
27
3-Way Valve SPQ 223/00050/01 Contact Us For Availability
28
Prewash and Mainwash Nozzle SPQ 201/00002/00 Contact Us For Availability
28
ID Chip SPQ 209/02020/00 Contact Us For Availability
29
Bolt SPQ 204/00201/00 Contact Us For Availability
30
Pressure Hose SPQ 223/00123/00 Contact Us For Availability
30
Water Hose SPQ F8286402P Contact Us For Availability
NI
Spring Holder Top SPQ 247/00002/01 Contact Us For Availability
NI
SPQ 247/00001/04 SPQ 247/00001/04 Contact Us For Availability
NI
SPQ 217/00008/00 SPQ 217/00008/00 Contact Us For Availability
NI
SPQ F407P4 SPQ F407P4 Contact Us For Availability
NI
SPQ 380P3P SPQ 380P3P Contact Us For Availability
NI
SPQ 206/00105/00 SPQ 206/00105/00 Contact Us For Availability
NI
Door Lock Harness SPQ B12495001 Contact Us For Availability
NI
E-Stop Harness SPQ B12348901 Contact Us For Availability
NI
E-Stop Bypass Harness SPQ B12349001 Contact Us For Availability
NI
SPQ B12309901 SPQ B12309901 Contact Us For Availability
NI
SPQ B12311224 SPQ B12311224 Contact Us For Availability
NI
SPQ B12311221 SPQ B12311221 Contact Us For Availability
NI
SPQ B12311219 SPQ B12311219 Contact Us For Availability
NI
SPQ B12311212 SPQ B12311212 Contact Us For Availability
NI
SPQ B12311210 SPQ B12311210 Contact Us For Availability
NI
SPQ B12311205 SPQ B12311205 Contact Us For Availability
NI
SPQ B12311202 SPQ B12311202 Contact Us For Availability
NI
SPQ B12311247 SPQ B12311247 Contact Us For Availability
NI
SPQ B12311301 SPQ B12311301 Contact Us For Availability
NI
SPQ 152/00112/00 SPQ 152/00112/00 Contact Us For Availability
NI
SPQ B12551301 SPQ B12551301 Contact Us For Availability
NI
SPQ B12501501 SPQ B12501501 Contact Us For Availability
NI
SPQ B12529201 SPQ B12529201 Contact Us For Availability
NI
SPQ B12388301 SPQ B12388301 Contact Us For Availability
NI
SPQ B12348801 SPQ B12348801 Contact Us For Availability
NI
SPQ B12348301 SPQ B12348301 Contact Us For Availability
NI
SPQ B12348101 SPQ B12348101 Contact Us For Availability
NI
SPQ F200166 SPQ F200166 Contact Us For Availability
NI
SPQ F200164 SPQ F200164 Contact Us For Availability
NI
DIN Connector SPQ F360202 Contact Us For Availability
NI
Strain Relief Connector SPQ F140609P Contact Us For Availability
NI
Branch Harness SPQ B12308001 Contact Us For Availability
NI
Dual Heat Harness SPQ B12348502 Contact Us For Availability
NI
Electric Heat Harness SPQ B12349803 Contact Us For Availability
NI
SPQ B12349603 SPQ B12349603 Contact Us For Availability
NI
SPQ B12455802 SPQ B12455802 Contact Us For Availability
× ![]()
