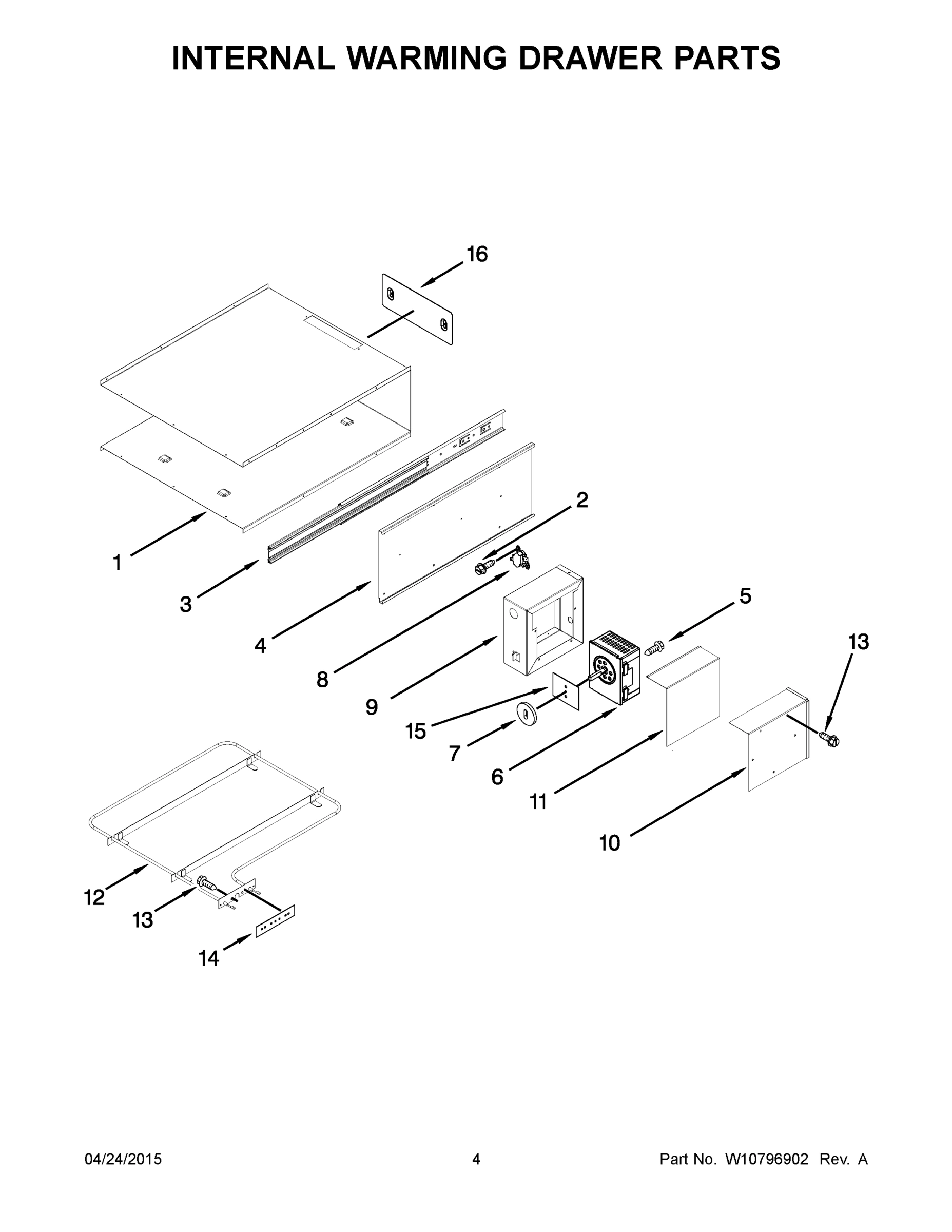

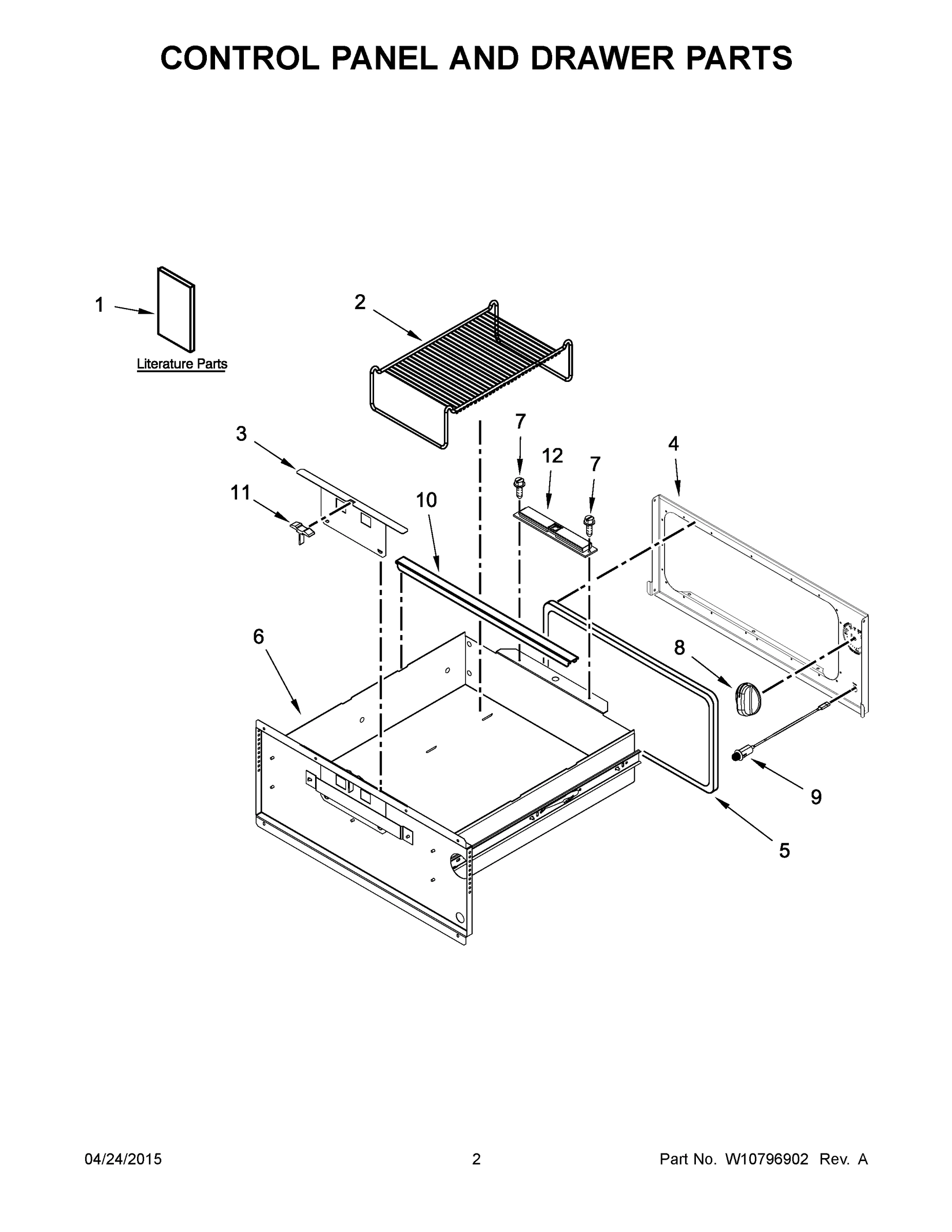

Model Maytag JWD3030EX00 WARMING DRAWER – Common Parts & Diagrams

1
MAY W10736617
MAY W10736617 MAY W10736617 Contact Us For Availability
View on Model
1
MAY W10684523
MAY W10684523 MAY W10684523 Contact Us For Availability
View on Model
1A
SHEET, TECH
SHEET, TECH MAY W10064720 Contact Us For Availability
View on Model
1B
MAY W10736619
MAY W10736619 MAY W10736619 Contact Us For Availability
View on Model
2
RACK, WARMING DRAWER
RACK, WARMING DRAWER MAY 8273277 Contact Us For Availability
View on Model
2
MAY 313806
MAY 313806 MAY 313806 Contact Us For Availability
View on Model
3
MAY W10162376
MAY W10162376 MAY W10162376 Contact Us For Availability
View on Model
3
ASSEMBLY, SLIDE
ASSEMBLY, SLIDE MAY W10188461 Contact Us For Availability
View on Model
4
MAY W10515383
MAY W10515383 MAY W10515383 Contact Us For Availability
View on Model
4
WALL, CAVITY (LEFT)
WALL, CAVITY (LEFT) MAY W10299387 Contact Us For Availability
View on Model
4A
WALL, CAVITY (RIGHT)
WALL, CAVITY (RIGHT) MAY 9762307 Contact Us For Availability
View on Model
5
MAY W10164998
MAY W10164998 MAY W10164998 Contact Us For Availability
View on Model
6
ASSEMBLY, DRAWER
ASSEMBLY, DRAWER MAY 9763646 Contact Us For Availability
View on Model
6
MAY W10121337
MAY W10121337 MAY W10121337 Contact Us For Availability
View on Model
7
MAY W10117362
MAY W10117362 MAY W10117362 Contact Us For Availability
View on Model
8
MAY W10274390
MAY W10274390 MAY W10274390 Contact Us For Availability
View on Model
8
FUSE, THERMAL
FUSE, THERMAL MAY 9763126 Contact Us For Availability
View on Model
9
MAY W10489562
MAY W10489562 MAY W10489562 Contact Us For Availability
View on Model
9
ENCLOSURE, ELECTRIC
ENCLOSURE, ELECTRIC MAY 9763122 Contact Us For Availability
View on Model
10
RAIL, PAN
RAIL, PAN MAY W10409138 Contact Us For Availability
View on Model
10
MAY 9763121
MAY 9763121 MAY 9763121 Contact Us For Availability
View on Model
11
MAY 9763125
MAY 9763125 MAY 9763125 Contact Us For Availability
View on Model
11
MAY W10117363
MAY W10117363 MAY W10117363 Contact Us For Availability
View on Model
12
MAY W10035910
MAY W10035910 MAY W10035910 Contact Us For Availability
View on Model
12
MAY W10751753
MAY W10751753 MAY W10751753 Contact Us For Availability
View on Model
13
SCREW
SCREW MAY 3196537 Contact Us For Availability
View on Model
14
MAY W10118049
MAY W10118049 MAY W10118049 Contact Us For Availability
View on Model
15
MAY W10118113
MAY W10118113 MAY W10118113 Contact Us For Availability
View on Model
16
SHIELD, HEAT
SHIELD, HEAT MAY W10118073 Contact Us For Availability
View on Model
NI
SCREW, GROUNDING
SCREW, GROUNDING MAY 3400015 Contact Us For Availability
View on Model
NI
RELIEF, STRAIN
RELIEF, STRAIN MAY 4452601 Contact Us For Availability
View on Model
NI
FOLLOWING PARTS NOT ILLUSTRATED
FOLLOWING PARTS NOT ILLUSTRATED MAY N/P Contact Us For Availability
View on Model
NI
CORD, POWER
CORD, POWER MAY W10129023 Contact Us For Availability
View on Model
NI
MAY W10129043
MAY W10129043 MAY W10129043 Contact Us For Availability
View on Model
NI
MAY W10131847
MAY W10131847 MAY W10131847 Contact Us For Availability
View on Model
