Model Maytag JWD3030ES00 WARMING DRAWER – Common Parts & Diagrams
01 - COVER SHEET
02 - CONTROL PANEL AND DRAWER PARTS

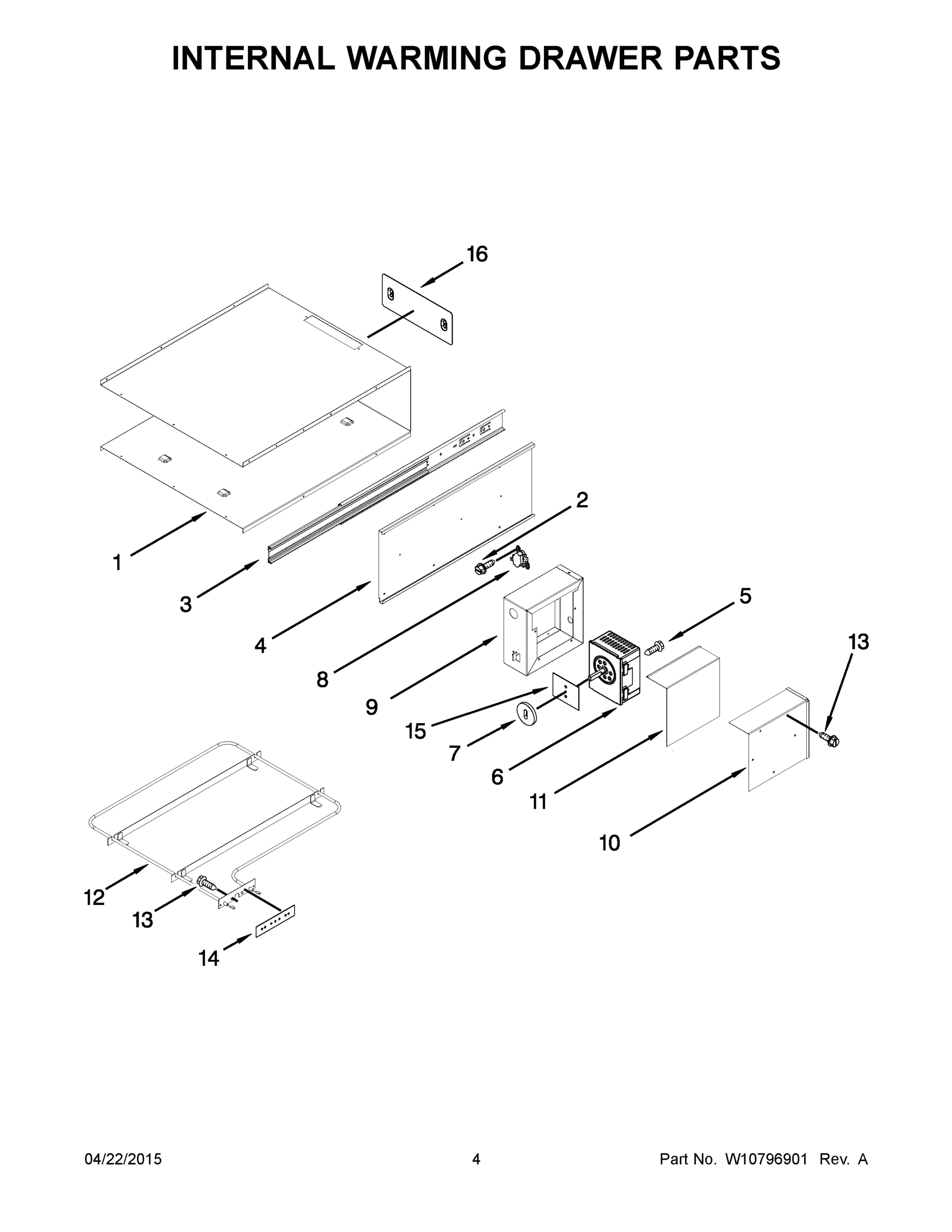

03 - INTERNAL WARMING DRAWER PARTS
Common parts from model Maytag JWD3030ES00 WARMING DRAWER
1
MAY W10736617 MAY W10736617 Contact Us For Availability
1
MAY W10684523 MAY W10684523 Contact Us For Availability
1A
SHEET, TECH MAY W10064720 Contact Us For Availability
1B
MAY W10736619 MAY W10736619 Contact Us For Availability
2
RACK, WARMING DRAWER MAY 8273277 Contact Us For Availability
2
MAY 313806 MAY 313806 Contact Us For Availability
3
MAY W10162376 MAY W10162376 Contact Us For Availability
3
ASSEMBLY, SLIDE MAY W10188461 Contact Us For Availability
4
MAY W10515383 MAY W10515383 Contact Us For Availability
4
WALL, CAVITY (LEFT) MAY W10299387 Contact Us For Availability
4A
WALL, CAVITY (RIGHT) MAY 9762307 Contact Us For Availability
5
MAY W10164998 MAY W10164998 Contact Us For Availability
6
ASSEMBLY, DRAWER MAY 9763646 Contact Us For Availability
6
MAY W10121337 MAY W10121337 Contact Us For Availability
7
MAY W10117362 MAY W10117362 Contact Us For Availability
8
SKIN, DRAWER MAY W10489559 Contact Us For Availability
8
FUSE, THERMAL MAY 9763126 Contact Us For Availability
9
ASSEMBLY, HANDLE (STAINLESS) MAY W10551013 Contact Us For Availability
9
ENCLOSURE, ELECTRIC MAY 9763122 Contact Us For Availability
10
BADGE (STAINLESS) MAY W10214168 Contact Us For Availability
10
MAY 9763121 MAY 9763121 Contact Us For Availability
11
MAY W10274390 MAY W10274390 Contact Us For Availability
11
MAY W10117363 MAY W10117363 Contact Us For Availability
12
MAY W10489562 MAY W10489562 Contact Us For Availability
12
MAY W10751753 MAY W10751753 Contact Us For Availability
13
SCREW MAY 3196537 Contact Us For Availability
13
LENS, INDICATOR MAY 4456314 Contact Us For Availability
14
RAIL, PAN MAY W10409138 Contact Us For Availability
14
MAY W10118049 MAY W10118049 Contact Us For Availability
15
MAY 9763125 MAY 9763125 Contact Us For Availability
15
MAY W10118113 MAY W10118113 Contact Us For Availability
16
MAY W10035910 MAY W10035910 Contact Us For Availability
16
SHIELD, HEAT MAY W10118073 Contact Us For Availability
17
MAY 4456861 MAY 4456861 Contact Us For Availability
18
MAY 4456862 MAY 4456862 Contact Us For Availability
19
MAY 3823F017-45 MAY 3823F017-45 Contact Us For Availability
20
MAY 8533988 MAY 8533988 Contact Us For Availability
NI
SCREW, GROUNDING MAY 3400015 Contact Us For Availability
NI
RELIEF, STRAIN MAY 4452601 Contact Us For Availability
NI
FOLLOWING PARTS NOT ILLUSTRATED MAY N/P Contact Us For Availability
NI
CORD, POWER MAY W10129023 Contact Us For Availability
NI
MAY W10129043 MAY W10129043 Contact Us For Availability
NI
MAY W10131847 MAY W10131847 Contact Us For Availability
× ![]()
