Model Whirlpool JWC2450ARW WINE CELLAR – Common Parts & Diagrams

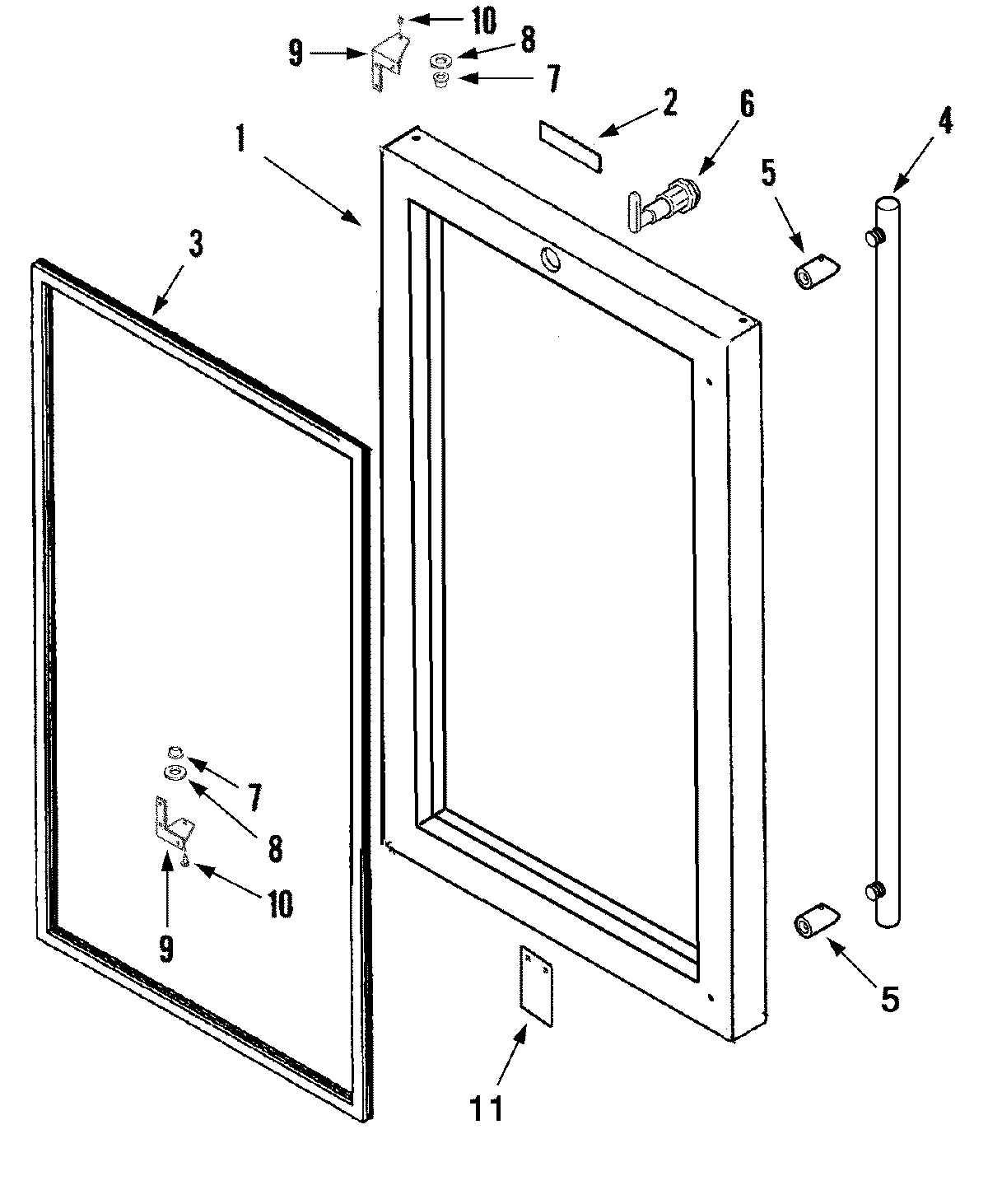

01 - DOOR

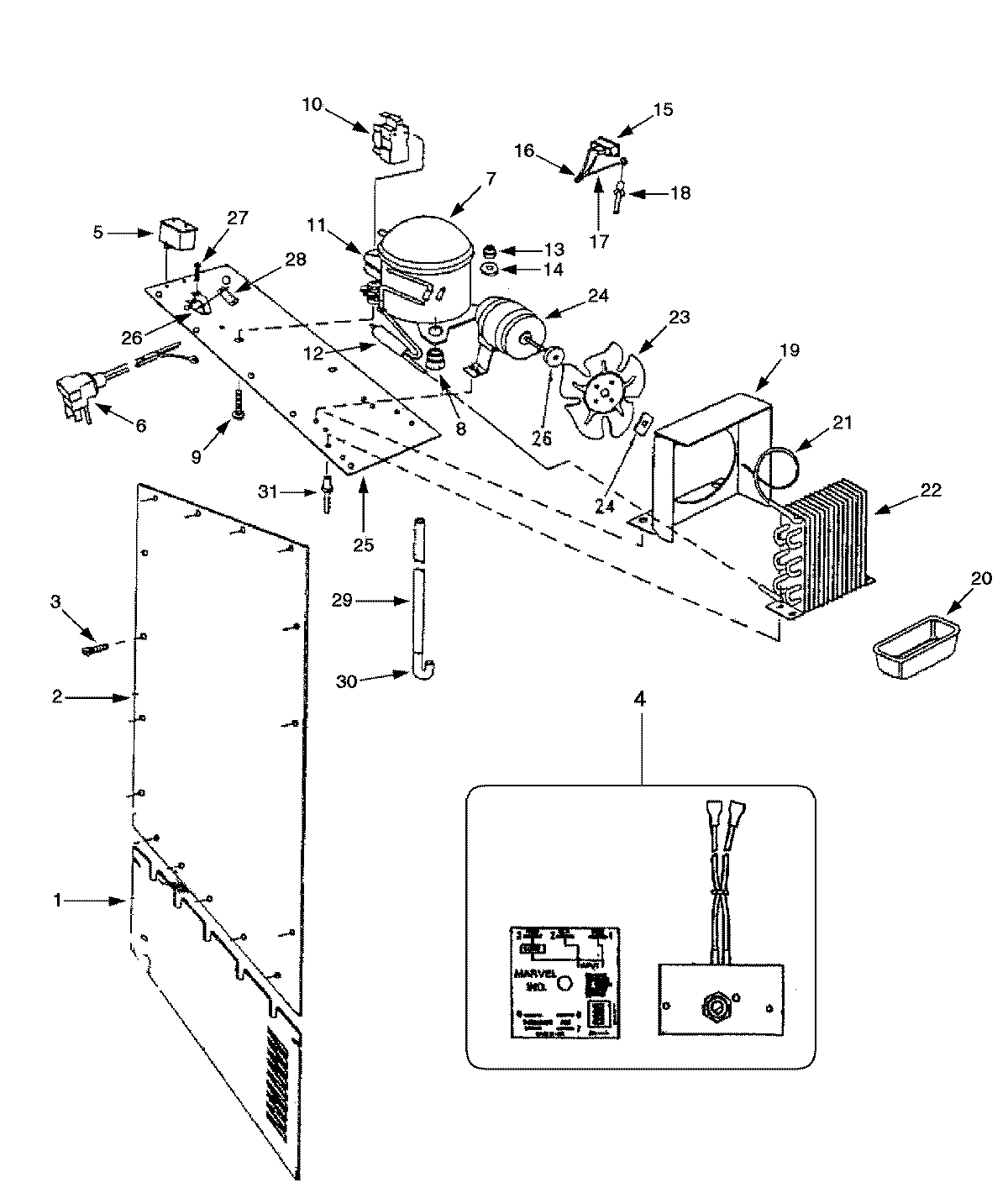

03 - MECHANICAL PARTS

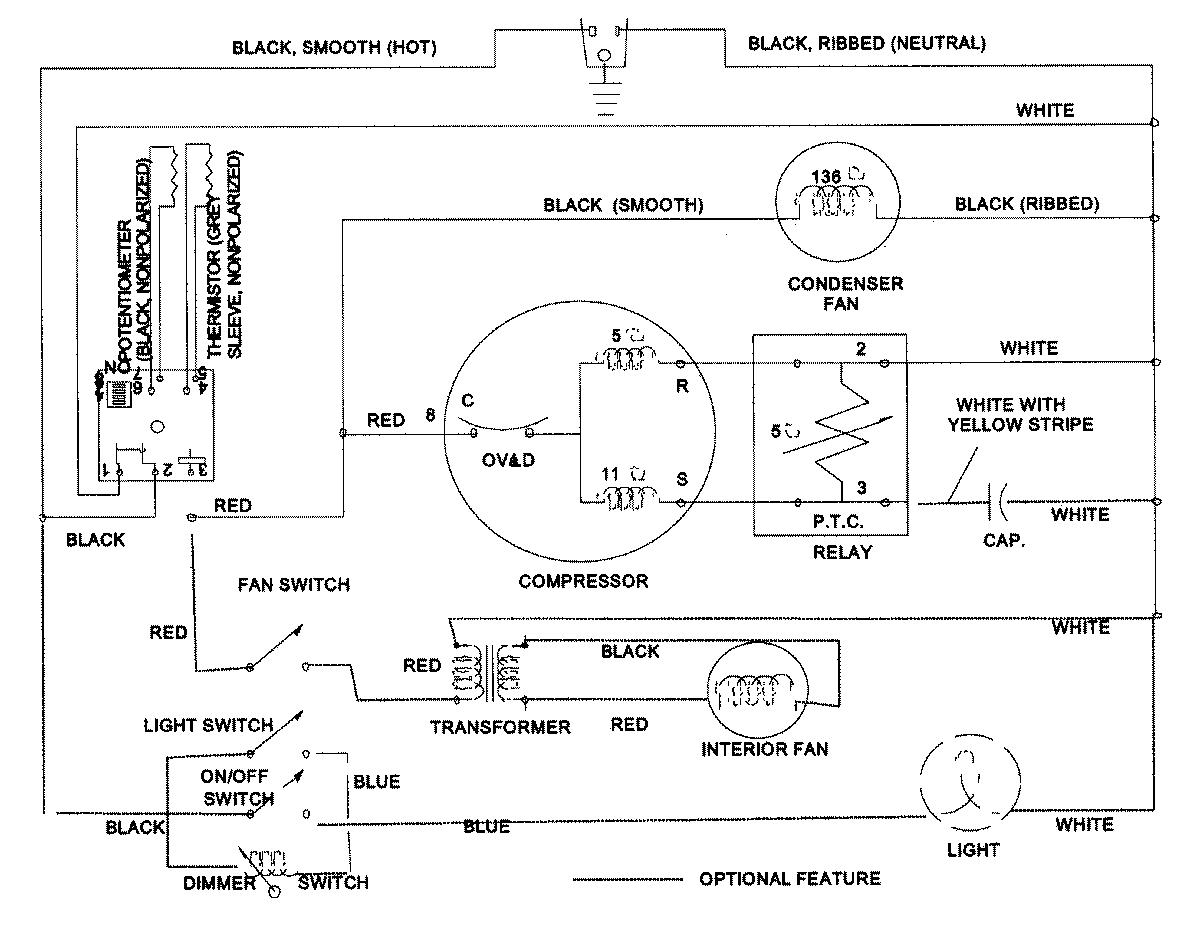

05 - WIRING INFORMATION

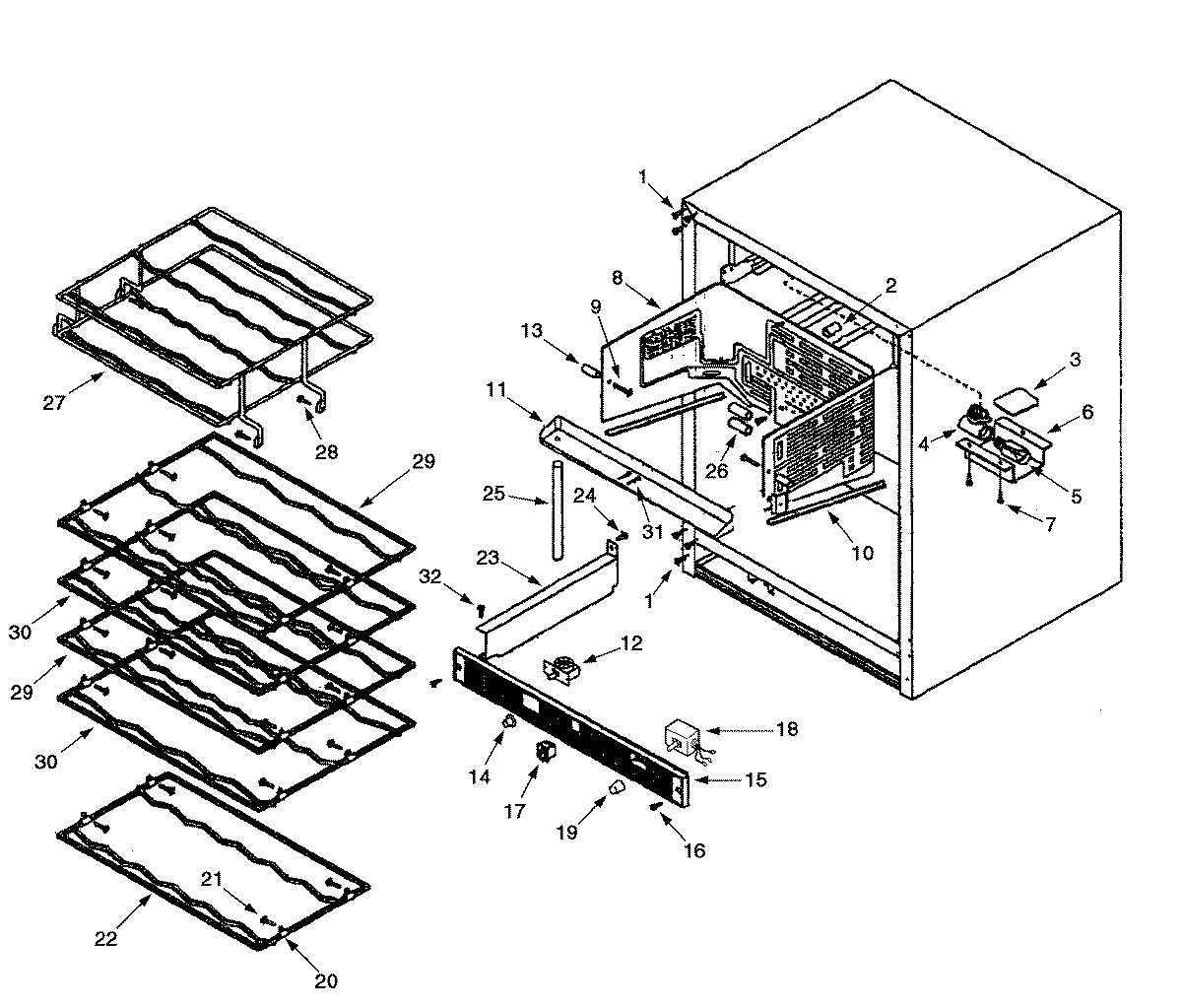

02 - INTERIOR PARTS
04 - SUPPLEMENTAL INFORMATION
Common parts from model Whirlpool JWC2450ARW WINE CELLAR
1
DOOR ASSY. (WHT) WPL 60001164 Contact Us For Availability
1
BACK, SHROUD FIBER BOARD WPL 60001095 Contact Us For Availability
1
PLUG, HOLE (WHT) WPL 60001045 Contact Us For Availability
1
MANUAL, USE & CARE WPL 41007605 Contact Us For Availability
2
NAMEPLATE WPL 60001135 Contact Us For Availability
2
PANEL, CABINET BACK WPL 60001096 Contact Us For Availability
2
SPACER (WHT) WPL 60001056 Contact Us For Availability
2
SVC MAN, WINECELLAR/UNDERCOUNT WPL 16022323 Contact Us For Availability
3
GASKET, DOOR (WHT) WPL 60001157 Contact Us For Availability
3
SHIELD, LIGHT WPL 60001058 Contact Us For Availability
4
HANDLE ASSY. WPL 60001158 Contact Us For Availability
4
RECEPTACLE, LIGHT WPL 60001059 Contact Us For Availability
5
STANDOFF, HANDLE WPL 60001139 Contact Us For Availability
5
SCREW, SET (STANDOFF-HANDLE) WPL 60001181 Contact Us For Availability
6
KEY WPL 60001138 Contact Us For Availability
6
LOCK ASSY. WPL 60001168 Contact Us For Availability
6
CORD, POWER WPL 60001098 Contact Us For Availability
6
LENS WPL 60001061 Contact Us For Availability
7
BUSHING, HINGE WPL 60001142 Contact Us For Availability
7
COMPRESSOR ASSY. WPL 60001099 Contact Us For Availability
8
SPACERS, HINGE WPL 60001143 Contact Us For Availability
8
GROMMET, COMPRESSOR WPL 60001012 Contact Us For Availability
8
EVAPORATOR ASSY. (WHT) WPL 60001063 Contact Us For Availability
9
SCREW WPL 60001151 Contact Us For Availability
9
HINGE ASSY. (INCL. 2 HINGES) WPL 60001169 Contact Us For Availability
9
BOLT, CARRIAGE WPL 60001115 Contact Us For Availability
9
SCREW WPL 60001087 Contact Us For Availability
10
PIN, HINGE WPL 60001150 Contact Us For Availability
10
PIN, HINGE (LWR) WPL 60001170 Contact Us For Availability
10
STARTER, PTC WPL 60001017 Contact Us For Availability
10
TRIM, EVAPORATOR (WHT) WPL 60001065 Contact Us For Availability
11
PLATE, STRIKE (WHT) WPL 60001171 Contact Us For Availability
11
COVER, COMPRESSOR RELAY WPL 60001101 Contact Us For Availability
11
TRAY, DRIP (WHT) WPL 60001067 Contact Us For Availability
12
CONTROL ASSY., SSAC ELECTRONIC WPL 60001120 Contact Us For Availability
12
DRIER WPL 139001 Contact Us For Availability
13
LOCKNUT WPL 60001102 Contact Us For Availability
13
SPACER WPL 60001088 Contact Us For Availability
14
WASHER WPL 60001103 Contact Us For Availability
14
KNOB, THERMOSTAT WPL 60001069 Contact Us For Availability
15
GRILLE (WHT) WPL 60001070 Contact Us For Availability
16
WIRE HARNESS, LIGHT WPL 60001107 Contact Us For Availability
16
SCREW (FOR WHT GRILLE) WPL 60001072 Contact Us For Availability
17
WIRE, GROUND WPL 60001108 Contact Us For Availability
17
SWITCH, PLUNGER (WHT) WPL 60001074 Contact Us For Availability
18
RIVET, POP WPL 60001002 Contact Us For Availability
18
PLATE, DIMMER SWITCH (WHT) WPL 60001078 Contact Us For Availability
18
SWITCH, DIMMER WPL 60001160 Contact Us For Availability
19
SHROUD, FAN WPL 60001109 Contact Us For Availability
19
KNOB, DIMMER SWITCH (BLK) WPL 60001077 Contact Us For Availability
20
PAN ASSY., DRIP WPL 60001110 Contact Us For Availability
21
TUBE, COPPER WPL 60001111 Contact Us For Availability
22
CONDENSER WPL 60001112 Contact Us For Availability
22
RACK, WINE (BTM) WPL 60001081 Contact Us For Availability
23
BLADE, FAN (W/SPEEDNUT) WPL 60001007 Contact Us For Availability
23
SHROUD, FRONT WPL 60001082 Contact Us For Availability
24
MOTOR ASSY., FAN WPL 60001113 Contact Us For Availability
24
CLIP, TINNERMAN WPL 60001083 Contact Us For Availability
25
PLATE, BASE WPL 60001116 Contact Us For Availability
25
TUBE, DRAIN (WHT) WPL 60001084 Contact Us For Availability
26
CLAMP, CORD WPL 60001117 Contact Us For Availability
26
CAP WPL 60001086 Contact Us For Availability
27
RACK, WINE (TOP) WPL 60001089 Contact Us For Availability
28
BLOCK, TERMINAL WPL 60001118 Contact Us For Availability
29
RACK, WINE (W/O WOOD FRONTS) WPL 60001091 Contact Us For Availability
30
J-TRAP WPL 60001119 Contact Us For Availability
30
FRONT, WOOD WPL 60001092 Contact Us For Availability
30
RACK, WINE (W/O WOOD FRONTS) WPL 60001162 Contact Us For Availability
31
RIVET, POP WPL 60001093 Contact Us For Availability
NI
WIRING INFORMATION WPL 15003312 Contact Us For Availability
× ![]()
