Model Whirlpool JWARG475WP01 TOP MOUNT REFRIGERATOR – Common Parts & Diagrams
08 - FREEZER DOOR
05 - SHELF, LIT/OPTIONAL

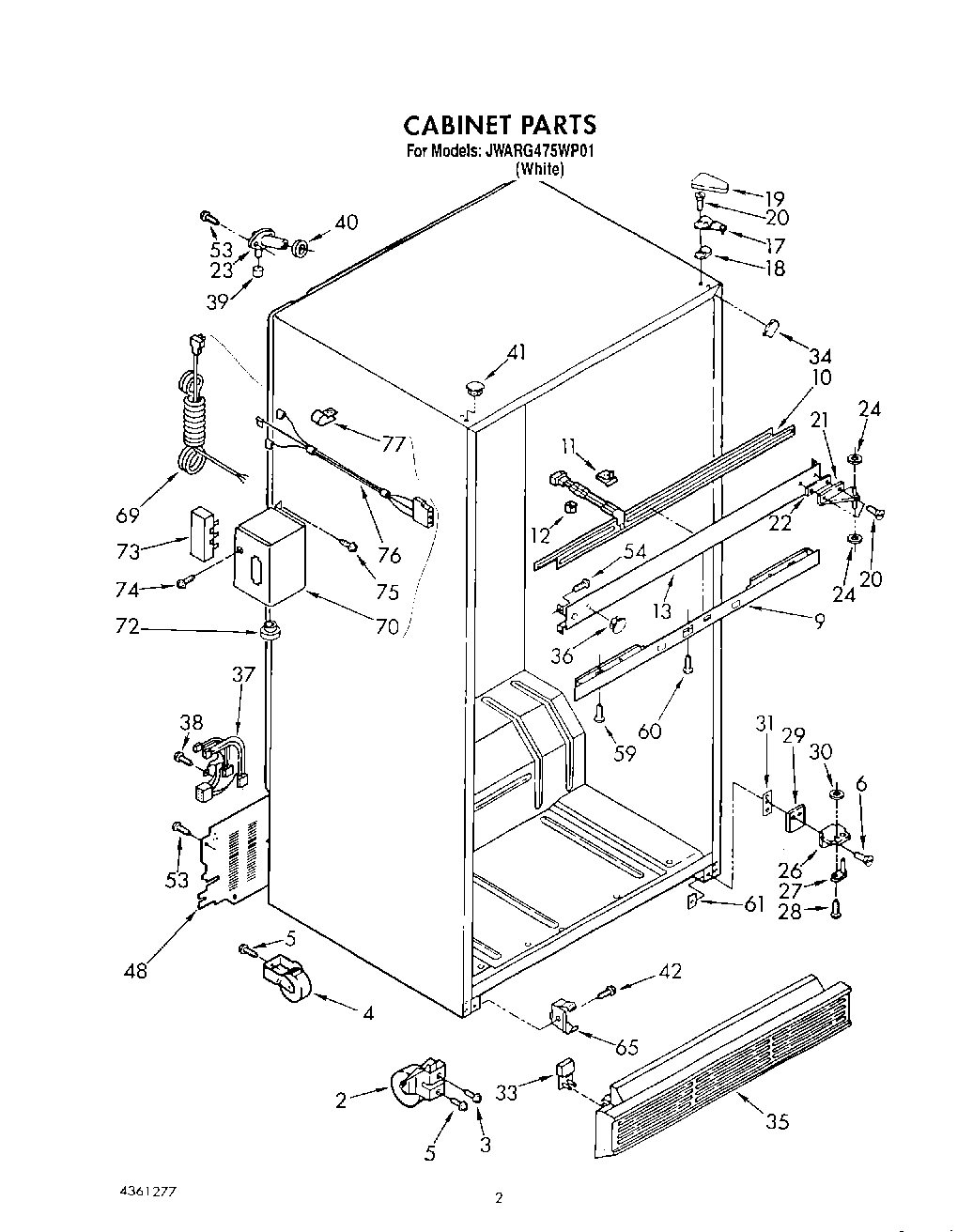

02 - CABINET

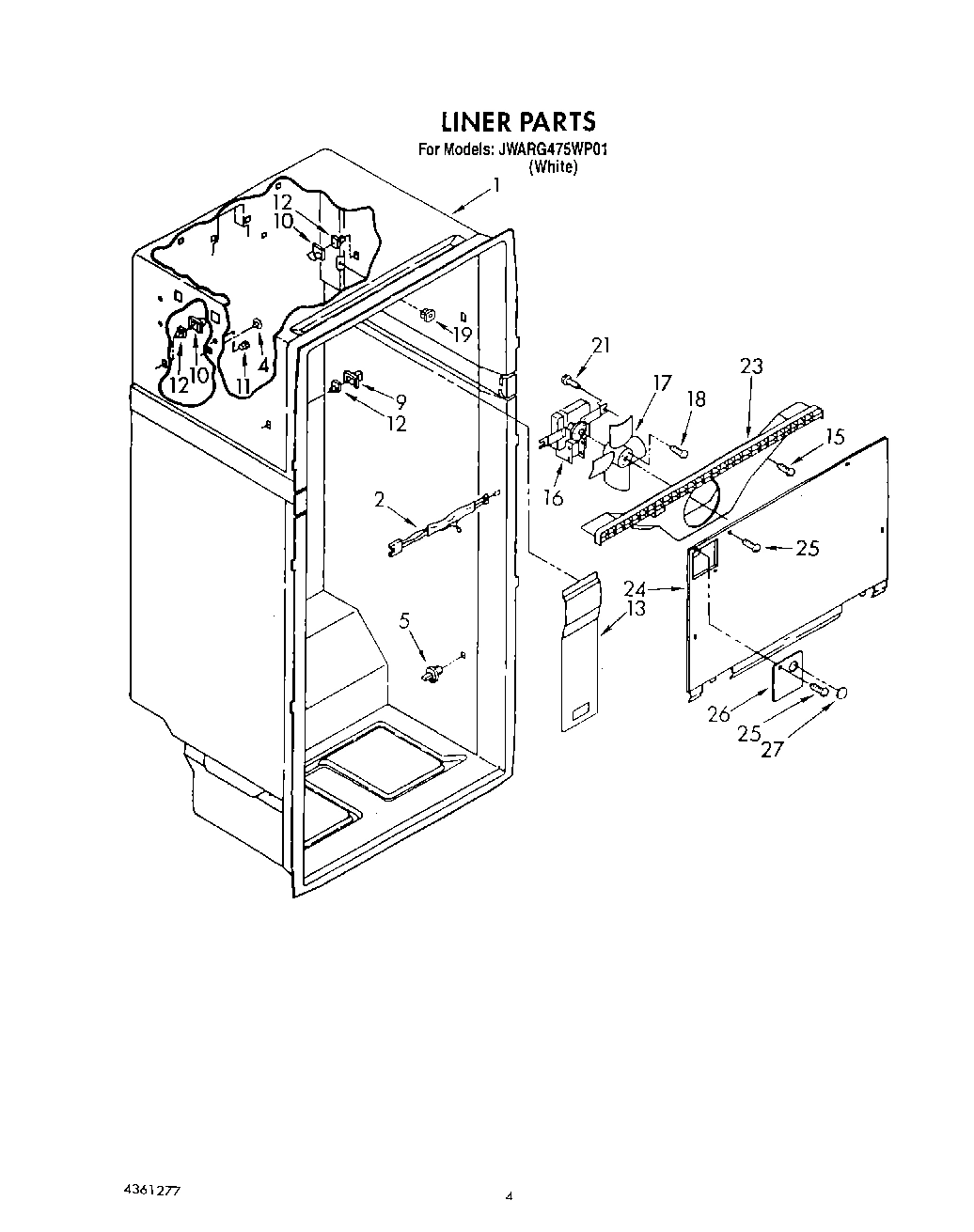

03 - LINER

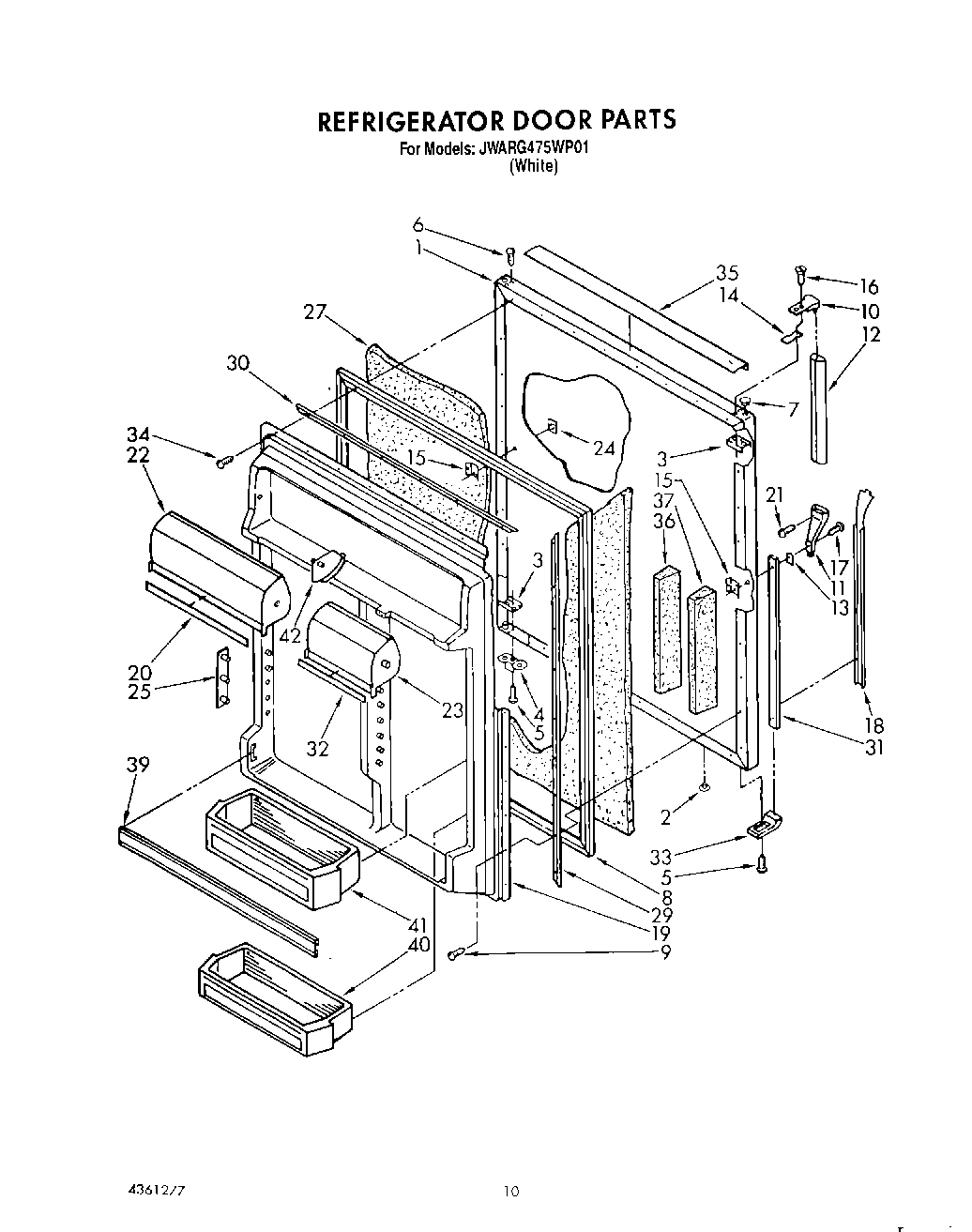

07 - REFRIGERATOR DOOR

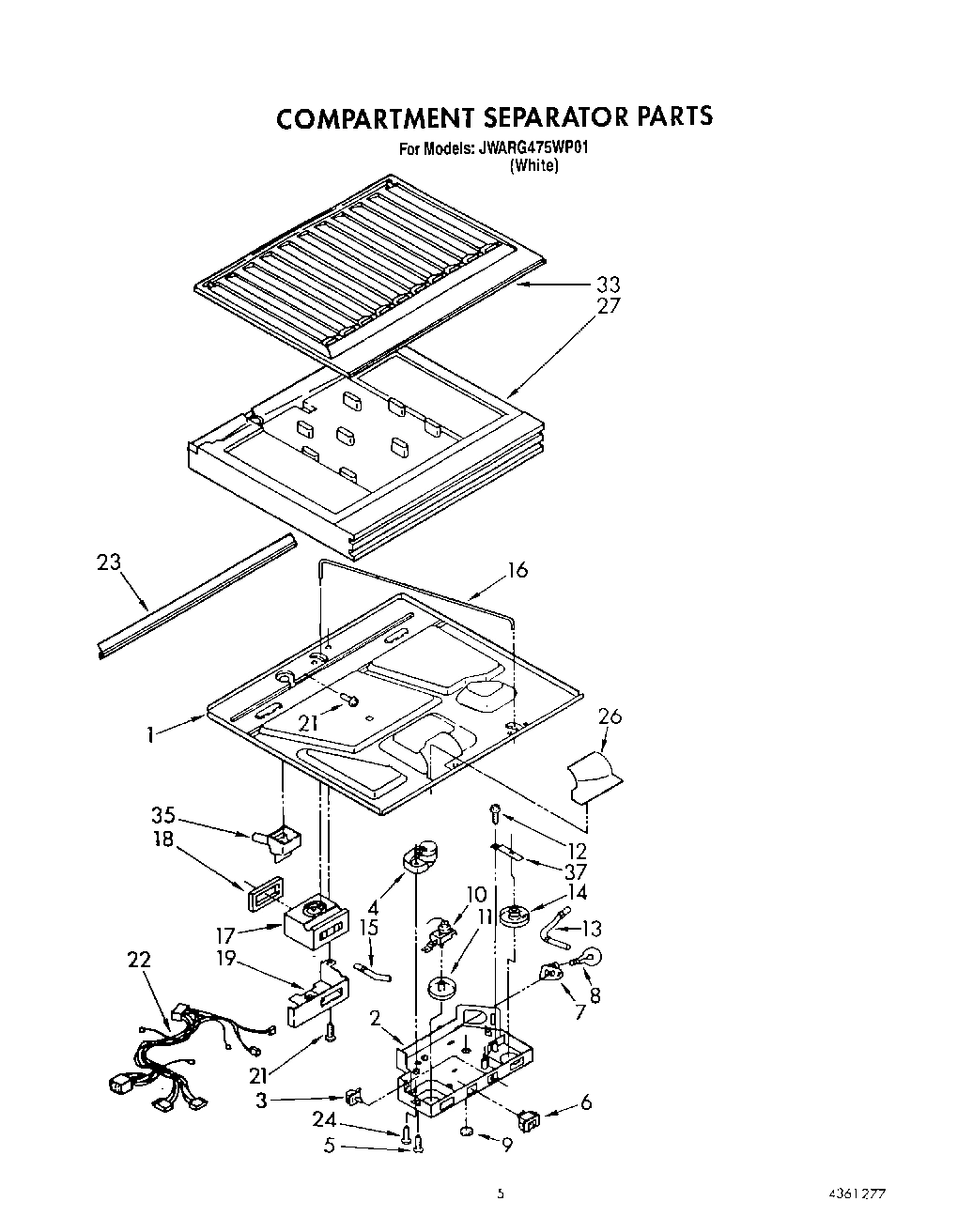

04 - COMPARTMENT SEPARATOR

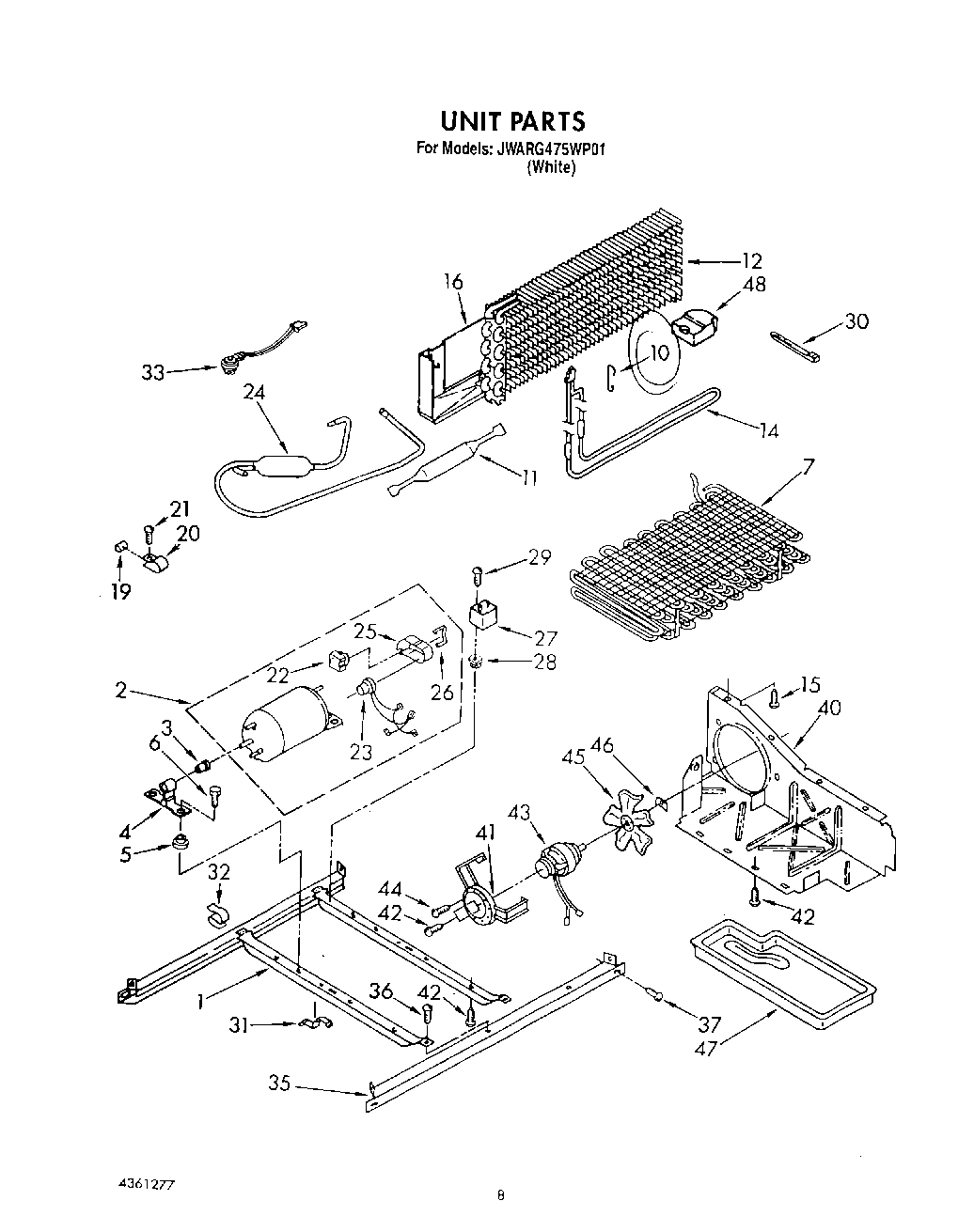

06 - UNIT
Common parts from model Whirlpool JWARG475WP01 TOP MOUNT REFRIGERATOR
WPL 1117510 WPL 1117510 Contact Us For Availability
1
Cabinet (Not A Serviceable Part) WPL ARI77876A9 Contact Us For Availability
1
Liner (Not A Serviceable Part) WPL ARI77877A8 Contact Us For Availability
1
Panel, Refrigerator Door (Also Order Item 27) WPL 1116575 Contact Us For Availability
1
Panel, Refrigerator Door (Also Order Item 27) WPL 1116578 Contact Us For Availability
1
Bottom, Compartment Separator WPL 1116561 Contact Us For Availability
1
Unit, Frame WPL 1116619 Contact Us For Availability
2
Wiring, Fan Motor WPL 1127626 Contact Us For Availability
2
Roller, Front WPL 2152011 Contact Us For Availability
2
Hole Plug (2) WPL 534927 Contact Us For Availability
2
Box, Control WPL 1126029 Contact Us For Availability
2
Compressor Kit Includes Items (22, 23, 25, 26 WPL 4317954 Contact Us For Availability
3
Screw, 5/16-24 x 1-1/4 WPL 489333 Contact Us For Availability
3
Grommet, Compressor Bracket WPL 1105219 Contact Us For Availability
4
Bracket, Door Stop WPL 944036 Contact Us For Availability
4
Bracket, Mounting WPL 1105220 Contact Us For Availability
5
Screw, 1/4-28 x 1/2 WPL 488454 Contact Us For Availability
5
Grommet, Compressor (4) WPL 1105200 Contact Us For Availability
6
Screw WPL 489327 Contact Us For Availability
6
Screw (4) WPL 489334 Contact Us For Availability
7
Condenser Assembly WPL 2154008 Contact Us For Availability
8
Door Gasket, Magnetic WPL 1125889 Contact Us For Availability
9
Control, Front Cover WPL 2148582 Contact Us For Availability
9
Stud, Front WPL 946356 Contact Us For Availability
10
Handle End, Top WPL 944163 Contact Us For Availability
10
Heater, Mullion WPL 2158623 Contact Us For Availability
10
Handle End WPL 944157 Contact Us For Availability
10
Support, Heater WPL 2149120 Contact Us For Availability
11
Handle End, Side WPL 1109189 Contact Us For Availability
11
Clip, Mullion (3) WPL 2149060 Contact Us For Availability
11
Grommet, (6) WPL 1110779 Contact Us For Availability
11
Knob, Thermostat WPL 1114315 Contact Us For Availability
12
Spacer (3) WPL 2149077 Contact Us For Availability
12
support stud (8) WPL 946355 Contact Us For Availability
12
Handle, Center WPL 2150150 Contact Us For Availability
12
Evaporator Assy. WPL 2153977 Contact Us For Availability
13
Shim, Handle WPL 943187 Contact Us For Availability
13
Center Rail (White) WPL 1116540 Contact Us For Availability
13
Cover, Air Duct WPL 2153966 Contact Us For Availability
13
Shim, Handle End (Side) WPL 935075 Contact Us For Availability
13
Light, Bar WPL 1105475 Contact Us For Availability
14
Spacer, Handle Door WPL 943188 Contact Us For Availability
14
Knob, Air Control WPL 1114314 Contact Us For Availability
14
Heater, Defrost WPL 2162029 Contact Us For Availability
15
Light, Bar WPL 1105476 Contact Us For Availability
16
Motor, Fan WPL 2154635 Contact Us For Availability
16
Rod, Connecting WPL 1116565 Contact Us For Availability
16
Drain Pan & Heat Shield WPL 2153973 Contact Us For Availability
17
Hinge, Top WPL 1123514 Contact Us For Availability
17
Air Diffuser Assembly WPL 2157416 Contact Us For Availability
18
Shim, Hinge Top WPL 1123517 Contact Us For Availability
18
Insert, Handle WPL 2150155 Contact Us For Availability
18
Gasket, Air Diffuser WPL 1114325 Contact Us For Availability
19
Grommet (2) WPL 531933 Contact Us For Availability
19
Interior Door Panel WPL 1114792 Contact Us For Availability
19
Cover, Air Diffuser WPL 1108176 Contact Us For Availability
19
Dampener WPL 2149670 Contact Us For Availability
20
Trim, Door Compartment WPL 1121186 Contact Us For Availability
20
Tube Clamp (2) WPL 510716 Contact Us For Availability
21
Kit, Foam Slab (Required When Replacing Exter WPL 876029 Contact Us For Availability
21
Hinge, Center WPL 2151453 Contact Us For Availability
21
Screw WPL 489168 Contact Us For Availability
21
Screw, 6-20 x 3/8 (2) WPL 489022 Contact Us For Availability
22
Shim, Hinge Center WPL 836155 Contact Us For Availability
22
Compartment Door WPL 2148747 Contact Us For Availability
22
Wiring Assembly, Control Box WPL 2158621 Contact Us For Availability
22
Relay WPL 2154612 Contact Us For Availability
23
Reflector, Shelf WPL 1115165 Contact Us For Availability
23
Scroll, Fan WPL 1116598 Contact Us For Availability
23
Compartment Door WPL 2148745 Contact Us For Availability
23
Gasket, Bottom Separator WPL 1116566 Contact Us For Availability
23
Overload, (For Service Compressor Only) WPL 2156479 Contact Us For Availability
23
Overload WPL 2158566 Contact Us For Availability
24
Evaporator Cover WPL 2151668 Contact Us For Availability
24
Muffler WPL 2154033 Contact Us For Availability
25
Pin Plate (8) WPL 1116986 Contact Us For Availability
25
For Service Compressor Only WPL 1105221 Contact Us For Availability
25
Terminal Cover WPL 2154452 Contact Us For Availability
26
Divider WPL 1118054 Contact Us For Availability
26
Hinge Butt, Bottom WPL 2148563 Contact Us For Availability
26
Insulation, Filler WPL 1108196 Contact Us For Availability
26
Strap, Cover WPL 1105222 Contact Us For Availability
27
Hinge Pin, Bottom WPL 654366 Contact Us For Availability
27
Shelf, Ice Compartment (2) WPL 1106624 Contact Us For Availability
27
Hole Plug WPL 1103725 Contact Us For Availability
27
Insulation, Compartment Separator WPL 1116569 Contact Us For Availability
27
Running Capacitor WPL 2154615 Contact Us For Availability
28
Screw 10-32 x 5/16 WPL 488714 Contact Us For Availability
28
Slide, Ice Compartment WPL 1106817 Contact Us For Availability
28
Screw Grommet WPL 509812 Contact Us For Availability
29
Shim, Bottom WPL 1123379 Contact Us For Availability
29
Retainer, Gasket Side (2) WPL 1115136 Contact Us For Availability
30
Door, Ice Compartment WPL 2148741 Contact Us For Availability
30
Retainer, Gasket Top & Bottom WPL 1115137 Contact Us For Availability
30
Strap WPL 851095 Contact Us For Availability
31
Crisper, Gasket Rear (2) WPL 1116714 Contact Us For Availability
31
Spacer WPL 1121117 Contact Us For Availability
31
Retainer, Insert WPL 1118080 Contact Us For Availability
31
Clip, Unit Cover WPL 548744 Contact Us For Availability
32
Slide, Crisper WPL 2148524 Contact Us For Availability
32
Trim, Compartment Door WPL 2148588 Contact Us For Availability
33
Screw (6) WPL 489268 Contact Us For Availability
33
Corner Filler, Grille WPL 1125665 Contact Us For Availability
33
Endcap, Insert Retainer WPL 1105804 Contact Us For Availability
33
Separator, Compartment (Top) WPL 1116570 Contact Us For Availability
34
Filler, Wrapper Corner (2) (White) WPL 1118058 Contact Us For Availability
35
Grille WPL 1125664 Contact Us For Availability
35
Trim, Door WPL 1118064 Contact Us For Availability
35
Cup, Drain WPL 937065 Contact Us For Availability
35
Unit, Rail WPL 1116622 Contact Us For Availability
36
TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability
36
Crisper, Pan Front WPL 2148573 Contact Us For Availability
36
Leveler, Enamel (13 Oz. Spray Can) WPL 350941 Contact Us For Availability
36
CEMENT, ALUMILASTIC (1 1/4 OZ.) WPL 542639 Contact Us For Availability
36
WPL 799833 WPL 799833 Contact Us For Availability
36
WPL 978883 WPL 978883 Contact Us For Availability
36
Hole Plug (4) (White) WPL 1129062 Contact Us For Availability
36
Door Dike, Middle WPL 1118008 Contact Us For Availability
37
Wiring Assembly, Intermediate WPL 2158626 Contact Us For Availability
37
Door Dike, Side (2) WPL 1118007 Contact Us For Availability
37
Bracket, Control Knob Heat Shield WPL 1105457 Contact Us For Availability
39
Trim, Door Shelf WPL 2148591 Contact Us For Availability
40
Shelf Bin (2) WPL 2148592 Contact Us For Availability
40
Air, Baffle WPL 2154102 Contact Us For Availability
41
Shelf Bin (2) Deep WPL 2148593 Contact Us For Availability
41
Fan, Mounting Bracket WPL 2162060 Contact Us For Availability
42
Screw, 8 x 3/8 WPL 488624 Contact Us For Availability
45
Fan Blade WPL 1115135 Contact Us For Availability
46
Tube, Drain Extension WPL 2154118 Contact Us For Availability
47
Tray, Evaporator WPL 1116604 Contact Us For Availability
48
VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability
48
Cover, Unit WPL 2158627 Contact Us For Availability
48
Wedge, Air Baffle WPL 1118017 Contact Us For Availability
48
VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability
61
Tap-Plate, Bottom Hinge WPL 2147310 Contact Us For Availability
69
Service Cord WPL 1129332 Contact Us For Availability
70
Enclosure, Term. WPL 2158579 Contact Us For Availability
72
Bushing WPL 1129449 Contact Us For Availability
73
Terminal Block WPL 1129346 Contact Us For Availability
74
Screw WPL 489346 Contact Us For Availability
76
Wiring Assy., Terminal Block WPL 2158697 Contact Us For Availability
× ![]()
