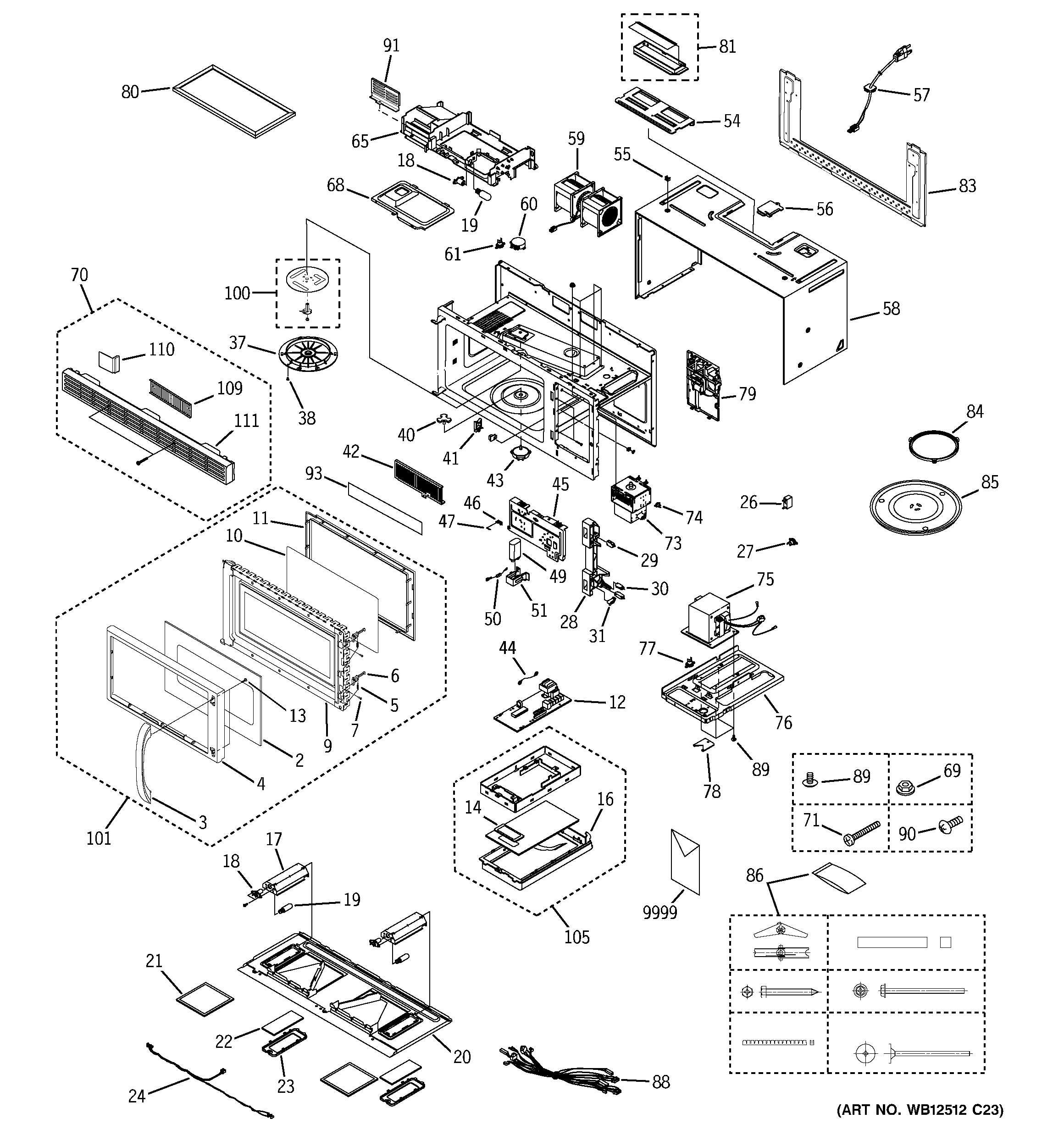

Model GE JVM1430BD01 – Common Parts & Diagrams
MICROWAVE
Common parts from model GE JVM1430BD01
3
HANDLE ASM GEN WB15X10022 Contact Us For Availability
4
GEN WB55X10599 Contact Us For Availability
5
GEN WB05X10006 Contact Us For Availability
6
GEN WB05X10007 Contact Us For Availability
10
GEN WB36X10068 Contact Us For Availability
11
GEN WB55X10532 Contact Us For Availability
12
PCB PARTS ASM GEN WB27X10655 Contact Us For Availability
14
GEN WB36X10070 Contact Us For Availability
16
GEN WB07X10529 Contact Us For Availability
17
GEN WB06X10296 Contact Us For Availability
22
GEN WB36X10167 Contact Us For Availability
23
COVER LAMP GEN WB36X10171 Contact Us For Availability
27
THERMOSTAT GEN WB27X10194 Contact Us For Availability
28
GEN WB06X10289 Contact Us For Availability
31
GEN WB06X10128 Contact Us For Availability
37
GEN WB06X10130 Contact Us For Availability
38
GEN WB06X10126 Contact Us For Availability
41
GEN WB01X10135 Contact Us For Availability
54
GEN WB06X10165 Contact Us For Availability
57
POWER CORD ASM GEN WB18X10053 Contact Us For Availability
59
GEN WB26X10042 Contact Us For Availability
68
BRACKET-DUCT UPPER ASM GEN WB06X10148 Contact Us For Availability
71
GEN WB01X10062 Contact Us For Availability
74
THERMOSTAT GEN WB27X10166 Contact Us For Availability
75
GEN WB27X10133 Contact Us For Availability
86
HARDWARE INSTALLATION GEN WB01X10181 Contact Us For Availability
90
GEN WB01X10063 Contact Us For Availability
101
GEN WB56X10342 Contact Us For Availability
105
GEN WB07X10735 Contact Us For Availability
× ![]()
