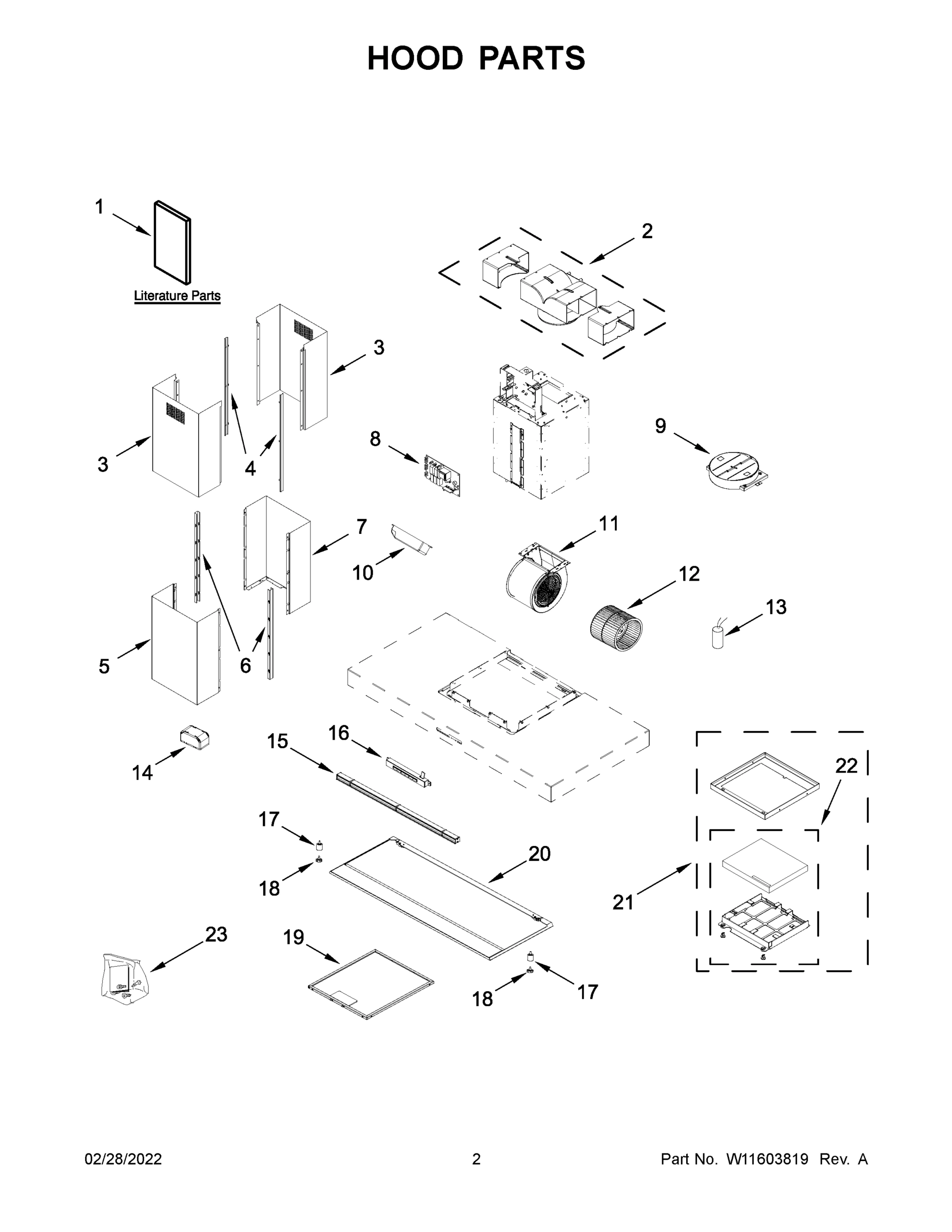

Model Whirlpool JVI0636LS0 HOOD/VENTILATION, ISLAND MOUNT, CANOPY, 30 & 36 INCH – Common Parts & Diagrams

2
DUCT, AIR DIVERTER
DUCT, AIR DIVERTER WPL 8186690 Contact Us For Availability
View on Model
3
CHIMNEY, UPPER
CHIMNEY, UPPER WPL W11601150 Contact Us For Availability
View on Model
4
BRACKET, UPPER CHIMNEY
BRACKET, UPPER CHIMNEY WPL W11601153 Contact Us For Availability
View on Model
5
CHIMNEY, LOWER FRONT
CHIMNEY, LOWER FRONT WPL W11601155 Contact Us For Availability
View on Model
7
CHIMNEY, LOWER BACK
CHIMNEY, LOWER BACK WPL W11601156 Contact Us For Availability
View on Model
8
VARIATOR, ELECTRONIC
VARIATOR, ELECTRONIC WPL W11601125 Contact Us For Availability
View on Model
9
DAMPER
DAMPER WPL W11601117 Contact Us For Availability
View on Model
11
MOTOR, FAN
MOTOR, FAN WPL W11601128 Contact Us For Availability
View on Model
12
WHEEL, FAN
WHEEL, FAN WPL W11601121 Contact Us For Availability
View on Model
14
FILTER, NOISE
FILTER, NOISE WPL W11601123 Contact Us For Availability
View on Model
15
LIGHT STRIP, LED
LIGHT STRIP, LED WPL W11601124 Contact Us For Availability
View on Model
17
MAGNET, LATCH
MAGNET, LATCH WPL W11601139 Contact Us For Availability
View on Model
18
PIN, LATCH
PIN, LATCH WPL W11601140 Contact Us For Availability
View on Model
20
PANEL, PERIMETRIC (36" MODEL)
PANEL, PERIMETRIC (36" MODEL) WPL W11601132 Contact Us For Availability
View on Model
21
KIT, RECIRCULATION
KIT, RECIRCULATION WPL W11522798 Contact Us For Availability
View on Model
22
KIT, CHARCOAL FILTER
KIT, CHARCOAL FILTER WPL W11522797 Contact Us For Availability
View on Model
23
HARDWARE, INSTALLATION
HARDWARE, INSTALLATION WPL W11601154 Contact Us For Availability
View on Model
