Model Maytag JUW24FLECX00 REFRIGERATOR, WINE CENTER, UNDERCOUNTER, 24 INCH – Common Parts & Diagrams

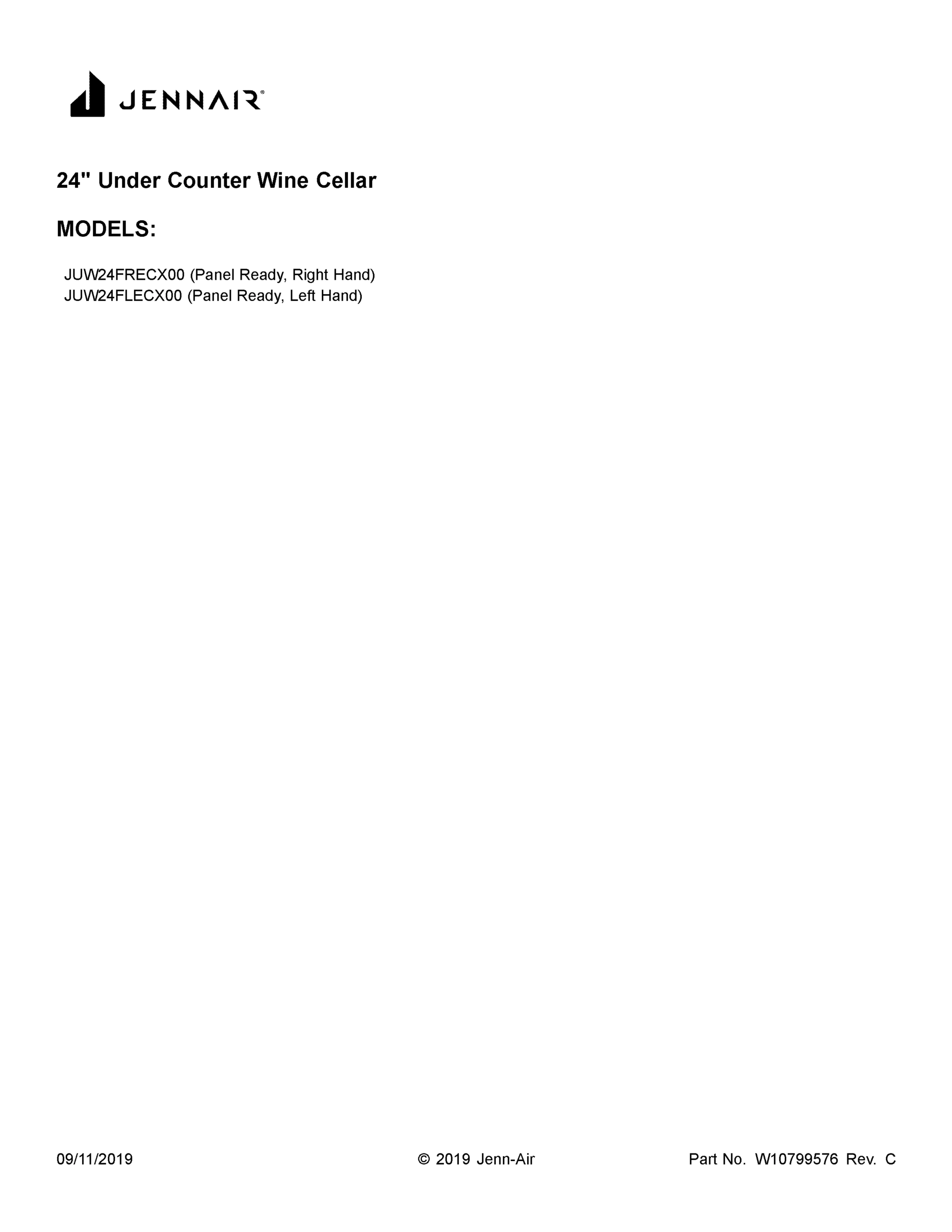

01 - COVER SHEET

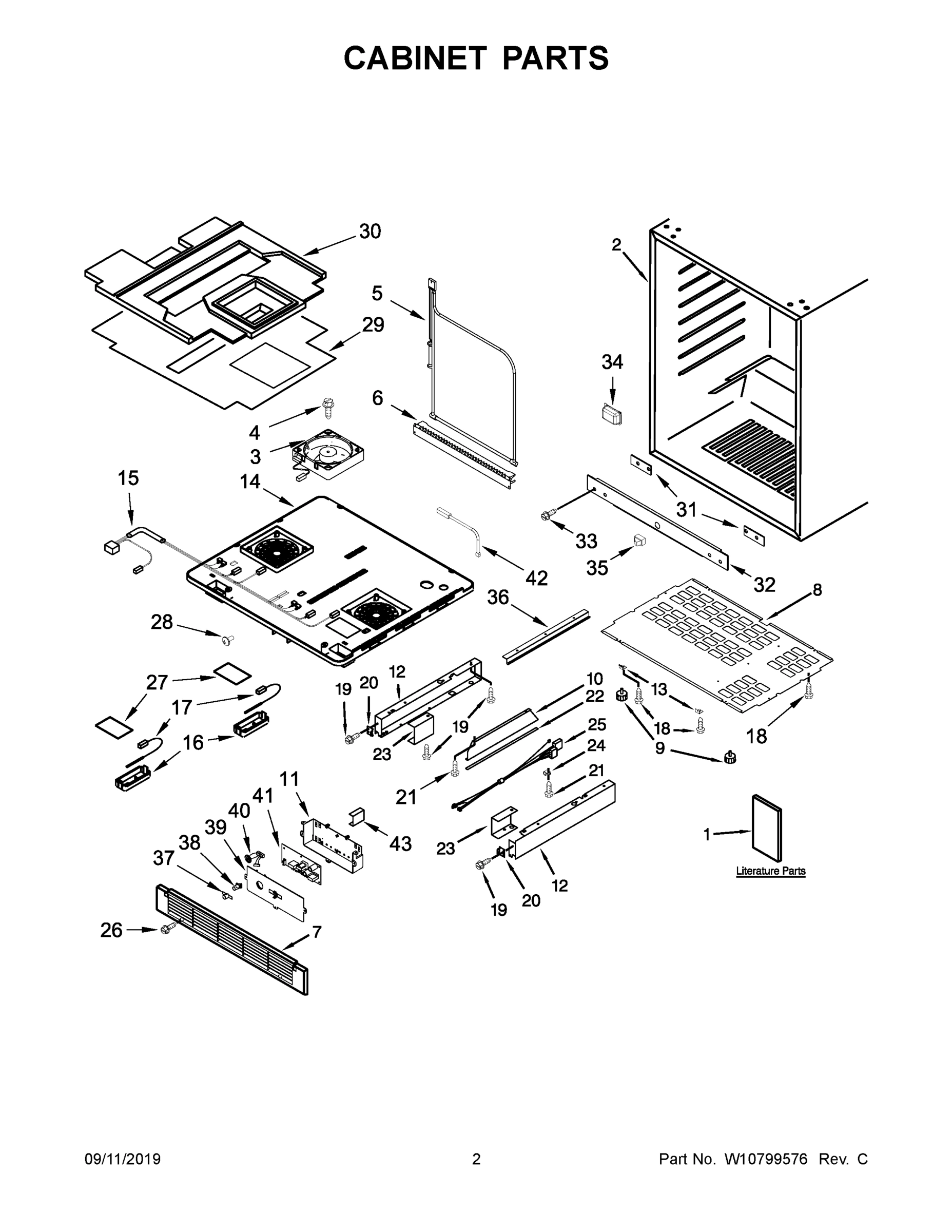

02 - CABINET PARTS
03 - SHELF PARTS
04 - DOOR PARTS
05 - UNIT PARTS
Common parts from model Maytag JUW24FLECX00 REFRIGERATOR, WINE CENTER, UNDERCOUNTER, 24 INCH
1
USE & CARE GUIDE MAY W10741581 Contact Us For Availability
1
WINE RACK ASSEMBLY, TOP MAY W10802017 Contact Us For Availability
1
DOOR ASSEMBLY (RIGHT HINGE) MAY W10804440 Contact Us For Availability
1
PAN, DRAIN MAY W10316689 Contact Us For Availability
1A
ENERGY GUIDE MAY W10804437 Contact Us For Availability
1A
DOOR ASSEMBLY (LEFT HINGE) MAY W10804441 Contact Us For Availability
2
WINE RACK ASSEMBLY, LOWER MAY W10804445 Contact Us For Availability
2
LATCH HINGE FIX PLATE TOP RIGHT & BOTTOM LEFT MAY W10800045 Contact Us For Availability
2
BRACKET, DEFROST TIMER MAY 4344773 Contact Us For Availability
2A
LATCH HINGE FIX PLATE TOP LEFT & BOTTOM RIGHT MAY W10800046 Contact Us For Availability
3
MOTOR & FAN MAY W10204942 Contact Us For Availability
3
MAY W11400014 MAY W11400014 Contact Us For Availability
3
SPACER, BOTTOM HINGE MAY W10780350 Contact Us For Availability
3
OVERLOAD RELAY MAY W10778965 Contact Us For Availability
4
SCREW MAY W10205061 Contact Us For Availability
4
MAY W11400015 MAY W11400015 Contact Us For Availability
4
SCREW MAY W10319187 Contact Us For Availability
4
SCREW MAY 4344797 Contact Us For Availability
5
THERMAL FUSE ASSEMBLY MAY W10292475 Contact Us For Availability
5
CONTROL PANEL ASSEMBLY MAY W10876289 Contact Us For Availability
5
PLATE MOUNT SWITCH MAY W10800047 Contact Us For Availability
5
PTC THERMISTOR MAY W10778966 Contact Us For Availability
6
SHIELD, HEAT MAY 4344747 Contact Us For Availability
6
SCREW MAY W10319184 Contact Us For Availability
6
LINER BUSHING MAY W10621514 Contact Us For Availability
6
CABINET BASE PLATE MAY W10772877 Contact Us For Availability
7
GRILLE MAY W10780351 Contact Us For Availability
7
ASSEMBLY, HINGE TOP RIGHT & BOTTOM LEFT MAY W10622809 Contact Us For Availability
7
FAN BUSHING MAY W10204688 Contact Us For Availability
7A
ASSEMBLY, HINGE TOP LEFT & BOTTOM RIGHT MAY W10622810 Contact Us For Availability
8
COVER, BOTTOM MAY W10772863 Contact Us For Availability
8
NAME PLATE MAY W10292471 Contact Us For Availability
8
GROMMET, COMPRESSOR MAY 4344779 Contact Us For Availability
9
LEG, LEVELING MAY 4344763 Contact Us For Availability
9
COVER, HINGE TOP RIGHT & BOTTOM LEFT MAY W10622811 Contact Us For Availability
9
BOLT MAY W10772873 Contact Us For Availability
9A
COVER, HINGE TOP LEFT & BOTTOM RIGHT MAY W10622812 Contact Us For Availability
10
AUXILIARY PLATE MAY W10778959 Contact Us For Availability
10
SPACER, MOUNTING HINGE MAY W10780347 Contact Us For Availability
10
CONDENSER DC MOTOR MAY W10772882 Contact Us For Availability
11
MAIN PCB BOX MAY W10772866 Contact Us For Availability
11
HANDLE MAY W10622019 Contact Us For Availability
11
AIR BAFFLE MAY W10204674 Contact Us For Availability
12
SIDE FRAME, RIGHT HAND MAY W10621526 Contact Us For Availability
12
STAINLESS WRAP (RIGHT HINGE) MAY W10800032 Contact Us For Availability
12
INSULATION, REAR COVER MAY W10778963 Contact Us For Availability
12A
SIDE FRAME, LEFT HAND MAY W10621525 Contact Us For Availability
12A
STAINLESS WRAP (LEFT HINGE) MAY W10800033 Contact Us For Availability
13
BRACKET, GRILLE MAY 4344771 Contact Us For Availability
13
PLATE, DOOR HANDLE MAY W10622815 Contact Us For Availability
13
SCREW MAY W10772886 Contact Us For Availability
14
COVER, FAN MAY W10804443 Contact Us For Availability
14
SCREW, HANDLE MAY W10204866 Contact Us For Availability
14
RUNNING CAPACITOR MAY W10778969 Contact Us For Availability
15
HARNESS, FAN COVER MAY W10780364 Contact Us For Availability
15
STUD, HANDLE MOUNTING MAY W10319166 Contact Us For Availability
15
COVER, REAR MAY W10796445 Contact Us For Availability
16
SENSOR CASE MAY W10775535 Contact Us For Availability
16
SCREW MAY W10780349 Contact Us For Availability
16
COVER, RELAY MAY W10778967 Contact Us For Availability
17
TEMPERATURE SENSOR MAY W10772916 Contact Us For Availability
17
SCREW MAY W10319189 Contact Us For Availability
17
NUT MAY W10772890 Contact Us For Availability
18
SCREW MAY W10622817 Contact Us For Availability
18
TRAP, DRAIN MAY W10163276 Contact Us For Availability
19
BOLT MAY W10780355 Contact Us For Availability
19
GASKET, DOOR MAY W10624183 Contact Us For Availability
19
CORD, POWER MAY W10204676 Contact Us For Availability
20
MOUNT, KICK PLATE MAY W10772865 Contact Us For Availability
20
TIE, CABLE MAY 4344829 Contact Us For Availability
21
DRIER MAY W10163273 Contact Us For Availability
22
SEAL, BRACE MAY 4344823 Contact Us For Availability
22
TRIM, EDGE MAY 4344907 Contact Us For Availability
23
SUPPORT (RIGHT HAND) MAY 4344821 Contact Us For Availability
23
CLIP, BUSHING MAY W10238022 Contact Us For Availability
23A
SUPPORT (LEFT HAND) MAY 4344820 Contact Us For Availability
24
CABLE CLAMP MAY W10281496 Contact Us For Availability
24
WARNING LABEL MAY 4344913 Contact Us For Availability
25
SCREW MAY 4344826 Contact Us For Availability
25
HARNESS EXTENSION MAY W10772870 Contact Us For Availability
26
SCREW MAY 4344825 Contact Us For Availability
27
SENSOR CASE SEAL MAY W10204948 Contact Us For Availability
27
SCREW MAY 4344832 Contact Us For Availability
28
SCREW MAY W10774183 Contact Us For Availability
28
COMPRESSOR MAY 4344775 Contact Us For Availability
29
PLATE COVER MAY W10804444 Contact Us For Availability
29
FAN COVER, CONDENSER MAY W10772889 Contact Us For Availability
30
INSULATION, FAN COVER MAY W10780365 Contact Us For Availability
30
CLAMP, CORD MAY W10281591 Contact Us For Availability
31
SPACER, FRAME FRONT MAY W10780357 Contact Us For Availability
31
CLIP, RELAY COVER MAY W10778971 Contact Us For Availability
32
FRAME FRONT, BOTTOM MAY W10780356 Contact Us For Availability
34
COVER MAY W10788689 Contact Us For Availability
35
DOOR SWITCH MAY W10721454 Contact Us For Availability
36
BLOCK AIR CIRCULATION MAY W10780353 Contact Us For Availability
37
LID, PROXIMITY SENSOR MAY W10797391 Contact Us For Availability
38
PROXIMITY SENSOR MAY W10780359 Contact Us For Availability
39
COVER, MAIN PCB MAY W10772869 Contact Us For Availability
40
SPEAKER MAY W10780358 Contact Us For Availability
41
MAIN PCB MAY W10804442 Contact Us For Availability
42
DEFROST SENSOR MAY W10772858 Contact Us For Availability
43
BRACKET, PCB MAY W10788699 Contact Us For Availability
NI
REFRIGERANT CHARGE 3.5 OZ (R-134) MAY N/P Contact Us For Availability
× ![]()
