Model Maytag JUW248LBRB00 WINE CELLAR – Common Parts & Diagrams

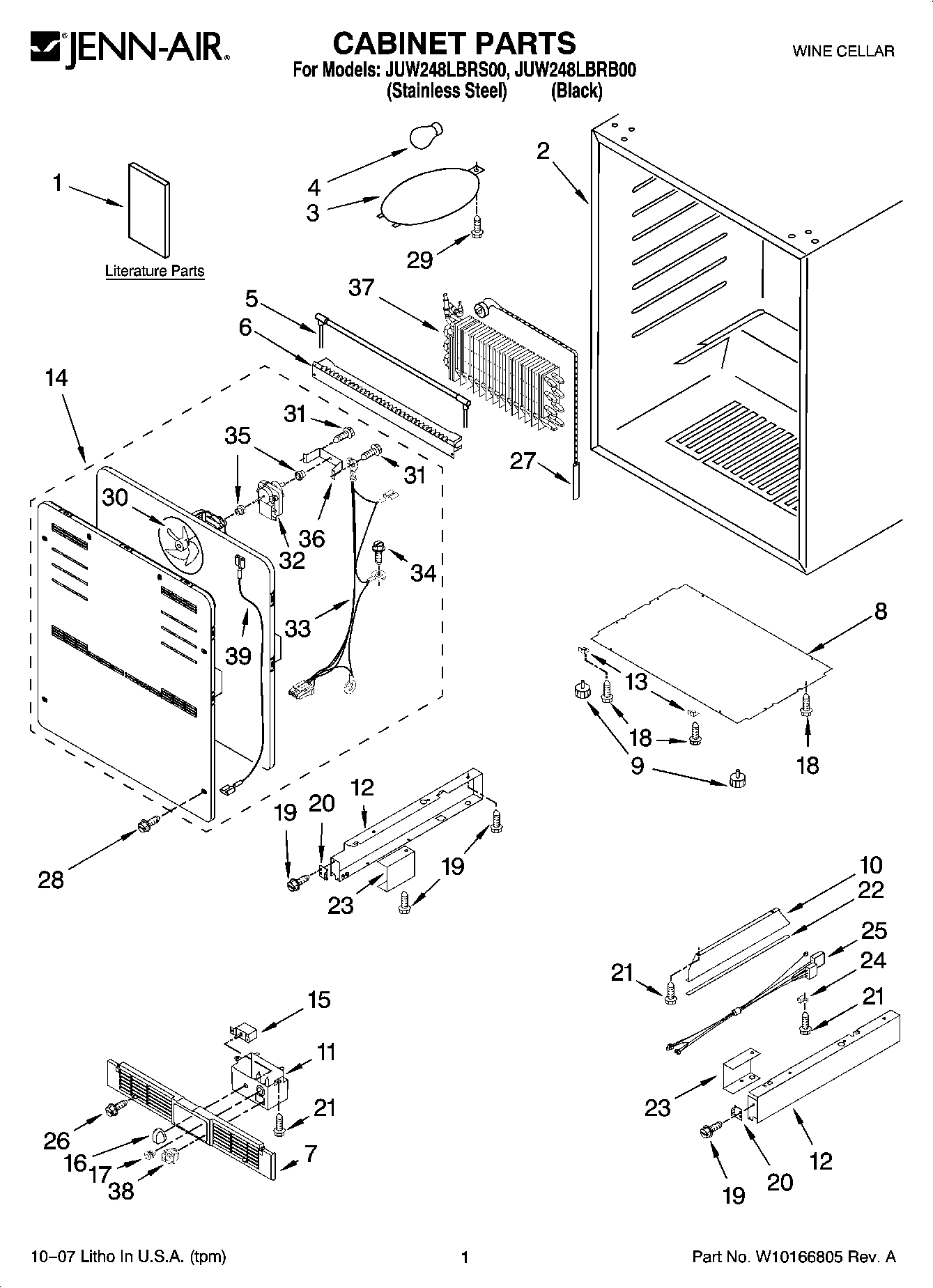

01 - CABINET PARTS

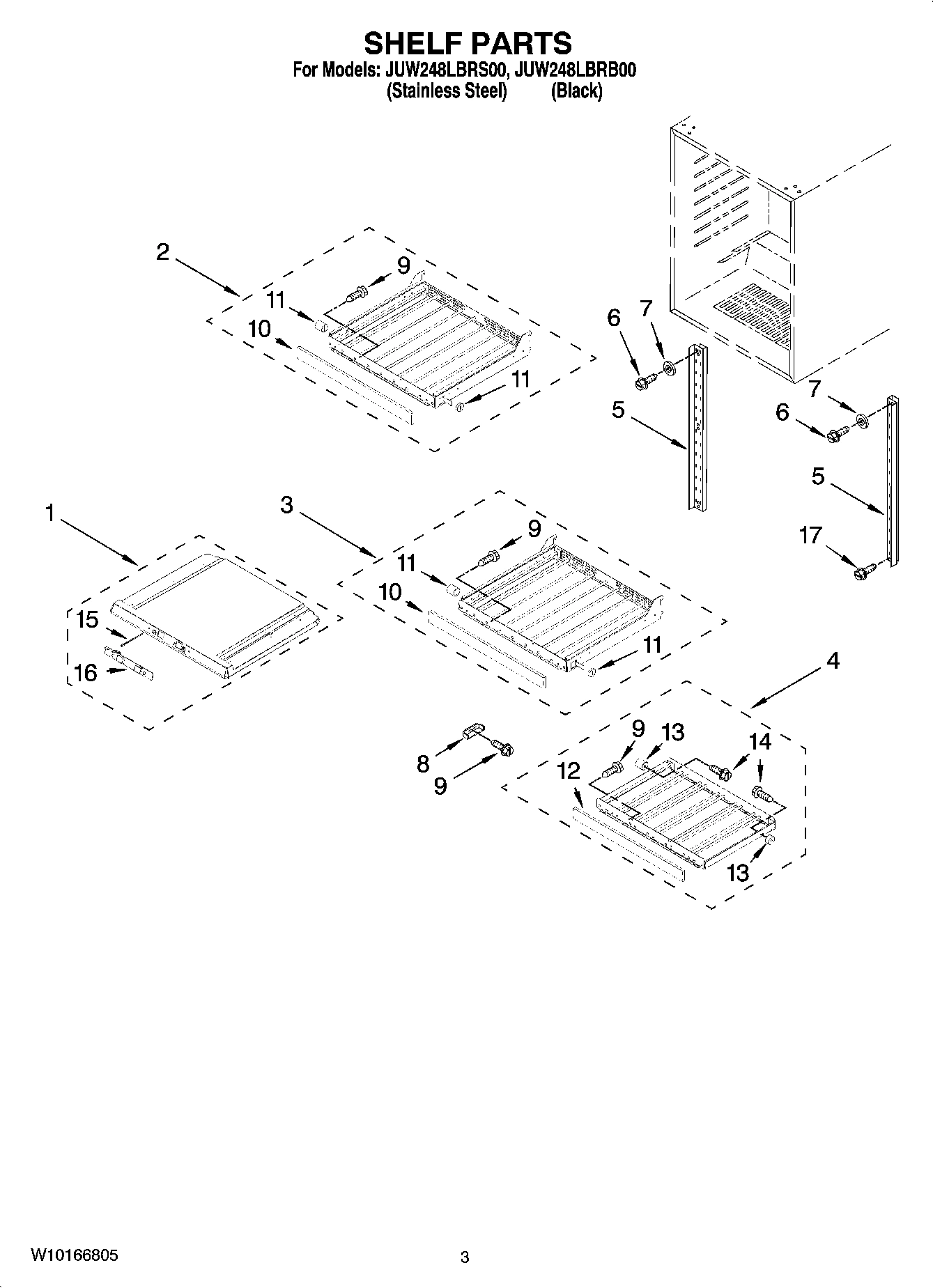

02 - SHELF PARTS

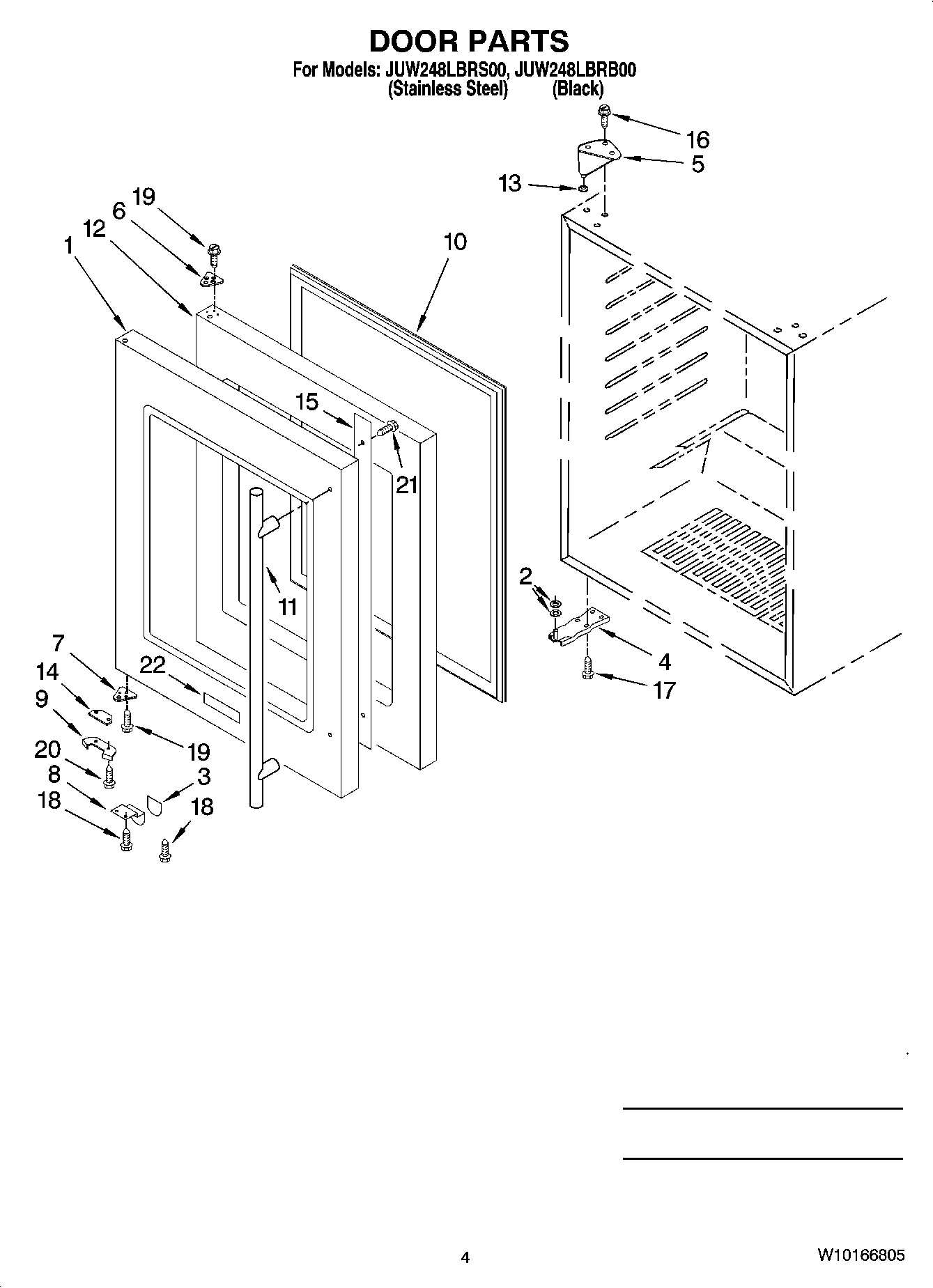

03 - DOOR PARTS

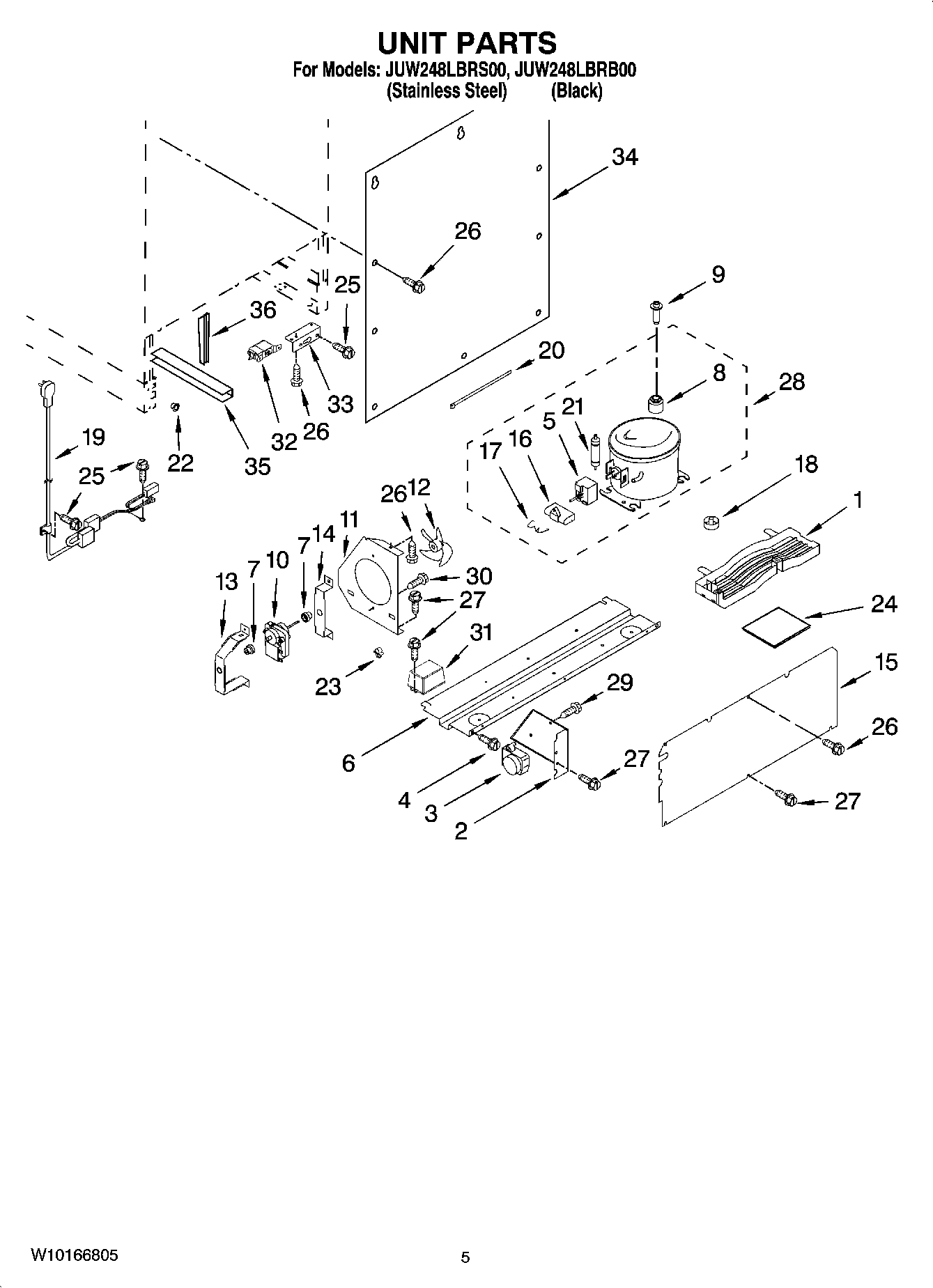

04 - UNIT PARTS
Common parts from model Maytag JUW248LBRB00 WINE CELLAR
1
MAY 2300282B MAY 2300282B Contact Us For Availability
1
MAY 4344900 MAY 4344900 Contact Us For Availability
1
MAY W10162981 MAY W10162981 Contact Us For Availability
1
Door (Stainless Steel) MAY W10163186 Contact Us For Availability
1
Door (Black) MAY W10163188 Contact Us For Availability
1
MAY W10163193 MAY W10163193 Contact Us For Availability
2
Wine Rack, (4) MAY 4344846 Contact Us For Availability
2
Washer MAY W10162992 Contact Us For Availability
2
MAY 4344773 MAY 4344773 Contact Us For Availability
3
MAY 4344739 MAY 4344739 Contact Us For Availability
3
Wine Rack, (1) MAY 4344847 Contact Us For Availability
3
MAY W10163191 MAY W10163191 Contact Us For Availability
3
MAY 4344774 MAY 4344774 Contact Us For Availability
4
MAY 4344740 MAY 4344740 Contact Us For Availability
4
MAY 4344797 MAY 4344797 Contact Us For Availability
4
MAY 4344849 MAY 4344849 Contact Us For Availability
4
Hinge, Bottom (Stainless Steel) MAY 4344787 Contact Us For Availability
4
Hinge, Bottom (Black) MAY W10163069 Contact Us For Availability
5
MAY 4344746 MAY 4344746 Contact Us For Availability
5
MAY 4344842 MAY 4344842 Contact Us For Availability
5
MAY 4344843 MAY 4344843 Contact Us For Availability
5
Hinge, Top (Stainless Steel) MAY 4344754 Contact Us For Availability
5
Hinge, Top (Black) MAY W10162991 Contact Us For Availability
5
MAY 4344776 MAY 4344776 Contact Us For Availability
6
MAY 4344747 MAY 4344747 Contact Us For Availability
6
MAY 4344794 MAY 4344794 Contact Us For Availability
6
MAY 4344755 MAY 4344755 Contact Us For Availability
6
MAY 4344777 MAY 4344777 Contact Us For Availability
7
MAY 4344761 MAY 4344761 Contact Us For Availability
7
MAY 4344778 MAY 4344778 Contact Us For Availability
7
MAY 4344795 MAY 4344795 Contact Us For Availability
7
MAY 4344756 MAY 4344756 Contact Us For Availability
8
MAY 4344762 MAY 4344762 Contact Us For Availability
8
MAY 4344850 MAY 4344850 Contact Us For Availability
8
MAY 4344757 MAY 4344757 Contact Us For Availability
8
MAY 4344779 MAY 4344779 Contact Us For Availability
9
MAY 4344763 MAY 4344763 Contact Us For Availability
9
MAY 4344851 MAY 4344851 Contact Us For Availability
9
Door Stop (Stainless Steel) MAY 4344758 Contact Us For Availability
9
Door Stop (Black) MAY W10163074 Contact Us For Availability
9
MAY 4344780 MAY 4344780 Contact Us For Availability
10
MAY 4344764 MAY 4344764 Contact Us For Availability
10
MAY 4344882 MAY 4344882 Contact Us For Availability
10
MAY 4344852 MAY 4344852 Contact Us For Availability
10
MAY 4344781 MAY 4344781 Contact Us For Availability
11
MAY 4344898 MAY 4344898 Contact Us For Availability
11
MAY 4344866 MAY 4344866 Contact Us For Availability
11
MAY 4344867 MAY 4344867 Contact Us For Availability
11
MAY W10163184 MAY W10163184 Contact Us For Availability
11
MAY 4344782 MAY 4344782 Contact Us For Availability
12
MAY 4344789 MAY 4344789 Contact Us For Availability
12
MAY 4344790 MAY 4344790 Contact Us For Availability
12
MAY 4344783 MAY 4344783 Contact Us For Availability
12
MAY 4344884 MAY 4344884 Contact Us For Availability
12
Door Skin, Stainless Steel MAY W10163182 Contact Us For Availability
13
MAY 4344771 MAY 4344771 Contact Us For Availability
13
MAY 4344885 MAY 4344885 Contact Us For Availability
13
MAY 4344886 MAY 4344886 Contact Us For Availability
13
MAY 4344760 MAY 4344760 Contact Us For Availability
13
MAY 4344784 MAY 4344784 Contact Us For Availability
14
MAY 4344840 MAY 4344840 Contact Us For Availability
14
MAY 4344914 MAY 4344914 Contact Us For Availability
14
MAY 4344915 MAY 4344915 Contact Us For Availability
14
MAY 4344788 MAY 4344788 Contact Us For Availability
14
MAY 4344785 MAY 4344785 Contact Us For Availability
15
MAY 4344859 MAY 4344859 Contact Us For Availability
15
MAY 4344895 MAY 4344895 Contact Us For Availability
15
MAY 4344904 MAY 4344904 Contact Us For Availability
15
MAY 4344786 MAY 4344786 Contact Us For Availability
16
MAY 4344768 MAY 4344768 Contact Us For Availability
16
MAY 4344894 MAY 4344894 Contact Us For Availability
16
Screw (Stainless Steel) MAY 4344796 Contact Us For Availability
16
Screw (Black) MAY W10162988 Contact Us For Availability
16
MAY 4344837 MAY 4344837 Contact Us For Availability
17
MAY 4344767 MAY 4344767 Contact Us For Availability
17
MAY W10162986 MAY W10162986 Contact Us For Availability
17
MAY 4344906 MAY 4344906 Contact Us For Availability
17
MAY 4344836 MAY 4344836 Contact Us For Availability
18
MAY 4344827 MAY 4344827 Contact Us For Availability
18
MAY W10163276 MAY W10163276 Contact Us For Availability
19
MAY W10163072 MAY W10163072 Contact Us For Availability
19
MAY 4344861 MAY 4344861 Contact Us For Availability
20
MAY 4344819 MAY 4344819 Contact Us For Availability
20
MAY 4344801 MAY 4344801 Contact Us For Availability
20
MAY 4344829 MAY 4344829 Contact Us For Availability
21
MAY W10163183 MAY W10163183 Contact Us For Availability
21
MAY 4344828 MAY 4344828 Contact Us For Availability
22
MAY 4344823 MAY 4344823 Contact Us For Availability
22
MAY W10163189 MAY W10163189 Contact Us For Availability
22
MAY 4344838 MAY 4344838 Contact Us For Availability
23
MAY 4344820 MAY 4344820 Contact Us For Availability
23
MAY 4344821 MAY 4344821 Contact Us For Availability
23
MAY 4344831 MAY 4344831 Contact Us For Availability
24
MAY 4344824 MAY 4344824 Contact Us For Availability
24
Pad, Rubber MAY W10163274 Contact Us For Availability
25
MAY 4344826 MAY 4344826 Contact Us For Availability
25
MAY 4344857 MAY 4344857 Contact Us For Availability
26
MAY 4344825 MAY 4344825 Contact Us For Availability
27
MAY 4344792 MAY 4344792 Contact Us For Availability
27
SCREW MAY 4344832 Contact Us For Availability
28
MAY 4344793 MAY 4344793 Contact Us For Availability
28
MAY 4344775 MAY 4344775 Contact Us For Availability
29
MAY 4344791 MAY 4344791 Contact Us For Availability
29
MAY 4344834 MAY 4344834 Contact Us For Availability
30
MAY 4344833 MAY 4344833 Contact Us For Availability
31
MAY 4344878 MAY 4344878 Contact Us For Availability
31
MAY 4344862 MAY 4344862 Contact Us For Availability
32
MAY 4344865 MAY 4344865 Contact Us For Availability
32
MAY W10163278 MAY W10163278 Contact Us For Availability
33
MAY 4344877 MAY 4344877 Contact Us For Availability
33
MAY 4344864 MAY 4344864 Contact Us For Availability
34
MAY 4344881 MAY 4344881 Contact Us For Availability
35
MAY 4344907 MAY 4344907 Contact Us For Availability
36
MAY 4344899 MAY 4344899 Contact Us For Availability
36
MAY 4344908 MAY 4344908 Contact Us For Availability
38
MAY 4344858 MAY 4344858 Contact Us For Availability
39
MAY 4344917 MAY 4344917 Contact Us For Availability
NI
Cleaner, Stainless Steel (10 oz) MAY 31462 Contact Us For Availability
× ![]()
