Model Maytag JUIFX15HX00 ICE MAKER – Common Parts & Diagrams

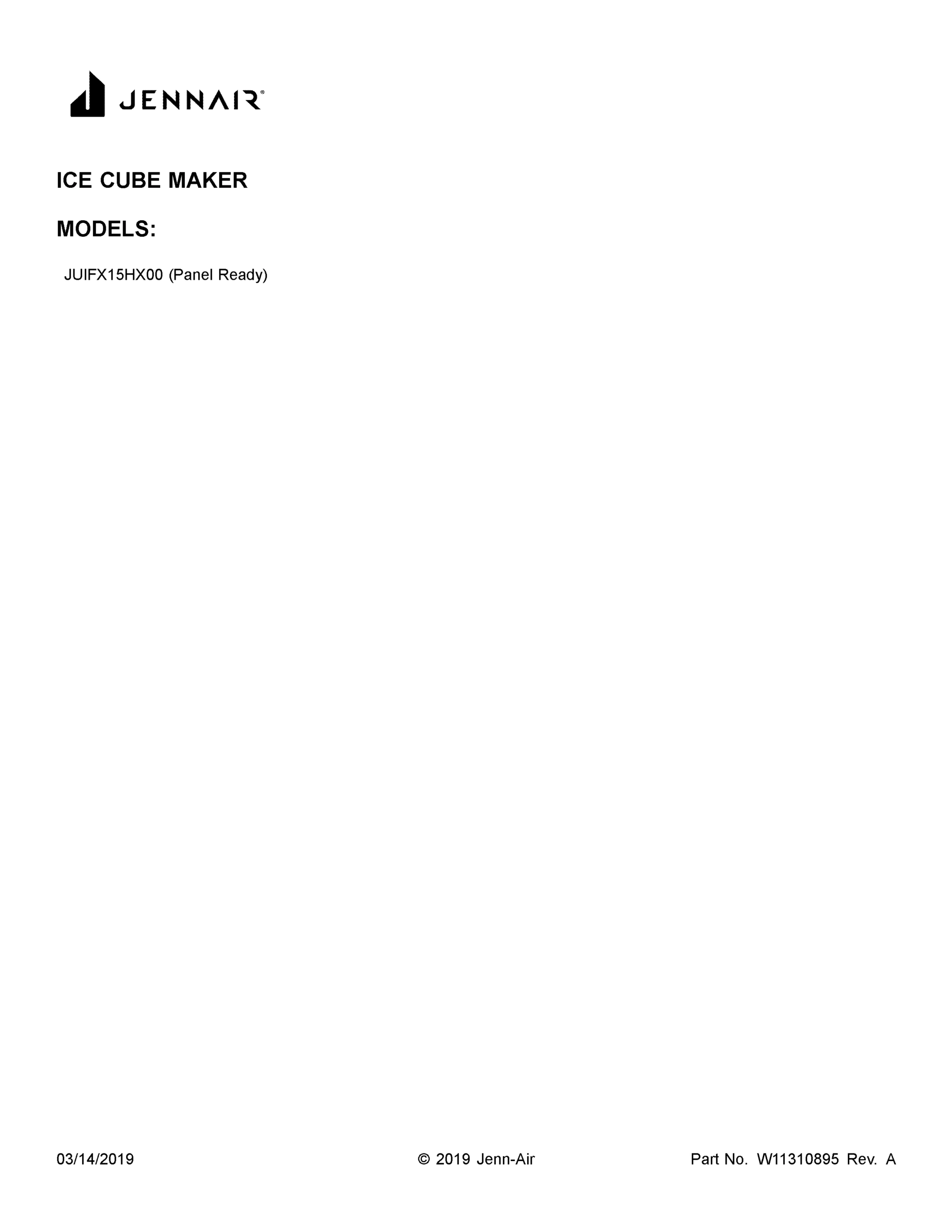

01 - COVER SHEET

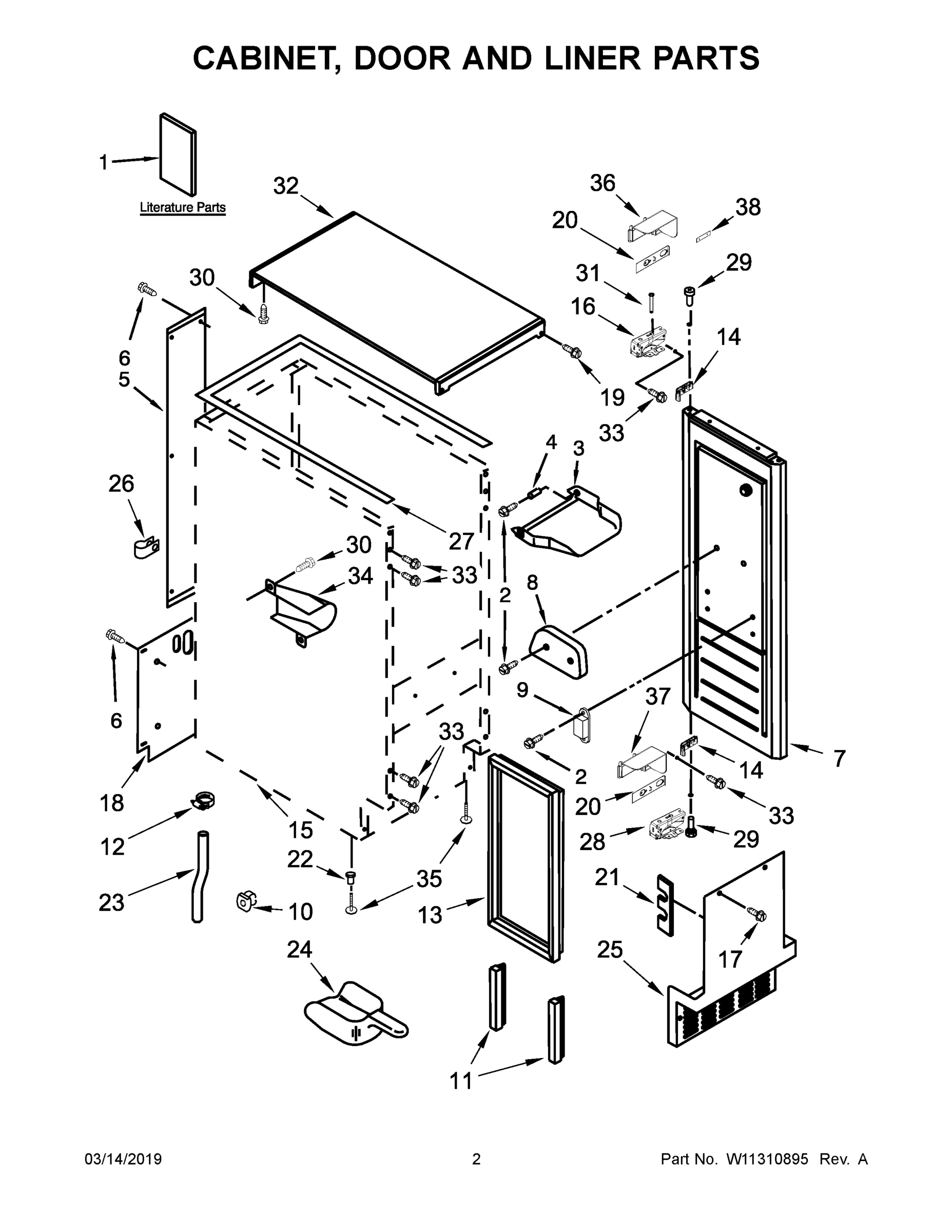

02 - CABINET, DOOR AND LINER PARTS

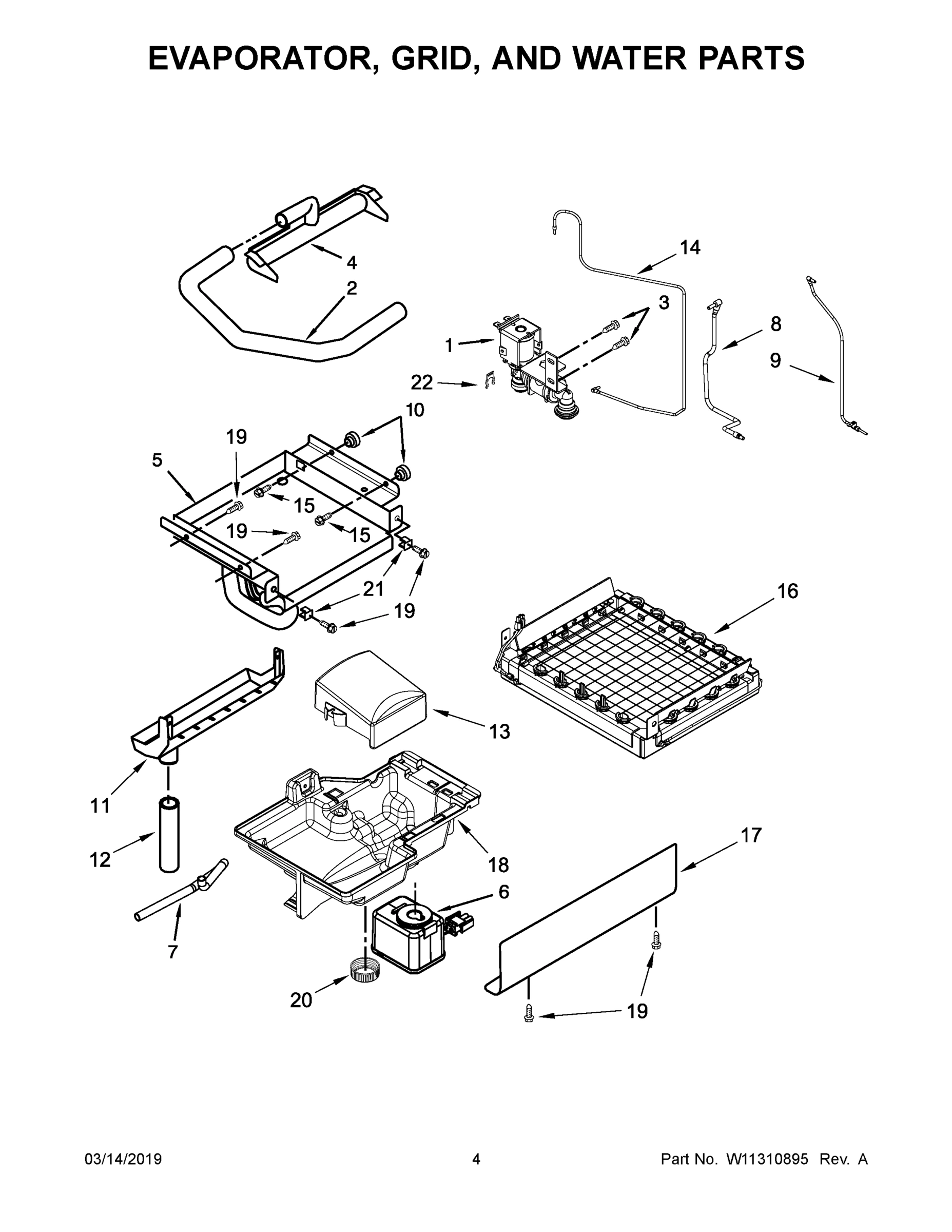

03 - EVAPORATOR, GRID, AND WATER PARTS

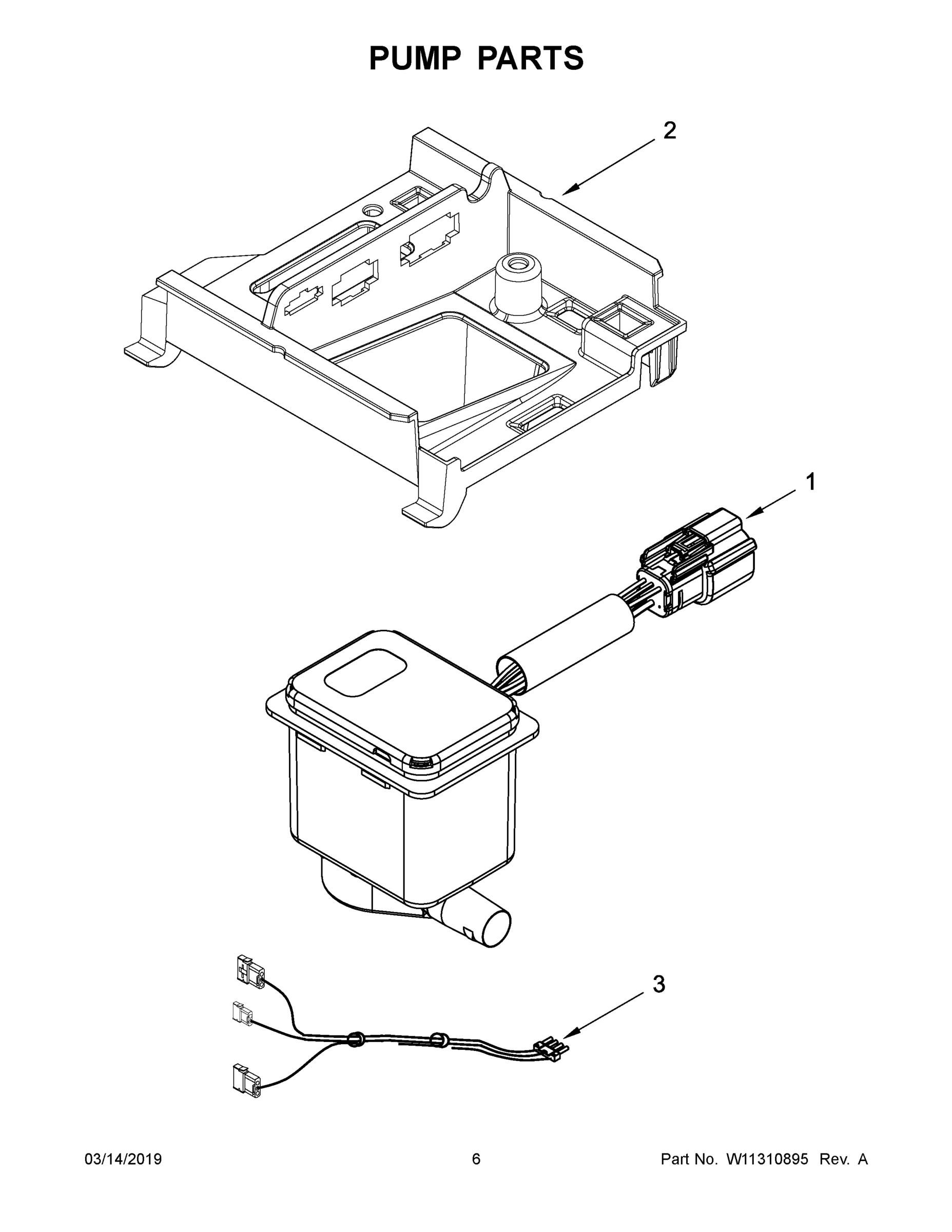

04 - PUMP PARTS

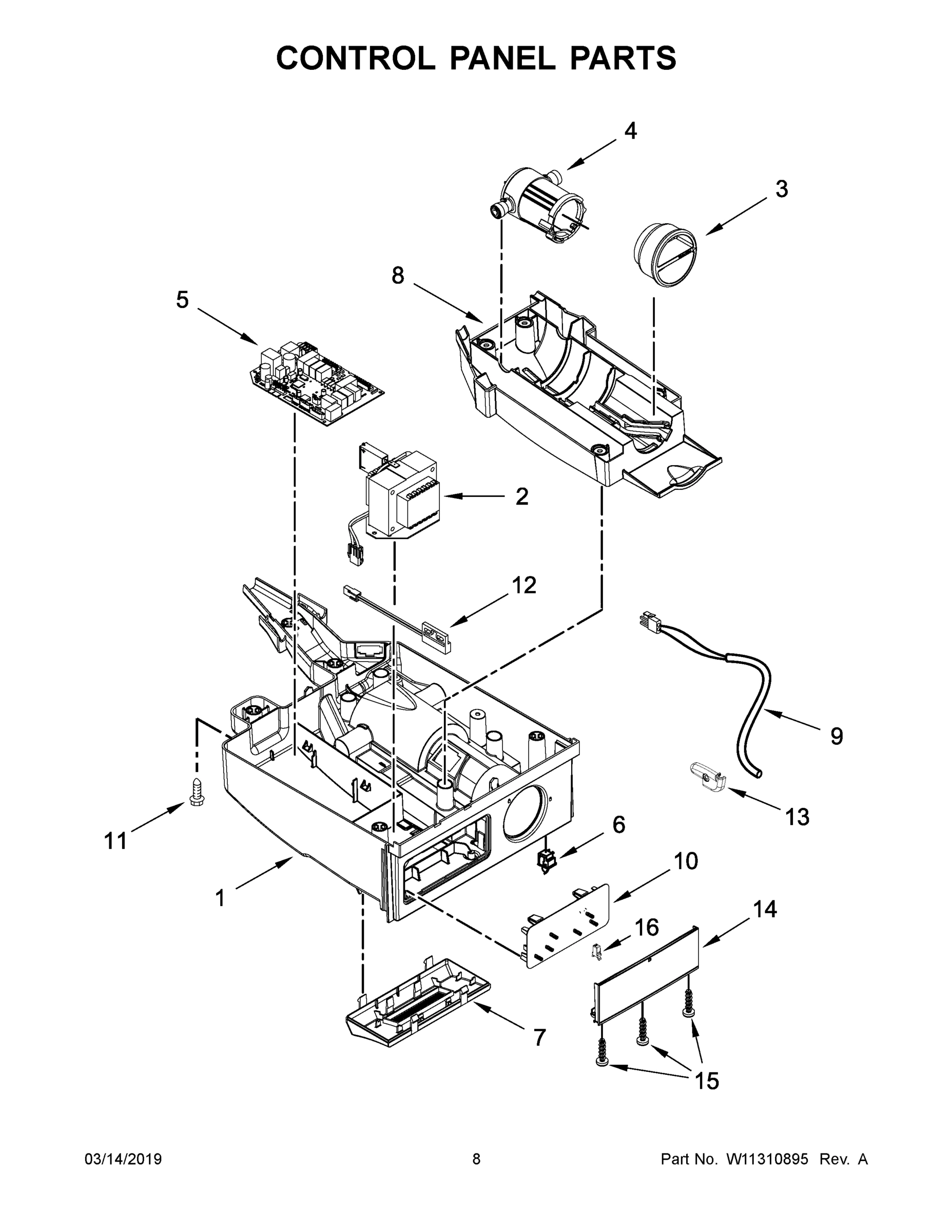

05 - CONTROL PANEL PARTS

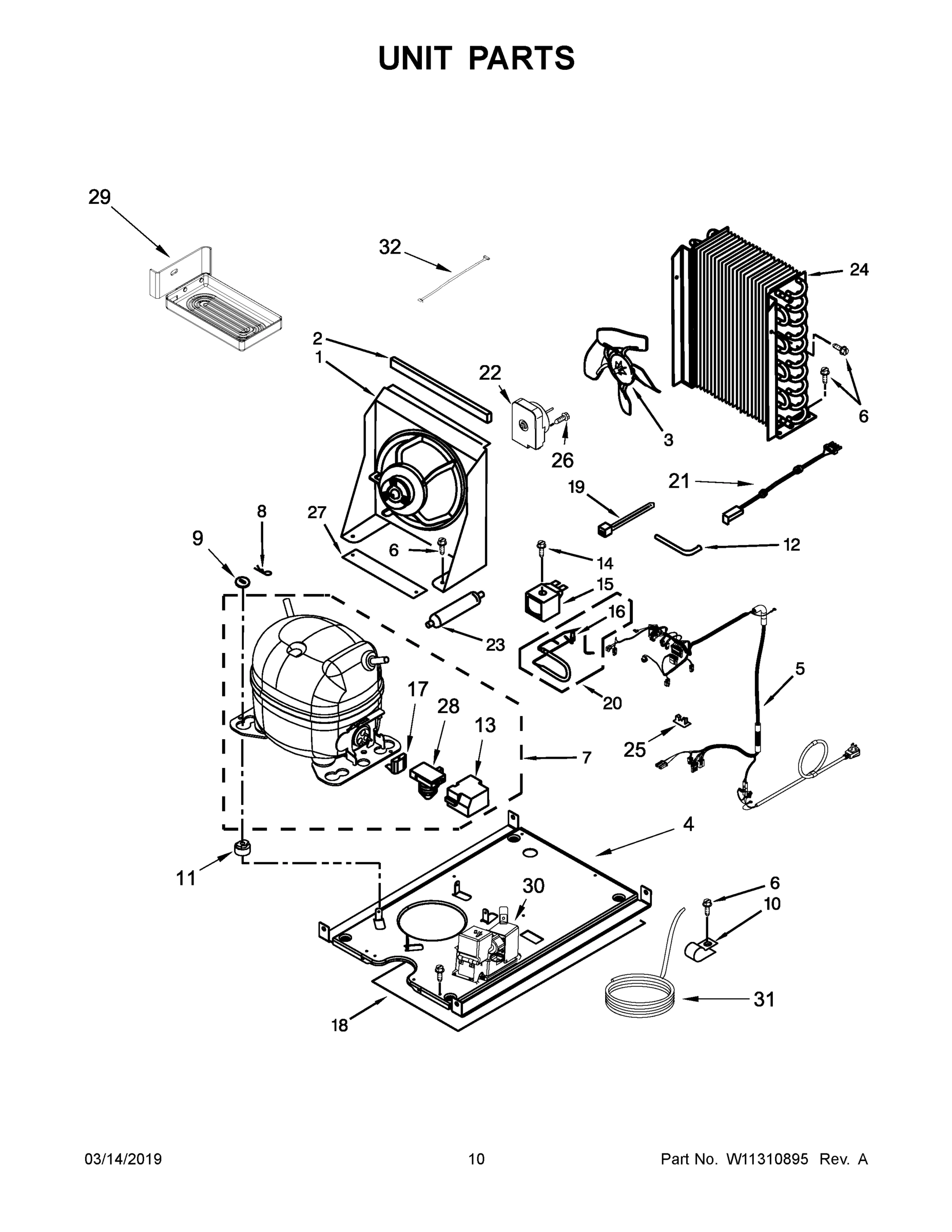

06 - UNIT PARTS
07 - OPTIONAL PARTS
Common parts from model Maytag JUIFX15HX00 ICE MAKER
1
VALVE, WATER (INCLUDES REGULATOR) MAY W10870921 Contact Us For Availability
1
MAY W11176264 MAY W11176264 Contact Us For Availability
1
HOUSING, CONTROL MAY W10475405 Contact Us For Availability
1
BRACKET, FAN MOUNTING MAY 2185532 Contact Us For Availability
1A
MAY W11175865 MAY W11175865 Contact Us For Availability
1B
TECH SHEET MAY W10761657 Contact Us For Availability
2
TUBE, PUMP MAY W10772963 Contact Us For Availability
2
BRACKET, PUMP MAY W10489129 Contact Us For Availability
2
TRANSFORMER MAY W10485951 Contact Us For Availability
2
PAD, FOAM MAY 2185675 Contact Us For Availability
3
BIN, DOOR MAY W10734102 Contact Us For Availability
3
SCREW MAY 488208 Contact Us For Availability
3
ASSEMBLY, PUMP WIRE MAY W10764770 Contact Us For Availability
3
FILTER CAP MAY W10800355 Contact Us For Availability
3
BLADE, FAN MAY 2188935 Contact Us For Availability
4
SPACER MAY 2185678 Contact Us For Availability
4
DISPENSER, WATER MAY 2185523 Contact Us For Availability
4
MAY W11168063 MAY W11168063 Contact Us For Availability
4
BASE, UNIT MAY 2217445 Contact Us For Availability
5
COVER, WIRING MAY 2217394 Contact Us For Availability
5
EVAPORATOR MAY W10218037 Contact Us For Availability
5
MAY W10886282 MAY W10886282 Contact Us For Availability
5
MAY W10917834 MAY W10917834 Contact Us For Availability
6
SCREW MAY 489442 Contact Us For Availability
6
PUMP, RESERVOIR DRAIN MAY W10489125 Contact Us For Availability
6
SCREW MAY 304392 Contact Us For Availability
7
DOOR (BLACK) MAY W11246183 Contact Us For Availability
7
TUBE, RESERVOIR DRAIN MAY W10539379 Contact Us For Availability
7
ASSEMBLY, DIAMOND LED MAY W10492487 Contact Us For Availability
7
COMPRESSOR MAY W10536005 Contact Us For Availability
8
CAM, DOOR MAY W10486874 Contact Us For Availability
8
WATERLINE, RESERVOIR MAY W10678299 Contact Us For Availability
8
COVER, FILTER MAY W10475416 Contact Us For Availability
8
CLIP, COMPRESSOR MOUNTING MAY A201435 Contact Us For Availability
9
ASSEMBLY, MAGNETIC CATCH MAY W10529250 Contact Us For Availability
9
MAY W11280543 MAY W11280543 Contact Us For Availability
9
THERMISTOR, BIN MAY W10511923 Contact Us For Availability
9
SHIM MAY A201441 Contact Us For Availability
10
NUT, PUSH-IN MAY W10136999 Contact Us For Availability
10
SPACER MAY 836667 Contact Us For Availability
10
MAY W11176270 MAY W11176270 Contact Us For Availability
10
CLAMP, POWER CORD MAY 2185960 Contact Us For Availability
11
MAY W11165597 MAY W11165597 Contact Us For Availability
11
RESERVOIR, WATER SLIDE MAY 2185625 Contact Us For Availability
11
SCREW (STAINLESS) MAY 3400884 Contact Us For Availability
11
GROMMET, COMPRESSOR MAY 2217318 Contact Us For Availability
12
CLAMP, HOSE MAY W10670799 Contact Us For Availability
12
TUBE, WATER SLIDE MAY W10635836 Contact Us For Availability
12
SWITCH, REED MAY W10485964 Contact Us For Availability
12
TUBE, PROCESS MAY W10528572 Contact Us For Availability
13
GASKET, DOOR MAY 2217294 Contact Us For Availability
13
COVER, BRACKET MAY W10512292 Contact Us For Availability
13
CLAMP, THERMISTOR MAY W10526623 Contact Us For Availability
13
COVER, TERMINAL MAY 2208371 Contact Us For Availability
14
MAY W11197599 MAY W11197599 Contact Us For Availability
14
WATERLINE, VALVE MAY W10678300 Contact Us For Availability
14
ASSEMBLY, FASCIA MAY W10545363 Contact Us For Availability
14
SCREW MAY 489472 Contact Us For Availability
14A
MAY W11197600 MAY W11197600 Contact Us For Availability
15
SCREW (STAINLESS) MAY 3400886 Contact Us For Availability
15
SCREW MAY 9741232 Contact Us For Availability
15
COIL, SOLENOID MAY W10206473 Contact Us For Availability
16
MAY W11176752 MAY W11176752 Contact Us For Availability
16
ASSEMBLY, GRID MAY W10783275 Contact Us For Availability
16
LATCH, PUSH MAY 2223877 Contact Us For Availability
16
BODY, SOLENOID VALVE MAY 759113 Contact Us For Availability
17
SCREW (BLACK) MAY W10531302 Contact Us For Availability
17
COVER, GRID MAY W10340986 Contact Us For Availability
17
PROTECTOR, OVERLOAD MAY W10783194 Contact Us For Availability
18
MAY W11267679 MAY W11267679 Contact Us For Availability
18
RESERVOIR, WATER MAY W10489137 Contact Us For Availability
18
SHIELD, HEAT MAY W10282061 Contact Us For Availability
19
SCREW (BLACK) MAY 8534075 Contact Us For Availability
19
TIE, WIRE MAY 851095 Contact Us For Availability
20
MAY W11257325 MAY W11257325 Contact Us For Availability
20
CAP, DRAIN MAY W10555398 Contact Us For Availability
20
VALVE, HOT GAS MAY W10534030 Contact Us For Availability
21
MAY W11173207 MAY W11173207 Contact Us For Availability
21
GROMMET, SCREW MAY 3400909 Contact Us For Availability
21
JUMPER, WIRE (CONDENSER FAN) MAY 2187629 Contact Us For Availability
22
NUT MAY 3400240 Contact Us For Availability
22
LOCKING RING (1/4) MAY W10782423 Contact Us For Availability
22
MOTOR, CONDENSER FAN MAY W10909377 Contact Us For Availability
23
TUBE, BIN TO PUMP MAY W10738312 Contact Us For Availability
23
DRIER MAY W10200037 Contact Us For Availability
24
SCOOP MAY W10493422 Contact Us For Availability
24
CONDENSER MAY 2313624 Contact Us For Availability
25
MAY W11197601 MAY W11197601 Contact Us For Availability
25
CLIP, WIRING MAY 1115375 Contact Us For Availability
26
CLIP, WATER TUBE MAY 2208136 Contact Us For Availability
26
SCREW MAY 8281196 Contact Us For Availability
27
GASKET, TOP PANEL MAY 2217293 Contact Us For Availability
27
PAD, FOAM MAY 2217397 Contact Us For Availability
28
MAY W11176753 MAY W11176753 Contact Us For Availability
28
DEVICE, START MAY 2217224 Contact Us For Availability
29
PIN, HINGE MAY 2185712 Contact Us For Availability
29
MAY W11268770 MAY W11268770 Contact Us For Availability
30
SCREW MAY 489048 Contact Us For Availability
30
ASSEMBLY, DRAIN PUMP MAY W10702856 Contact Us For Availability
31
MAY W11212764 MAY W11212764 Contact Us For Availability
31
HOSE, DRAIN MAY W10762338 Contact Us For Availability
32
PANEL, TOP (BLACK) MAY W10320117 Contact Us For Availability
32
MAY W11086824 MAY W11086824 Contact Us For Availability
33
SCREW (BLACK) MAY W10495264 Contact Us For Availability
34
HOLDER, SCOOP MAY 2185927 Contact Us For Availability
35
LEG, LEVELING MAY 3374849 Contact Us For Availability
36
COVER, TOP HINGE (BLACK) MAY W11243472 Contact Us For Availability
37
COVER, BOTTOM HINGE (BLACK) MAY W11243473 Contact Us For Availability
38
MAY W11165643 MAY W11165643 Contact Us For Availability
NI
REFRIGERANT CHARGE 5.50 OZ. (R-134A) MAY N/P Contact Us For Availability
NI
TORX SCREW WRENCH, TORX KEY MAY 1117510 Contact Us For Availability
NI
MISCELLANEOUS, CLEANER, STAINLESS STEEL MAY 20000008 Contact Us For Availability
NI
MISCELLANEOUS, SEALER, GUM (4 FEET) MAY 212643 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12OZ. BLACK) MAY 285006 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12OZ. WHITE) MAY 350930 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12OZ. ENAMEL, BLACK MAY 350939 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12OZ. WHITE PRIMER) MAY 350942 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ. BISCUIT/BISQUE) MAY 4392899 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12OZ. BISCUIT/BISQU MAY 4392901 Contact Us For Availability
NI
MISCELLANEOUS, TAPE, VINYL (3/4 X 108") MAY 479502 Contact Us For Availability
NI
MISCELLANEOUS, CORK, SEALER MAY 503695 Contact Us For Availability
NI
MISCELLANEOUS, SEALER, MASTIC (1 QT) MAY 505587 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ. WHITE PORCELAIN (2 OZ MAY 511873 Contact Us For Availability
NI
MISCELLANEOUS, GREASE, SILICONE (1/2 OZ.) MAY 542638 Contact Us For Availability
NI
MISCELLANEOUS, CEMENT, ALUMILASTIC (1 1/4 OZ. MAY 542639 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ. WHITE) MAY 72017 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ. BLACK) MAY 72032 Contact Us For Availability
NI
PAINT, BULK (1 QT. WHITE (UNCUT)) MAY 799344 Contact Us For Availability
NI
MISCELLANEOUS, KIT, WATER INLET MAY 8003RP Contact Us For Availability
NI
MISCELLANEOUS, KIT, TERMINAL CONNECTOR MAY 833938 Contact Us For Availability
NI
MISCELLANEOUS, KIT, FOAM SLAB (30" X 32 1/2" MAY 876029 Contact Us For Availability
NI
MISCELLANEOUS, INSULATION KIT (14 PIECES, 3" MAY 876305 Contact Us For Availability
NI
MISCELLANEOUS, INSULATION (2 PIECES, 3" X 24" MAY 876370 Contact Us For Availability
NI
MISCELLANEOUS, INSULATION, FIBERGLASS (63 1/2 MAY 978941 Contact Us For Availability
NI
PAINT, TOUCH-UP (1 MAY W10917540 Contact Us For Availability
× ![]()
