Model Maytag JUGFR242HM01 REFRIGERATOR, BEVERAGE CENTER, UNDER COUNTER, 24 I – Common Parts & Diagrams

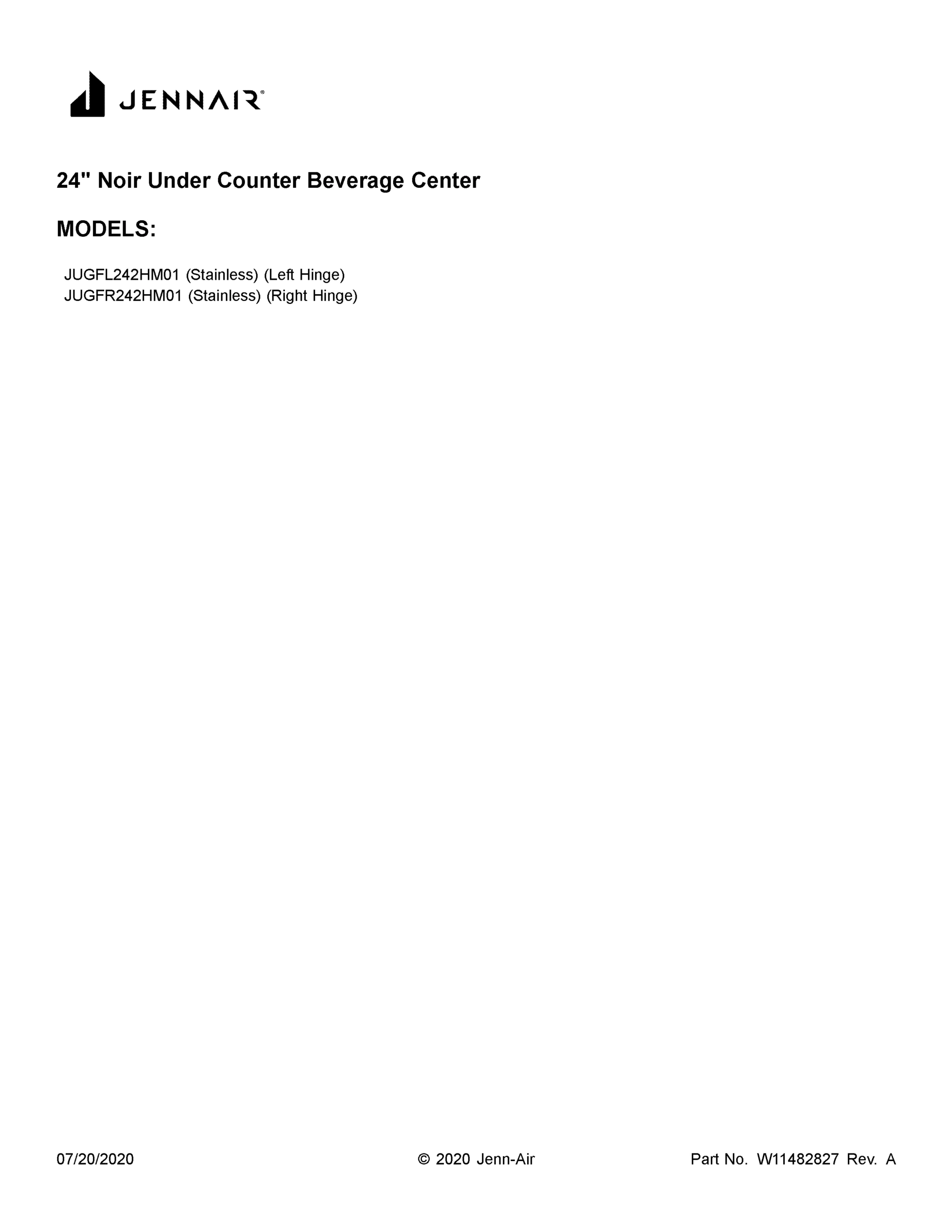

01 - COVER SHEET

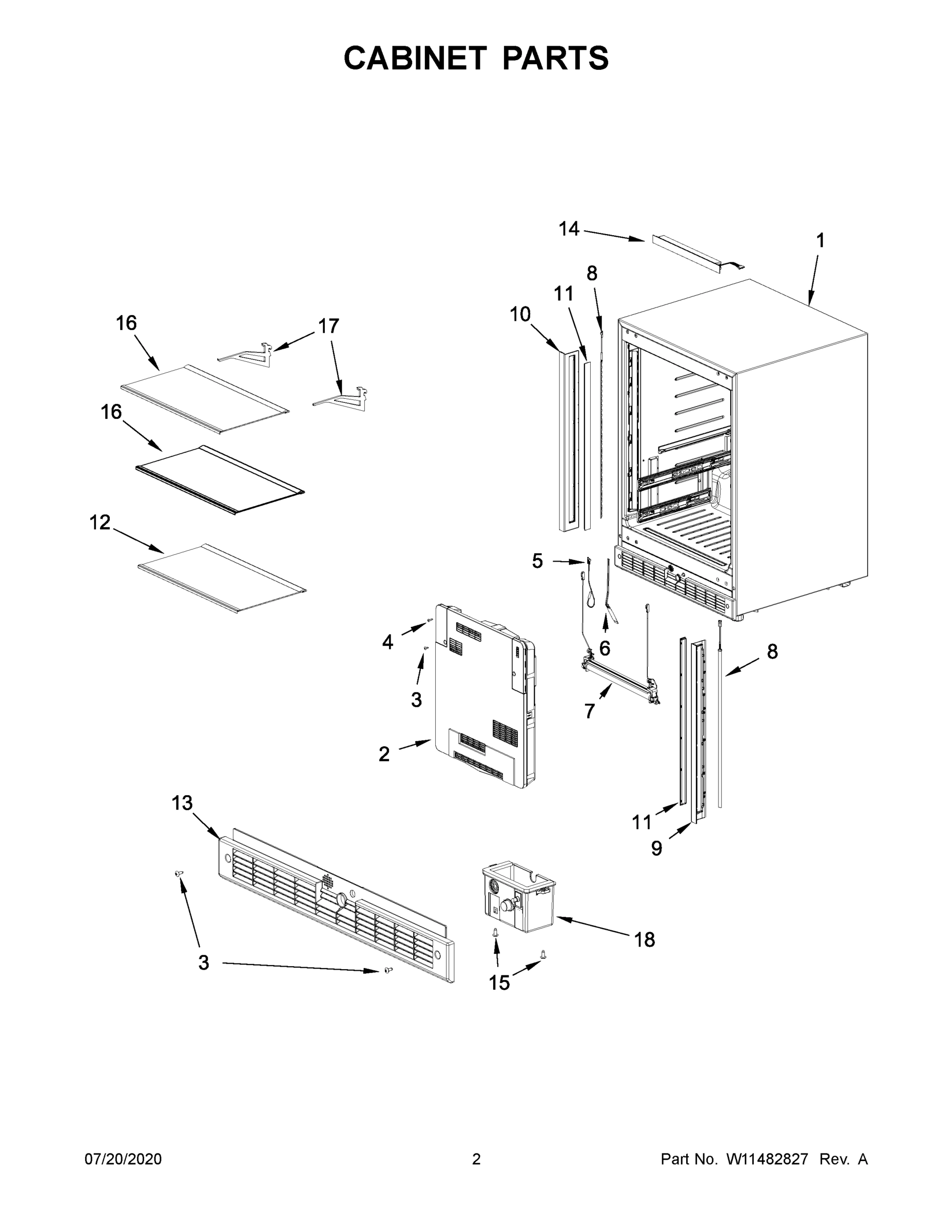

02 - CABINET PARTS

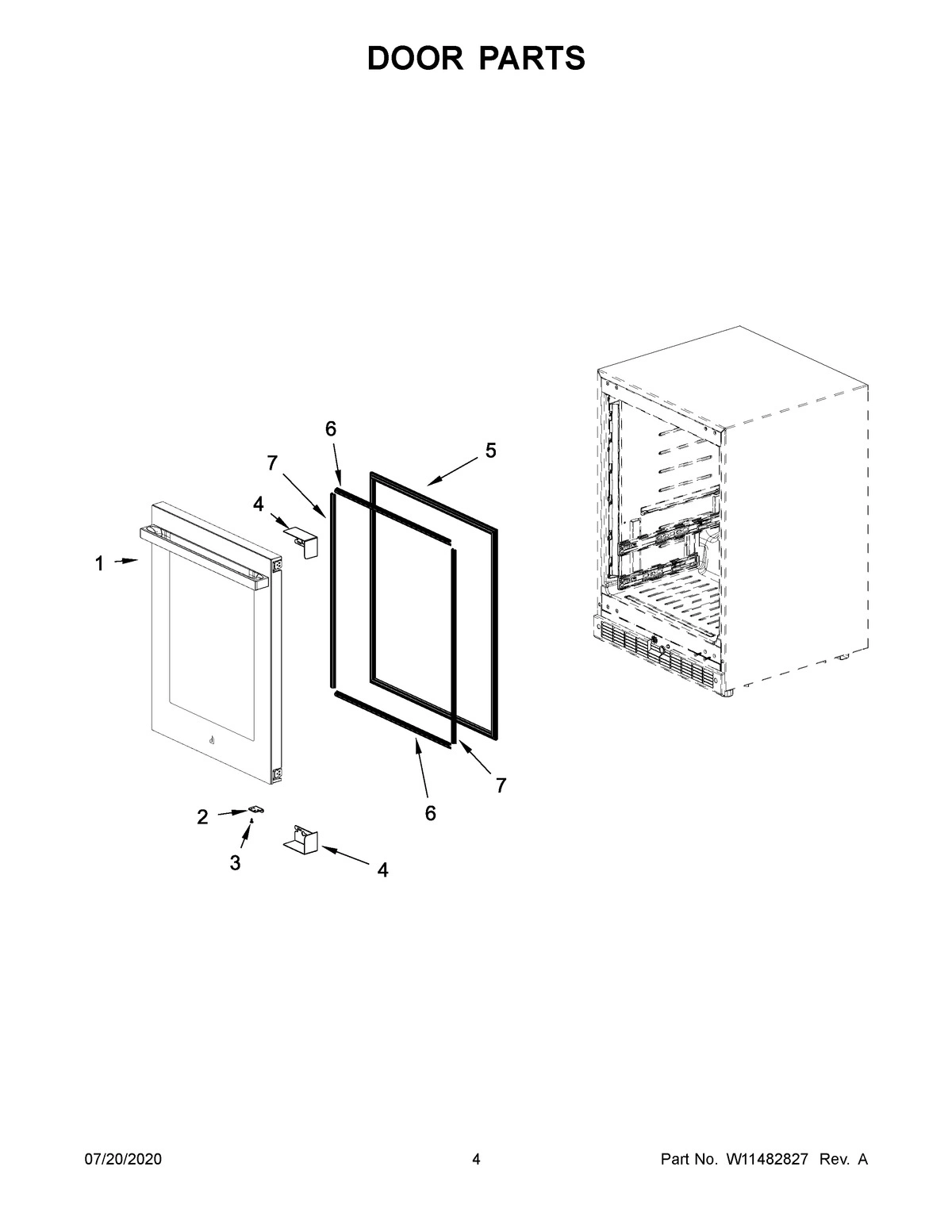

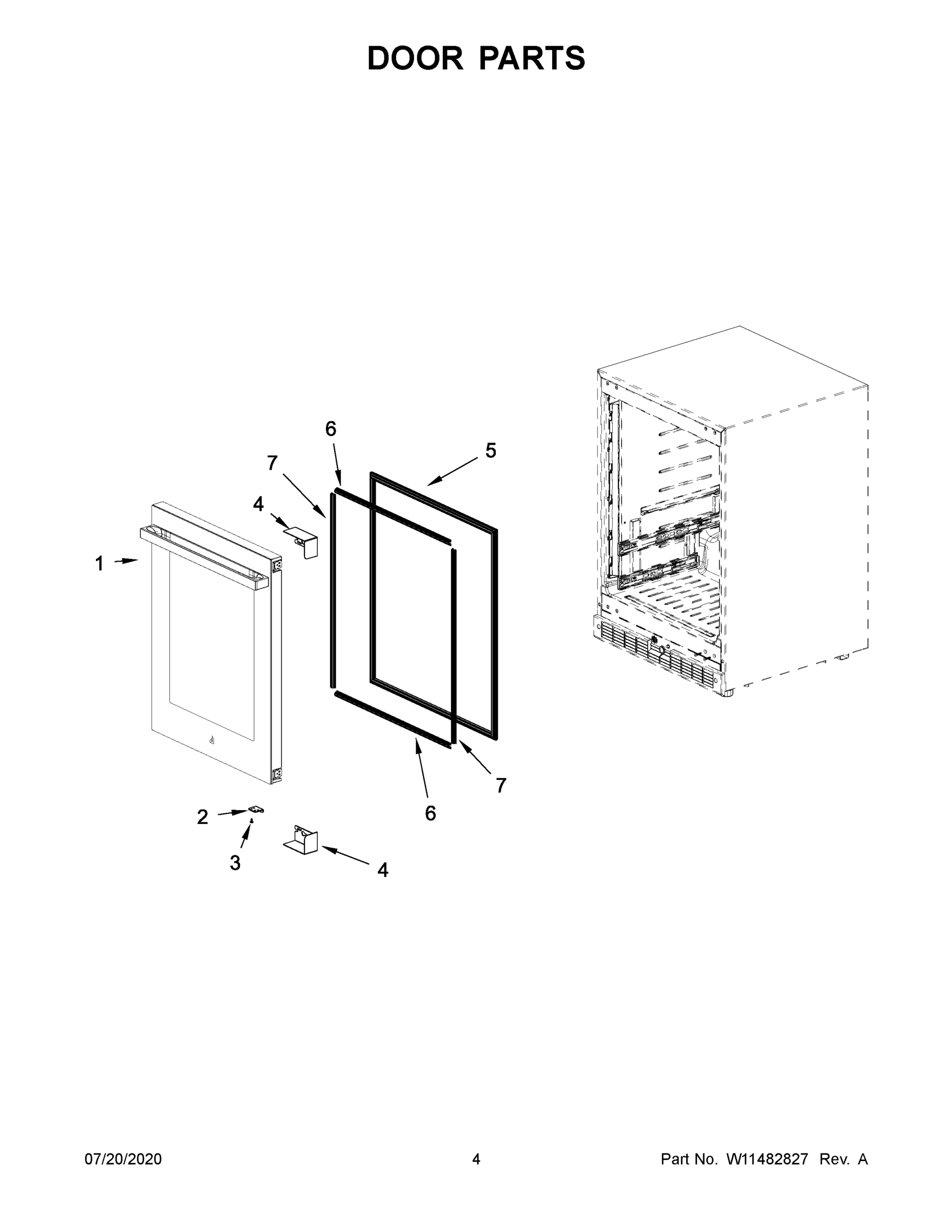

03 - DOOR PARTS

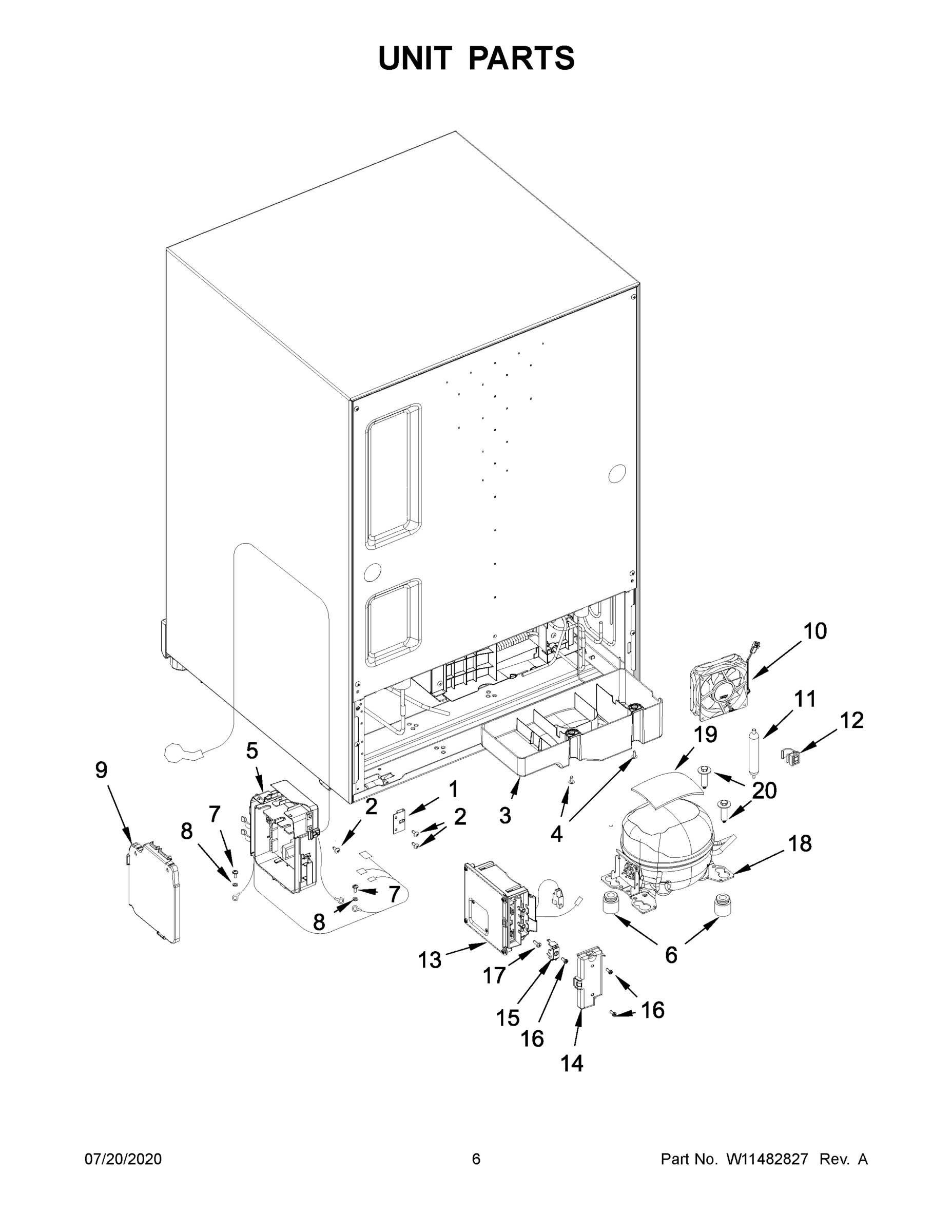

04 - UNIT PARTS
Common parts from model Maytag JUGFR242HM01 REFRIGERATOR, BEVERAGE CENTER, UNDER COUNTER, 24 I
1
DOOR ASSEMBLY (LEFT HINGE) MAY W11360655 Contact Us For Availability
1
CLAMP, CORD MAY W10270517 Contact Us For Availability
1A
DOOR ASSEMBLY (RIGHT HINGE) MAY W11360617 Contact Us For Availability
2
ASSEMBLY, EVAPORATOR COVER (INCLUDES FAN MOTO MAY W11407975 Contact Us For Availability
2
SCREW MAY W11371097 Contact Us For Availability
2
PLATE, PUSH MAY W11360703 Contact Us For Availability
3
SCREW MAY W11371095 Contact Us For Availability
3
WATER PAN, EVAPORATOR MAY W11360241 Contact Us For Availability
4
SCREW MAY W11375760 Contact Us For Availability
4
COVER, DOOR HINGE (RIGHT HINGE (TOP)/ LEFT HI MAY W11360661 Contact Us For Availability
4
SCREW MAY W11375763 Contact Us For Availability
4A
COVER, DOOR HINGE (RIGHT HINGE (BOTTOM)/ LEFT MAY W11360664 Contact Us For Availability
5
SENSOR, DEFROST MAY W11263884 Contact Us For Availability
5
GASKET. DOOR MAY W11360668 Contact Us For Availability
5
ASSEMBLY, PCB BOX (INCLUDES POWER CORD) MAY W11424690 Contact Us For Availability
6
FUSE, TEMPERATURE MAY W11359415 Contact Us For Availability
6
GASKET, SASH (TOP/BOTTOM) MAY W11360665 Contact Us For Availability
6
MOUNT, COMPRESSOR MAY W11360596 Contact Us For Availability
7
DEFROST HOLDER AND HEATER MAY W11359416 Contact Us For Availability
7
GASKET, SASH (SIDE) MAY W11360666 Contact Us For Availability
7
SCREW MAY 4344826 Contact Us For Availability
8
ASSEMBLY, LED MAY W11359423 Contact Us For Availability
8
WASHER MAY W11265570 Contact Us For Availability
9
COVER, LED (RIGHT) MAY W11424553 Contact Us For Availability
9
COVER BOX, PCB MAY W11265578 Contact Us For Availability
10
COVER, LED (LEFT) MAY W11395483 Contact Us For Availability
10
ASSEMBLY, FAN MOTOR MAY W11360536 Contact Us For Availability
11
COVER, LED MAY W11359428 Contact Us For Availability
11
DRIER MAY W10163273 Contact Us For Availability
12
ASSEMBLY, GLASS TRAY MAY W11407979 Contact Us For Availability
12
CLAMP MAY W11265569 Contact Us For Availability
13
KICK, PLATE MAY W11360218 Contact Us For Availability
13
BOX, IB MAY W11360589 Contact Us For Availability
14
ASSEMBLY, CONTROL MAY W11424751 Contact Us For Availability
14
COVER, SIDE MAY W11360590 Contact Us For Availability
15
STOPPER MAY W11360592 Contact Us For Availability
16
ASSEMBLY, GLASS TRAY MAY W11359431 Contact Us For Availability
16
SCREW MAY W11375768 Contact Us For Availability
17
HOLDER, SHELF MAY W11359432 Contact Us For Availability
17
SCREW MAY W11375770 Contact Us For Availability
18
ASSEMBLY, SWITCH BOX MAY W11359433 Contact Us For Availability
18
COMPRESSOR MAY W11360594 Contact Us For Availability
19
COMPRESSOR, RUBBER MAY W11360595 Contact Us For Availability
20
BOLT MAY W11375771 Contact Us For Availability
NI
REFRIGERANT CHARGE R600A (1.834 OZ.) MAY N/P Contact Us For Availability
NI
INSTALLATION HARDWARE KIT (SCREWS, CUSTOM OVE MAY W11415674 Contact Us For Availability
× ![]()
