Model Whirlpool JUDFP242HX11 REFRIGERATOR, ALL – Common Parts &amp; Diagrams

1

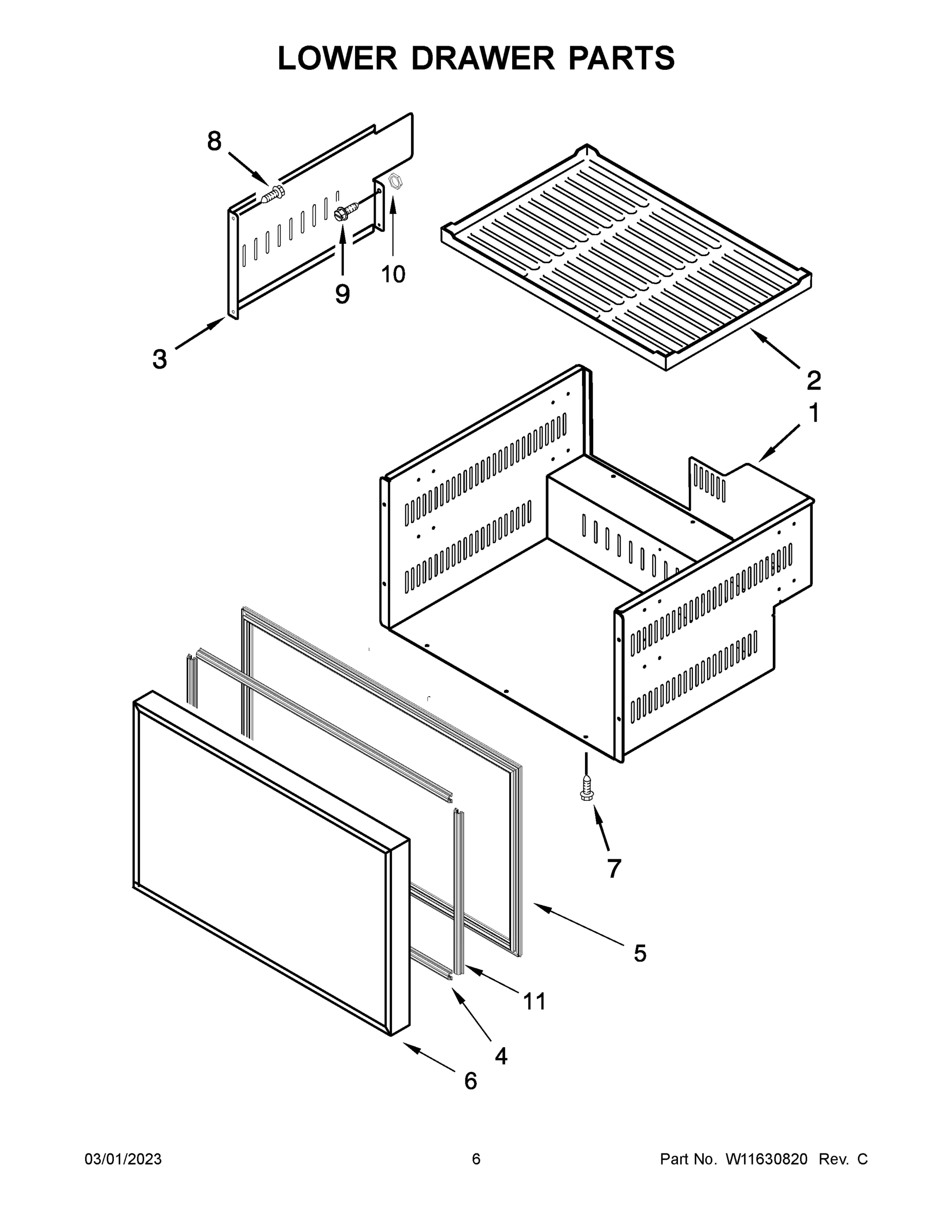

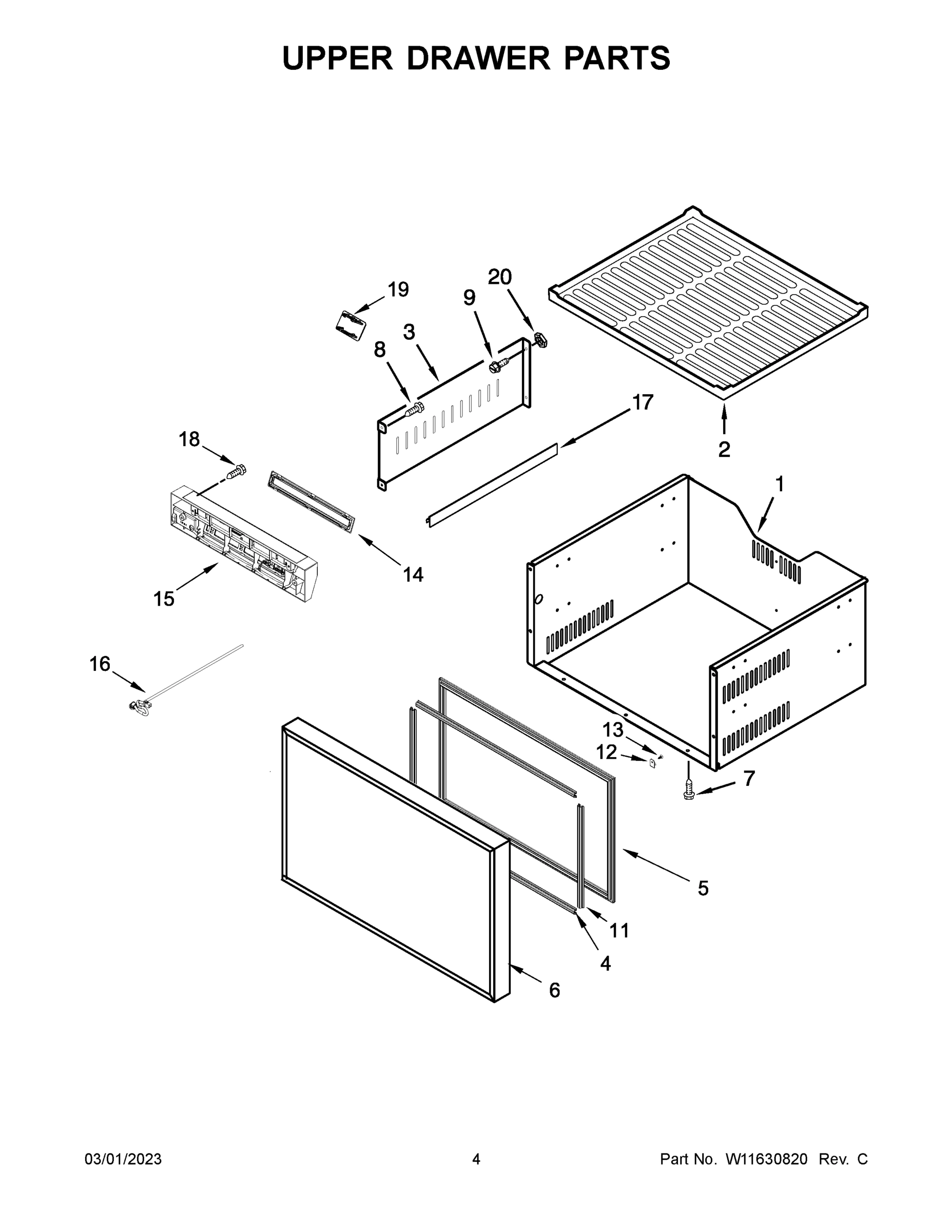

DRAWER BOX ASSEMBLY, LOWER WPL W11630379 Contact Us For Availability

1

CLAMP, CORD WPL W11576947 Contact Us For Availability

2

W11371097 Whirlpool Screw Backorder WPL W11371097 $9.59

2

MAT Backorder WPL W11568835 $97.52

2

MAT Backorder WPL W11568945 $96.40

3

PAN-DRIP Backorder WPL W11360241 $54.86

3

DRAWER PARTITION WPL W11599884 Contact Us For Availability

3

DRAWER PARTITION WPL W11630371 Contact Us For Availability

4

W11360665 Whirlpool Gasket-Fip In Stock WPL W11360665 $108.76

4

W11599890 Whirlpool Slide Assembly Backorder WPL W11599890 $83.31

4

SCREW WPL W11375763 Contact Us For Availability

5

W11568810 Whirlpool Control Box Backorder WPL W11568810 $230.67

5

GASKET-DOR Backorder WPL W11568837 $47.80

5

SCREW WPL W10621524 Contact Us For Availability

5

GASKET WPL W11568947 Contact Us For Availability

6

W11568830 Whirlpool Refrigerator Front Drawer Backorder WPL W11568830 $147.79

6

W11568937 Whirlpool Refrigerator Drawer Backorder WPL W11568937 $141.51

7

4344826 Whirlpool Refrigerator Screw Backorder WPL 4344826 $9.61

7

W11359416 Whirlpool Heater Backorder WPL W11359416 $71.88

7

SCREW WPL W10319183 Contact Us For Availability

8

SCREW Backorder WPL W10204809 $27.52

8

W11266077 Whirlpool Washer Backorder WPL W11266077 $9.13

8

SWITCH, CASE WPL W11568783 Contact Us For Availability

9

W10204810 Whirlpool Screw Backorder WPL W10204810 $27.52

9

W11266082 Whirlpool Switch Assembly Backorder WPL W11266082 $14.15

9

W11313206 Whirlpool Refrigerator Cover Backorder WPL W11313206 $30.60

W10204920 Whirlpool Refrigerator Nut Backorder WPL W10204920 $27.52

W11360536 Whirlpool Refrigerator Evaporator M Backorder WPL W11360536 $81.20

W11568769 Whirlpool Evaporator Cover Backorder WPL W11568769 $187.84

INSULATION, DOOR WPL W11568934 Contact Us For Availability

11

W11109499 Whirlpool Refrigerator Tube In Stock WPL W11109499 $20.17

11

LED WPL W11568950 Contact Us For Availability

11

DOOR GASKET, SHORT WPL W11568838 Contact Us For Availability

12

W11579579 Whirlpool Refrigerator Plate Backorder WPL W11579579 $5.69

12

CONNECTOR, COVER WPL W11568787 Contact Us For Availability

12

CLAMP WPL W11265569 Contact Us For Availability

13

W10859467 Whirlpool Refrigerator Screw Backorder WPL W10859467 $27.52

13

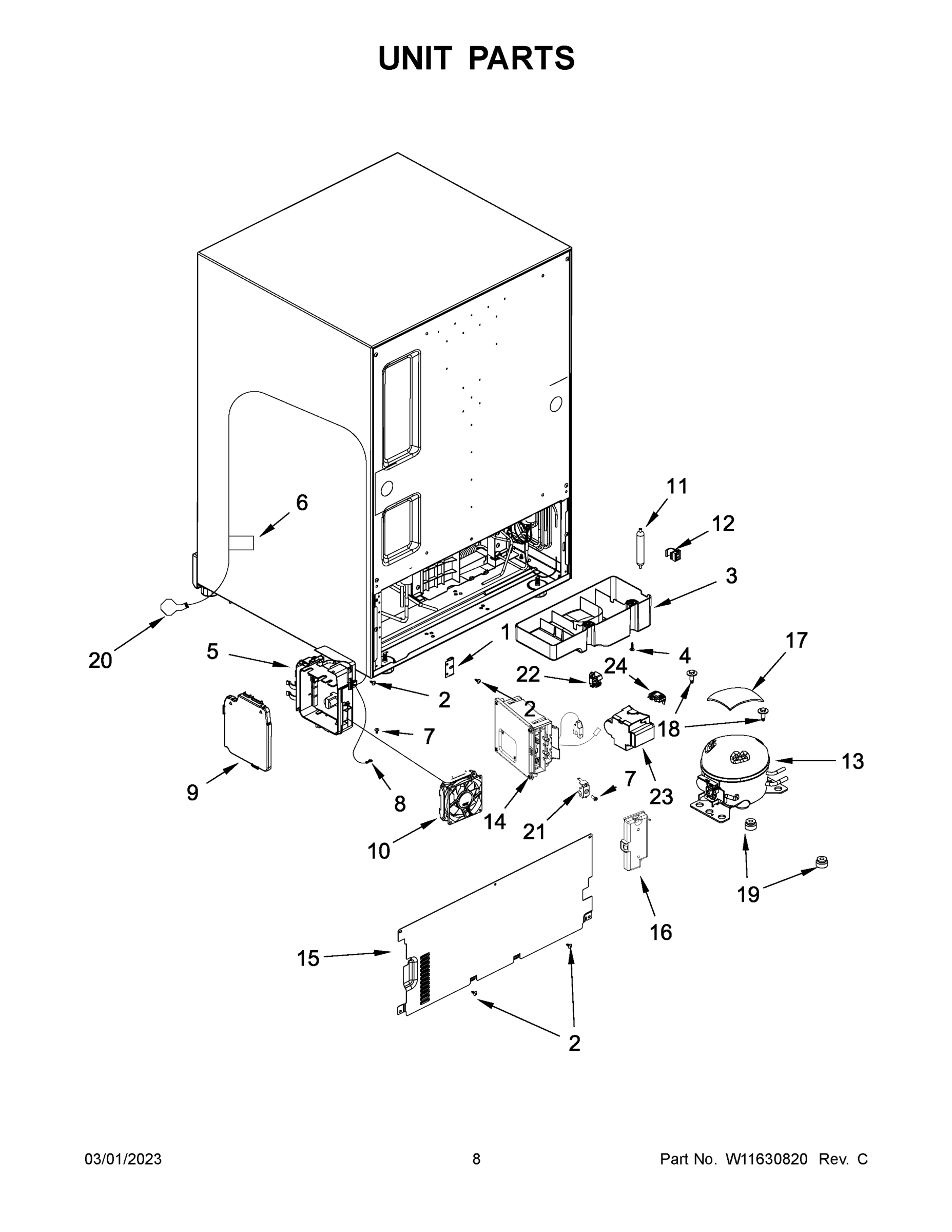

W11754545 Whirlpool Compressor In Stock WPL W11754545 $325.74

13

CABINET (NOT A SERVICABLE PART) WPL ARI89959A0406B9B609EB9764890B107614 Contact Us For Availability

14

W11312450 Whirlpool Light Lens Backorder WPL W11312450 $36.65

14

ASSEMBLY, SWITCH BOX WPL W11568794 Contact Us For Availability

14

PROTECTOR, MOTOR WPL W11568812 Contact Us For Availability

15

DISPLAY Backorder WPL W11604678 $240.01

15

PANEL, COVER WPL W11568821 Contact Us For Availability

16

COVER Backorder WPL W11360590 $39.58

16

W11592421 Whirlpool Wire Harness In Stock WPL W11592421 $93.81

16

W11700300 Whirlpool Refrigerator Grille In Stock WPL W11700300 $32.24

17

W11675284 Whirlpool Screw Backorder WPL W11675284 $8.11

17

SUPPORT, LEAD WIRE WPL W11568842 Contact Us For Availability

17

COMPRESSOR, RUBBER WPL W11360595 Contact Us For Availability

18

W10204808 Whirlpool Refrigerator Screw Backorder WPL W10204808 $27.52

18

W10772873 Whirlpool Screw Backorder WPL W10772873 $29.87

18

W11106296 Whirlpool Refrigerator Leveler Backorder WPL W11106296 $6.35

19

COVER Backorder WPL W11568841 $12.77

19

ASSEMBLY, SEPARATOR WPL W11568948 Contact Us For Availability

19

MOUNT, COMPRESSOR WPL W11360596 Contact Us For Availability

20

W11618463 Whirlpool Power Cord Backorder WPL W11618463 $54.64

21

W11359415 Whirlpool Bi-metal Defrost Backorder WPL W11359415 $39.69

21

BRACKET Backorder WPL W11360592 $25.49

22

W11596023 Whirlpool Start Device In Stock WPL W11596023 $27.12

22

COVER PIECE, EVAPORATOR WPL W11568776 Contact Us For Availability

23

W11579510 Whirlpool Refrigerator Switch Backorder WPL W11579510 $14.15

23

COVER WPL W11568820 Contact Us For Availability

24

W11579511 Whirlpool Trim Backorder WPL W11579511 $85.61

W11598387 Whirlpool Hardware Pack Backorder WPL W11598387 $29.54

FOLLOWING PARTS NOT ILLUSTRATED WPL ARI7C4B781E09F4C135E8A56A812FBF5A4D Contact Us For Availability

ASSEMBLY, COMPLETE DOOR WPL W11630413 Contact Us For Availability

COMPLETE DOOR ASSEMBLY WPL W11605925 Contact Us For Availability

REFRIGERANT CHARGE 52 GRAMS (R600A) WPL ARIF916CC318E008C40755DF76F91C7B724 Contact Us For Availability
