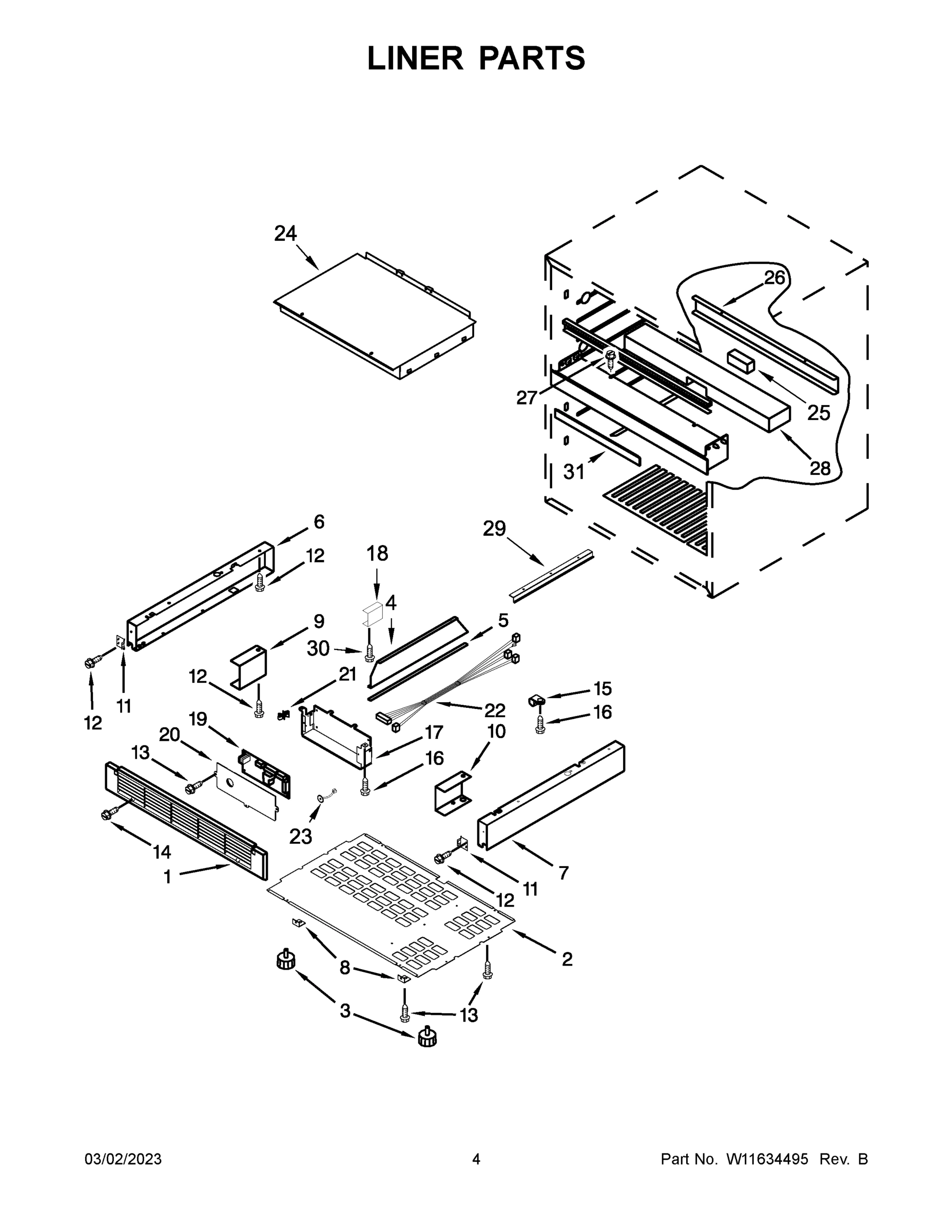

Model Whirlpool JUDFP242HX01 REFRIGERATOR, ALL – Common Parts &amp; Diagrams

1

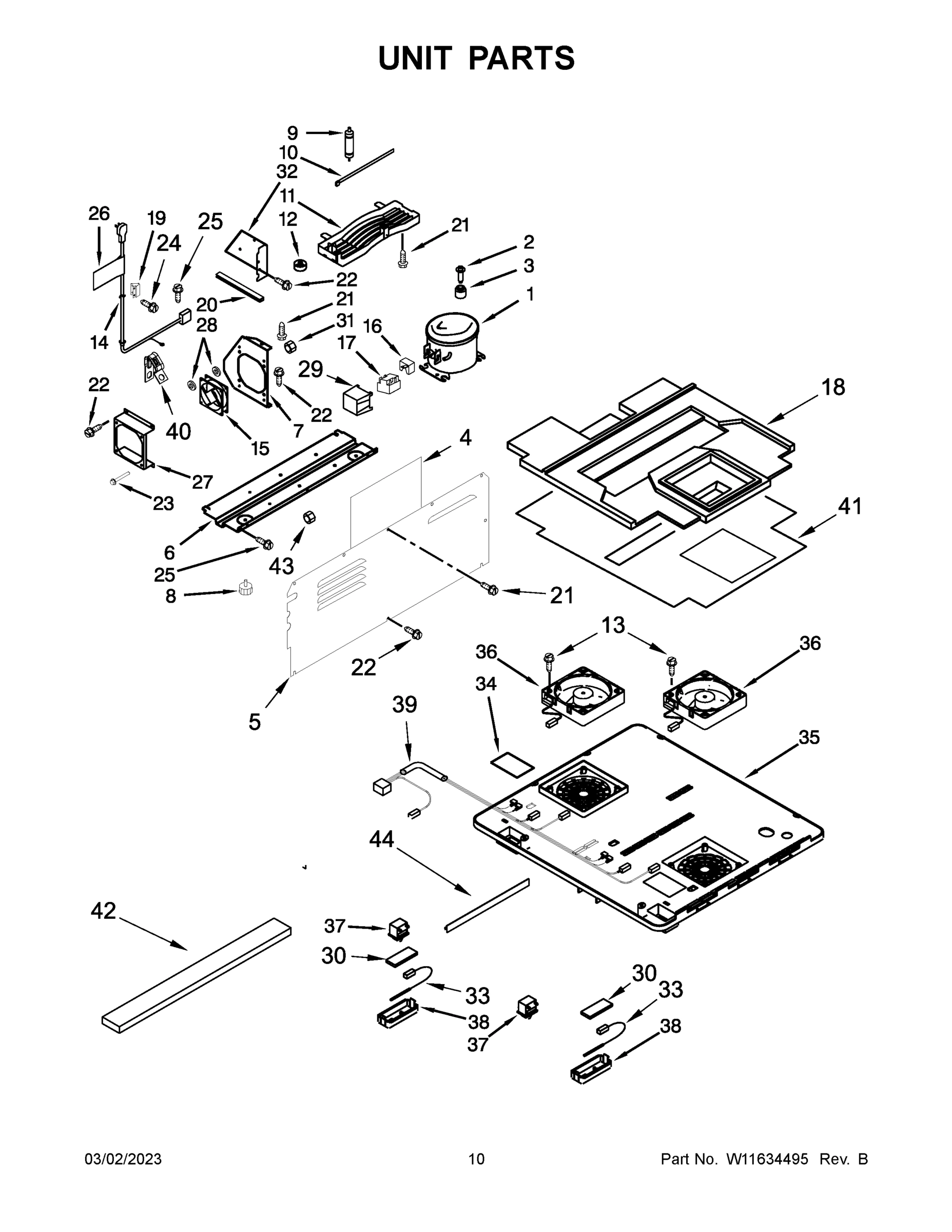

W11422743 Whirlpool Compressor Backorder WPL W11422743 $247.26

1

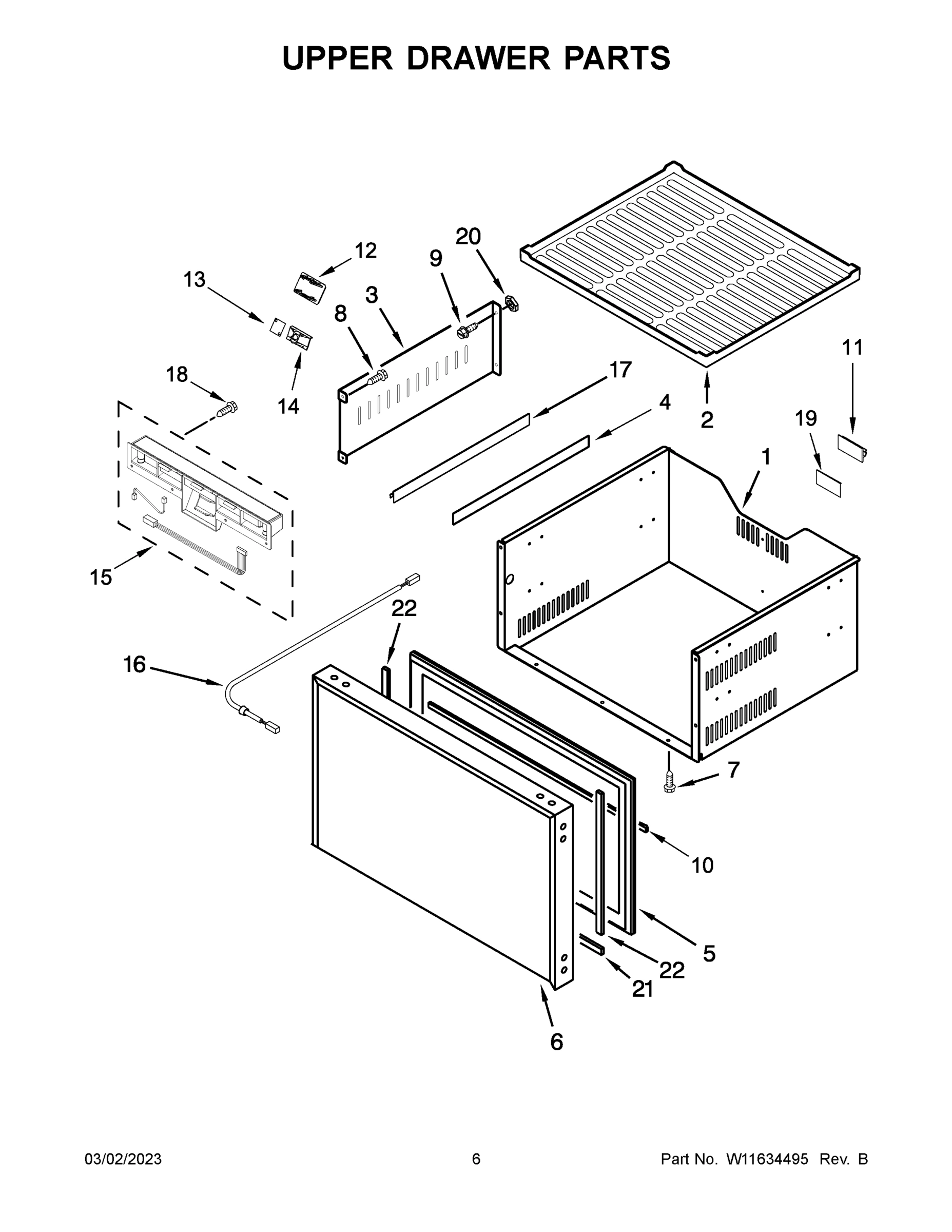

DRAWER BOX ASSEMBLY, UPPER WPL W11422821 Contact Us For Availability

2

W10772873 Whirlpool Screw Backorder WPL W10772873 $28.44

2

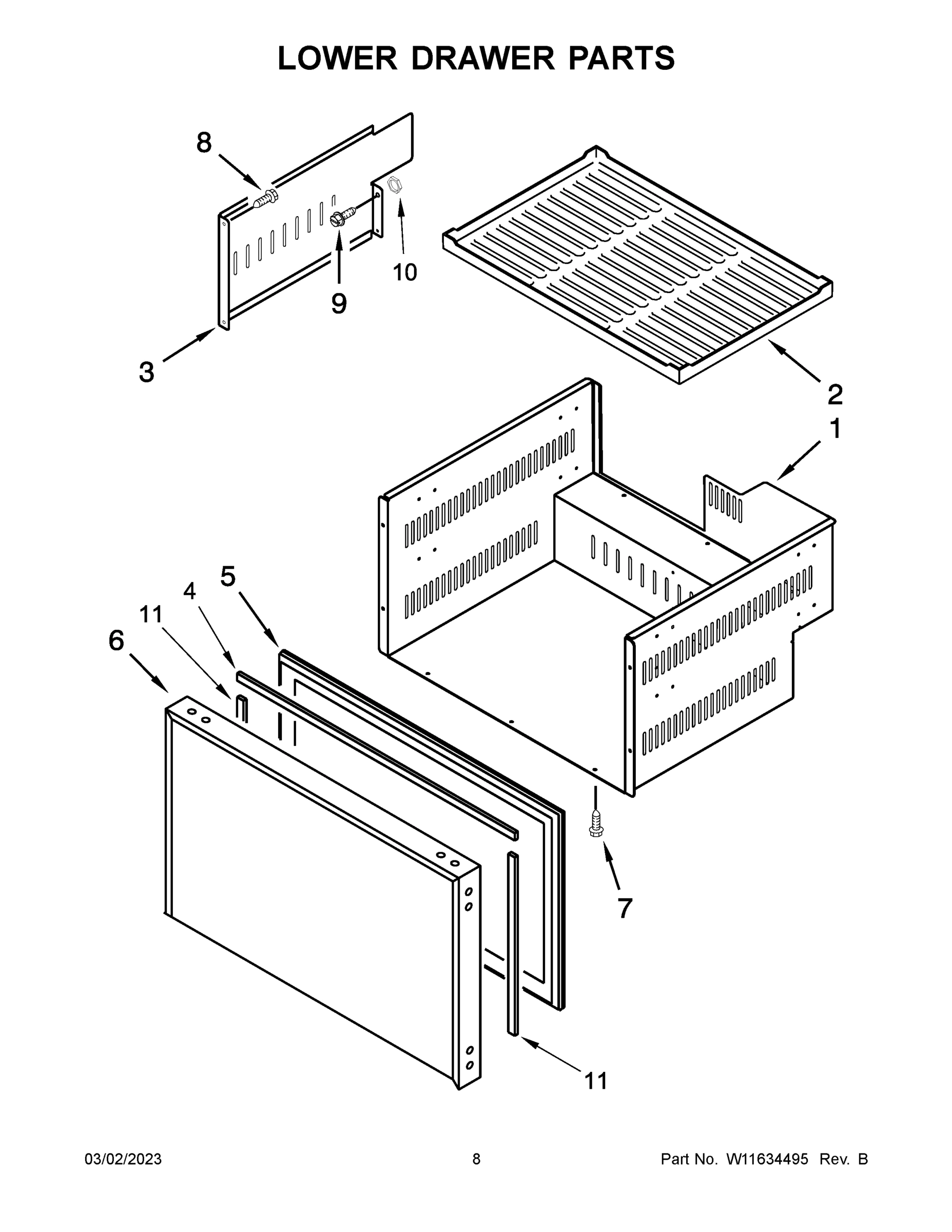

MAT, LOWER DRAWER WPL W11568945 Contact Us For Availability

3

W10621521 Whirlpool Refrigerator Slide Backorder WPL W10621521 $189.69

3

WP4344779 Whirlpool Refrigerator Grommet Backorder WPL WP4344779 $3.70

3

BOTTOM DRAWER PARTITION WPL W11633892 Contact Us For Availability

4

W10204889 Whirlpool Refrigerator Gasket Backorder WPL W10204889 $42.60

4

W10621523 Whirlpool Refrigerator Slide Backorder WPL W10621523 $190.29

4

W11442514 Whirlpool Tape Backorder WPL W11442514 $14.27

4

INSULATION, REAR COVER WPL W10778963 Contact Us For Availability

5

W10796445 Whirlpool Refrigerator Back Cover Backorder WPL W10796445 $66.83

5

WPW10622006 Whirlpool Refrigerator Gasket Backorder WPL WPW10622006 $63.30

6

TOP FOAMED DOOR ASSEMBLY WPL W11422740 Contact Us For Availability

6

BOTTOM FOAMED DOOR ASSEMBLY WPL W11422817 Contact Us For Availability

6

CABINET BASE PLATE WPL W11422734 Contact Us For Availability

7

W10204674 Whirlpool Refrigerator Baffle Backorder WPL W10204674 $47.20

7

W11573590 Whirlpool Refrigerator Thermistor Backorder WPL W11573590 $28.82

7

SCREW WPL W10319183 Contact Us For Availability

8

W11106296 Whirlpool Refrigerator Leveler Backorder WPL W11106296 $6.35

8

SCREW WPL W10204809 Contact Us For Availability

9

4344820 Whirlpool Refrigerator Support Backorder WPL 4344820 $78.90

9

W10163273 Whirlpool Refrigerator Tube Backorder WPL W10163273 $29.43

9

W10204810 Whirlpool Screw Backorder WPL W10204810 $26.21

4344821 Whirlpool Refrigerator Support Backorder WPL 4344821 $44.01

W10204621 Whirlpool Refrigerator Bimetal Defr Backorder WPL W10204621 $65.50

W10204920 Whirlpool Refrigerator Nut Backorder WPL W10204920 $26.21

COLD AIR SEAL WPL W10772909 Contact Us For Availability

TIE, CABLE WPL W11633878 Contact Us For Availability

W10204640 Whirlpool Refrigerator Clip Backorder WPL W10204640 $26.21

W10204897 Whirlpool Refrigerator Gasket Backorder WPL W10204897 $46.83

W10316689 Whirlpool Refrigerator Drip Pan Backorder WPL W10316689 $66.93

W10772901 Whirlpool Refrigerator Clip Backorder WPL W10772901 $7.28

12

W10163276 Whirlpool Refrigerator Trap Backorder WPL W10163276 $28.80

12

W10204929 Whirlpool Cover Backorder WPL W10204929 $28.80

4344826 Whirlpool Refrigerator Screw Backorder WPL 4344826 $9.61

W10204930 Whirlpool Refrigerator Light Lens Backorder WPL W10204930 $127.61

W10205061 Whirlpool Screw Assembly Backorder WPL W10205061 $26.21

W10621514 Whirlpool Refrigerator Temperature Backorder WPL W10621514 $10.08

14

W10204931 Whirlpool Socket Assembly Backorder WPL W10204931 $26.21

14

WPW10204676 Whirlpool Refrigerator Power Cord Backorder WPL WPW10204676 $45.31

15

W10772882 Whirlpool Refrigerator Condenser Mo Backorder WPL W10772882 $119.79

15

CONTROL ASSEMBLY WPL W11422846 Contact Us For Availability

16

W10789534 Whirlpool Refrigerator Wire Harness Backorder WPL W10789534 $80.94

16

W11422769 Whirlpool Overload Relay Backorder WPL W11422769 $43.13

16

SCREW WPL 4344825 Contact Us For Availability

17

W10622013 Whirlpool Refrigerator Clip Backorder WPL W10622013 $10.07

17

W10772866 Whirlpool Refrigerator Control Box Backorder WPL W10772866 $35.43

17

W11596023 Whirlpool Start Device Backorder WPL W11596023 $25.82

18

W10204808 Whirlpool Refrigerator Screw Backorder WPL W10204808 $26.21

18

INSULATION, FAN COVER WPL W10772919 Contact Us For Availability

19

COVER, RELAY WPL W11633899 Contact Us For Availability

19

CLAMP, CORD WPL W10270517 Contact Us For Availability

20

TRIM, EDGE WPL 4344907 Contact Us For Availability

21

W10204659 Whirlpool Refrigerator Spacer Backorder WPL W10204659 $26.21

22

W10772870 Whirlpool Refrigerator Wire Harness Backorder WPL W10772870 $55.35

22

W11380570 Whirlpool Microwave Screw In Stock WPL W11380570 $9.86

23

W10788693 Whirlpool Refrigerator Speaker Backorder WPL W10788693 $38.16

23

SCREW WPL W11422695 Contact Us For Availability

24

W10837731 Whirlpool Screw Assembly In Stock WPL W10837731 $2.51

25

4344797 Whirlpool Screw Backorder WPL 4344797 $9.15

26

WARNING LABEL WPL W11444462 Contact Us For Availability

27

W11506521 Whirlpool Refrigerator Bracket Backorder WPL W11506521 $27.34

28

W10204688 Whirlpool Plate Assembly Backorder WPL W10204688 $26.21

29

COVER, RELAY WPL W11422786 Contact Us For Availability

30

W10204948 Whirlpool Refrigerator Control Box Backorder WPL W10204948 $26.21

31

NUT WPL W10772890 Contact Us For Availability

32

BRACKET, DEFROST TIMER WPL W10239387 Contact Us For Availability

33

W11238391 Whirlpool Refrigerator Thermistor Backorder WPL W11238391 $44.05

34

W10205062 Whirlpool Wire Cover Backorder WPL W10205062 $26.21

35

COVER, FAN WPL W10796448 Contact Us For Availability

36

W10854409 Whirlpool Refrigerator Evaporator M Backorder WPL W10854409 $132.50

37

W10721454 Whirlpool Refrigerator Switch Backorder WPL W10721454 $15.56

38

SENSOR CASE WPL W10775535 Contact Us For Availability

39

W10772918 Whirlpool Refrigerator Wire Harness Backorder WPL W10772918 $68.54

40

CLAMP, CORD WPL W10281591 Contact Us For Availability

41

PLATE COVER WPL W10772920 Contact Us For Availability

42

W10788704 Whirlpool Refrigerator Seal Backorder WPL W10788704 $10.61

43

SPRING WASHER WPL W11422694 Contact Us For Availability

44

SEAL WPL W11422827 Contact Us For Availability

NI

W10266810 Whirlpool Refrigerator Repair Kit In Stock WPL W10266810 $26.21

NI

W10788702 Whirlpool Refrigerator Hardware Pac Backorder WPL W10788702 $38.25

NI

PEDESTAL (REFER TO COLOR VARIATION PARTS PAGE WPL NP Contact Us For Availability
