Model Whirlpool JUDFP242HM11 REFRIGERATOR, ALL – Common Parts & Diagrams

1

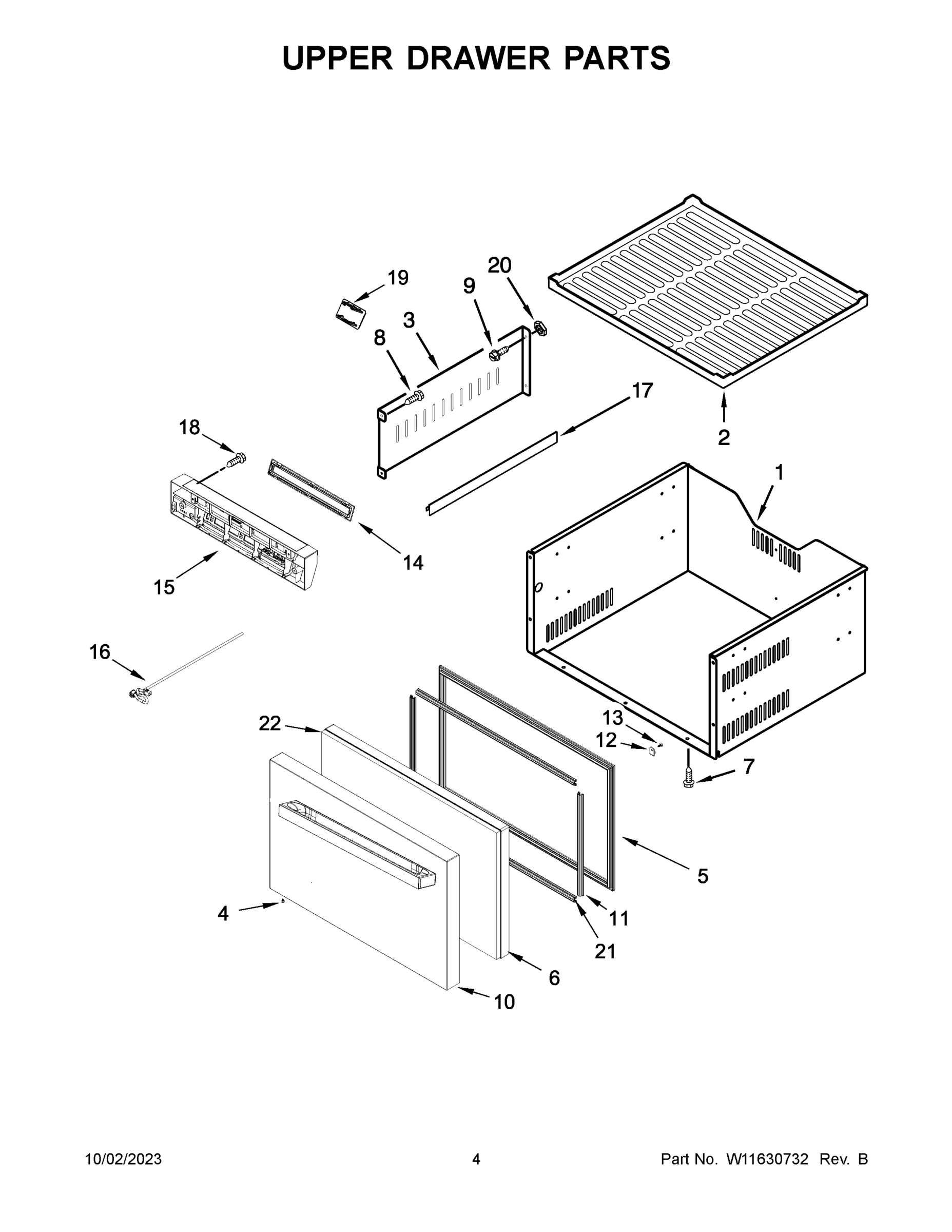

DRAWER BOX ASSEMBLY, UPPER
DRAWER BOX ASSEMBLY, UPPER WPL W11630376 Contact Us For Availability
View on Model
1

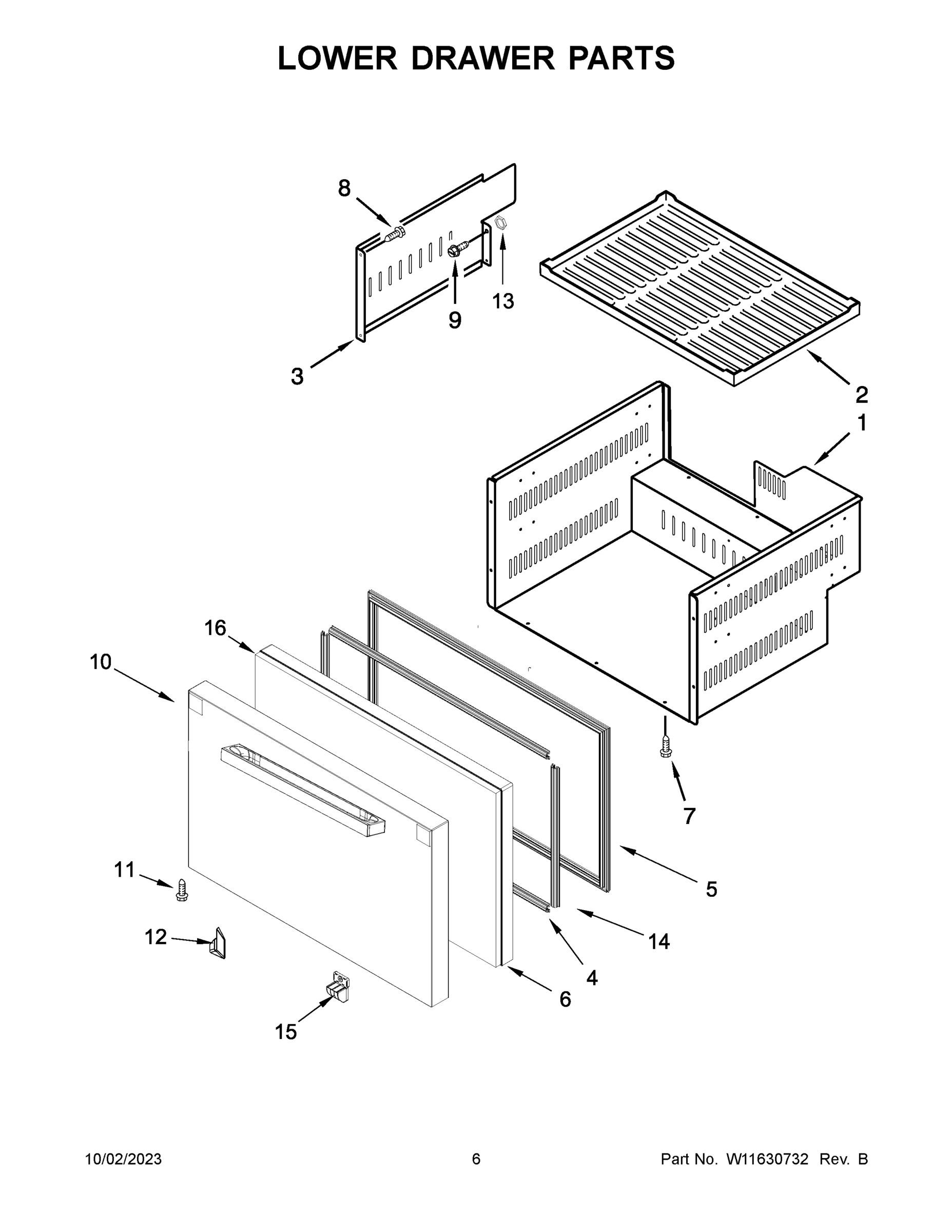

DRAWER BOX ASSEMBLY, LOWER
DRAWER BOX ASSEMBLY, LOWER WPL W11630379 Contact Us For Availability
View on Model
1
CLAMP, CORD
CLAMP, CORD WPL W11576947 Contact Us For Availability
View on Model
2
MAT, UPPER DRAWER
MAT, UPPER DRAWER WPL W11568835 Contact Us For Availability
View on Model
2
MAT, LOWER DRAWER
MAT, LOWER DRAWER WPL W11568945 Contact Us For Availability
View on Model
3
DRAWER PARTITION
DRAWER PARTITION WPL W11599884 Contact Us For Availability
View on Model
3
DRAWER PARTITION
DRAWER PARTITION WPL W11630371 Contact Us For Availability
View on Model
3
WATER PAN, EVAPORATOR
WATER PAN, EVAPORATOR WPL W11360241 Contact Us For Availability
View on Model
4
SCREW
SCREW WPL W11375763 Contact Us For Availability
View on Model
5
SCREW
SCREW WPL W10621524 Contact Us For Availability
View on Model
5
GASKET, DOOR
GASKET, DOOR WPL W11568837 Contact Us For Availability
View on Model
5
GASKET
GASKET WPL W11568947 Contact Us For Availability
View on Model
7
SCREW
SCREW WPL W10319183 Contact Us For Availability
View on Model
8
SCREW
SCREW WPL W10204809 Contact Us For Availability
View on Model
8
SWITCH, CASE
SWITCH, CASE WPL W11568783 Contact Us For Availability
View on Model
10
WRAP, STAINLESS STEEL
WRAP, STAINLESS STEEL WPL W11594165 Contact Us For Availability
View on Model
11
LED
LED WPL W11568950 Contact Us For Availability
View on Model
12
CONNECTOR, COVER
CONNECTOR, COVER WPL W11568787 Contact Us For Availability
View on Model
12
CLAMP
CLAMP WPL W11265569 Contact Us For Availability
View on Model
13

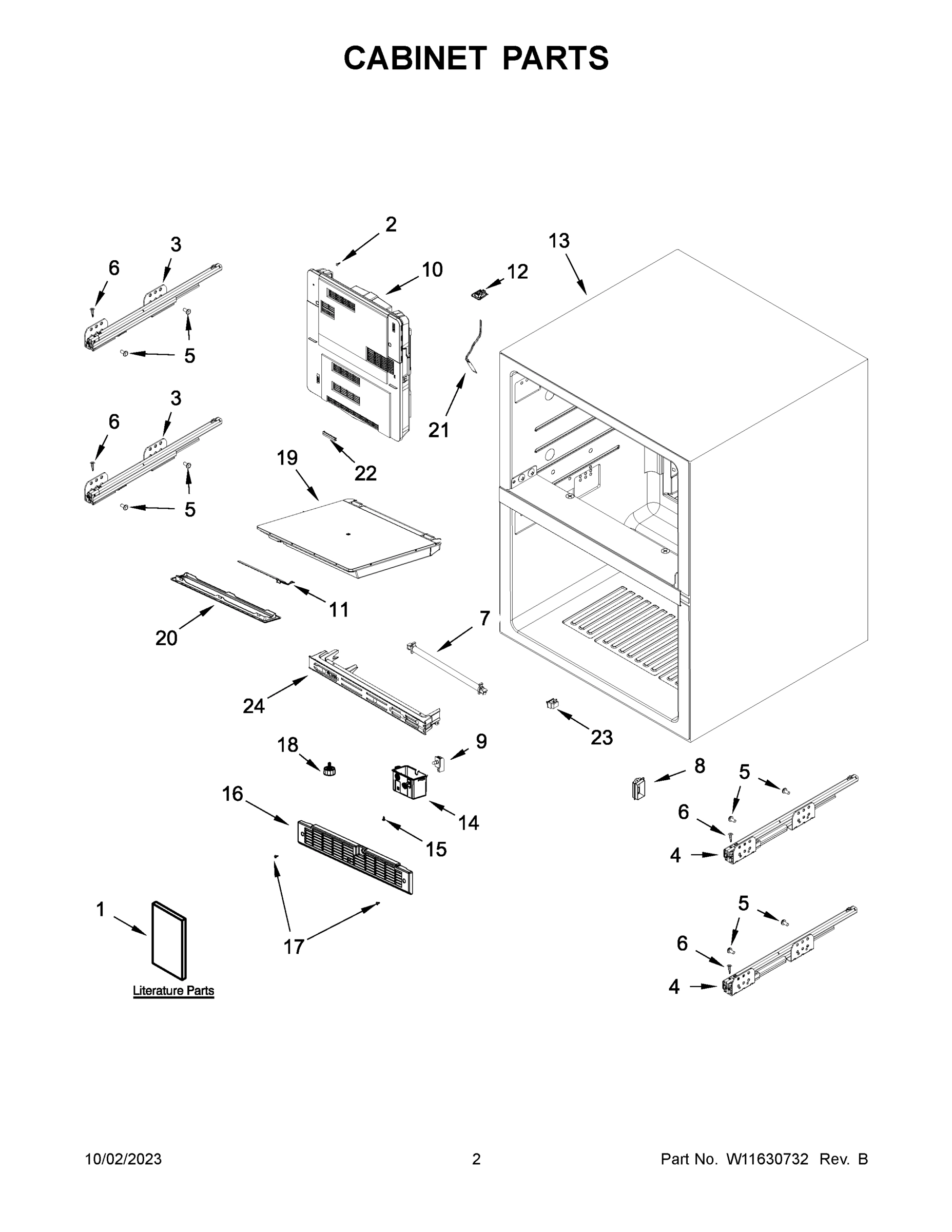

CABINET (NOT A SERVICABLE PART)
CABINET (NOT A SERVICABLE PART) WPL ARI89959A0406B9B609EB9764890B107614 Contact Us For Availability
View on Model
14
ASSEMBLY, SWITCH BOX
ASSEMBLY, SWITCH BOX WPL W11568794 Contact Us For Availability
View on Model
14
DOOR GASKET, SHORT
DOOR GASKET, SHORT WPL W11568838 Contact Us For Availability
View on Model
14
PROTECTOR, MOTOR
PROTECTOR, MOTOR WPL W11568812 Contact Us For Availability
View on Model
15
CONTROL PANEL ASSEMBLY
CONTROL PANEL ASSEMBLY WPL W11604678 Contact Us For Availability
View on Model
15
PANEL, COVER
PANEL, COVER WPL W11568821 Contact Us For Availability
View on Model
16
INSULATION, DOOR
INSULATION, DOOR WPL W11568934 Contact Us For Availability
View on Model
16
COVER, SIDE
COVER, SIDE WPL W11360590 Contact Us For Availability
View on Model
17
SUPPORT, LEAD WIRE
SUPPORT, LEAD WIRE WPL W11568842 Contact Us For Availability
View on Model
17
COMPRESSOR, RUBBER
COMPRESSOR, RUBBER WPL W11360595 Contact Us For Availability
View on Model
19
ASSEMBLY, SEPARATOR
ASSEMBLY, SEPARATOR WPL W11568948 Contact Us For Availability
View on Model
19
LAMP COVER
LAMP COVER WPL W11568841 Contact Us For Availability
View on Model
19
MOUNT, COMPRESSOR
MOUNT, COMPRESSOR WPL W11360596 Contact Us For Availability
View on Model
21
STOPPER
STOPPER WPL W11360592 Contact Us For Availability
View on Model
22
COVER PIECE, EVAPORATOR
COVER PIECE, EVAPORATOR WPL W11568776 Contact Us For Availability
View on Model
23
COVER
COVER WPL W11568820 Contact Us For Availability
View on Model
NI

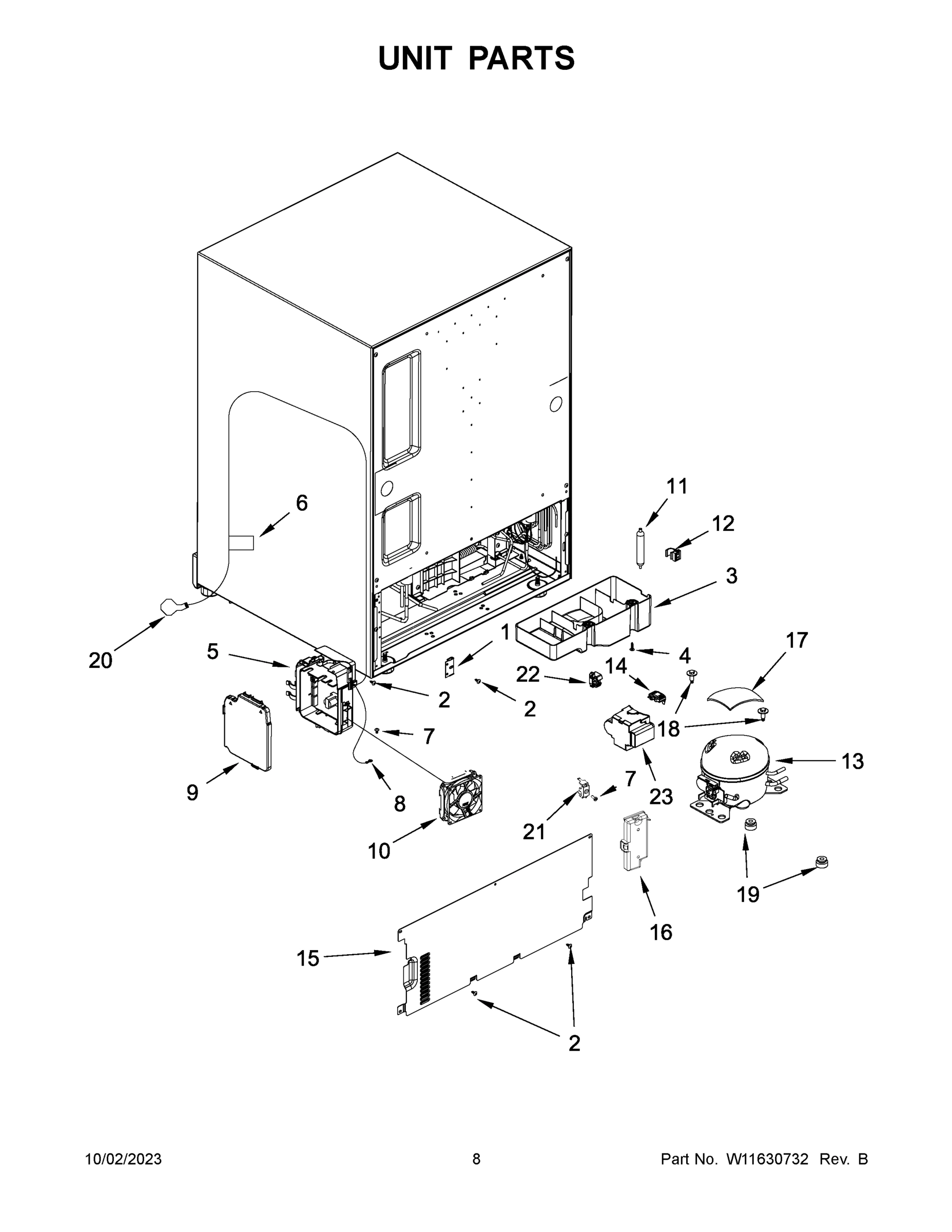

FOLLOWING PARTS NOT ILLUSTRATED
FOLLOWING PARTS NOT ILLUSTRATED WPL ARI7C4B781E09F4C135E8A56A812FBF5A4D Contact Us For Availability
View on Model
NI
ASSEMBLY, COMPLETE DOOR
ASSEMBLY, COMPLETE DOOR WPL W11630391 Contact Us For Availability
View on Model
NI
ASSEMBLY, COMPLETE DOOR
ASSEMBLY, COMPLETE DOOR WPL W11630420 Contact Us For Availability
View on Model
NI
REFRIGERANT CHARGE 52 GRAMS (R600A)
REFRIGERANT CHARGE 52 GRAMS (R600A) WPL ARIF916CC318E008C40755DF76F91C7B724 Contact Us For Availability
View on Model
