Model Maytag JUD278DBES00 REFRIGERATOR – Common Parts & Diagrams

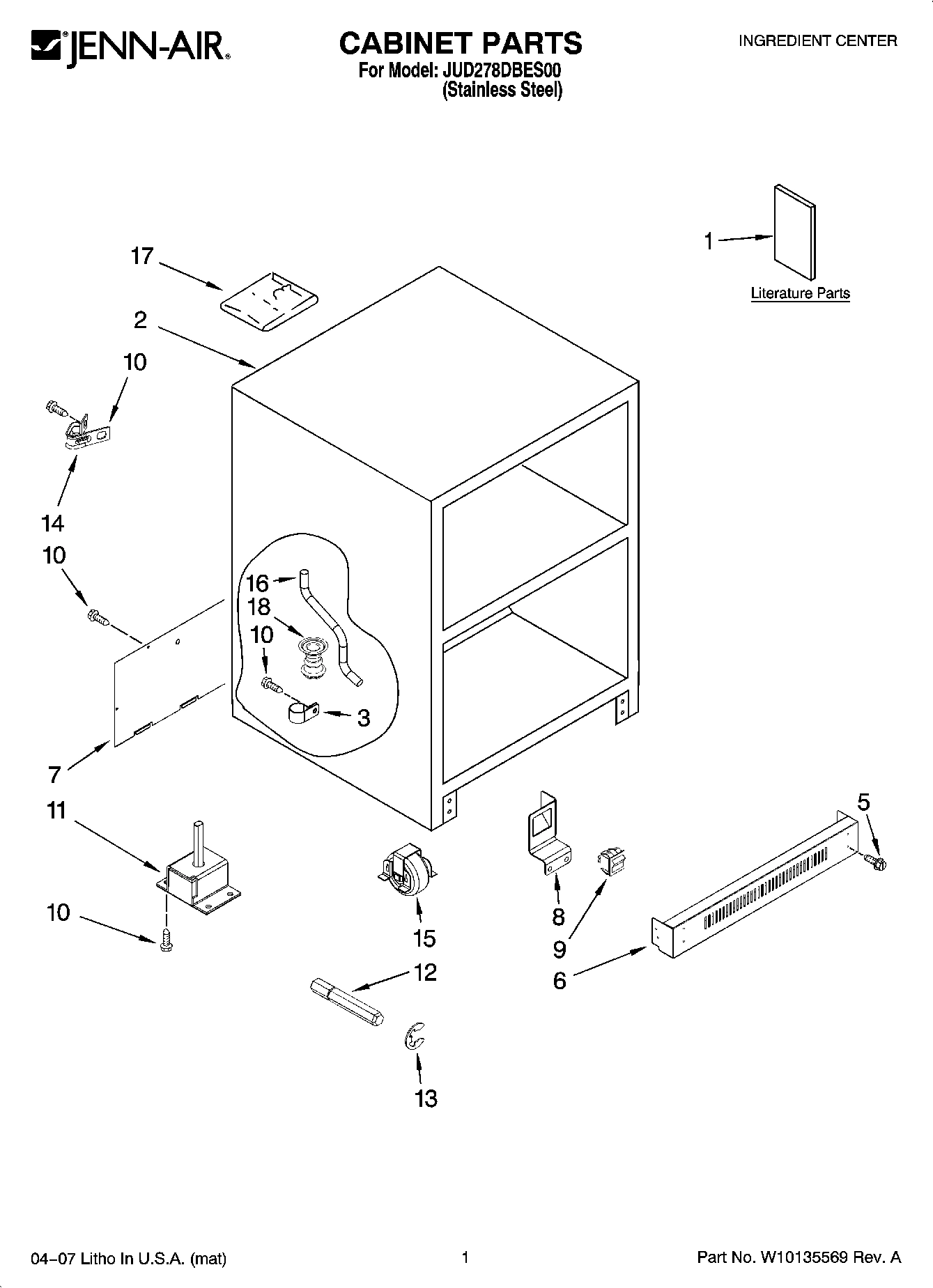

01 - CABINET PARTS

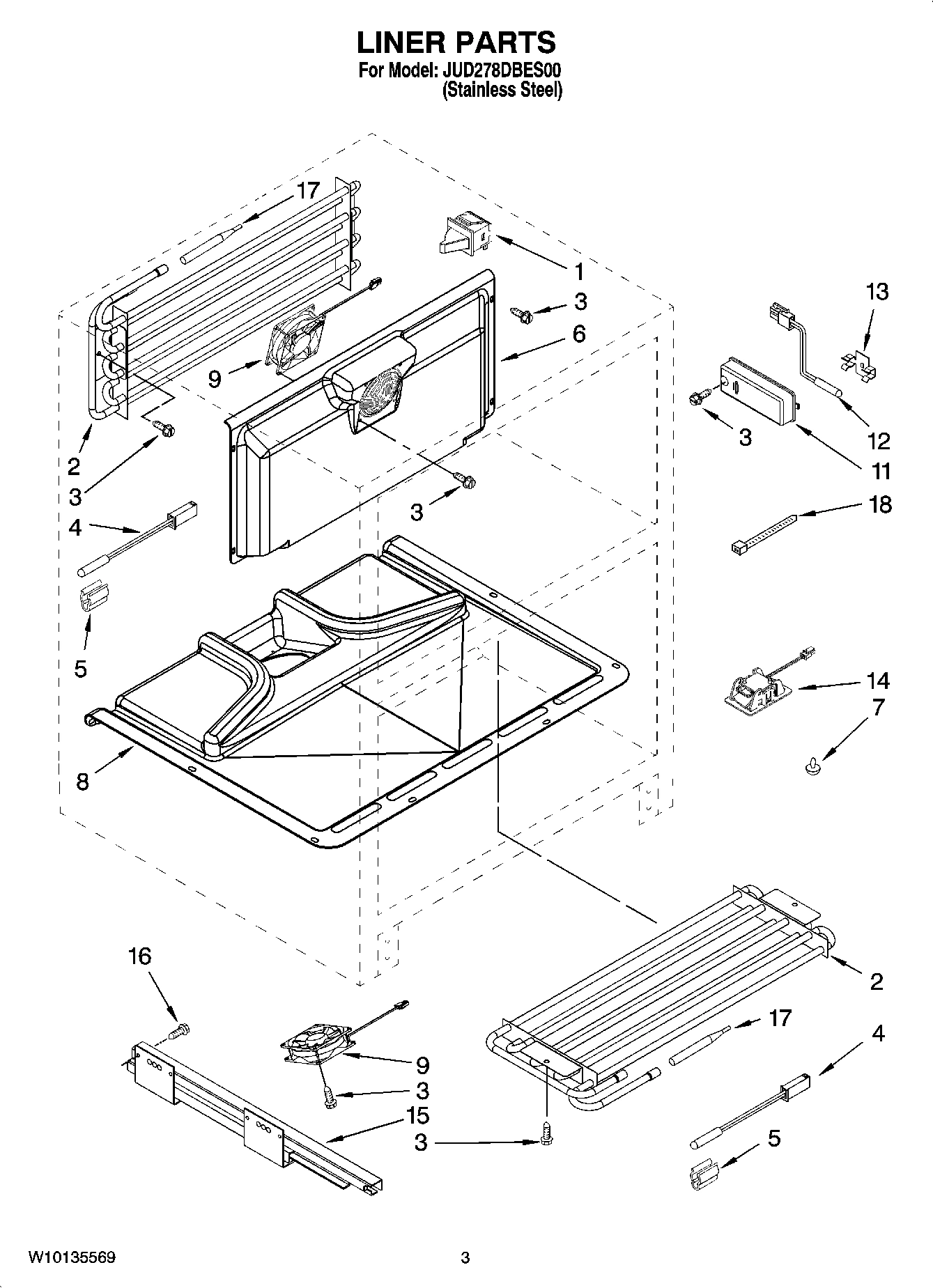

02 - LINER PARTS
03 - DRAWER PARTS
04 - UNIT PARTS
Common parts from model Maytag JUD278DBES00 REFRIGERATOR
1
MAY 2258088 MAY 2258088 Contact Us For Availability
1
MAY W10122764 MAY W10122764 Contact Us For Availability
1
MAY W10122766 MAY W10122766 Contact Us For Availability
1
MAY W10122769 MAY W10122769 Contact Us For Availability
1
Switch, Rocker (2) MAY 2257999 Contact Us For Availability
1
MAY 2257847 MAY 2257847 Contact Us For Availability
1
MAY 2257844 MAY 2257844 Contact Us For Availability
2
MAY 910768 MAY 910768 Contact Us For Availability
2
MAY 489478 MAY 489478 Contact Us For Availability
2
MAY 2257814 MAY 2257814 Contact Us For Availability
2
MAY 2310340 MAY 2310340 Contact Us For Availability
3
MAY 2258085 MAY 2258085 Contact Us For Availability
3
MAY 2258135 MAY 2258135 Contact Us For Availability
3
MAY 2257884 MAY 2257884 Contact Us For Availability
4
MAY 2258075 MAY 2258075 Contact Us For Availability
4
Light Assembly MAY 2258025 Contact Us For Availability
4
MAY 2258026 MAY 2258026 Contact Us For Availability
5
Screw MAY W10113774 Contact Us For Availability
5
MAY 2257639 MAY 2257639 Contact Us For Availability
5
MAY 2257951 MAY 2257951 Contact Us For Availability
5
Capacitor MAY 2169373 Contact Us For Availability
6
MAY 2258378 MAY 2258378 Contact Us For Availability
6
MAY 2258295 MAY 2258295 Contact Us For Availability
6
MAY 2304086 MAY 2304086 Contact Us For Availability
6
Grommet (4) (Service Only) MAY 2163786 Contact Us For Availability
7
MAY 2257885 MAY 2257885 Contact Us For Availability
7
Retainer, Push-in (8) MAY 3400924 Contact Us For Availability
7
SCREW MAY 8534081 Contact Us For Availability
7
MAY 2257869 MAY 2257869 Contact Us For Availability
8
MAY 2257923 MAY 2257923 Contact Us For Availability
8
MAY 2258314 MAY 2258314 Contact Us For Availability
8
MAY 2258015 MAY 2258015 Contact Us For Availability
8
Cable Tie MAY 2221306 Contact Us For Availability
9
MAY 2266802 MAY 2266802 Contact Us For Availability
9
Evaporator Fan (Upper & Lower) MAY 2258310 Contact Us For Availability
9
MAY W10122744 MAY W10122744 Contact Us For Availability
9
MAY 2257840 MAY 2257840 Contact Us For Availability
10
MAY 2257848 MAY 2257848 Contact Us For Availability
10
Spacer (5) MAY 2223800 Contact Us For Availability
11
MAY 2005032 MAY 2005032 Contact Us For Availability
11
Cover, Thermistor (2) MAY 1116793 Contact Us For Availability
11
MAY 2258016 MAY 2258016 Contact Us For Availability
11
MAY 2252184 MAY 2252184 Contact Us For Availability
12
MAY 2257892 MAY 2257892 Contact Us For Availability
12
MAY 2257893 MAY 2257893 Contact Us For Availability
12
Thermistor (2) MAY 2188820 Contact Us For Availability
12
MAY 2257950 MAY 2257950 Contact Us For Availability
12
MAY 2310005 MAY 2310005 Contact Us For Availability
13
MAY 2006841 MAY 2006841 Contact Us For Availability
13
Clip, Thermistor (2) MAY 2209204 Contact Us For Availability
13
MAY W10122746 MAY W10122746 Contact Us For Availability
13
MAY 2258137 MAY 2258137 Contact Us For Availability
14
Clamp, Power Cord MAY 549193 Contact Us For Availability
14
MAY 3400221 MAY 3400221 Contact Us For Availability
14
Plug, Button (2) MAY 54690 Contact Us For Availability
15
Roller (4) MAY 1112023 Contact Us For Availability
15
MAY 2257882 MAY 2257882 Contact Us For Availability
15
MAY 2257883 MAY 2257883 Contact Us For Availability
15
MAY 2310033 MAY 2310033 Contact Us For Availability
15
MAY 2257905 MAY 2257905 Contact Us For Availability
16
MAY 2257916 MAY 2257916 Contact Us For Availability
16
MAY 6918634 MAY 6918634 Contact Us For Availability
16
MAY 2257890 MAY 2257890 Contact Us For Availability
17
MAY 2258203 MAY 2258203 Contact Us For Availability
17
MAY 2257914 MAY 2257914 Contact Us For Availability
17
MAY 6918666 MAY 6918666 Contact Us For Availability
17
MAY 2258083 MAY 2258083 Contact Us For Availability
18
Drain Fitting MAY 940139 Contact Us For Availability
18
Wire Tie MAY 857547 Contact Us For Availability
18
MAY W10122742 MAY W10122742 Contact Us For Availability
18
MAY 2257902 MAY 2257902 Contact Us For Availability
19
MAY W10122740 MAY W10122740 Contact Us For Availability
19
MAY 2257903 MAY 2257903 Contact Us For Availability
20
MAY 2258000 MAY 2258000 Contact Us For Availability
20
MAY 8281196 MAY 8281196 Contact Us For Availability
21
MAY 2258374 MAY 2258374 Contact Us For Availability
21
Bracket, Fan MAY 2208157 Contact Us For Availability
22
MAY 2258131 MAY 2258131 Contact Us For Availability
22
Plate, Motor MAY 2301979 Contact Us For Availability
23
Motor, Fan MAY 2188729 Contact Us For Availability
24
MAY 2258173 MAY 2258173 Contact Us For Availability
24
MAY 8281197 MAY 8281197 Contact Us For Availability
25
MAY 6918667 MAY 6918667 Contact Us For Availability
25
Blade, Fan MAY 2225834 Contact Us For Availability
26
MAY 977451 MAY 977451 Contact Us For Availability
26
Grommet, Condenser (6) MAY 2319835 Contact Us For Availability
27
MAY 2258316 MAY 2258316 Contact Us For Availability
28
Clip, Mounting MAY 2163787 Contact Us For Availability
29
MAY 2257919 MAY 2257919 Contact Us For Availability
30
MAY 2257924 MAY 2257924 Contact Us For Availability
31
MAY 2257537 MAY 2257537 Contact Us For Availability
32
MAY 2258070 MAY 2258070 Contact Us For Availability
33
MAY 2258071 MAY 2258071 Contact Us For Availability
34
MAY 2257876 MAY 2257876 Contact Us For Availability
35
Dampener (2) MAY 2158826 Contact Us For Availability
× ![]()
