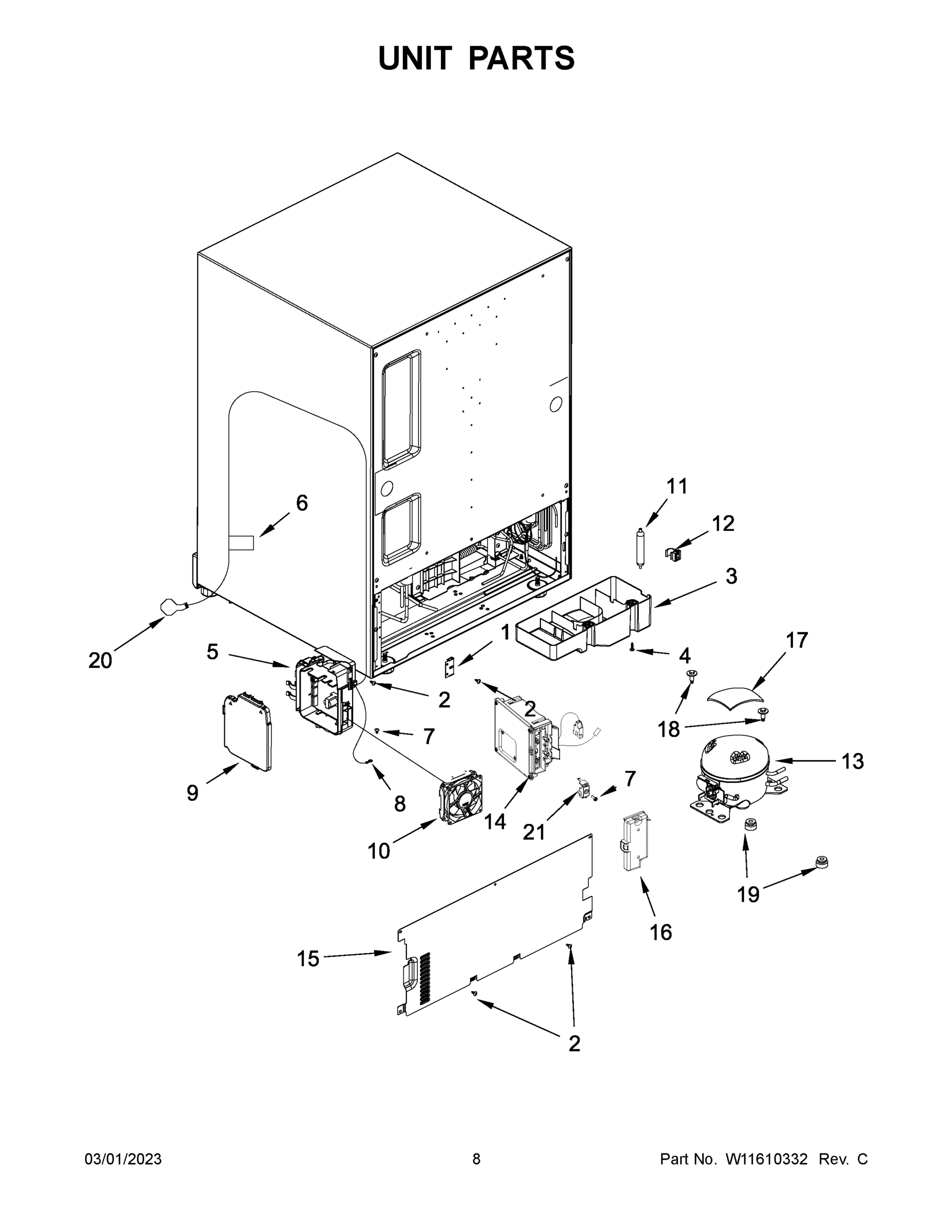

Model Whirlpool JUCFP242HX11 REFRIGERATOR, ALL – Common Parts &amp; Diagrams

1

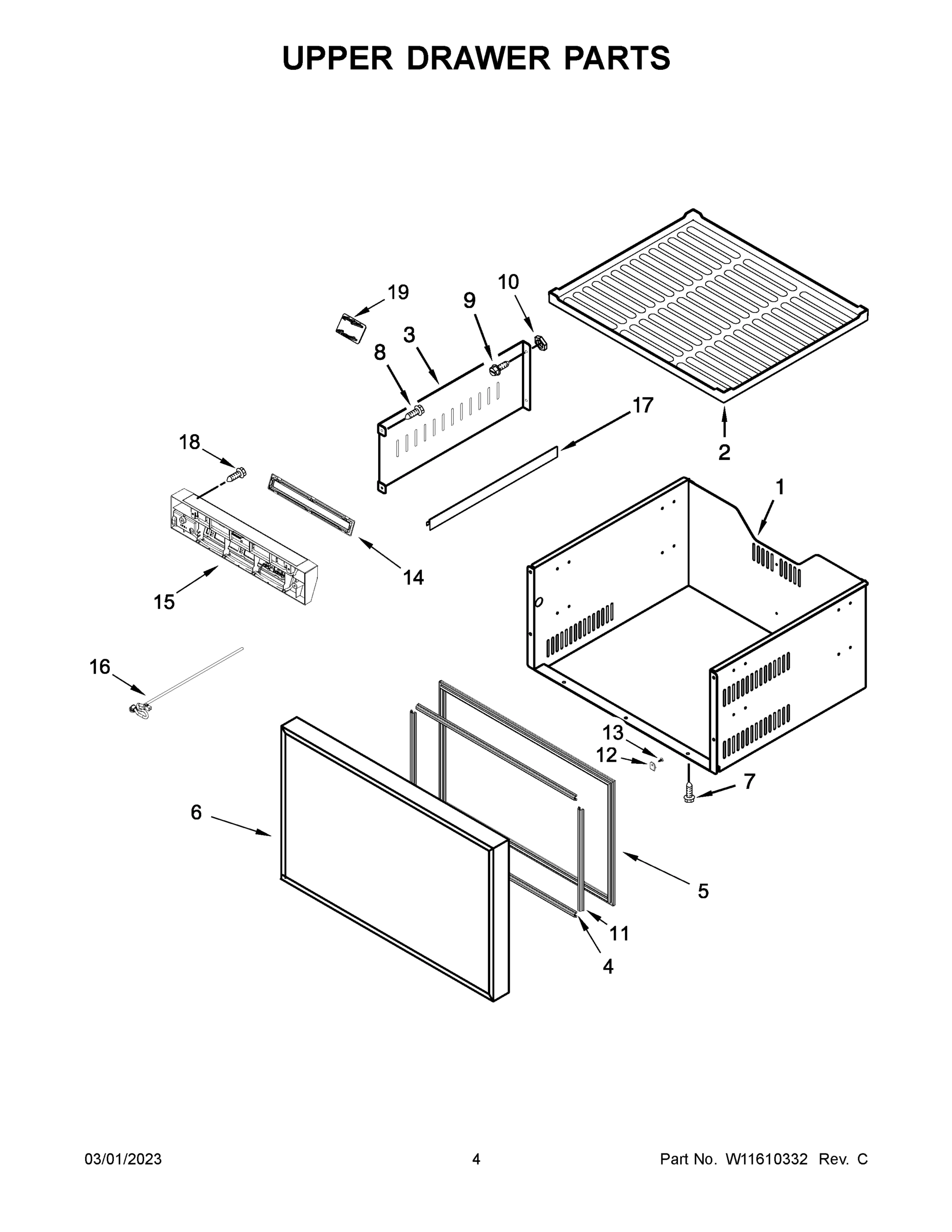

DRAWER BOX ASSEMBLY, UPPER WPL W11599891 Contact Us For Availability

1

DRAWER BOX ASSEMBLY, LOWER WPL W11599895 Contact Us For Availability

1

CLAMP, CORD WPL W11576947 Contact Us For Availability

2

W11371097 Whirlpool Screw Backorder WPL W11371097 $9.59

2

W11594479 Whirlpool Housing Backorder WPL W11594479 $131.76

2

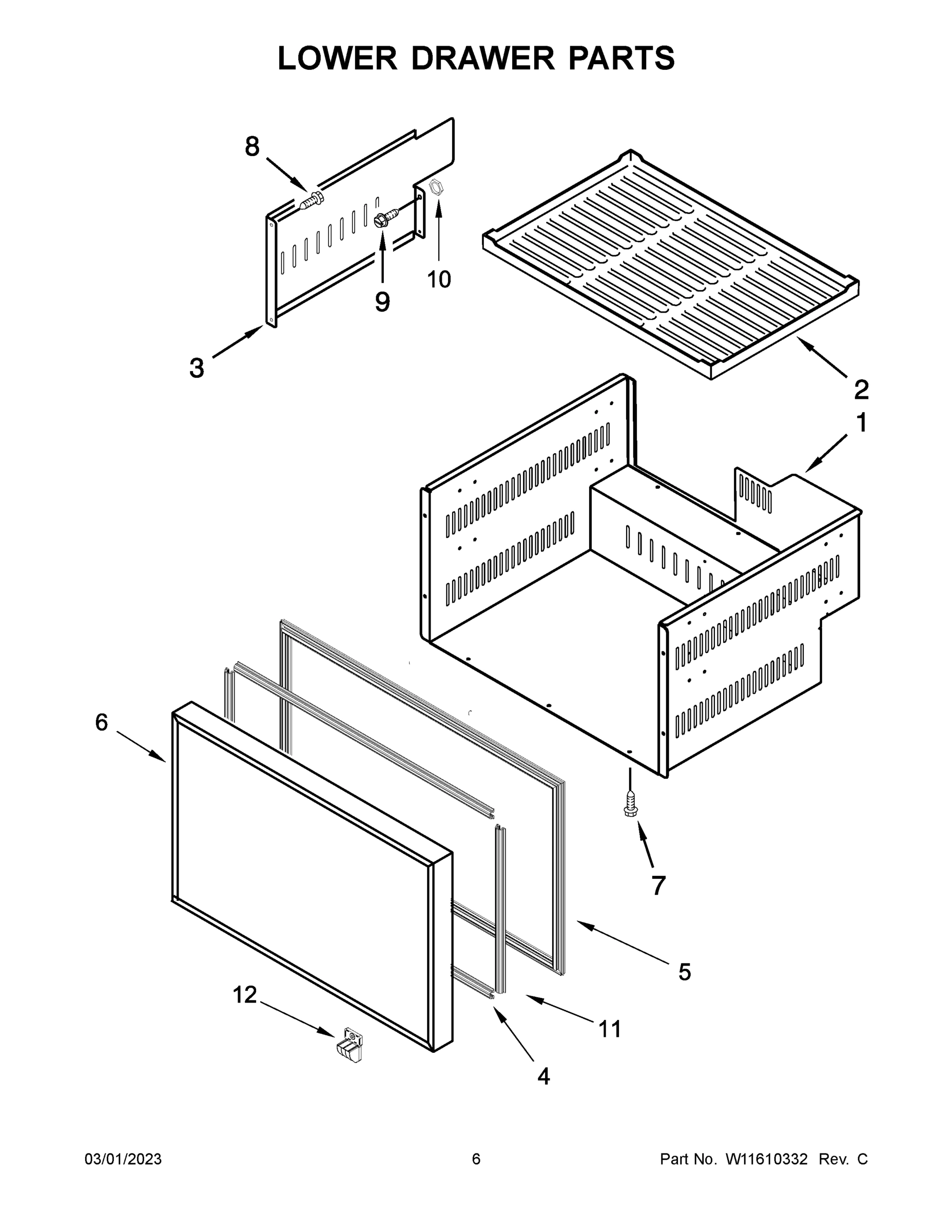

MAT, UPPER DRAWER WPL W11568835 Contact Us For Availability

2

MAT, LOWER DRAWER WPL W11568945 Contact Us For Availability

3

DRAWER PARTITION WPL W11599884 Contact Us For Availability

3

DRAWER PARTITION WPL W11599888 Contact Us For Availability

3

WATER PAN, EVAPORATOR WPL W11360241 Contact Us For Availability

3

BRACKET, FILTER WPL W11580300 Contact Us For Availability

4

GASKET-FIP Backorder WPL W11360665 $105.32

4

W11580303 Whirlpool Fitting Backorder WPL W11580303 $47.87

4

SCREW WPL W11375763 Contact Us For Availability

5

W11632305 Whirlpool Water Tube Backorder WPL W11632305 $49.50

5

W11690305 Whirlpool Control Box In Stock WPL W11690305 $335.51

5

SCREW WPL W10621524 Contact Us For Availability

5

GASKET, DOOR WPL W11568837 Contact Us For Availability

5

GASKET WPL W11568947 Contact Us For Availability

6

W11568830 Whirlpool Refrigerator Front Drawer Backorder WPL W11568830 $140.76

6

W11568937 Whirlpool Refrigerator Drawer Backorder WPL W11568937 $134.76

6

W11632308 Whirlpool Water Tube Backorder WPL W11632308 $33.34

7

4344826 Whirlpool Refrigerator Screw Backorder WPL 4344826 $9.61

7

Backorder WPL W11580309 $81.43

7

DEFROST HOLDER AND HEATER WPL W11580231 Contact Us For Availability

7

SCREW WPL W10319183 Contact Us For Availability

8

W11266077 Whirlpool Washer Backorder WPL W11266077 $9.13

8

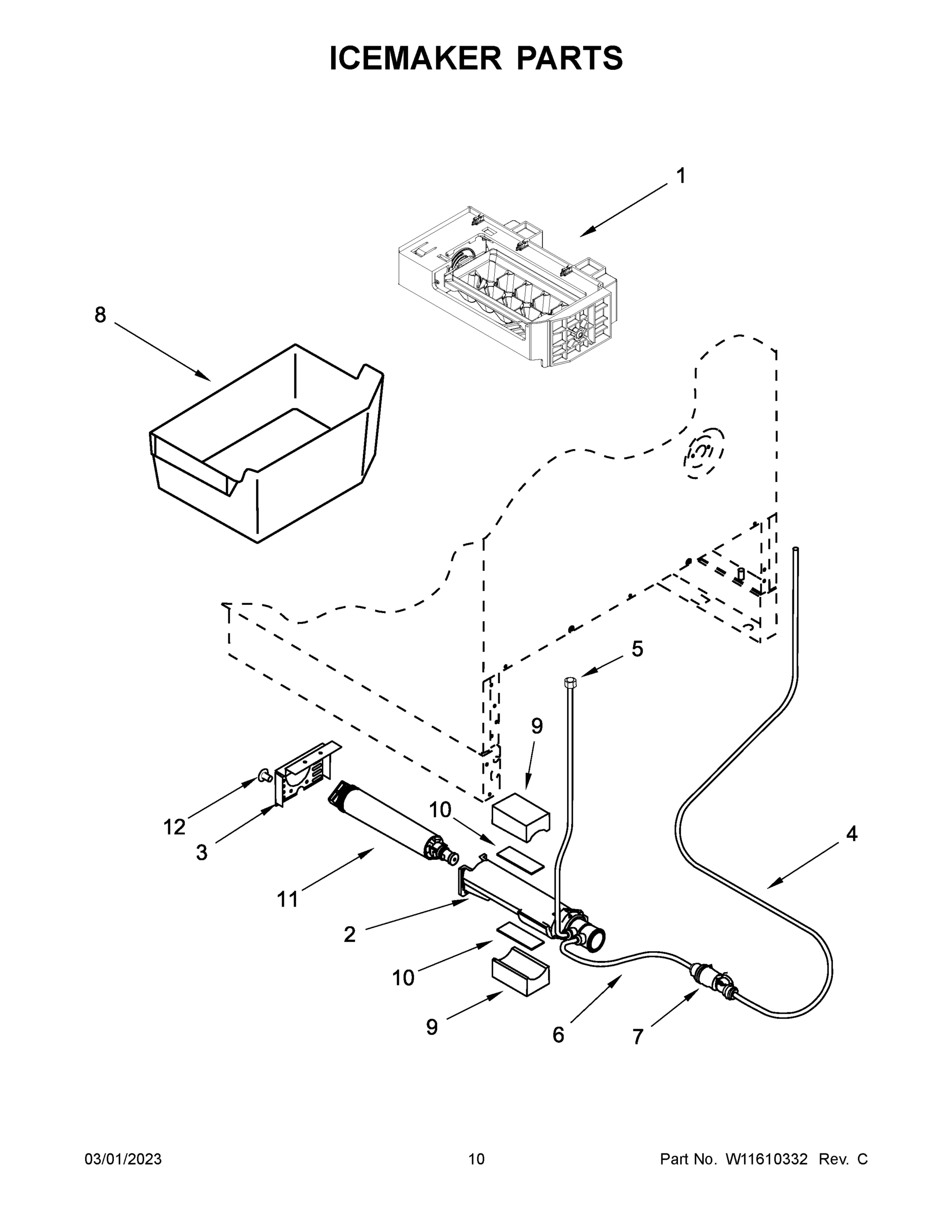

W11594484 Whirlpool Ice Container Backorder WPL W11594484 $73.23

8

SCREW WPL W10204809 Contact Us For Availability

8

SWITCH, CASE WPL W11568783 Contact Us For Availability

9

W10204810 Whirlpool Screw Backorder WPL W10204810 $26.21

9

W11266082 Whirlpool Switch Assembly Backorder WPL W11266082 $14.15

9

W11313206 Whirlpool Refrigerator Cover Backorder WPL W11313206 $29.13

9

BLOCK, FILTER WPL W11580302 Contact Us For Availability

W10204920 Whirlpool Refrigerator Nut Backorder WPL W10204920 $26.21

W10281589 Whirlpool Refrigerator Tape Backorder WPL W10281589 $26.21

W11360536 Whirlpool Refrigerator Evaporator M Backorder WPL W11360536 $77.32

COVER ASSEMBLY, EVAPORATOR WPL W11580229 Contact Us For Availability

EDR6D1 Whirlpool EveryDrop® Ice and Water Re In Stock WPL EDR6D1 $43.40

W11109499 Whirlpool Refrigerator Tube In Stock WPL W11109499 $20.17

W11263841 Whirlpool Light Bulb Backorder WPL W11263841 $58.25

DOOR GASKET, SHORT WPL W11568838 Contact Us For Availability

W11579579 Whirlpool Refrigerator Plate Backorder WPL W11579579 $5.69

W11678576 Whirlpool Bracket Backorder WPL W11678576 $13.12

CONNECTOR, COVER WPL W11580230 Contact Us For Availability

CLAMP WPL W11265569 Contact Us For Availability

SCREW WPL W11371345 Contact Us For Availability

13

W10859467 Whirlpool Refrigerator Screw Backorder WPL W10859467 $26.21

13

W11596028 Whirlpool Refrigerator Compressor Backorder WPL W11596028 $224.21

14

W11312450 Whirlpool Light Lens Backorder WPL W11312450 $34.92

14

W11592422 Whirlpool Refrigerator Inverter Box Backorder WPL W11592422 $151.55

14

ASSEMBLY, SWITCH BOX WPL W11568794 Contact Us For Availability

15

CONTROL PANEL ASSEMBLY WPL W11599662 Contact Us For Availability

15

COVER, PANEL WPL W11580243 Contact Us For Availability

16

W11580233 Whirlpool Grille Backorder WPL W11580233 $47.29

16

W11592421 Whirlpool Wire Harness Backorder WPL W11592421 $89.34

16

COVER, SIDE WPL W11360590 Contact Us For Availability

17

W11675284 Whirlpool Screw Backorder WPL W11675284 $8.11

17

SUPPORT, LEAD WIRE WPL W11568842 Contact Us For Availability

17

COMPRESSOR, RUBBER WPL W11360595 Contact Us For Availability

18

W10204808 Whirlpool Refrigerator Screw Backorder WPL W10204808 $26.21

18

W11106296 Whirlpool Refrigerator Leveler Backorder WPL W11106296 $6.35

18

BOLT WPL W11375771 Contact Us For Availability

19

ASSEMBLY, SEPARATOR WPL W11580290 Contact Us For Availability

19

LAMP COVER WPL W11568841 Contact Us For Availability

19

MOUNT, COMPRESSOR WPL W11360596 Contact Us For Availability

20

W11618463 Whirlpool Power Cord In Stock WPL W11618463 $52.05

21

W11359415 Whirlpool Bi-metal Defrost Backorder WPL W11359415 $37.81

21

STOPPER WPL W11360592 Contact Us For Availability

W11598387 Whirlpool Hardware Pack Backorder WPL W11598387 $28.13

PEDESTAL (REFER TO COLOR VARIATION PARTS PAGE WPL NP Contact Us For Availability

ASSEMBLY, COMPLETE DOOR WPL W11599927 Contact Us For Availability

ASSEMBLY, COMPLETE DOOR WPL W11599969 Contact Us For Availability
