Model Maytag JUCFP242HX01 REFRIGERATOR, DRAWER, DOUBLE – Common Parts & Diagrams
01 - COVER SHEET
02 - CABINET PARTS

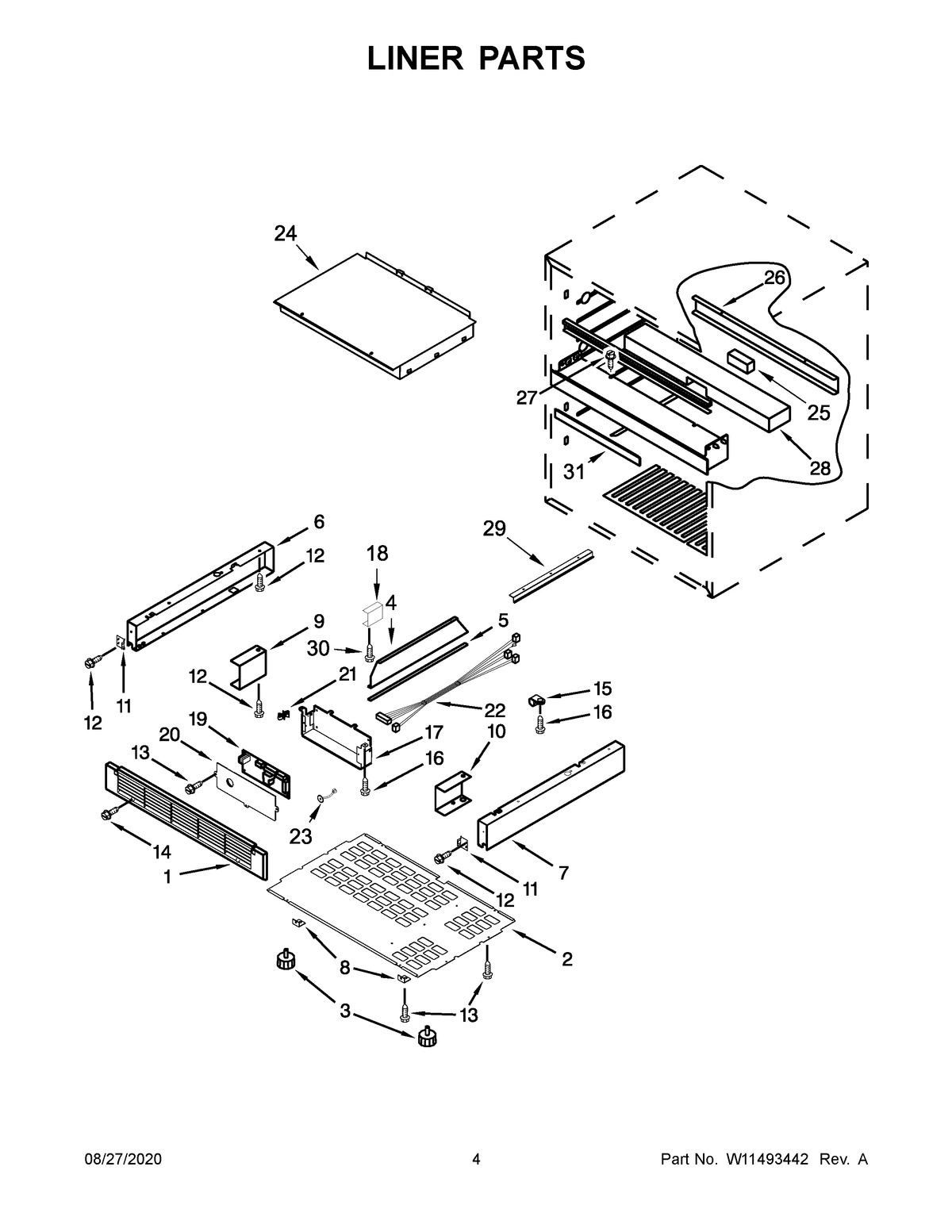

03 - LINER PARTS

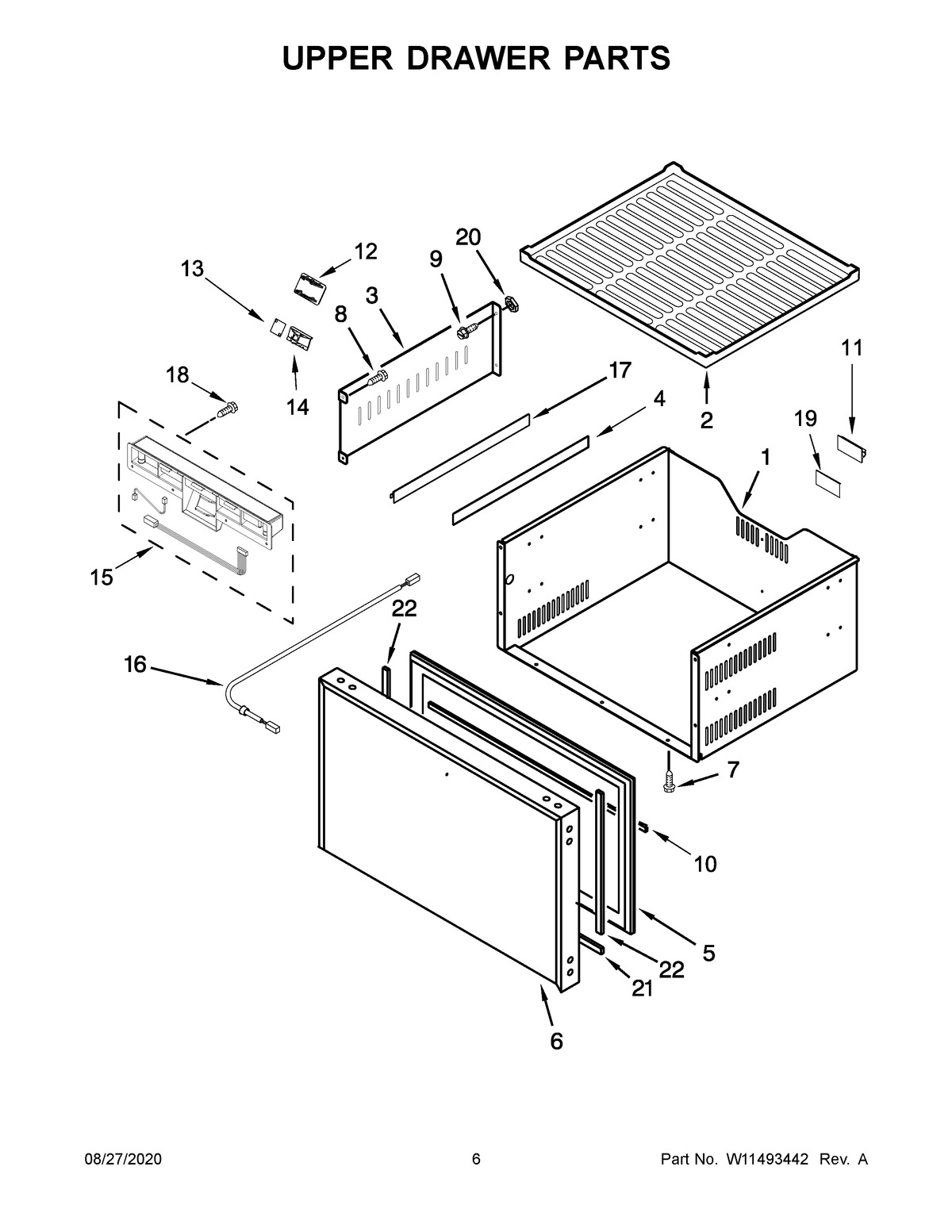

04 - UPPER DRAWER PARTS

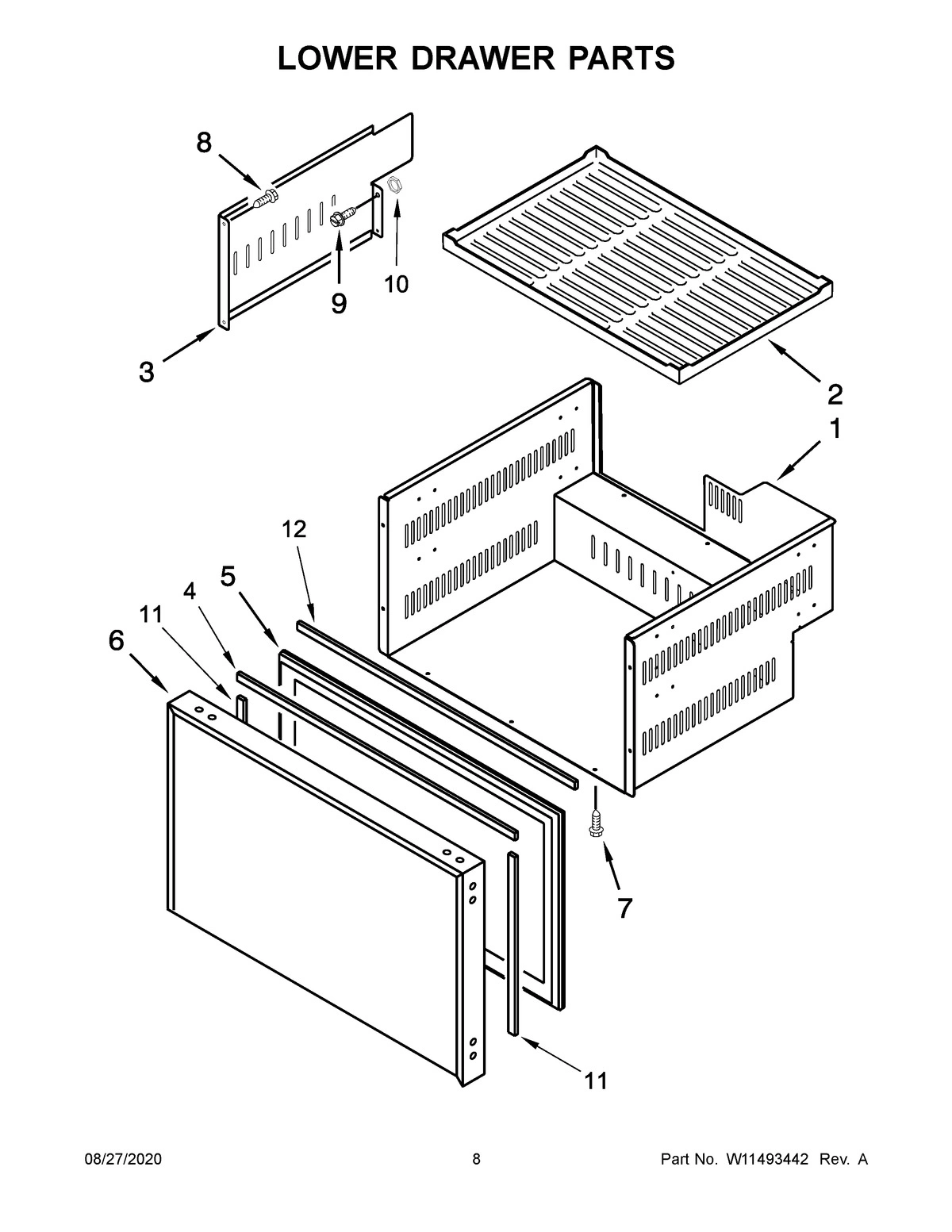

05 - LOWER DRAWER PARTS

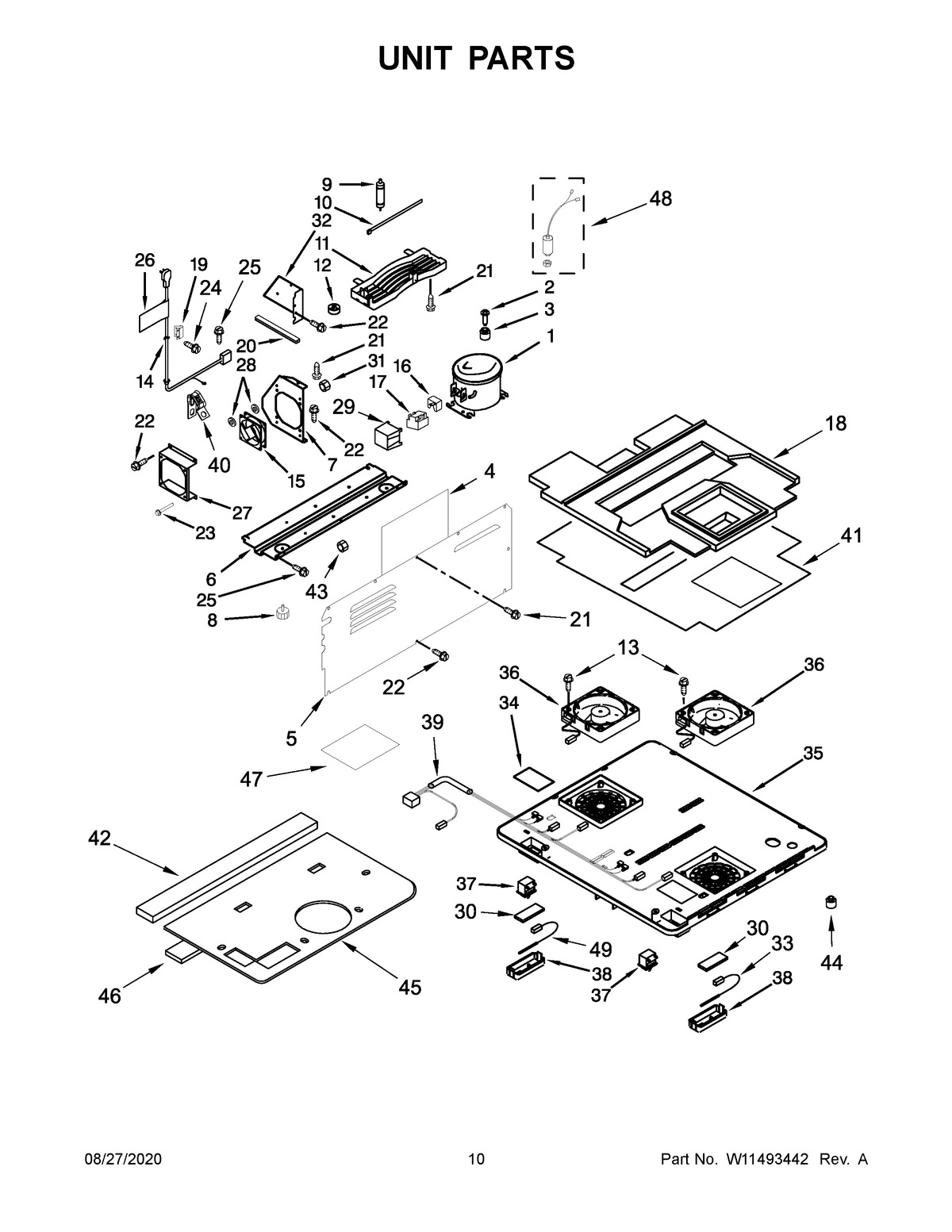

06 - UNIT PARTS

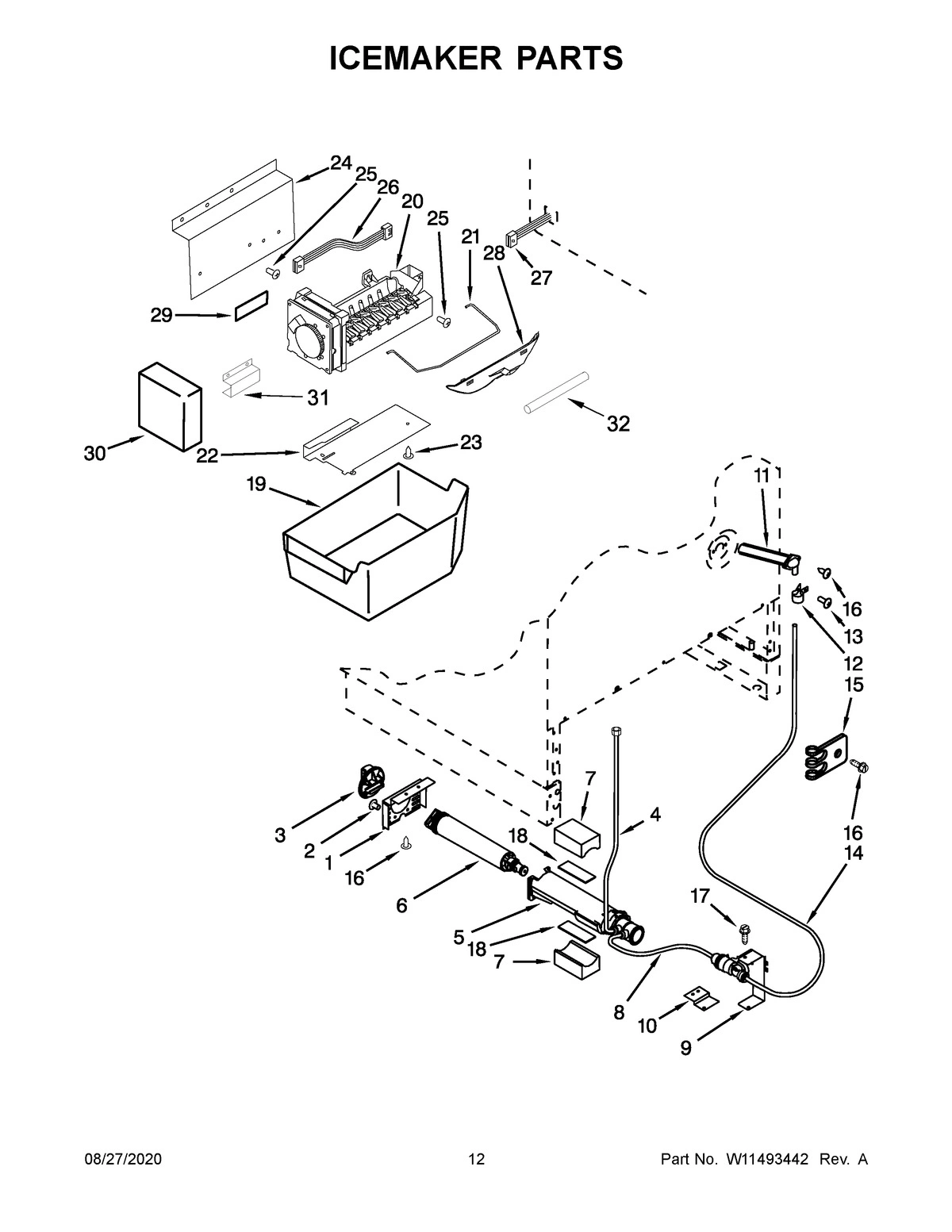

07 - ICEMAKER PARTS
Common parts from model Maytag JUCFP242HX01 REFRIGERATOR, DRAWER, DOUBLE
1
ENERGY GUIDE MAY W11467322 Contact Us For Availability
1
KICK PLATE MAY W10281494 Contact Us For Availability
1
DRAWER BOX ASSEMBLY, UPPER MAY W11466972 Contact Us For Availability
1
MAY W11461701 MAY W11461701 Contact Us For Availability
1
COMPRESSOR MAY W10772872 Contact Us For Availability
1
BRACKET, FILTER MAY W10772927 Contact Us For Availability
1A
TECH SHEET MAY W10772894 Contact Us For Availability
2
SCREW MAY W10774183 Contact Us For Availability
2
COVER, BOTTOM MAY W10788692 Contact Us For Availability
2
MAT, UPPER DRAWER MAY W10622004 Contact Us For Availability
2
MAT, LOWER DRAWER MAY W10622026 Contact Us For Availability
2
BOLT, COMPRESSOR MAY 4344780 Contact Us For Availability
2
SCREW, SUPPORT MAY W10281556 Contact Us For Availability
3
RAIL ASSEMBLY, LEFT HAND MAY W10621521 Contact Us For Availability
3
DRAWER PARTITION MAY W11422834 Contact Us For Availability
3
BOTTOM DRAWER PARTITION MAY W11422833 Contact Us For Availability
3
GROMMET, COMPRESSOR MAY 4344779 Contact Us For Availability
3
CAP, WATER FILTER MAY W10281557 Contact Us For Availability
4
RAIL ASSEMBLY, RIGHT HAND MAY W10621523 Contact Us For Availability
4
AUXILIARY PLATE MAY W10778959 Contact Us For Availability
4
WIRE SUPPORT TAPE MAY W11442514 Contact Us For Availability
4
DOOR GASKET, LONG MAY W10204889 Contact Us For Availability
4
INSULATION, REAR COVER MAY W10778963 Contact Us For Availability
4
TUBE, INLET MAY W10281558 Contact Us For Availability
5
SCREW MAY W10621524 Contact Us For Availability
5
SEAL, BRACE MAY 4344823 Contact Us For Availability
5
GASKET MAY W10622006 Contact Us For Availability
5
GASKET MAY W10775534 Contact Us For Availability
5
COVER, REAR MAY W10788700 Contact Us For Availability
5
HOUSING, FILTER MAY W10281559 Contact Us For Availability
6
SIDE FRAME, LEFT HAND MAY W10621525 Contact Us For Availability
6
TOP FOAMED DOOR ASSEMBLY MAY W11422740 Contact Us For Availability
6
BOTTOM FOAMED DOOR ASSEMBLY MAY W11422817 Contact Us For Availability
6
CABINET BASE PLATE MAY W11422734 Contact Us For Availability
6
WATER FILTER MAY W10281560 Contact Us For Availability
7
DEFROST SENSOR MAY W10772858 Contact Us For Availability
7
SIDE FRAME, RIGHT HAND MAY W10621526 Contact Us For Availability
7
SCREW MAY W10319183 Contact Us For Availability
7
AIR BAFFLE MAY W10204674 Contact Us For Availability
7
BLOCK, FILTER MAY W10281561 Contact Us For Availability
8
SCREW MAY W10204809 Contact Us For Availability
8
COVER MAY W10788689 Contact Us For Availability
8
LEG, LEVELING MAY 4344763 Contact Us For Availability
8
BRACKET, GRILLE MAY W10239388 Contact Us For Availability
8
TUBE, WATER MAY W10772928 Contact Us For Availability
9
SUPPORT (LEFT HAND) MAY 4344820 Contact Us For Availability
9
SCREW MAY W10204810 Contact Us For Availability
9
DRIER MAY W10163273 Contact Us For Availability
9
VALVE, SOLENOID MAY W10281564 Contact Us For Availability
10
THERMAL FUSE ASSEMBLY MAY W11466950 Contact Us For Availability
10
TIE, CABLE MAY 4344829 Contact Us For Availability
10
SUPPORT (RIGHT HAND) MAY 4344821 Contact Us For Availability
10
COLD AIR SEAL MAY W10772909 Contact Us For Availability
10
NUT MAY W10204920 Contact Us For Availability
10
BRACKET, VALVE MAY W10281565 Contact Us For Availability
11
KICK PLATE MOUNT MAY W10204640 Contact Us For Availability
11
SUPPORT, WIRE MAY W10772901 Contact Us For Availability
11
DOOR GASKET, SHORT MAY W10204897 Contact Us For Availability
11
DRAIN TRAY MAY W10772879 Contact Us For Availability
11
FITTING MAY W10281566 Contact Us For Availability
12
CLIP, BUSHING MAY W10238022 Contact Us For Availability
12
LAMP COVER MAY W10204929 Contact Us For Availability
12
SEAL, COLD AIR MAY W10287957 Contact Us For Availability
12
TRAP, DRAIN MAY W10163276 Contact Us For Availability
12
TUBE CLAMP MAY W10281567 Contact Us For Availability
13
SCREW MAY 4344826 Contact Us For Availability
13
LINER BUSHING MAY W10621514 Contact Us For Availability
13
LED LAMP MAY W10204930 Contact Us For Availability
13
SCREW MAY W10205061 Contact Us For Availability
13
SCREW MAY W10281585 Contact Us For Availability
14
SCREW MAY W10319184 Contact Us For Availability
14
LAMP HOLDER MAY W10204931 Contact Us For Availability
14
CORD, POWER MAY W10204676 Contact Us For Availability
14
TUBE, WATER MAY W10281586 Contact Us For Availability
15
CLIP, DEFROST HEATER MAY W10304193 Contact Us For Availability
15
CABLE CLAMP MAY W10270482 Contact Us For Availability
15
MAY W11493061 MAY W11493061 Contact Us For Availability
15
CONDENSER DC MOTOR MAY W10772882 Contact Us For Availability
15
TUBE CLAMP MAY W10281587 Contact Us For Availability
16
SCREW MAY 4344825 Contact Us For Availability
16
HARNESS, DISPLAY TO INDICATOR MAY W10789534 Contact Us For Availability
16
OVERLAY RELAY MAY W10772884 Contact Us For Availability
17
MAIN PCB BOX MAY W10772866 Contact Us For Availability
17
SUPPORT, LEAD WIRE MAY W10622013 Contact Us For Availability
17
PTC THERMISTER MAY W10287848 Contact Us For Availability
17
SCREW MAY 4344832 Contact Us For Availability
18
BRACKET, PCB MAY W10788699 Contact Us For Availability
18
SCREW MAY W10204808 Contact Us For Availability
18
INSULATION, FAN COVER MAY W10772919 Contact Us For Availability
18
TAPE, FILTER MAY W10281589 Contact Us For Availability
19
MAIN PCB MAY W11466964 Contact Us For Availability
19
WIRE SUPPORT TAPE MAY W10721447 Contact Us For Availability
19
CLAMP, CORD MAY W10270517 Contact Us For Availability
19
PAN, ICE CUBE MAY W10281544 Contact Us For Availability
20
COVER, SPEAKER SENSOR MAY W10788698 Contact Us For Availability
20
TRIM, EDGE MAY 4344907 Contact Us For Availability
20
ICEMAKER MAY W10281545 Contact Us For Availability
21
PCB STANDOFF MAY W10204659 Contact Us For Availability
21
SHUT OFF ARM MAY W10281546 Contact Us For Availability
22
HARNESS EXTENSION MAY W10772870 Contact Us For Availability
22
HEAT SHIELD MAY W10281547 Contact Us For Availability
23
SPEAKER MAY W10788693 Contact Us For Availability
23
SCREW MAY W11422695 Contact Us For Availability
23
SCREW MAY W10205069 Contact Us For Availability
24
MULLION BODY ASSEMBLY MAY W10622002 Contact Us For Availability
24
SCREW MAY W10204865 Contact Us For Availability
24
BRACKET MAY W10488628 Contact Us For Availability
25
SCREW MAY 4344797 Contact Us For Availability
25
MULLION INSULATION MAY W10205072 Contact Us For Availability
25
SCREW MAY W10281549 Contact Us For Availability
26
MULLION CASE COVER MAY W11422824 Contact Us For Availability
26
WARNING LABEL MAY W11444462 Contact Us For Availability
26
HARNESS, DEFROST HEATER MAY W10772924 Contact Us For Availability
27
ASSEMBLY, FAN COVER MAY W11466973 Contact Us For Availability
27
HARNESS EXTENSION MAY W10281551 Contact Us For Availability
28
MULLION INSULATION MAY W10621528 Contact Us For Availability
28
FAN BUSHING MAY W10204688 Contact Us For Availability
28
ARM EXTENSION MAY W10281552 Contact Us For Availability
29
BLOCK AIR CIRCULATION MAY W11466966 Contact Us For Availability
29
COVER, RELAY MAY W10772885 Contact Us For Availability
29
PROTECTION SHEET MAY W10281553 Contact Us For Availability
30
SCREW MAY W11422709 Contact Us For Availability
30
SENSOR CASE SEAL MAY W10204948 Contact Us For Availability
30
COVER, FRONT MAY W10281554 Contact Us For Availability
31
MULLION CASE INSULATION FRONT MAY W11422742 Contact Us For Availability
31
NUT MAY W10772890 Contact Us For Availability
31
COVER, WIRE MAY W10304190 Contact Us For Availability
32
BRACKET, DEFROST TIMER MAY W10239387 Contact Us For Availability
32
TUBE, INLET MAY W10304200 Contact Us For Availability
33
TEMPERATURE SENSOR MAY W10772916 Contact Us For Availability
34
TERMINAL PROTECTOR MAY W10205062 Contact Us For Availability
35
COVER, FAN MAY W10772915 Contact Us For Availability
36
MOTOR & FAN MAY W10204942 Contact Us For Availability
37
DOOR SWITCH MAY W10721454 Contact Us For Availability
38
SENSOR CASE MAY W10775535 Contact Us For Availability
39
HARNESS, FAN COVER MAY W11467191 Contact Us For Availability
40
CLAMP, CORD MAY W10281591 Contact Us For Availability
41
PLATE COVER MAY W10772920 Contact Us For Availability
42
SEAL MAY W10788704 Contact Us For Availability
43
SPRING WASHER MAY W11422694 Contact Us For Availability
44
BUSHING, COVER MAY W10304006 Contact Us For Availability
45
INSULATION COMBO MAY W11467192 Contact Us For Availability
46
SEAL, COLD AIR STOP MAY W10772922 Contact Us For Availability
47
SEAL, FAN COVER MAY W10304187 Contact Us For Availability
48
RUNNING CAPACITOR MAY W10772895 Contact Us For Availability
49
TEMPERATURE SENSOR MAY W10772917 Contact Us For Availability
NI
FOLLOWING PARTS NOT ILLUSTRATED MAY N/P Contact Us For Availability
NI
OVERLAY INSTALLATION KIT MAY W10788702 Contact Us For Availability
NI
ALUMINUM TAPE MAY W10266810 Contact Us For Availability
× ![]()
