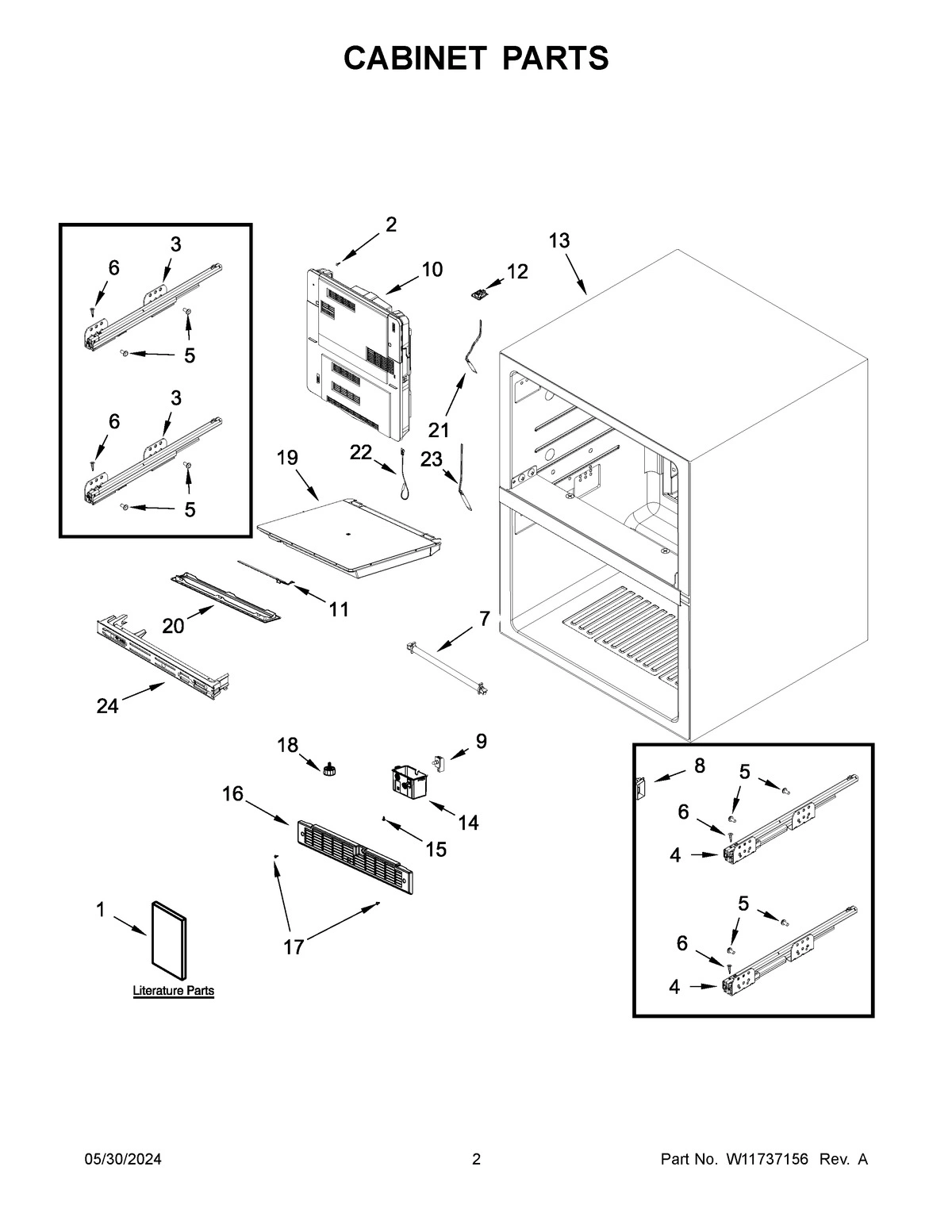

Model Whirlpool JUCFP242HM12 REFRIGERATOR, ALL – Common Parts &amp; Diagrams

1

DRAWER BOX ASSEMBLY, UPPER WPL W11728577 Contact Us For Availability

1

DRAWER BOX ASSEMBLY, LOWER WPL W11599895 Contact Us For Availability

1

CLAMP, CORD WPL W11576947 Contact Us For Availability

2

W11371097 Whirlpool Screw Backorder WPL W11371097 $9.59

2

W11594479 Whirlpool Housing Backorder WPL W11594479 $131.76

2

MAT, UPPER DRAWER WPL W11568835 Contact Us For Availability

2

MAT, LOWER DRAWER WPL W11568945 Contact Us For Availability

3

DRAWER PARTITION WPL W11599888 Contact Us For Availability

3

DRAWER PARTITION WPL W11630371 Contact Us For Availability

3

WATER PAN, EVAPORATOR WPL W11360241 Contact Us For Availability

3

BRACKET, FILTER WPL W11580300 Contact Us For Availability

4

W11179356 Whirlpool Refrigerator Stud Handle Backorder WPL W11179356 $7.39

4

W11360665 Whirlpool Gasket-Fip Backorder WPL W11360665 $105.32

4

W11580303 Whirlpool Fitting Backorder WPL W11580303 $47.87

4

SCREW WPL W11375763 Contact Us For Availability

5

W11632305 Whirlpool Water Tube Backorder WPL W11632305 $49.50

5

W11690305 Whirlpool Control Box In Stock WPL W11690305 $335.51

5

GASKET, DOOR WPL W11568837 Contact Us For Availability

5

GASKET WPL W11568947 Contact Us For Availability

6

W11632308 Whirlpool Water Tube Backorder WPL W11632308 $33.34

6

TOP FOAMED DOOR WPL W11728597 Contact Us For Availability

6

DOOR ASSEMBLY, LOWER WPL W11728603 Contact Us For Availability

7

4344826 Whirlpool Refrigerator Screw Backorder WPL 4344826 $9.61

7

W11700301 Whirlpool Valve Assembly Backorder WPL W11700301 $81.43

7

SCREW WPL W10319183 Contact Us For Availability

8

W11266077 Whirlpool Washer Backorder WPL W11266077 $9.13

8

W11594484 Whirlpool Ice Container Backorder WPL W11594484 $73.23

8

SWITCH, CASE WPL W11568783 Contact Us For Availability

8

SCREW WPL W10204809 Contact Us For Availability

9

W10204810 Whirlpool Screw Backorder WPL W10204810 $26.21

9

W11266082 Whirlpool Switch Assembly Backorder WPL W11266082 $14.15

9

W11313206 Whirlpool Refrigerator Cover Backorder WPL W11313206 $29.13

9

BLOCK, FILTER WPL W11580302 Contact Us For Availability

W10281589 Whirlpool Refrigerator Tape Backorder WPL W10281589 $26.21

W11360536 Whirlpool Refrigerator Evaporator M Backorder WPL W11360536 $77.32

COVER ASSEMBLY, EVAPORATOR WPL W11728607 Contact Us For Availability

WRAP, STAINLESS STEEL WPL W11728566 Contact Us For Availability

EDR6D1 Whirlpool EveryDrop® Ice and Water Re In Stock WPL EDR6D1 $43.40

W10319185 Whirlpool Screw Backorder WPL W10319185 $5.51

W11109499 Whirlpool Refrigerator Tube In Stock WPL W11109499 $20.17

W11497301 Whirlpool Refrigerator Light Bulb Backorder WPL W11497301 $27.80

W11579579 Whirlpool Refrigerator Plate Backorder WPL W11579579 $5.69

CONNECTOR, COVER WPL W11580230 Contact Us For Availability

INSULATION, DOOR WPL W11568934 Contact Us For Availability

CLAMP WPL W11265569 Contact Us For Availability

SCREW WPL W11371345 Contact Us For Availability

W10204920 Whirlpool Refrigerator Nut Backorder WPL W10204920 $26.21

W10859467 Whirlpool Refrigerator Screw Backorder WPL W10859467 $26.21

WP2186494B Whirlpool Refrigerator Filter Cap In Stock WPL WP2186494B $19.18

CABINET (NOT A SERVICABLE PART) WPL ARI89959A0406B9B609EB9764890B107614 Contact Us For Availability

COMPRESSOR WPL W11721449 Contact Us For Availability

W10281552 Whirlpool Refrigerator Extension Backorder WPL W10281552 $81.34

W11312450 Whirlpool Light Lens Backorder WPL W11312450 $34.92

ASSEMBLY, SWITCH BOX WPL W11568794 Contact Us For Availability

DOOR GASKET, SHORT WPL W11568838 Contact Us For Availability

BOX, IB WPL W11721645 Contact Us For Availability

15

CONTROL PANEL ASSEMBLY WPL W11599662 Contact Us For Availability

15

PLATE, PUSH WPL W11728564 Contact Us For Availability

15

COVER, PANEL WPL W11728397 Contact Us For Availability

16

W11580233 Whirlpool Grille Backorder WPL W11580233 $47.29

16

W11592421 Whirlpool Wire Harness Backorder WPL W11592421 $89.34

16

COVER, SIDE WPL W11360590 Contact Us For Availability

17

W11675284 Whirlpool Screw Backorder WPL W11675284 $8.11

17

SUPPORT, LEAD WIRE WPL W11568842 Contact Us For Availability

17

COMPRESSOR, RUBBER WPL W11360595 Contact Us For Availability

18

W10204808 Whirlpool Refrigerator Screw Backorder WPL W10204808 $26.21

18

W11106296 Whirlpool Refrigerator Leveler Backorder WPL W11106296 $6.35

18

BOLT WPL W11375771 Contact Us For Availability

19

ASSEMBLY, SEPARATOR WPL W11580290 Contact Us For Availability

19

LAMP COVER WPL W11568841 Contact Us For Availability

19

MOUNT, COMPRESSOR WPL W11360596 Contact Us For Availability

20

W11618463 Whirlpool Power Cord Backorder WPL W11618463 $52.05

21

W11359415 Whirlpool Bi-metal Defrost Backorder WPL W11359415 $37.81

21

STOPPER WPL W11728552 Contact Us For Availability

22

SENSOR PCC (UPPER) WPL W11728555 Contact Us For Availability

23

SENSOR PCC (LOWER) WPL W11728556 Contact Us For Availability

24

ASSEMBLY, TRIM WPL W11728576 Contact Us For Availability

FOLLOWING PARTS NOT ILLUSTRATED WPL ARI7C4B781E09F4C135E8A56A812FBF5A4D Contact Us For Availability

ASSEMBLY, COMPLETE DOOR WPL W11737163 Contact Us For Availability

ASSEMBLY, COMPLETE DOOR WPL W11737165 Contact Us For Availability

REFRIGERANT CHARGE 52 GRAMS (R600A) WPL ARIF916CC318E008C40755DF76F91C7B724 Contact Us For Availability
