Model Maytag JUB24FLERS00 BEVERAGE CENTER – Common Parts & Diagrams
01 - COVER SHEET
02 - CABINET PARTS

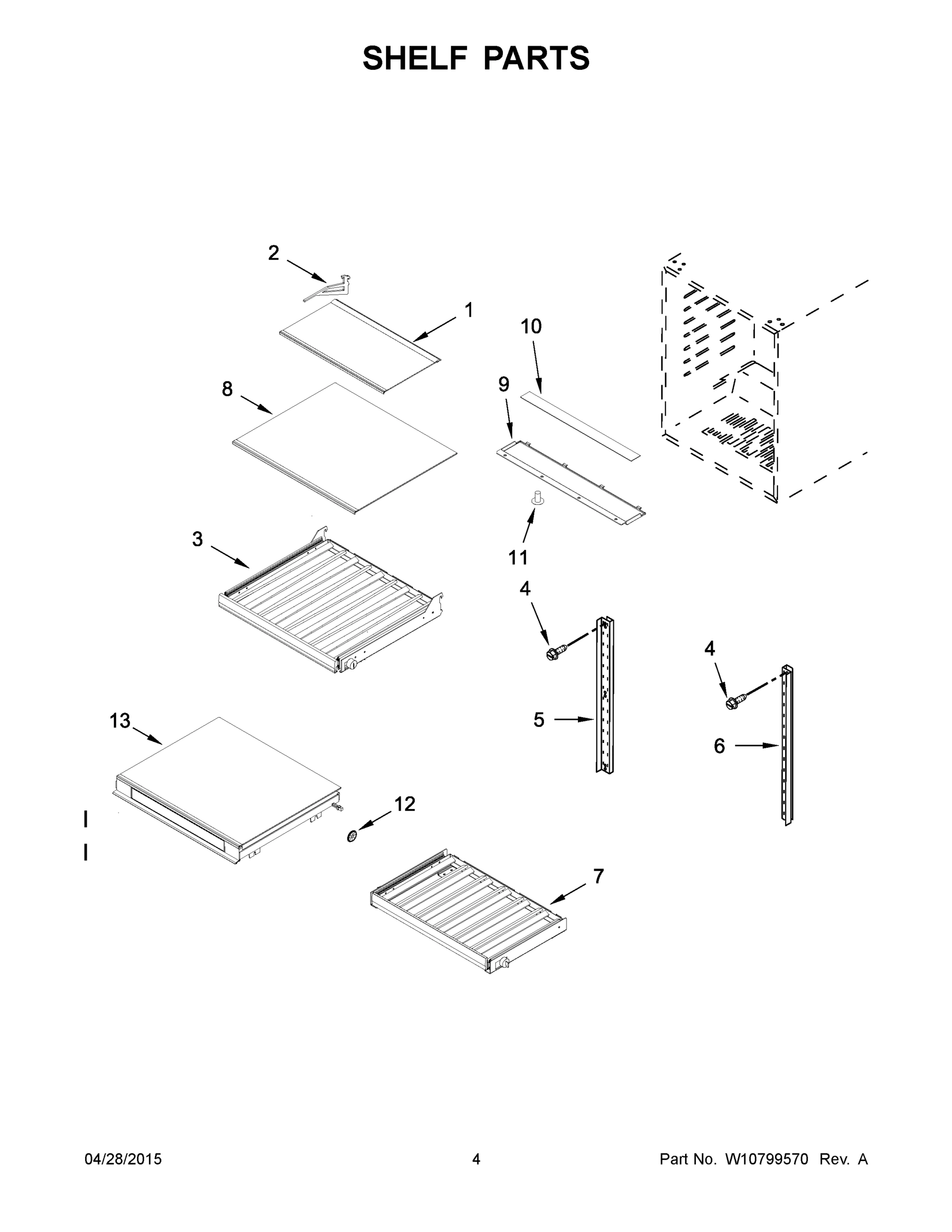

03 - SHELF PARTS

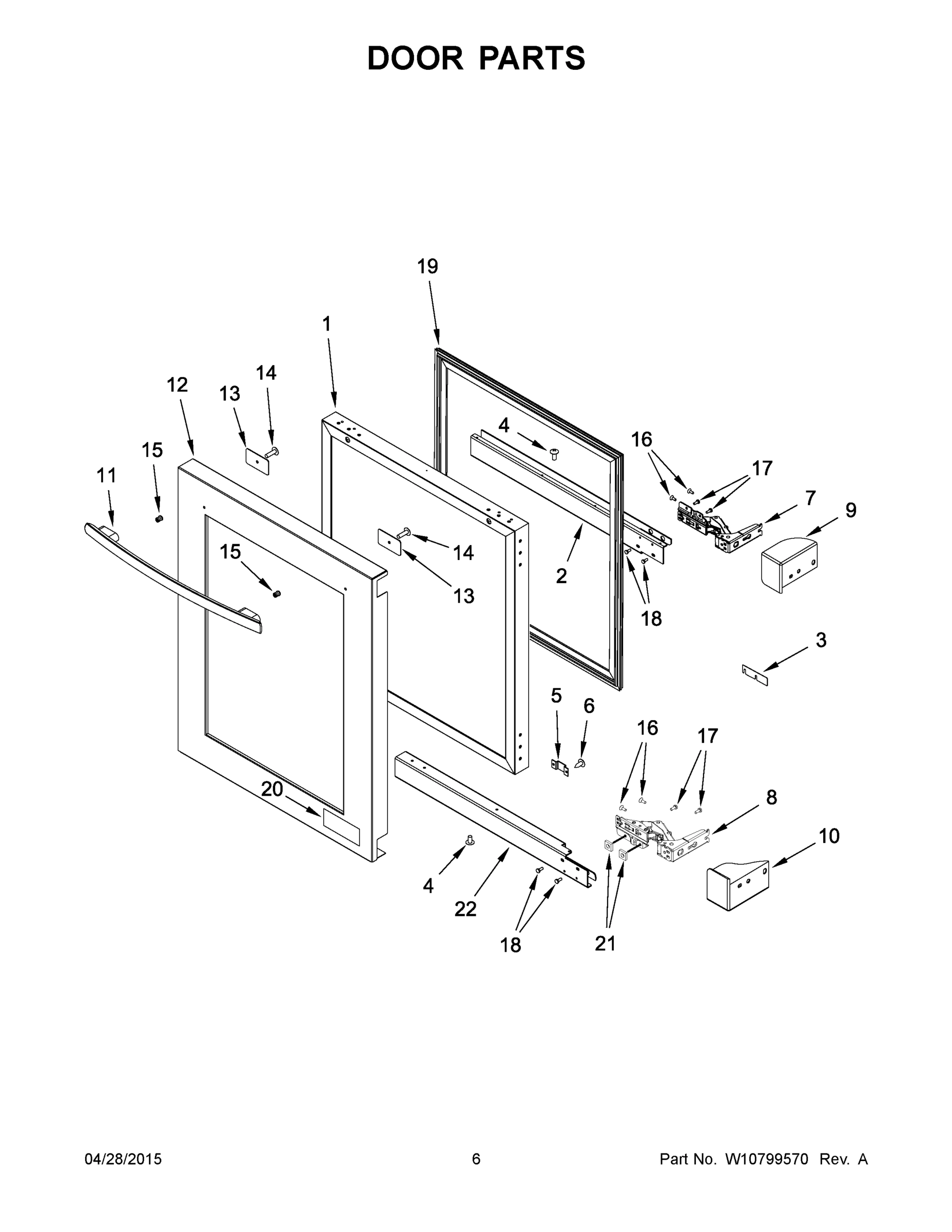

04 - DOOR PARTS

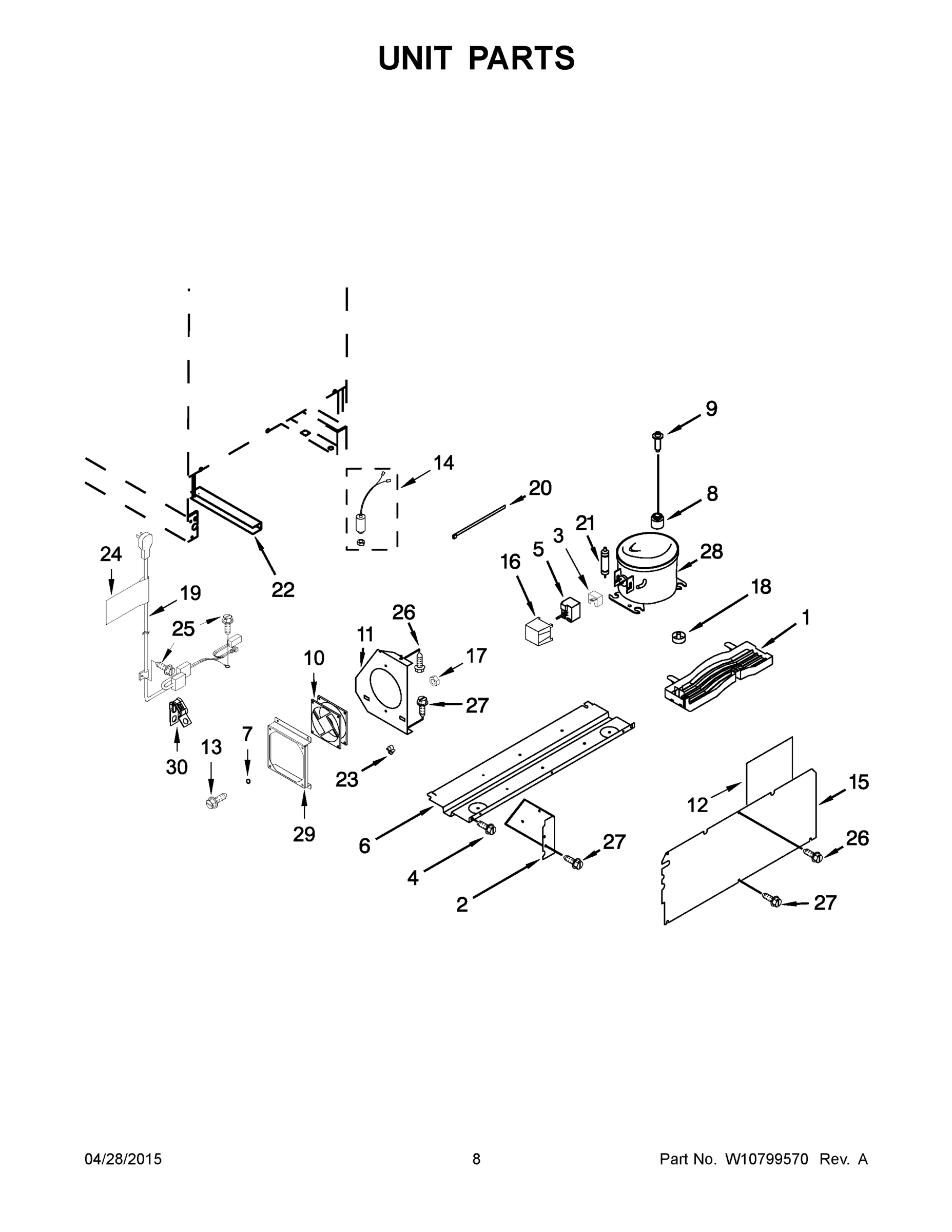

05 - UNIT PARTS
Common parts from model Maytag JUB24FLERS00 BEVERAGE CENTER
1
MAY W10741582 MAY W10741582 Contact Us For Availability
1
MAY W10802002 MAY W10802002 Contact Us For Availability
1
MAY W10802005 MAY W10802005 Contact Us For Availability
1
MAY W10772879 MAY W10772879 Contact Us For Availability
1A
MAY W10780343 MAY W10780343 Contact Us For Availability
1A
MAY W10802006 MAY W10802006 Contact Us For Availability
2
MAY W10622802 MAY W10622802 Contact Us For Availability
2
MAY W10622806 MAY W10622806 Contact Us For Availability
2
MAY 4344773 MAY 4344773 Contact Us For Availability
2A
MAY W10623027 MAY W10623027 Contact Us For Availability
3
MAY W10204942 MAY W10204942 Contact Us For Availability
3
MAY W10802017 MAY W10802017 Contact Us For Availability
3
MAY W10780350 MAY W10780350 Contact Us For Availability
3
MAY W10780361 MAY W10780361 Contact Us For Availability
4
MAY W10205061 MAY W10205061 Contact Us For Availability
4
MAY W10319187 MAY W10319187 Contact Us For Availability
4
MAY 4344797 MAY 4344797 Contact Us For Availability
5
MAY W10292475 MAY W10292475 Contact Us For Availability
5
MAY W10802000 MAY W10802000 Contact Us For Availability
5
MAY W10622808 MAY W10622808 Contact Us For Availability
5
MAY W10287848 MAY W10287848 Contact Us For Availability
6
SHIELD, HEAT MAY 4344747 Contact Us For Availability
6
MAY W10319184 MAY W10319184 Contact Us For Availability
6
MAY W10802001 MAY W10802001 Contact Us For Availability
6
MAY W10772877 MAY W10772877 Contact Us For Availability
7
MAY W10780351 MAY W10780351 Contact Us For Availability
7
MAY W10802018 MAY W10802018 Contact Us For Availability
7
ASSEMBLY, HINGE TOP RIGHT & BOTTOM LEFT MAY W10622809 Contact Us For Availability
7
MAY W10204688 MAY W10204688 Contact Us For Availability
8
MAY W10772863 MAY W10772863 Contact Us For Availability
8
MAY W10802003 MAY W10802003 Contact Us For Availability
8
ASSEMBLY, HINGE TOP LEFT & BOTTOM RIGHT MAY W10622810 Contact Us For Availability
8
MAY 4344779 MAY 4344779 Contact Us For Availability
9
LEG, LEVELING MAY 4344763 Contact Us For Availability
9
MAY W10622774 MAY W10622774 Contact Us For Availability
9
COVER, HINGE TOP RIGHT & BOTTOM LEFT MAY W10622811 Contact Us For Availability
9
MAY W10772873 MAY W10772873 Contact Us For Availability
10
MAY W10778959 MAY W10778959 Contact Us For Availability
10
MAY W10797323 MAY W10797323 Contact Us For Availability
10
COVER, HINGE TOP LEFT & BOTTOM RIGHT MAY W10622812 Contact Us For Availability
10
MAY W10772882 MAY W10772882 Contact Us For Availability
11
MAY W10772866 MAY W10772866 Contact Us For Availability
11
SCREW MAY W10204809 Contact Us For Availability
11
MAY W10622019 MAY W10622019 Contact Us For Availability
11
MAY W10204674 MAY W10204674 Contact Us For Availability
12
MAY W10621526 MAY W10621526 Contact Us For Availability
12
MAY W10621514 MAY W10621514 Contact Us For Availability
12
MAY W10800032 MAY W10800032 Contact Us For Availability
12
MAY W10778963 MAY W10778963 Contact Us For Availability
12A
MAY W10621525 MAY W10621525 Contact Us For Availability
12A
MAY W10800033 MAY W10800033 Contact Us For Availability
13
MAY 4344771 MAY 4344771 Contact Us For Availability
13
MAY W10802016 MAY W10802016 Contact Us For Availability
13
MAY W10622815 MAY W10622815 Contact Us For Availability
13
MAY W10772886 MAY W10772886 Contact Us For Availability
14
MAY W10802010 MAY W10802010 Contact Us For Availability
14
SCREW, HANDLE MAY W10204866 Contact Us For Availability
14
MAY W10772895 MAY W10772895 Contact Us For Availability
15
MAY W10780364 MAY W10780364 Contact Us For Availability
15
MAY W10319166 MAY W10319166 Contact Us For Availability
15
MAY W10796445 MAY W10796445 Contact Us For Availability
16
MAY W10775535 MAY W10775535 Contact Us For Availability
16
MAY W10780349 MAY W10780349 Contact Us For Availability
16
MAY W10772885 MAY W10772885 Contact Us For Availability
17
MAY W10772916 MAY W10772916 Contact Us For Availability
17
MAY W10319189 MAY W10319189 Contact Us For Availability
17
MAY W10270493 MAY W10270493 Contact Us For Availability
18
MAY W10622817 MAY W10622817 Contact Us For Availability
18
MAY W10163276 MAY W10163276 Contact Us For Availability
19
MAY W10780355 MAY W10780355 Contact Us For Availability
19
MAY W10797384 MAY W10797384 Contact Us For Availability
19
CORD, POWER MAY W10204676 Contact Us For Availability
20
MAY W10772865 MAY W10772865 Contact Us For Availability
20
MAY W10292471 MAY W10292471 Contact Us For Availability
20
TIE, CABLE MAY 4344829 Contact Us For Availability
21
MAY W10780347 MAY W10780347 Contact Us For Availability
21
MAY W10163273 MAY W10163273 Contact Us For Availability
22
SEAL, BRACE MAY 4344823 Contact Us For Availability
22
MAY W10622807 MAY W10622807 Contact Us For Availability
22
TRIM, EDGE MAY 4344907 Contact Us For Availability
22A
MAY W10623029 MAY W10623029 Contact Us For Availability
23
SUPPORT (RIGHT HAND) MAY 4344821 Contact Us For Availability
23
CLIP, BUSHING MAY W10238022 Contact Us For Availability
23A
SUPPORT (LEFT HAND) MAY 4344820 Contact Us For Availability
24
MAY W10270517 MAY W10270517 Contact Us For Availability
24
MAY 4344913 MAY 4344913 Contact Us For Availability
25
MAY 4344826 MAY 4344826 Contact Us For Availability
25
MAY W10772870 MAY W10772870 Contact Us For Availability
26
MAY 4344825 MAY 4344825 Contact Us For Availability
27
MAY W10204948 MAY W10204948 Contact Us For Availability
27
SCREW MAY 4344832 Contact Us For Availability
28
MAY W10774183 MAY W10774183 Contact Us For Availability
28
MAY W10780362 MAY W10780362 Contact Us For Availability
29
MAY W10802014 MAY W10802014 Contact Us For Availability
29
MAY W10772889 MAY W10772889 Contact Us For Availability
30
MAY W10802011 MAY W10802011 Contact Us For Availability
30
MAY W10281591 MAY W10281591 Contact Us For Availability
31
MAY W10780357 MAY W10780357 Contact Us For Availability
32
MAY W10780356 MAY W10780356 Contact Us For Availability
34
MAY W10788689 MAY W10788689 Contact Us For Availability
35
MAY W10721454 MAY W10721454 Contact Us For Availability
36
MAY W10780353 MAY W10780353 Contact Us For Availability
37
MAY W10797391 MAY W10797391 Contact Us For Availability
38
MAY W10780359 MAY W10780359 Contact Us For Availability
39
MAY W10772869 MAY W10772869 Contact Us For Availability
40
MAY W10780358 MAY W10780358 Contact Us For Availability
41
MAY W10780352 MAY W10780352 Contact Us For Availability
42
MAY W10772858 MAY W10772858 Contact Us For Availability
43
MAY W10788699 MAY W10788699 Contact Us For Availability
NI
REFRIGERANT CHARGE 4.25 OZ (R-134A) MAY N/P Contact Us For Availability
× ![]()
