Model Maytag JUB248RYRP00 BEVERAGE CENTER – Common Parts & Diagrams

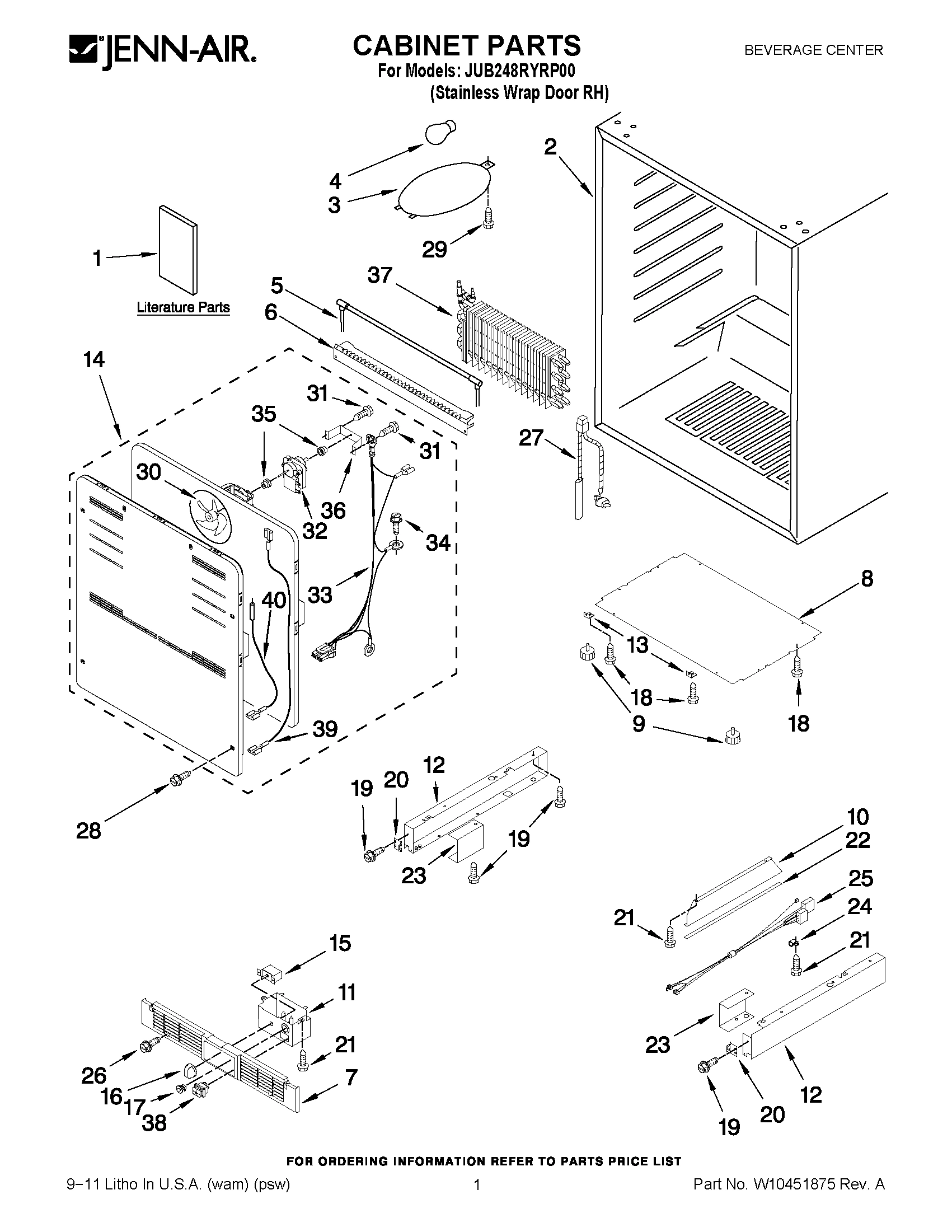

01 - CABINET PARTS

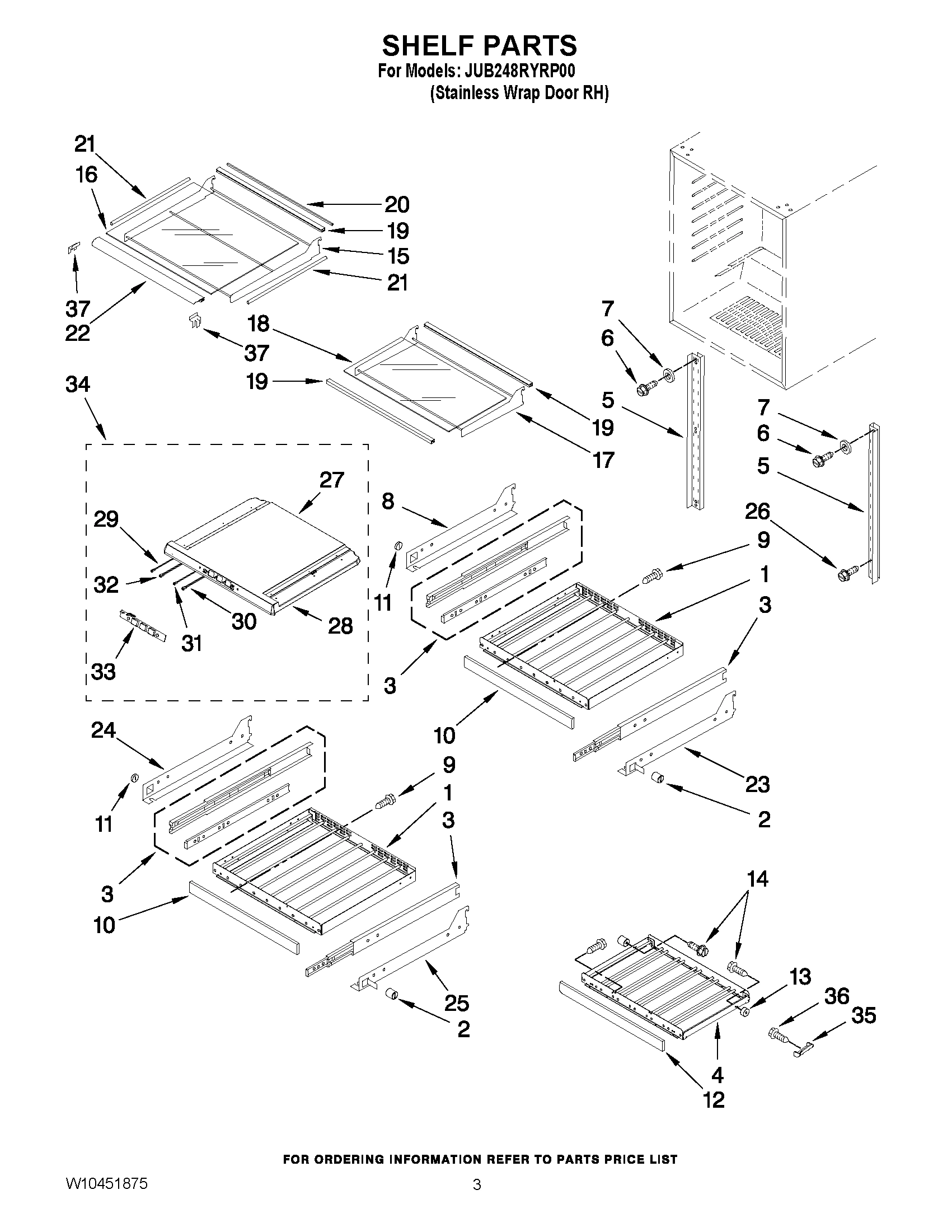

02 - SHELF PARTS
03 - DOOR PARTS
04 - UNIT PARTS
Common parts from model Maytag JUB248RYRP00 BEVERAGE CENTER
1
MAY 2300281 MAY 2300281 Contact Us For Availability
1
MAY 4344901 MAY 4344901 Contact Us For Availability
1
MAY W10238032 MAY W10238032 Contact Us For Availability
1
GLASS DOOR MAY W10299085 Contact Us For Availability
1
MAY W10163193 MAY W10163193 Contact Us For Availability
2
RUBBER SUPPORT MAY 4344867 Contact Us For Availability
2
MAY W10162992 MAY W10162992 Contact Us For Availability
2
BRACKET, DEFROST TIMER MAY W10239387 Contact Us For Availability
3
MAY 4344739 MAY 4344739 Contact Us For Availability
3
MAY W10238029 MAY W10238029 Contact Us For Availability
3
MAY W10163191 MAY W10163191 Contact Us For Availability
3
MAY W10239390 MAY W10239390 Contact Us For Availability
4
MAY 4344740 MAY 4344740 Contact Us For Availability
4
MAY W10187313 MAY W10187313 Contact Us For Availability
4
HINGE, BOTTOM MAY W10239363 Contact Us For Availability
4
MAY 4344797 MAY 4344797 Contact Us For Availability
5
MAY 4344746 MAY 4344746 Contact Us For Availability
5
MAY W10299079 MAY W10299079 Contact Us For Availability
5
MAY W10299080 MAY W10299080 Contact Us For Availability
5
MAY 4344754 MAY 4344754 Contact Us For Availability
5
MAY 4344776 MAY 4344776 Contact Us For Availability
6
MAY 4344747 MAY 4344747 Contact Us For Availability
6
MAY 4344794 MAY 4344794 Contact Us For Availability
6
MAY 4344755 MAY 4344755 Contact Us For Availability
6
MAY W10238066 MAY W10238066 Contact Us For Availability
7
MAY W10238193 MAY W10238193 Contact Us For Availability
7
MAY 4344778 MAY 4344778 Contact Us For Availability
7
MAY 4344795 MAY 4344795 Contact Us For Availability
7
MAY 4344756 MAY 4344756 Contact Us For Availability
8
MAY 4344762 MAY 4344762 Contact Us For Availability
8
MAY W10239365 MAY W10239365 Contact Us For Availability
8
MAY 4344757 MAY 4344757 Contact Us For Availability
8
MAY 4344779 MAY 4344779 Contact Us For Availability
9
MAY 4344763 MAY 4344763 Contact Us For Availability
9
MAY 4344851 MAY 4344851 Contact Us For Availability
9
MAY W10238067 MAY W10238067 Contact Us For Availability
9
MAY 4344780 MAY 4344780 Contact Us For Availability
10
MAY W10204638 MAY W10204638 Contact Us For Availability
10
MAY W10239372 MAY W10239372 Contact Us For Availability
10
MAY W10238068 MAY W10238068 Contact Us For Availability
10
FAN MOTOR, CONDENSER MAY W10299090 Contact Us For Availability
11
MAY 4344898 MAY 4344898 Contact Us For Availability
11
RUBBER SUPPORT MAY 4344866 Contact Us For Availability
11
HANDLE, DOOR MAY W10194840 Contact Us For Availability
11
MAY 4344782 MAY 4344782 Contact Us For Availability
12
MAY 4344769 MAY 4344769 Contact Us For Availability
12
MAY 4344770 MAY 4344770 Contact Us For Availability
12
MAY W10299081 MAY W10299081 Contact Us For Availability
12
MAY W10239373 MAY W10239373 Contact Us For Availability
12
MAY W10299086 MAY W10299086 Contact Us For Availability
13
MAY W10239388 MAY W10239388 Contact Us For Availability
13
Support, Bumper (Left) MAY 4344885 Contact Us For Availability
13
Support, Bumper (Right) MAY 4344886 Contact Us For Availability
13
MAY 4344760 MAY 4344760 Contact Us For Availability
13
MAY 4344784 MAY 4344784 Contact Us For Availability
14
MAY W10299077 MAY W10299077 Contact Us For Availability
14
MAY 4344914 MAY 4344914 Contact Us For Availability
14
MAY 4344915 MAY 4344915 Contact Us For Availability
14
MAY 4344788 MAY 4344788 Contact Us For Availability
14
MAY 4344785 MAY 4344785 Contact Us For Availability
15
MAY 4344860 MAY 4344860 Contact Us For Availability
15
MAY W10238033 MAY W10238033 Contact Us For Availability
15
MAY W10299088 MAY W10299088 Contact Us For Availability
15
MAY 4344786 MAY 4344786 Contact Us For Availability
16
MAY 4344768 MAY 4344768 Contact Us For Availability
16
MAY 4344871 MAY 4344871 Contact Us For Availability
16
MAY 4344796 MAY 4344796 Contact Us For Availability
16
MAY 4344837 MAY 4344837 Contact Us For Availability
17
MAY 4344767 MAY 4344767 Contact Us For Availability
17
SCREW, LOWER HINGE (QUANTITY 3) MAY W10243104 Contact Us For Availability
17
MAY 4344868 MAY 4344868 Contact Us For Availability
17
MAY W10451925 MAY W10451925 Contact Us For Availability
17
MAY 4344836 MAY 4344836 Contact Us For Availability
18
MAY 4344869 MAY 4344869 Contact Us For Availability
18
MAY W10204865 MAY W10204865 Contact Us For Availability
18
MAY W10163276 MAY W10163276 Contact Us For Availability
19
MAY 4344872 MAY 4344872 Contact Us For Availability
19
MAY W10243123 MAY W10243123 Contact Us For Availability
19
MAY W10204676 MAY W10204676 Contact Us For Availability
20
MAY 4344819 MAY 4344819 Contact Us For Availability
20
MAY 4344873 MAY 4344873 Contact Us For Availability
20
MAY 4344801 MAY 4344801 Contact Us For Availability
20
MAY 4344829 MAY 4344829 Contact Us For Availability
21
MAY 4344874 MAY 4344874 Contact Us For Availability
21
MAY W10204866 MAY W10204866 Contact Us For Availability
21
MAY W10163273 MAY W10163273 Contact Us For Availability
22
MAY 4344823 MAY 4344823 Contact Us For Availability
22
MAY 4344875 MAY 4344875 Contact Us For Availability
22
MAY W10449216 MAY W10449216 Contact Us For Availability
22
MAY 4344907 MAY 4344907 Contact Us For Availability
23
MAY 4344820 MAY 4344820 Contact Us For Availability
23
MAY 4344821 MAY 4344821 Contact Us For Availability
23
MAY W10239366 MAY W10239366 Contact Us For Availability
23
MAY W10319166 MAY W10319166 Contact Us For Availability
23
MAY W10238022 MAY W10238022 Contact Us For Availability
24
MAY 4344824 MAY 4344824 Contact Us For Availability
24
MAY W10239369 MAY W10239369 Contact Us For Availability
24
MAY W10449214 MAY W10449214 Contact Us For Availability
24
Pad, Rubber MAY W10163274 Contact Us For Availability
25
MAY W10238069 MAY W10238069 Contact Us For Availability
25
MAY 4344826 MAY 4344826 Contact Us For Availability
25
MAY W10239370 MAY W10239370 Contact Us For Availability
26
MAY 4344825 MAY 4344825 Contact Us For Availability
26
MAY W10162986 MAY W10162986 Contact Us For Availability
27
MAY W10299078 MAY W10299078 Contact Us For Availability
27
SCREW MAY 4344832 Contact Us For Availability
27
MAY W10238187 MAY W10238187 Contact Us For Availability
28
MAY 4344793 MAY 4344793 Contact Us For Availability
28
MAY W10238184 MAY W10238184 Contact Us For Availability
28
MAY 4344775 MAY 4344775 Contact Us For Availability
29
MAY 4344791 MAY 4344791 Contact Us For Availability
29
MAY W10238024 MAY W10238024 Contact Us For Availability
29
MAY 4344834 MAY 4344834 Contact Us For Availability
30
MAY W10238026 MAY W10238026 Contact Us For Availability
30
MAY 4344833 MAY 4344833 Contact Us For Availability
31
MAY 4344878 MAY 4344878 Contact Us For Availability
31
MAY W10238025 MAY W10238025 Contact Us For Availability
31
MAY W10238070 MAY W10238070 Contact Us For Availability
32
EVAPORATOR FAN MOTOR MAY W10299082 Contact Us For Availability
32
MAY W10238028 MAY W10238028 Contact Us For Availability
32
MAY W10163278 MAY W10163278 Contact Us For Availability
33
MAY 4344877 MAY 4344877 Contact Us For Availability
33
MAY W10238180 MAY W10238180 Contact Us For Availability
33
MAY 4344864 MAY 4344864 Contact Us For Availability
34
TEMPERATURE SEPARATOR KIT MAY W10280396 Contact Us For Availability
34
MAY W10358906 MAY W10358906 Contact Us For Availability
35
STOPPER, RACK MAY 4344850 Contact Us For Availability
36
MAY 4344899 MAY 4344899 Contact Us For Availability
36
MAY W10281318 MAY W10281318 Contact Us For Availability
37
MAY 4344905 MAY 4344905 Contact Us For Availability
38
MAY 4344858 MAY 4344858 Contact Us For Availability
39
MAY W10238071 MAY W10238071 Contact Us For Availability
40
MAY W10238027 MAY W10238027 Contact Us For Availability
NI
REFRIGERANT CHARGE (R134A) MAY N/P Contact Us For Availability
NI
MAY W10204809 MAY W10204809 Contact Us For Availability
NI
SCREW, LED MAY W10204935 Contact Us For Availability
NI
MAY W10238031 MAY W10238031 Contact Us For Availability
NI
MAY W10238189 MAY W10238189 Contact Us For Availability
NI
MAY W10239384 MAY W10239384 Contact Us For Availability
NI
MAY W10239385 MAY W10239385 Contact Us For Availability
NI
MAY W10243310 MAY W10243310 Contact Us For Availability
NI
MAY 8171420 MAY 8171420 Contact Us For Availability
× ![]()
