Model Maytag JUB248LWRS00 BEVERAGE CENTER – Common Parts & Diagrams
01 - CABINET PARTS
02 - SHELF PARTS

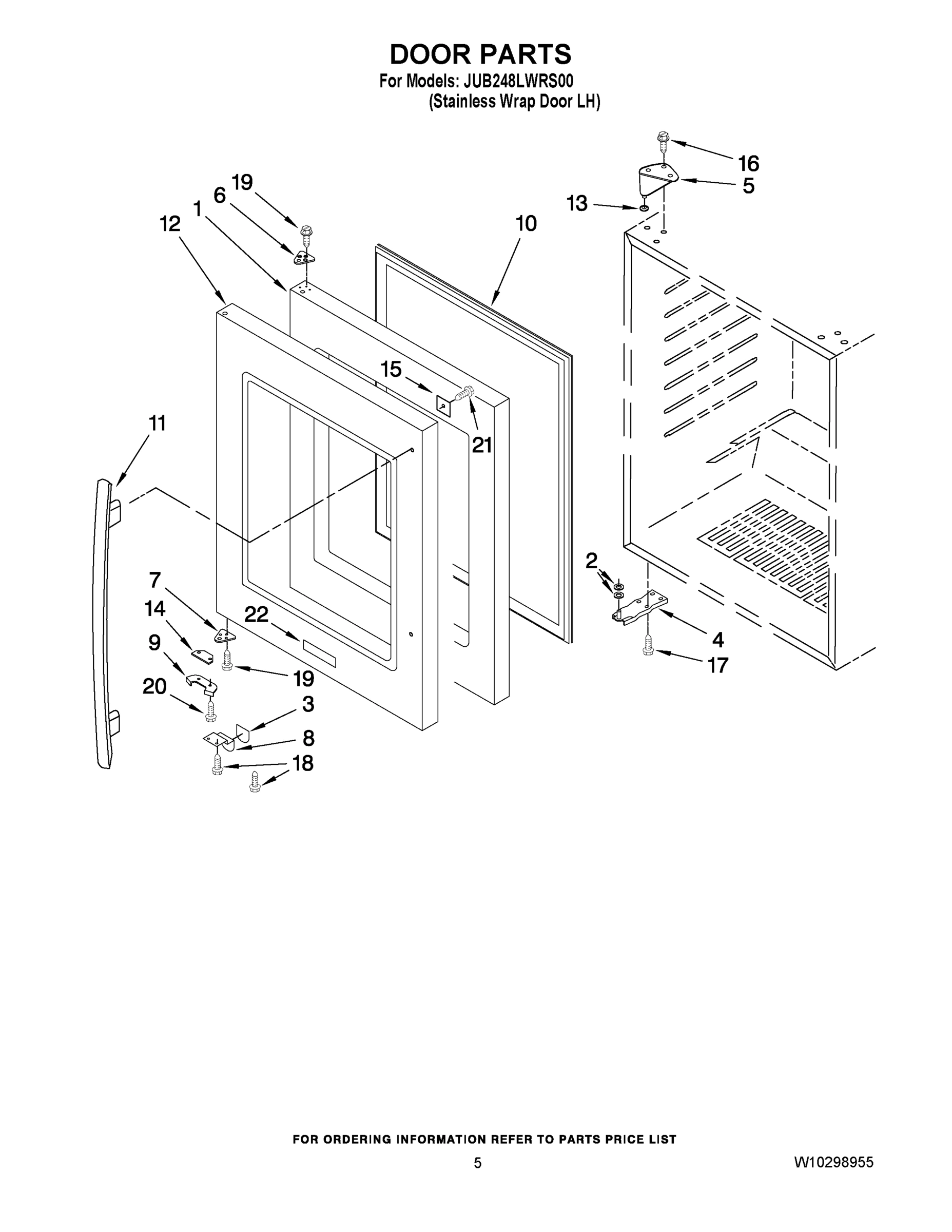

03 - DOOR PARTS

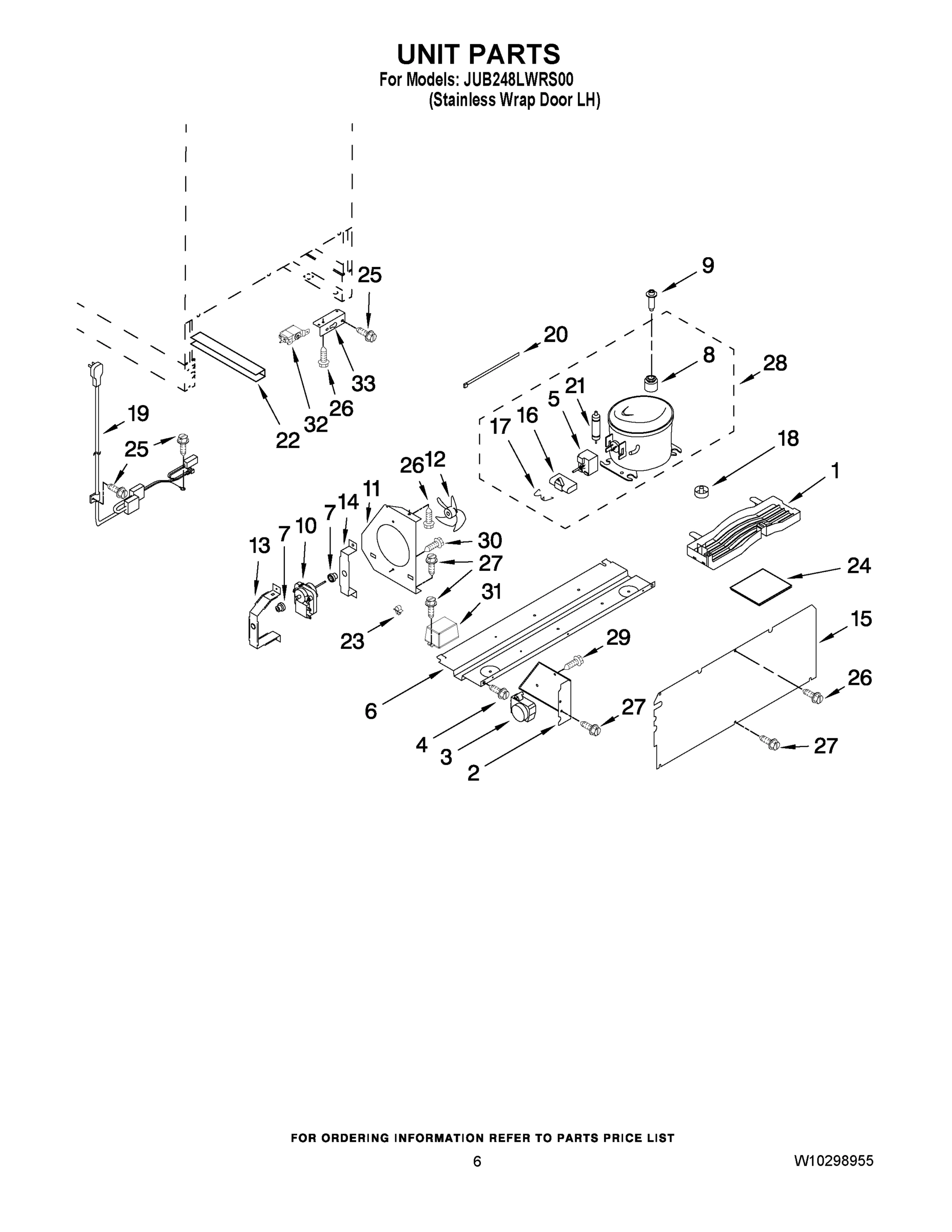

04 - UNIT PARTS
Common parts from model Maytag JUB248LWRS00 BEVERAGE CENTER
1
MAY 2300280 MAY 2300280 Contact Us For Availability
1
MAY 4344901 MAY 4344901 Contact Us For Availability
1
MAY W10238032 MAY W10238032 Contact Us For Availability
1
MAY W10299091 MAY W10299091 Contact Us For Availability
1
MAY W10163193 MAY W10163193 Contact Us For Availability
2
RUBBER SUPPORT MAY 4344866 Contact Us For Availability
2
MAY W10162992 MAY W10162992 Contact Us For Availability
2
MAY 4344773 MAY 4344773 Contact Us For Availability
3
MAY 4344739 MAY 4344739 Contact Us For Availability
3
MAY W10238029 MAY W10238029 Contact Us For Availability
3
MAY W10163191 MAY W10163191 Contact Us For Availability
3
MAY 4344774 MAY 4344774 Contact Us For Availability
4
MAY 4344740 MAY 4344740 Contact Us For Availability
4
MAY W10187313 MAY W10187313 Contact Us For Availability
4
Hinge, Bottom MAY 4344787 Contact Us For Availability
4
MAY 4344797 MAY 4344797 Contact Us For Availability
5
MAY 4344746 MAY 4344746 Contact Us For Availability
5
MAY W10299079 MAY W10299079 Contact Us For Availability
5
MAY W10299080 MAY W10299080 Contact Us For Availability
5
MAY 4344754 MAY 4344754 Contact Us For Availability
5
MAY 4344776 MAY 4344776 Contact Us For Availability
6
MAY 4344747 MAY 4344747 Contact Us For Availability
6
MAY 4344794 MAY 4344794 Contact Us For Availability
6
MAY 4344755 MAY 4344755 Contact Us For Availability
6
MAY W10238066 MAY W10238066 Contact Us For Availability
7
MAY 4344761 MAY 4344761 Contact Us For Availability
7
MAY 4344778 MAY 4344778 Contact Us For Availability
7
MAY 4344795 MAY 4344795 Contact Us For Availability
7
MAY 4344756 MAY 4344756 Contact Us For Availability
8
MAY 4344762 MAY 4344762 Contact Us For Availability
8
MAY W10239367 MAY W10239367 Contact Us For Availability
8
MAY 4344757 MAY 4344757 Contact Us For Availability
8
MAY 4344779 MAY 4344779 Contact Us For Availability
9
MAY 4344763 MAY 4344763 Contact Us For Availability
9
MAY 4344851 MAY 4344851 Contact Us For Availability
9
MAY 4344758 MAY 4344758 Contact Us For Availability
9
MAY 4344780 MAY 4344780 Contact Us For Availability
10
MAY W10204638 MAY W10204638 Contact Us For Availability
10
MAY 4344882 MAY 4344882 Contact Us For Availability
10
MAY 4344852 MAY 4344852 Contact Us For Availability
10
FAN MOTOR, CONDENSER MAY W10299090 Contact Us For Availability
11
MAY 4344898 MAY 4344898 Contact Us For Availability
11
RUBBER SUPPORT MAY 4344867 Contact Us For Availability
11
MAY W10299087 MAY W10299087 Contact Us For Availability
11
MAY 4344782 MAY 4344782 Contact Us For Availability
12
MAY 4344789 MAY 4344789 Contact Us For Availability
12
MAY 4344790 MAY 4344790 Contact Us For Availability
12
MAY W10299081 MAY W10299081 Contact Us For Availability
12
MAY 4344884 MAY 4344884 Contact Us For Availability
12
MAY W10299092 MAY W10299092 Contact Us For Availability
13
MAY 4344771 MAY 4344771 Contact Us For Availability
13
MAY 4344885 MAY 4344885 Contact Us For Availability
13
MAY 4344886 MAY 4344886 Contact Us For Availability
13
MAY 4344760 MAY 4344760 Contact Us For Availability
13
MAY 4344784 MAY 4344784 Contact Us For Availability
14
MAY W10299077 MAY W10299077 Contact Us For Availability
14
MAY 4344914 MAY 4344914 Contact Us For Availability
14
MAY 4344915 MAY 4344915 Contact Us For Availability
14
MAY 4344788 MAY 4344788 Contact Us For Availability
14
MAY 4344785 MAY 4344785 Contact Us For Availability
15
MAY 4344860 MAY 4344860 Contact Us For Availability
15
BASE, GLASS SHELF MAY W10238033 Contact Us For Availability
15
MAY W10299088 MAY W10299088 Contact Us For Availability
15
MAY 4344786 MAY 4344786 Contact Us For Availability
16
MAY 4344768 MAY 4344768 Contact Us For Availability
16
MAY 4344871 MAY 4344871 Contact Us For Availability
16
MAY 4344796 MAY 4344796 Contact Us For Availability
16
MAY 4344837 MAY 4344837 Contact Us For Availability
17
MAY 4344767 MAY 4344767 Contact Us For Availability
17
SCREW, LOWER HINGE (QUANTITY 3) MAY W10243104 Contact Us For Availability
17
BASE, GLASS SHELF MAY 4344868 Contact Us For Availability
17
MAY 4344906 MAY 4344906 Contact Us For Availability
17
MAY 4344836 MAY 4344836 Contact Us For Availability
18
MAY 4344869 MAY 4344869 Contact Us For Availability
18
MAY W10204865 MAY W10204865 Contact Us For Availability
18
MAY W10163276 MAY W10163276 Contact Us For Availability
19
MAY 4344872 MAY 4344872 Contact Us For Availability
19
MAY W10243123 MAY W10243123 Contact Us For Availability
19
MAY 4344861 MAY 4344861 Contact Us For Availability
20
MAY 4344819 MAY 4344819 Contact Us For Availability
20
MAY 4344873 MAY 4344873 Contact Us For Availability
20
MAY 4344801 MAY 4344801 Contact Us For Availability
20
MAY 4344829 MAY 4344829 Contact Us For Availability
21
MAY 4344874 MAY 4344874 Contact Us For Availability
21
MAY W10299089 MAY W10299089 Contact Us For Availability
21
MAY W10163273 MAY W10163273 Contact Us For Availability
22
MAY 4344823 MAY 4344823 Contact Us For Availability
22
MAY 4344875 MAY 4344875 Contact Us For Availability
22
MAY W10292471 MAY W10292471 Contact Us For Availability
22
MAY 4344907 MAY 4344907 Contact Us For Availability
23
MAY 4344820 MAY 4344820 Contact Us For Availability
23
MAY 4344821 MAY 4344821 Contact Us For Availability
23
MAY W10239364 MAY W10239364 Contact Us For Availability
23
MAY W10238022 MAY W10238022 Contact Us For Availability
24
MAY 4344824 MAY 4344824 Contact Us For Availability
24
MAY W10239371 MAY W10239371 Contact Us For Availability
24
Pad, Rubber MAY W10163274 Contact Us For Availability
25
MAY 4344857 MAY 4344857 Contact Us For Availability
25
MAY 4344826 MAY 4344826 Contact Us For Availability
25
MAY W10239368 MAY W10239368 Contact Us For Availability
26
MAY 4344825 MAY 4344825 Contact Us For Availability
26
MAY W10162986 MAY W10162986 Contact Us For Availability
27
BI-METAL ASSY. MAY W10299078 Contact Us For Availability
27
SCREW MAY 4344832 Contact Us For Availability
27
MAY W10238187 MAY W10238187 Contact Us For Availability
28
MAY 4344793 MAY 4344793 Contact Us For Availability
28
MAY W10238184 MAY W10238184 Contact Us For Availability
28
MAY 4344775 MAY 4344775 Contact Us For Availability
29
MAY 4344791 MAY 4344791 Contact Us For Availability
29
MAY W10238024 MAY W10238024 Contact Us For Availability
29
MAY 4344834 MAY 4344834 Contact Us For Availability
30
MAY W10238026 MAY W10238026 Contact Us For Availability
30
MAY 4344833 MAY 4344833 Contact Us For Availability
31
MAY 4344878 MAY 4344878 Contact Us For Availability
31
MAY W10238025 MAY W10238025 Contact Us For Availability
31
MAY W10238070 MAY W10238070 Contact Us For Availability
32
EVAPORATOR FAN MOTOR MAY W10299082 Contact Us For Availability
32
MAY W10238028 MAY W10238028 Contact Us For Availability
32
MAY W10163278 MAY W10163278 Contact Us For Availability
33
MAY 4344877 MAY 4344877 Contact Us For Availability
33
MAY W10238180 MAY W10238180 Contact Us For Availability
33
MAY 4344864 MAY 4344864 Contact Us For Availability
34
MAY W10280398 MAY W10280398 Contact Us For Availability
35
MAY W10281318 MAY W10281318 Contact Us For Availability
36
MAY 4344899 MAY 4344899 Contact Us For Availability
36
STOP MAY 4344850 Contact Us For Availability
38
MAY 4344858 MAY 4344858 Contact Us For Availability
39
MAY 4344917 MAY 4344917 Contact Us For Availability
40
MAY W10238027 MAY W10238027 Contact Us For Availability
NI
REFRIGERANT CHARGE (3.5 OUNCES (R-134A)) MAY N/P Contact Us For Availability
NI
MAY W10204809 MAY W10204809 Contact Us For Availability
NI
MAY W10238031 MAY W10238031 Contact Us For Availability
NI
MAY W10238189 MAY W10238189 Contact Us For Availability
NI
MAY W10239384 MAY W10239384 Contact Us For Availability
NI
MAY W10239385 MAY W10239385 Contact Us For Availability
NI
MAY W10243310 MAY W10243310 Contact Us For Availability
NI
MAY W10243312 MAY W10243312 Contact Us For Availability
NI
SCREW, SUPPORT MAY W10281556 Contact Us For Availability
NI
MAY 8171420 MAY 8171420 Contact Us For Availability
× ![]()
