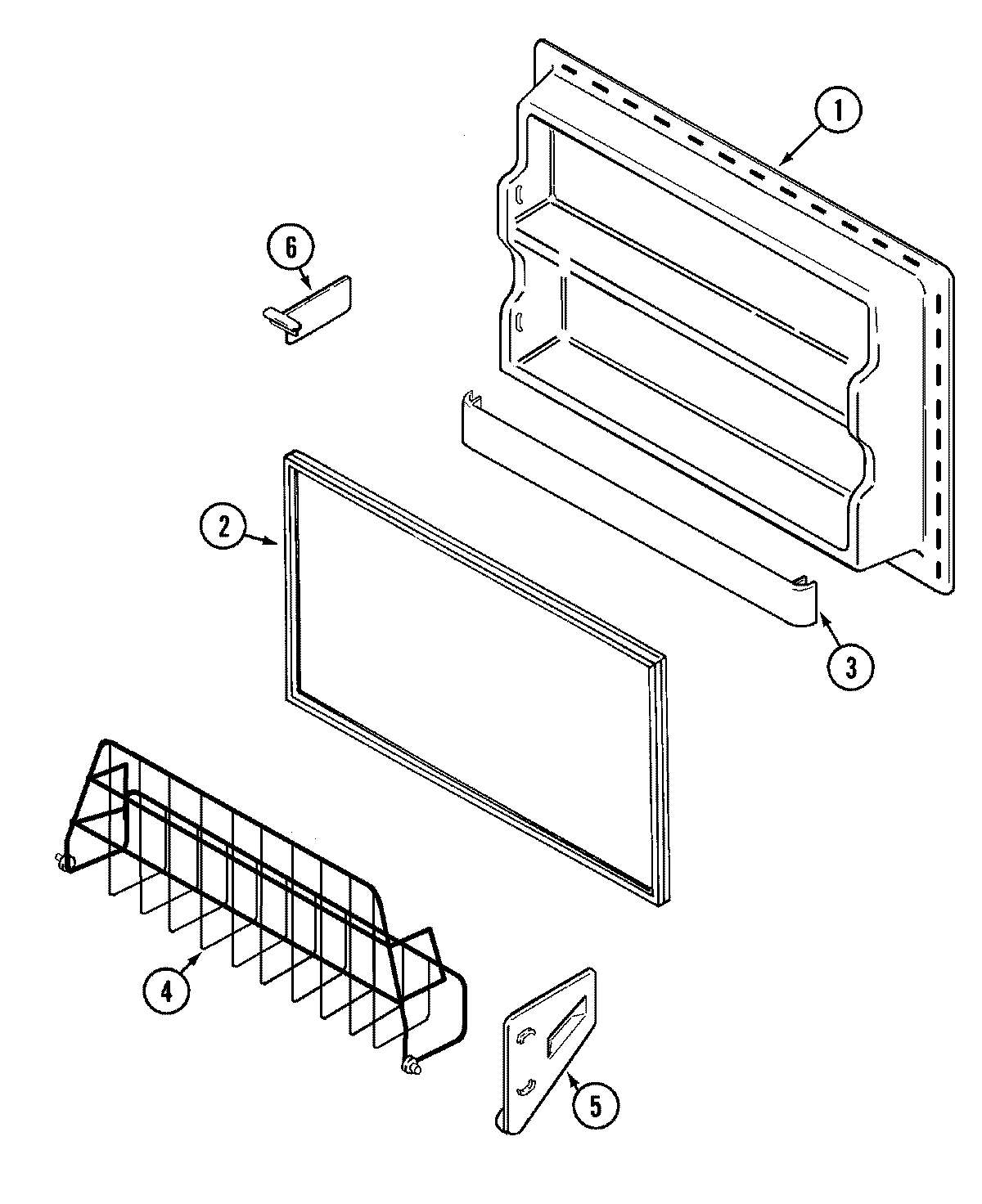

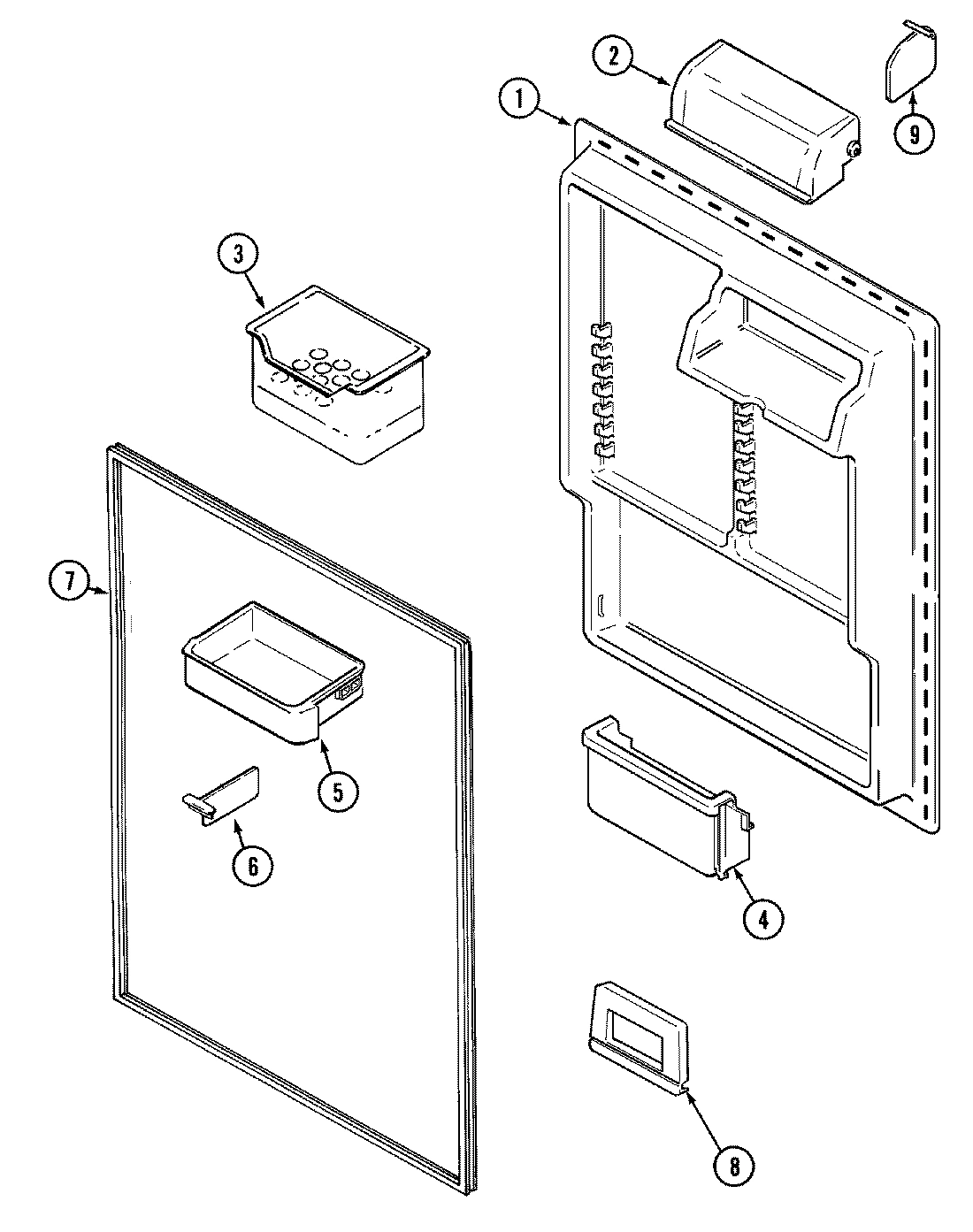

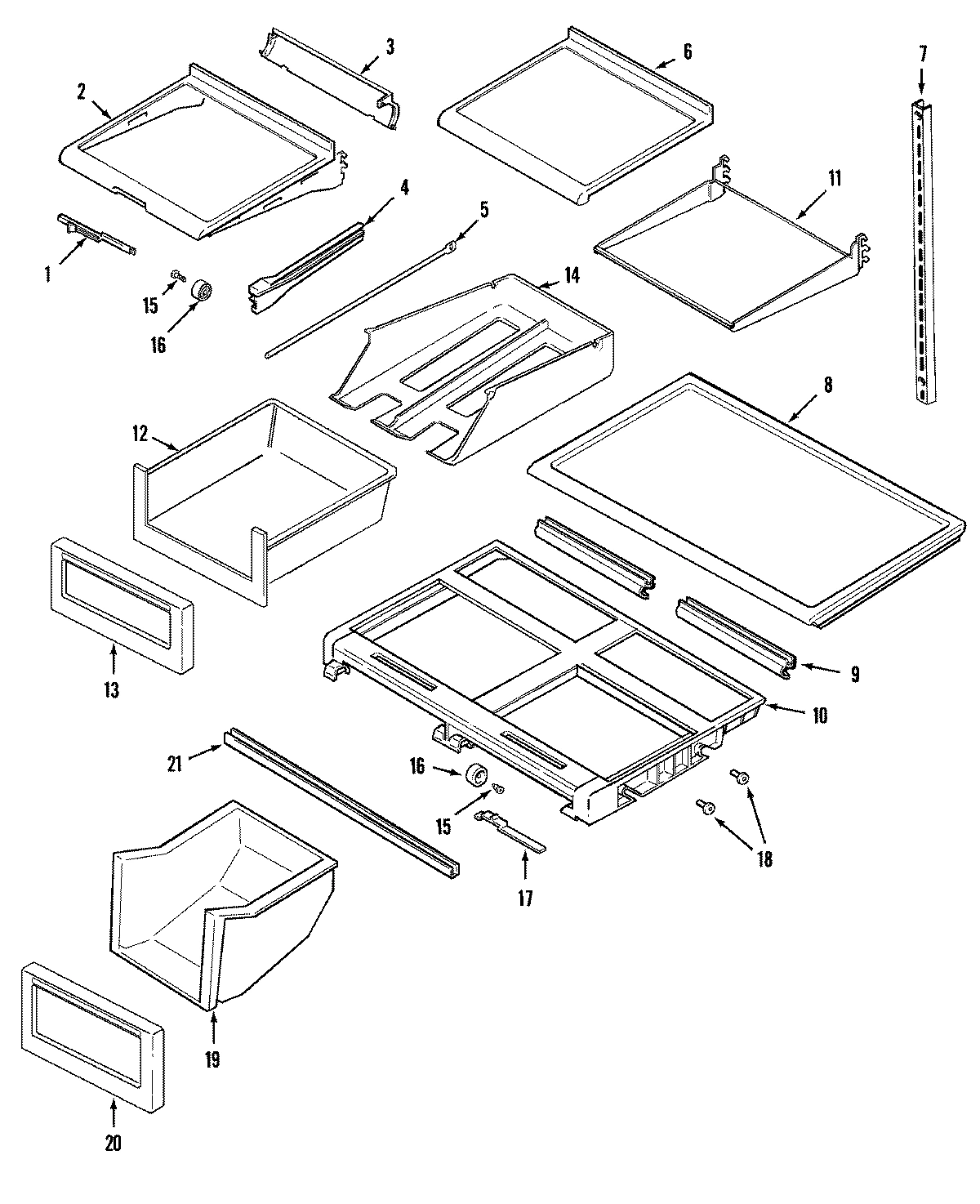

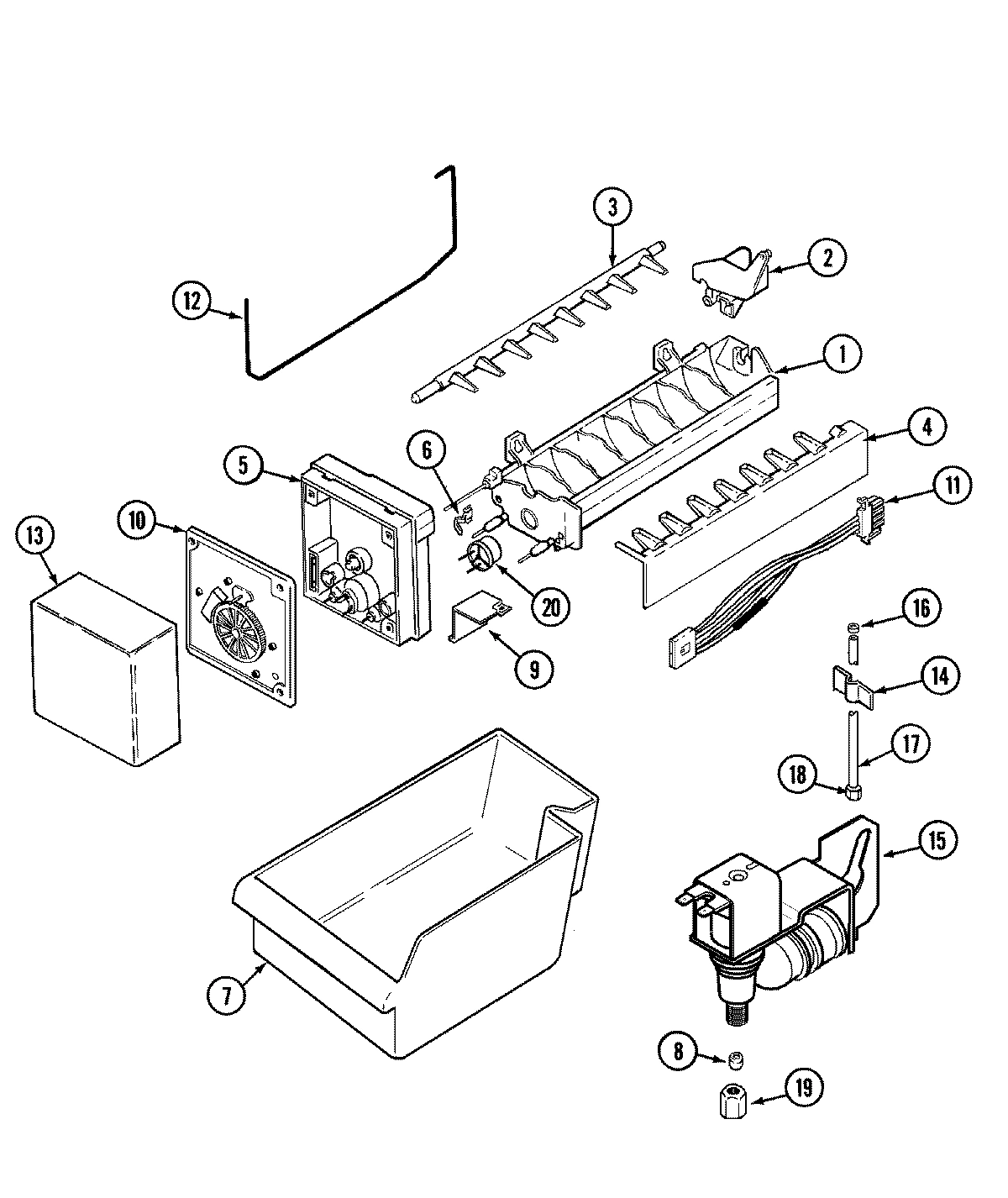

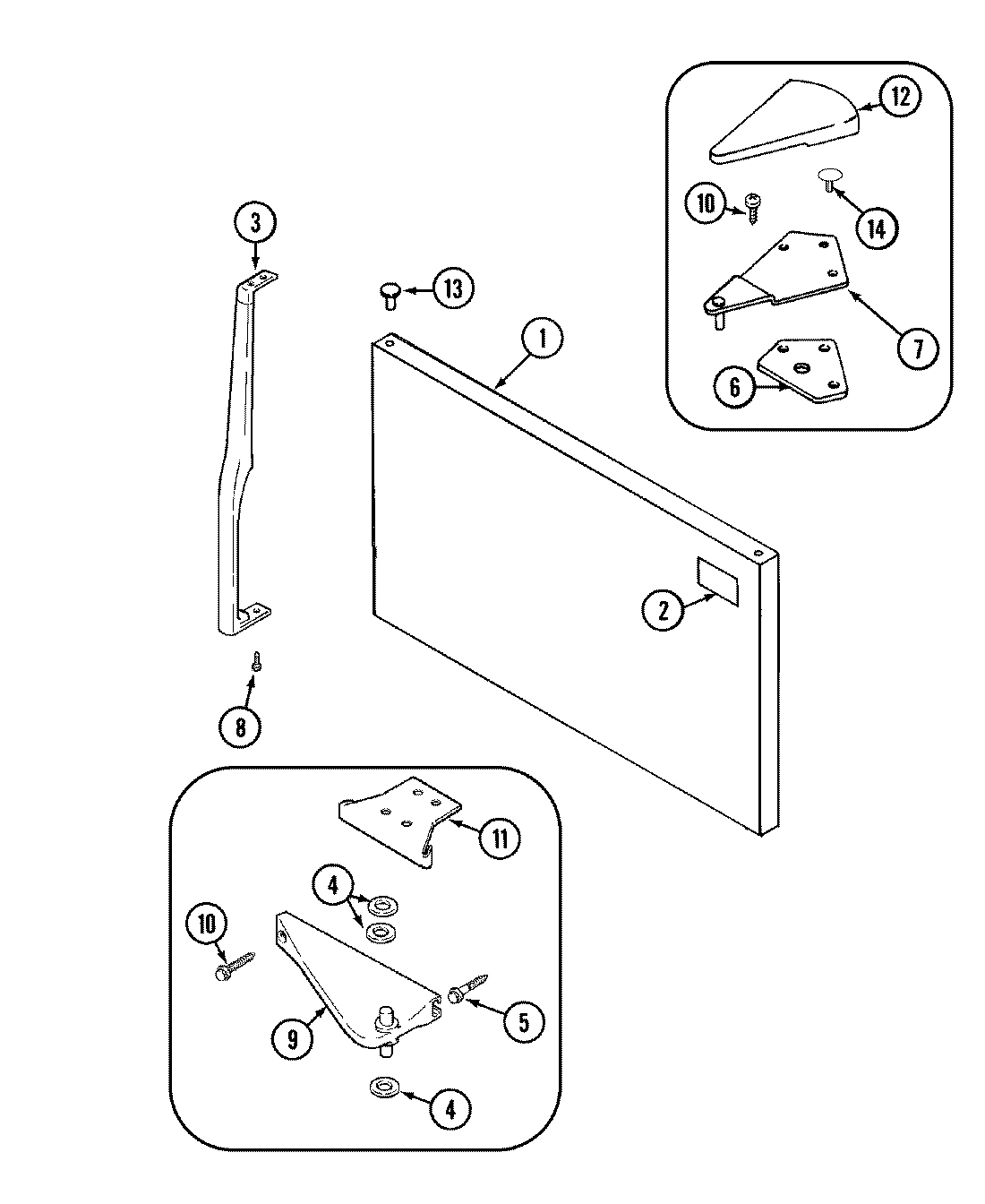

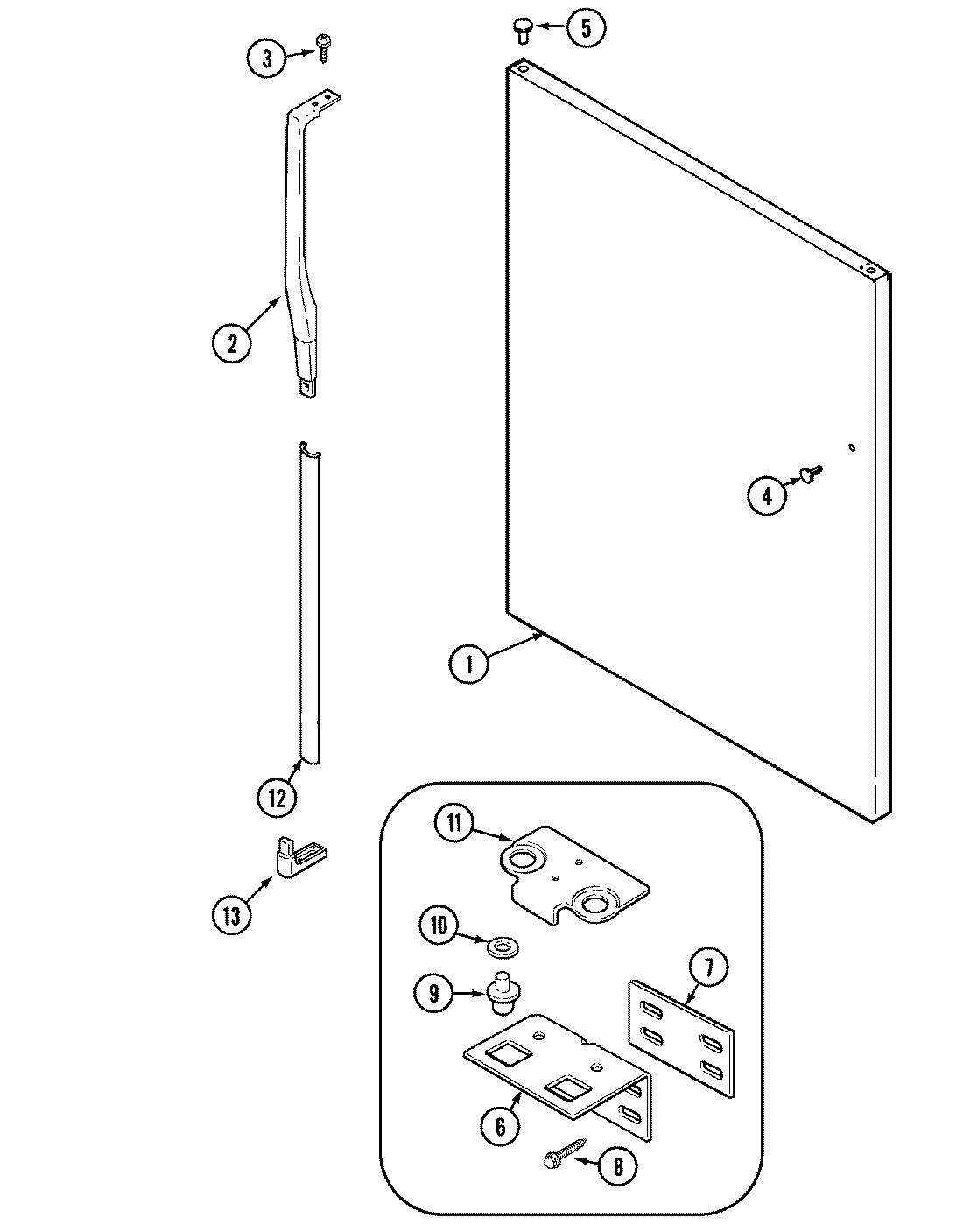

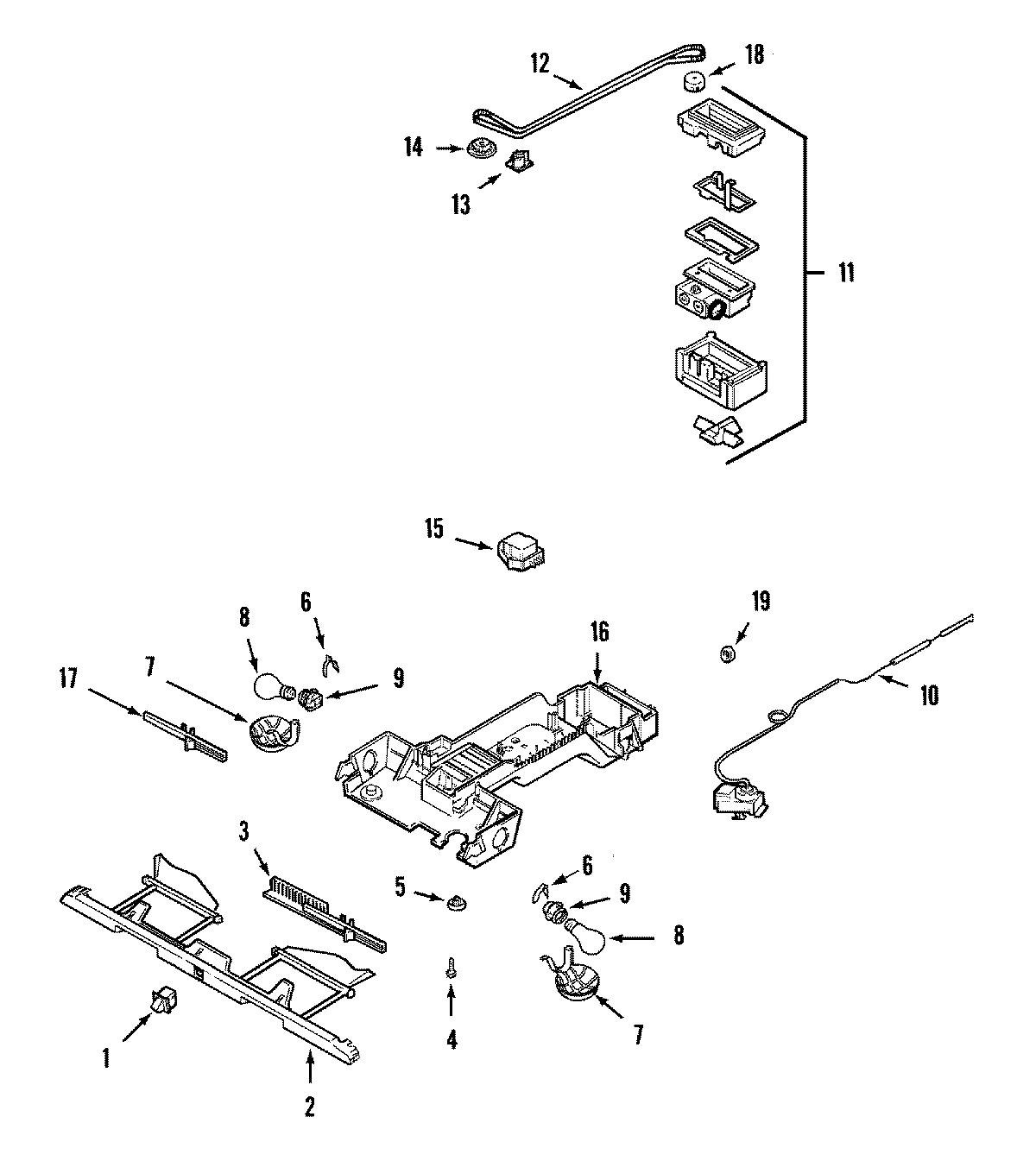

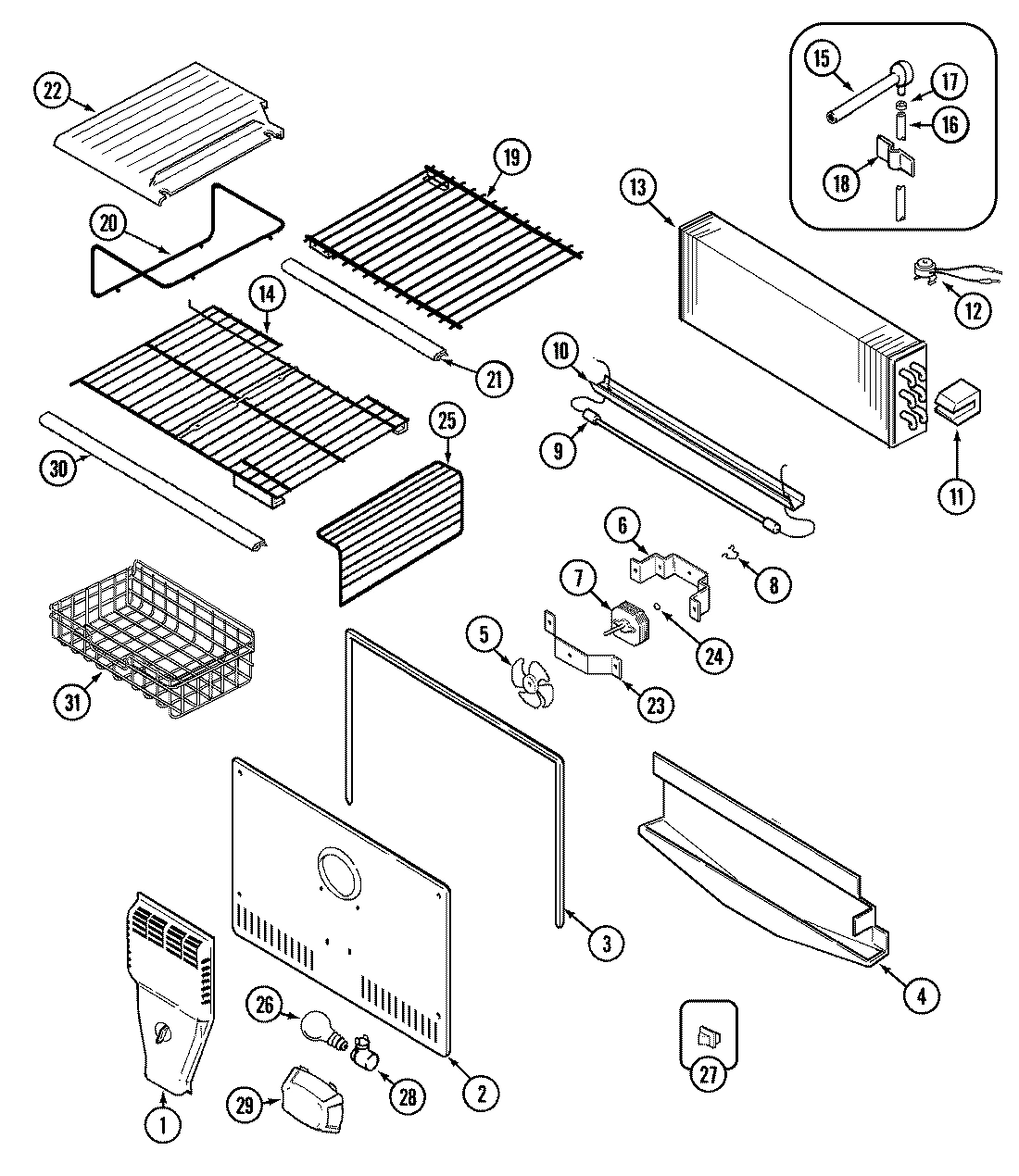

Model Whirlpool JTF2688AEA REFRIGERATOR – Common Parts &amp; Diagrams

1

W11384469 Whirlpool Door Switch In Stock WPL W11384469 $15.76

1

PANEL, F.F. DOOR (ALM) WPL 61002874 Contact Us For Availability

1

PANEL, FRZ. DOOR (ALM) WPL 61002883 Contact Us For Availability

1

MOLD & HEATER ASSY. WPL 950981 Contact Us For Availability

1

GREASE, SILICONE WPL 950991 Contact Us For Availability

1

INSUL., FRZ. LINER SUPPORT WPL 61002228 Contact Us For Availability

1

INSULATION, LINER SUPPORT WPL 61002674 Contact Us For Availability

1

LINER, FRZ. DOOR WPL 61002885 Contact Us For Availability

1

SLIDE, CONTROL WPL 61002302 Contact Us For Availability

1

SCREW WPL 61002584 Contact Us For Availability

1

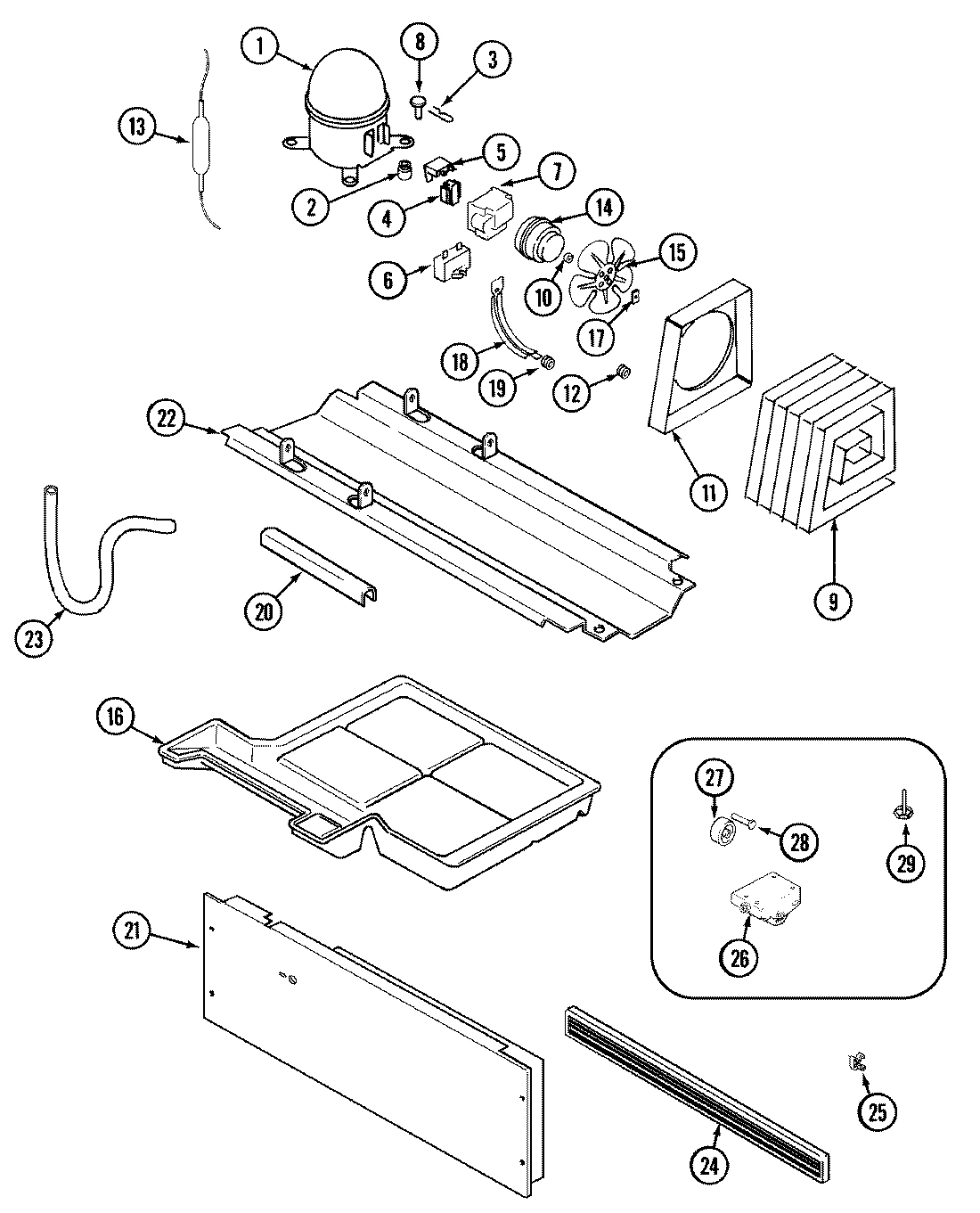

WIRE HARNESS, COMPRESSOR WPL 61002223 Contact Us For Availability

1

TUNNEL, AIR WPL 61003553 Contact Us For Availability

2

WP489474 Whirlpool Refrigerator Screw Backorder WPL WP489474 $2.79

2

DOOR, DAIRY WPL 61002877 Contact Us For Availability

2

HANDLE, F.F. DOOR (ALM) WPL 61003555 Contact Us For Availability

2

NAMEPLATE (ALM) WPL 61002063 Contact Us For Availability

2

INLET, WATER WPL 951001 Contact Us For Availability

2

PANEL, CONTROL WPL 61002844 Contact Us For Availability

2

SEAL, FRZ. DOOR (WHT) WPL 61002886 Contact Us For Availability

2

SHELF, MEAT WPL 61002845 Contact Us For Availability

2

GROMMET, COMPRESSOR WPL 172454 Contact Us For Availability

2

COVER, EVAPORATOR WPL 61002862 Contact Us For Availability

3

WP854334 Whirlpool Air Conditioner Sealing St Backorder WPL WP854334 $5.80

3

TRAY, EGG WPL 672152 Contact Us For Availability

3

PLUG BUTTON (ALM) WPL 61001796 Contact Us For Availability

3

HANDLE, FRZ. DOOR (ALM) WPL 61003558 Contact Us For Availability

3

EJECTOR, ICE WPL 951011 Contact Us For Availability

3

SLIDE, CONTROL (FRZ.) WPL 61002295 Contact Us For Availability

3

FRONT, PICK-OFF WPL 61002888 Contact Us For Availability

3

BAFFLE, MEAT SHELF WPL 61002846 Contact Us For Availability

3

CLIP WPL 527782 Contact Us For Availability

3

SEAL, EVAPORATOR COVER WPL 61002863 Contact Us For Availability

4

61002719 Whirlpool Refrigerator Stop Bucket Backorder WPL 61002719 $9.78

4

WP61002231 Whirlpool Refrigerator Washer Hing Backorder WPL WP61002231 $5.10

4

BUCKET, TIP OUT WPL 61002878 Contact Us For Availability

4

PLUG BUTTON, HANDLE TOP (ALM) WPL 676783 Contact Us For Availability

4

STRIPPER, ICE WPL 951021 Contact Us For Availability

4

SCREW WPL 61002984 Contact Us For Availability

4

BASKET, TILT-OUT WPL 61002889 Contact Us For Availability

4

RAIL, MEAT PAN (LT) WPL 61002304 Contact Us For Availability

4

RAIL, MEAT PAN (RT) WPL 61002653 Contact Us For Availability

4

RELAY, START WPL 688572 Contact Us For Availability

4

TRAY, DRIP WPL 61002865 Contact Us For Availability

5

SHELF, PICK-OFF WPL 61002879 Contact Us For Availability

5

SCREW WPL 61002025 Contact Us For Availability

5

SUPPORT, MODULE HOUSING WPL 951031 Contact Us For Availability

5

SCREW WPL 951061 Contact Us For Availability

5

GEAR, CONTROL (F.F.) WPL 61002288 Contact Us For Availability

5

STOP, BASKET (RT) WPL 61002379 Contact Us For Availability

5

STOP, BASKET (LT) WPL 61002380 Contact Us For Availability

5

LINKAGE, ACTUATOR WPL 61002847 Contact Us For Availability

5

OVERLOAD WPL 61002037 Contact Us For Availability

5

BLADE, FAN WPL 61002044 Contact Us For Availability

6

ORGANIZER, SHELF WPL 61002274 Contact Us For Availability

6

HINGE, LOWER (ALM) WPL 61001919 Contact Us For Availability

6

SHIM, UPPER HINGE WPL 61001922 Contact Us For Availability

6

RETAINER, THERMOSTAT WPL 951041 Contact Us For Availability

6

CLIP, RECEPTACLE WPL 61002117 Contact Us For Availability

6

SHELF, SPILLPROOF WPL 61002848 Contact Us For Availability

6

SCREW WPL 4000171 Contact Us For Availability

6

CAPACITOR, RUN WPL 61002137 Contact Us For Availability

6

BRACKET, EVAPORATOR FAN WPL 61001930 Contact Us For Availability

7

WP61002138 Whirlpool Refrigerator Terminal Co Backorder WPL WP61002138 $4.56

7

WP61004888 Whirlpool Refrigerator Evaporator In Stock WPL WP61004888 $64.53

7

SEAL, F.F. DOOR (WHT) WPL 61002880 Contact Us For Availability

7

SHIM, LOWER HINGE WPL 61001926 Contact Us For Availability

7

HINGE, UPPER WPL 61001971 Contact Us For Availability

7

PAN, ICE WPL 61001886 Contact Us For Availability

7

GUARD, LIGHT WPL 61002286 Contact Us For Availability

7

SCREW WPL 4000221 Contact Us For Availability

7

SCREW WPL 40003728 Contact Us For Availability

7

RAIL, CANT. SHELF WPL 61002253 Contact Us For Availability

7

RAIL, SHELF SUPPORT (LT/RT) WPL 61002254 Contact Us For Availability

8

W10887190 Whirlpool Refrigerator Light Bulb In Stock WPL W10887190 $7.18

8

WP61003071 Whirlpool Refrigerator Clip Backorder WPL WP61003071 $4.67

8

RETAINER, BOTTLE WPL 61002273 Contact Us For Availability

8

SCREW WPL 61002924 Contact Us For Availability

8

SLEEVE, BRASS WPL 694311 Contact Us For Availability

8

GLASS, CRISPER SHELF WPL 61002849 Contact Us For Availability

8

PLUG, COMPRESSOR WPL 526562 Contact Us For Availability

9

WP61001925 Whirlpool Refrigerator Lower Pin Backorder WPL WP61001925 $18.43

9

WPW10119935 Whirlpool Refrigerator Socket Backorder WPL WPW10119935 $38.22

9

ORGANIZER, DAIRY COMPT. WPL 61002367 Contact Us For Availability

9

HINGE, CENTER (ALM) WPL 61001921 Contact Us For Availability

9

BRACKET, MODULE & HEATER WPL 951071 Contact Us For Availability

9

SCREW, BRACKET WPL 951081 Contact Us For Availability

9

SEAL, CRISPER SHELF (REAR) WPL 61002850 Contact Us For Availability

9

CONDENSER WPL 61002841 Contact Us For Availability

9

HEATER, DEFROST WPL 61002866 Contact Us For Availability

3400112 Whirlpool Refrigerator Screw Backorder WPL 3400112 $32.59

WP61002043 Whirlpool Refrigerator Control Backorder WPL WP61002043 $111.48

SCREW WPL 4000311 Contact Us For Availability

ICEMAKER WPL 951091 Contact Us For Availability

SCREW WPL 6527581 Contact Us For Availability

SHELF, CRISPER WPL 61002851 Contact Us For Availability

WASHER, FAN BLADE WPL 61001686 Contact Us For Availability

SHIELD, DEFROST HEATER WPL 61002867 Contact Us For Availability

W10856122 Whirlpool Refrigerator Screw Backorder WPL W10856122 $2.55

SCREW WPL 61001876 Contact Us For Availability

STOP, DOOR WPL 61001969 Contact Us For Availability

STOP, DOOR (ALM) WPL 61004486 Contact Us For Availability

WIRE HARNESS, ICE MAKER WPL 61001882 Contact Us For Availability

DAMPER/INSULATION KIT WPL 61002092 Contact Us For Availability

FRAME, SPILLPROOF SHELF WPL 61002860 Contact Us For Availability

FRAME, CAN RACK WPL 61002861 Contact Us For Availability

SHROUD, CONDENSER WPL 61001941 Contact Us For Availability

SUPPORT, EVAPORATOR (LT) WPL 61001953 Contact Us For Availability

SUPPORT, EVAPORATOR (RT) WPL 61001954 Contact Us For Availability

WP61002992 Whirlpool Defrost Thermostat Backorder WPL WP61002992 $59.19

EXTENSION, HANDLE (ALM) WPL 61002072 Contact Us For Availability

COVER, UPPER HINGE (ALM) WPL 61002077 Contact Us For Availability

ARM, SENSOR WPL 681121 Contact Us For Availability

BELT, DAMPER WPL 61002650 Contact Us For Availability

PAN, MEAT WPL 61002859 Contact Us For Availability

GROMMET, CONDENSER TUBING WPL 61002033 Contact Us For Availability

PLUG BUTTON, HINGE CUP (ALM) WPL 61001909 Contact Us For Availability

END CAP, HANDLE (ALM) WPL 61002074 Contact Us For Availability

COVER, ICE MAKER WPL 61001239 Contact Us For Availability

TENSIONER, BELT WPL 61002289 Contact Us For Availability

FRONT, MEAT PAN WPL 61002858 Contact Us For Availability

DRIER WPL 139001 Contact Us For Availability

EVAP/HEAT EXCH. ASSY. 26` WPL 12001399 Contact Us For Availability

833697 Whirlpool Condenser Fan Motor In Stock WPL 833697 $41.18

PLUG BUTTON, HINGE (ALM) WPL 61001924 Contact Us For Availability

CLAMP, TUBING WPL 535168 Contact Us For Availability

GEAR, DAMPER BELT (FRT) WPL 61002291 Contact Us For Availability

RACK, CAN WPL 61002406 Contact Us For Availability

SCREW WPL 6527533 Contact Us For Availability

SHELF, FRZ. WPL 61002868 Contact Us For Availability

WP61005273 Whirlpool Refrigerator Inlet Valve In Stock WPL WP61005273 $36.49

WP8281227 Whirlpool Screw In Stock WPL WP8281227 $4.65

SCREW WPL 4050071 Contact Us For Availability

TIMER, DEFROST WPL 682333 Contact Us For Availability

SCREW, ROLLER WPL 61002308 Contact Us For Availability

BLADE, CONDENSER FAN WPL 606831 Contact Us For Availability

GROMMET, WATER ENTRY WPL 61001888 Contact Us For Availability

WPB5705307 Whirlpool Refrigerator Tube In Stock WPL WPB5705307 $7.51

SHIELD, HEAT (LT) WPL 61002296 Contact Us For Availability

SHIELD, HEAT (RT) WPL 61002297 Contact Us For Availability

HOUSING, CONTROL WPL 61002651 Contact Us For Availability

ROLLER WPL 61002307 Contact Us For Availability

PAN, DRAIN WPL 61002649 Contact Us For Availability

WP486692 Whirlpool Refrigerator Nut Backorder WPL WP486692 $3.76

WP488878 Whirlpool Refrigerator Tube Clamp Backorder WPL WP488878 $4.89

SLIDE, CONTROL (F.F.) WPL 61002294 Contact Us For Availability

SLIDE, CONTROL WPL 61002348 Contact Us For Availability

CLIP, WATER LINE (ADHESIVE) WPL 61001889 Contact Us For Availability

NUT, COMPRESSION (1/4``) WPL 695831 Contact Us For Availability

GEAR, DAMPER BELT (REAR) WPL 61002292 Contact Us For Availability

SUPPORT, CRISPER SHELF WPL 677641 Contact Us For Availability

BRACKET, FAN MOTOR WPL 691811 Contact Us For Availability

WP694424 Whirlpool Limiter In Stock WPL WP694424 $12.57

SEAL, DRAIN WPL 61001977 Contact Us For Availability

PAN, CRISPER WPL 61002855 Contact Us For Availability

GROMMET, BRACKET WPL 569331 Contact Us For Availability

SHELF, FRZ. (UPPER) WPL 61002871 Contact Us For Availability

THERMOSTAT WPL 950921 Contact Us For Availability

CEMENT, ALUMILASTIC (4 OZ.) WPL 950931 Contact Us For Availability

WIRE HARNESS, CONTROLS WPL 61002316 Contact Us For Availability

FRONT, CRISPER PAN WPL 61002856 Contact Us For Availability

ISOLATOR, CONDENSER WPL 61001974 Contact Us For Availability

LEG, SHELF (UPPER) WPL 61002715 Contact Us For Availability

SCREW WPL 652755 Contact Us For Availability

RAIL, CRISPER SUPPORT WPL 61002857 Contact Us For Availability

COVER, COMPRESSOR COMPARTMENT WPL 61002842 Contact Us For Availability

SCREW WPL 6527549 Contact Us For Availability

TRIM, FRZ. SHELF (UPPER) WPL 61002872 Contact Us For Availability

22

WP67006715 Whirlpool Refrigerator Screw Backorder WPL WP67006715 $3.76

22

PAN, COMPRESSOR MTG. WPL 61002843 Contact Us For Availability

22

SHELF, ICE TRAY WPL 61002712 Contact Us For Availability

23

WP489399 Whirlpool Refrigerator Screw Backorder WPL WP489399 $2.51

23

TUBE, DRAIN TRAP WPL 61002214 Contact Us For Availability

23

RETAINER, EVAPORATOR FAN WPL 61002234 Contact Us For Availability

24

KICKPLATE W/CLIPS (ALM) WPL 61002853 Contact Us For Availability

24

BUSHING, EVAPORATOR FAN WPL 61002235 Contact Us For Availability

25

CLIP, KICKPLATE WPL 61001975 Contact Us For Availability

25

LEG, FRZ. SHELF WPL 61002662 Contact Us For Availability

26

SCREW WPL 4000161 Contact Us For Availability

26

WHEEL ASSY. (FRT) WPL 61002066 Contact Us For Availability

26

BULB, LIGHT WPL 319561 Contact Us For Availability

27

WP61003826 Whirlpool Wheel Backorder WPL WP61003826 $3.76

27

SWITCH, LIGHT WPL 669871 Contact Us For Availability

28

RECEPTACLE, BULB WPL 689743 Contact Us For Availability

29

LEG, LEVELING WPL 61002014 Contact Us For Availability

29

SHIELD, LIGHT WPL 61002272 Contact Us For Availability

30

MANUAL, USE & CARE WPL 61003552 Contact Us For Availability

30

TRIM, FRZ. SHELF WPL 61002869 Contact Us For Availability

31

MANUAL, SERVICE-NO REFUND WPL 16008248 Contact Us For Availability

31

CLIP, BASKET WPL 61002356 Contact Us For Availability

31

BASKET, FRZ. WPL 61002870 Contact Us For Availability

32

WIRE HARNESS, FRZ. WPL 61003004 Contact Us For Availability

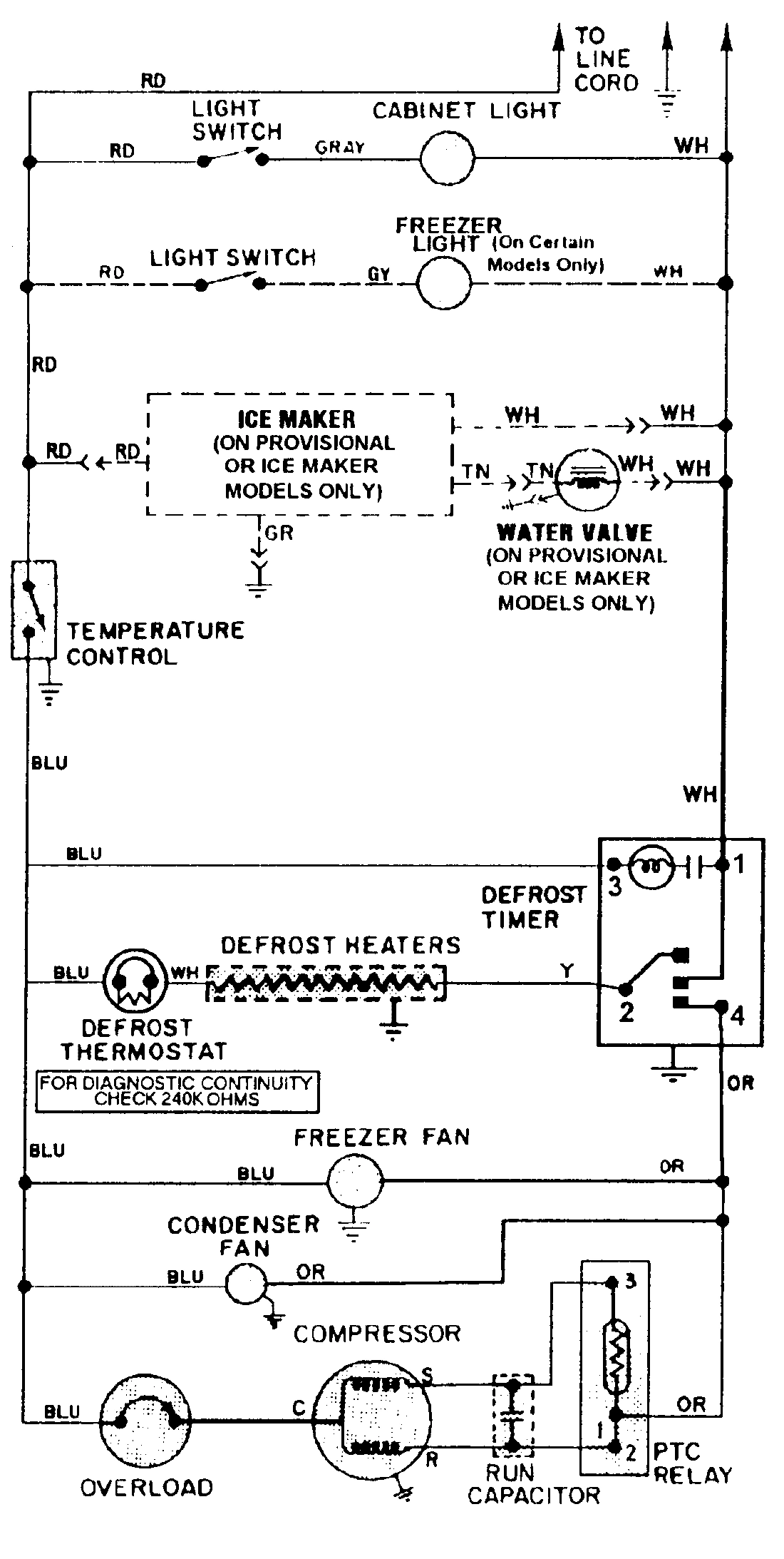

NI

WIRING INFORMATION WPL 15002191 Contact Us For Availability
